TOYOTA C-HR 2022 Owners Manual

5996-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care
Engine compar tment
2ZR-FXE engine
Washer fluid tank (P. 6 1 1 )
Engine coolant reservoir
( P. 604)
Fuse boxes ( P. 648)
Engine oil level dipstick
( P. 601)
Engine oil filler cap ( P. 602)
Power control unit coolant
reservoir ( P. 6 0 4 )
12-volt battery ( P. 6 0 6 )
Radiator ( P. 6 0 6 )
Condenser ( P. 6 0 6 )
Electric cooling fans

6006-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
M20A-FXS engine
■12-volt battery (M20A-FXS engine)
 P. 612
Washer fluid tank (P. 6 1 1 )
Engine coolant reservoir
( P. 604)
Fuse boxes ( P. 648)
Power control unit coolant res-
ervoir ( P. 604)
Engine oil filler cap ( P. 6 0 2 )
Engine oil level dipstick
( P. 6 0 1 )
Radiator ( P. 6 0 6 )
Condenser ( P. 6 0 6 )
Electric cooling fans

6016-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning off the hybrid system, wait more than 5 minutes for
the oil to drain back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end,
pull the dipstick out and
check the oil level.
Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
2ZR-FXE engineM20A-FXS engine
3
4
5
6

6026-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
■Adding engine oil
If the oil level is below or near the low level mark, add engin e oil of the
same type as that already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may ne ed to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
2ZR-FXE engineM20A-FXS engine
Engine oil selection P. 770
Oil quantity (Low  Full)1.5 L (1.6 qt., 1.3 lmp.qt.)
ItemsClean funnel
1
2
3

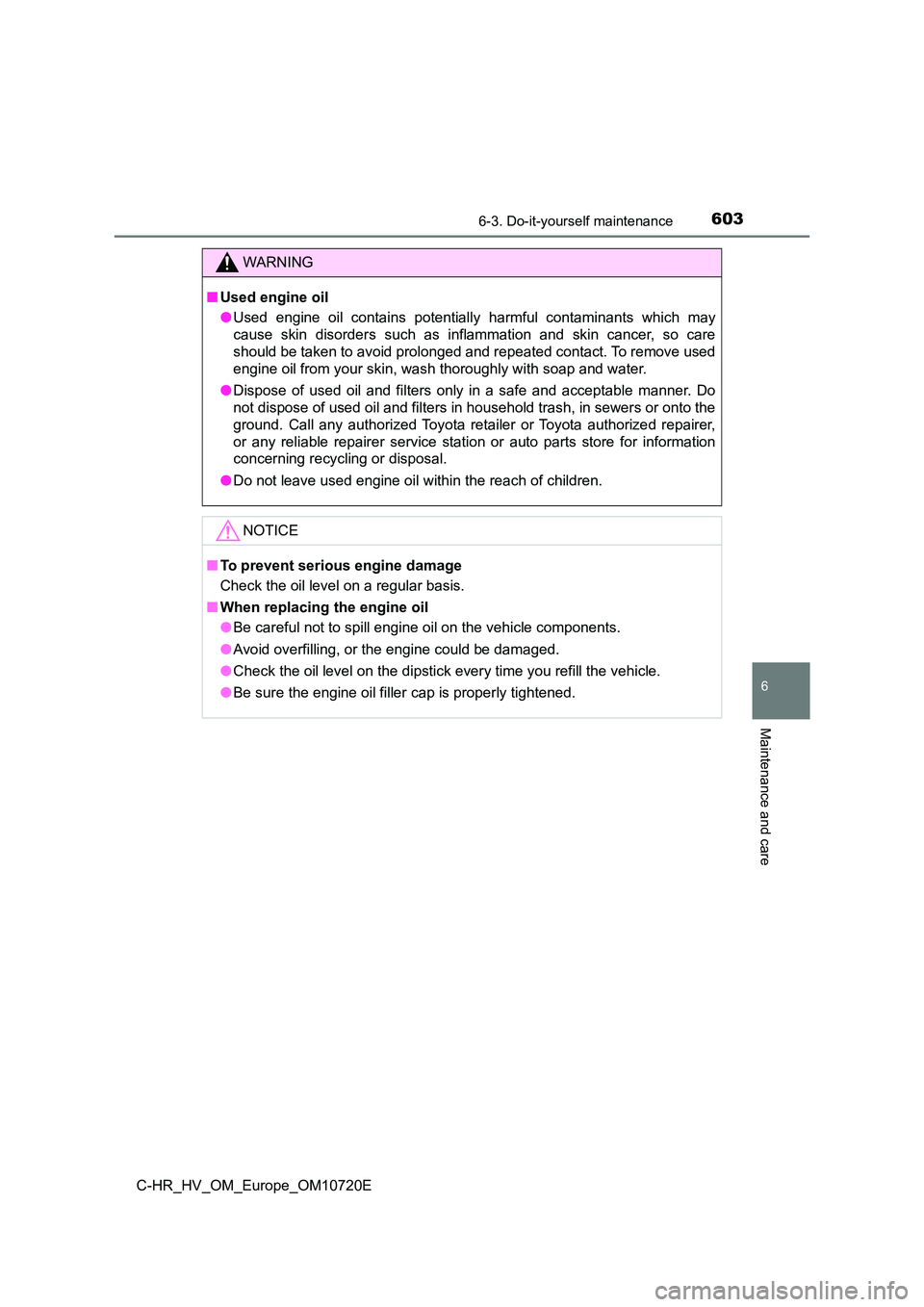

6036-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care
WARNING
■Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so c are
should be taken to avoid prolonged and repeated contact. To rem ove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewe rs or onto the
ground. Call any authorized Toyota retailer or Toyota authorize d repairer,
or any reliable repairer service station or auto parts store fo r information
concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

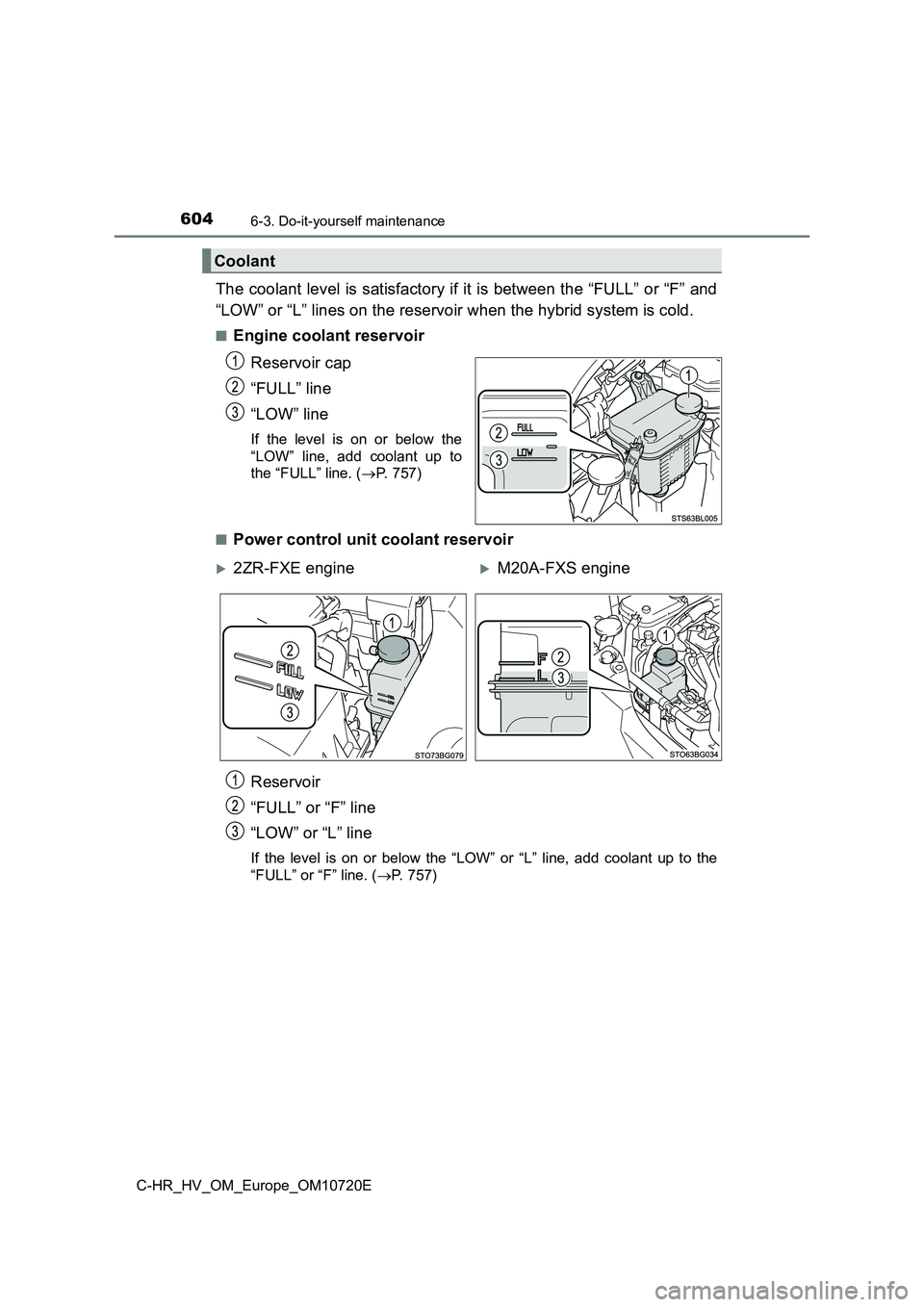

6046-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
The coolant level is satisfactory if it is between the “FULL” or “F” and
“LOW” or “L” lines on the reservoir when the hybrid system is c old.
■Engine coolant reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line. ( P. 757)
■Power control unit coolant reservoir
Reservoir
“FULL” or “F” line
“LOW” or “L” line
If the level is on or below the “LOW” or “L” line, add coolant up to the
“FULL” or “F” line. ( P. 757)
Coolant
2ZR-FXE engineM20A-FXS engine

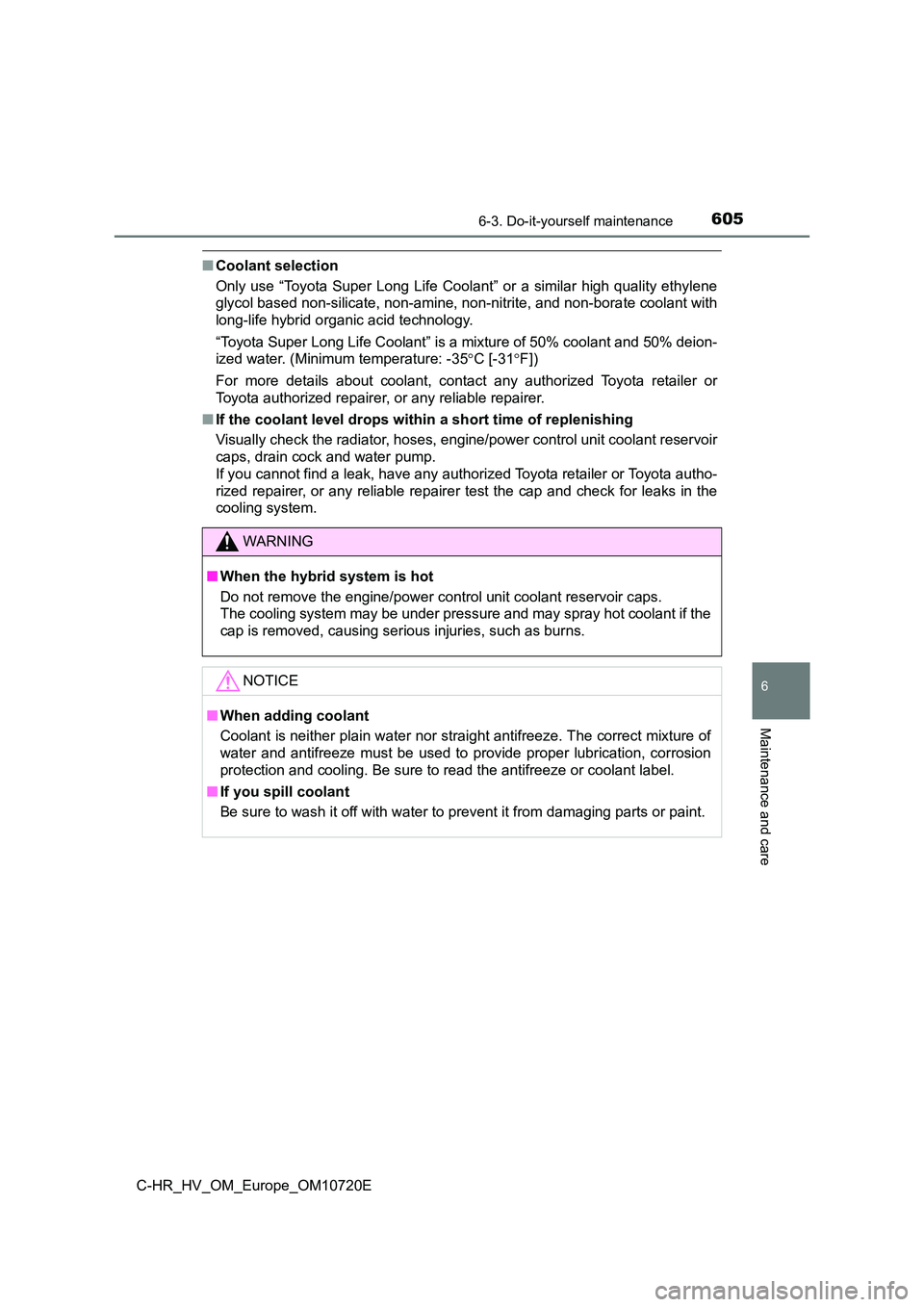

6056-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high qua lity ethylene
glycol based non-silicate, non-am ine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant an d 50% deion-
ized water. (Minimum temperature: -35 C [-31F])
For more details about coolant, contact any authorized Toyota r etailer or
Toyota authorized repairer, or any reliable repairer.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit c oolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer test the cap and check for leaks in the
cooling system.
WARNING
■ When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir c aps.
The cooling system may be under pressure and may spray hot cool ant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication , corrosion
protection and cooling. Be sure to read the antifreeze or coola nt label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging p arts or paint.

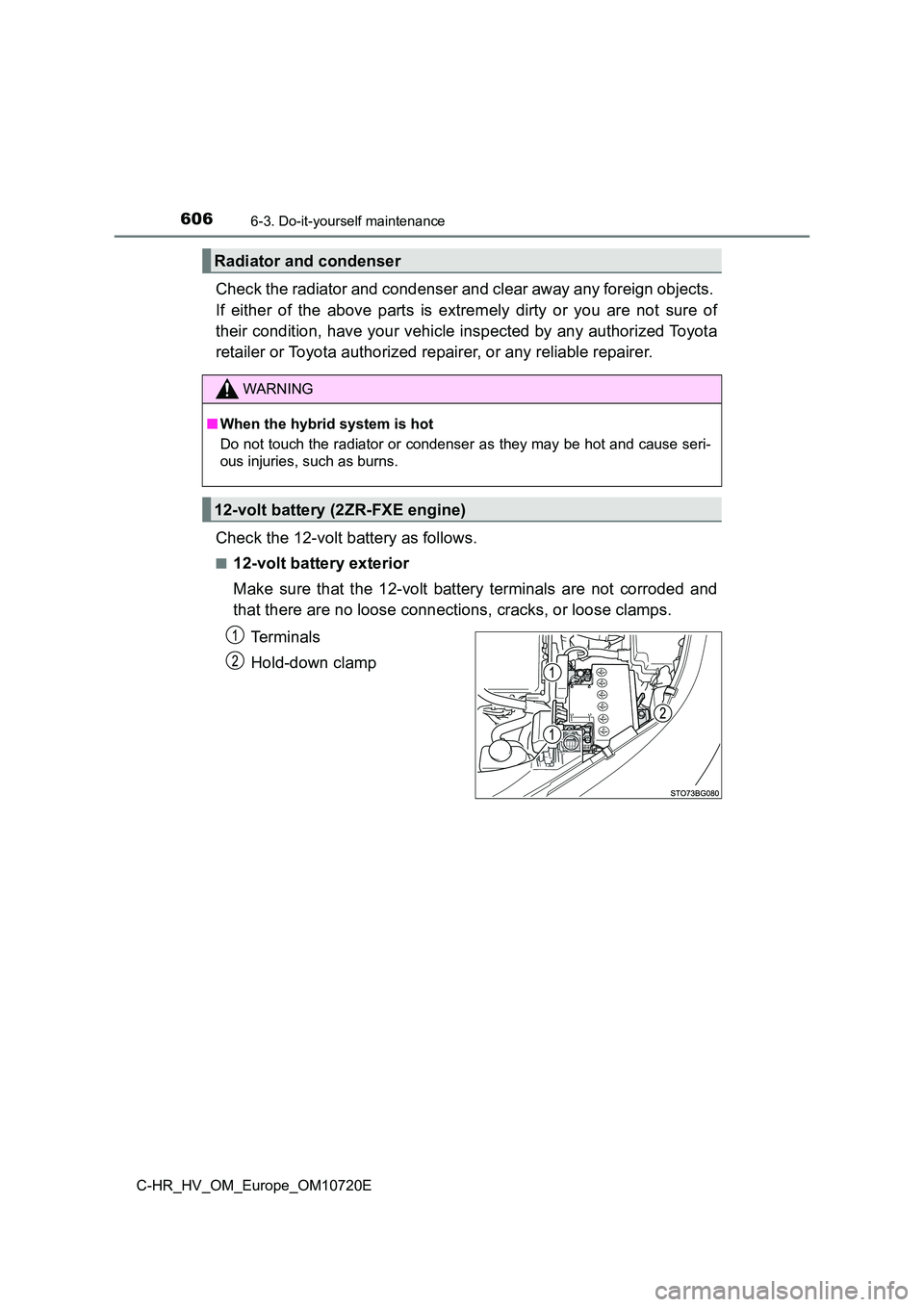

6066-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized To y o t a
retailer or Toyota authorized repairer, or any reliable repaire r.
Check the 12-volt battery as follows.
■12-volt battery exterior
Make sure that the 12-volt battery terminals are not corroded a nd
that there are no loose connections, cracks, or loose clamps.
Te r m i n a l s
Hold-down clamp
Radiator and condenser
WARNING
■ When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and c ause seri-
ous injuries, such as burns.
12-volt battery (2ZR-FXE engine)

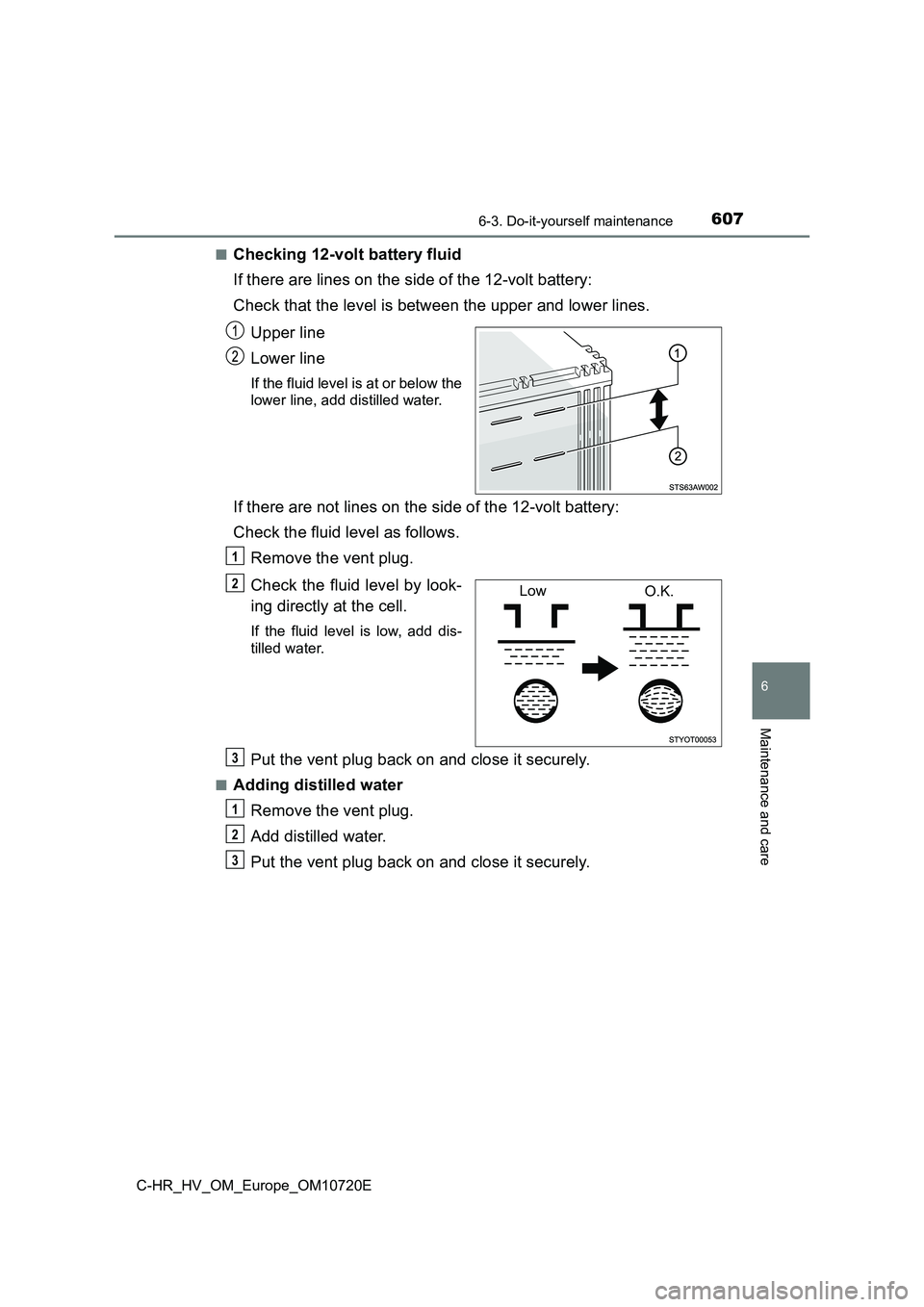

6076-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care
■Checking 12-volt battery fluid
If there are lines on the side of the 12-volt battery:
Check that the level is between the upper and lower lines.
Upper line
Lower line
If the fluid level is at or below the
lower line, add distilled water.
If there are not lines on the side of the 12-volt battery:
Check the fluid level as follows.
Remove the vent plug.
Check the fluid level by look-
ing directly at the cell.
If the fluid level is low, add dis-
tilled water.
Put the vent plug back on and close it securely.
■Adding distilled water
Remove the vent plug.
Add distilled water.
Put the vent plug back on and close it securely.
1
Low O.K.O
P
N
O
P

6086-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
■Before recharging
When recharging, the 12-volt battery produces hydrogen gas whic h is flam-
mable and explosive. Therefore, observe the following precautio ns before
recharging:
● If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.
■ After recharging/reconnecting the 12-volt battery
● The hybrid system may not start. Follow the procedure below to initialize the
system.
Shift the shift lever to P.
Open and close any of the doors.
Restart the hybrid system.
● Vehicles with entry function: Unlocking the doors using the smart entry &
start system may not be possible immediately after reconnecting the 12-volt
battery. If this happens, use the wireless remote control or th e mechanical
key to lock/unlock the doors.
● Start the hybrid system with the power switch in ACCESSORY mode. The
hybrid system may not start with the power switch turned off. H owever, the
hybrid system will operate normally from the second attempt.
● The power switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the power switch mode to t he status it
was in before the 12-volt battery was disconnected. Make sure t o turn off
the power switch before disconnect the 12-volt battery. Take ex tra care
when connecting the 12-volt battery if the power switch mode pr ior to dis-
charge is unknown.
If the system will not start even after multiple attempts at al l methods above,
contact any authorized Toyota retailer or Toyota authorized rep airer, or any
reliable repairer.
1
2
3
