5495-1. Using the air conditioning system and defogger
C-HR_HV_OM_Europe_OM10720E
5
Interior features

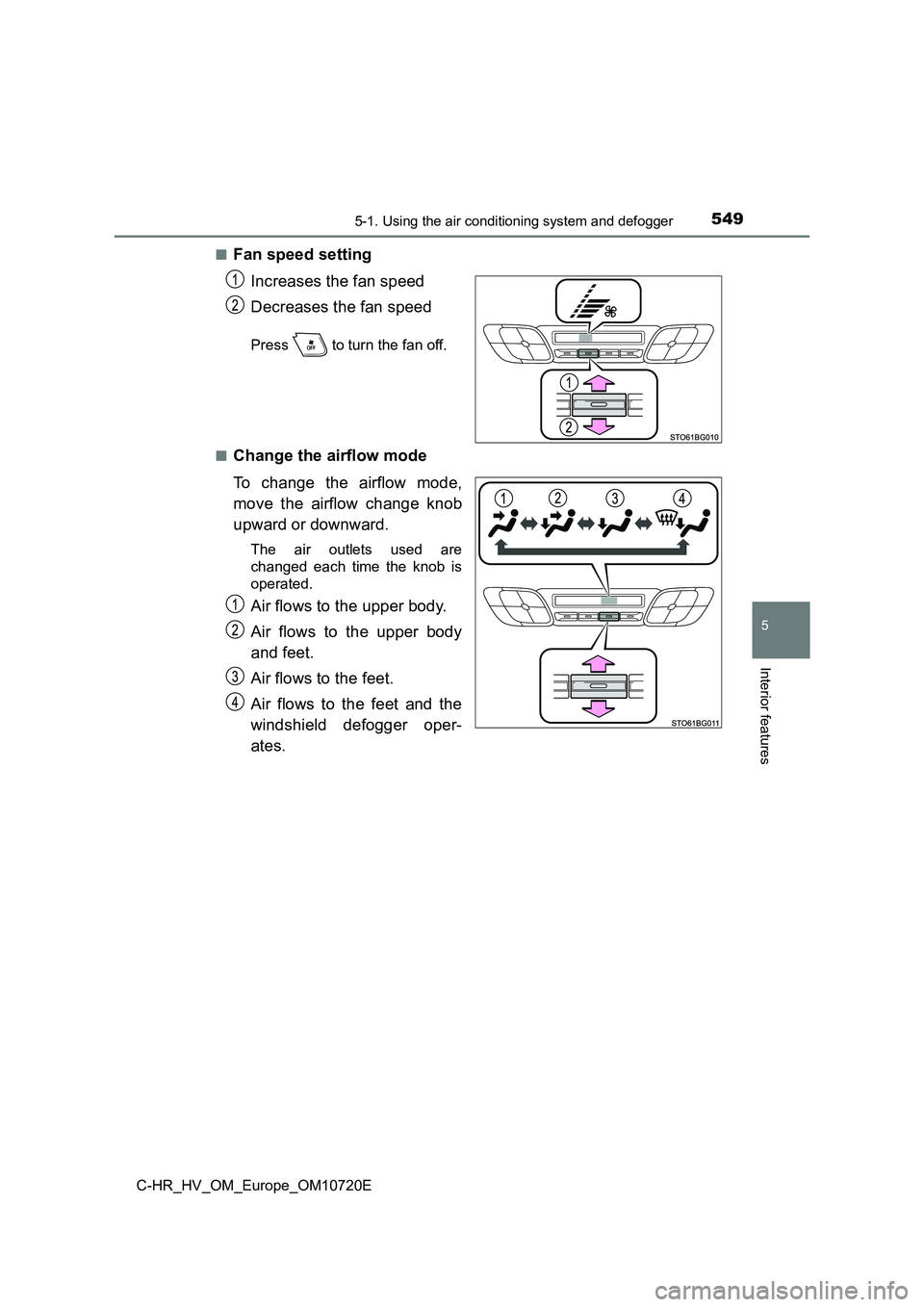

■Fan speed setting
Increases the fan speed
Decreases the fan speed
Press to turn the fan off.
■Change the airflow mode
To change the airflow mode,
move the airflow change knob
upward or downward.
The air outlets used are
changed each time the knob is
operated.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.

5505-1. Using the air conditioning system and defogger
C-HR_HV_OM_Europe_OM10720E

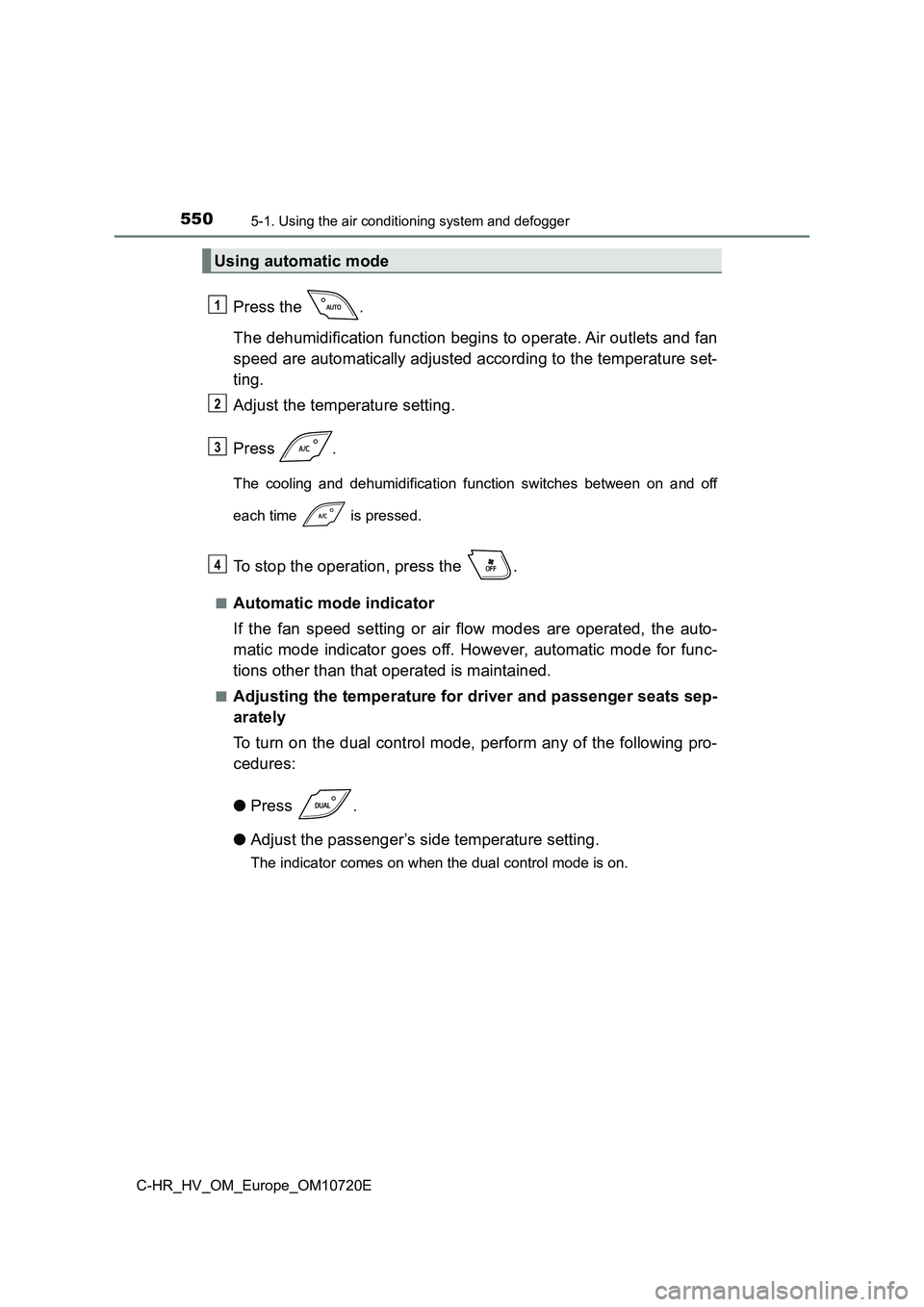

Press the .
The dehumidification function begins to operate. Air outlets an d fan
speed are automatically adjusted according to the temperature s et-
ting.
Adjust the temperature setting.
Press .
The cooling and dehumidification function switches between on a nd off
each time is pressed.
To stop the operation, press the .
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the au to-
matic mode indicator goes off. However, automatic mode for func -
tions other than that operated is maintained.
■Adjusting the temperature for driver and passenger seats sep-
arately
To turn on the dual control mode, perform any of the following pro-
cedures:
● Press .
● Adjust the passenger’s side temperature setting.
The indicator comes on when the dual control mode is on.
Using automatic mode
1
2
3
4

5515-1. Using the air conditioning system and defogger
C-HR_HV_OM_Europe_OM10720E
5
Interior features

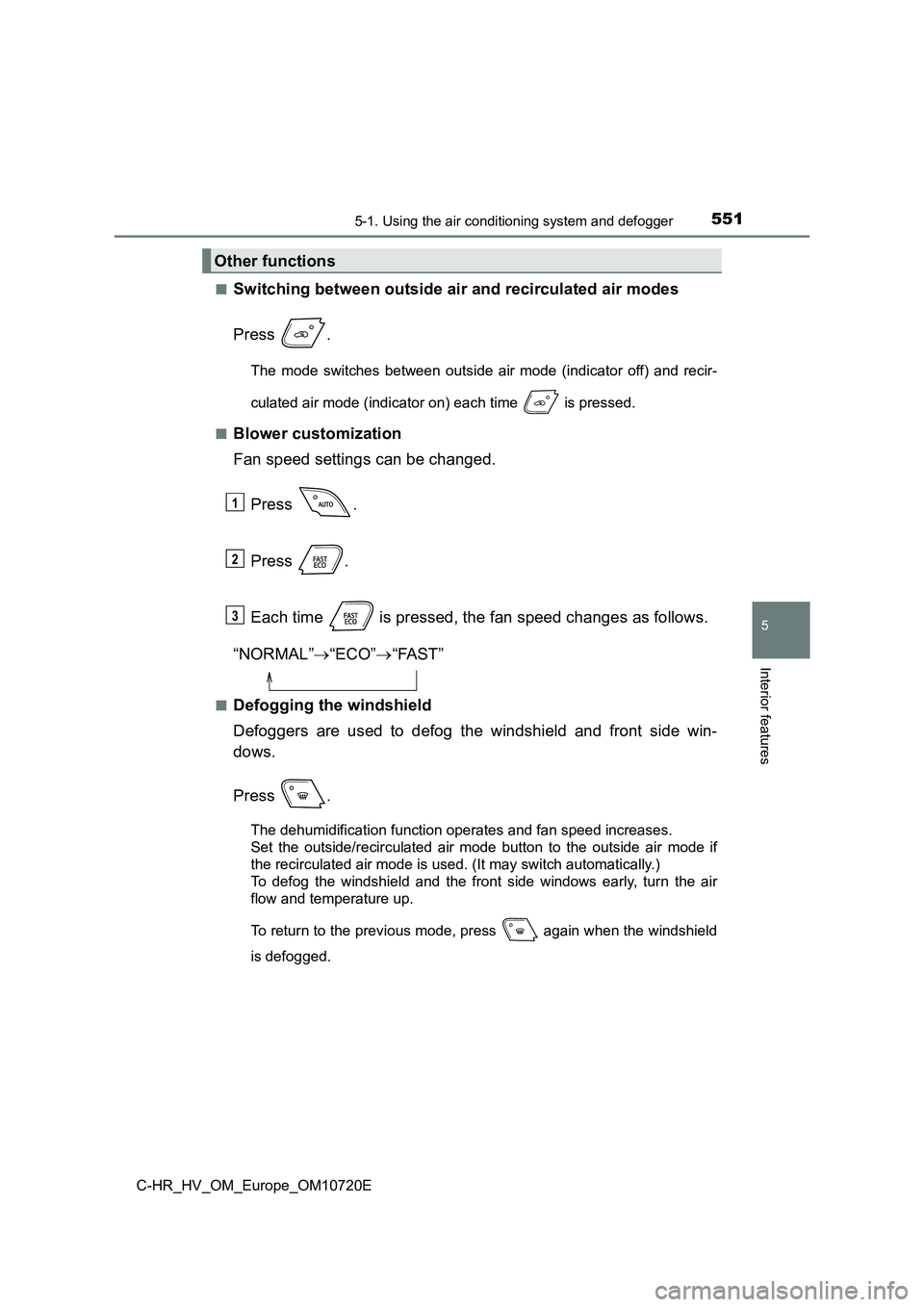

■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time is pressed.
■Blower customization
Fan speed settings can be changed.
Press .
Press .
Each time is pressed, the fan speed changes as follows.
“NORMAL” “ECO”“FAST”
■Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically .)
To defog the windshield and the front side windows early, turn the air
flow and temperature up.
To return to the previous mode, press again when the windshiel d
is defogged.
Other functions
1
2
3

5525-1. Using the air conditioning system and defogger
C-HR_HV_OM_Europe_OM10720E

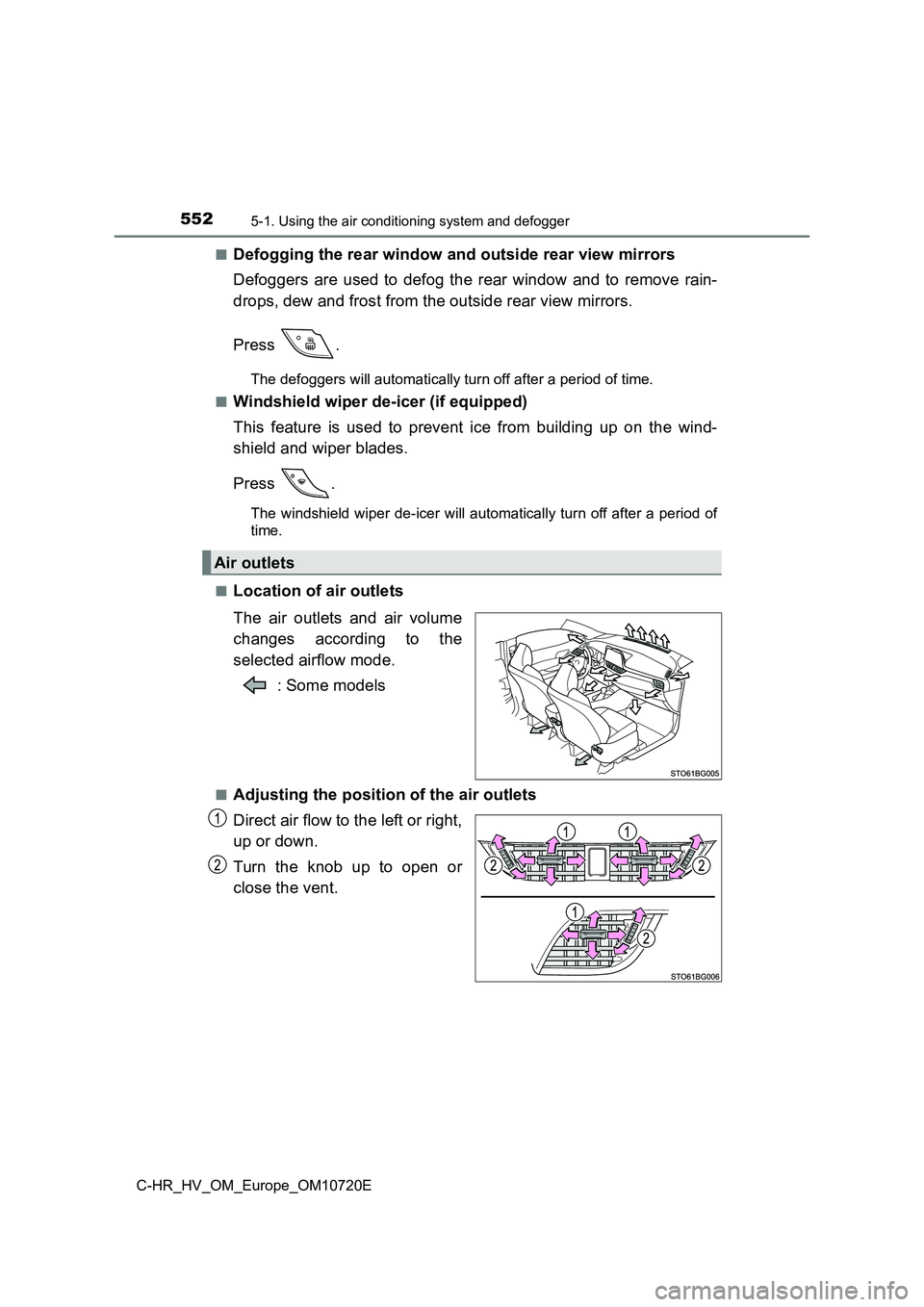

■Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of tim e.
■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the win d-
shield and wiper blades.
Press .
The windshield wiper de-icer will automatically turn off after a period of
time.
■Location of air outlets
The air outlets and air volume
changes according to the
selected airflow mode.
: Some models
■Adjusting the position of the air outlets
Direct air flow to the left or right,
up or down.
Turn the knob up to open or
close the vent.
Air outlets

5535-1. Using the air conditioning system and defogger
C-HR_HV_OM_Europe_OM10720E
5
Interior features

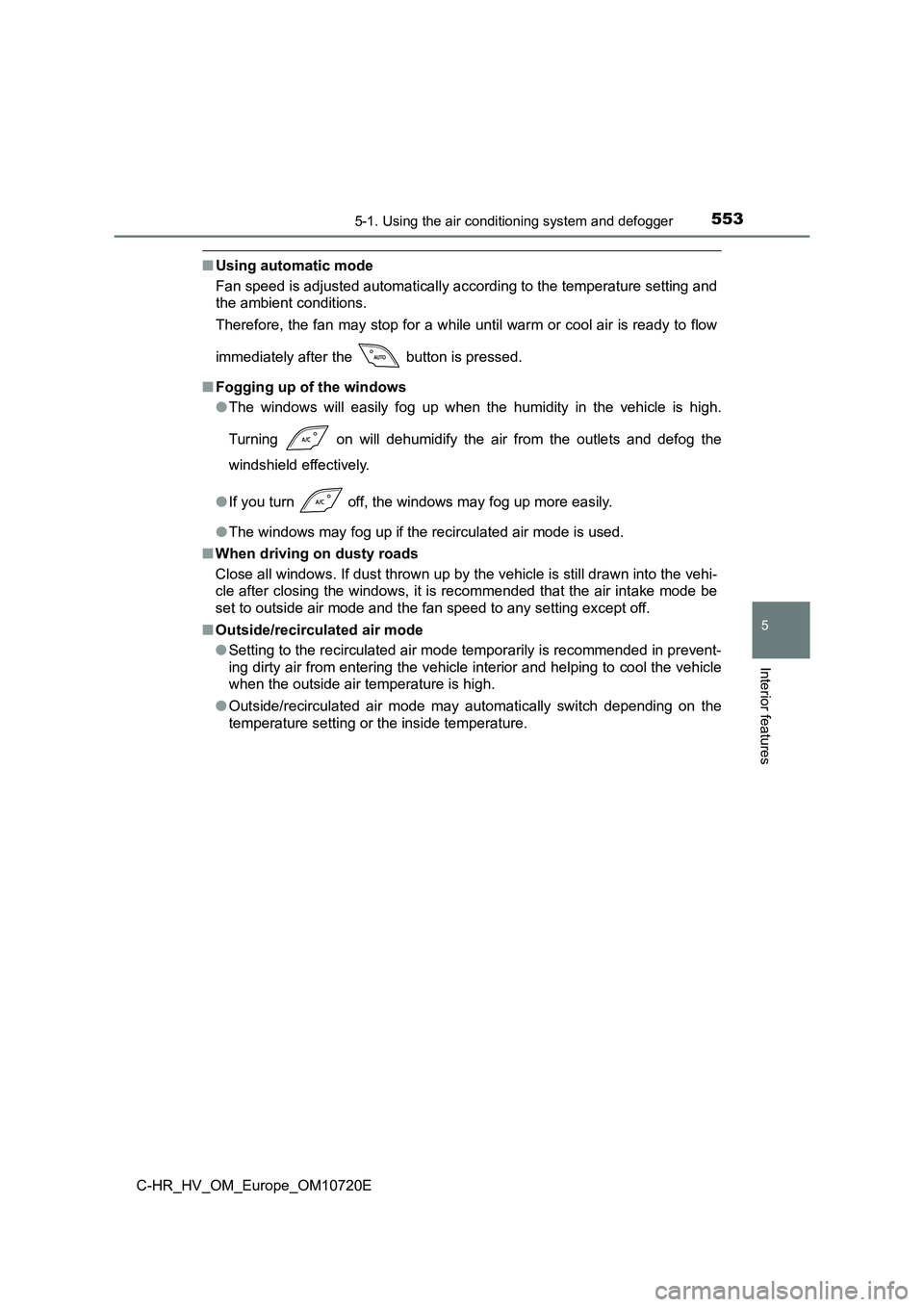

■Using automatic mode
Fan speed is adjusted automatically according to the temperatur e setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after the button is pressed.
■ Fogging up of the windows
● The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the
windshield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still dr awn into the vehi-
cle after closing the windows, it is recommended that the air i ntake mode be
set to outside air mode and the fan speed to any setting except off.
■ Outside/recirculated air mode
● Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.

5545-1. Using the air conditioning system and defogger
C-HR_HV_OM_Europe_OM10720E

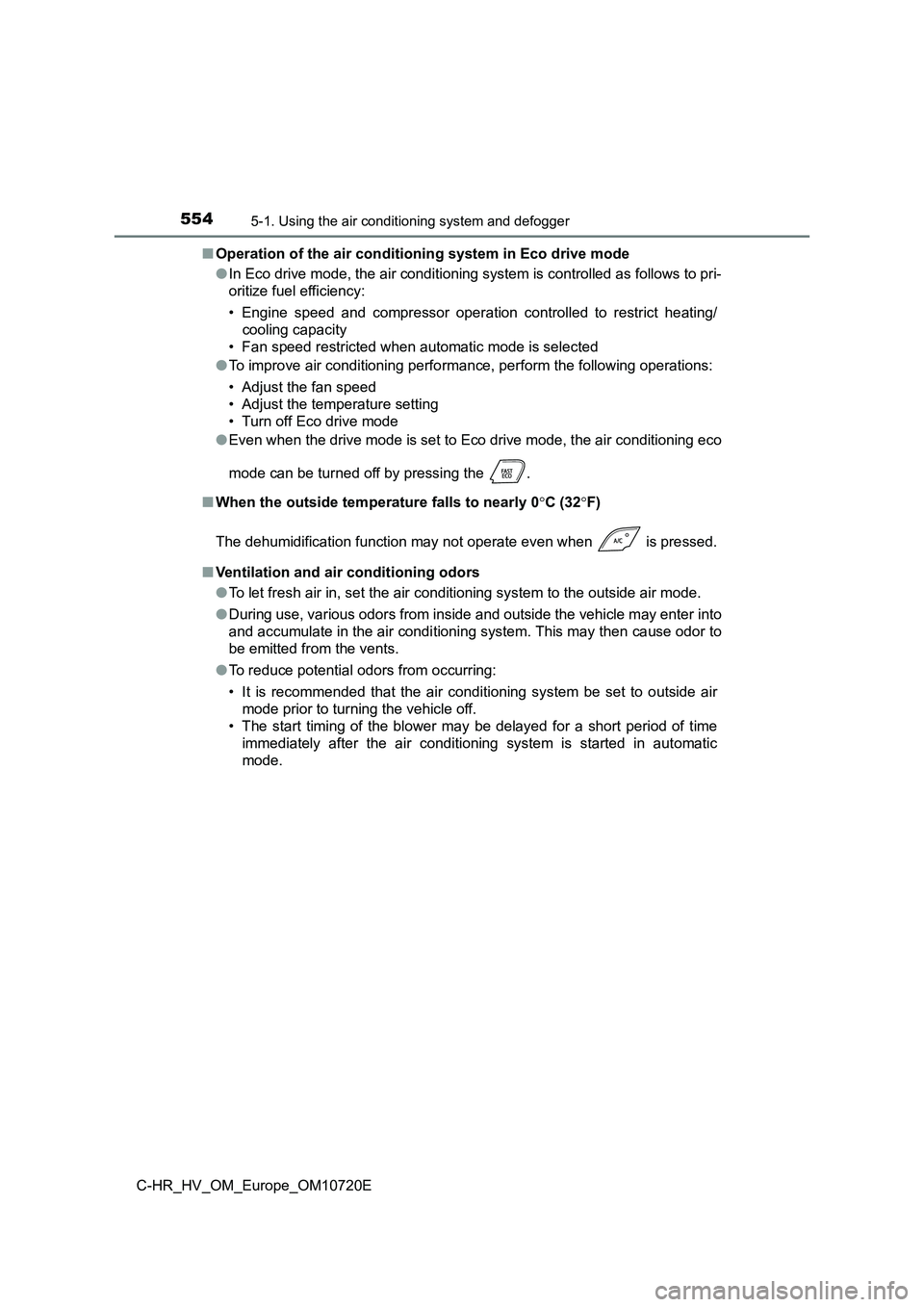

■ Operation of the air conditioning system in Eco drive mode
● In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
• Engine speed and compressor operation controlled to restrict h eating/
cooling capacity
• Fan speed restricted when automatic mode is selected
● To improve air conditioning performance, perform the following operations:
• Adjust the fan speed
• Adjust the temperature setting
• Turn off Eco drive mode
● Even when the drive mode is set to Eco drive mode, the air conditioning eco
mode can be turned off by pressing the .
■ When the outside temperature falls to nearly 0C (32F)
The dehumidification function may not operate even when is pre ssed.
■ Ventilation and air conditioning odors
● To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air condi tioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to o utside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short peri od of time
immediately after the air conditioning system is started in aut omatic
mode.

5555-1. Using the air conditioning system and defogger
C-HR_HV_OM_Europe_OM10720E
5
Interior features

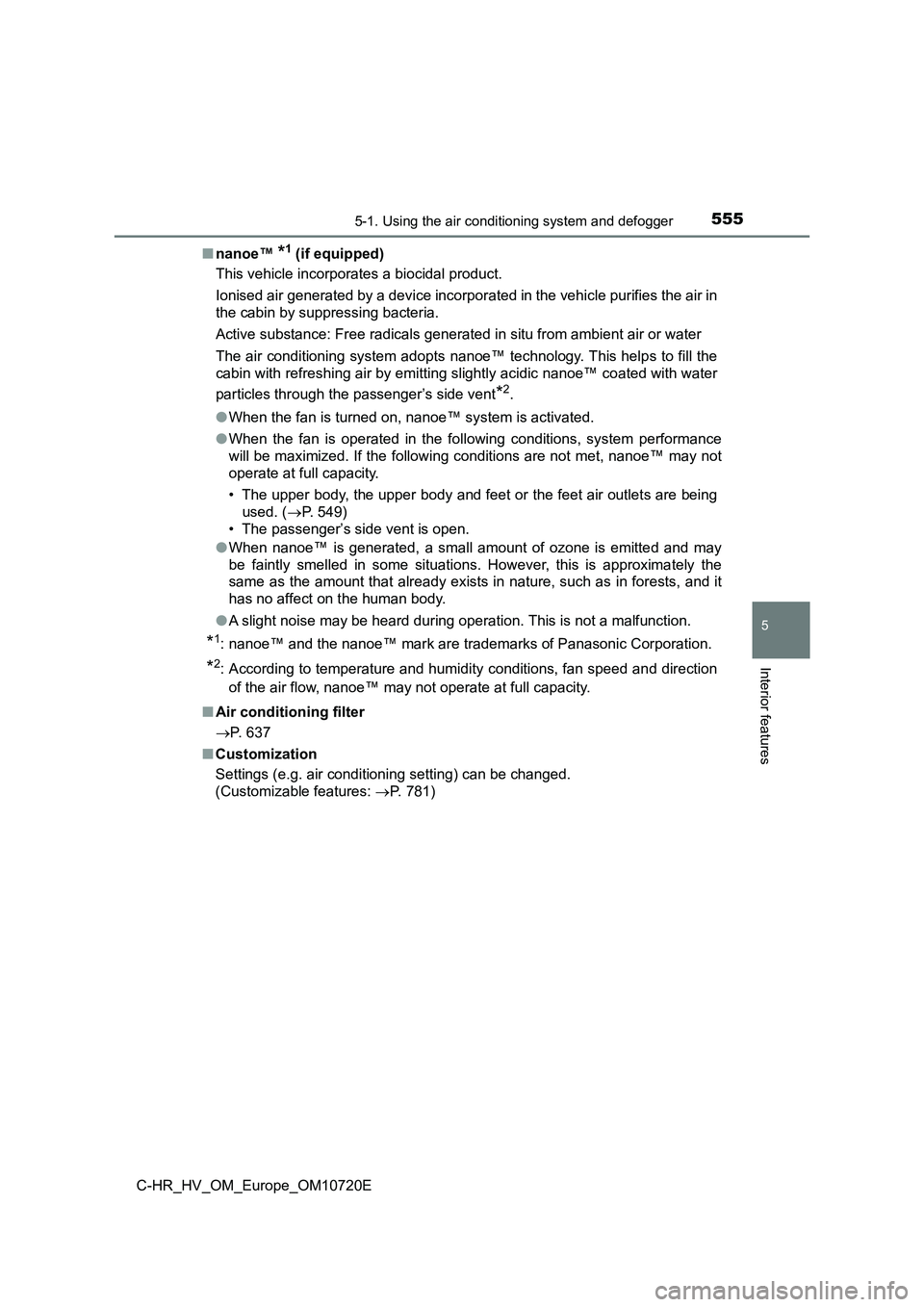

■nanoe™ *1 (if equipped)
This vehicle incorporates a biocidal product.
Ionised air generated by a device incorporated in the vehicle p urifies the air in
the cabin by suppressing bacteria.
Active substance: Free radicals generated in situ from ambient air or water
The air conditioning system adopts nanoe™ technology. This help s to fill the
cabin with refreshing air by emitting slightly acidic nanoe™ co ated with water
particles through the passenger’s side vent*2.
● When the fan is turned on, nanoe™ system is activated.
● When the fan is operated in the following conditions, system performance
will be maximized. If the following conditions are not met, nan oe™ may not
operate at full capacity.
• The upper body, the upper body and feet or the feet air outlet s are being
used. ( P. 549)
• The passenger’s side vent is open.
● When nanoe™ is generated, a small amount of ozone is emitted and may
be faintly smelled in some situations. However, this is approxi mately the
same as the amount that already exists in nature, such as in fo rests, and it
has no affect on the human body.
● A slight noise may be heard during operation. This is not a malfunction.
*1: nanoe™ and the nanoe™ mark are trademarks of Panasonic Corporation.
*2: According to temperature and humidity conditions, fan speed and direction
of the air flow, nanoe™ may not operate at full capacity.
■ Air conditioning filter
 P. 637
■ Customization
Settings (e.g. air conditioning setting) can be changed.
(Customizable features: P. 781)

5565-1. Using the air conditioning system and defogger
C-HR_HV_OM_Europe_OM10720E

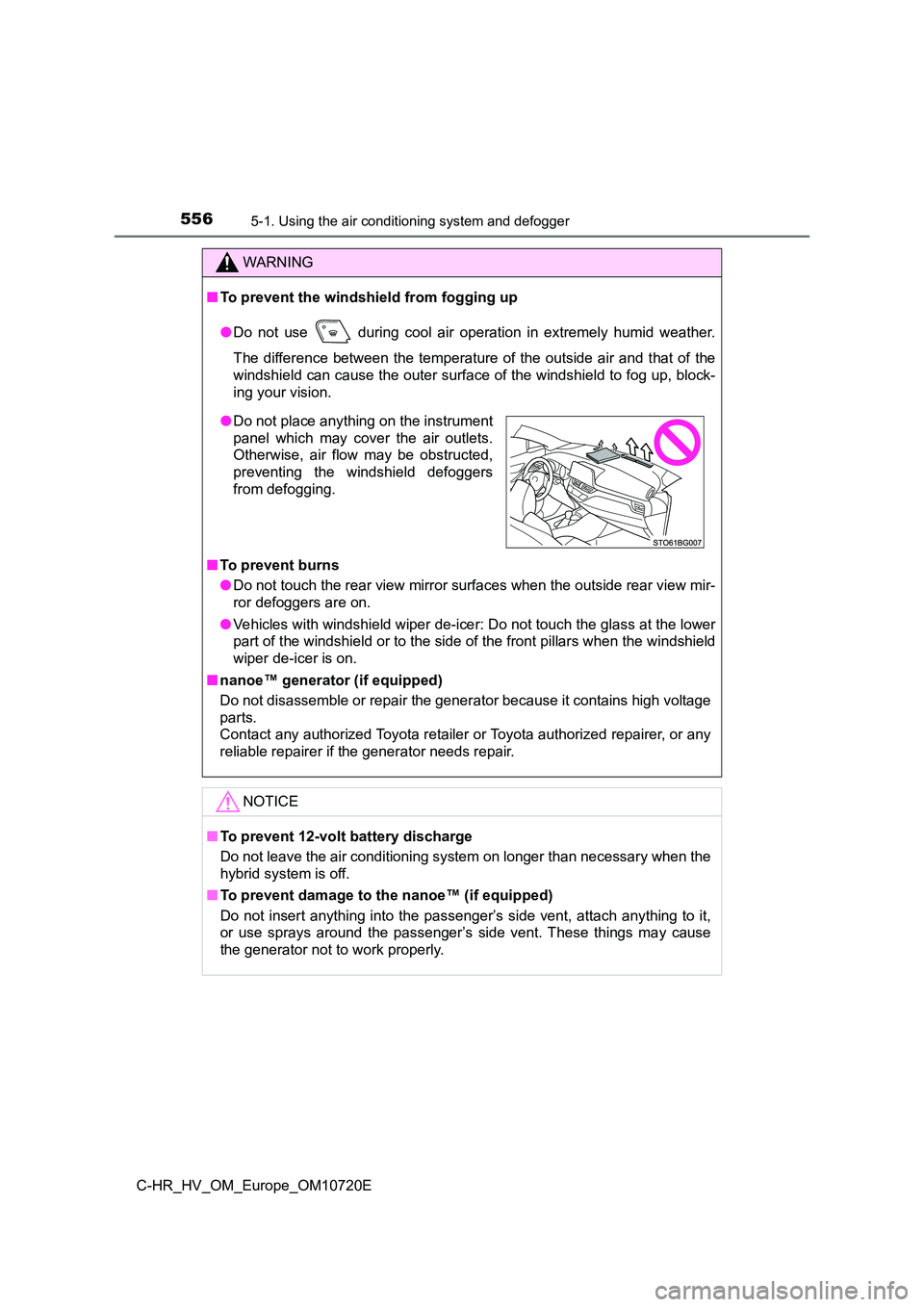

WARNING
■To prevent the windshield from fogging up
● Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and t hat of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ To prevent burns
● Do not touch the rear view mirror surfaces when the outside rear view mir-
ror defoggers are on.
● Vehicles with windshield wiper de-icer: Do not touch the glass at the lower
part of the windshield or to the side of the front pillars when the windshield
wiper de-icer is on.
■ nanoe™ generator (if equipped)
Do not disassemble or repair the generator because it contains high voltage
parts.
Contact any authorized Toyota retailer or Toyota authorized rep airer, or any
reliable repairer if the generator needs repair.
NOTICE
■ To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessa ry when the
hybrid system is off.
■ To prevent damage to the nanoe™ (if equipped)
Do not insert anything into the passenger’s side vent, attach a nything to it,
or use sprays around the passenger’s side vent. These things ma y cause
the generator not to work properly.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.

5575-1. Using the air conditioning system and defogger
5
Interior features
C-HR_HV_OM_Europe_OM10720E
Heated steering wheel/seat heaters
: If equipped
Heated steering wheel and seat heaters heat the side grips of the
steering wheel and front seats, respectively.
WARNING
● Care should be taken to prevent injury if anyone in the following categories
comes in contact with the steering wheel and seats when the hea ter is on:
• Babies, small children, the elderly, the sick and the physical ly chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sle eping
drugs, cold remedies, etc.)
● Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat
heater.
• Do not use seat heater more than necessary.
NOTICE
● Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent 12-volt battery discharge, do not use the functions when the
hybrid system is off.

5585-1. Using the air conditioning system and defogger
C-HR_HV_OM_Europe_OM10720E
Turns the heated steering wheel on/off
The indicator light comes on when the heated steering wheel is operating.
■Operating condition
The heated steering wheel can be used when the power switch is in ON
mode.
Each time the switch is pressed,
the operation condition changes
as follows.
Hi (3 segments lit)  Mid (2 seg-
ments lit)  Lo (1 segment lit) 
Off
The level indicator (amber) lights
up during operation.
■ Operating condition
The seat heaters can be used when the power switch is in ON mod e.
Heated steering wheel
Left-hand drive vehiclesRight-hand drive vehicles
Seat heaters
