TOYOTA C-HR 2022 Owners Manual

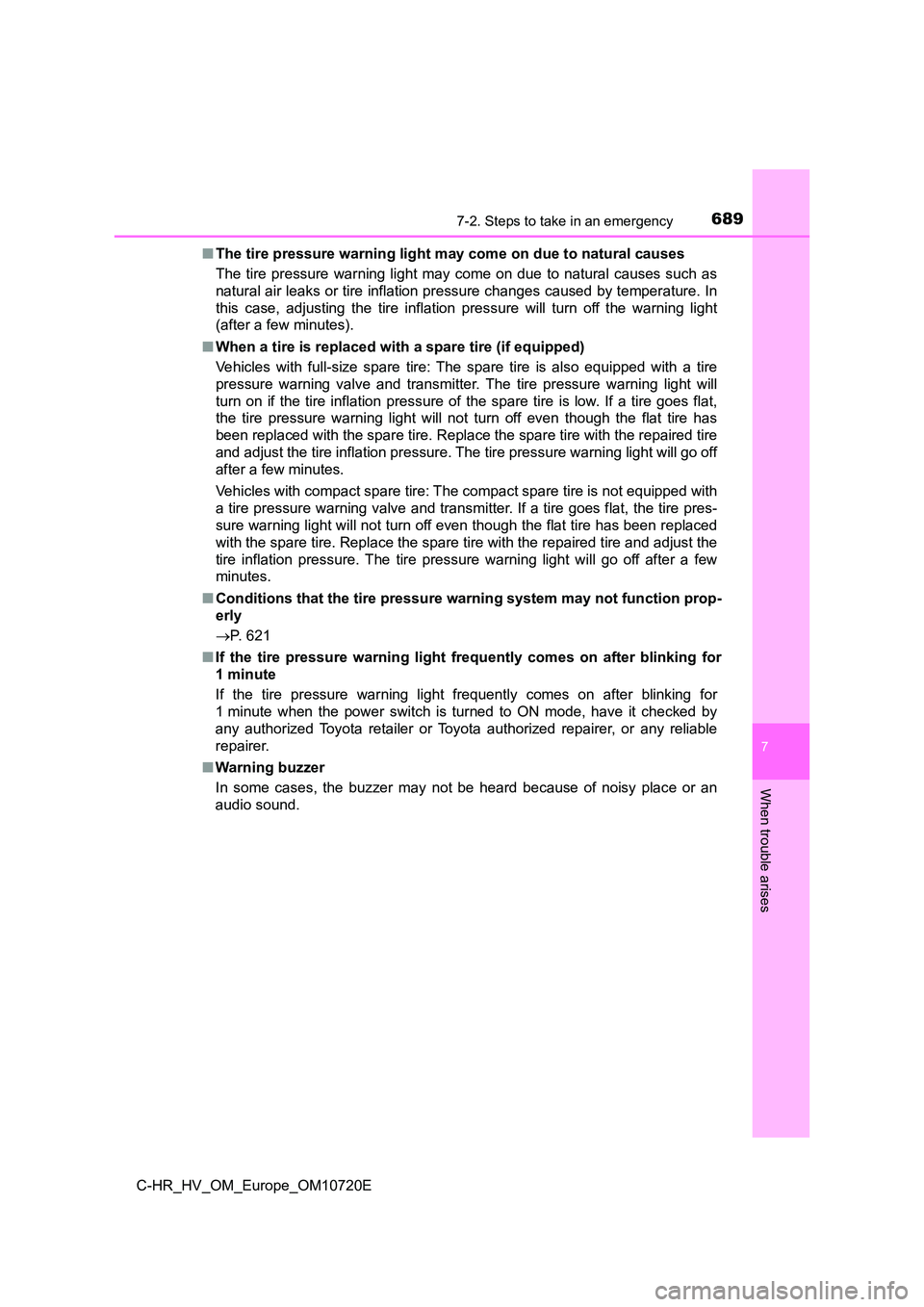

6897-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural caus es such as
natural air leaks or tire inflation pressure changes caused by temperature. In
this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (if equipped)
Vehicles with full-size spare tire: The spare tire is also equi pped with a tire
pressure warning valve and transmitter. The tire pressure warni ng light will
turn on if the tire inflation pressure of the spare tire is low . If a tire goes flat,
the tire pressure warning light will not turn off even though t he flat tire has
been replaced with the spare tire. Replace the spare tire with the repaired tire
and adjust the tire inflation pressure. The tire pressure warni ng light will go off
after a few minutes.
Vehicles with compact spare tire: The compact spare tire is not equipped with
a tire pressure warning valve and transmitter. If a tire goes f lat, the tire pres-
sure warning light will not turn off even though the flat tire has been replaced
with the spare tire. Replace the spare tire with the repaired tire and adjust the
tire inflation pressure. The tire pressure warning light will g o off after a few
minutes.
■ Conditions that the tire pressure warning system may not function prop-
erly
 P. 621
■ If the tire pressure warning light frequently comes on after blinking for
1minute
If the tire pressure warning light frequently comes on after bl inking for
1 minute when the power switch is turned to ON mode, have it che cked by
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy pla ce or an
audio sound.

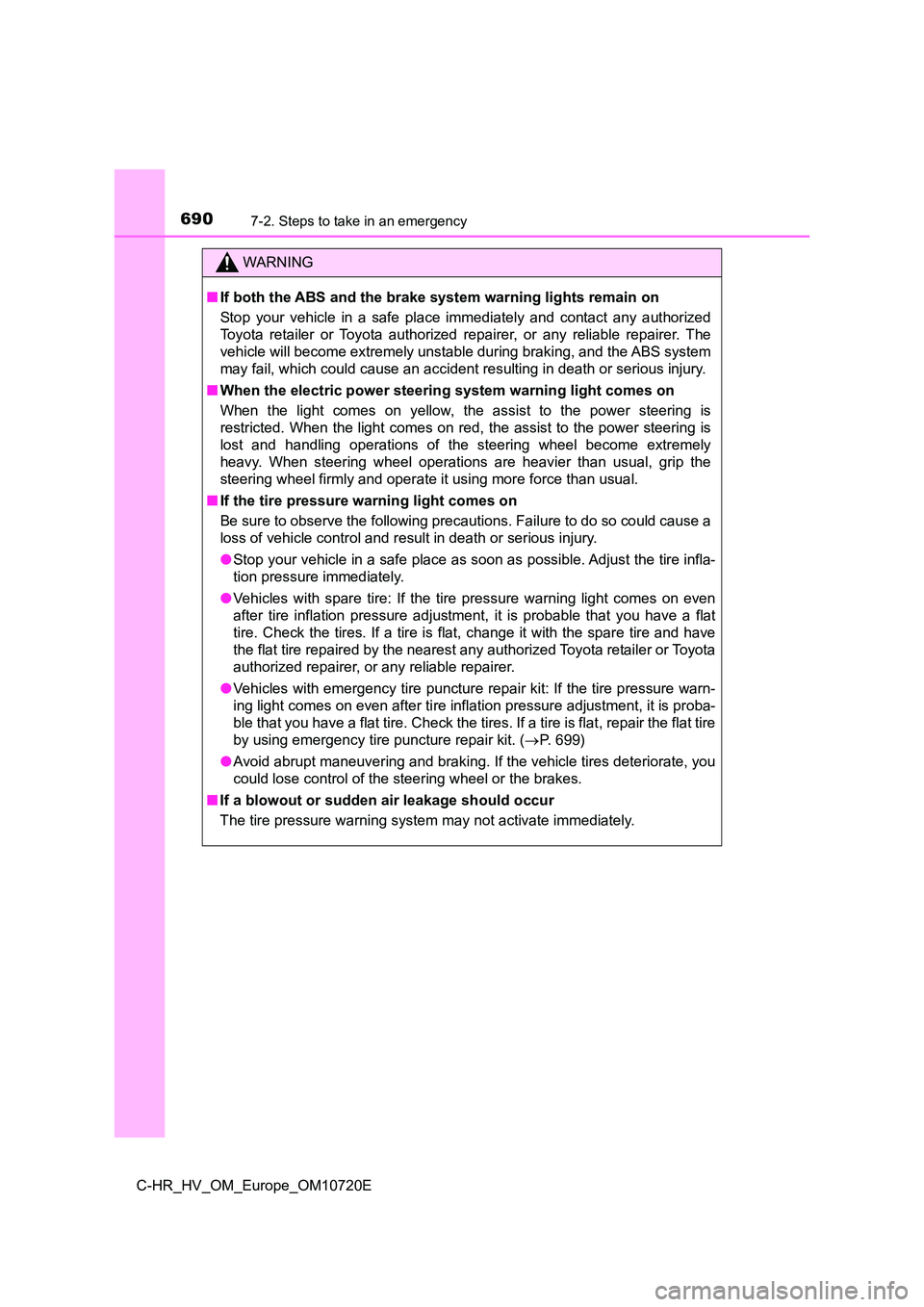

6907-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any a uthorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or s erious injury.
■ When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steerin g is
restricted. When the light comes on red, the assist to the powe r steering is
lost and handling operations of the steering wheel become extre mely
heavy. When steering wheel operations are heavier than usual, g rip the
steering wheel firmly and operate it using more force than usua l.
■ If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that y ou have a flat
tire. Check the tires. If a tire is flat, change it with the sp are tire and have
the flat tire repaired by the nearest any authorized Toyota ret ailer or Toyota
authorized repairer, or any reliable repairer.
● Vehicles with emergency tire puncture repair kit: If the tire pressure warn-
ing light comes on even after ti re inflation pressure adjustment, it is proba-
ble that you have a flat tire. Check the tires. If a tire is fl at, repair the flat tire
by using emergency tire puncture repair kit. ( P. 699)
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

6917-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, a s the tire pres-
sure warning system may not operate properly.

6927-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
If a war ning message is displayed
Multi-information display
If any of the warning messages are shown again after the follow ing
actions have been performed, contact any authorized Toyota reta iler
or Toyota authorized repairer, or any reliable repairer.
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.

6937-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any autho rized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
*: A buzzer sounds the first time a message is shown on the multi -informa-
tion display.
Messages and warnings
System
warning
light
Warning
buzzer*War ning
Sounds
• Indicates an important situation, such as when a
system related to driving is malfunctioning or that
danger may result if the correction procedure is
not performed
• Indicates a situation, such as when damage to
the vehicle or danger may result
Comes on
or flashesSounds
Indicates an important situation, such as when the
systems shown on the multi-information display
may be malfunctioning
Does not
sound
• Indicates a condition, such as malfunction of
electrical components, their condition, or indi-
cates the need for maintenance
• Indicates a situation, such as when an operation
has been performed incorrectly, or indicates how
to perform an operation correctly

6947-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
■Warning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
■ If a message that indicates the need for visiting your Toyota dealer is
displayed
The system or part shown on the multi-information display is ma lfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reli able repairer immediately.
■ If a message about an operation is shown
● If a message about an operation of the accelerator pedal or brake pedal is
shown
A warning message about an operation of the brake pedal may be shown
while the driving assist systems such as PCS (Pre-Collision Sys tem) (if
equipped) or the dynamic radar cruise control with full-speed r ange (if
equipped) is operating. If a warning message is shown, be sure to deceler-
ate the vehicle or follow the instruction shown on the multi-in formation dis-
play.
● A warning message is shown when Brake Override System operates.
( P. 286)
● A warning message is shown when Drive-Start Control or Parking Support
Brake (if equipped) operates ( P. 286, 477). Follow the instructions on the
multi-information display.
● If a message about an operation of the power switch is shown
An instruction for operation of the power switch is shown when the incorrect
procedure for starting the hybrid system is performed or the po wer switch is
operated incorrectly. Follow the instructions shown on the mult i-information
display to operate the power switch again.
● If a message about a shift operation is shown
To prevent the shift lever from being operated incorrectly or t he vehicle from
moving unexpectedly, a message that requires shifting the shift lever may
be shown on the multi-information display. In that case, follow the instruction
of the message and shift the shift lever.
● If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and then perform the coping method such as closing the open doo r or
replenishing a consumable.

6957-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
■If a message that indicates the need for referring to Owner’s Manual is
displayed
● If “Engine Coolant Temperature High.”is shown, follow the instructions
(P. 757).
● If the following messages are shown, there may be a malfunction. Immedi-
ately stop the vehicle in a safe place and contact any authoriz ed Toyota
retailer or Toyota authorized repairer, or any reliable repaire r. Continuing to
drive the vehicle may be dangerous.
• “Braking Power Low.”
• “Charging System Malfunction.”
• “Engine Oil Pressure Low.”
● If the following messages are shown, there may be a malfunction. Immedi-
ately have the vehicle inspected by any authorized Toyota retai ler or Toyota
authorized repairer, or any reliable repairer.
• “Hybrid System Malfunction.”
• “Check Engine.”
• “Hybrid Battery System Malfunction.”
• “Accelerator system Malfunction.”
• “Entry & Start System Malfunction.”
• “Exhaust filter full.” (P. 531)
• “Hybrid System Stopped”
• “Engine Stopped”
● If the “Low 12-Volt Battery.” is shown,
• When the display goes off after several seconds (displays for about 6
seconds):
Maintain the hybrid system operation for more than 15 minutes a nd
charge the 12-volt battery.
• When the display does not go off:
Start up the hybrid system using the procedures: P. 749
● If “Maintenance required for Traction battery cooling parts. See owner’s
manual.” is shown, the filters may be clogged, the air intake v ents may be
blocked, or there may be a gap i n the duct. Therefore, perform the following
correction procedure.
• If the air intake vents and filters of the hybrid battery (tra ction battery) are
dirty, perform the procedure on P. 640 to clean them.
• If the warning message is shown when the air intake vents and filters of
the hybrid battery (traction battery) are not dirty, have the v ehicle
inspected by any authorized Toyota retailer or Toyota authorize d repairer,
or any reliable repairer immediately.

6967-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
■ If “Engine Oil Level Low. Add or Replace Oil.”is displayed
The engine oil level is low. Check the level of the engine oil, and add if neces-
sary.
This message may appear if the vehicle is stopped on a slope. M ove the
vehicle to a level surface and check to see if the message disa ppears.
■ If “Hybrid System Stopped. Steering Power Low.”is displayed
This message is displayed if the hybrid system is stopped while driving.
When steering wheel operations are heavier than usual, grip the steering
wheel firmly and operate it using more force than usual.
■ If “Hybrid System Overheated. Reduced Output Power.” is shown
This message may be shown when driving under severe operating c ondi-
tions. (For example, when driving up a long steep hill.)
Handling method: P. 757
■ If “Depress Brake When Vehicle is Stopped. Hybrid System may Over-
heat.” is shown
The message may be shown when the accelerator pedal is depresse d to hold
the vehicle while the vehicle is stopped on an uphill, etc.
The hybrid system may overheat. Release the accelerator pedal a nd depress
the brake pedal.
■ If “Traction battery needs to be protected. Shift into to restart.” is
shown
This message is displayed when the hybrid battery (traction bat tery) charge
has become extremely low because the shift lever has been left in N for a cer-
tain amount of time.
When operating the vehicle, shift to P and restart the hybrid s ystem.
■ If “Traction battery needs to be protected. Refrain from the use of
position.” is shown
This message may be displayed when the shift lever is in N.
As the hybrid battery (traction battery) cannot be charged when the shift lever
is in N, shift the shift lever to P when the vehicle is stopped .
■ If “Shift is in Release Accelerator Before Shifting” is shown
Message is displayed when the accelerator pedal has been depres sed and
the shift lever is in N.
Release the accelerator pedal and shift the shift lever to D or R.
■ If “Shift to Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without t urning the
power switch to off with the shift lever in any position other than P.
Shift the shift position to P.

6977-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
■If “Auto Power OFF to Conserve Battery” is shown
The power switch has been turned off by the automatic power off function.
When starting the hybrid system next time, operate the hybrid s ystem for
approximately 5 minutes to recharge the 12-volt battery.
■ If “A New Key has been Registered. Contact Your Dealer for Details.” is
shown
This message will be displayed each time the driver’s door is o pened when
the doors are unlocked from the outside for approximately one w eek after a
new electronic key has been registered.
If this message is displayed but you have not had a new electro nic key regis-
tered, ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer to check if an unknown electronic key (other than those in
your possession) has been registered.
■ If a message that indicates the malfunction of front camera is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 367, 681)
● PCS (Pre-Collision System)*
●LTA (Lane Tracing Assist)*
●Dynamic radar cruise control with full-speed range*
●RSA (Road Sign Assist)*
●Automatic High Beam*
*: If equipped
■ If a message that indicates the malfunction of radar sensor is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 367, 681)
● PCS (Pre-Collision system)*
●LTA (Lane Tracing Assist)*
●Dynamic radar cruise control with full-speed range*
*: If equipped

6987-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
■ If “Radar Cruise Control Unavailable See Owner’s Manual” is shown
The dynamic radar cruise control with full-speed range system i s suspended
temporarily or until the problem shown in the message is resolv ed. (causes
and coping methods: P. 367)
■ If “Radar Cruise Control unavailable.” is shown
The dynamic radar cruise control with full-speed range system c annot be
used temporarily. Use the system when it becomes available agai n.
■ Warning buzzer
 P. 689
NOTICE
■If “Maintenance required for Traction battery at your dealer.” is shown
(2ZR-FXE engine [except for Guadelope, Martinique, F. Guiana an d
Greenland])
This message indicates that the hybrid battery (traction batter y) may require
inspection or replacement. Have the vehicle inspected by any au thorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer imme-
diately. Do not continue driving the vehicle, as the hybrid sys tem may
become not able to be started again.
■ If “Low 12-Volt Battery. See Owner’s Manual.” is displayed frequently
The 12-volt battery may have deteriorated. As the battery may d ischarge in
this state when left unattended, have the battery inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer.
