TOYOTA C-HR 2022 Owners Manual

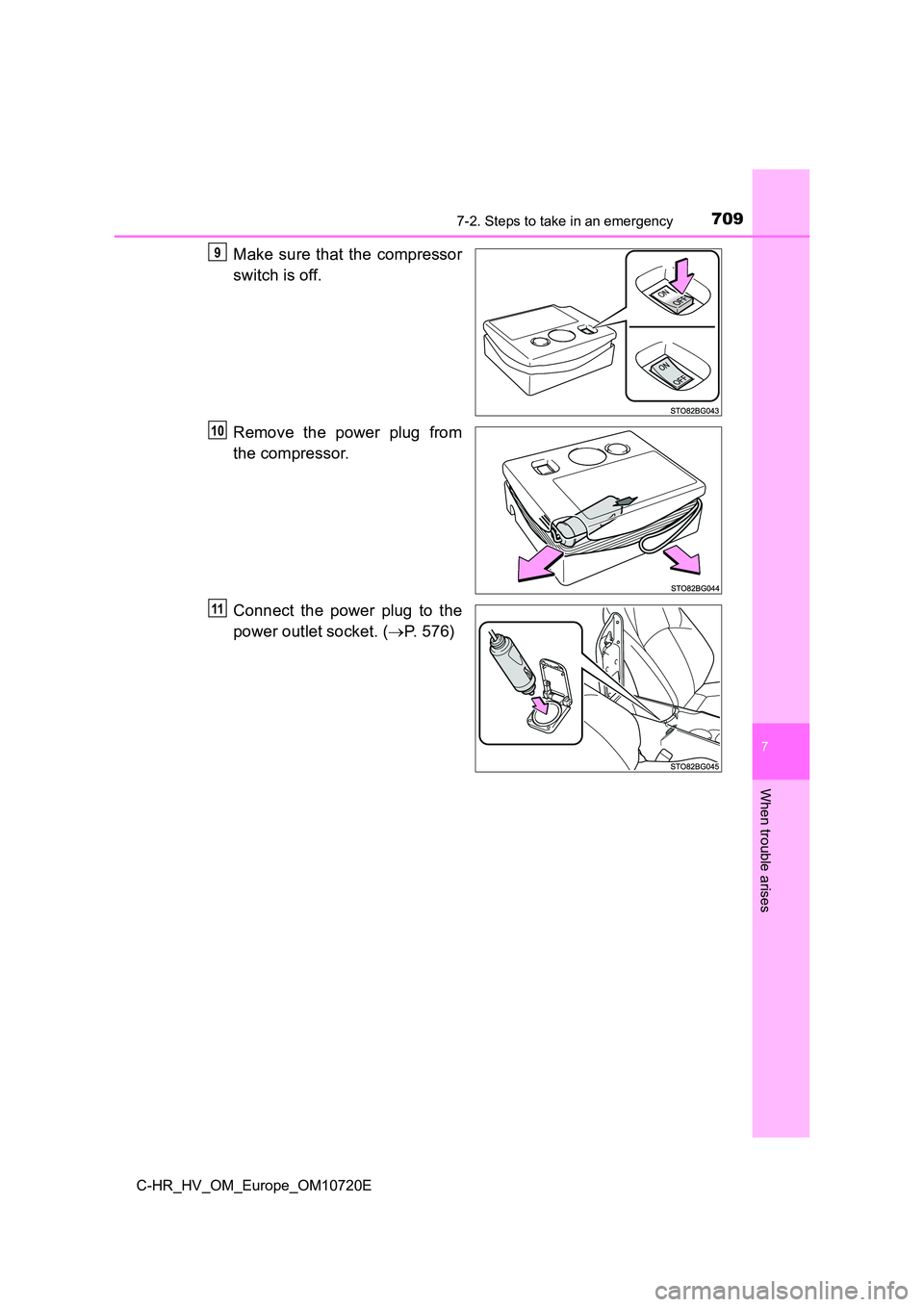

7097-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. ( P. 5 7 6 )
9
10
11

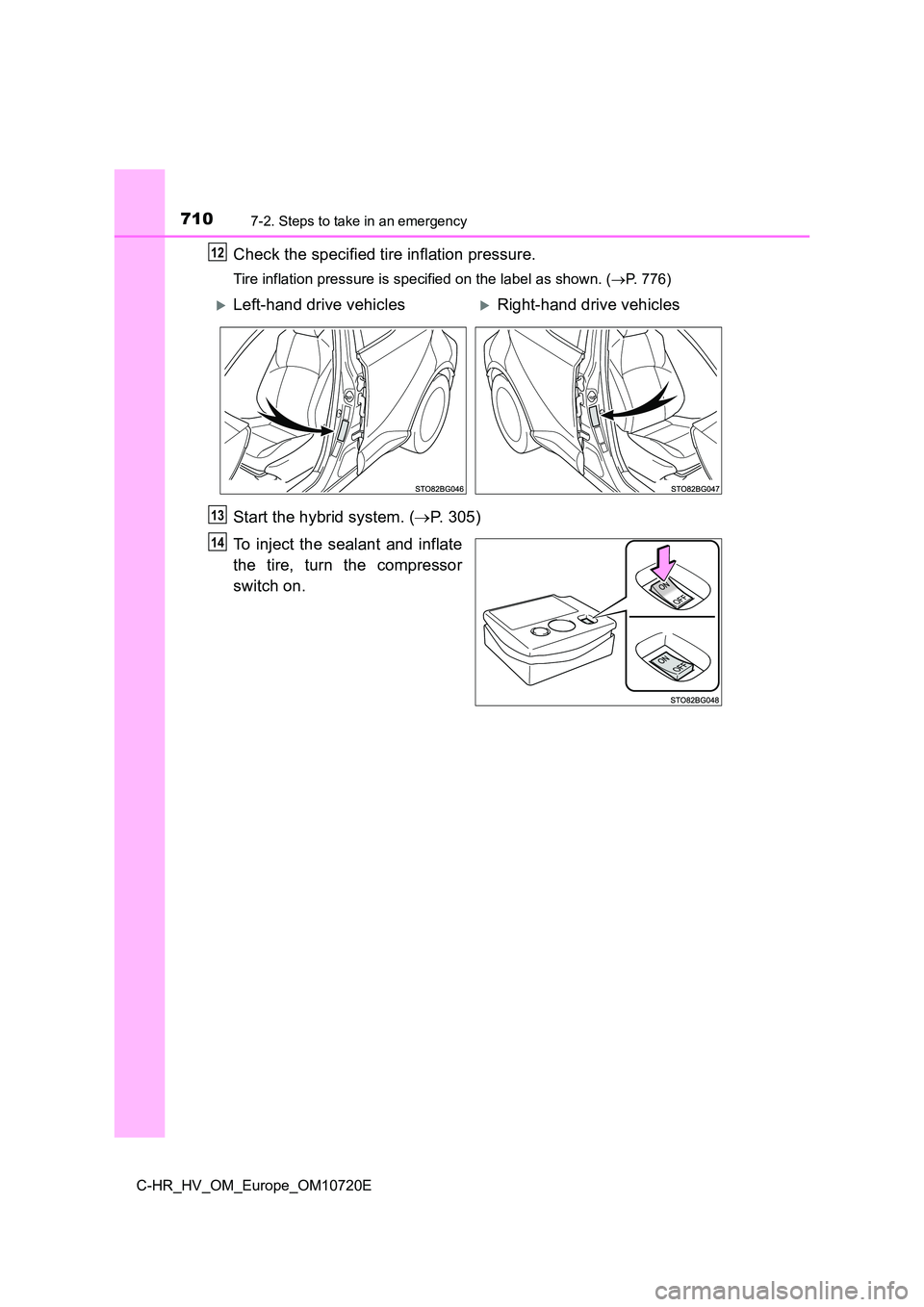

7107-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 776)
Start the hybrid system. (P. 3 0 5 )
To inject the sealant and inflate
the tire, turn the compressor
switch on.
12
Left-hand drive vehiclesRight-hand drive vehicles
13
14

7117-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the
tire is too damaged to be
repaired. Turn the compres-
sor switch off and contact any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
• If the tire inflation pressure exceeds the specified air press ure, let out
some air to adjust the tire inflation pressure. ( P. 723, 776)
15

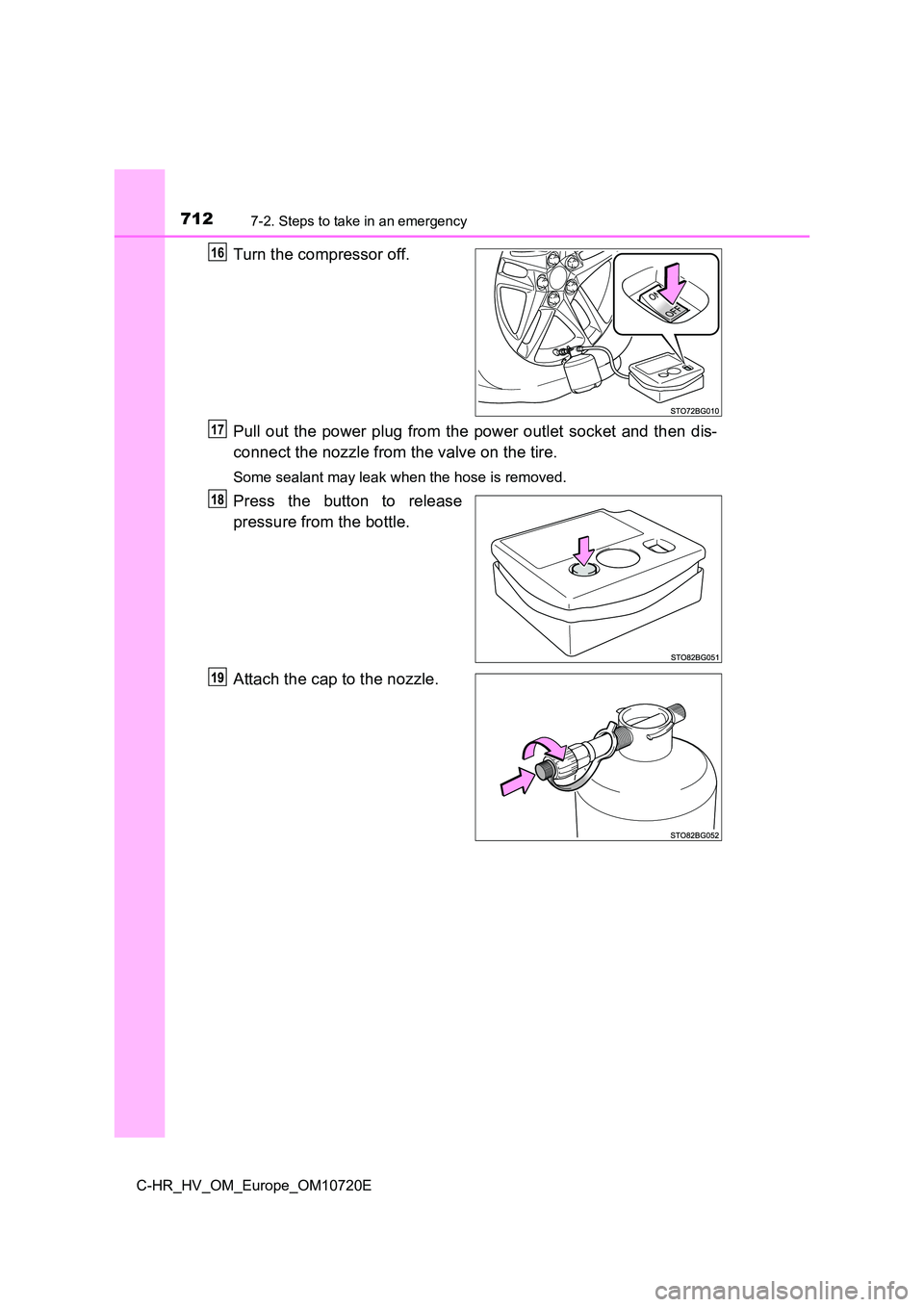

7127-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
Turn the compressor off.
Pull out the power plug from the power outlet socket and then d is-
connect the nozzle from the valve on the tire.
Some sealant may leak when the hose is removed.
Press the button to release
pressure from the bottle.
Attach the cap to the nozzle.
16
17

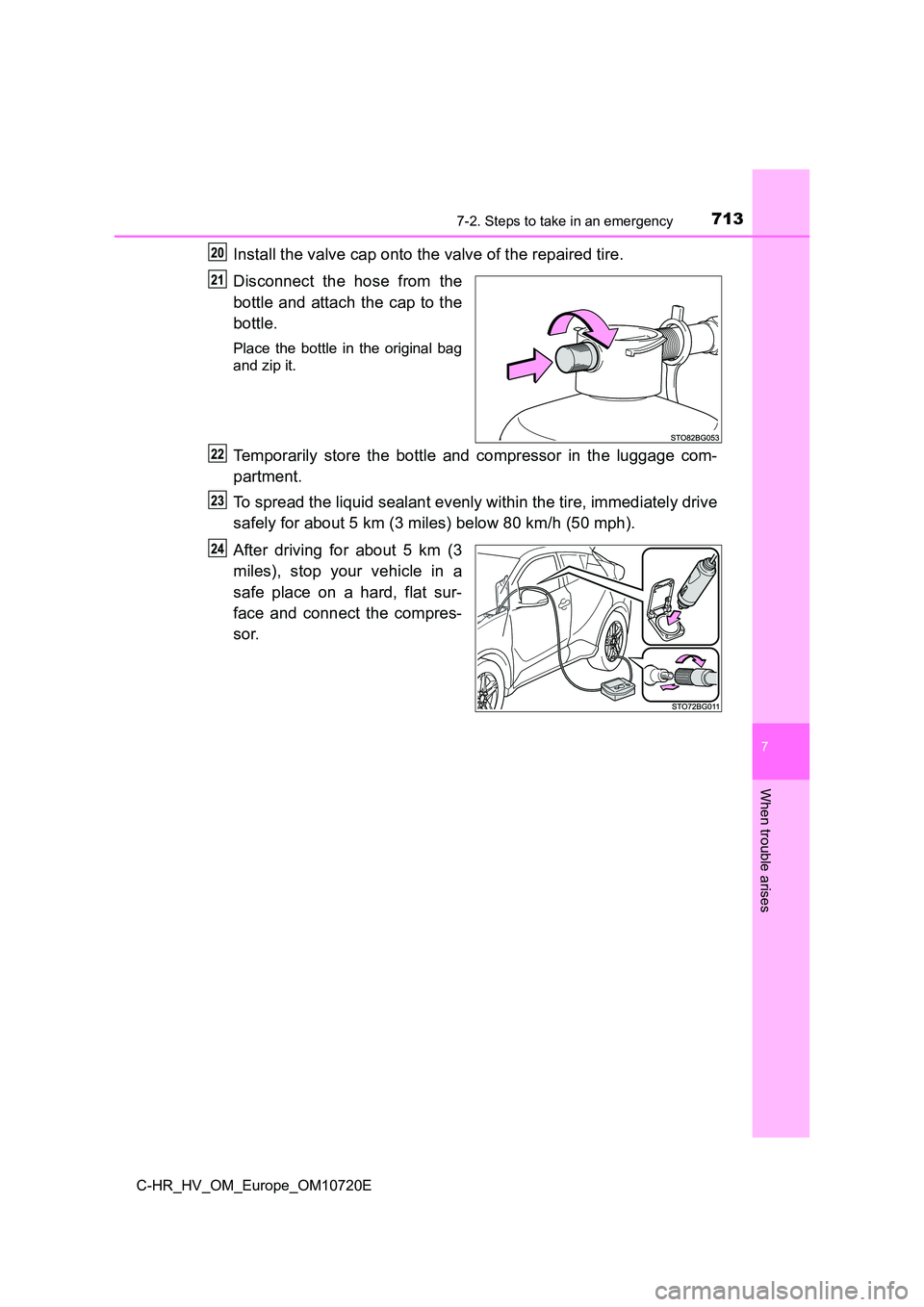

7137-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
Install the valve cap onto the valve of the repaired tire.
Disconnect the hose from the
bottle and attach the cap to the
bottle.
Place the bottle in the original bag
and zip it.
Temporarily store the bottle and compressor in the luggage com-
partment.
To spread the liquid sealant evenly within the tire, immediatel y drive
safely for about 5 km (3 miles) below 80 km/h (50 mph).
After driving for about 5 km (3
miles), stop your vehicle in a
safe place on a hard, flat sur-
face and connect the compres-
sor.

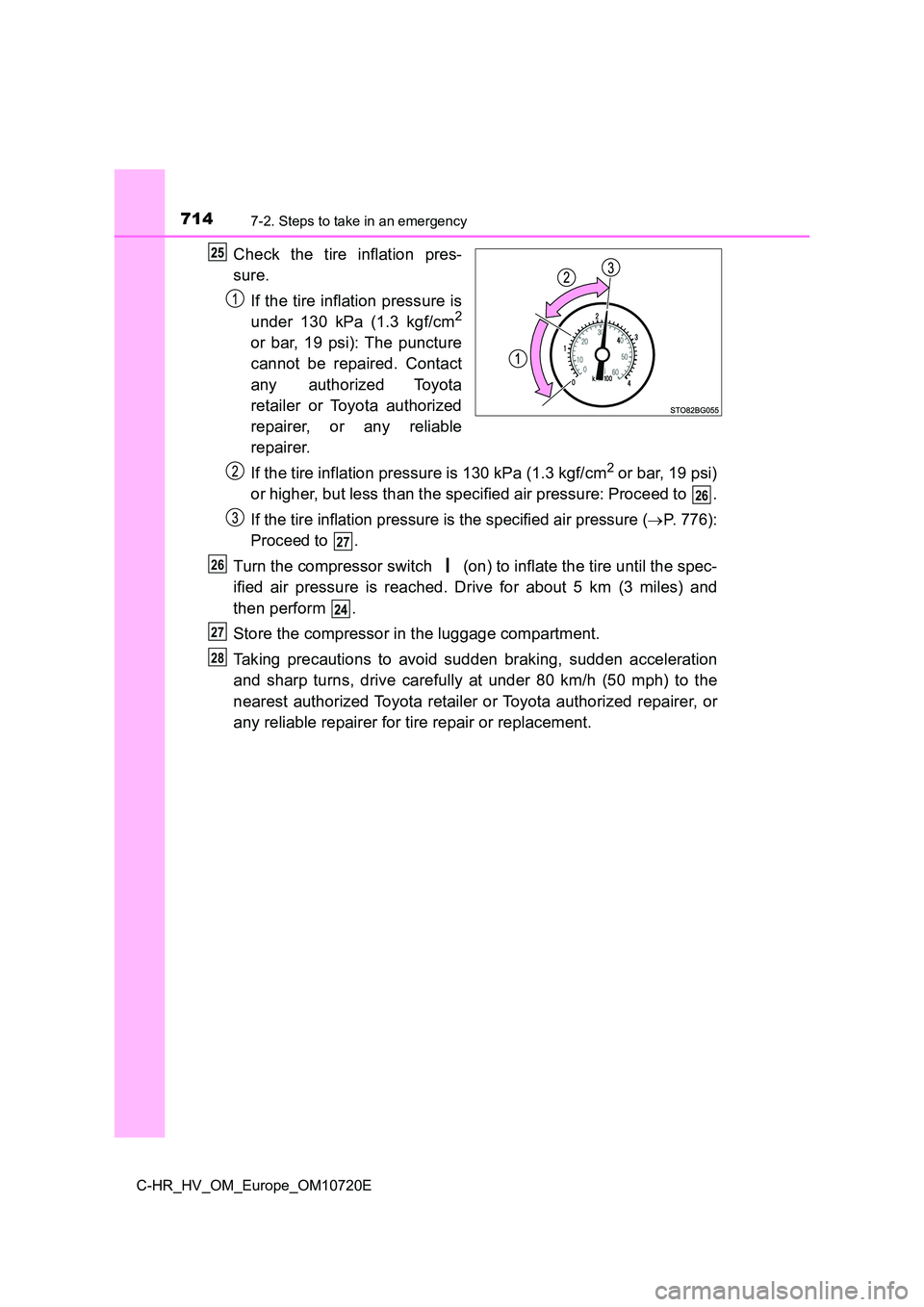

7147-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
Check the tire inflation pres-
sure.
If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm2
or bar, 19 psi): The puncture
cannot be repaired. Contact
any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable
repairer.
If the tire inflation pressure is 130 kPa (1.3 kgf/cm2 or bar, 19 psi)
or higher, but less than the specified air pressure: Proceed to .
If the tire inflation pressure is the specified air pressure (P. 776):
Proceed to .
Turn the compressor switch (on) to inflate the tire until the spec-
ified air pressure is reached. Drive for about 5 km (3 miles) a nd
then perform .
Store the compressor in the luggage compartment.
Taking precautions to avoid sudden braking, sudden acceleration
and sharp turns, drive carefully at under 80 km/h (50 mph) to t he
nearest authorized Toyota retailer or Toyota authorized repaire r, o r
any reliable repairer for tire repair or replacement.
26
27
26
27
28

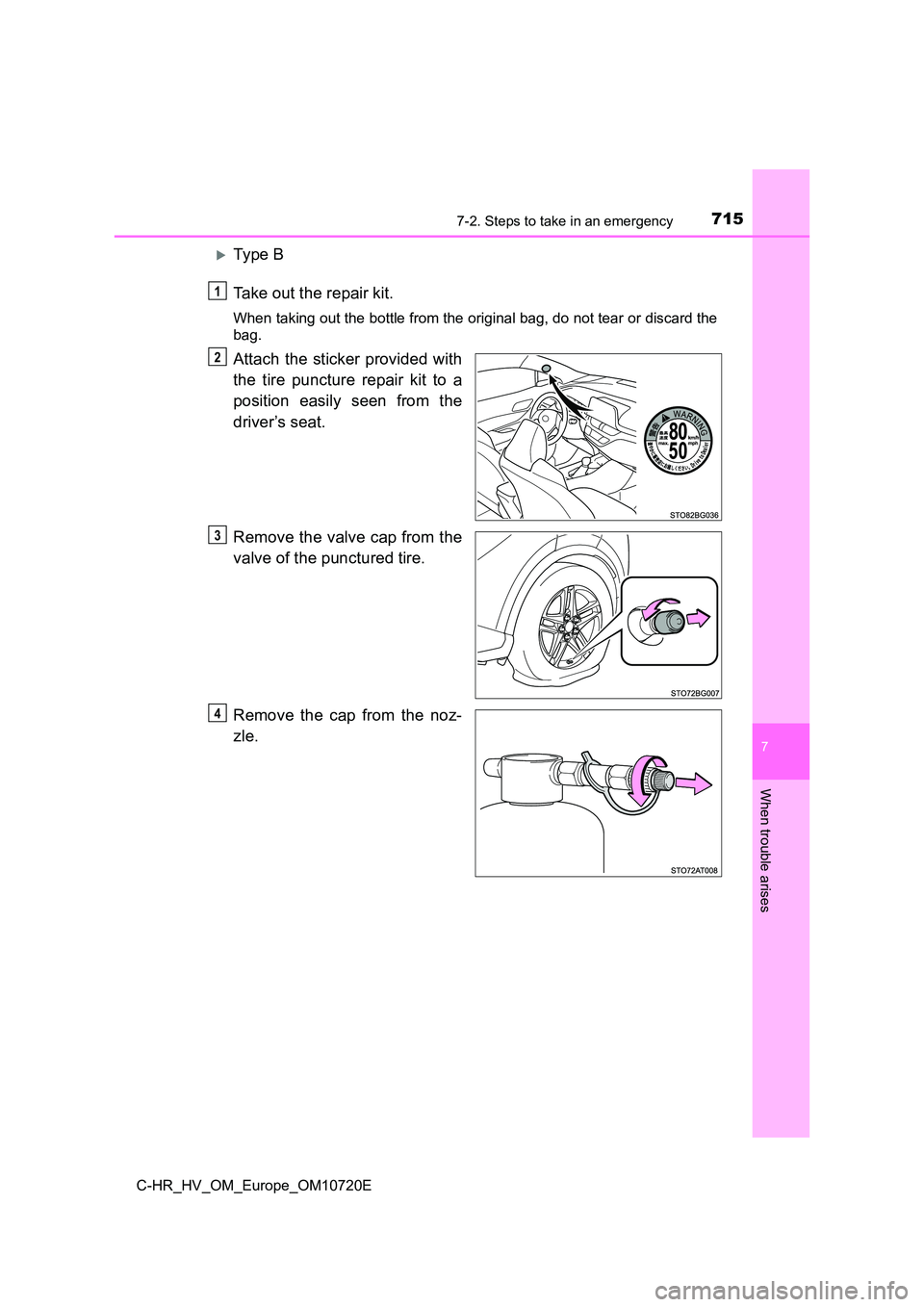

7157-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
Ty pe B
Take out the repair kit.
When taking out the bottle from the original bag, do not tear o r discard the
bag.
Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.
Remove the valve cap from the
valve of the punctured tire.
Remove the cap from the noz-
zle.
1
2
3
4

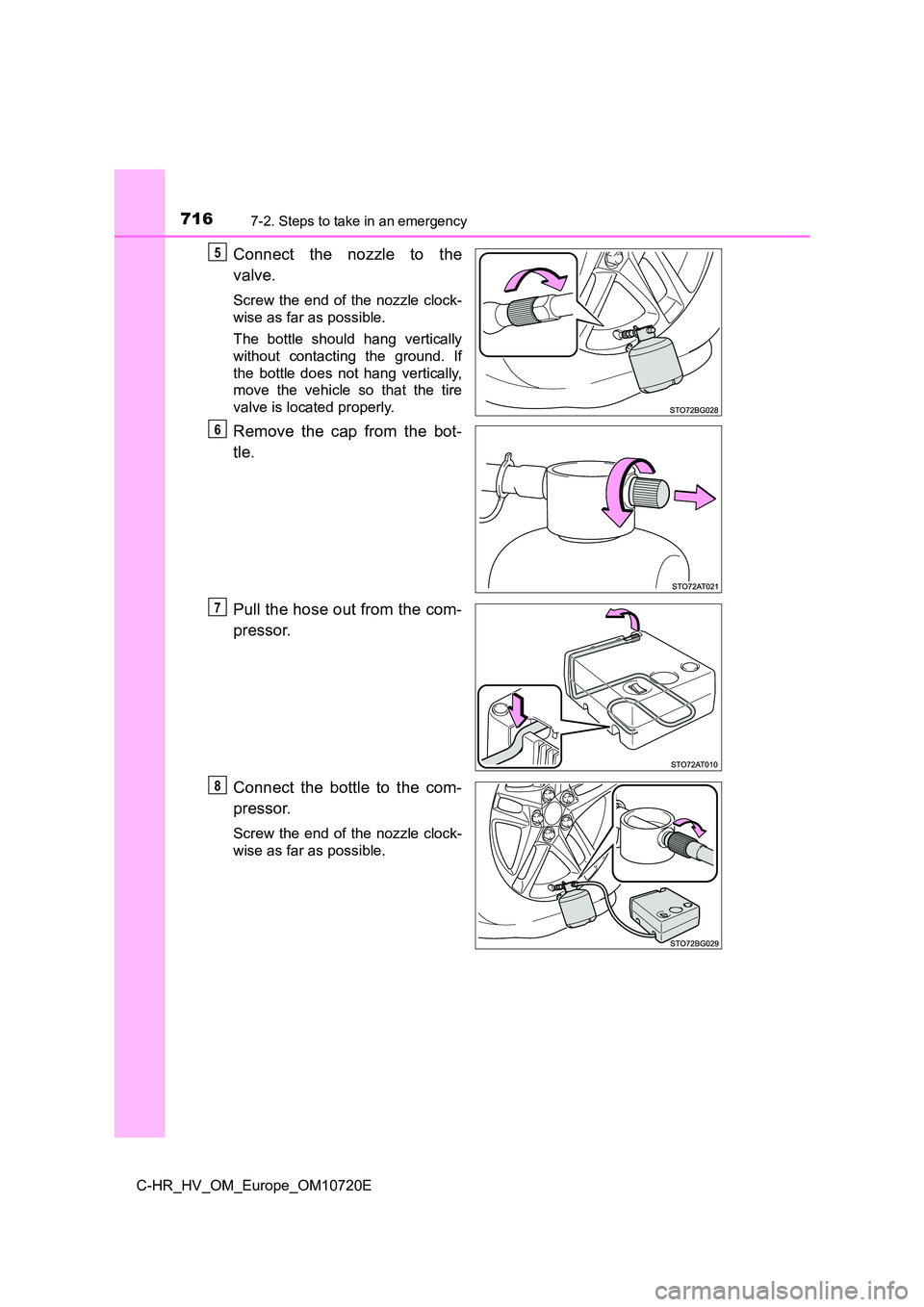

7167-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Remove the cap from the bot-
tle.
Pull the hose out from the com-
pressor.
Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.
5
6
7
8

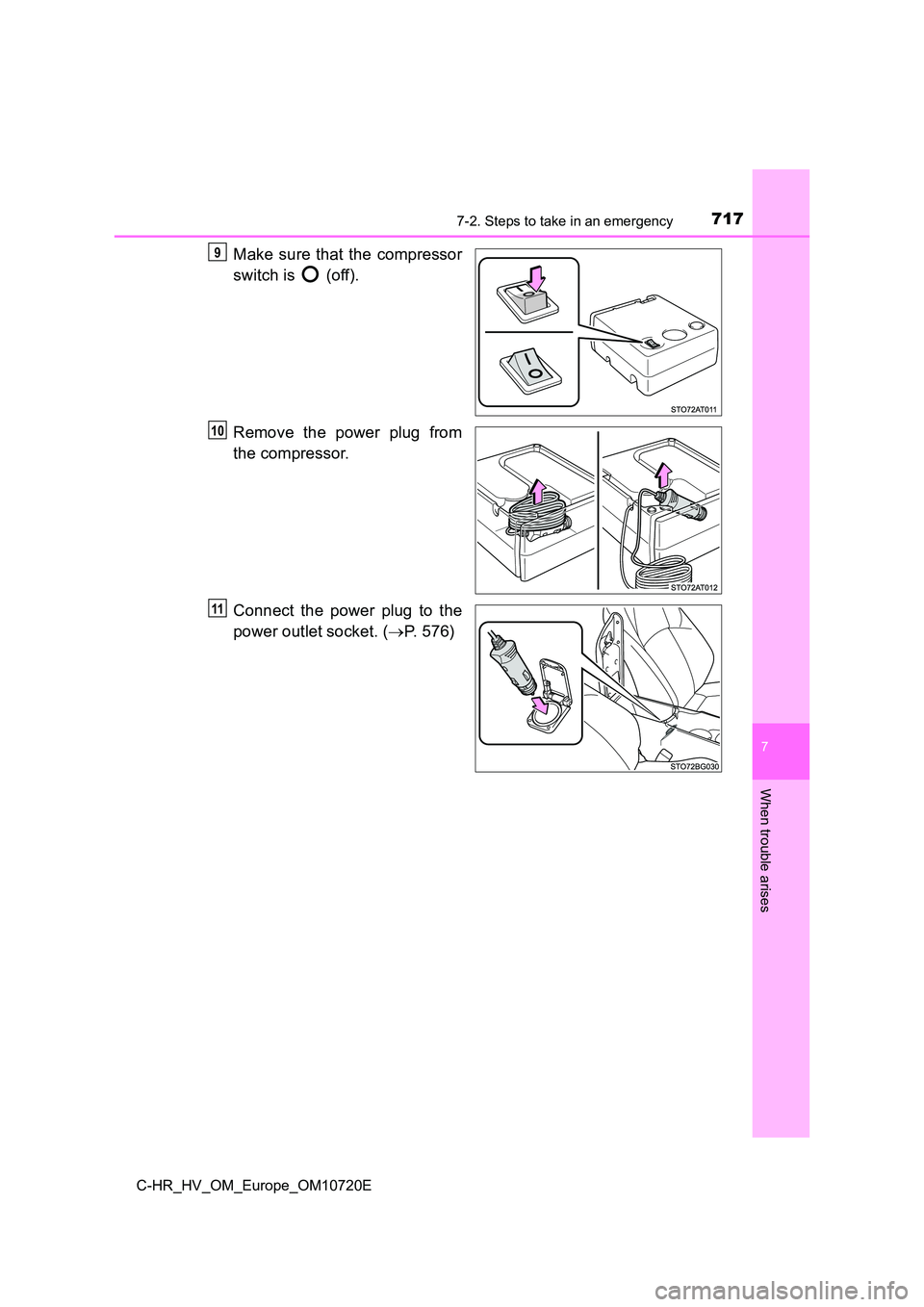

7177-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
Make sure that the compressor
switch is (off).
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. ( P. 5 7 6 )
9
10
11

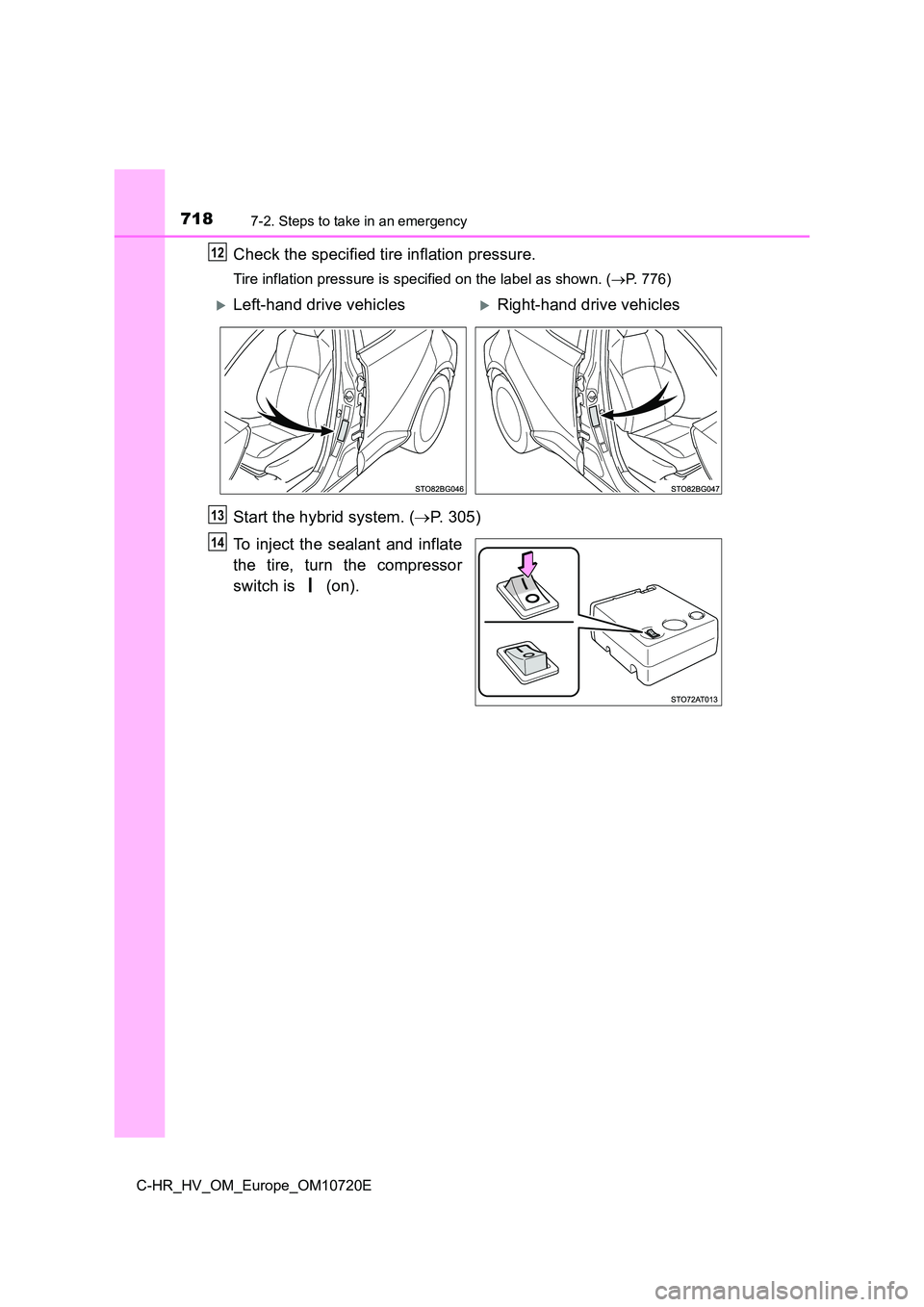

7187-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 776)
Start the hybrid system. (P. 3 0 5 )
To inject the sealant and inflate
the tire, turn the compressor
switch is (on).
12
Left-hand drive vehiclesRight-hand drive vehicles
13
14
