TOYOTA C-HR 2022 Owners Manual

7597-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
■If “Hybrid System Overheated Reduced Output Power.” is
shown on the multi-information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and
radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks, immediately contact any aut ho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable
repairer.
The coolant level is satisfactory if it is between the “FULL” o r “F”
and “LOW” or “L” lines on the reservoir.
Reservoir
“FULL” or “F” line
“LOW” or “L” line
1
2
3
2ZR-FXE engineM20A-FXS engine
4
2ZR-FXE engineM20A-FXS engine

7607-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
Add coolant if necessary.
If coolant is unavailable, use water as an emergency measure,
and have the vehicle inspected at any authorized Toyota retaile r,
Toyota authorized repairer, or any reliable repairer as soon as
possible.
After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system again and check if “Hybrid System
Overheated” is shown on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.
If the message is not displayed:
The hybrid system temperature has dropped and the vehicle may
be driven normally.
However, if the message appears again frequently, contact any a utho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable
repairer.
5
2ZR-FXE engineM20A-FXS engine
6

7617-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises

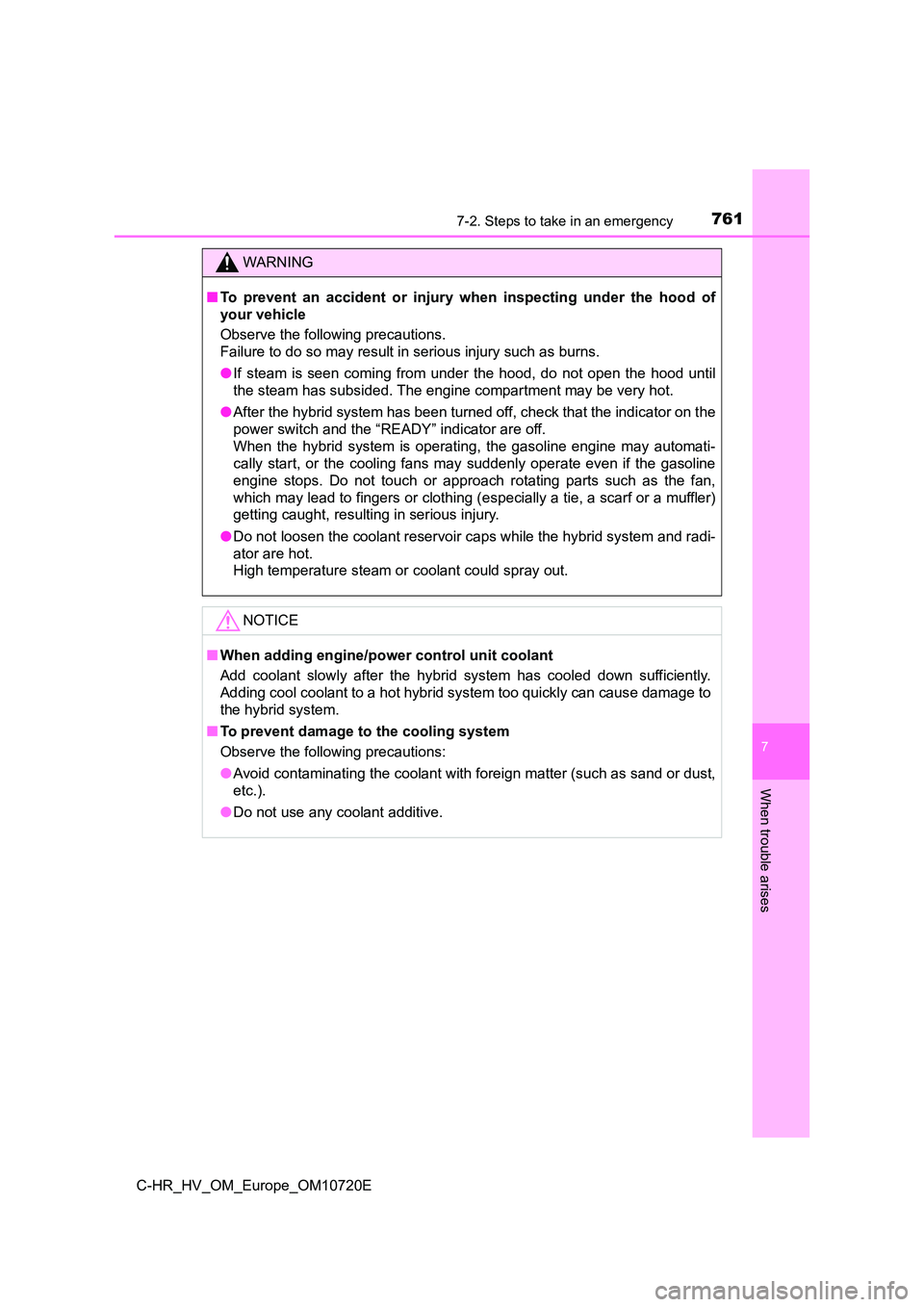

WARNING
■To prevent an accident or injury when inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may au tomati-
cally start, or the cooling fans may suddenly operate even if t he gasoline
engine stops. Do not touch or approach rotating parts such as t he fan,
which may lead to fingers or clothing (especially a tie, a scar f or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the coolant reservoir caps while the hybrid system and radi-
ator are hot.
High temperature steam or coolant could spray out.
NOTICE
■ When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down suff iciently.
Adding cool coolant to a hot hybrid system too quickly can caus e damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust,
etc.).
● Do not use any coolant additive.

7627-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
If the vehicle becomes stuck
Set the parking brake and shift the shift lever to P. Stop the hybrid
system.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheel s
to help provide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
A message will be shown on the multi-
information display.
1
2
3
4
5

7637-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, ma ke sure the
surrounding area is clear to avoid striking other vehicles, obj ects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pe dal depressed.
This may lead to unexpected rapid acceleration of the vehicle t hat may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the hybrid transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

7647-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E

765
8Vehicle specifications
C-HR_HV_OM_Europe_OM10720E
8-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 766
Fuel information ................. 779
8-2. Customization
Customizable features ....... 781
8-3. Initialization
Items to initialize ................ 793

7668-1. Specifications
C-HR_HV_OM_Europe_OM10720E
Maintenance data (fuel, oil level, etc.)
*1: 2ZR-FXE engine
*2: M20A-FXS engine
*3: Unladen vehicle
*4: Vehicles with 215/60R17 tires
*5: Vehicles with 225/50R18 tires
*6: Except for 2ZR-FXE engine for Guadeloupe, Martinique, F. Guiana and
Svalbard
Dimensions and weights
Overall length4385 mm (172.6 in.)*1
4395 mm (173.0 in.)*2
Overall width1795 mm (70.7 in.)
Overall height*31555 mm (61.2 in.)
Wheelbase2640 mm (103.9 in.)
Tread
Front1550 mm (61.0 in.)*4
1540 mm (60.6 in.)*5
Rear1560 mm (61.4 in.)*4
1550 mm (61.0 in.)*5
Gross vehicle mass1860 kg (4101 lb.)*1
1930 kg (4255 lb.)*2
Maximum permissi-
ble axle capacity
Front1050 kg (2315 lb.)
Rear1080 kg (2381 lb.)
Drawbar load*675 kg (165 lb.)
Towing capacity*6Without brake725 kg (1598 lb.)With brake

7678-1. Specifications
C-HR_HV_OM_Europe_OM10720E
8
Vehicle specifications

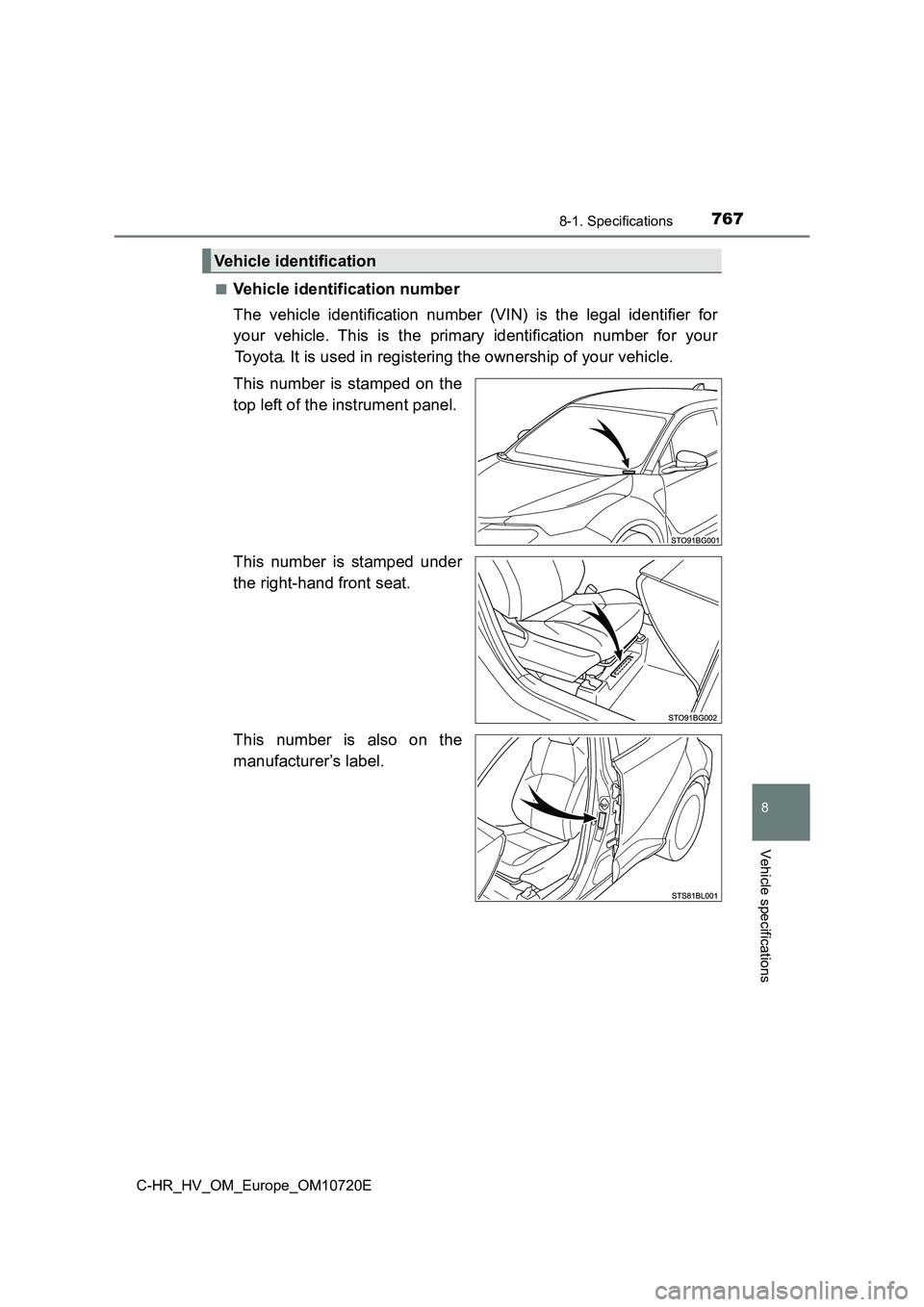

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for you r
Toyota. It is used in registering the ownership of your vehicle .
This number is stamped on the
top left of the instrument panel.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification

7688-1. Specifications
C-HR_HV_OM_Europe_OM10720E

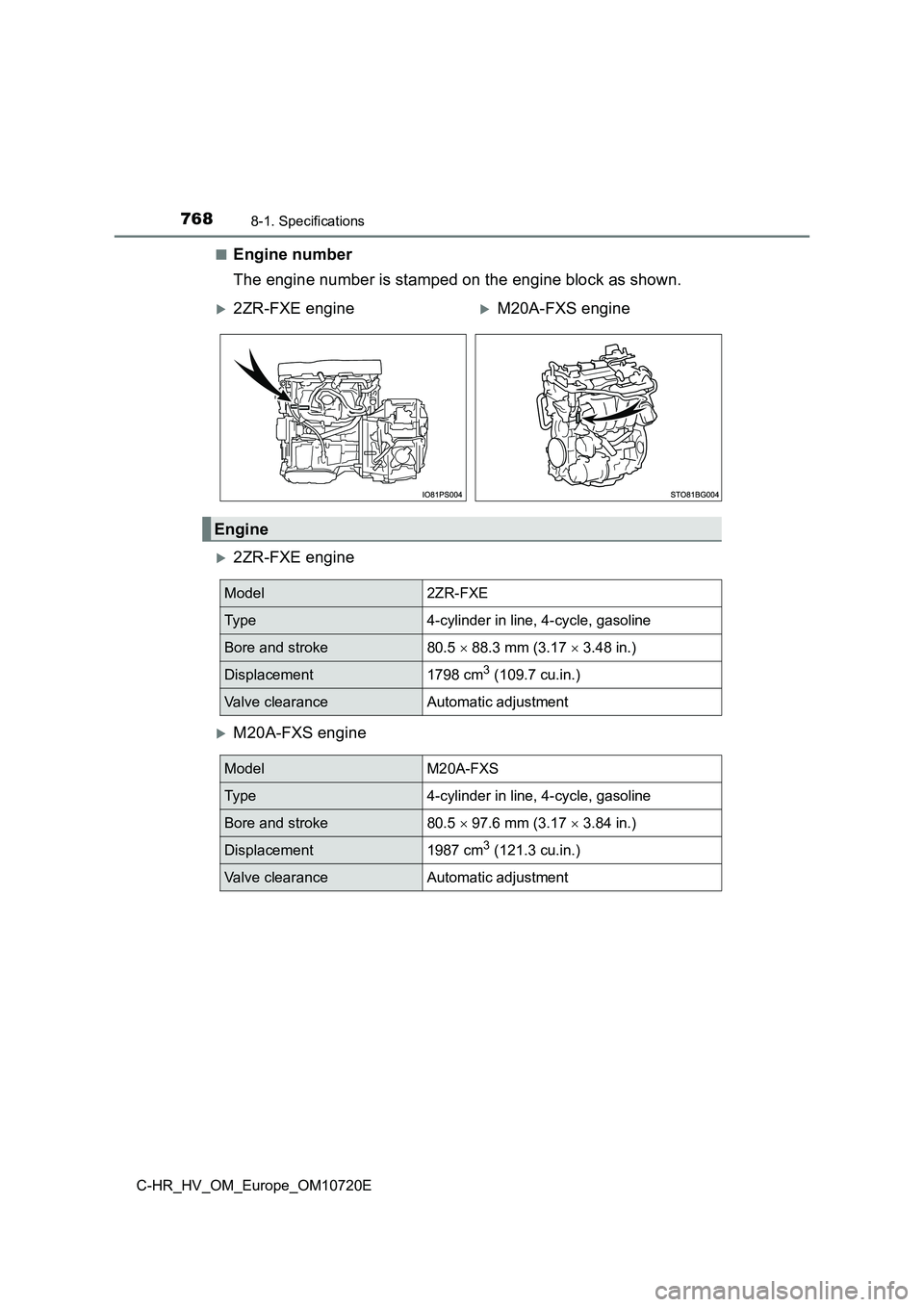

■Engine number
The engine number is stamped on the engine block as shown.
2ZR-FXE engine
M20A-FXS engine
2ZR-FXE engineM20A-FXS engine
Engine
Model2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  88.3 mm (3.17  3.48 in.)
Displacement1798 cm3 (109.7 cu.in.)
Valve clearanceAutomatic adjustment
ModelM20A-FXS
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  97.6 mm (3.17  3.84 in.)
Displacement1987 cm3 (121.3 cu.in.)
Valve clearanceAutomatic adjustment
