Page 406 of 818

4044-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10720E
The following types of road signs, including electronic signs and blink-
ing signs, are displayed.
A non-official (not meeting the Vienna Convention) or a recentl y introduced
traffic sign may not be displayed.
● Speed limit road signs*
*: No speed limit information is displayed when speed limit sign is not
available.
● Speed limit related information*1, 2
Supported types of road signs
: Speed limit begins/Maximum speed zone begins
: Speed limit ends/Maximum speed zone ends
: Motorway entrance
: Motorway exit
: Expressway entrance
: Expressway exit
: Urban area beginning
: Urban area ending
: Urban area beginning
Page 407 of 818

4054-5. Using the driving support systems
4
Driving
C-HR_HV_OM_Europe_OM10720E
*1: Displayed when a sign is recognized but speed limit information for the
road is not available from the navigation system
*2: No speed limit information is displayed when speed limit related sign
information is not available.

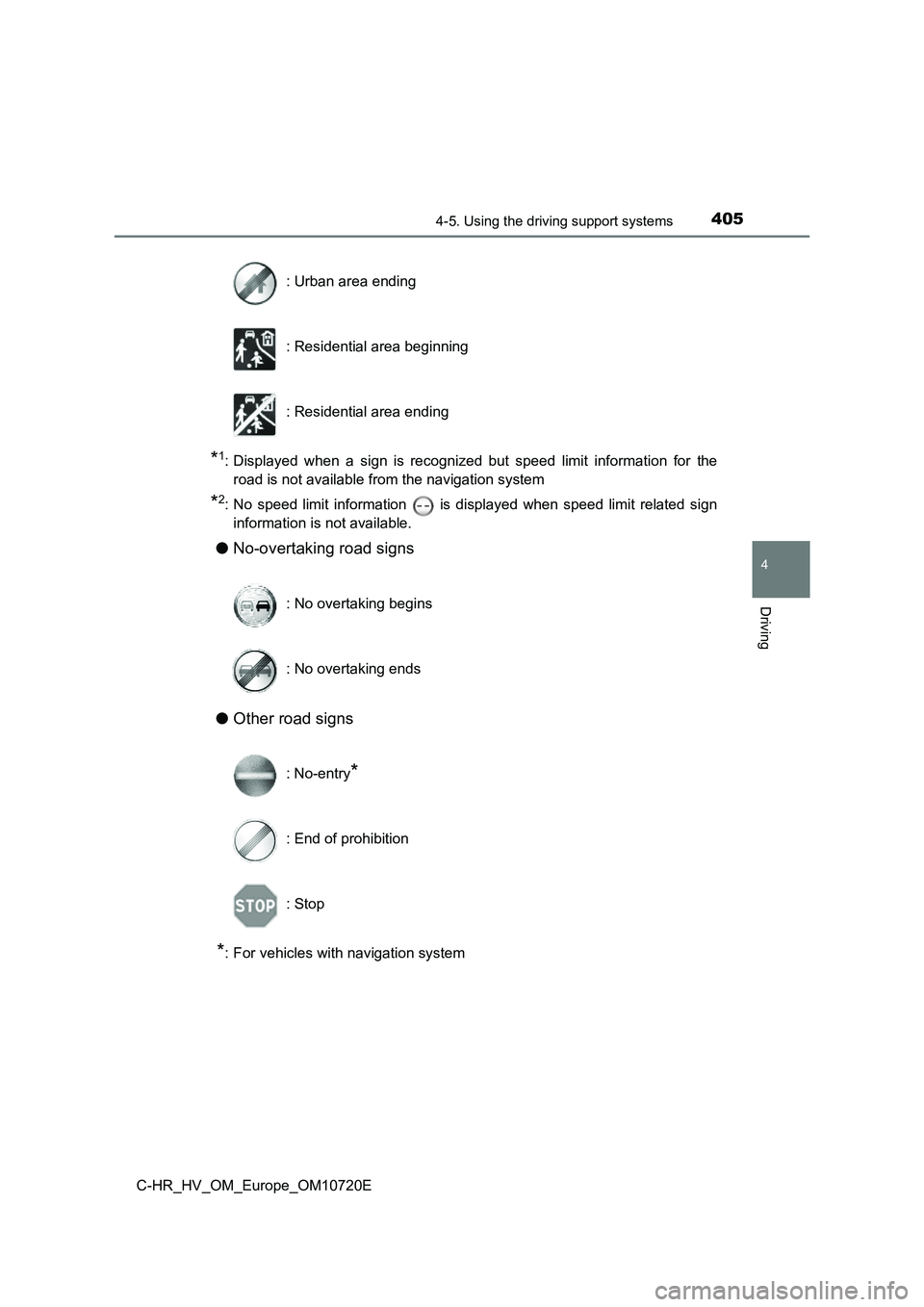

● No-overtaking road signs
● Other road signs
*: For vehicles with navigation system
: Urban area ending
: Residential area beginning
: Residential area ending
: No overtaking begins
: No overtaking ends
: No-entry*
: End of prohibition
: Stop
Page 408 of 818

4064-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10720E

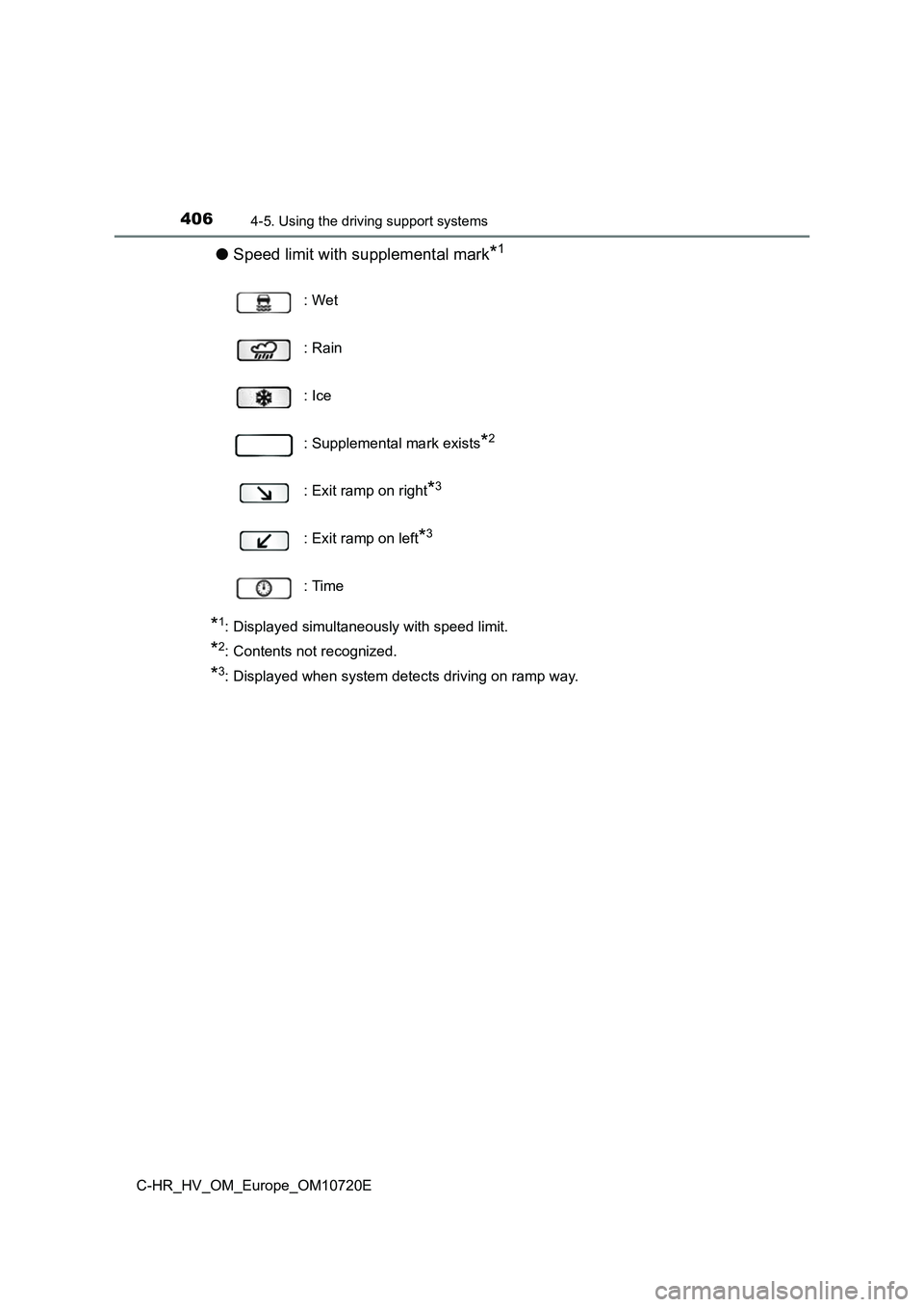

●Speed limit with supplemental mark*1
*1: Displayed simultaneously with speed limit.
*2: Contents not recognized.
*3: Displayed when system detects driving on ramp way.
: Wet
: Rain
: Ice
: Supplemental mark exists*2
: Exit ramp on right*3
: Exit ramp on left*3
: Time
Page 409 of 818

4074-5. Using the driving support systems
4
Driving
C-HR_HV_OM_Europe_OM10720E

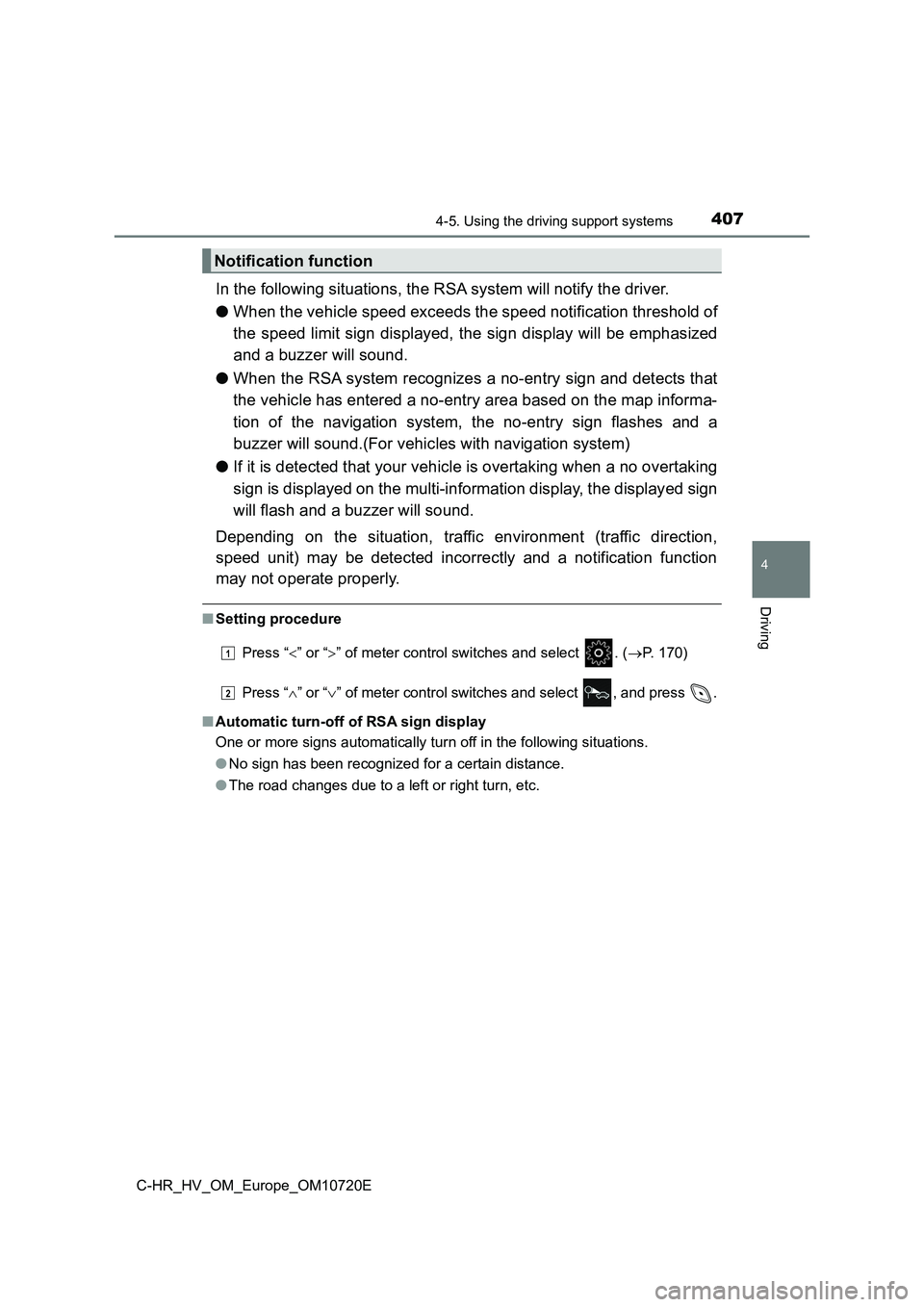

In the following situations, the RSA system will notify the driver.
● When the vehicle speed exceeds the speed notification threshold of
the speed limit sign displayed, the sign display will be emphas ized
and a buzzer will sound.
● When the RSA system recognizes a no-entry sign and detects that
the vehicle has entered a no-entry area based on the map inform a-
tion of the navigation system, the no-entry sign flashes and a
buzzer will sound.(For vehicles with navigation system)
● If it is detected that your vehicle is overtaking when a no overtaking
sign is displayed on the multi-information display, the display ed sign
will flash and a buzzer will sound.
Depending on the situation, traffic environment (traffic direct ion,
speed unit) may be detected incorrectly and a notification func tion
may not operate properly.
■ Setting procedure
Press “ ” or “” of meter control switches and select . (P. 170)
Press “ ” or “” of meter control switches and select , and press .
■ Automatic turn-off of RSA sign display
One or more signs automatically turn off in the following situa tions.
● No sign has been recognized for a certain distance.
● The road changes due to a left or right turn, etc.
Notification function
1
2
Page 410 of 818

4084-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10720E

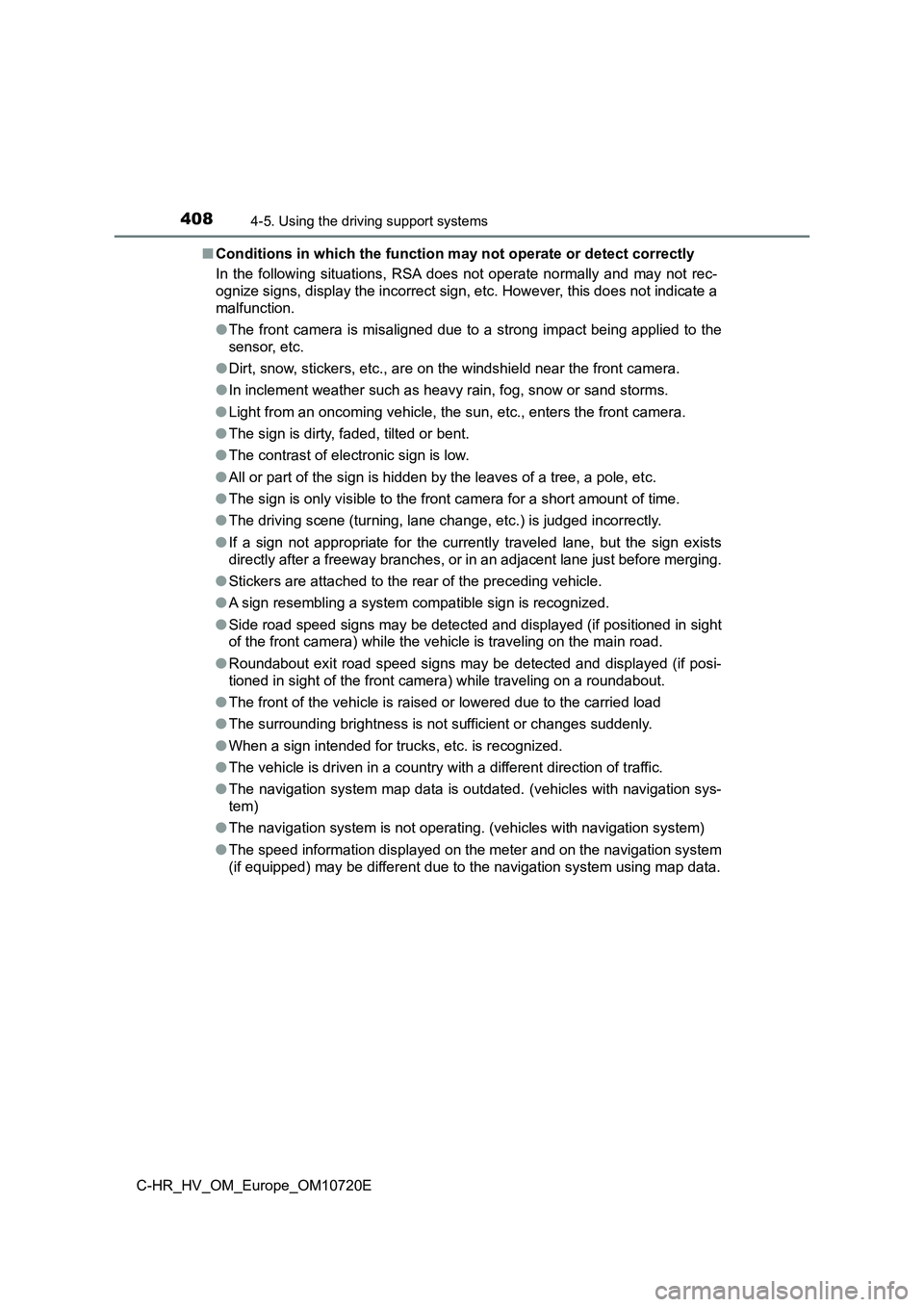

■ Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this do es not indicate a
malfunction.
● The front camera is misaligned due to a strong impact being applied to the
sensor, etc.
● Dirt, snow, stickers, etc., are on the windshield near the front camera.
● In inclement weather such as heavy rain, fog, snow or sand storms.
● Light from an oncoming vehicle, the sun, etc., enters the front camera.
● The sign is dirty, faded, tilted or bent.
● The contrast of electronic sign is low.
● All or part of the sign is hidden by the leaves of a tree, a pole, etc.
● The sign is only visible to the front camera for a short amount of time.
● The driving scene (turning, lane change, etc.) is judged incorrectly.
● If a sign not appropriate for the currently traveled lane, but the sign exists
directly after a freeway branches, or in an adjacent lane just before merging.
● Stickers are attached to the rear of the preceding vehicle.
● A sign resembling a system compatible sign is recognized.
● Side road speed signs may be detected and displayed (if positioned in sight
of the front camera) while the vehicle is traveling on the main road.
● Roundabout exit road speed signs may be detected and displayed (if posi-
tioned in sight of the front camera) while traveling on a round about.
● The front of the vehicle is raised or lowered due to the carried load
● The surrounding brightness is not sufficient or changes suddenly.
● When a sign intended for trucks, etc. is recognized.
● The vehicle is driven in a country with a different direction of traffic.
● The navigation system map data is outdated. (vehicles with navigation sys-
tem)
● The navigation system is not operating. (vehicles with navigation system)
● The speed information displayed on the meter and on the navigation system
(if equipped) may be different due to the navigation system usi ng map data.
Page 411 of 818

4094-5. Using the driving support systems
4
Driving
C-HR_HV_OM_Europe_OM10720E

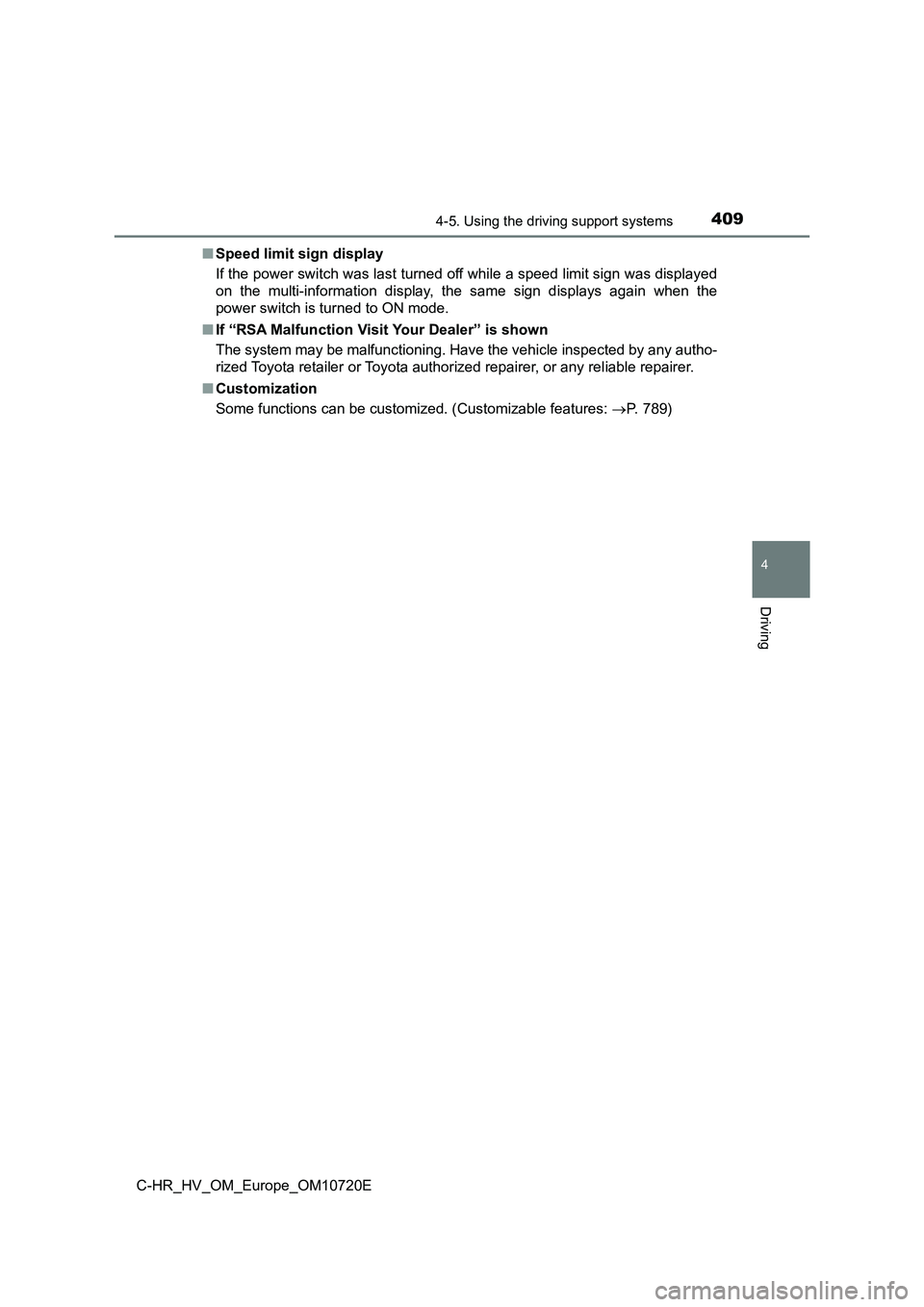

■ Speed limit sign display
If the power switch was last turned off while a speed limit sig n was displayed
on the multi-information display, the same sign displays again when the
power switch is turned to ON mode.
■ If “RSA Malfunction Visit Your Dealer” is shown
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer.
■ Customization
Some functions can be customized. (Customizable features: P. 789)
Page 412 of 818

4104-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10720E
Dynamic radar cruise controlwith full-speed
range
In vehicle-to-vehicle distance control mode, the vehicle automa tically
accelerates, decelerates and stops to match the speed changes o f the
preceding vehicle even if the accelerator pedal is not depresse d. In
constant speed control mode, the vehicle runs at a fixed speed.
Use the dynamic radar cruise control with full-speed range on f ree-
ways and highways.
● Vehicle-to-vehicle distance control mode (P. 414)
● Constant speed control mode (P. 421)
Multi-information display
Indicators
Set speed
Vehicle-to-vehicle distance
switch
Cruise control switch
: If equipped
Summary of functions
System Components
Page 418 of 818

4164-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10720E
Press the “ON-OFF” button to
activate the cruise control.
Dynamic radar cruise control indi-
cator will come on and a message
will be displayed on the multi-infor-
mation display.
Press the button again to deacti-
vate the cruise control.
If the “ON-OFF” button is pressed
and held for 1.5 seconds or more,
the system turns on in constant
speed control mode. ( P. 421)
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed (at or
above approximately 30 km/h
[20 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.

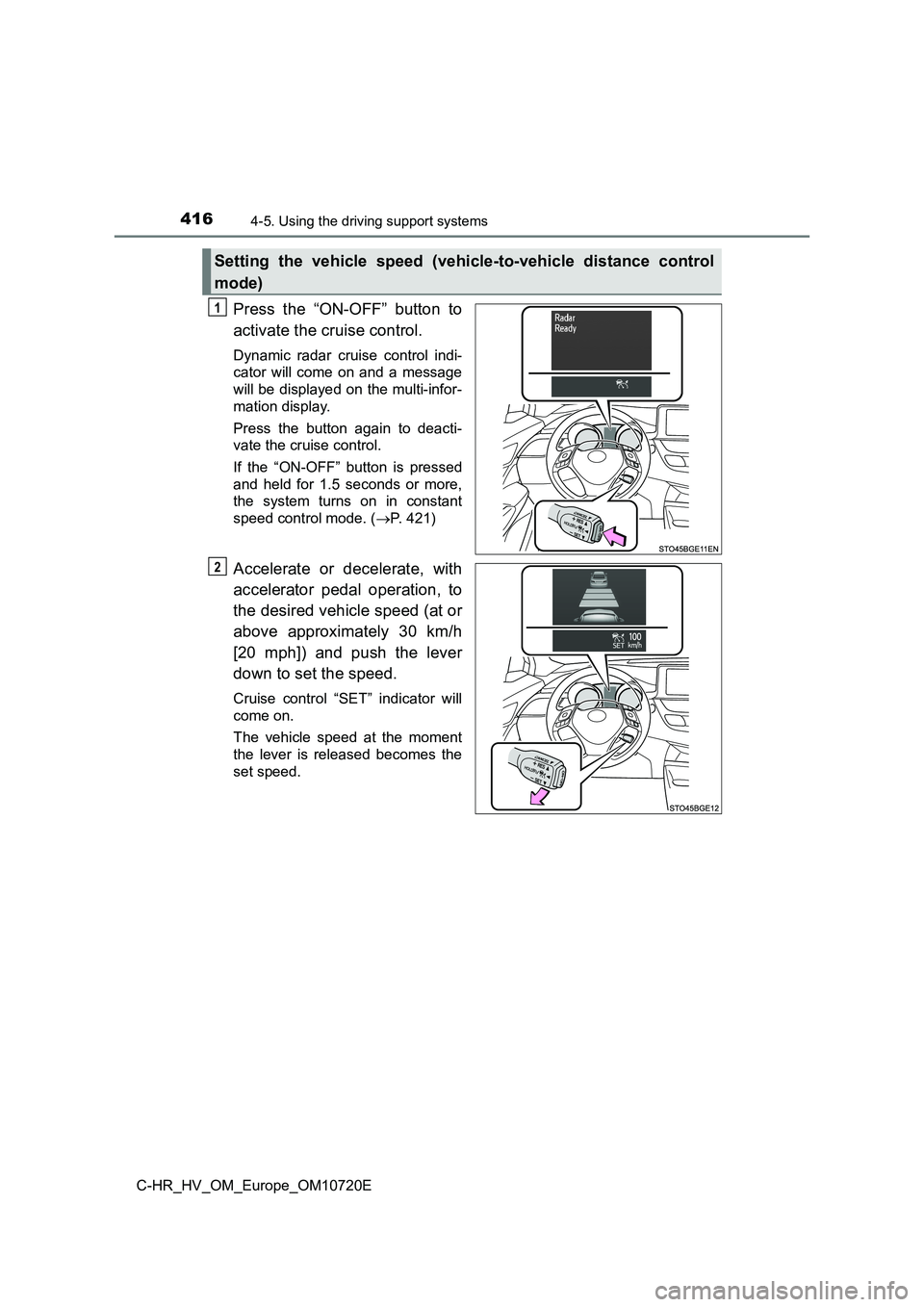

Setting the vehicle speed (vehicle-to-vehicle distance control
mode)
1
2
Page 419 of 818

4174-5. Using the driving support systems
4
Driving
C-HR_HV_OM_Europe_OM10720E

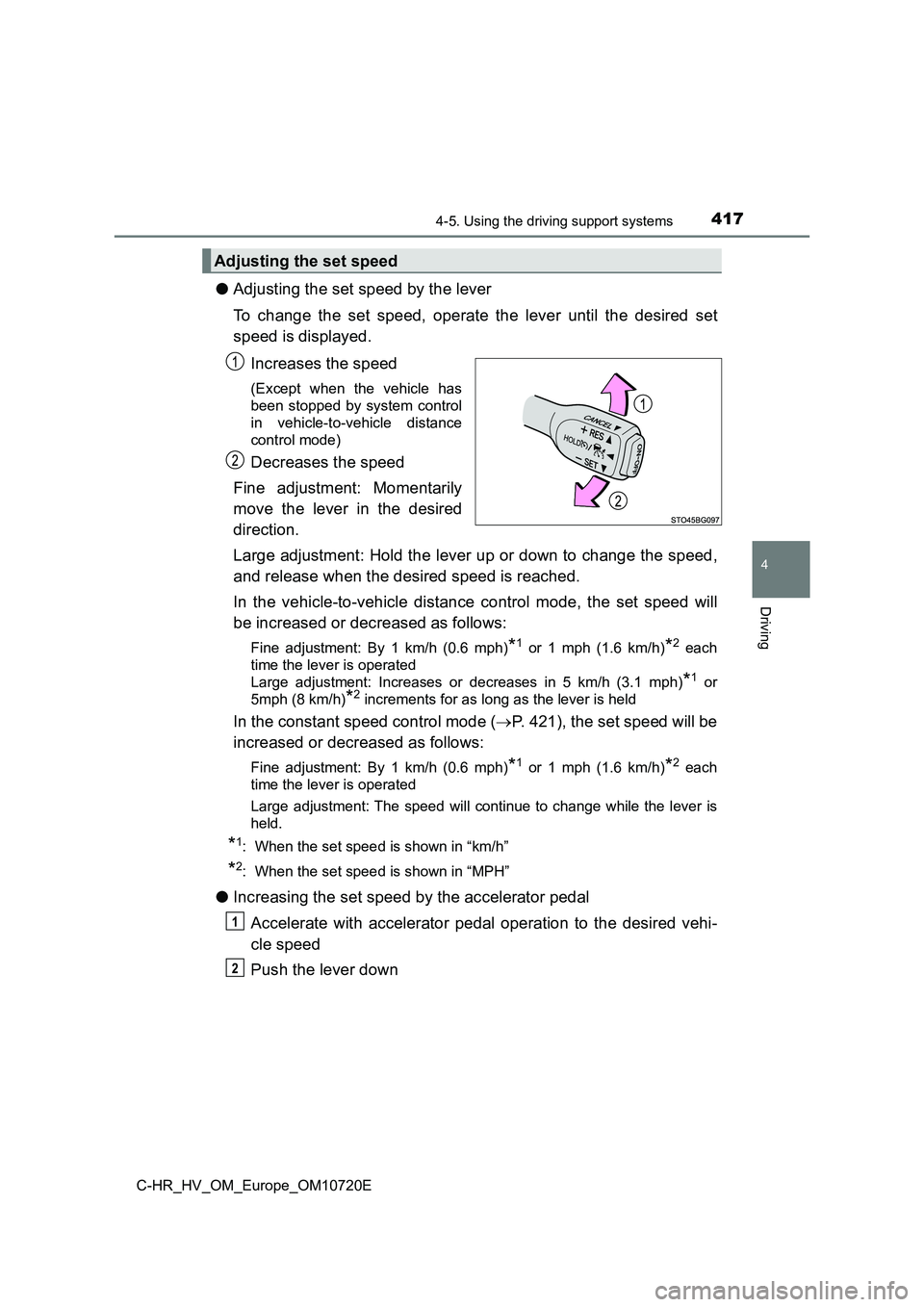

●Adjusting the set speed by the lever
To change the set speed, operate the lever until the desired se t
speed is displayed.
Increases the speed
(Except when the vehicle has
been stopped by system control
in vehicle-to-vehicle distance
control mode)
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever up or down to change the speed ,
and release when the desired speed is reached.
In the vehicle-to-vehicle distance control mode, the set speed will
be increased or decreased as follows:
Fine adjustment: By 1 km/h (0.6 mph)*1 or 1 mph (1.6 km/h)*2 each
time the lever is operated
Large adjustment: Increases or decreases in 5 km/h (3.1 mph)*1 or
5mph (8 km/h)*2 increments for as long as the lever is held
In the constant speed control mode ( P. 421), the set speed will be
increased or decreased as follows:
Fine adjustment: By 1 km/h (0.6 mph)*1 or 1 mph (1.6 km/h)*2 each
time the lever is operated
Large adjustment: The speed will continue to change while the l ever is
held.
*1: When the set speed is shown in “km/h”
*2: When the set speed is shown in “MPH”
● Increasing the set speed by the accelerator pedal
Accelerate with accelerator pedal operation to the desired vehi -
cle speed
Push the lever down
Adjusting the set speed
1
2
Page 420 of 818

4184-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10720E
Pressing the switch changes the
vehicle-to-vehicle distance as fol-
lows:
Long
Medium
Short
If a vehicle is running ahead of
you, the preceding vehicle mark
will also be displayed.
Select a distance from the table below. Note that the distances shown
correspond to a vehicle speed of 80 km/h (50 mph). Vehicle-to-v ehicle
distance increases/decreases in accordance with vehicle speed.
When the vehicle is stopped by system control, the vehicle stop s at a
certain vehicle-to-vehicle distance depending on the situation.

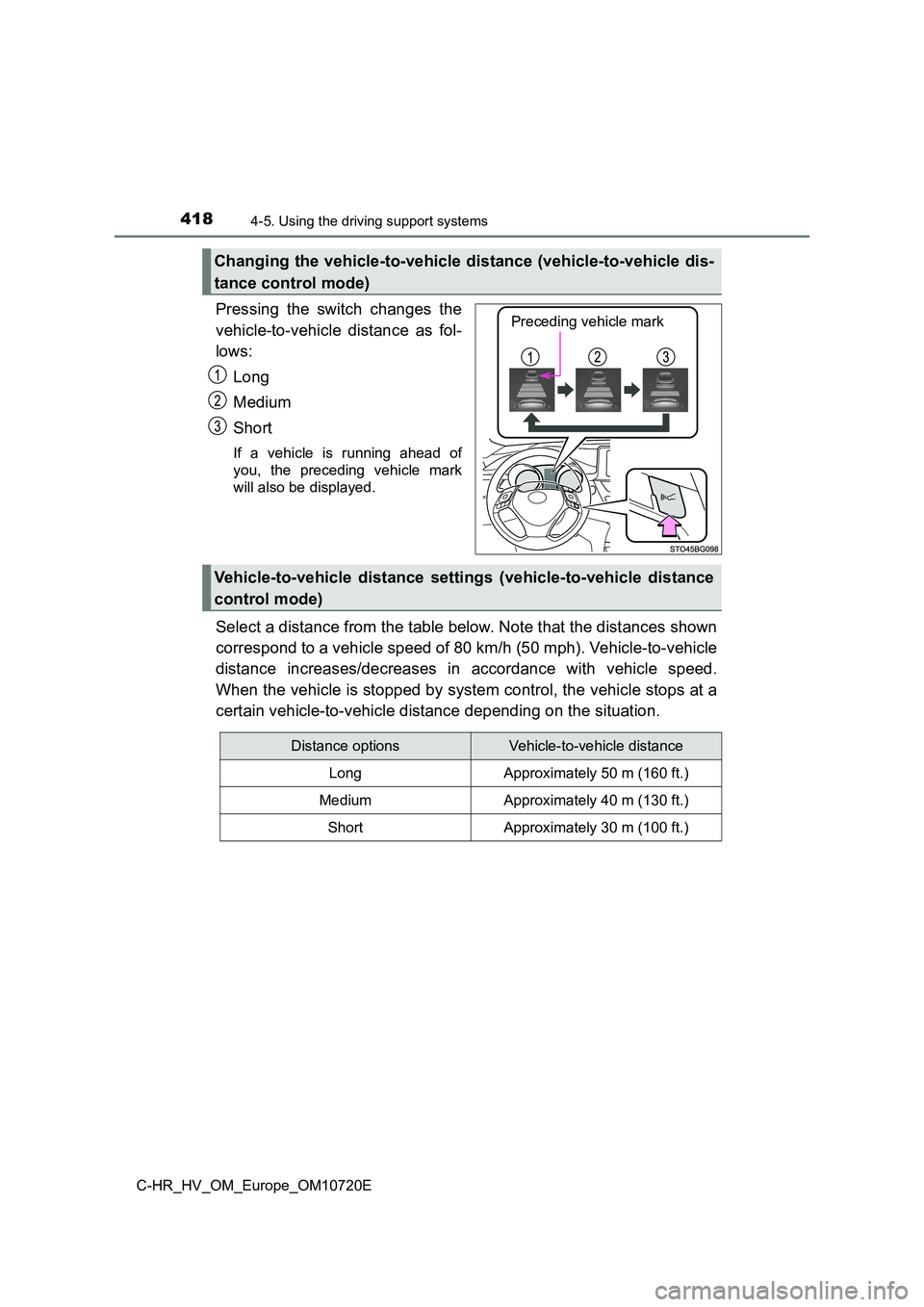

Changing the vehicle-to-vehicle distance (vehicle-to-vehicle di s-
tance control mode)
Preceding vehicle mark
Vehicle-to-vehicle distance settings (vehicle-to-vehicle distan ce
control mode)
Distance optionsVehicle-to-vehicle distance
LongApproximately 50 m (160 ft.)
MediumApproximately 40 m (130 ft.)
ShortApproximately 30 m (100 ft.)
