TABLE OF CONTENTS2
C-HR_HV_OM_Europe_OM10720E
For your information .......................8
Reading this manual.....................12
How to search ..............................13
Pictorial index ...............................14
1-1. For safe use
Before driving.......................32
For safe driving ....................34
Seat belts .............................36
SRS airbags.........................41
Exhaust gas precautions .....54
1-2. Child safety
Airbag manual on-off
system ...............................55
Riding with children..............58
Child restraint systems ........59
1-3. Emergency assistance
eCall.....................................97
1-4. Hybrid system
Hybrid system features ......118
Hybrid system
precautions ......................123
1-5. Theft deterrent system
Immobilizer system ............130
Double locking system .......145
Alarm .................................147
Theft prevention labels ......155
2. Instrument cluster
Warning lights and
indicators......................... 158
Gauges and meters........... 166
Multi-information display ... 170
Energy monitor/
consumption screen ........ 179
1For safety and security
2Instrument cluster

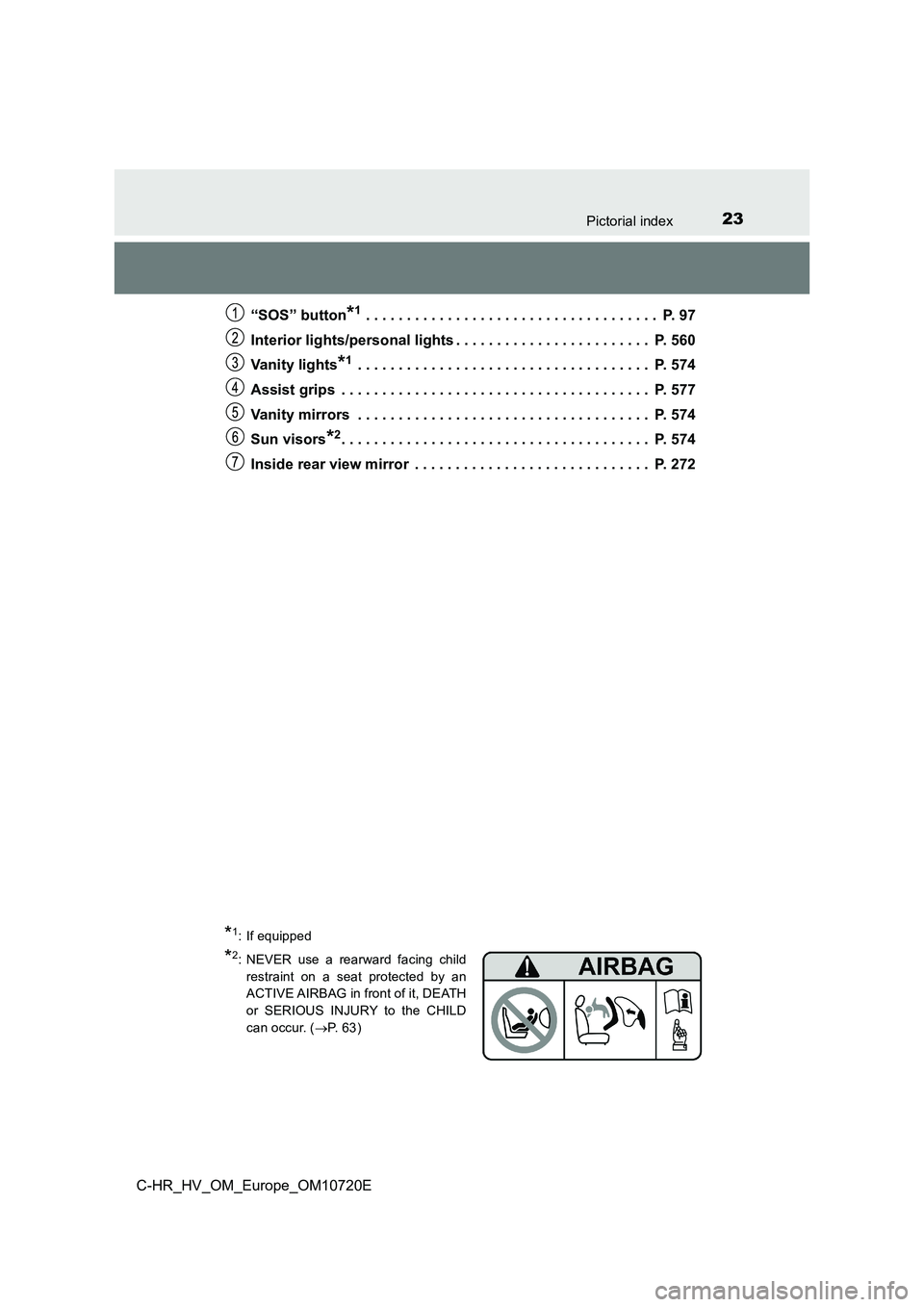

23Pictorial index
C-HR_HV_OM_Europe_OM10720E
“SOS” button*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 97
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . . . . . P. 560
Vanity lights*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. ( P. 6 3 )

30Pictorial index
C-HR_HV_OM_Europe_OM10720E
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Vanity lights*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . . . . . P. 560
Theft sensor off switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. ( P. 6 3 )

31

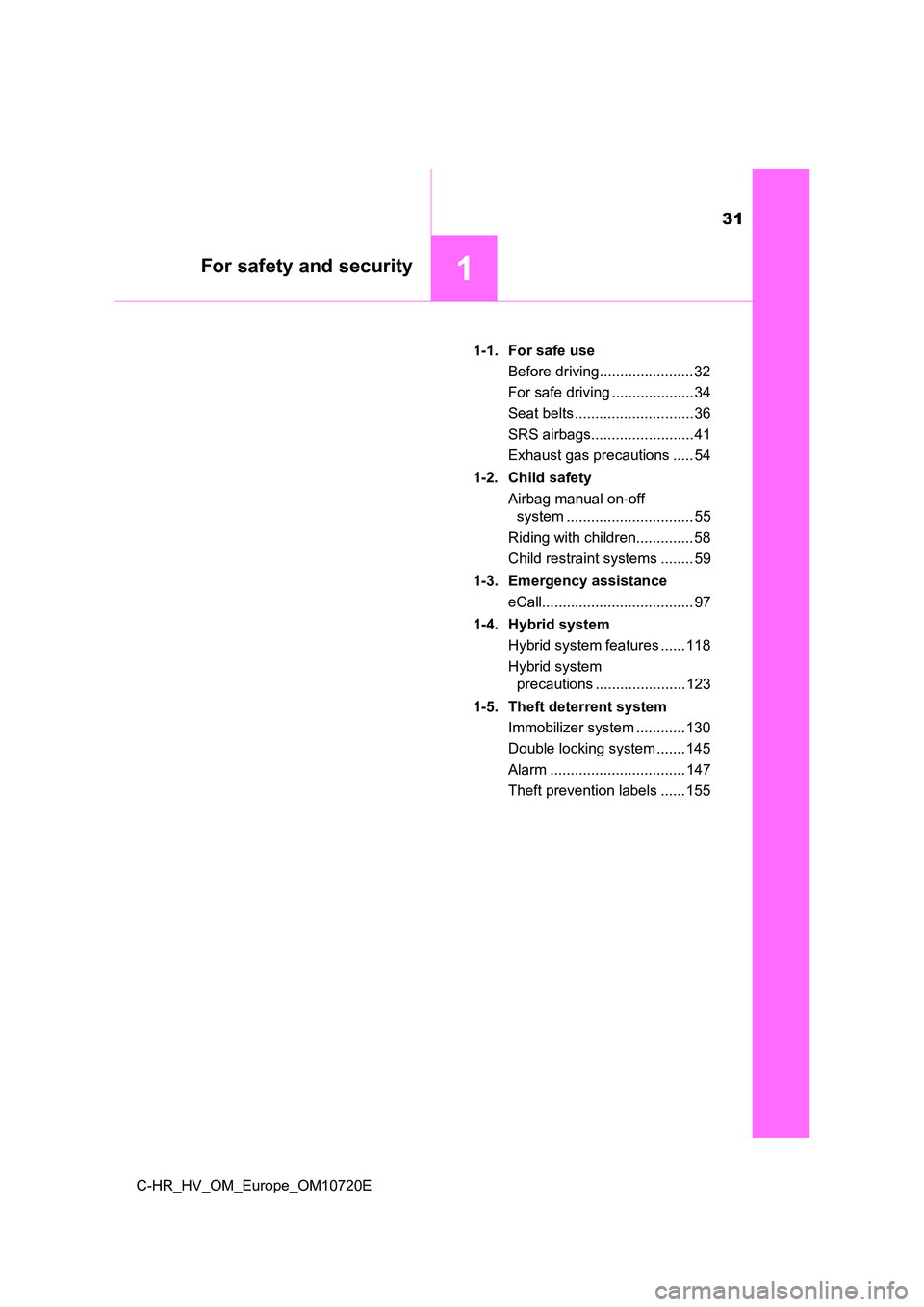

1For safety and security
C-HR_HV_OM_Europe_OM10720E
1-1. For safe use
Before driving....................... 32
For safe driving .................... 34
Seat belts ............................. 36
SRS airbags......................... 41
Exhaust gas precautions ..... 54
1-2. Child safety
Airbag manual on-off
system ............................... 55
Riding with children.............. 58
Child restraint systems ........ 59
1-3. Emergency assistance
eCall..................................... 97
1-4. Hybrid system
Hybrid system features ...... 118
Hybrid system
precautions ...................... 123
1-5. Theft deterrent system
Immobilizer system ............ 130
Double locking system ....... 145
Alarm ................................. 147
Theft prevention labels ...... 155

341-1. For safe use
C-HR_HV_OM_Europe_OM10720E

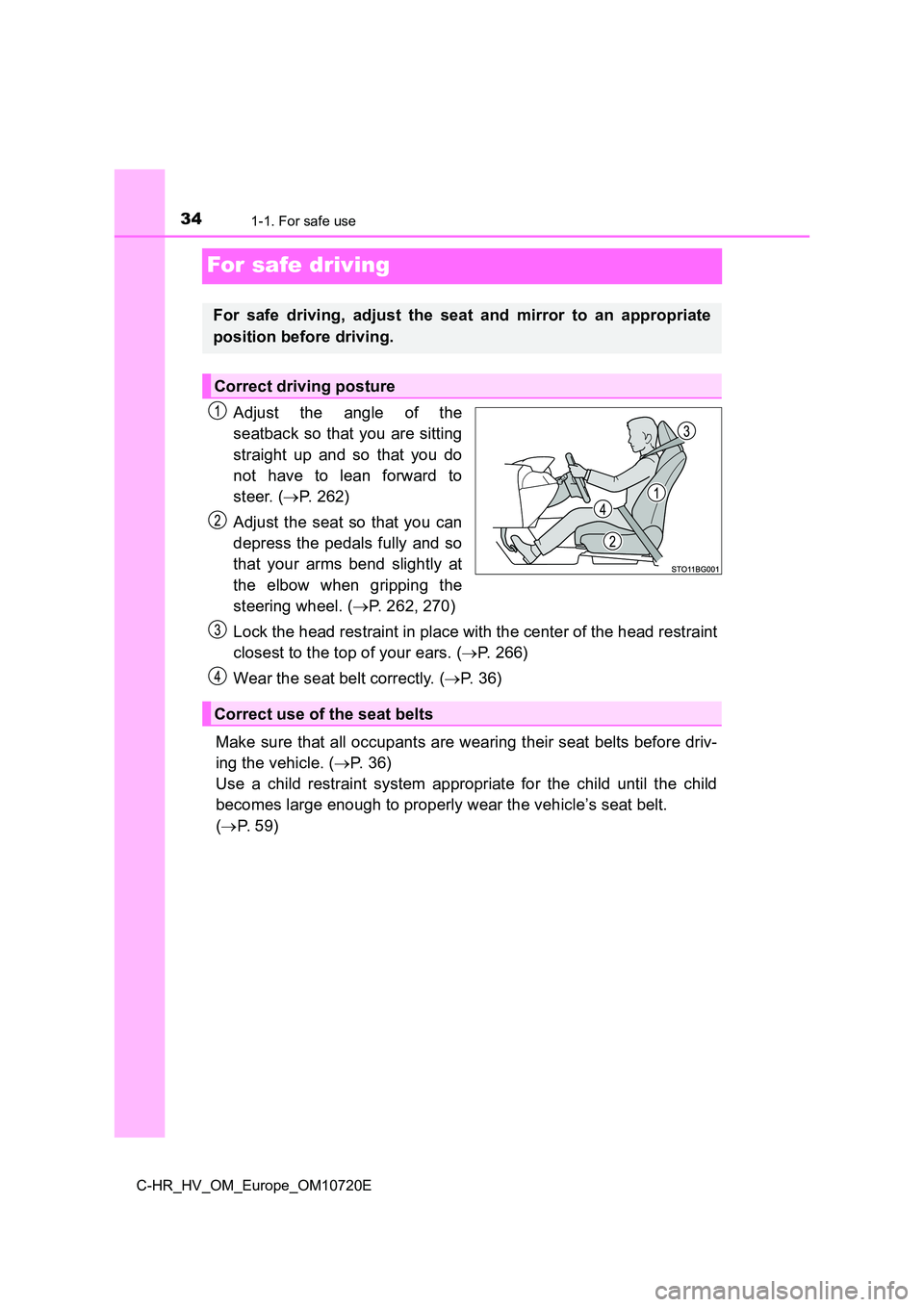

For safe driving
Adjust the angle of the
seatback so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 2 6 2 )
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 262, 270)
Lock the head restraint in place with the center of the head re straint
closest to the top of your ears. ( P. 2 6 6 )
Wear the seat belt correctly. ( P. 3 6 )
Make sure that all occupants are wearing their seat belts befor e driv-
ing the vehicle. ( P. 3 6 )
Use a child restraint system appropriate for the child until th e child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 59)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
Correct use of the seat belts

381-1. For safe use
C-HR_HV_OM_Europe_OM10720E

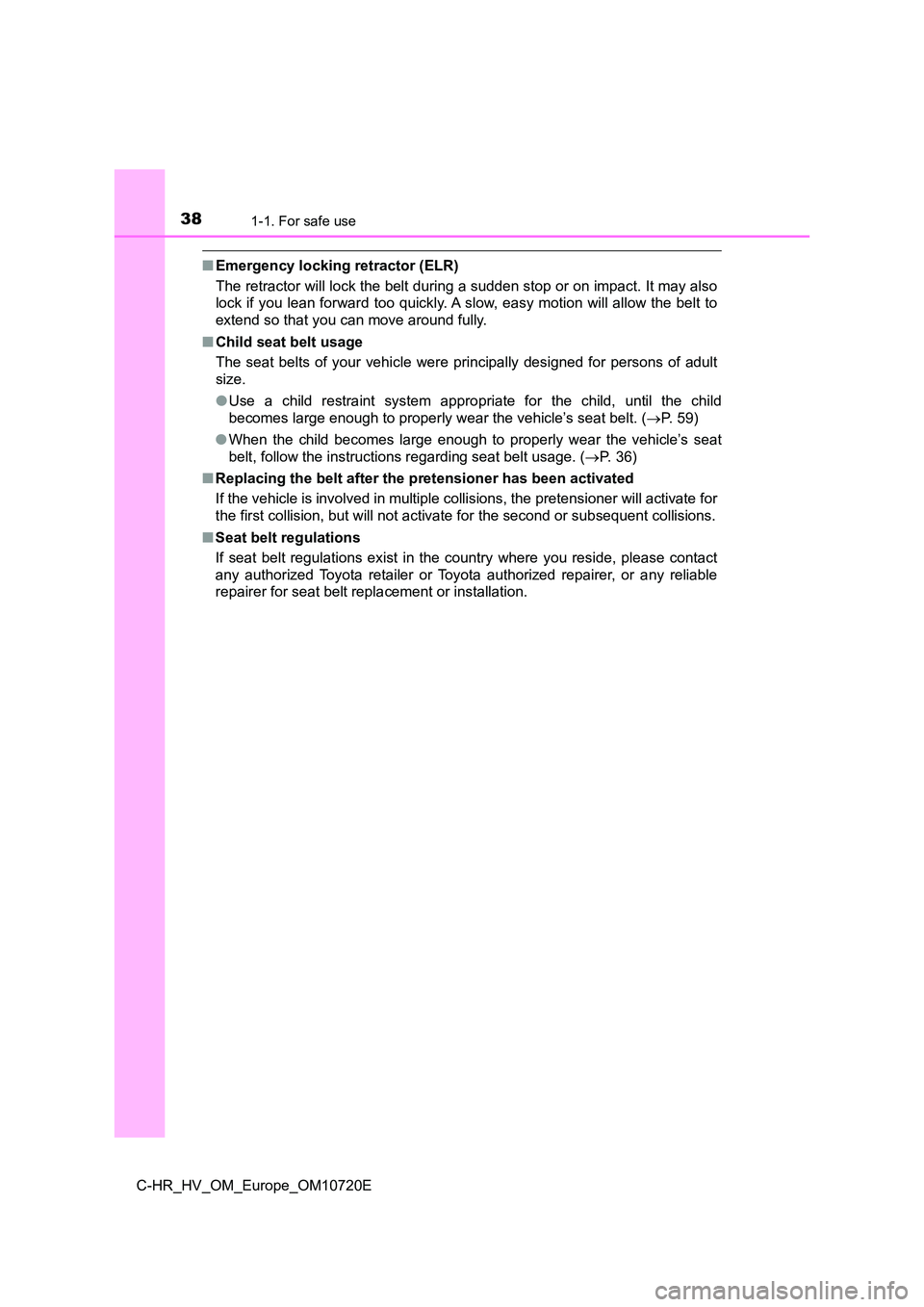

■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on imp act. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Child seat belt usage
The seat belts of your vehicle were principally designed for pe rsons of adult
size.
● Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 5 9 )
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( P. 36)
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensi oner will activate for
the first collision, but will not activate for the second or su bsequent collisions.
■ Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer for seat belt repl acement or installation.

391-1. For safe use
1
For safety and security
C-HR_HV_OM_Europe_OM10720E

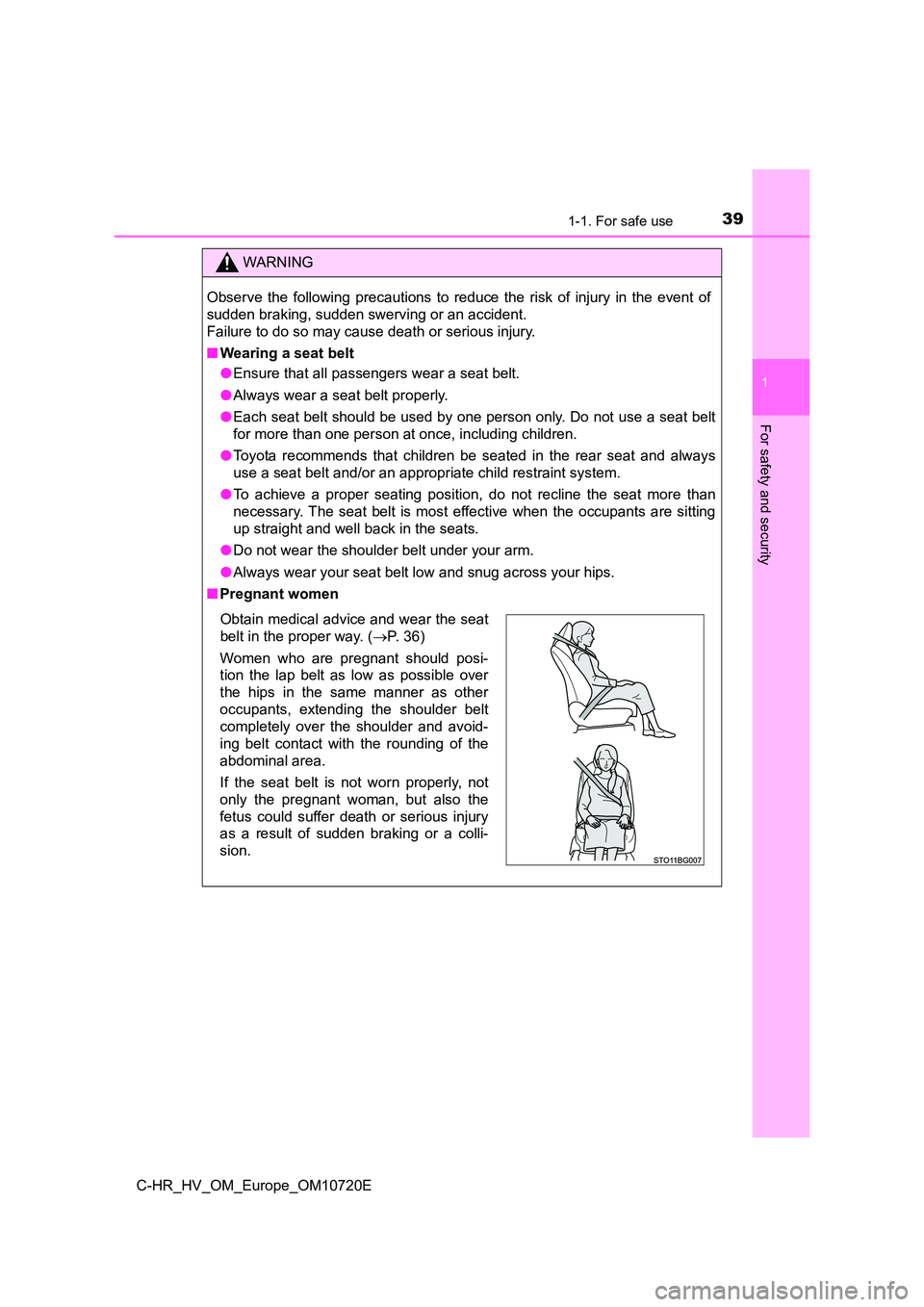

WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants a re sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. ( P. 36)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

551-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10720E

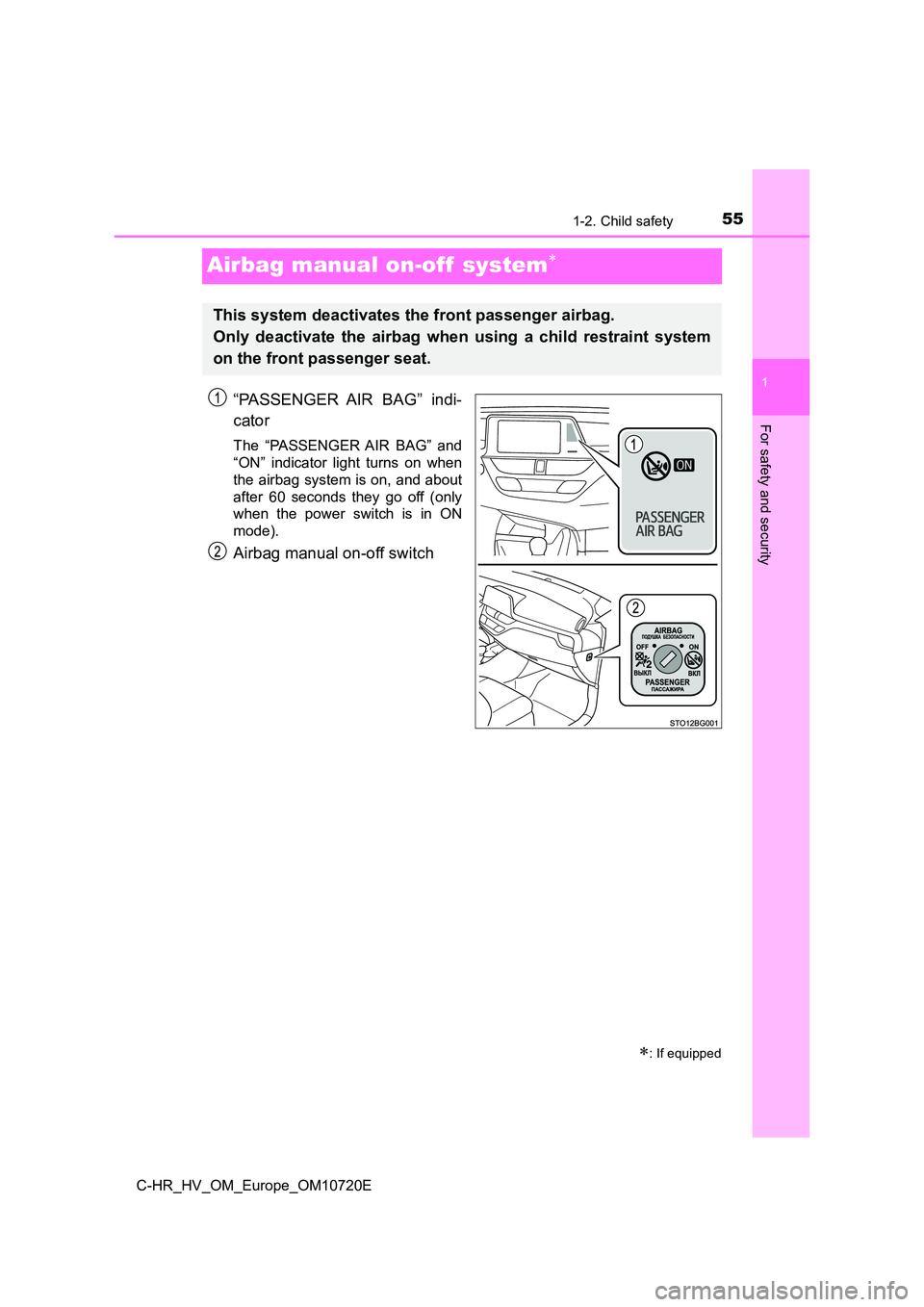

Airbag manual on-off system
“PASSENGER AIR BAG” indi-
cator
The “PASSENGER AIR BAG” and
“ON” indicator light turns on when
the airbag system is on, and about
after 60 seconds they go off (only
when the power switch is in ON
mode).
Airbag manual on-off switch
: If equipped
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system
on the front passenger seat.

571-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10720E

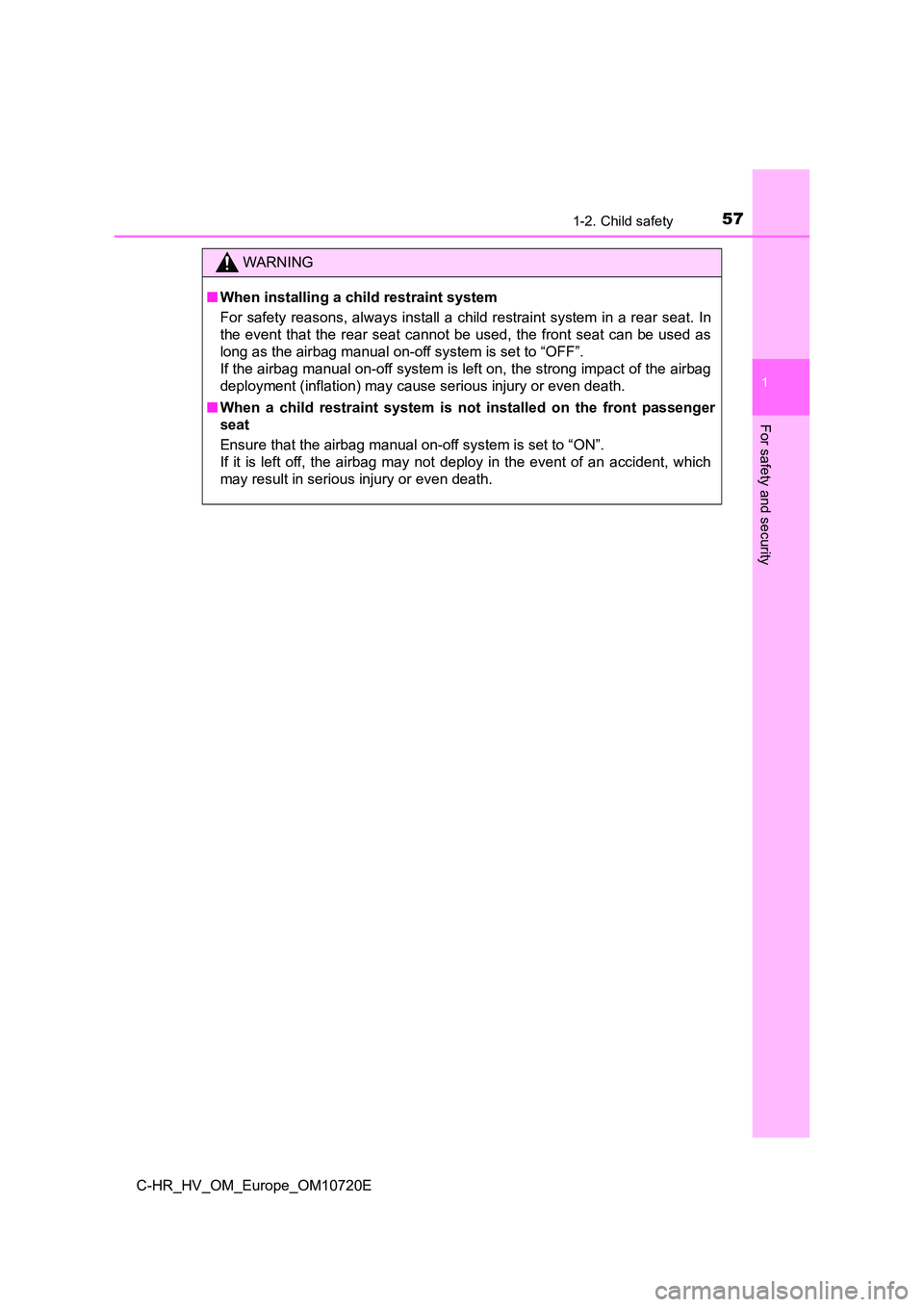

WARNING
■When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impac t of the airbag
deployment (inflation) may cause serious injury or even death.
■ When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

581-2. Child safety
C-HR_HV_OM_Europe_OM10720E
Riding with children
●It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch, etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally. ( P. 197, 277)
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats, etc.
Observe the following precautions when children are in the vehi -
cle.
Use a child restraint system appropriate for the child, until t he
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by p laying with
side windows or other features of the vehicle. In addition, hea t build-up or
extremely cold temperatures insi de the vehicle can be fatal to children.
