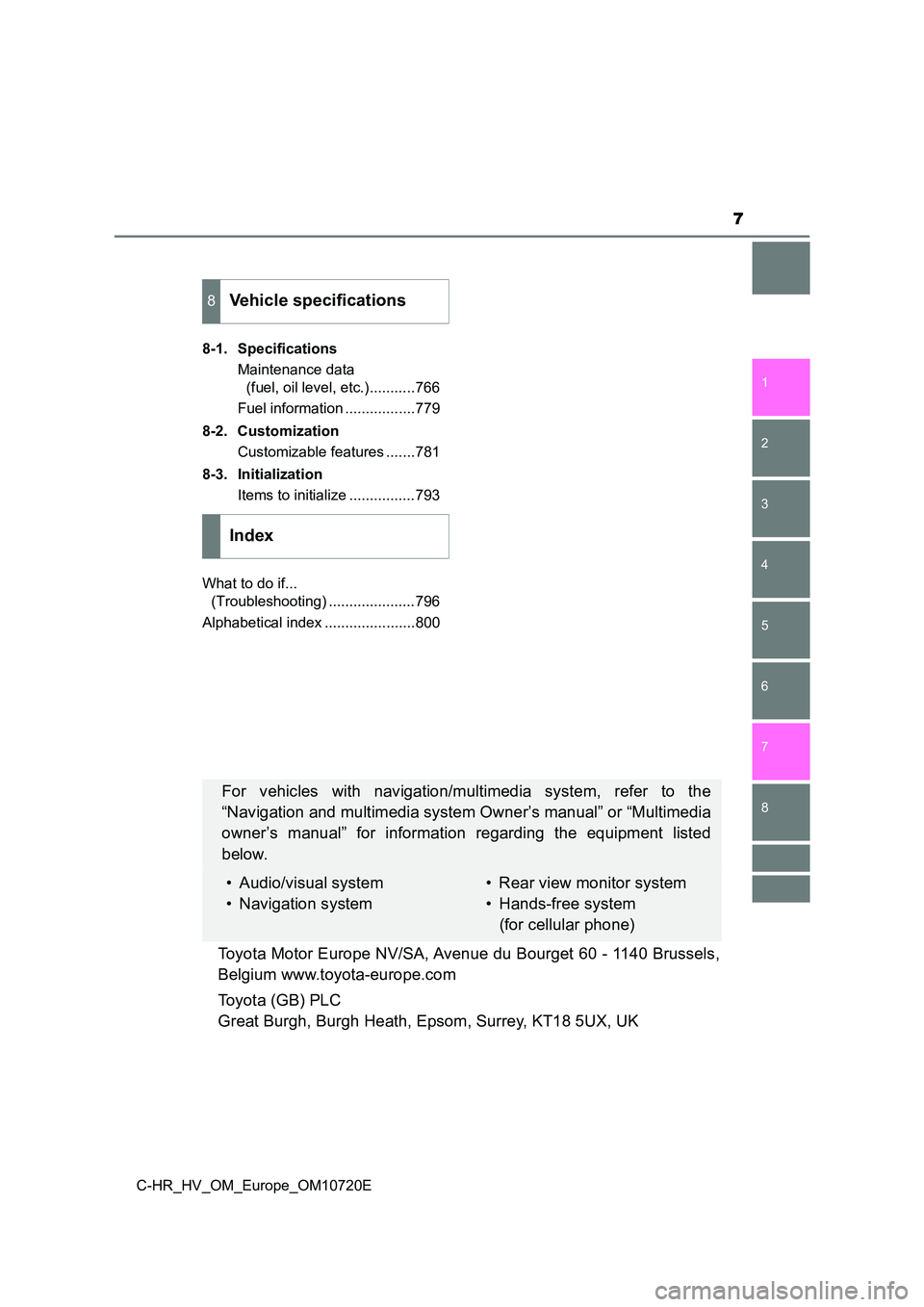

8-1. Specifications
Maintenance data
(fuel, oil level, etc.)...........766
Fuel information .................779
8-2. Customization
Customizable features .......781
8-3. Initialization
Items to initialize ................793
What to do if...
(Troubleshooting) .....................796
Alphabetical index ......................800
8Vehicle specifications
Index
For vehicles with navigation/multimedia system, refer to the
“Navigation and multimedia system Owner’s manual” or “Multimedi a
owner’s manual” for information regarding the equipment listed
below.
• Audio/visual system
• Navigation system
• Rear view monitor system
• Hands-free system
(for cellular phone)
Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140 Brussels ,
Belgium www.toyota-europe.com
Toyota (GB) PLC
Great Burgh, Burgh Heath, Epsom, Surrey, KT18 5UX, UK

15Pictorial index
C-HR_HV_OM_Europe_OM10720E
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 543
To prevent freezing (windshield wiper de-icer*1) . . . . . . . . . . . P. 552
Precautions for using a car wash . . . . . . . . . . . . . . . . . . . . . . P. 583
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 769
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 616
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 776
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 543
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 616
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 699, 729
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 770
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 757
Camera*1, 2
Headlights/front position lights/
daytime running lights/turn sig nal lights . . . . . . . . . . P. 324, 333
Front fog lights*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 324
Tail lights/turn signal lights . . . . . . . . . . . . . . . . . . . . . P. 324, 333
Tail lights (LED type)
Turn signal lights (LED type) . . . . . . . . . . . . . . . . . . . . . . . . P. 324
Back-up light (bulb type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 333
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Back-up light (LED type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Light bulbs of the exterior lights for driving
(Replacing method: P. 653, Watts: P. 778)
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

17Pictorial index
C-HR_HV_OM_Europe_OM10720E
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 170
If a warning message or indicator is displayed . . . . . . . . . . . . P. 692
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 324
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 333
Headlights/front position lights/
tail lights/daytime running lights. . . . . . . . . . . . . . . . . . . . . . . . P. 333
Front fog lights*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 345
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 348
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345, 348
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 611
Headlight cleaners*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 670
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 270
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 548
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 548
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 552
Seat heaters*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 557
Navigation/multimedia system*1, 2
Energy monitor/consumption screen . . . . . . . . . . . . . . . . . . . . P. 179
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

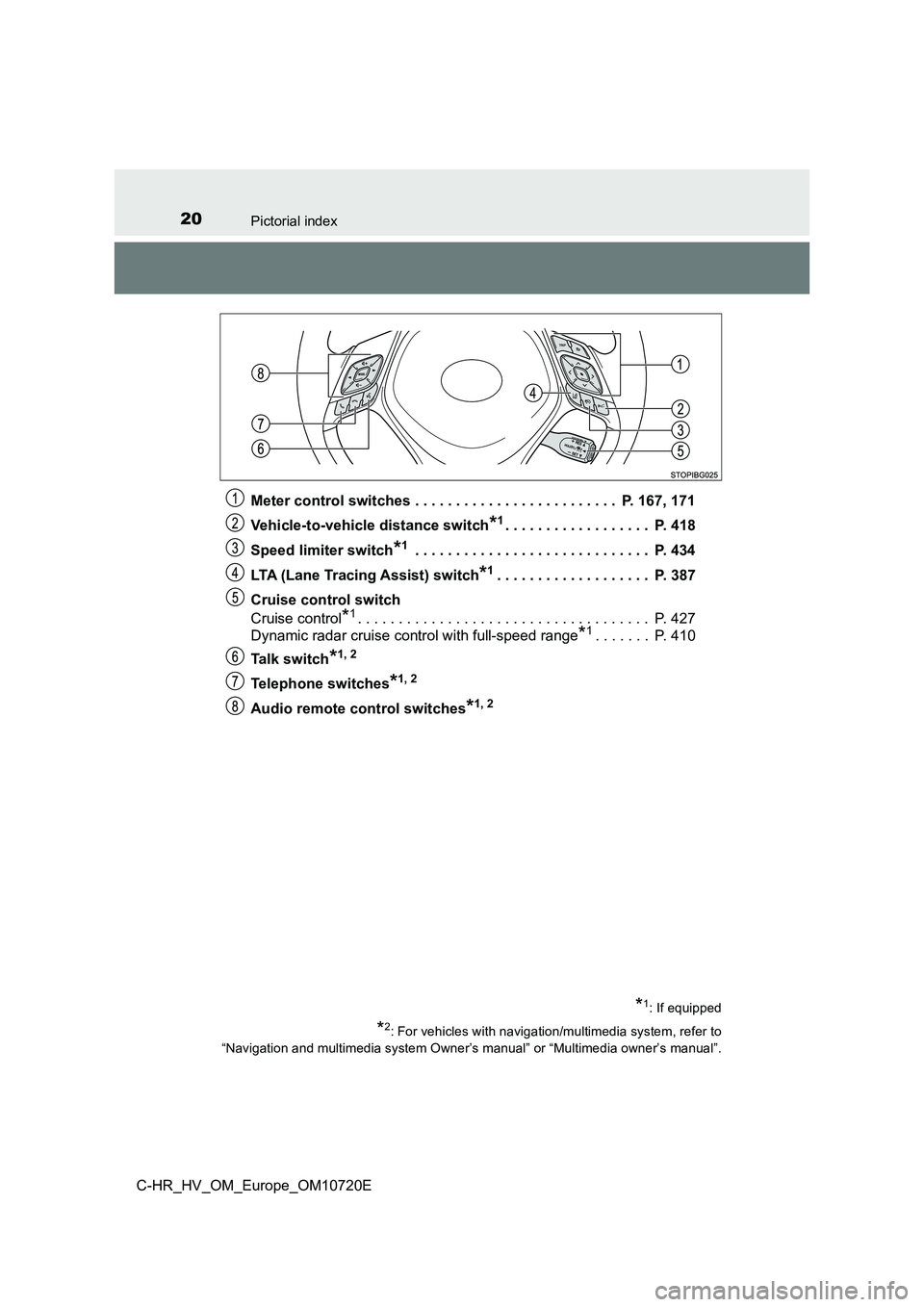

20Pictorial index
C-HR_HV_OM_Europe_OM10720E
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . P. 167, 171
Vehicle-to-vehicle distance switch*1. . . . . . . . . . . . . . . . . . P. 418
Speed limiter switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 34
LTA (Lane Tracing Assist) switch*1. . . . . . . . . . . . . . . . . . . P. 387
Cruise control switch
Cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Dynamic radar cruise control with full-speed range*1. . . . . . . P. 410
Ta l k s w i t c h*1, 2
Telephone switches*1, 2
Audio remote control switches*1, 2
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

25Pictorial index
C-HR_HV_OM_Europe_OM10720E
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 170
If a warning message or indicator is displayed . . . . . . . . . . . . P. 692
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 324
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 333
Headlights/front position lights/
tail lights/daytime running lights. . . . . . . . . . . . . . . . . . . . . . . . P. 333
Front fog lights*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 345
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 348
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345, 348
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 611
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 670
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 270
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 548
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 548
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 552
Seat heaters*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 557
Navigation/multimedia system*1, 2
Energy monitor/consumption screen . . . . . . . . . . . . . . . . . . . . P. 179
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

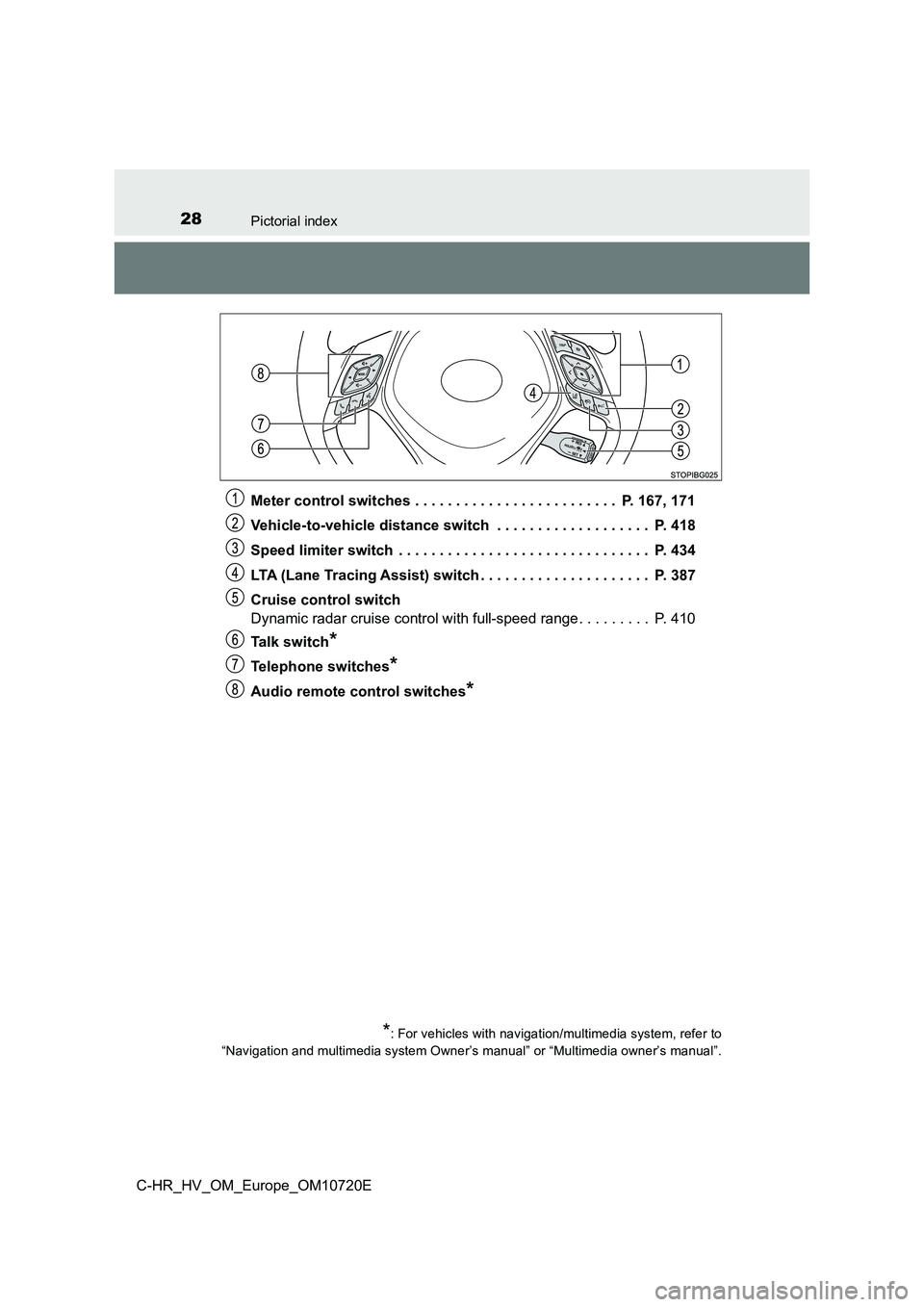

28Pictorial index
C-HR_HV_OM_Europe_OM10720E
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . P. 167, 171
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 418
Speed limiter switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 434
LTA (Lane Tracing Assist) switch . . . . . . . . . . . . . . . . . . . . . P. 387
Cruise control switch
Dynamic radar cruise control with full-speed range. . . . . . . . . P. 410
Ta l k s w i t c h*
Telephone switches*
Audio remote control switches*
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

97
1
1-3. Emergency assistance
For safety and security
C-HR_HV_OM_Europe_OM10720E

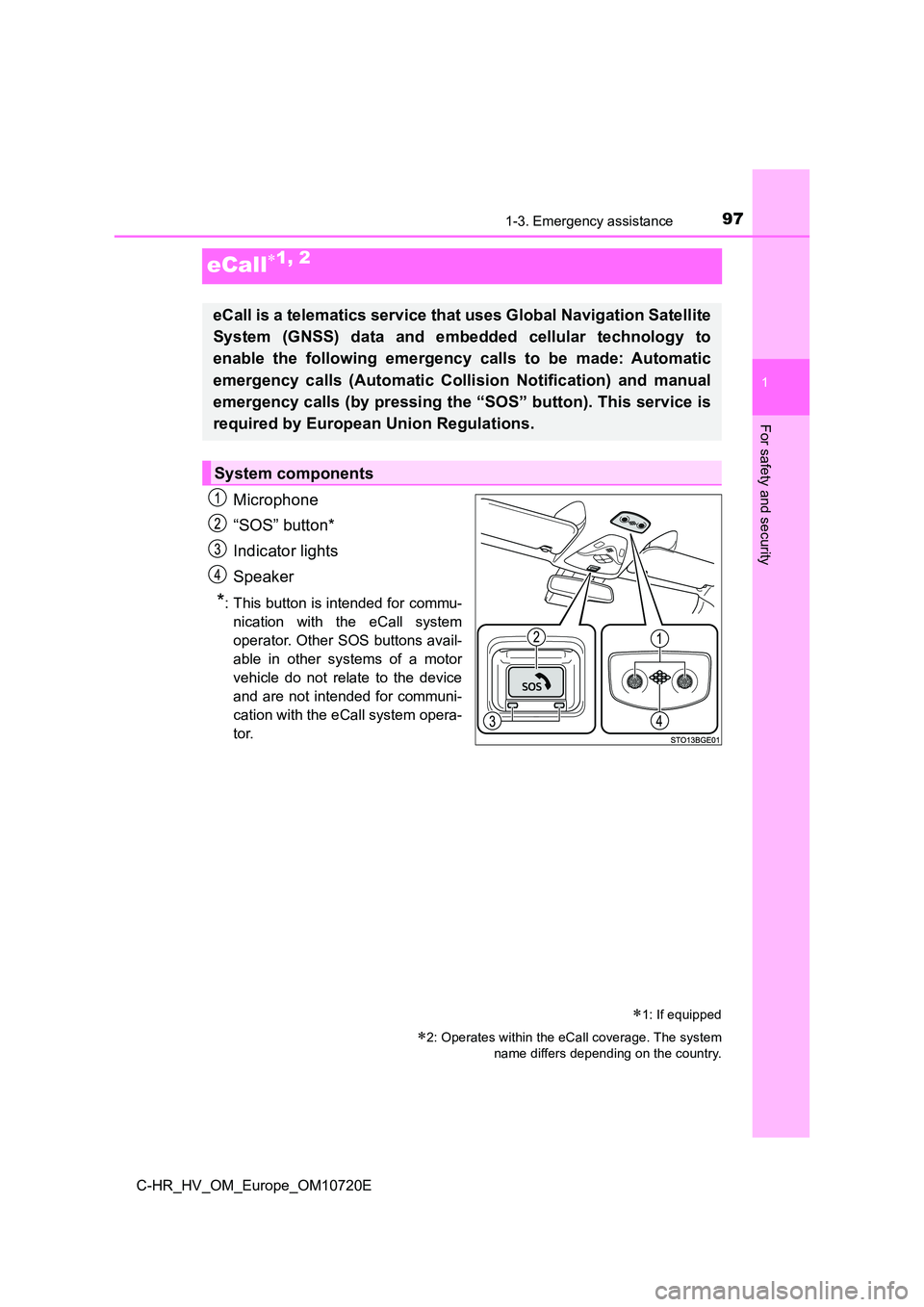

eCall1, 2
Microphone
“SOS” button*
Indicator lights
Speaker
*: This button is intended for commu-
nication with the eCall system
operator. Other SOS buttons avail-
able in other systems of a motor
vehicle do not relate to the device
and are not intended for communi-
cation with the eCall system opera-
tor.
1: If equipped
2: Operates within the eCall coverage. The system
name differs depending on the country.
eCall is a telematics service that uses Global Navigation Satel lite
System (GNSS) data and embedded cellular technology to
enable the following emergency calls to be made: Automatic
emergency calls (Automatic Collision Notification) and manual
emergency calls (by pressing the “SOS” button). This service is
required by European Union Regulations.
System components

1692. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E

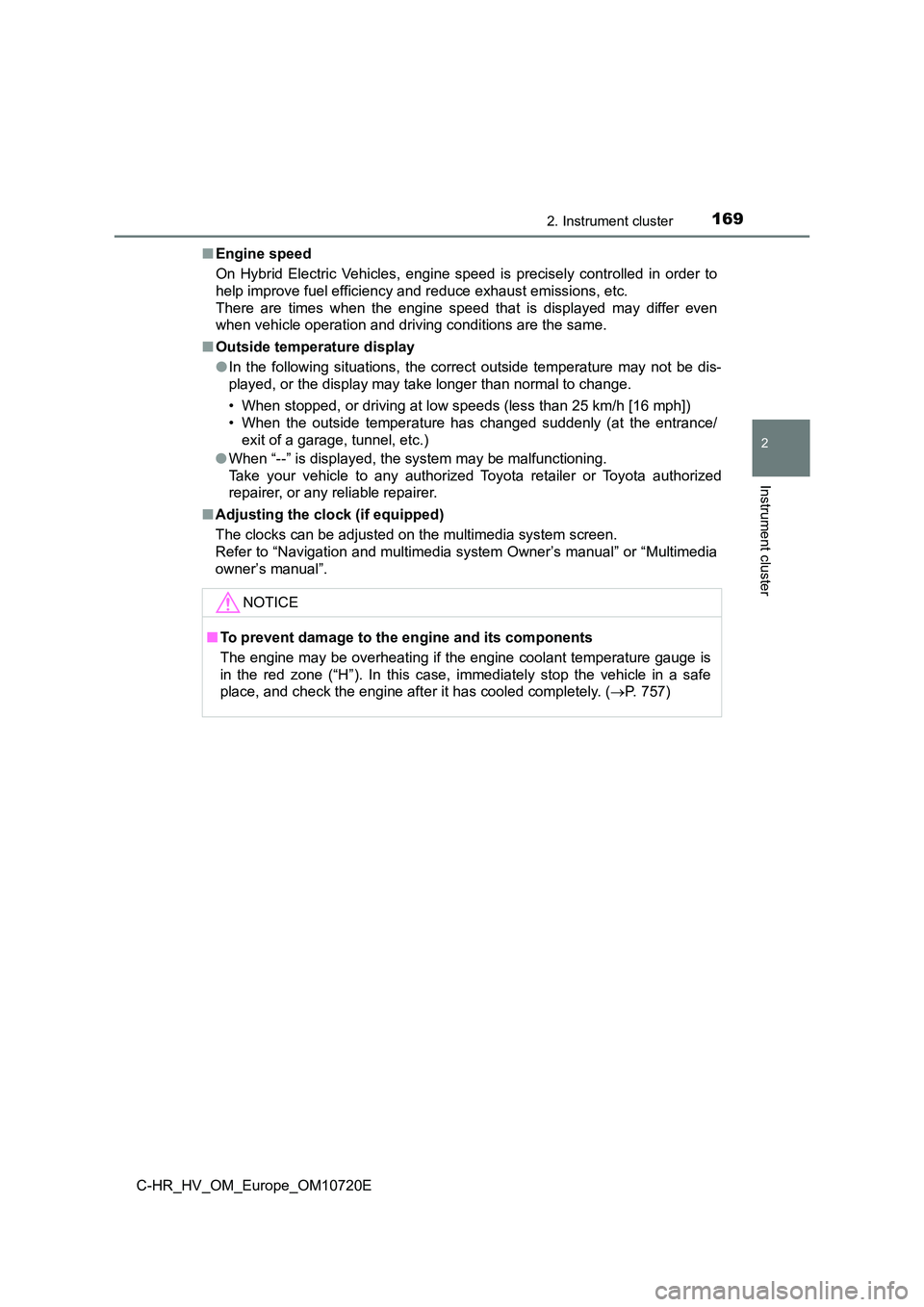

■ Engine speed
On Hybrid Electric Vehicles, engine speed is precisely controll ed in order to
help improve fuel efficiency and reduce exhaust emissions, etc.
There are times when the engine speed that is displayed may dif fer even
when vehicle operation and driving conditions are the same.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 25 km/h [16 mph])
• When the outside temperature has changed suddenly (at the entr ance/
exit of a garage, tunnel, etc.)
● When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota retailer or Toyota a uthorized
repairer, or any reliable repairer.
■ Adjusting the clock (if equipped)
The clocks can be adjusted on the multimedia system screen.
Refer to “Navigation and multimedia system Owner’s manual” or “ Multimedia
owner’s manual”.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehic le in a safe
place, and check the engine after it has cooled completely. ( P. 757)

1702. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Multi-information display

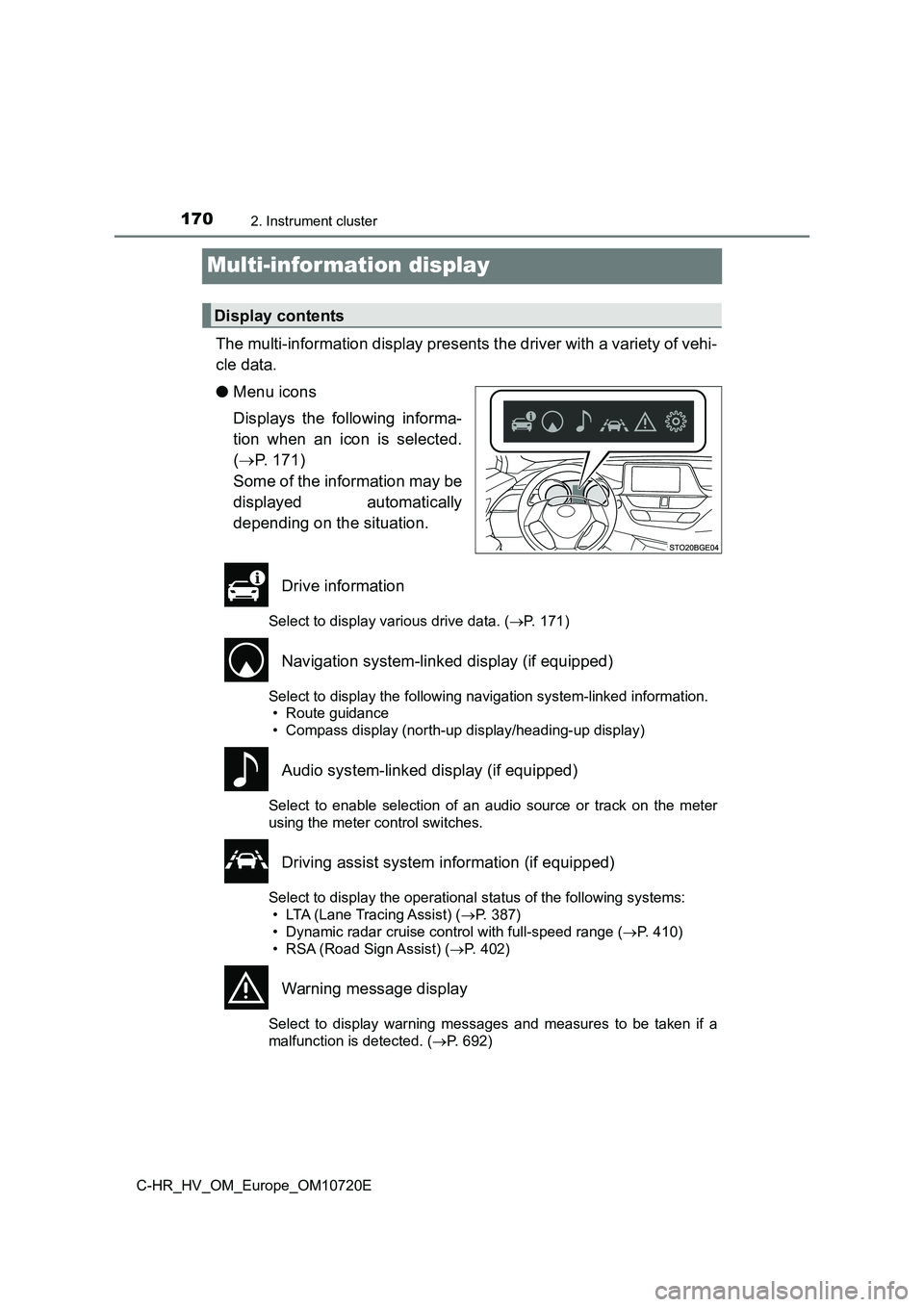

The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons
Displays the following informa-
tion when an icon is selected.
( P. 171)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 171)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the m eter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following syste ms:
• LTA (Lane Tracing Assist) ( P. 387)
• Dynamic radar cruise control with full-speed range ( P. 410)
• RSA (Road Sign Assist) ( P. 402)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 692)
Display contents

1752. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E

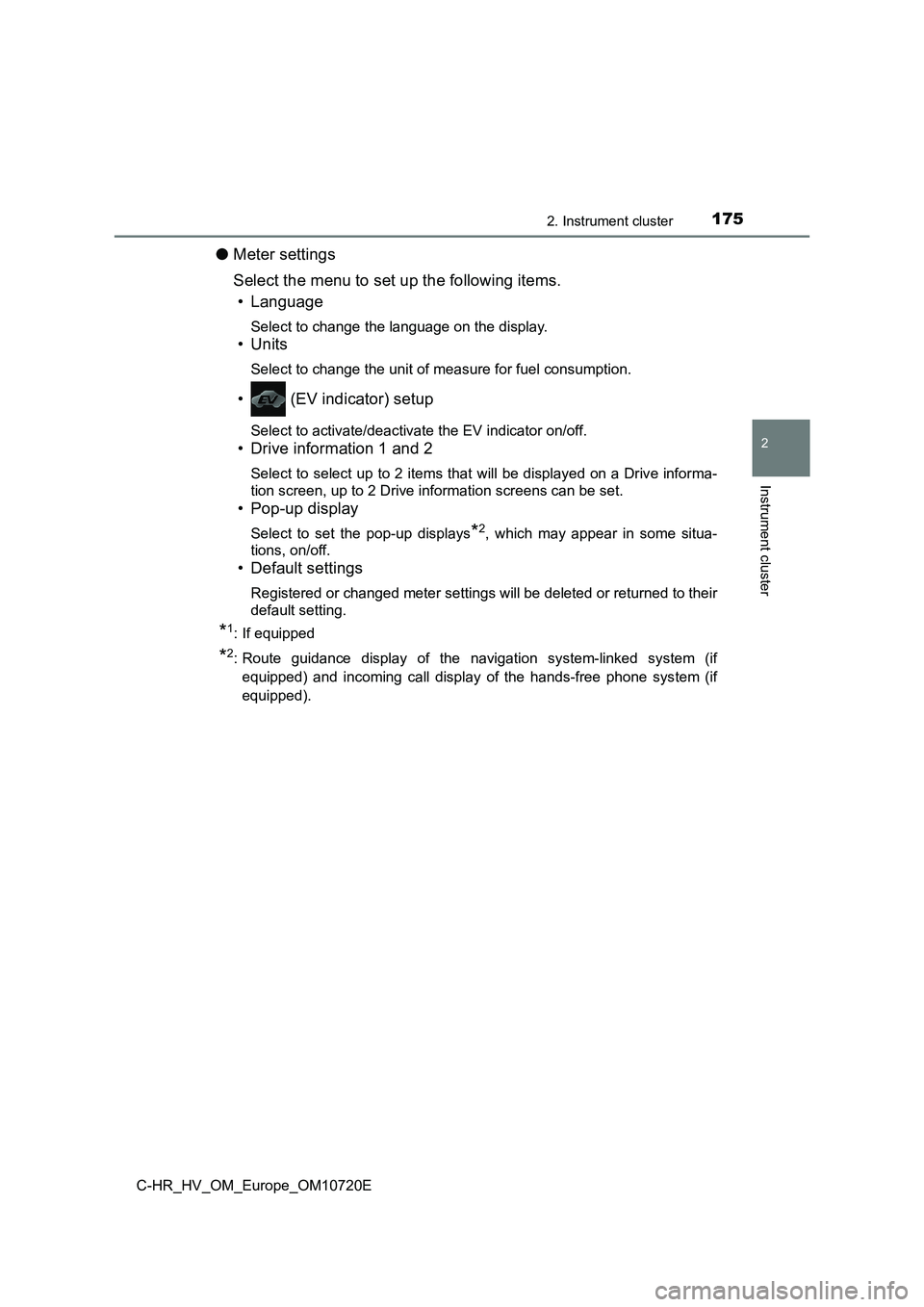

●Meter settings
Select the menu to set up the following items.
• Language
Select to change the language on the display.
•Units
Select to change the unit of measure for fuel consumption.
• (EV indicator) setup
Select to activate/deactivate the EV indicator on/off.
• Drive information 1 and 2
Select to select up to 2 items that will be displayed on a Driv e informa-
tion screen, up to 2 Drive information screens can be set.
• Pop-up display
Select to set the pop-up displays*2, which may appear in some situa-
tions, on/off.
• Default settings
Registered or changed meter settings will be deleted or returne d to their
default setting.
*1: If equipped
*2: Route guidance display of the navigation system-linked system (if
equipped) and incoming call display of the hands-free phone sys tem (if
equipped).
