TOYOTA CAMRY 1997 Owners Manual

Part 1Clock
121
OPERATION OF
INSTRUMENTS
AND CONTROLSÐ
Chapter 1-8
Other equipment

Clock

Cigarette lighter and ashtray

Power outlet

Glovebox

Garage door opener box

Miscellaneous box

Miscellany box

Cup holder

Tranction control system

Floor matType A
Type BThe digital clock indicates the time.
The key must be in the ``ACCºº or ``ON''
position.
To reset the hour: Push the ºHº button.
To reset the minutes: Push the Mº button.
Once the electrical power source has
been disconnected from the clock, the
time is automatically set to 1:00 (one
o'clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cation will be reduced.
Type B only-
If quick adjustment to a full hour is de-
sired, push the :00º button.
For example, if the :00º button is de-
pressed when the time is between
1:01Ð1:29, the time will change to 1:00.
If the time is between 1:30Ð1:59, the time
will change to 2:00.
ProCarManuals.com

122
Cigarette lighter and front ashtray
Rear ashtray (some models only)CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
When it becomes heated, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the ºACCº position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAY
To use the ashtray, open the cover.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the ash-
tray cover completely.
To remove the ashtray, open the ashtray
cover and pull it out.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always close the ash-
tray cover completely after use.CAUTION
!
The power outlet is designed for pow-
er supply for car accessories.
The key must be in the ACCº or ONº
position for the power outlet.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
more than 12V/120W in total ca-
pacity of the vehicle.
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary
when the engine is not running.
Cigarette lighter and ashtraysPower outlet
ProCarManuals.com

123
Close the power outlet lid when
the power outlet is not in use. In-
serting a foreign object other than
plug that fits the outlet, or pouring
juice or other liquid into the out-
let, or pouring juice or other liquid
into the outlet may cause troubles
or short circuits.
To use the glovebox, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glovebox light will come on when the glo-
vebox is open.
To lock: Insert the master key and turn it
clockwise.
To reduce the chance of injury in
case of an accident or sudden stop,
always keep the glovebox door
closed while driving.CAUTION
!
The box is designed to store a garage
door opener.
Attach the provided velcro to your garage
door opener in advance.
Open the cover and install your garage
door opener in the box with the velcro.
Tear the spacers off the center panel of
the cover.
Garage door opener box Glovebox
ProCarManuals.com

124
When a garage door opener is properly
stored, you can operate the opener by
pushing the center panel of the cover.If the center panel does not contact with
your garage door opener switch, attach
one of the torn-off spacers to proper posi-
tion behind the center panel to bring the
spacer in contact with your opener switch.
CAUTION!

To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed whild driving.

Keep the remained spacers away
from children.
The miscellaneous box and garage
door opener box (stored in the glove-
box) are interchangeable.
Removing the coverÐ
Half open the cover. Pinch each hinge and
pull it out of its pivot one by one as shown
above.
Do not remove the cover forcibly.
ProCarManuals.com

125
Installing the coverÐ
Align the hinges to the pivots, and press
each hinge with a thumb until you hear a
click.
Make sure that the cover opens and
closes smoothly.To use the box, open it as shown
above.
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the miscella-
neous box closed while driving.CAUTION
!
In hot weather, inside of the vehicle
becomes very hot. Do not leave
anything flammable or deformable
such as a lighter, the glasses, etc.
inside.
NOTICE
To use the box, pull on the handle.
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the miscellany
box closed while driving.CAUTION
! Miscellaneous box Miscellany box
ProCarManuals.com

126
Front
RearThe cup holder is designed for holding
cups or drink-cans fit snugly in its
holes.
Front: To use the holder, open the lid.
Rear: To use the holder, pull it out.

Do not place anything else on the
cup holder, as such items may be
thrown about and possible injure
people in the vehicle during sud-
den braking or accident.

Keep the cup holder shut when not
in use.
CAUTION!
Slip indicator light
TRAC OFFº indicator/warning light
Cup holder Traction control system
ProCarManuals.com

127
AUTOMATIC TRACTION CONTROL
SYSTEM
The traction control system automati-
cally controls spinning of the front
wheels which may occur when accel-
erating on slippery road surfaces, thus
assisting driver control and driving
power to the front wheels. When you
turn the ignition switch on, the trac-
tion control system always turns on
automatically, and the slip indicator/
warning light will come on. the indica-
tor lights will go off after about 3 sec-
onds.
Leave the system on during ordinary
driving so that it can operate when
needed. When traction control is ap-
plied, the slip indicator light blinks.
You may hear a slight clicking noise in the
engine compartment when the engine is
started. This means that the traction con-
trol system is in the self-check mode.,
and does not indicate malfunction. When
the traction control system is operating,
you may feel vibration of your vehicle,
caused by operation of brakes. This indi-
cates the system is functioning properly.When getting the vehicle out of mud or
new snow, etc. the traction control system
will operate to prevent the wheels from
spinning. Even though the accelerator
pedal is fully depressed, the engine speed
will be restrained to a certain level.
MANUAL OPERATION
You can turn off the traction control
system by pushing the TRAC OFFº
switch. The TRAC OFFº indicator/
warning light will come on. Pushing
the TRAC OFFº switch a second time
turns on the traction control system
and the TRAC OFFº indicator/warn-
ing light will go off.
ProCarManuals.com

128

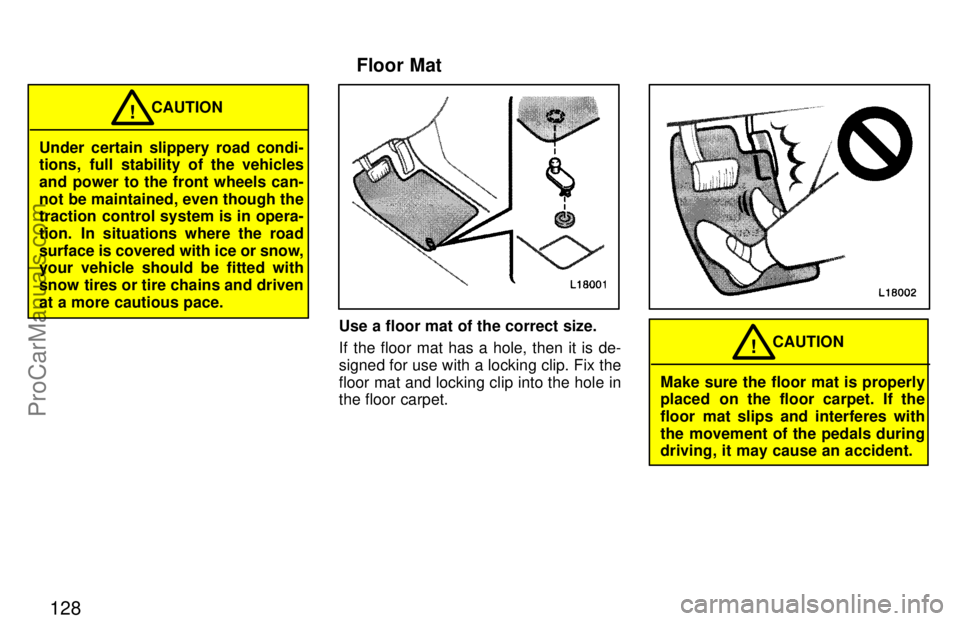

Under certain slippery road condi-
tions, full stability of the vehicles
and power to the front wheels can-
not be maintained, even though the
traction control system is in opera-
tion. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains and driven
at a more cautious pace.CAUTION
!
Use a floor mat of the correct size.
If the floor mat has a hole, then it is de-
signed for use with a locking clip. Fix the
floor mat and locking clip into the hole in
the floor carpet.
Make sure the floor mat is properly
placed on the floor carpet. If the
floor mat slips and interferes with
the movement of the pedals during
driving, it may cause an accident.CAUTION
! Floor Mat
ProCarManuals.com

Part 2Break-in period
Fuel
129
INFORMATION
BEFORE DRIVING
YOUR TOYOTA

Break-in period

Fuel

Operation in foreign countries

Three-way catalytic converter

Engine exhaust cautions

Facts about engine oil consumption

Twin ground electrode spark plugs

Brake system

Brake pad wear limit indicators

Luggage stowage precautions

Your Toyota's idenitification

Theft prevention labels

Suspension and chassis

Types of tiresDrive gently and avoid high speeds.
Your vehicle does not need an elaborate
break-in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of your
vehicle:

Do not drive over 88 km/h (55 mph).

Run the engine at moderate speed be-
tween 2000 and 4000 rpm.

Avoid full-throttle starts.

Try to avoid hard stops during the first
300 km (200 miles).

Do not drive slowly with the manual
transmission in a high gear.

Do not drive for a long time at any
single speed, either fast or slow.

Do not tow a trailer during the first 800
km (500 miles)FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mixups, your
Toyota has a new smaller fuel tank opening.
The special nozzle on pumps with unleaded
fuel will fit it, but the larger standard nozzle
on pumps with leaded gas will not.
Do not use leaded gasoline. Use of
leaded gasoline will cause the
three-way catalytic converter to
lose its effectiveness and the emis-
sion control system to function im-
properly. Also, this can increase
maintenance costs.
NOTICE
OCTANE NUMBER
5S-FE engine: Select Research Octane
Number 91 (Octane Rating 87) or higher.
1MZ-FE engine: Select Research Oc-
tane Number 91 (Octane Rating 87) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with a research Octane Num-
ber of 96 (Octane Rating 91) or higer is
recommended.
ProCarManuals.com

130
Use of unleaded fuel with an octane num-
ber or rating lower than stated above will
cause persistent heavy knocking. If se-
vere, this will lead to engine damage.
If your engine knocks...
If you detact heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, now and then, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is no cause
for concern.
GASOLINES CONTAINING DETER-
GENT ADDITIVES
Toyota recommens use of gasolines
that contain detergent additives to
avoid build-up of engine deposits.
For further details, ask your Toyota dealer
or a local gasoline retailer.GASOLINES CONTAINING MTBE
Gasolines that contain MTBE (Methyl
Tertiary-Butyl Ether) are available in
the market. If you use a gasoline mixed
with MTBE, make certain that it does
not contain more than 15% of MTBE.
If the use of gasolines containing MTBE
causes poor driveability and/or poor fuel
economy, you should discontinue the use
of fuels containing MTBE.
GASOLINES CONTAINING ALCOHOL
If the use of gasolines in your Toyota,
be sure that it is unleaded, has an oc-
tane rating no lower than 87 and does
not contain more than 10% ethanol.
Gasohol is a mixture of gasoline and etha-
nol.
Toyota does not recommend the use of
gasolines containing methonol. If you use
gasoline containing methonol, use only
gasoline meeting the requirements above
and also containing less than 5% metha-
nol with cosolvents and corrosion inhibi-
tors for methanol.NOTICE
Do not use gasohol other than
stated above. It will cause fuel
system damage or vehicle perfor-
mance problems
If driveablity problems are encoun-
tered (poor hot starting, vaporiz-
ing, engine knock, etc.), discontin-
ue the use.
Take care not to spill gasohol dur-
ing refueling. Gashol may cause
paint damage.
FUEL TANK CAPACITY
70 L (18.5 gal., 15.4 Imp. gal)
ProCarManuals.com
