79
NOTICE
If you rock your vehicle, observe the
following precautions to prevent
damage to the transmission and
other parts.
Do not depress the accelerator
pedal while shifting the selector
lever or before the transmission is
completely shifted to forward or
reverse gear.
Do not race the engine and avoid
spinning the wheels.
If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
(h) If you cannot shift the selector lever
out of Pº position
If you cannot shift the selector lever from
Pº position even though the brake pedal
is depressed, use the shift lock override
button. For instructions, see If you can-
not shift automatic transmission selector
leverº in Part 4.
The shift pattern is conventional as
shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. And
do not use the clutch to hold the vehicle
when stopped on an uphill grade-use the
parking brake.
Recommended shifting speeds
The transmission is fully synchronized
and upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the follow-
ing speeds:gear km/h (mph)
1 to 2 or 2 to 1 24 (15)
2 to 3 or 3 to 2 40 (25)
3 to 4 or 4 to 3 64 (40)
4 to 5 or 5 to 4 72 (45)
Downshift to the appropriate gear if accel-
eration is needed when you are cruising
below the above downshifting speeds.
Upshifting too soon or downshifting too
late will cause lugging, and possibly, ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause exces-
sive engine wear and high fuel consump-
tion.
Maximum allowable speeds
To get on a highway or to pass slower traf-
fic, maximum acceleration may be neces-
sary. Make sure you observe the following
maximum allowable speeds in each gear:
gear km/h (mph)
1 52 (32)
2 93 (57)
3 147 (91)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.
Manual transmission
ProCarManuals.com

80
Good driving practice

If it is difficult to shift into reverse, put
the transmission in neutral, release
the clutch pedal momentarily, and then
try again.

When towing a trailer, in order to main-
tain engine braking efficiency, do not
use the fifth gear.
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.CAUTION
!
NOTICE
Make sure the vehicle is completely
stopped before shifting into re-
verse.
Type A
Type BWhen parking, firmly apply the park-
ing brake to avoid inadvertent creep-
ing.
To set: Pull up the lever. For better holding
power, first depress the brake pedal and
hold it while setting the brake.
To release: Pull up the lever slightly, press
the thumb button, and lower.
To remind you that the parking brake is
set, the parking brake reminder light in the
instrument panel remains on until you re-
lease the parking brake.
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.CAUTION
! Parking brake
ProCarManuals.com

81
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.

To help maintain maximum con-
trol of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or in slip-
pery (rainy, icy or snow-covered)
or winding roads.

Avoid vehicle speed increases
when driving downhill. If the ve-
hicle speed is too fast in relation to
the cruise control set speed, can-
cel the cruise control then down-
shift the transmission to use en-
gine braking to slow down.CAUTION
!TURNING ON THE SYSTEM
To operate the cruise control, push the
CRUISE ON-OFFº switch. This turns the
system on. The indicator light in the instru-
ment panel shows that you can now set
the vehicle at a desired cruising speed.
Another push will turn the system com-
pletely off.
To avoid accidental cruise control
engagement, keep the CRUISE
ON-OFFº switch off when not using
the cruise control.CAUTION
!
SETTING AT A DESIRED SPEED
On vehicles with automatic transmission,
the transmission must be in Dº before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push the lever down in the SET/COASTº
direction and release it. This sets the ve-
hicle at that speed. If the speed is not sat-
isfactory, tap it down for a slower speed.
Each tap changes the set speed by 1.6
km/h (1.0 mph). You can now take your
foot off the accelerator pedal.
Cruise control
ProCarManuals.com

82
If you need acceleration Ð for example,
when passingÐdepress the accelerator
pedal enough for the vehicle to exceed the
set speed. When you release it, the ve-
hicle will return to the speed set prior to the
acceleration.
For manual transmission:
While driving with the cruise control
on, do not shift to neutral without
depressing the clutch pedal, as this
may cause engine racing or overrev-
ing.CAUTION
!
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the CANCELº di-
rection and releasing it.
b. Depressing the brake pedal.
c. Depressing the clutch pedal (manual
transmission).
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.If the preset speed automatically cancels
out other than for the above cases have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESETTING AT A FASTER SPEED
Push the lever up in the RES/ACCº direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held up, the vehicle will gradually
gain speed.
However, a faster way to reset is to accel-
erate the vehicle and then push the lever
down in the SET/COASTº direction.
RESETTING AT A SLOWER SPEED
Push the lever down in the SET/COASTº
direction and hold it. Release the lever
when the desired speed is attained. While
the lever is held down, the vehicle speed
will gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the SET/COASTº direction.
On vehicles with automatic transmission,
even if you turn off the overdrive switch
with the cruise control on, engine braking
will not be applied because the cruise con-
trol is not cancelled. To decrease the ve-
hicle speed, reset to a slower speed withthe cruise control lever or depress the
brake pedal. If you use the brake pedal,
cruise control is cancelled.
RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal or clutch pedal, pushing the
lever up in the RES/ACCº direction will
restore the speed set prior to cancellation.
However, once the vehicle speed falls be-
low about 40 km/h (25 mph), the preset
speed will not be resumed.
CRUISE CONTROL FAILURE WARN-
ING
If the CRUISEº indicator light in the in-
strument cluster flashes when using the
cruise control, press the CRUISE ON-
OFFº button to turn the system off and
then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
ProCarManuals.com

83

The indicator light does not come on.

The indicator light flashes again.

The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.
ProCarManuals.com

Part 1
Car audio systemÐ
ÐReference
85
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1-7
Car audio system
and Air conditioning
system
Car audio system
Reference
Using your audio system: some
basics
Using your audio system:
controls and features
Car audio system operating
hints
Air conditioning system
Controls
Air flow selector settings
Operating tips

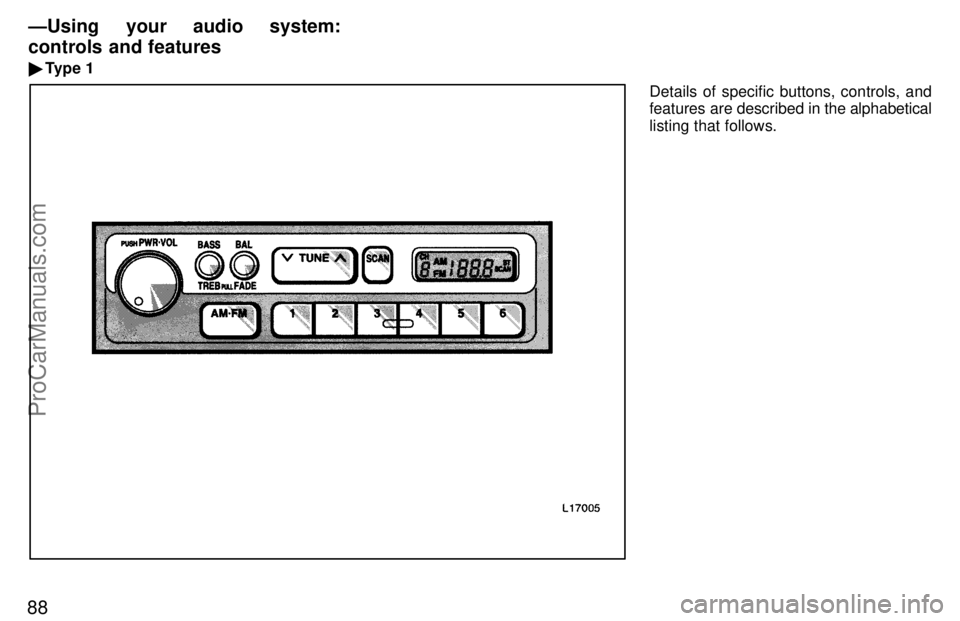

Instrumental ventsType 1: AM´FM ETR radio
Type 2-1: AMVFM ETR radio/cassette
player
Type 2-2: AM´FM ETR radio/cassette
player
Type 3: AMVFM ETR radio/cassette
player/compact disc player
ProCarManuals.com

86
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the igni-
tion key is in the ACCº or ONº position.
TURNING THE SYSTEM ON AND OFF
Push PWR V VOLº or PWR/VOLº to turn
the audio system on and off.
Push AM V FMº or TAPEº or CDº to turn
on that function without pushing PWR V
VOLº or PWR/VOLº.
You can turn on the cassette player by in-
serting a cassette tape.
You can turn off the cassette player by
ejecting the cassette tape. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the cassette tape. If the radio was
previously on, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push AM V FMº , TAPEº or CDº if the
system is already on but you want to
switch from one function to another.TONE AND BALANCE
For details about your system's tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of the
treble, midrange, and bass levels. In fact,
different kinds of music and vocal pro-
grams usually sound better with different
mixes of treble and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA

Mast type antenna:
To prevent damage to the anten-
na, make sure it is retracted before
driving your Toyota through an
automatic car wash.
On-glass antenna (built-in on the
rear window glass):
Attaching the film (especially con-
ductive or metalic type) on the
rear glass will noticeably reduce
the sensitivity of the radio.
NOTICE
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should be to the right.
Do not oil any part of the player and
do not insert anything other than
cassette tapes into the slot, or the
tape player may be damaged.
NOTICE
ÐUsing your audio system:
some basics
ProCarManuals.com

87
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. (the player will auto-
matically eject a disc if the label side is
down.) The compact disc player will play
from track 1 through the end of the disc.
Then it will play from track 1 again.
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a com-
pact disc into the slot.
NOTICE
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Companct disc singles are about 8 cm (3
in.) in diameter-smaller than standard
discs.
After you eject a compact disc single, do
not insert a standard 12 cm (5 in.) disc un-
til DISCº disappears from the display.
Do not use an adapter for compact
disc singlesÐit could cause track-
ing errors or interfere with the
ejection of compact discs.
NOTICE
ProCarManuals.com

88
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
ÐUsing your audio system:
controls and features

Type 1
ProCarManuals.com

89
1 2 3 4 5 6 (Preset buttons)
These buttons are useed to preset and
tune in radio stations.
To preset a station to a button: Tune in the
desired station (see TUNEº). Push and
hold down the button until you hear a
beep-this will set the station to the button.
The button number will appear on the dis-
play.
To tune in to a preset station: Push the
button for the station you want. The button
number and station frequency will appear
on the display.
These systems can store one AM and one
FM station for each button. The preset
station memeory will be canceled out if
the power source is interrupted (battery
disconnected or fuse blown).
AM V FM
Push AM V FMº to switch between the AM
and FM brands. AMº or FMº will appear
on the display.
If the audio system is off, you can turn on
the radio by pushing AM V FMº.BAL (Balance)
This knob lets you adjust the balance be-
tween the right and left speakers.
PushBAL/FADEº so that it pops out of its
retracted position. Turn the knob to adjust
the balance. Push the knob back into its
retracted position.
BASS
This knob lets you adjust the bass level.
Push BASS/TREBº so that it pops out of
its retracted position. Turn the knob to ad-
just the bass. Push the knob back into its
retracted position.
FADE
This knob lets you adjust the balance be-
tween the front and rear speakers.
Push BAL/FADEº so that it pops out of its
retracted position. Pull out the knob. Turn
the knob to adjust the front/rear balance.
Push the knob back into its retracted posi-
tion.
PWR V VOL (Power V Volume)
Push PWR V VOLº to turn the audio sys-
tem on and off. Turn the PWR V VOLº
knob to adjust the volume.SCAN
When you push SCANº, the radio finds
the next station up the station band, plays
it for 5 seconds, and then scans again. To
select a station, push SCANº a second
time.
ST (Stereo reception) display
Your radio automatically changes to re-
ception when a stereo broadcast is re-
ceived. STº appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TREB (Treble)
This knob lets you adjust treble level.
Push BASS/TREBº so that it pops out of
its retracted position. Pull out the knob.
Turn the knob to adjust the treble. Push
the knob back into its retracted position.
ProCarManuals.com
