TOYOTA CAMRY 1998 Owners Manual
Manufacturer: TOYOTA, Model Year: 1998, Model line: CAMRY, Model: TOYOTA CAMRY 1998Pages: 238, PDF Size: 5.76 MB
Page 1 of 238
1
Part 1
OPERATION OF
INSTRUMENTS
AND CONTROLS—
Chapter 1−1
Overview of instruments
and controls
Instrument panel overview
Instrument cluster overview
Indicator symbols on the
instrument panel
ProCarManuals.com
Page 2 of 238
2

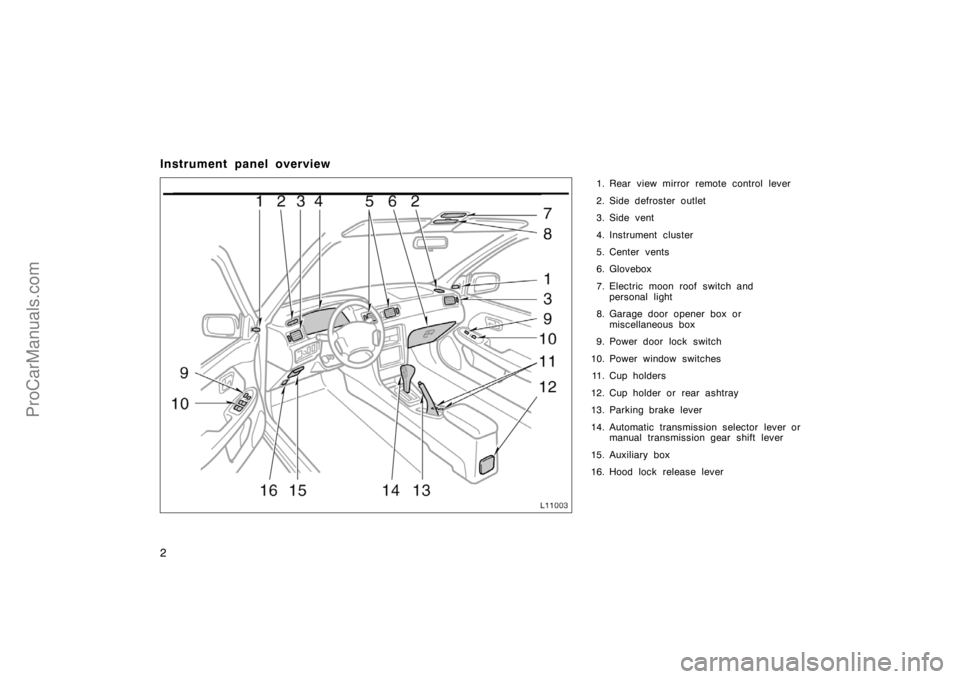

Instrument panel overview
1. Rear view mirror remote control lever
2. Side defroster outlet
3. Side vent
4. Instrument cluster
5. Center vents
6. Glovebox
7. Electric moon roof switch and
personal light
8. Garage door opener box or
miscellaneous box
9. Power door lock switch
10. Power window switches
11. Cup holders
12. Cup holder or rear ashtray
13. Parking brake lever
14. Automatic transmission selector lever or
manual transmission gear shift lever
15. Auxiliary box
16. Hood lock release lever
ProCarManuals.com
Page 3 of 238
3

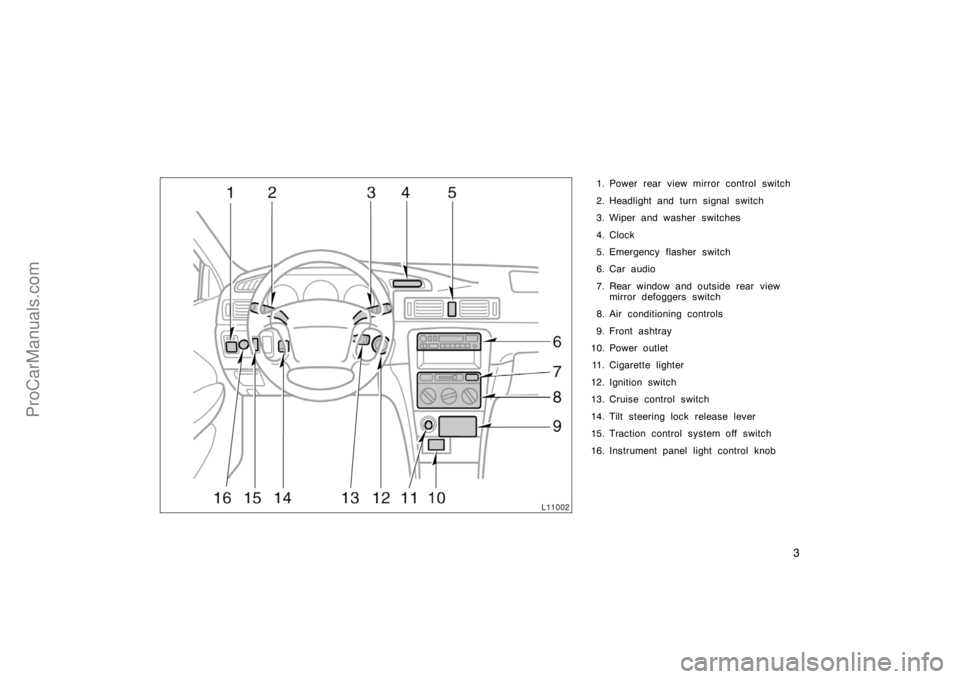

1. Power rear view mirror control switch
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Clock
5. Emergency flasher switch
6. Car audio
7. Rear window and outside rear view
mirror defoggers switch
8. Air conditioning controls
9. Front ashtray
10. Power outlet
11. Cigarette lighter
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Traction control system off switch
16. Instrument panel light control knob
ProCarManuals.com
Page 4 of 238
4

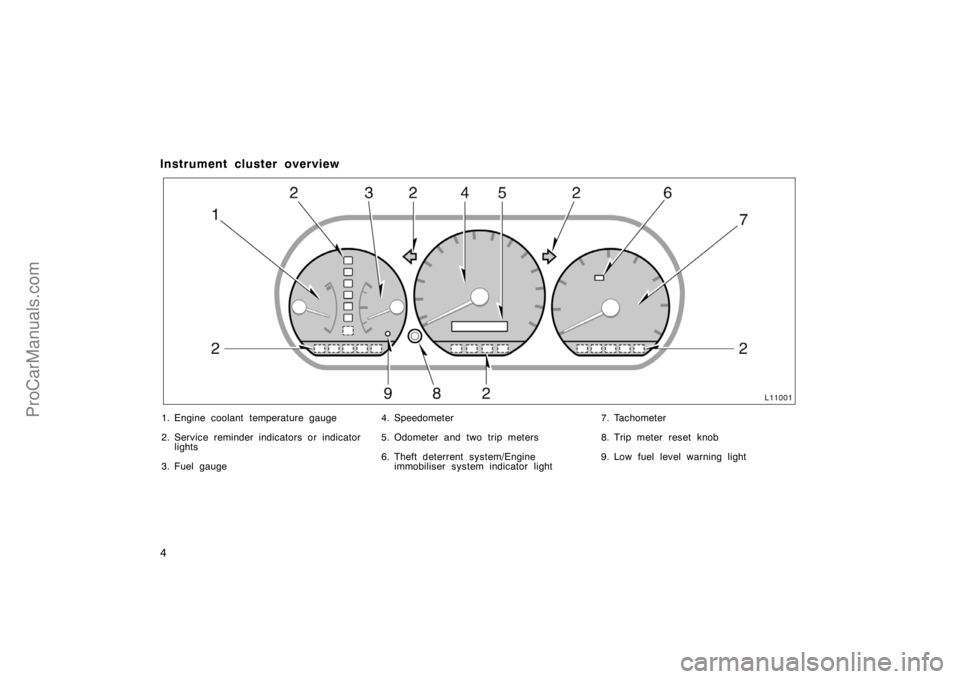

Instrument cluster overview
1. Engine coolant temperature gauge
2. Service reminder indicators or indicator
lights
3. Fuel gauge4. Speedometer
5. Odometer and two trip meters
6. Theft deterrent system/Engine
immobiliser system indicator light7. Tachometer
8. Trip meter reset knob
9. Low fuel level warning light
ProCarManuals.com
Page 5 of 238
5
Indicator symbols on the instrument panel
Brake system warning light∗
1
Seat belt reminder light∗
1
Discharge warning light∗
1
Malfunction indicator lamp∗
1
Low oil pressure warning light∗
1
Anti-lock brake system warning light∗
1(type A)
(type B)
Open door warning light∗
1
Rear light failure warning light∗
1
(type A)
(type B)
SRS airbag warning light∗
1
Low windshield washer fluid level warning light∗
1
ProCarManuals.com
Page 6 of 238
6
Overdrive−off indicator light
Cruise control indicator light
∗
2
Automatic transmission indicator light
∗
1: For details, see ”Service reminder indicators and warning
buzzers” in Chapter 1−5.
∗
2: If this light flashes, see ”Cruise control” in Chapter 1−6. Headlight high beam indicator lightTurn signal indicator lights
Traction control system off indicator/warning light∗
1
Slip indicator light
ProCarManuals.com
Page 7 of 238
7
Part 1
OPERATION OF
INSTRUMENTS
AND CONTROLS—
Chapter 1−2
Keys and Doors
KeysEngine immobiliser system
ProCarManuals.com
Page 8 of 238
8 Side doorsPower windowsTrunk lid
ProCarManuals.com
Page 9 of 238
9 HoodTheft deterrent systemFuel tank cap
ProCarManuals.com
Page 10 of 238
10 Electric moon roof

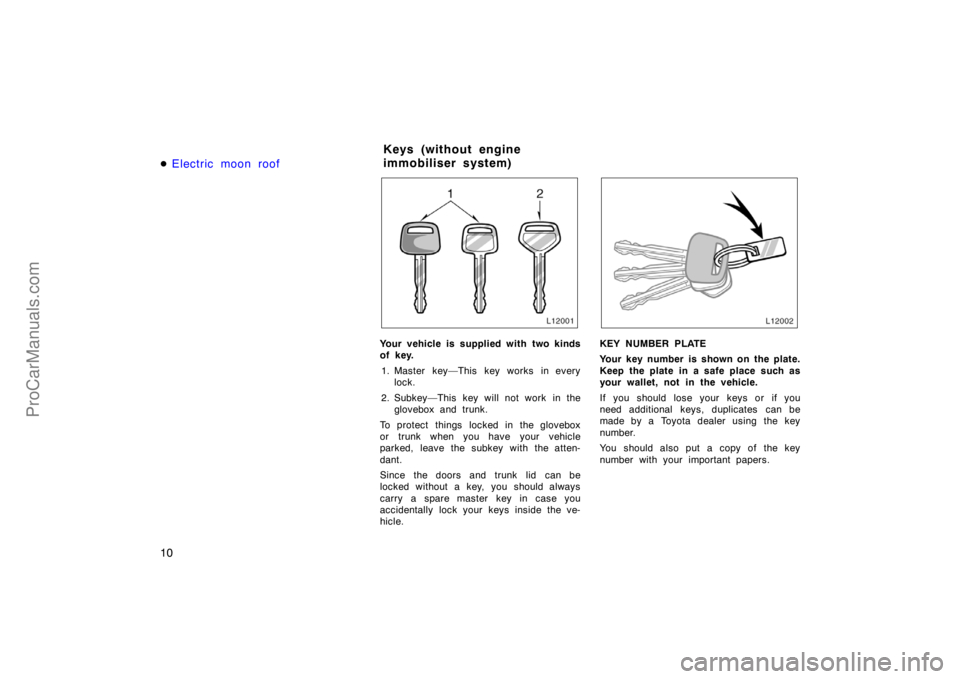

Your vehicle is supplied with two kinds
of key.
1. Master key—This key works in every
lock.
2. Subkey—This key will not work in the
glovebox and trunk.
To protect things locked in the glovebox
or trunk when you have your vehicle
parked, leave the subkey with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
You should also put a copy of the key
number with your important papers.
Keys (without engine
immobiliser system)
