TOYOTA CAMRY 1999 Service Repair Manual

IN0CP±03
N20619
Front
JACK POSITION
Front..................... Front crossmember
Rear..................... Rear axle beam
CAUTION :
PANTOGRAPH JACK POSITION
SUPPORT POSITION
Safety stand and swing arm type lift ...........................................When jacking±up the rear and front, make
sure the car is not carrying any extra weight.
IN±8
± INTRODUCTIONREPAIR INSTRUCTIONS
8 Author: Date:
VEHICLE LIFT AND SUPPORT LOCATIONS

N20620

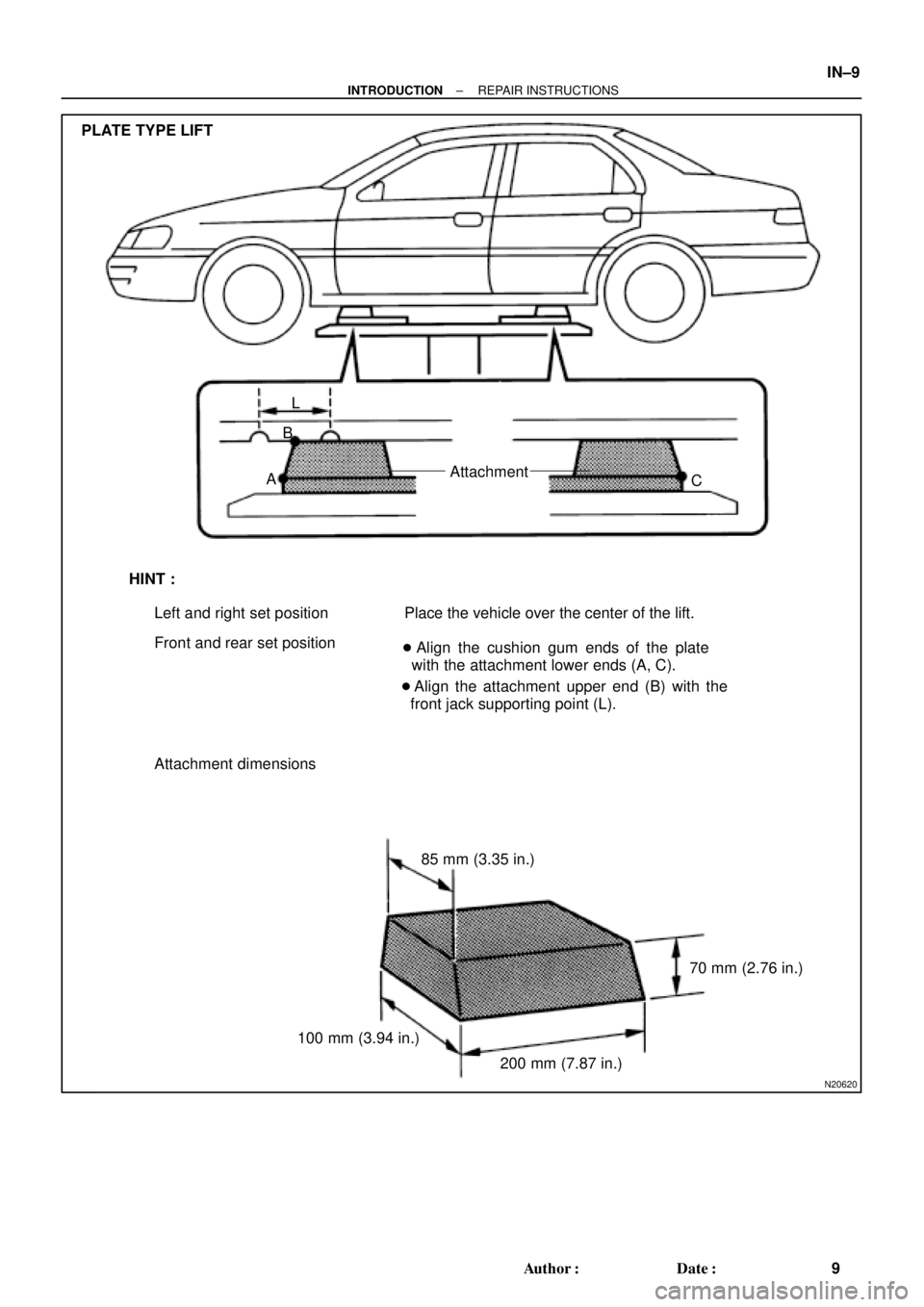

PLATE TYPE LIFT
L
B
AAttachment
C
HINT :
Left and right set position
Front and rear set positionPlace the vehicle over the center of the lift.

Align the cushion gum ends of the plate
with the attachment lower ends (A, C).

Align the attachment upper end (B) with the
front jack supporting point (L).
Attachment dimensions
85 mm (3.35 in.)
100 mm (3.94 in.)70 mm (2.76 in.)
200 mm (7.87 in.)
± INTRODUCTIONREPAIR INSTRUCTIONS
IN±9
9 Author: Date:

IN0CQ±03
BO4111
Negative Cable
IN±10
± INTRODUCTIONFOR ALL OF VEHICLES
10 Author: Date:
FOR ALL OF VEHICLES
PRECAUTION
1. FOR VEHICLES EQUIPPED WITH SRS AIRBAG AND
SEAT BELT PRETENSIONER
(a) The 1999 CAMRY is equipped with an SRS (Supplemen-
tal Restraint System), such as the driver airbag, front pas-
senger airbag assembly, side airbag assembly and seat
belt pretensioner.
Failure to carry out service operations in the correct se-
quence could cause the supplemental restraint system to
unexpectedly deploy during servicing, possibly leading to
a serious accident.
Further, if a mistake is made in servicing the supplemental
restraint system, it is possible the SRS may fail to operate
when required. Before servicing (including removal or
installation of parts, inspection or replacement), be sure
to read the following items carefully, then follow the cor-
rect procedure described in this manual.
(b) GENERAL NOTICE
(1) Malfunction symptoms of the supplemental re-
straint system are difficult to confirm, so the diag-
nostic trouble codes become the most important
source of information when troubleshooting. When
troubleshooting the supplemental restraint system,
always inspect the diagnostic trouble codes before
disconnecting the battery (See page DI±626).
(2) Work must be started after 90 seconds from the
time the ignition switch is turned to the ºLOCKº posi-
tion and the negative (±) terminal cable is discon-
nected from the battery.
(The supplemental restraint system is equipped
with a back±up power source so that if work is
started within 90 seconds of disconnecting the neg-
ative (±) terminal cable from the battery, the SRS
may deploy.)
When the negative (±) terminal cable is discon-
nected from the battery, memory of the clock and
audio systems will be cancelled. So before starting
work, make a record of the contents memorized by
the each memory system. Then when work is fin-
ished, reset the clock and audio systems as before.
To avoid erasing the memory of each memory sys-
tem, never use a back±up power supply from anoth-
er battery.

W02655
Marks
± INTRODUCTIONFOR ALL OF VEHICLES
IN±11
11 Author: Date:
(3) Even in cases of a minor collision where the SRS
does not deploy, the steering wheel pad, front pas-
senger airbag assembly, side airbag assembly and
seat belt pretensioner should be inspected (See
page RS±16, RS±29, and BO±127).
(4) Never use SRS parts from another vehicle. When
replacing parts, replace them with new parts.
(5) Before repairs, remove the airbag sensor if shocks
are likely to be applied to the sensor during repairs.
(6) Never disassemble and repair the airbag sensor as-
sembly, steering wheel pad, front passenger airbag
assembly, side airbag assembly or seat belt preten-
sioner.
(7) If the airbag sensor assembly, steering wheel pad,
front passenger airbag assembly, side airbag as-
sembly or seat belt pretensioner has been dropped,
or if there are cracks, dents or other defects in the
case, bracket or connector, replace them with new
ones.
(8) Do not directly expose the airbag sensor assembly,
steering wheel pad, front passenger airbag assem-
bly, side airbag assembly or seat belt pretensioner
to hot air or flames.
(9) Use a volt/ohmmeter with high impedance (10 kW/V
minimum) for troubleshooting of the electrical cir-
cuit.
(10) Information labels are attached to the periphery of
the SRS components. Follow the instructions on the
notices.
(11) After work on the supplemental restraint system is
completed, check the SRS warning light (See page
DI±626).
(c) SPIRAL CABLE (in Combination Switch)
The steering wheel must be fitted correctly to the steering
column with the spiral cable at the neutral position, other-
wise cable disconnection and other troubles may result.
Refer to SR±16 of this manual concerning correct steer-
ing wheel installation.

Z13953
Example:CorrectWrong
Z13950
Example: IN±12
± INTRODUCTIONFOR ALL OF VEHICLES
12 Author: Date:
(d) STEERING WHEEL PAD (with Airbag)
(1) When removing the steering wheel pad or handling
a new steering wheel pad, it should be placed with
the pad top surface facing up.
In this case, the twin±lock type connector lock lever
should be in the locked state and care should be
taken to place it so the connector will not be dam-
aged. In addition do not store a steering wheel pad
on top of another one. Storing the pad with its metal-
lic surface up may lead to a serious accident if the
airbag inflates for some reason.
(2) Never measure the resistance of the airbag squib.
(This may cause the airbag to deploy, which is very
dangerous.)
(3) Grease should not be applied to the steering wheel
pad and the pad should not be cleaned with deter-
gents of any kind.
(4) Store the steering wheel pad where the ambient
temperature remains below 93°C (200°F), without
high humidity and away from electrical noise.
(5) When using electric welding, first disconnect the air-
bag connector (yellow color and 2 pins) under the
steering column near the combination switch con-
nector before starting work.
(6) When disposing of a vehicle or the steering wheel
pad alone, the airbag should be deployed using an
SST before disposal (See page RS±18).
Carry out the operation in a safe place away from
electrical noise.

B00696
Example:
Correct Wrong
Z13951
Example:
± INTRODUCTIONFOR ALL OF VEHICLES
IN±13
13 Author: Date:
(e) FRONT PASSENGER AIRBAG ASSEMBLY
(1) Always store a removed or new front passenger air-
bag assembly with the airbag deployment direction
facing up.
Storing the airbag assembly with the airbag deploy-
ment direction facing down could cause a serious
accident if the airbag inflates.
(2) Never measure the resistance of the airbag squib.
(This may cause the airbag to deploy, which is very
dangerous.)
(3) Grease should not be applied to the front passen-
ger airbag assembly and the airbag door should not
be cleaned with detergents of any kind.
(4) Store the airbag assembly where the ambient tem-
perature remains below 93°C (200°F), without high
humidity and away from electrical noise.
(5) When using electric welding, first disconnect the air-
bag connector (yellow color and 2 pins) installed on
the assembly before starting work.
(6) When disposing of a vehicle or the airbag assembly
alone, the airbag should be deployed using an SST
before disposal (See page RS±31).
Perform the operation in a safe place away from
electrical noise.

B02129
Example:
CorrectWrong
N21642
Example:
IN±14
± INTRODUCTIONFOR ALL OF VEHICLES
14 Author: Date:
(f) SIDE AIRBAG ASSEMBLY
(1) Always store a removed or new side airbag assem-
bly with the airbag deployment direction facing up.
Storing the airbag assembly with the airbag deploy-
ment direction facing down could cause a serious
accident if the airbag deploys.
(2) Never measure the resistance of the airbag squib.
(This may cause the airbag to deploy, which is very
dangerous.)
(3) Grease should not be applied to the side airbag as-
sembly and the surface should not be cleaned with
detergents of any kind.
(4) Store the airbag assembly where the ambient tem-
perature remains below 93°C (200°F), without high
humidity and away from electrical noise.
(5) When using electric welding, first disconnect the air-
bag connector (yellow color and 2 pins) under the
seat before starting work.
(6) When disposing of a vehicle or the side airbag as-
sembly alone, the airbag should be deployed using
an SST before disposal (See page RS±42, RS±55).
Perform the operation in a safe place away from
electrical noise.

B02121
Example:
± INTRODUCTIONFOR ALL OF VEHICLES
IN±15
15 Author: Date:
(g) SEAT BELT PRETENSIONER
(1) Never measure the resistance of the seat belt pre-
tensioner. (This may cause the seat belt pretension-
er to activate, which is very dangerous.)
(2) Never disassemble the seat belt pretensioner.
(3) Never install the seat belt pretensioner in another
vehicle.
(4) Store the seat belt pretensioner where the ambient
temperature remains below 80°C (176°F) and
away from electrical noise without high humidity.
(5) When using electric welding, first disconnect the
connector (yellow color and 2 pins) before starting
work.
(6) When disposing of a vehicle or the seat belt preten-
sioner alone, the seat belt pretensioner should be
activated before disposal (See page BO±128). Per-
form the operation in a safe place away from electri-
cal noise.
(7) The seat belt pretensioner is hot after activation, so
let it cool down sufficiently before the disposal.
However never apply water to the seat belt preten-
sioner.

IN±16
± INTRODUCTIONFOR ALL OF VEHICLES
16 Author: Date:
(h) AIRBAG SENSOR ASSEMBLY
(1) Never reuse the airbag sensor assembly involved
in a collision when the SRS has deployed.
(2) The connectors to the airbag sensor assembly
should be connected or disconnected with the sen-
sor mounted on the floor. If the connectors are con-
nected or disconnected while the airbag sensor as-
sembly is not mounted to the floor, it could cause
undesired ignition of the supplemental restraint sys-
tem.
(3) Work must be started after 90 seconds from the
time the ignition switch is turned to the ºLOCKº posi-
tion and the negative (±) terminal cable is discon-
nected from the battery, even if only loosing the set
bolts of the airbag sensor assembly.
(i) WIRE HARNESS AND CONNECTOR
The SRS wire harness is integrated with the instrument
panel wire harness assembly. All the connectors in the
system are a standard yellow color. If the SRS wire har-
ness becomes disconnected or the connector becomes
broken due to an accident, etc., repair or replace it as
shown on page RS±73.

± INTRODUCTIONFOR ALL OF VEHICLES
IN±17
17 Author: Date:
2. FOR VEHICLES EQUIPPED WITH A CATALYTIC CONVERTER
CAUTION:
If large amount of unburned gasoline flows into the converter, it may overheat and create a fire haz-
ard. To prevent this, observe the following precautions and explain them to your customer.
(a) Use only unleaded gasoline.
(b) Avoid prolonged idling.
Avoid running the engine at idle speed for more than 20 minutes.
(c) Avoid spark jump test.
(1) Perform spark jump test only when absolutely necessary. Perform this test as rapidly as possible.
(2) While testing, never race the engine.
(d) Avoid prolonged engine compression measurement.
Engine compression tests must be done as rapidly as possible.
(e) Do not run engine when fuel tank is nearly empty.
This may cause the engine to misfire and create an extra load on the converter.
(f) Avoid coasting with ignition turned off.
(g) Do not dispose of used catalyst along with parts contaminated with gasoline or oil.
3. IF VEHICLE IS EQUIPPED WITH MOBILE COMMUNICATION SYSTEM
For vehicles with mobile communication systems such as two±way radios and cellular telephones, observe
the following precautions.
(1) Install the antenna as far as possible away from the ECU and sensors of the vehicle's electronic
system.
(2) Install the antenna feeder at least 20 cm (7.87 in.) away from the ECU and sensors of the ve-
hicle's electronic systems. For details about ECU and sensors locations, refer to the section on
the applicable component.
(3) Avoid winding the antenna feeder together with other wiring as much as possible, and also avoid
running the antenna feeder parallel with other wire harnesses.
(4) Check that the antenna and feeder are correctly adjusted.
(5) Do not install powerful mobile communications system.
