TOYOTA CAMRY 1999 Service Repair Manual

N21624
TRAC OFF
Indicator Light
TRAC Cut
Switch
N21622
IN±18
± INTRODUCTIONFOR ALL OF VEHICLES
18 Author: Date:
4. FOR USING OBD II SCAN TOOL OR TOYOTA HAND±HELD TESTER
CAUTION:
Observe the following items for safety reasons:

Before using the OBD II scan tool or TOYOTA hand±held tester, the OBD II scan tool's instruc-
tion book or TOYOTA hand±held tester's operator manual should be read thoroughly.

Be sure to route all cables securely when driving with the OBD II scan tool or TOYOTA hand±
held tester connected to the vehicle. (i.e. Keep cables away from feet, pedals, steering wheel
and shift lever.)

Two persons are required when test driving with the OBD II scan tool or TOYOTA hand±held
tester, one person to drive the vehicle and the other person to operate the OBD II scan tool or
TOYOTA hand±held tester.
5. FOR VEHICLES EQUIPPED WITH TRACTION CON-
TROL (TRAC) SYSTEM
NOTICE:
When using a 2±wheel drum tester such as a speedometer
tester or chassis dynamometer, etc., or jacking up the front
wheels and driving the wheels, always push in the TRAC
cut (ºTRAC OFFº) switch and turn the TRAC system OFF.
Confirm TRAC system is OFF
(1) Press the TRAC cut (ºTRAC OFFº) switch.
(2) Check that the TRAC OFF indicator light comes on
when the TRAC system is turned OFF by the TRAC
cut switch.
HINT:
TRAC cut switch is reset after the ignition switch has been
turned OFF and ON.
The TRAC system can be operated.
(3) Begin measurements.

N21623
± INTRODUCTIONFOR ALL OF VEHICLES
IN±19
19 Author: Date:
(4) Press the TRAC cut switch to turn the TRAC to the
operative mode and check that the TRAC OFF indi-
cator light goes off.
HINT:
The SLIP indicator light blinks when the TRAC system in opera-
tion.

IN05Y±07
IN±20± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
20 Author: Date:
HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS
GENERAL INFORMATION
A large number of ECU controlled systems are used in the 1999 CAMRY. In general, the ECU controlled
system is considered to be a very intricate system requiring a high level of technical knowledge and expert
skill to troubleshoot. However, the fact is that if you proceed to inspect the circuits one by one, troubleshoot-
ing of these systems is not complex. If you have adequate understanding of the system and a basic knowl-
edge of electricity, accurate diagnosis and necessary repair can be performed to locate and fix the problem.
This manual is designed through emphasis of the above standpoint to help service technicians perform ac-
curate and effective troubleshooting, and is compiled for the following major ECU controlled systems:
The troubleshooting procedure and how to make use of it are described on the following pages.
1. 5S±FE EngineDI±1
2. 1MZ±FE EngineDI±195
3. A140E Automatic TransaxleDI±387
4. A541E Automatic TransaxleDI±436
5. Anti±Lock Brake System (DENSO made)DI±491
6. Anti±Lock Brake System (BOSCH made)DI±537
7. ABS & Traction Control SystemDI±572
8. Supplemental Restraint SystemDI±624
9. Wireless Door Lock Control SystemDI±800
10.Theft Deterrent SystemDI±826
11. Cruise Control SystemDI±868
12.Engine Immobiliser SystemDI±919
FOR USING OBD II SCAN TOOL OR TOYOTA HAND±HELD TESTER

Before using the scan tool or tester, the scan tool's instruction book or tester's operator manual should
be read thoroughly.

If the scan tool or tester cannot communicate with ECU controlled systems when you have connected
the cable of the scan tool or tester to DLC3, turned the ignition switch ON and operated the scan tool,
there is a problem on the vehicle side or tool side.
(1) If communication is normal when the tool is connected to another vehicle, inspect the diagnosis
data link line (Bus
line) or ECU power circuit of the vehicle.
(2) If communication is still not possible when the tool is connected to another vehicle, the problem
is probably in the tool itself, so perform the Self Test procedures outline in the Tester Operator's
Manual.

IN05W±08
Vehicle Brought to Workshop
Customer Problem
Analysis
Symptom Confirmation
and Diagnostic Trouble
Code Check
Symptom Simulation
Diagnostic Trouble
Code Chart
Problem Symptoms Table
Circuit Inspection or Parts
Inspection
Repair
Confirmation Test
End 1
2
43
5
6
7
8Ask the customer about the conditions and the
environment when the problem occurred.1
Confirm the symptoms and the problem conditions,
and check the diagnostic trouble codes.
(When the problem symptoms do not appear
during confirmation, use the symptom simulation
method described later on.)2, 3
Check the results obtained in Step 2, then confirm
the inspection procedure for the system or the part
which should be checked using the diagnostic
trouble code chart or the problem symptoms table.4, 5, 6
Check and repair the affected system or part in
accordance with the instructions in Step 6. 7
After completing repairs, confirm that the problem
has been eliminated.
(If the problem is not reproduced, perform the
confirmation test under the same conditions and
in the same environment as when it occurred for
the first time.)8
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN±21
21 Author: Date:
HOW TO PROCEED WITH TROUBLESHOOTING
Carry out troubleshooting in accordance with the procedure on the following page. Here, only the basic pro-
cedure is shown. Details are provided in Diagnostics section, showing the most effective methods for each
circuit. Confirm the troubleshooting procedures first for the relevant circuit before beginning troubleshooting
of that circuit.

Important Points in the Customer Problem Analysis

What ±±±±± Vehicle model, system name

When ±±±±± Date, time, occurrence frequency

Where ±±±±± Road conditions

Under what conditions? ±±±±± Running conditions, driving conditions, weather conditions

How did it happen? ±±±±± Problem symptoms
(Sample) Engine control system check sheet.
ENGINE CONTROL SYSTEM Check Sheet
Customer's Name
Driver's Name
Data Vehicle
Brought in
License No.
Model and Model
Year
Frame No.
Engine Model
Odometer Reading
km
miles
Problem Symptoms
Engine does
not Start
Difficult to
Start
Poor Idling
Poor
Drive ability
Engine Stall
Others
Engine does not crankNo initial combustionNo complete combustion
Engine cranks slowly
Other
Incorrect first idleIdling rpm is abnormalHigh ( rpm)Low ( rpm)
Rough idling
Other
HesitationBack fireMuffler explosion (after±fire)Surging
Knocking
Other
Soon after startingAfter accelerator pedal depressed
After accelerator pedal released
During A/C operation
Shifting from N to D
Other
Data Problem
ConstantSometimes ( times per day/month)
Inspector's
Name
CUSTOMER PROBLEM ANALYSIS CHECK
IN±22± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
22 Author: Date:
1. CUSTOMER PROBLEM ANALYSIS
In troubleshooting, the problem symptoms must be confirmed accurately and all preconceptions must be
cleared away in order to give an accurate judgment. To ascertain just what the problem symptoms are, it is
extremely important to ask the customer about the problem and the conditions at the time it occurred.
Important Point in the Problem Analysis:
The following 5 items are important points in the problem analysis. Past problems which are thought to be
unrelated and the repair history, etc. may also help in some cases, so as much information as possible should
be gathered and its relationship with the problem symptoms should be correctly ascertained for reference
in troubleshooting. A customer problem analysis table is provided in Diagnostics section for each system
for your use.

DIAGNOSTIC TROUBLE CODE CHECK PROCEDURE
Diagnostic Trouble
Code Check (Make a
note of and then clear)Confirmation
of SymptomsDiagnostic Trouble
Code CheckProblem Condition
Diagnostic Trouble
Code DisplayProblem symptoms
existSame diagnostic
trouble code is
displayedProblem is still occurring in the diagnostic
circuit
Normal code is
displayedThe problem is still occurring in a place
other than in the diagnostic circuit
(The diagnostic trouble code displayed
first is either for a past problem or it is a
secondary problem)
No problem
symptoms existThe problem occurred in the diagnostic
circuit in the past
Normal Code DisplayProblem symptoms
existNormal code is
displayedThe problem is still occurring in a place
other than in the diagnostic circuit
No problem
symptoms existNormal code is
displayedThe problem occurred in a place other
than in the diagnostic circuit in the past
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN±23
23 Author: Date:
2. SYMPTOM CONFIRMATION AND DIAGNOSTIC TROUBLE CODE CHECK
The diagnostic system in the 1999 CAMRY fulfills various functions. The first function is the Diagnostic
Trouble Code Check in which a malfunction in the signal circuits to the ECU is stored in code in the ECU
memory at the time of occurrence, to be output by the technician during troubleshooting. Another function
is the Input Signal Check which checks if the signals from various switches are sent to the ECU correctly.
By using these check functions, the problem areas can be narrowed down quickly and troubleshooting can
be performed effectively. Diagnostic functions are incorporated in the following systems in the CAMRY.
SystemDiagnostic Trouble
Code CheckInput Signal Check
(Sensor Check)Diagnostic Test
Mode (Active Test)
Engine (5S±FE)
Engine (1MZ±FE)
Automatic Transaxle (A140E)
Automatic Transaxle (A541E)
Anti±Lock Brake System (DENSO made)
Anti±Lock Brake System (BOSCH made)
ABS & Traction Control System
Supplemental Restraint System
Wireless Door Lock Control System
Theft Deterrent System
Cruise Control System
Engine Immobiliser System (with Check
Mode)
 (with Check
Mode)
 (with Check
Mode)
 (with Check
Mode)
















In diagnostic trouble code check, it is very important to determine whether the problem indicated by the diag-
nostic trouble code is still occurring or occurred in the past but returned to normal at present. In addition,
it must be checked in the problem symptom check whether the malfunction indicated by the diagnostic
trouble code is directly related to the problem symptom or not. For this reason, the diagnostic trouble codes
should be checked before and after the symptom confirmation to determine the current conditions, as shown
in the table below. If this is not done, it may, depending on the case, result in unnecessary troubleshooting
for normally operating systems, thus making it more difficult to locate the problem, or in repairs not pertinent
to the problem. Therefore, always follow the procedure in correct order and perform the diagnostic trouble
code check.

Diagnostic trouble code check
Making a note of and clearing of the diagnostic trouble codes displayed
Symptom confirmation
No problem symptoms
exist Problem symptoms
exist
Simulation test using the symptom
simulation methods

Normal code displayed

Problem symptoms exist
Normal code displayed

No problem symptoms exist Diagnostic trouble code check
Troubleshooting of problem indicated
by diagnostic trouble code
Diagnostic trouble code displayed

Problem symptoms exist
System Normal Troubleshooting of each
problem symptom
If a diagnostic trouble code was
displayed in the initial diagnostic
trouble code check, it indicates
that the trouble may have occurred
in a wire harness or connector in
that circuit in the past. Therefore,
check the wire harness and con-
nectors (See page IN±31).
IN±24± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
24 Author: Date:
Taking into account the points on the previous page, a flow chart showing how to proceed with troubleshoot-
ing using the diagnostic trouble code check is shown below. This flow chart shows how to utilize the diagnos-
tic trouble code check effectively, then by carefully checking the results, indicates how to proceed either to
diagnostic trouble code troubleshooting or to troubleshooting of problem symptoms table.

V07268

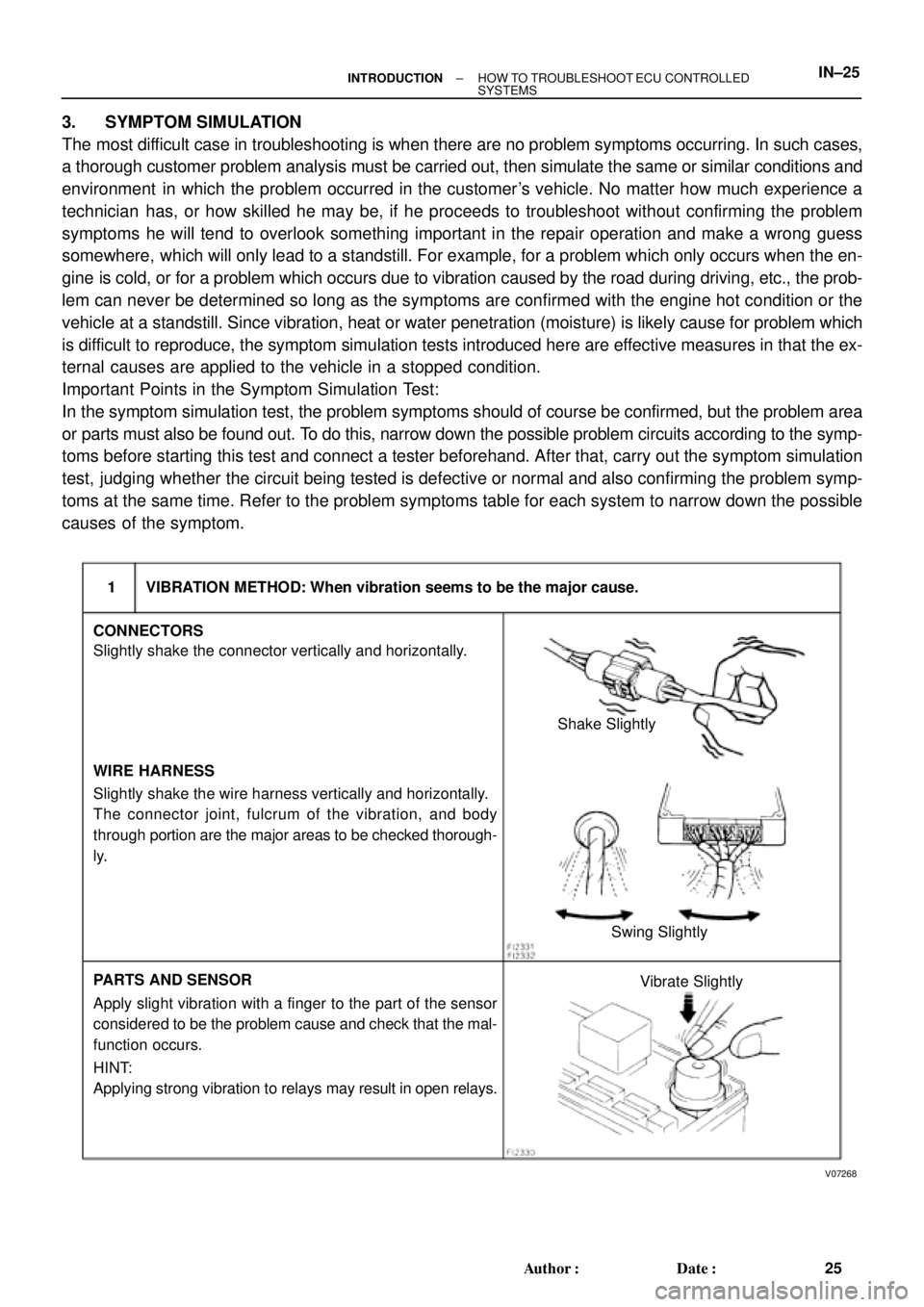

VIBRATION METHOD: When vibration seems to be the major cause.
CONNECTORS
WIRE HARNESS
PARTS AND SENSOR1
Slightly shake the connector vertically and horizontally.
Slightly shake the wire harness vertically and horizontally.
The connector joint, fulcrum of the vibration, and body
through portion are the major areas to be checked thorough-
ly.
Apply slight vibration with a finger to the part of the sensor
considered to be the problem cause and check that the mal-
function occurs.Shake Slightly
Swing Slightly
Vibrate Slightly
HINT:
Applying strong vibration to relays may result in open relays.
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN±25
25 Author: Date:
3. SYMPTOM SIMULATION
The most difficult case in troubleshooting is when there are no problem symptoms occurring. In such cases,
a thorough customer problem analysis must be carried out, then simulate the same or similar conditions and
environment in which the problem occurred in the customer's vehicle. No matter how much experience a
technician has, or how skilled he may be, if he proceeds to troubleshoot without confirming the problem
symptoms he will tend to overlook something important in the repair operation and make a wrong guess
somewhere, which will only lead to a standstill. For example, for a problem which only occurs when the en-
gine is cold, or for a problem which occurs due to vibration caused by the road during driving, etc., the prob-
lem can never be determined so long as the symptoms are confirmed with the engine hot condition or the
vehicle at a standstill. Since vibration, heat or water penetration (moisture) is likely cause for problem which
is difficult to reproduce, the symptom simulation tests introduced here are effective measures in that the ex-
ternal causes are applied to the vehicle in a stopped condition.
Important Points in the Symptom Simulation Test:
In the symptom simulation test, the problem symptoms should of course be confirmed, but the problem area
or parts must also be found out. To do this, narrow down the possible problem circuits according to the symp-
toms before starting this test and connect a tester beforehand. After that, carry out the symptom simulation
test, judging whether the circuit being tested is defective or normal and also confirming the problem symp-
toms at the same time. Refer to the problem symptoms table for each system to narrow down the possible
causes of the symptom.

B02389
B02390

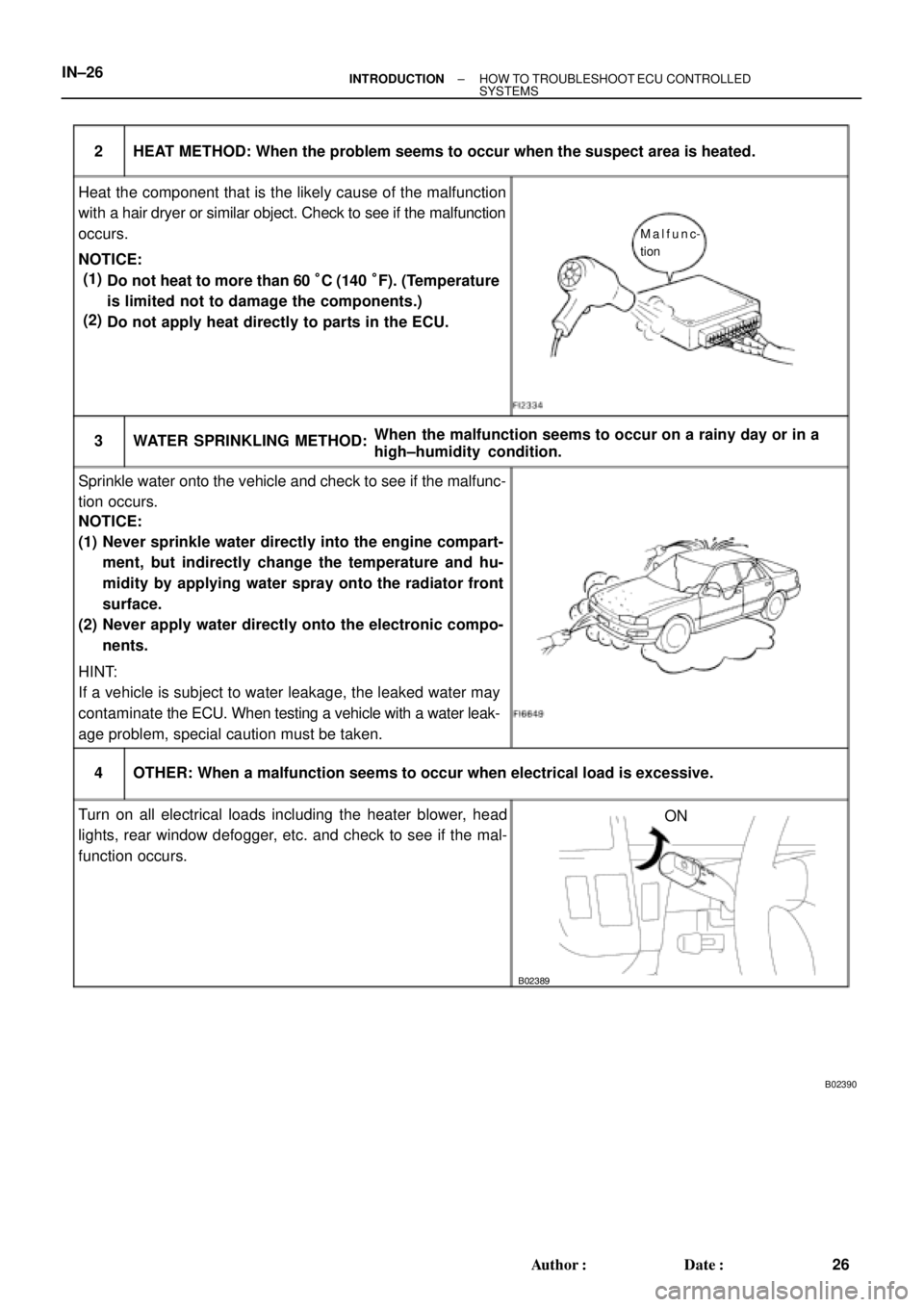

HEAT METHOD: When the problem seems to occur when the suspect area is heated. 2
NOTICE:3 WATER SPRINKLING METHOD:
(1)
(2)
4 OTHER: When a malfunction seems to occur when electrical load is excessive.When the malfunction seems to occur on a rainy day or in a
high±humidity condition. Heat the component that is the likely cause of the malfunction
with a hair dryer or similar object. Check to see if the malfunction
occurs.
Sprinkle water onto the vehicle and check to see if the malfunc-
tion occurs.
Turn on all electrical loads including the heater blower, head
lights, rear window defogger, etc. and check to see if the mal-
function occurs.ON HINT:
If a vehicle is subject to water leakage, the leaked water may
contaminate the ECU. When testing a vehicle with a water leak-
age problem, special caution must be taken.
Malfunc-
tion
Do not heat to more than 60 °C (140 °F). (Temperature
is limited not to damage the components.)
Do not apply heat directly to parts in the ECU. (1)
(2)
Never sprinkle water directly into the engine compart-
ment, but indirectly change the temperature and hu-
midity by applying water spray onto the radiator front
surface.
Never apply water directly onto the electronic compo-
nents. NOTICE: IN±26
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
26 Author: Date:

DTC No.
Indicates the diagnostic trouble code.

Page or Instructions
Indicates the page where the inspection procedure
for each circuit is to be found, or gives instructions
for checking and repairs.

Detection Item
Indicates the system of the problem or
contents of the problem.
Trouble Area
Indicates the suspect area of the
problem.
Mass Air Flow Circuit MalfunctionDetection Item

Open or short in mass air flow meter circuit

Mass air flow meter

ECM DTC No.
(See page)Trouble AreaMIL* MemoryP0100
(DI±24)
P0101
(DI±28)
P0115
(DI±33)
Open or short in intake air temp. sensor
circuit

Intake air temp. sensor

ECM Intake Air Temp. Circuit
Malfunction P0110
(DI±29)

Open or short in engine coolant temp. sensor circuit

Engine coolant temp. sensor

ECM
Throttle/ Pedal Position Sensor/Switch
ºAº Circuit MalfunctionEngine Coolant Temp.
Circuit Malfunction

Open or short in throttle position sensor circuit

Throttle position sensor

ECM
DTC CHART (SAE Controlled)
HINT:
Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other
factors.
If a malfunction code is displayed during the DTC check mode, check the circuit for that code listed in the table
below. For details of each code, turn to the page referred to under the ºSee pageº for the respective ºDTC No.º
in the DTC chart.
Mass Air Flow Circuit
Range/ Performance Problem
Mass air flow meter

Throttle position sensor Throttle/ Pedal Position Sensor/ Switch
ºAº Circuit Range / Performance Prob-
lem P0116
(DI±37)Engine Coolant Temp.
Circuit Range/ Performance Problem
Engine coolant temp. sensor

Cooling system
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN±27
27 Author: Date:
4. DIAGNOSTIC TROUBLE CODE CHART
The inspection procedure is shown in the table below. This table permits efficient and accurate troubleshoot-
ing using the diagnostic trouble codes displayed in the diagnostic trouble code check. Proceed with trouble-
shooting in accordance with the inspection procedure given in the diagnostic chart corresponding to the
diagnostic trouble codes displayed. The engine diagnostic trouble code chart is shown below as an example.
