TOYOTA CAMRY 1999 Service Repair Manual

BE1367

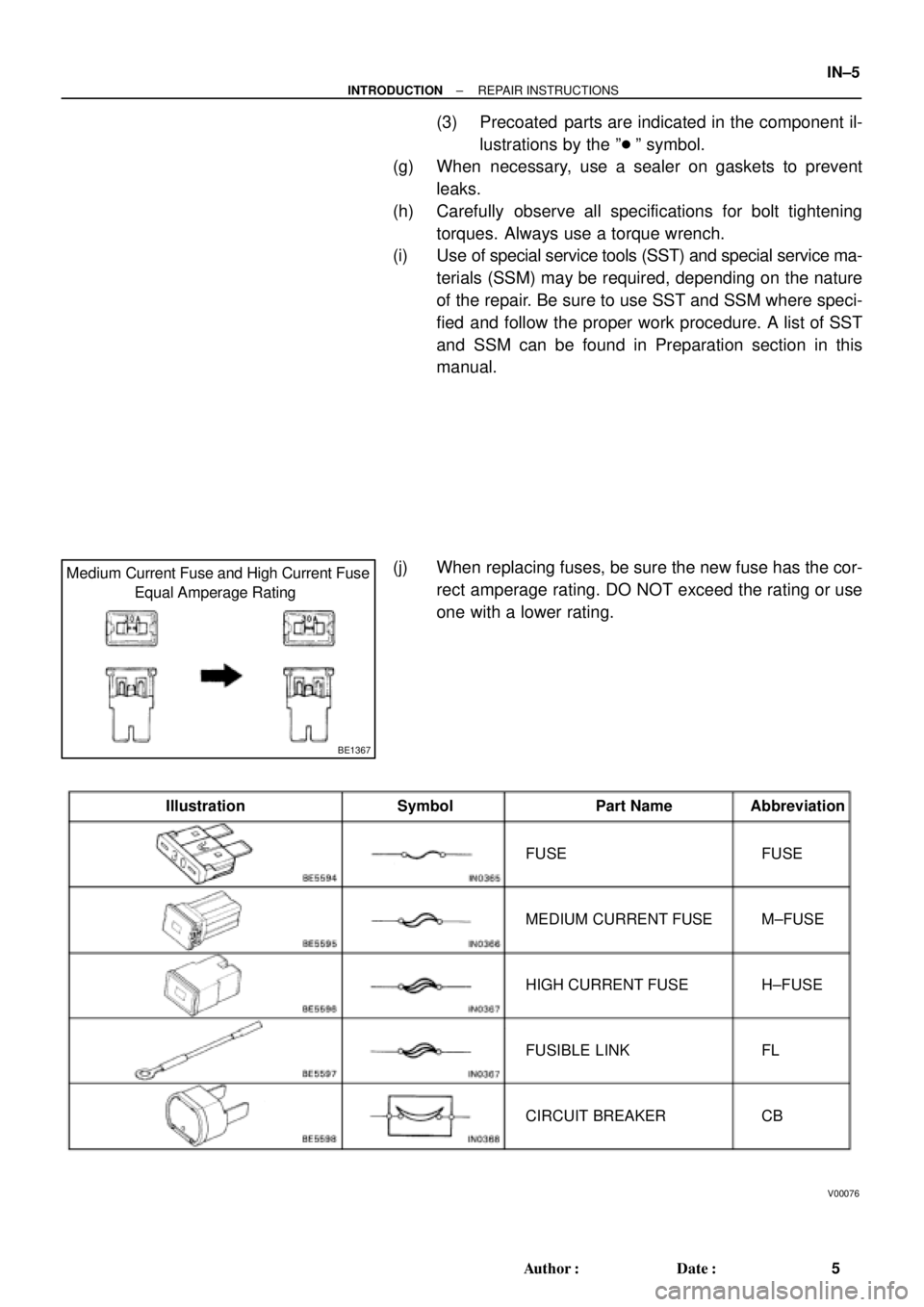

Medium Current Fuse and High Current Fuse
Equal Amperage Rating
V00076
Abbreviation Part Name Symbol Illustration
FUSE
MEDIUM CURRENT FUSE
HIGH CURRENT FUSE
FUSIBLE LINK
CIRCUIT BREAKERFUSE
M±FUSE
H±FUSE
FL
CB
± INTRODUCTIONREPAIR INSTRUCTIONS
IN±5
5 Author: Date:
(3) Precoated parts are indicated in the component il-
lustrations by the º
º symbol.
(g) When necessary, use a sealer on gaskets to prevent
leaks.
(h) Carefully observe all specifications for bolt tightening
torques. Always use a torque wrench.
(i) Use of special service tools (SST) and special service ma-
terials (SSM) may be required, depending on the nature
of the repair. Be sure to use SST and SSM where speci-
fied and follow the proper work procedure. A list of SST
and SSM can be found in Preparation section in this
manual.
(j) When replacing fuses, be sure the new fuse has the cor-
rect amperage rating. DO NOT exceed the rating or use
one with a lower rating.

IN0253
WRONG CORRECT
IN0252
WRONG CORRECT IN±6
± INTRODUCTIONREPAIR INSTRUCTIONS
6 Author: Date:
(k) Care must be taken when jacking up and supporting the
vehicle. Be sure to lift and support the vehicle at the prop-
er locations (See page IN±8).
Cancel the parking brake on the level place and
shift the transmission in Neutral (or N position).
When jacking up the front wheels of the vehicle at
first place stoppers behind the rear wheels.
When jacking up the rear wheels of the vehicle at
first place stoppers before the front wheels.
When either the front or rear wheels only should be
jacked up, set rigid racks and place stoppers in front
and behind the other wheels on the ground.
After the vehicle is jacked up, be sure to support it
on rigid racks . It is extremely dangerous to do any
work on a vehicle raised on a jack alone, even for
a small job that can be finished quickly.
(l) Observe the following precautions to avoid damage to the
following parts:
(1) Do not open the cover or case of the ECU unless
absolutely necessary. (If the IC terminals are
touched, the IC may be destroyed by static electric-
ity.)
(2) To disconnect vacuum hoses, pull off the end, not
the middle of the hose.
(3) To pull apart electrical connectors, pull on the con-
nector itself, not the wires.
(4) Be careful not to drop electrical components, such
as sensors or relays. If they are dropped on a hard
floor, they should be replaced and not reused.
(5) When steam cleaning an engine, protect the elec-
tronic components, air filter and emission±related
components from water.
(6) Never use an impact wrench to remove or install
temperature switches or temperature sensors.
(7) When checking continuity at the wire connector, in-
sert the tester probe carefully to prevent terminals
from bending.
(8) When using a vacuum gauge, never force the hose
onto a connector that is too large. Use a step±down
adapter for adjustment. Once the hose has been
stretched, it may leak air.

IN0002
Example
± INTRODUCTIONREPAIR INSTRUCTIONS
IN±7
7 Author: Date:

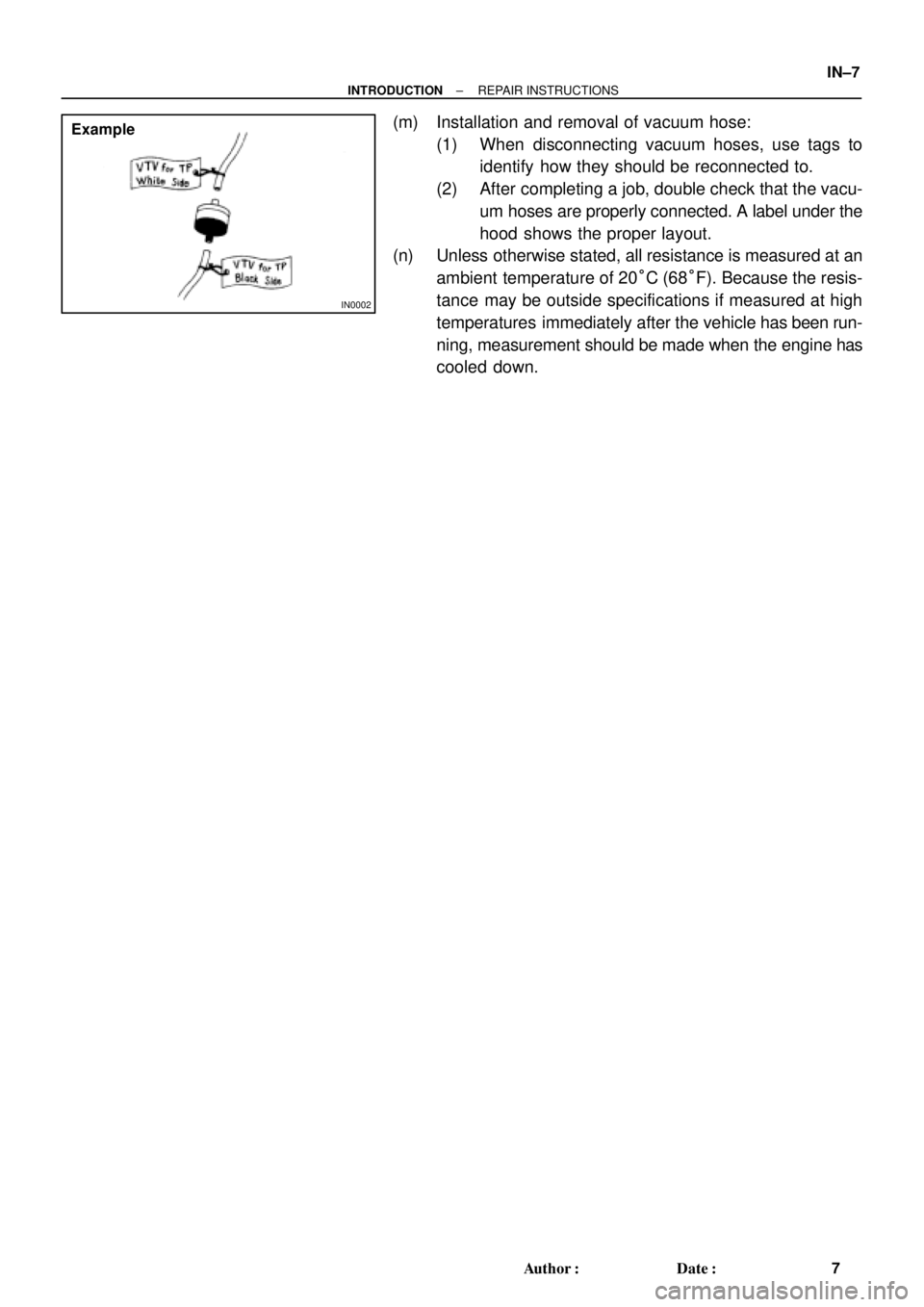

(m) Installation and removal of vacuum hose:
(1) When disconnecting vacuum hoses, use tags to
identify how they should be reconnected to.
(2) After completing a job, double check that the vacu-
um hoses are properly connected. A label under the
hood shows the proper layout.
(n) Unless otherwise stated, all resistance is measured at an
ambient temperature of 20°C (68°F). Because the resis-
tance may be outside specifications if measured at high
temperatures immediately after the vehicle has been run-
ning, measurement should be made when the engine has
cooled down.

IN0CP±05

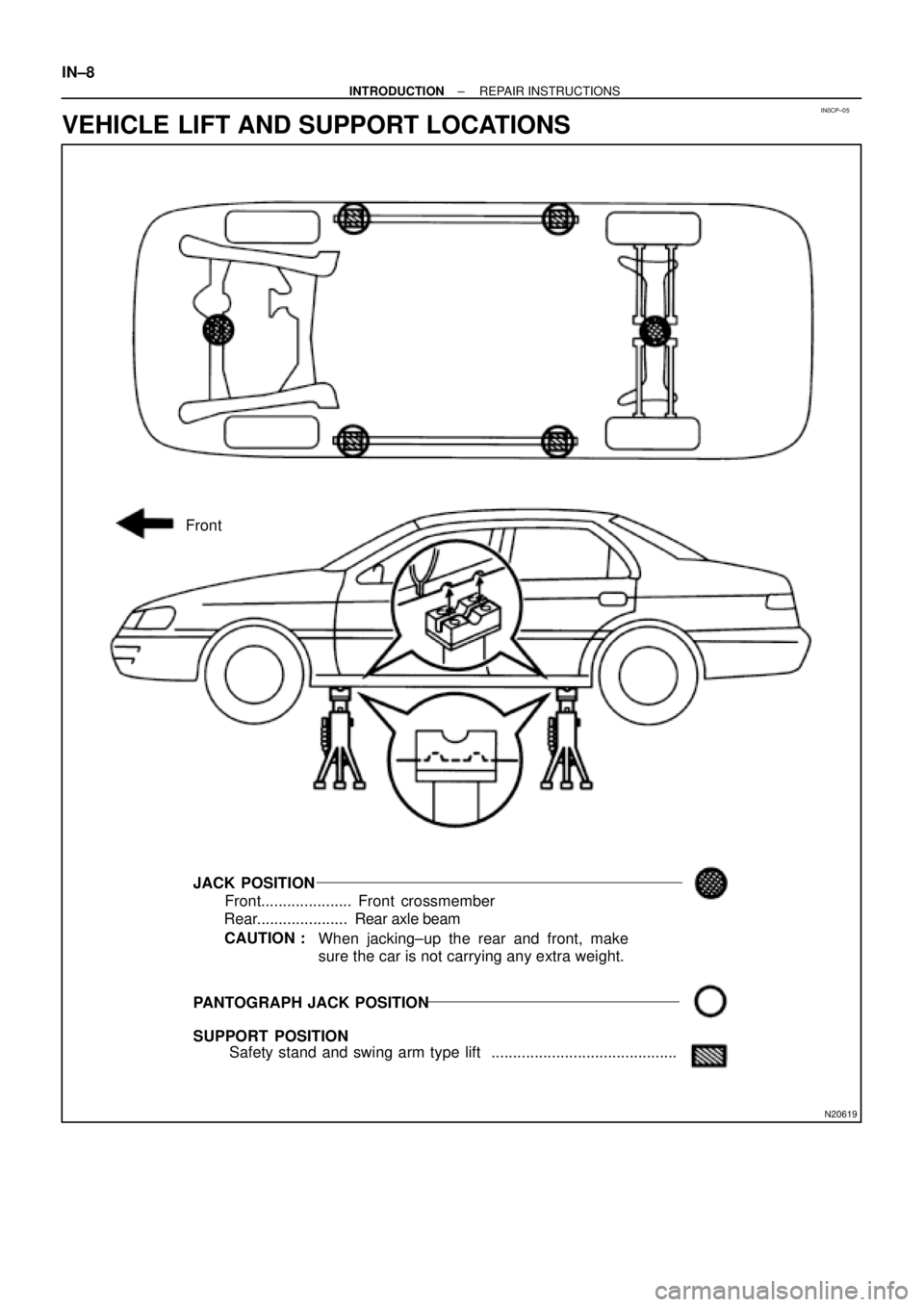

N20619
Front
JACK POSITION
Front..................... Front crossmember
Rear..................... Rear axle beam
CAUTION :
PANTOGRAPH JACK POSITION
SUPPORT POSITION
Safety stand and swing arm type lift ...........................................When jacking±up the rear and front, make
sure the car is not carrying any extra weight.
IN±8
± INTRODUCTIONREPAIR INSTRUCTIONS

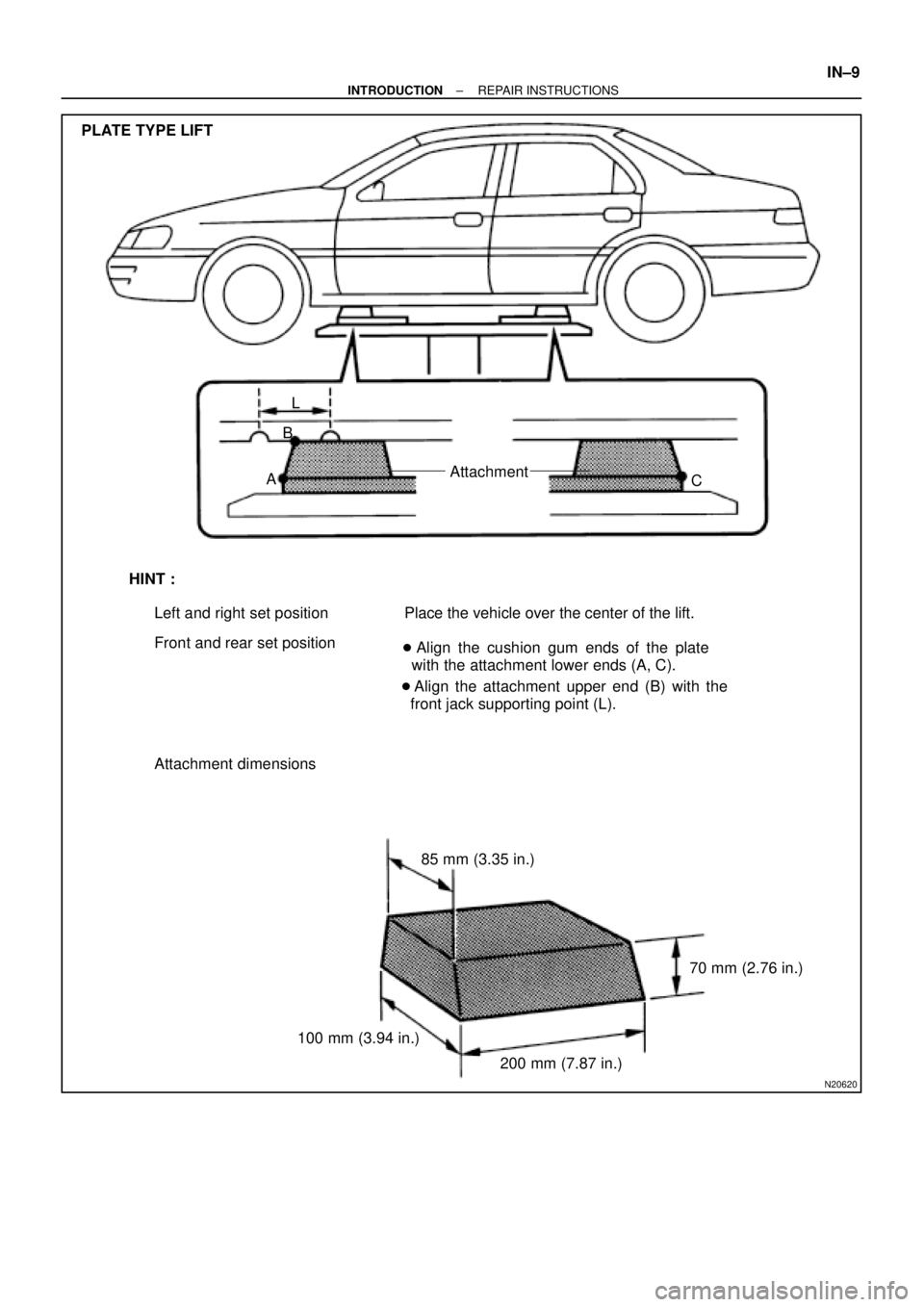

VEHICLE LIFT AND SUPPORT LOCATIONS

N20620
PLATE TYPE LIFT
L
B
AAttachment
C
HINT :
Left and right set position
Front and rear set positionPlace the vehicle over the center of the lift.

Align the cushion gum ends of the plate
with the attachment lower ends (A, C).

Align the attachment upper end (B) with the
front jack supporting point (L).
Attachment dimensions
85 mm (3.35 in.)
100 mm (3.94 in.)70 mm (2.76 in.)
200 mm (7.87 in.)
± INTRODUCTIONREPAIR INSTRUCTIONS
IN±9

IN0DW±01
BO4111
Negative Cable
IN±10
± INTRODUCTIONFOR ALL OF VEHICLES
10 Author: Date:
FOR ALL OF VEHICLES
PRECAUTION
1. FOR VEHICLES EQUIPPED WITH SRS AIRBAG AND
SEAT BELT PRETENSIONER
(a) The 1999 CAMRY CNG is equipped with an SRS (Sup-
plemental Restraint System), such as the driver airbag,
front passenger airbag assembly and seat belt preten-
sioner.
Failure to carry out service operations in the correct se-
quence could cause the supplemental restraint system to
unexpectedly deploy during servicing, possibly leading to
a serious accident.
Further, if a mistake is made in servicing the supplemental
restraint system, it is possible the SRS may fail to operate
when required. Before servicing (including removal or
installation of parts, inspection or replacement), be sure
to read the following items carefully, then follow the cor-
rect procedure described in this manual.
(b) GENERAL NOTICE
(1) Malfunction symptoms of the supplemental re-
straint system are difficult to confirm, so the diag-
nostic trouble codes become the most important
source of information when troubleshooting. When
troubleshooting the supplemental restraint system,
always inspect the diagnostic trouble codes before
disconnecting the battery (See page DI±223).

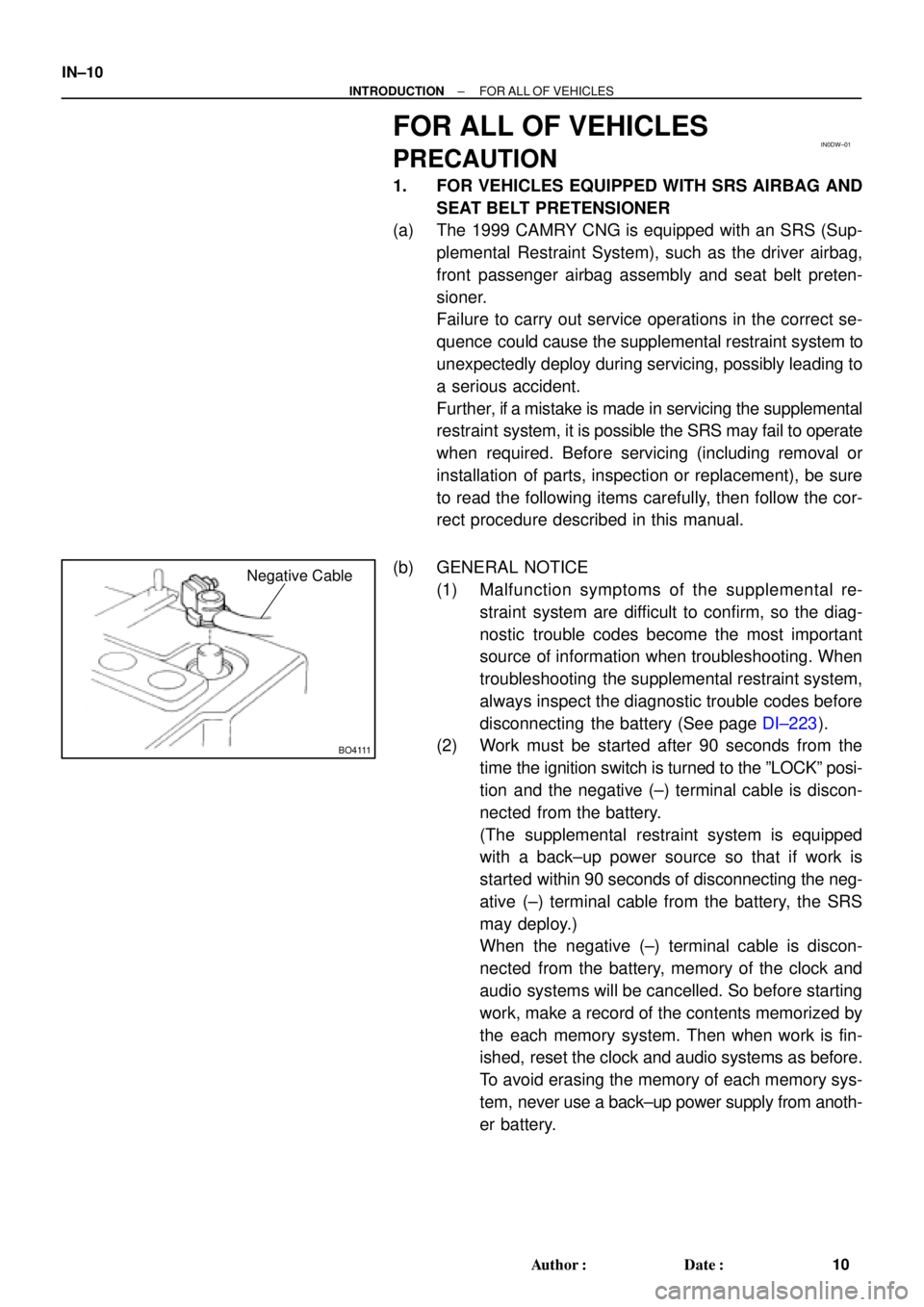

(2) Work must be started after 90 seconds from the
time the ignition switch is turned to the ºLOCKº posi-
tion and the negative (±) terminal cable is discon-
nected from the battery.
(The supplemental restraint system is equipped
with a back±up power source so that if work is
started within 90 seconds of disconnecting the neg-
ative (±) terminal cable from the battery, the SRS
may deploy.)
When the negative (±) terminal cable is discon-
nected from the battery, memory of the clock and
audio systems will be cancelled. So before starting
work, make a record of the contents memorized by
the each memory system. Then when work is fin-
ished, reset the clock and audio systems as before.
To avoid erasing the memory of each memory sys-
tem, never use a back±up power supply from anoth-
er battery.

W02655
Marks
± INTRODUCTIONFOR ALL OF VEHICLES
IN±11
11 Author: Date:
(3) Even in cases of a minor collision where the SRS
does not deploy, the steering wheel pad, front pas-
senger airbag assembly and seat belt pretensioner
should be inspected (See Pub. No. RM654U on
page SR±16, RS±29 and BO±127).
(4) Never use SRS parts from another vehicle. When
replacing parts, replace them with new parts.
(5) Before repairs, remove the airbag sensor if shocks
are likely to be applied to the sensor during repairs.
(6) Never disassemble and repair the airbag sensor as-
sembly, steering wheel pad, front passenger airbag
assembly or seat belt pretensioner.
(7) If the airbag sensor assembly, steering wheel pad,
front passenger airbag assembly or seat belt pre-
tensioner has been dropped, or if there are cracks,
dents or other defects in the case, bracket or con-
nector, replace them with new ones.
(8) Do not directly expose the airbag sensor assembly,
steering wheel pad, front passenger airbag assem-
bly or seat belt pretensioner to hot air or flames.
(9) Use a volt/ohmmeter with high impedance (10 kW/V
minimum) for troubleshooting of the electrical cir-
cuit.
(10) Information labels are attached to the periphery of
the SRS components. Follow the instructions on the
notices.
(11) After work on the supplemental restraint system is
completed, check the SRS warning light (See page
DI±223).

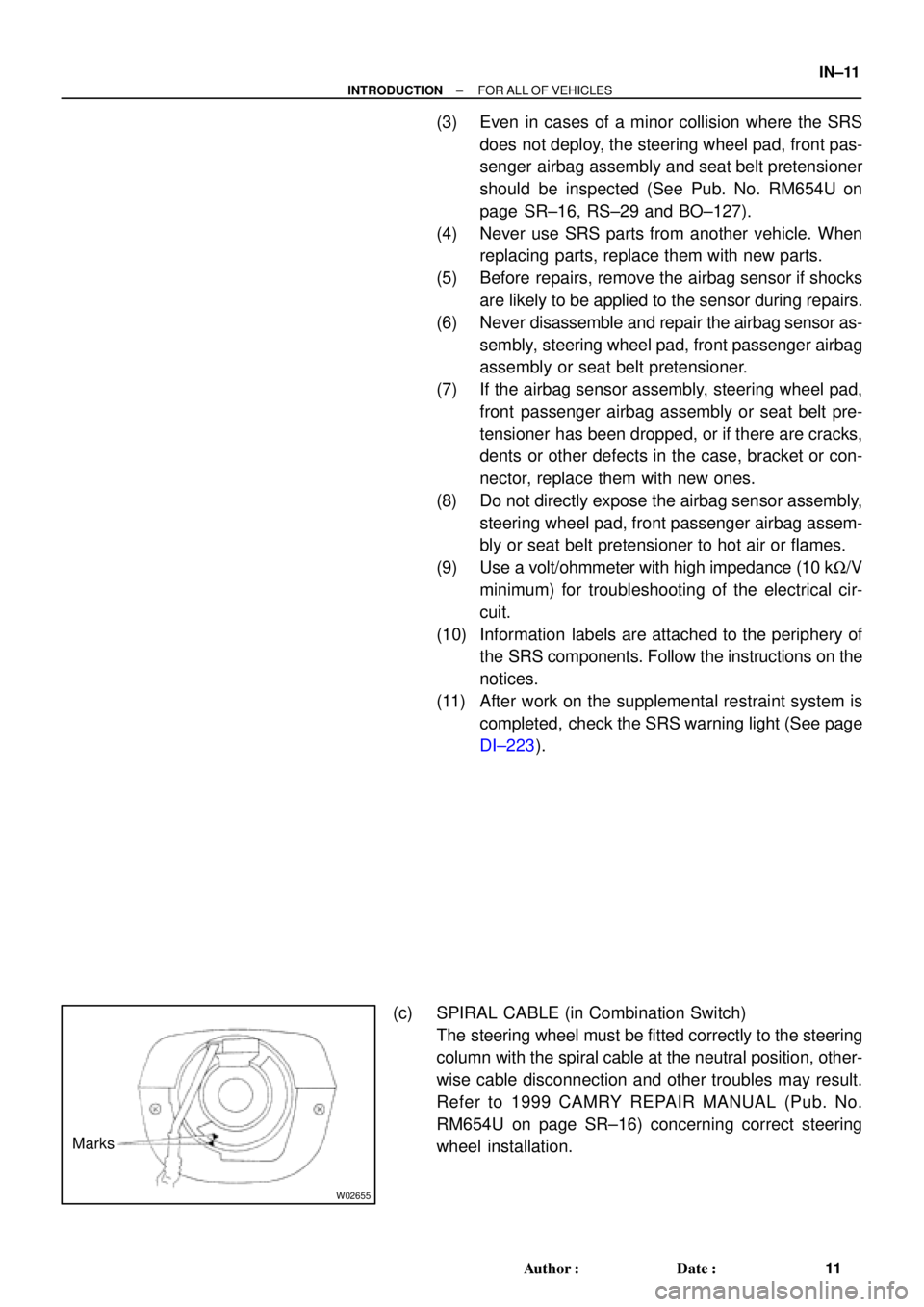

(c) SPIRAL CABLE (in Combination Switch)
The steering wheel must be fitted correctly to the steering
column with the spiral cable at the neutral position, other-
wise cable disconnection and other troubles may result.
Refer to 1999 CAMRY REPAIR MANUAL (Pub. No.
RM654U on page SR±16) concerning correct steering
wheel installation.

Z13953
Example:CorrectWrong
Z13950
Example: IN±12
± INTRODUCTIONFOR ALL OF VEHICLES
12 Author: Date:

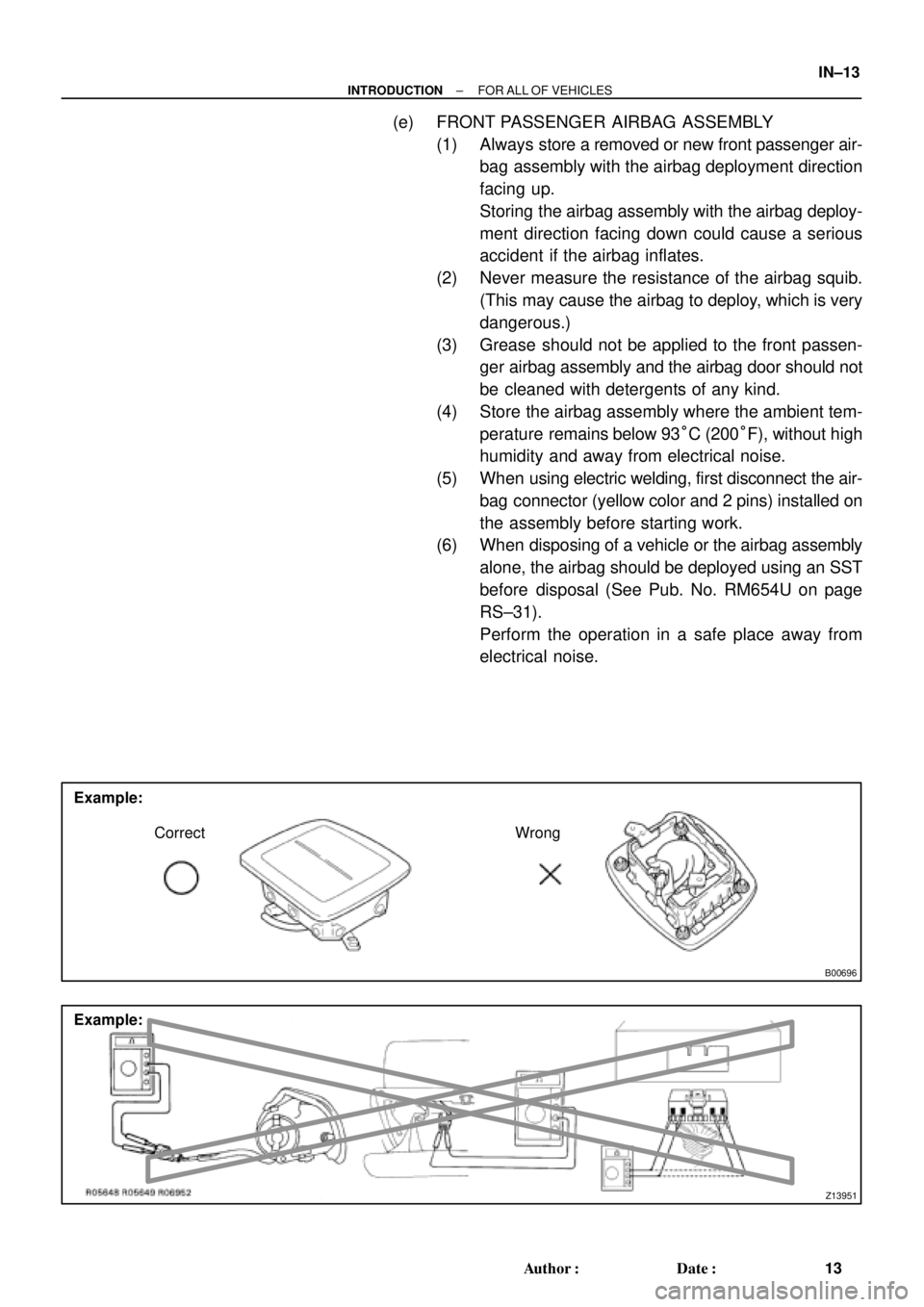

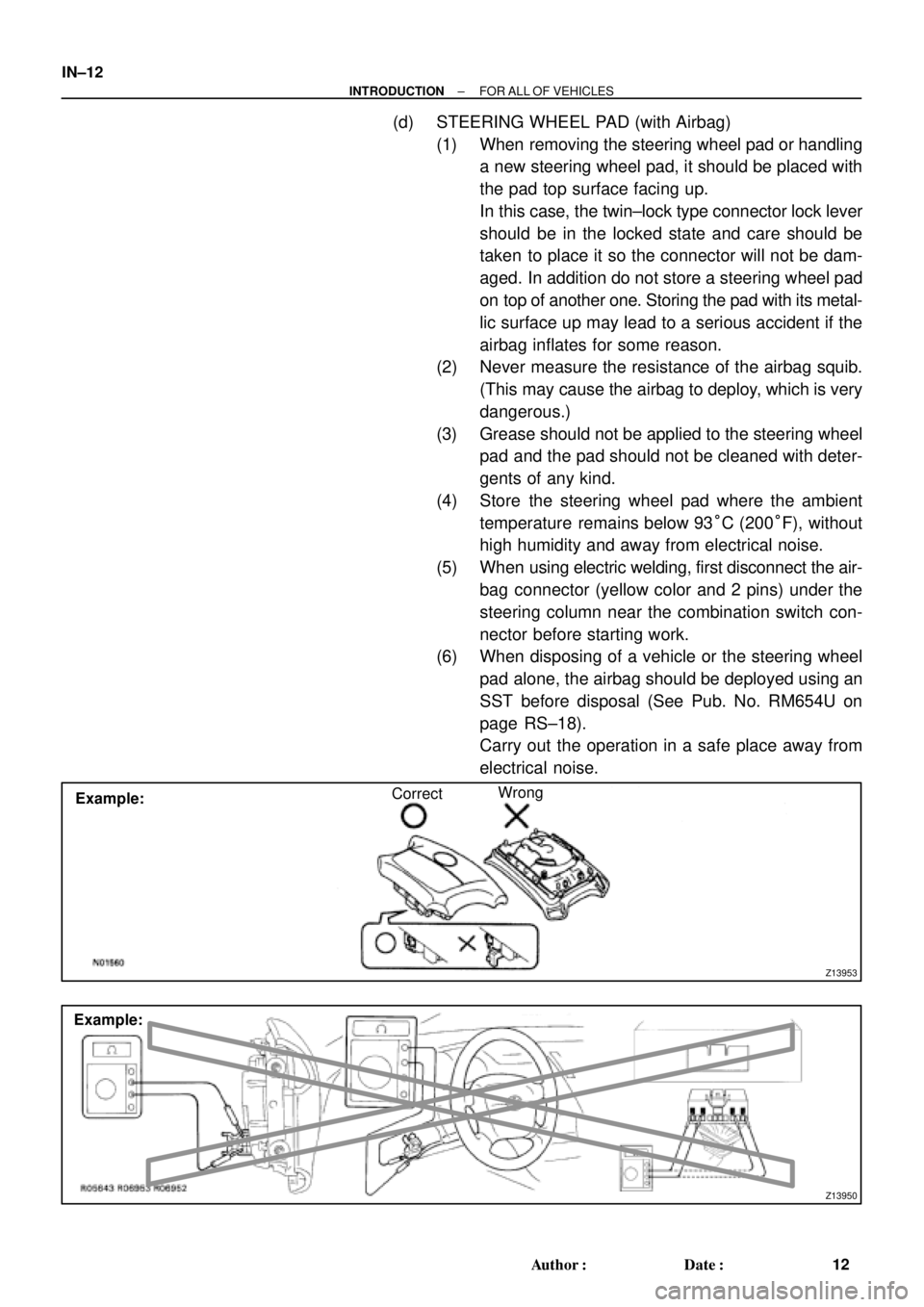

(d) STEERING WHEEL PAD (with Airbag)
(1) When removing the steering wheel pad or handling
a new steering wheel pad, it should be placed with
the pad top surface facing up.
In this case, the twin±lock type connector lock lever
should be in the locked state and care should be
taken to place it so the connector will not be dam-
aged. In addition do not store a steering wheel pad
on top of another one. Storing the pad with its metal-
lic surface up may lead to a serious accident if the
airbag inflates for some reason.
(2) Never measure the resistance of the airbag squib.
(This may cause the airbag to deploy, which is very
dangerous.)
(3) Grease should not be applied to the steering wheel
pad and the pad should not be cleaned with deter-
gents of any kind.
(4) Store the steering wheel pad where the ambient
temperature remains below 93°C (200°F), without
high humidity and away from electrical noise.
(5) When using electric welding, first disconnect the air-
bag connector (yellow color and 2 pins) under the
steering column near the combination switch con-
nector before starting work.
(6) When disposing of a vehicle or the steering wheel
pad alone, the airbag should be deployed using an
SST before disposal (See Pub. No. RM654U on
page RS±18).
Carry out the operation in a safe place away from
electrical noise.

B00696
Example:
Correct Wrong
Z13951
Example:
± INTRODUCTIONFOR ALL OF VEHICLES
IN±13
13 Author: Date:
(e) FRONT PASSENGER AIRBAG ASSEMBLY
(1) Always store a removed or new front passenger air-
bag assembly with the airbag deployment direction
facing up.
Storing the airbag assembly with the airbag deploy-
ment direction facing down could cause a serious
accident if the airbag inflates.

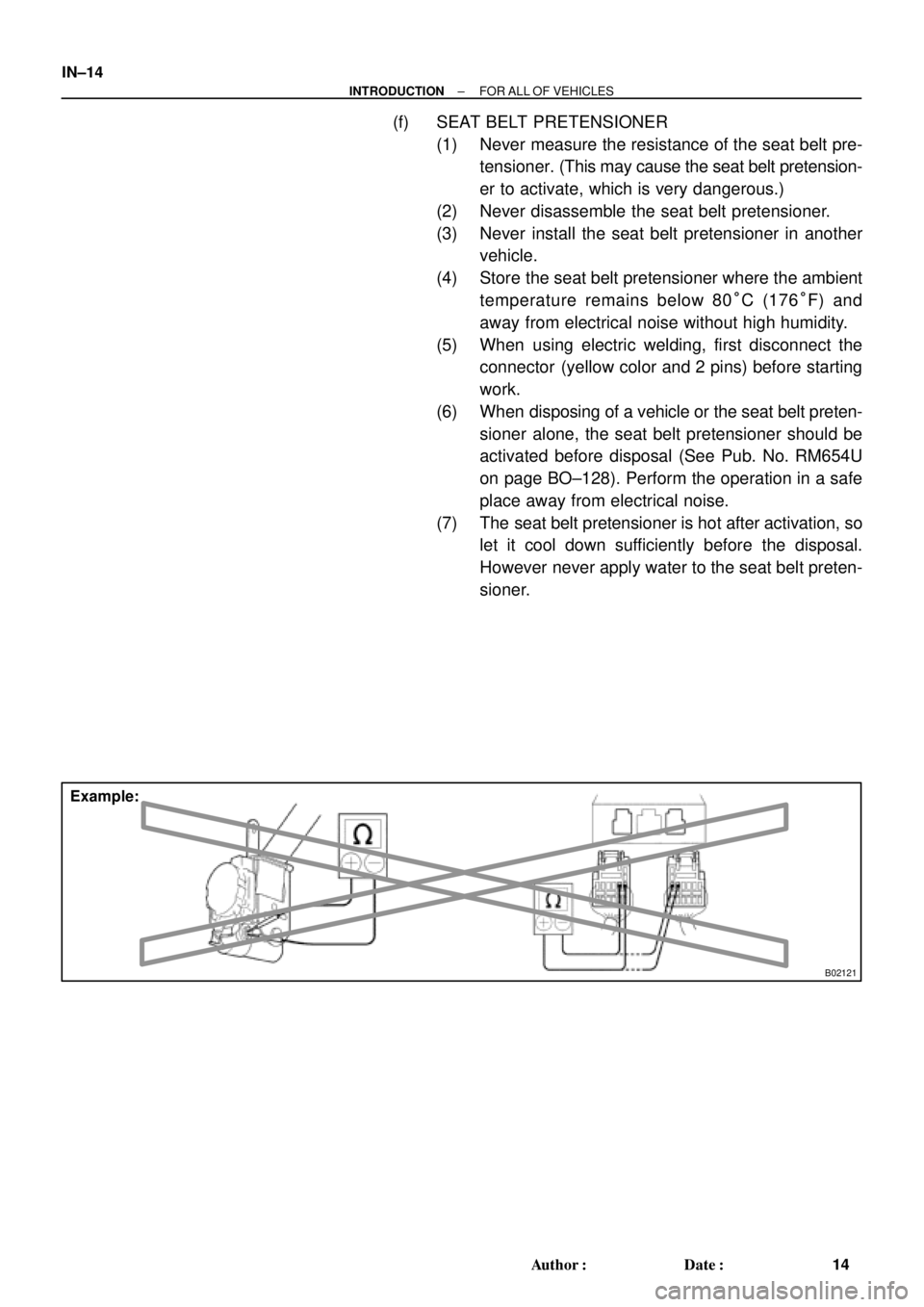

(2) Never measure the resistance of the airbag squib.
(This may cause the airbag to deploy, which is very
dangerous.)
(3) Grease should not be applied to the front passen-
ger airbag assembly and the airbag door should not
be cleaned with detergents of any kind.
(4) Store the airbag assembly where the ambient tem-
perature remains below 93°C (200°F), without high
humidity and away from electrical noise.
(5) When using electric welding, first disconnect the air-
bag connector (yellow color and 2 pins) installed on
the assembly before starting work.
(6) When disposing of a vehicle or the airbag assembly
alone, the airbag should be deployed using an SST
before disposal (See Pub. No. RM654U on page
RS±31).
Perform the operation in a safe place away from
electrical noise.

B02121
Example: IN±14
± INTRODUCTIONFOR ALL OF VEHICLES
14 Author: Date:
(f) SEAT BELT PRETENSIONER
(1) Never measure the resistance of the seat belt pre-
tensioner. (This may cause the seat belt pretension-
er to activate, which is very dangerous.)
(2) Never disassemble the seat belt pretensioner.
(3) Never install the seat belt pretensioner in another
vehicle.
(4) Store the seat belt pretensioner where the ambient
temperature remains below 80°C (176°F) and
away from electrical noise without high humidity.
(5) When using electric welding, first disconnect the
connector (yellow color and 2 pins) before starting
work.
(6) When disposing of a vehicle or the seat belt preten-
sioner alone, the seat belt pretensioner should be
activated before disposal (See Pub. No. RM654U
on page BO±128). Perform the operation in a safe
place away from electrical noise.
(7) The seat belt pretensioner is hot after activation, so
let it cool down sufficiently before the disposal.
However never apply water to the seat belt preten-
sioner.
