TOYOTA CAMRY 1999 Service Repair Manual

BO0MO±01
H01872

Hog Ring
Front Seatback Cover
Front Seatback Pad
Headrest
Headrest
Support

Hog Ring
Front Seatback
Hinge Cover
Front Seatback
Frame
w/ Lumber Support:
Lumber Support Lever
Front Seat Cushion Cover
Front Seat
Cushion Pad
Front Seat Cushion Frame
Inner Adjuster
Sub±Assembly
Track Cover
Seat Track
Adjusting HandleOuter Adjuster
Sub±Assembly
Front Seat Cushion
Shield
Release
Handle
Front Seat Cushion
Lower Shield
Vertical Adjuster Knob
w/ Side Airbag Assembly:
Side Airbag
Assembly
6.0 (61, 53 in.´lbf)
w/o Vertical:
Inner Adjuster
Sub±Assembly
Outer Adjuster
Sub±Assembly
Front Seat Cushion
Shield
Front Seat Cushion
Lower Shield
Release Handle
N´m (kgf´cm, ft´lbf) : Specified torque

Non±reusable part
BO±106
± BODYFRONT SEAT (Manual Seat for TMMK Made)
2454 Author: Date:
FRONT SEAT (Manual Seat for TMMK Made)
COMPONENTS

BO0MP±01
± BODYFRONT SEAT (Manual Seat for TMMK Made)
BO±107
2455 Author: Date:
REMOVAL
REMOVE FRONT SEAT
(a) Using a screwdriver, remove the seat track covers.
HINT:
Tape the screwdriver tip before use.
(b) Remove the 4 bolts.
(c) w/ Side Airbag Assembly:
Disconnect the connector.
(d) Remove the front seat.
NOTICE:
Be careful not to damage the body.

BO0MQ±01
H01870
BO±108
± BODYFRONT SEAT (Manual Seat for TMMK Made)
2456 Author: Date:
DISASSEMBLY
1. REMOVE THESE PARTS:
(a) Release handle
(b) Front seat cushion shield
(c) Vertical Seat Adjuster:
Vertical adjuster knob
(d) Front seat cushion lower shield
(e) Front seatback hinge cover.
(f) w/ Lumber Support:
Lumber support lever
(g) Headrest
(h) Front seat inner belt
2. REMOVE SEATBACK ASSEMBLY
(a) w/ Side Airbag Assembly:
Remove the side airbag wire harness after removing
clips.
(b) Remove the hog rings.
(c) Remove the bolts and seatback assembly.
3. REMOVE SEATBACK COVER
(a) w/ Side Airbag Assembly:
Remove the hook from the seatback frame.
(b) Remove the headrest supports.
(c) Remove the seatback frame from the seatback cover with
pad.
(d) Remove the seatback cover from the seatback pad.
4. w/ Side Airbag Assembly:
REMOVE SIDE AIRBAG ASSEMBLY
Remove the 2 nuts and side airbag assembly from the seatback
frame.
CAUTION:

Do not store the side airbag assembly with the airbag
deployment direction facing down.

Never disassemble the side airbag assembly.
5. REMOVE SEAT CUSHION ASSEMBLY
Remove the 4 bolts and seat cushion assembly from the seat
adjuster.
6. REMOVE SEAT CUSHION COVER
(a) Remove the seat cushion frame.
(b) Remove the seat cushion cover from the seat cushion
pad.
7. REMOVE RECLINING CONNECTING PIPE
Remove the reclining connecting pipe.
8. REMOVE SEAT TRACK ADJUSTING HANDLE
Remove the seat track adjusting handle.
9. REMOVE OUTER ADJUSTER SUB±ASSEMBLY
Remove the outer adjuster sub±assembly from the inner ad-
juster sub±assembly.

BO0MR±01
± BODYFRONT SEAT (Manual Seat for TMMK Made)
BO±109
2457 Author: Date:
INSPECTION
INSPECT RECLINING LOCK POSITION AND SLIDING LOCK POSITION SLIPPING OFF
(a) When reclining the seat, inspect that the outer and inner tracks are released at the same time.
HINT:
When the reclining lock positions slip off, disassemble the seat to adjust the position.
(b) When sliding the seat, inspect that the outer and inner tracks are locked at the same time.
HINT:
When sliding lock positions slip off, loosen the bolts to adjust the position.

BO0MS±01
BO±110
± BODYFRONT SEAT (Manual Seat for TMMK Made)
2458 Author: Date:
REASSEMBLY
1. INSTALL OUTER ADJUSTER SUB±ASSEMBLY
Install the outer adjuster sub±assembly to the inner adjuster
sub±assembly.
2. INSTALL SEAT ADJUSTING HANDLE
Install the seat track adjusting handle.
3. INSTALL RECLINING CONNECTING PIPE
(a) Adjust the reclining lock positions of the seat adjusters.
(b) Slide the seat adjusters to the most front position.
(c) Place the adjusters on a spacer to adjust the seat rails in
parallel and install the connecting pipe.
HINT:
When installing the connecting pipe with raising up the adjust-
ers, the lock positions adjusted in 3±(a) step slip off, lock error
will occur.
4. INSTALL SEAT CUSHION COVER
(a) Install the seat cushion cover to seat cushion pad.
(b) Install the seat cushion cover with pad to the seat cushion
frame.
5. INSTALL SEAT CUSHION ASSEMBLY
Install the seat cushion assembly with 4 bolts to the seat adjust-
er.
HINT:
Tighten the 4 bolts temporarily, then from the bolts on the rear
side tighten completely.
6. w/ Side Airbag Assembly:
INSTALL SIDE AIRBAG ASSEMBLY
Install the side airbag assembly with 2 nuts to the seatback
frame.
Torque: 6.0 N´m (61 kgf´cm, 53 in.´lbf)
NOTICE:

Make sure that the side airbag assembly is installed
to the specified torque.

If the side airbag assembly has been dropped, or
there are cracks, dents or other defects in the case or
connector, replace the side airbag assembly with a
new one.

When installing the side airbag assembly, take care
is not pinched between other parts.
7. INSTALL SEATBACK COVER
(a) Install the seatback cover to the seatback pad.
(b) Install the seatback cover with pad to the seatback frame.
(c) Install the headrest supports.

H01870
H01871
± BODYFRONT SEAT (Manual Seat for TMMK Made)
BO±111
2459 Author: Date:
(d) w/ Side Airbag Assembly:
Hang the hook on to the seatback frame.
CAUTION:
Take care to hung the hook securely. Otherwise the seat
cover slides, it might cause incorrect deploying.
8. INSTALL SEATBACK ASSEMBLY
(a) Install the seatback assembly with 4 bolts.
HINT:
Tighten the 4 bolts temporarily, then from the bolt on the front
right side tighten completely.
(b) Install a new hog rings.
HINT:
Install the hog rings to prevent wrinkles as least as possible.
(c) w/ Side Airbag Assembly:
Securely fix the side airbag wire harness to seat cushion
by clips.
9. INSTALL THESE PARTS:
(a) Front seat inner belt
(b) Headrest
(c) w/ Lumber Support:
Lumber support lever
(d) Front seatback hinge cover
(e) Front seat cushion lower shield
(f) Vertical Seat Adjuster:
Vertical adjuster knob
(g) Front seat cushion shield
(h) Release handle

BO0MT±01
BO±112
± BODYFRONT SEAT (Manual Seat for TMMK Made)
2460 Author: Date:
INSTALLATION
INSTALL FRONT SEAT
(a) Slide the front seat to the most front position.
NOTICE:
Make sure that seat adjuster locks.
(b) Without holding the seat track handle, mount the seat to the vehicle.
HINT:
If holding the seat track handle, the adjusted most front positions slip off.
(c) Tighten the bolts on the rear side temporarily, from the bolt on the inner side tighten completely.
(d) Slide the seat to the most rear position to install the bolts on the front side.

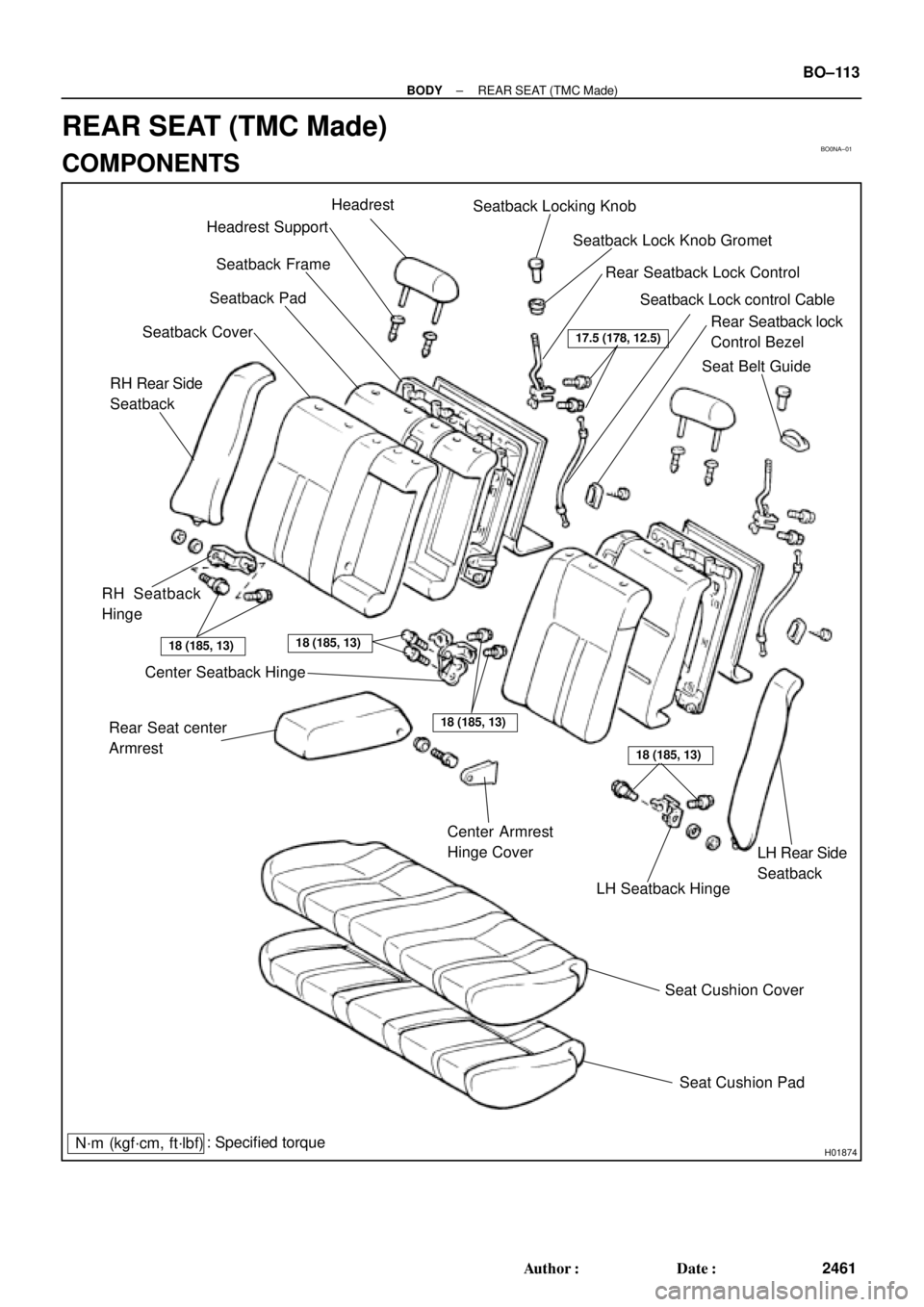

BO0NA±01
H01874
Headrest SupportHeadrest
Seatback Frame
Seatback Pad
Seatback Cover
RH Seatback
Hinge
Center Seatback Hinge
Rear Seat center
Armrest
Center Armrest
Hinge Cover
LH Seatback Hinge
Seat Cushion Cover
Seat Cushion Pad Seatback Locking Knob
Seatback Lock Knob Gromet
Rear Seatback Lock Control
Rear Seatback lock
Control Bezel Seatback Lock control Cable
: Specified torque
N´m (kgf´cm, ft´lbf)
RH Rear Side
Seatback
LH Rear Side
Seatback
18 (185, 13)
18 (185, 13)
18 (185, 13)
17.5 (178, 12.5)
18 (185, 13)
Seat Belt Guide
± BODYREAR SEAT (TMC Made)
BO±113
2461 Author: Date:
REAR SEAT (TMC Made)
COMPONENTS

BO0NB±01
BO±114
± BODYREAR SEAT (TMC Made)
2462 Author: Date:
REMOVAL
1. REMOVE LH SEATBACK ASSEMBLY
(a) Release lock to lean the seat back to front.
(b) Remove the clips.
(c) Remove the 2 bolts and LH seatback assembly.
2. REMOVE RH SEAT BACK ASSEMBLY
(a) Release lock to lean the seatback to front.
(b) Remove the clips.
(c) Remove the 2 bolts and RH seatback assembly.
3. REMOVE SEAT CUSHION ASSEMBLY
(a) Remove the seat cushion assembly.
HINT:
Remove the rear seat inner with center belt from seat cushion slit to remove the seat cushion.
(b) Remove the 2 lock hooks.
4. REMOVE LH AND RH REAR SIDE SEATBACK
(a) Remove the bolt and LH rear side seatback.
(b) Remove the bolt and RH rear side seatback.
5. REMOVE SEATBACK HINGE
(a) Remove the bolts and LH seatback hinge and RH seatback hinge.
(b) Remove the 2 bolts and center seatback hinge.
Torque: 18 N´m (185 kgf´cm, 13 ft´lbf)

BO0NC±01
± BODYREAR SEAT (TMC Made)
BO±115
2463 Author: Date:
DISASSEMBLY
1. REMOVE SEAT CUSHION COVER
Remove the hog rings and seat cushion cover from the seat cushion pad.
2. REMOVE THESE PARTS:
HINT:
Remove the clips to turn over the seatback cover before performing the following steps.
(a) Headrest
(b) Rear seatback lock control Bezel.
(c) Rear seatback Board
(d) Headrest supports
(e) Seatback locking knob
(f) Seatback lock knob Gromet
(g) Rear seat center armrest
3. REMOVE SEATBACK COVER
(a) Remove the hog rings and seatback frame from the seatback cover with pad.
(b) Remove the hog rings and seatback cover from the seatback pad.
4. REMOVE SEATBACK LOCK
(a) Remove the rear seatback lock control cable.
(b) Remove the 2 bolts and rear seatback lock control.
Torque: 17.5 N´m (178 kgf´cm, 12.5 ft´lbf)
