19. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
(See page RS±28)
Remove the 2 bolts, 4 nuts and the front passenger airbag as-
sembly.
Torque:
Bolt: 20 N´m (200 kgf´cm, 14 ft´lbf)
CAUTION:

Store the front passenger airbag door facing upward
(never downward).

Never disassemble the front passenger airbag as-
sembly.
NOTICE:
The 2 bolts to the instrument panel have been anti±rust
treated. After removing the front passenger airbag assem-
bly, always replace the bolts and nuts with new ones.
20. REMOVE No.1 AND No.2 INSTRUMENT PANEL
BRACKETS
Remove the 4 bolts and the No.1 and No.2 panel brackets.
21. REMOVE NO.2 SIDE DEFROSTER NOZZLE
22. REMOVE INSTRUMENT PANEL ASSEMBLY
(a) Disconnect the connectors from the LH and RH connector
holders.
(b) Remove the bolts holding the ground wire to the body.
(c) Remove the connector holder from the body.
(d) Disconnect the connectors.
(e) Remove the bolt holding the ground wire to the No.2
instrument panel brace.

N20994
N20995
N20996
N20997
BO±78
± BODYINSTRUMENT PANEL
2426 Author: Date:
(f) Remove the bolt, nut, screw and the instrument panel as-
sembly.
23. REMOVE INSTRUMENT PANEL BRACES
(a) Remove the wire brackets and connector.
(b) Remove the bolt and connector from the No.1 instrument
panel brace.
(c) w/ Wireless Control:
Remove the nut and the wireless control unit from the
No.1 instrument panel brace.
(d) Remove the nut holding the radio antenna to the No.2
instrument panel brace.
(e) Remove a nut and brace mount bracket.
(f) Remove the 6 nuts, 2 bolts and No.1 and No.2 instrument
panel braces.
24. REMOVE INSTRUMENT PANEL REINFORCEMENT
(a) Remove the connectors from the steering column tube.
(b) Remove the 4 wire brackets and connectors.
(c) Remove the 2 nuts and bolt holding the No.1 Junction Box
(J/B) to the reinforcement.
(d) Remove the 4 nuts and the steering column from the rein-
forcement.
(e) Remove the brake pedal spring from the reinforcement
and brake pedal.
(f) Remove the 4 nuts, 3 bolts and the reinforcement.

BO0MD±01
N21124
± BODYINSTRUMENT PANEL
BO±79
2427 Author: Date:
DISASSEMBLY
1. REMOVE THESE PARTS:
(a) No.1 defroster nozzle garnish
(b) No.1 defroster nozzle
(c) RH side defroster duct nozzle
(d) No.1 side defroster duct nozzle
(e) No.1 heater duct to register
(f) No.2 heater duct to register
(g) No.2 register assembly
(h) No.3 register assembly
(i) No.1 register assembly
2. REMOVE INSTRUMENT PANEL WIRE HARNESS
Remove the 2 brackets, 8 clips and wire harness.
3. REMOVE INSTRUMENT PANEL CENTER BRACKET
4. REMOVE THESE PARTS:
(a) Clock unit
(b) Glove box light assembly

BO0ME±01
BO±80
± BODYINSTRUMENT PANEL
2428 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly (See page BO±79).

BO0MF±01
± BODYINSTRUMENT PANEL
BO±81
2429 Author: Date:
INSTALLATION
Reassembly is in the reverse order of removal (See page BO±75).

BO0MG±01
N22600

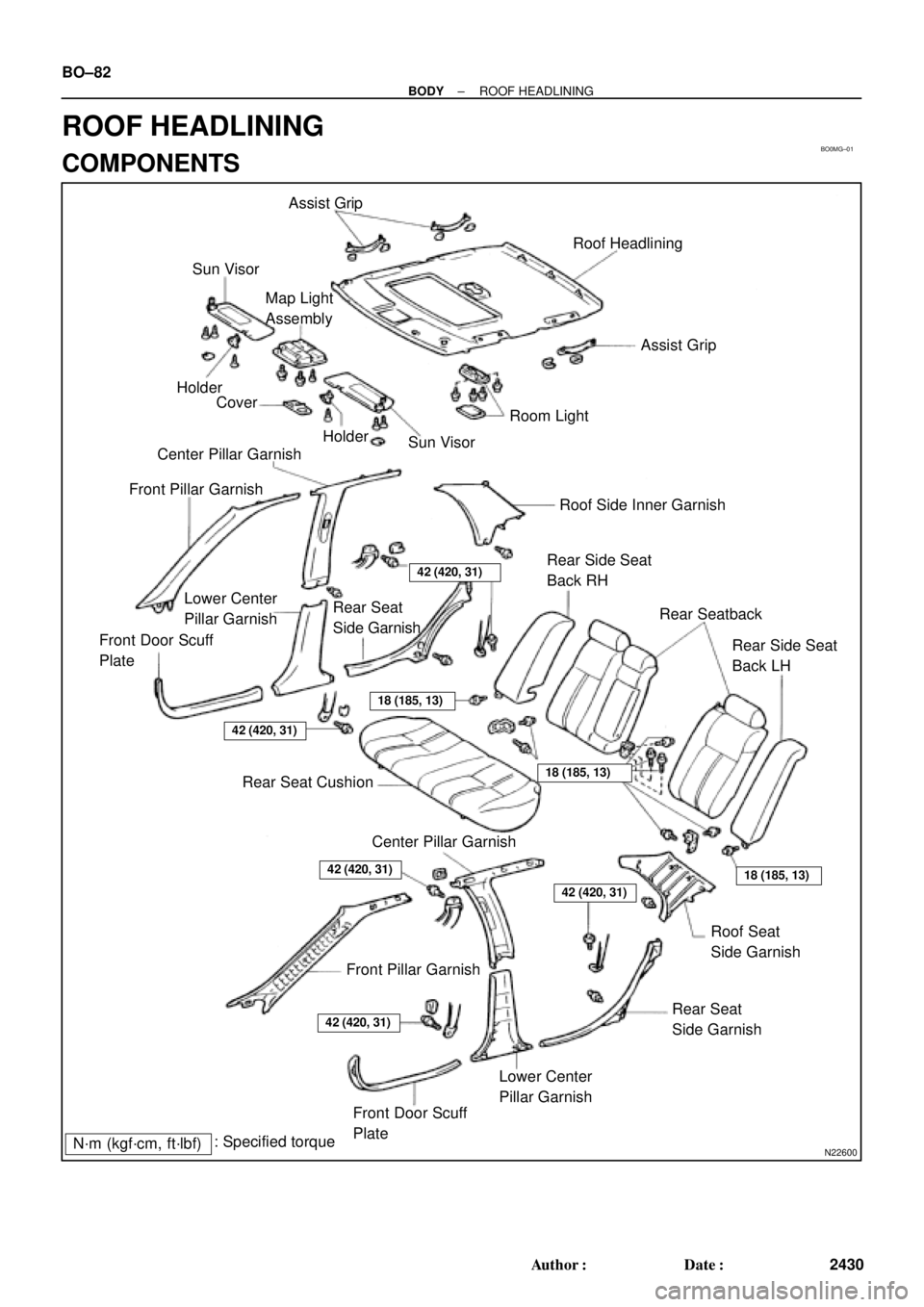

Assist Grip
Sun VisorRoof Headlining
Assist Grip
Room Light Map Light
Assembly
Holder
Cover
Holder
Sun Visor
Center Pillar Garnish
Roof Side Inner Garnish Front Pillar Garnish
Front Door Scuff
PlateLower Center
Pillar GarnishRear Side Seat
Back RH
42 (420, 31)
Rear Seat
Side GarnishRear Seatback
Rear Side Seat
Back LH
42 (420, 31)
18 (185, 13)
18 (185, 13)
18 (185, 13)
Rear Seat Cushion
Center Pillar Garnish
42 (420, 31)
42 (420, 31)
Roof Seat
Side Garnish
Front Pillar Garnish
Rear Seat
Side Garnish
Lower Center
Pillar Garnish
42 (420, 31)
Front Door Scuff
Plate
N´m (kgf´cm, ft´lbf): Specified torque BO±82
± BODYROOF HEADLINING
2430 Author: Date:
ROOF HEADLINING
COMPONENTS

BO0MH±01
N21457
: 4 Clips
N21458
: Clip
: 2 Clips
N21415
± BODYROOF HEADLINING
BO±83
2431 Author: Date:
REMOVAL
1. REMOVE THESE PARTS:
(a) Rear seat cushion
(b) Rear seatback and rear side seatbacks
(c) Front door scuff plates
(d) Front seat belt shoulder anchor bolts
(e) Sun visor and holders
(f) Assist grips
(g) Front pillar garnishes
(h) Rear door scuff plates
(i) Lower center pillar garnishes
2. REMOVE ROOF SIDE INNER GARNISH
(See page BO±28)
3. REMOVE FRONT PILLAR GARNISH
(a) Pry out clips by your hand.
(b) Pull the garnish upward to remove it.
4. REMOVE CENTER PILLAR GARNISH
(a) Remove the clip.
(b) Pry off the garnish.
5. REMOVE ROOM LIGHT
(a) Using a screwdriver, remove the room light cover.
HINT:
Tape the screwdriver tip before use.
(b) Remove the 4 screws, then disconnect the connector.
6. REMOVE MAP LIGHT ASSEMBLY

N22971
2 Clips BO±84
± BODYROOF HEADLINING
2432 Author: Date:
7. REMOVE ROOF HEADLINING
(a) Remove the 2 clips from the roof panel rear end.
(b) Remove the headlining.
(c) Bring out the headlining.

BO0MI±01
± BODYROOF HEADLINING
BO±85
2433 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BO±83).

BO0MI±01
