TOYOTA CAMRY 1999 Service Repair Manual

BO0MJ±01
H01977
Headrest
Seatback Frame
w/ Side Airbag Assembly
Side Airbag Assembly Headrest Support

Hog Ring
Seatback Pad Seatback Cover
Seat Cushion Cover
Seat Cushion Pad
Seat Cushion Frame
Hog RingLumber Support Adjuster
Power Seat Adjuster
Seat Cushion Shield
Switch Knob Front Vertical
Motor
Lower Seat Cushion ShieldHinge Cover
Power Seat Switch
: Specified torque
N´m (kgf´cm, ft´lbf)

Non±reusable part
37 (375, 27)
37 (375, 27)
Rear Vertical Motor
Seat Track Cover
Reclining Motor
15 (150, 11)
6.0 (61, 53 in.´lbf)
18 (185, 13)
BO±86
± BODYFRONT SEAT (Power Seat for TMC Made)
2434 Author: Date:

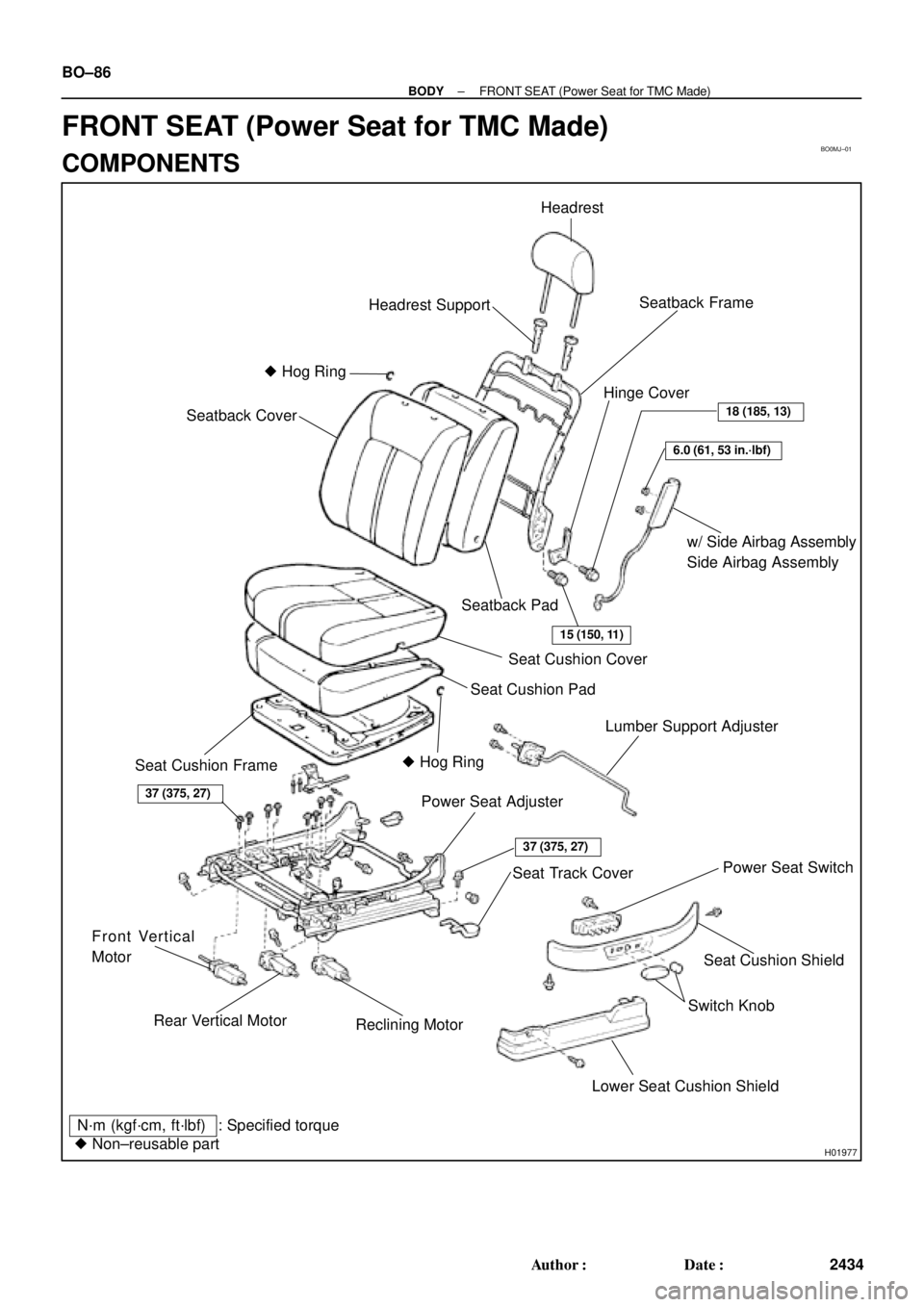

FRONT SEAT (Power Seat for TMC Made)
COMPONENTS

BO0MK±01
± BODYFRONT SEAT (Power Seat for TMC Made)
BO±87
2435 Author: Date:
REMOVAL
REMOVE FRONT SEAT

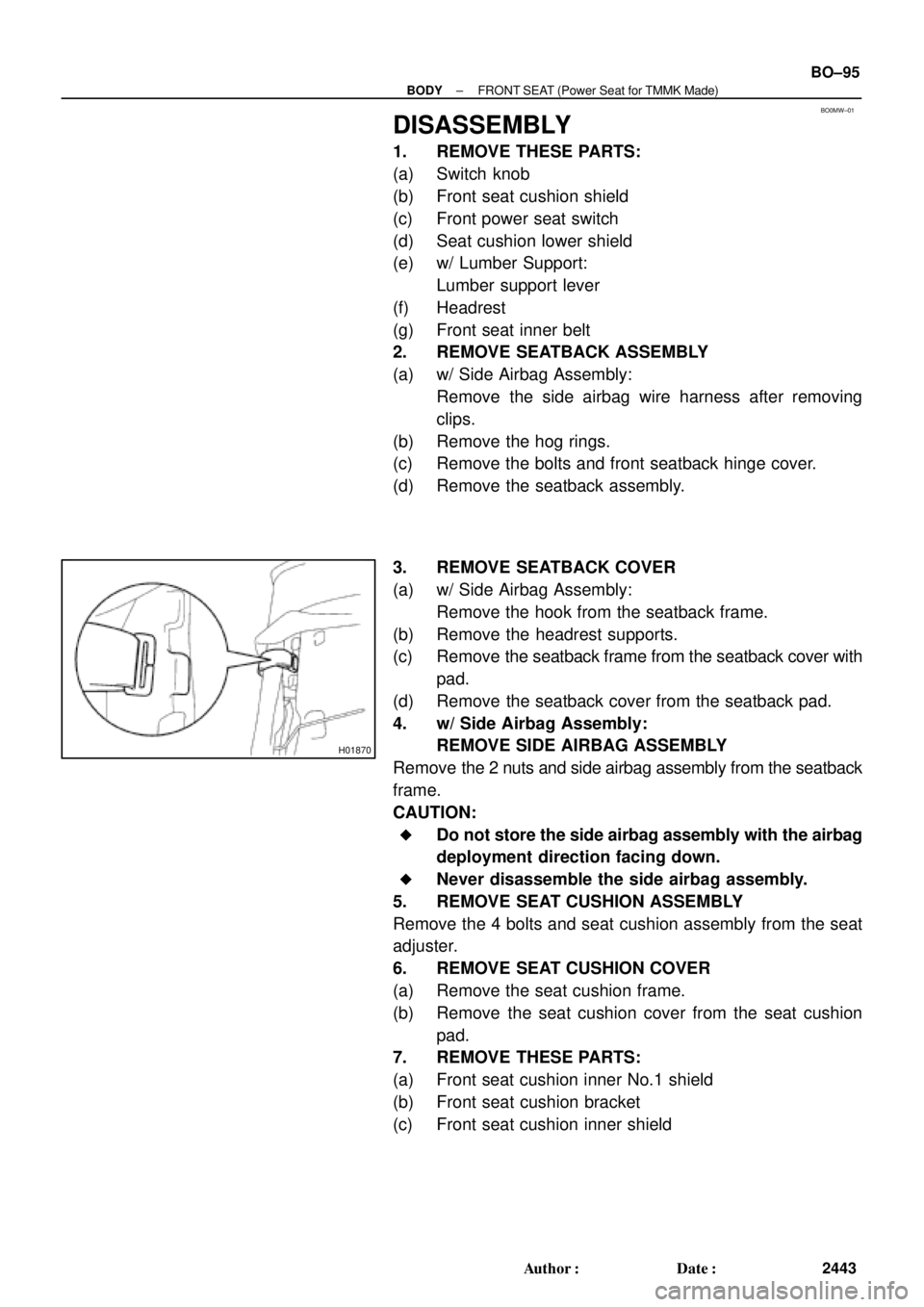

(a) Using a screwdriver, remove the seat track covers.
HINT:
Tape the screwdriver tip before use.
(b) Remove the 4 bolts.
(c) Disconnect the connector.
(d) Remove the front seat.
NOTICE:
Be careful not to damage the body.

BO0ML±01
H01870
BO±88
± BODYFRONT SEAT (Power Seat for TMC Made)
2436 Author: Date:
DISASSEMBLY
1. REMOVE THESE PARTS:
(a) Headrest
(b) Switch knobs
(c) Seat cushion shield
(d) Lower seat cushion shield
(e) Power seat switch
2. REMOVE SEATBACK ASSEMBLY
(a) Remove the 3 clips of the side airbag wire harness from
the seat cushion frame.
(b) Remove the 4 bolts and seatback assembly.
3. REMOVE SEATBACK COVER
(a) Remove the hog rings and hooks.
(b) Remove the hook as shown in the illustration.
(c) Remove the headrest supports.
(d) Remove the hog rings and seatback frame from seatback
cover with pad.
(e) Remove the hog rings and seatback cover from seatback
pad.
4. REMOVE SIDE AIRBAG ASSEMBLY
Remove the 1 clip of side airbag wire harness, 2 nuts and side
airbag assembly from the seatback frame.
CAUTION:

Do not store the side airbag assembly with the airbag
deployment direction facing down.

Never disassemble the side airbag assembly.
5. REMOVE LUMBER SUPPORT ADJUSTER
Remove the 2 screws and lumber support adjuster.
6. REMOVE SEAT CUSHION ASSEMBLY
Remove the 4 bolts and seat cushion assembly.
7. REMOVE SEAT CUSHION COVER
(a) Remove the 2 clips, hook and seat cushion frame from
seat cushion cover with pad.
(b) Remove the hog rings and seat cushion cover from the
seat cushion pad.

H01978
H01979
H01980
± BODYFRONT SEAT (Power Seat for TMC Made)
BO±89
2437 Author: Date:

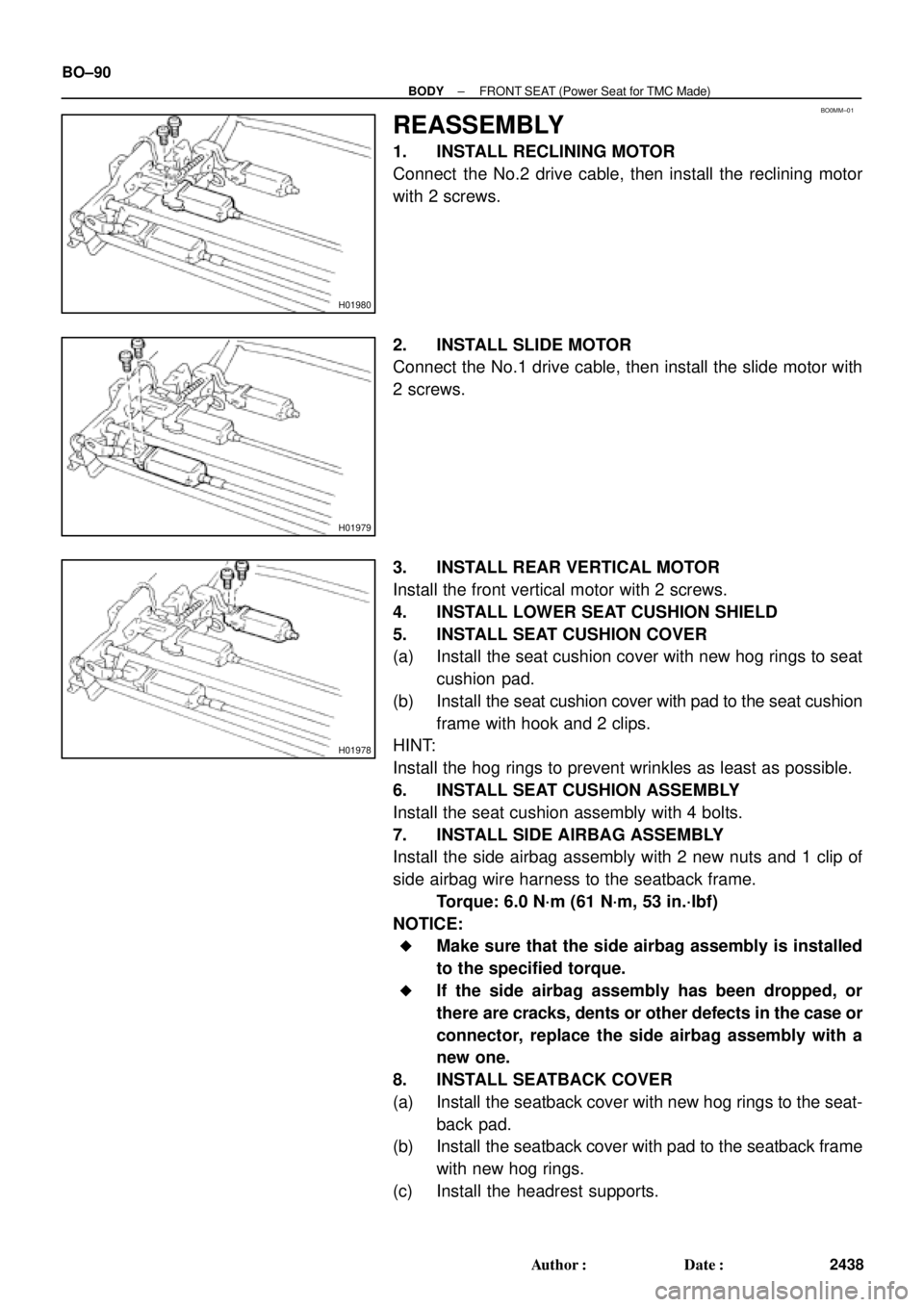

8. REMOVE REAR VERTICAL MOTOR
Remove the 2 screws and front vertical motor.
9. REMOVE SLIDE MOTOR
(a) Remove the 2 screws.
(b) Disconnect the No.1 drive cable, then remove the slide
motor.
10. REMOVE RECLINING MOTOR
(a) Remove the 2 screws.
(b) Disconnect the No.2 drive cable, then remove the reclin-
ing motor.

BO0MM±01
H01980
H01979
H01978
BO±90
± BODYFRONT SEAT (Power Seat for TMC Made)
2438 Author: Date:
REASSEMBLY
1. INSTALL RECLINING MOTOR
Connect the No.2 drive cable, then install the reclining motor
with 2 screws.
2. INSTALL SLIDE MOTOR
Connect the No.1 drive cable, then install the slide motor with
2 screws.
3. INSTALL REAR VERTICAL MOTOR
Install the front vertical motor with 2 screws.
4. INSTALL LOWER SEAT CUSHION SHIELD
5. INSTALL SEAT CUSHION COVER
(a) Install the seat cushion cover with new hog rings to seat
cushion pad.
(b) Install the seat cushion cover with pad to the seat cushion
frame with hook and 2 clips.
HINT:
Install the hog rings to prevent wrinkles as least as possible.
6. INSTALL SEAT CUSHION ASSEMBLY
Install the seat cushion assembly with 4 bolts.
7. INSTALL SIDE AIRBAG ASSEMBLY
Install the side airbag assembly with 2 new nuts and 1 clip of
side airbag wire harness to the seatback frame.
Torque: 6.0 N´m (61 N´m, 53 in.´lbf)
NOTICE:

Make sure that the side airbag assembly is installed
to the specified torque.

If the side airbag assembly has been dropped, or
there are cracks, dents or other defects in the case or
connector, replace the side airbag assembly with a
new one.
8. INSTALL SEATBACK COVER
(a) Install the seatback cover with new hog rings to the seat-
back pad.
(b) Install the seatback cover with pad to the seatback frame
with new hog rings.
(c) Install the headrest supports.

H01870
± BODYFRONT SEAT (Power Seat for TMC Made)
BO±91
2439 Author: Date:

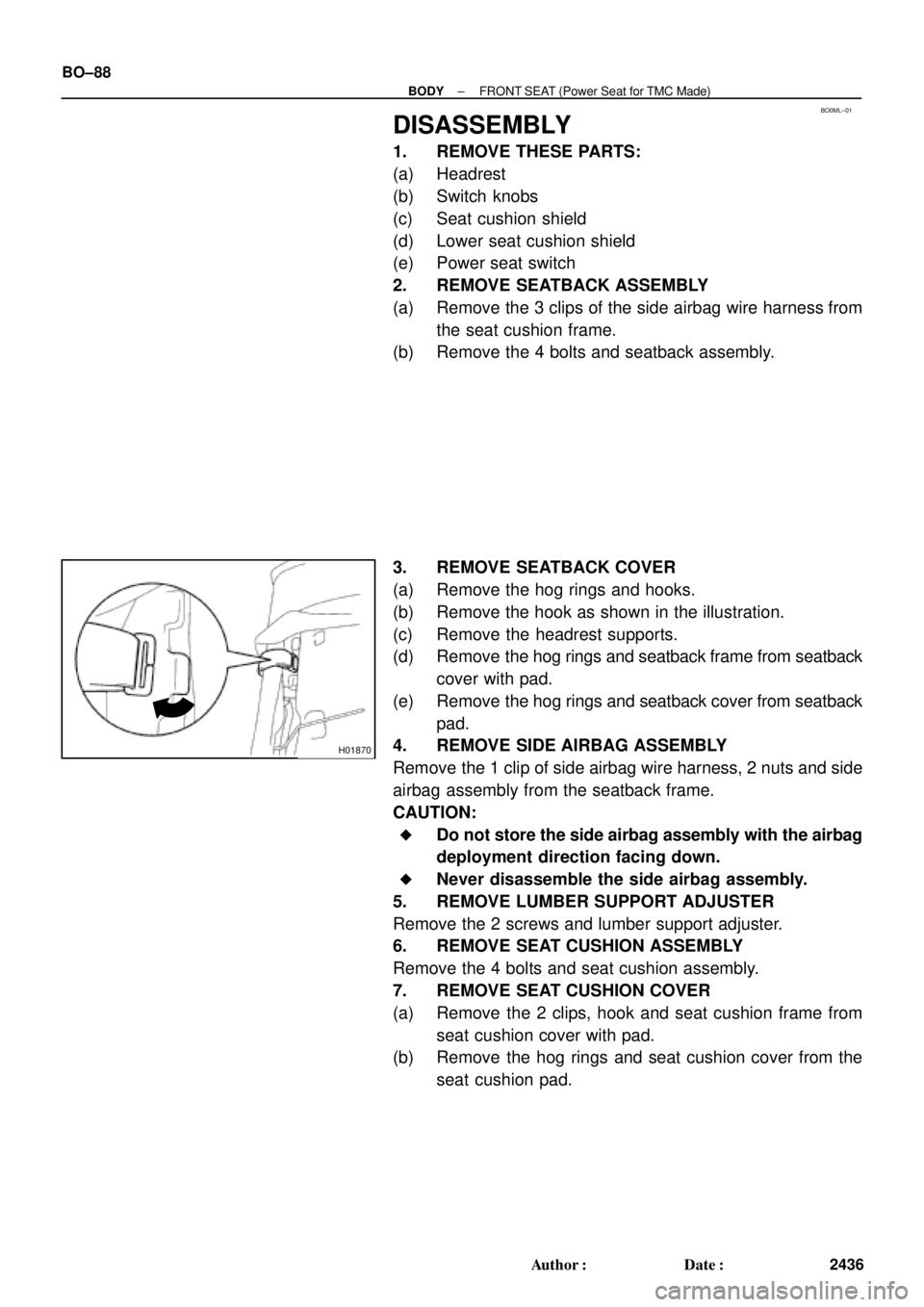

(d) Hang the hook onto the seatback frame.
CAUTION:
Take care to hung the hook securely. Otherwise the seat
cover slides, it might cause incorrect deploying.
9. INSTALL SEATBACK ASSEMBLY
(a) Install the seatback assembly with 4 bolts.
(b) Install the 2 clips of the side airbag wire harness to the
seat cushion frame.
(c) Install a new hog rings and 7 hooks.
HINT:
Install the hog rings to prevent wrinkles as least as possible.
10. INSTALL THESE PARTS:
(a) Power seat switch
(b) Lower Seat cushion shield
(c) Seat cushion shield
(d) Switch knobs
(e) Headrest

BO0MN±01
BO±92
± BODYFRONT SEAT (Power Seat for TMC Made)
2440 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BO±87).

BO0MU±01
H01873
Front Seat Cushion
Cover

Hog Ring

Hog Ring
Front Seat Cushion
Pad
Front Seat Cushion Frame
Front Seat Adjuster
Assembly
Front Seat Cushion
Inner No.1 Shield
Front Seatback
PadHeadrest
Front
Seatback
Hinge
CoverHeadrest
Support
Seatback Frame
Front Seatback-
HingeCover
w/ Lumber Support:
Lumber Support Lever
Front Power Seat
Switch
Front Seat Cushion
Shield
Switch Knob
Seat Cushion Lower
Shield
Front Seat Cushion
Bracket
w/ Side Airbag
Assembly:
Side Airbag Assembly
6.0 (61, 53 in.´lbf)
N´m (kgf´cm, ft´lbf): Specified torque

Non±reusable part
Front Seatback Cover
± BODYFRONT SEAT (Power Seat for TMMK Made)
BO±93
2441 Author: Date:

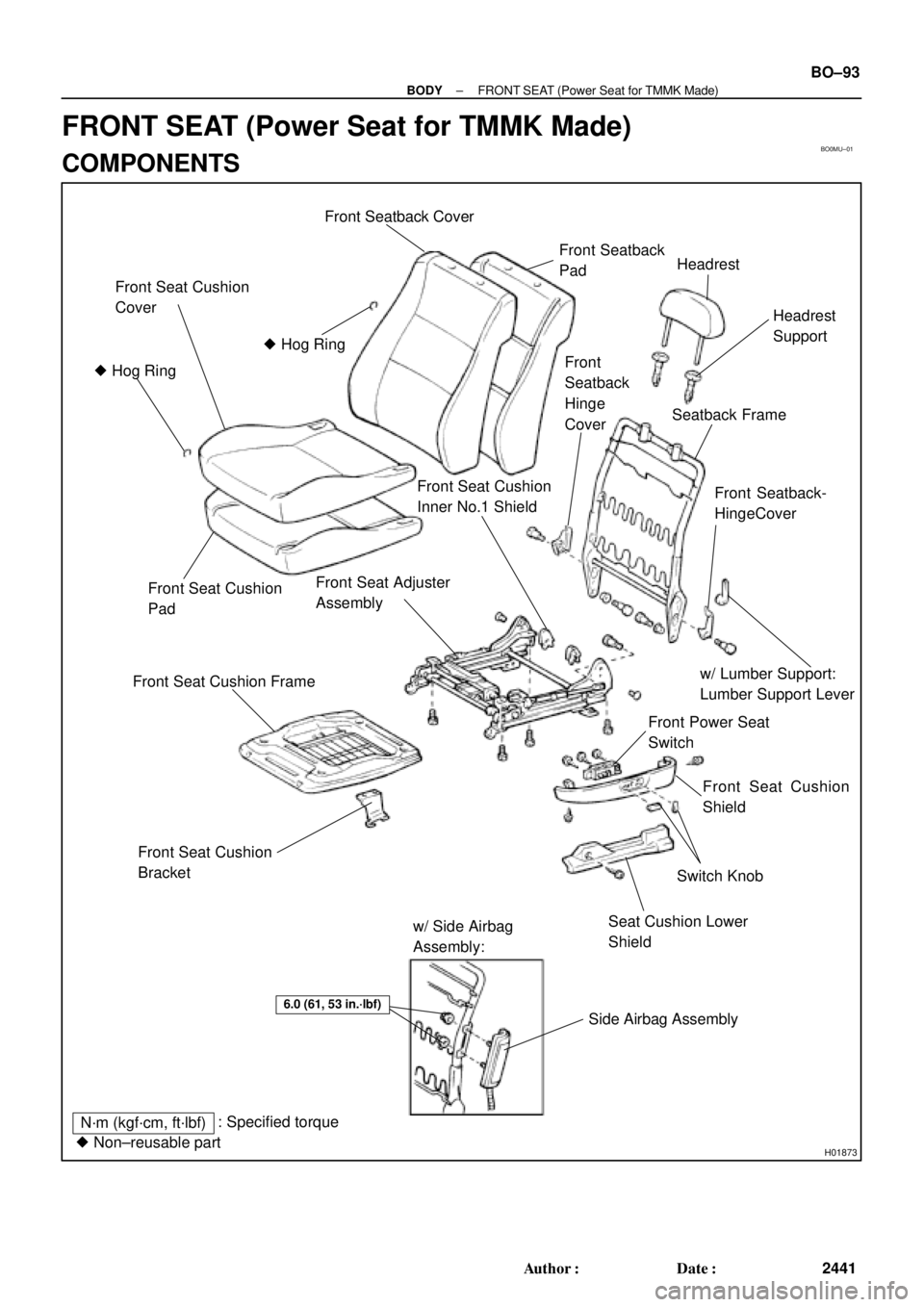

FRONT SEAT (Power Seat for TMMK Made)
COMPONENTS

BO0MV±01
BO±94
± BODYFRONT SEAT (Power Seat for TMMK Made)
2442 Author: Date:
REMOVAL
REMOVE FRONT SEAT

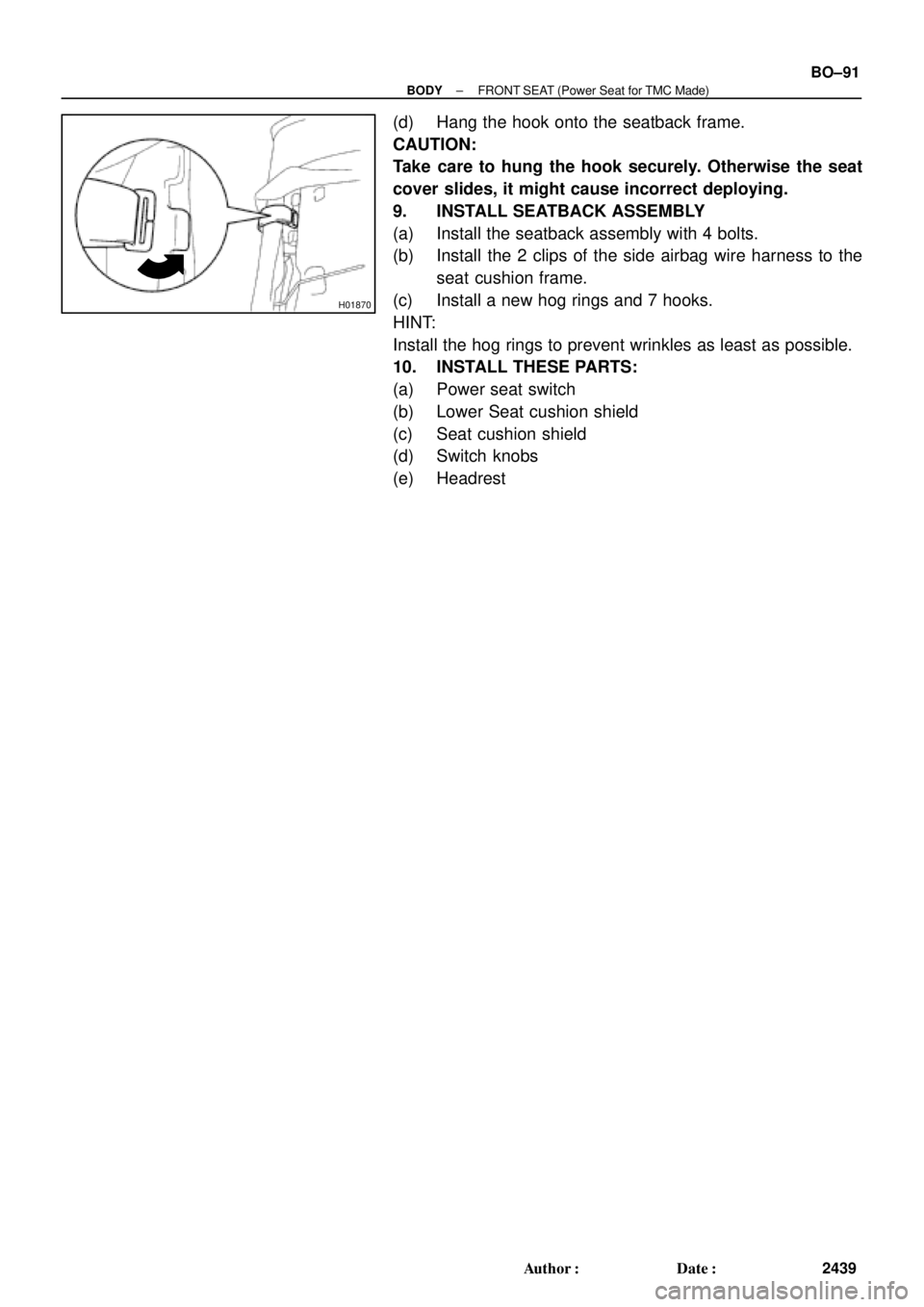

(a) Using a screwdriver, remove the seat track covers.
HINT:
Tape the screwdriver tip before use.
(b) Remove the 4 bolts.
(c) w/ Side Airbag Assembly:
Disconnect the connector.
(d) Disconnect the front power seat connector.
(e) Remove the front seat.
NOTICE:
Be careful not to damage the body.

BO0MW±01
H01870
± BODYFRONT SEAT (Power Seat for TMMK Made)
BO±95
2443 Author: Date:
DISASSEMBLY
1. REMOVE THESE PARTS:
(a) Switch knob
(b) Front seat cushion shield
(c) Front power seat switch
(d) Seat cushion lower shield
(e) w/ Lumber Support:
Lumber support lever
(f) Headrest
(g) Front seat inner belt
2. REMOVE SEATBACK ASSEMBLY
(a) w/ Side Airbag Assembly:
Remove the side airbag wire harness after removing
clips.
(b) Remove the hog rings.
(c) Remove the bolts and front seatback hinge cover.
(d) Remove the seatback assembly.
3. REMOVE SEATBACK COVER
(a) w/ Side Airbag Assembly:
Remove the hook from the seatback frame.
(b) Remove the headrest supports.
(c) Remove the seatback frame from the seatback cover with
pad.
(d) Remove the seatback cover from the seatback pad.
4. w/ Side Airbag Assembly:
REMOVE SIDE AIRBAG ASSEMBLY
Remove the 2 nuts and side airbag assembly from the seatback
frame.
CAUTION:

Do not store the side airbag assembly with the airbag
deployment direction facing down.

Never disassemble the side airbag assembly.
5. REMOVE SEAT CUSHION ASSEMBLY
Remove the 4 bolts and seat cushion assembly from the seat
adjuster.
6. REMOVE SEAT CUSHION COVER
(a) Remove the seat cushion frame.
(b) Remove the seat cushion cover from the seat cushion
pad.
7. REMOVE THESE PARTS:
(a) Front seat cushion inner No.1 shield
(b) Front seat cushion bracket
(c) Front seat cushion inner shield
