TOYOTA CAMRY 2000 Service Repair Manual

BR0B2±03
W03262

Gasket
Caliper
Torque Plate
Plug
Bleeder Plug
Dust Boot
Main Pin Boot
Piston Seal
Piston
Boot
Set Ring Dust Boot Main Pin
Anti±squeal Shim
Inner Anti±squeal Shim
Inner PadSliding Bushing
Pad Support Plate
Outer Pad
Inner Anti±squeal Shim
Anti±squeal Shim
Disc brake grease Lithium soap base glycol grease
Non±reusable part
N´m (kgf´cm, ft´lbf): Specified torque
47 (475, 34)
20 (200, 14)
26 (270, 20)
29 (300, 21)
29 (300, 21)
8.3 (85, 74 in.´lbf)
Disc
± BRAKEREAR BRAKE CALIPER
BR±39
2062 Author: Date:

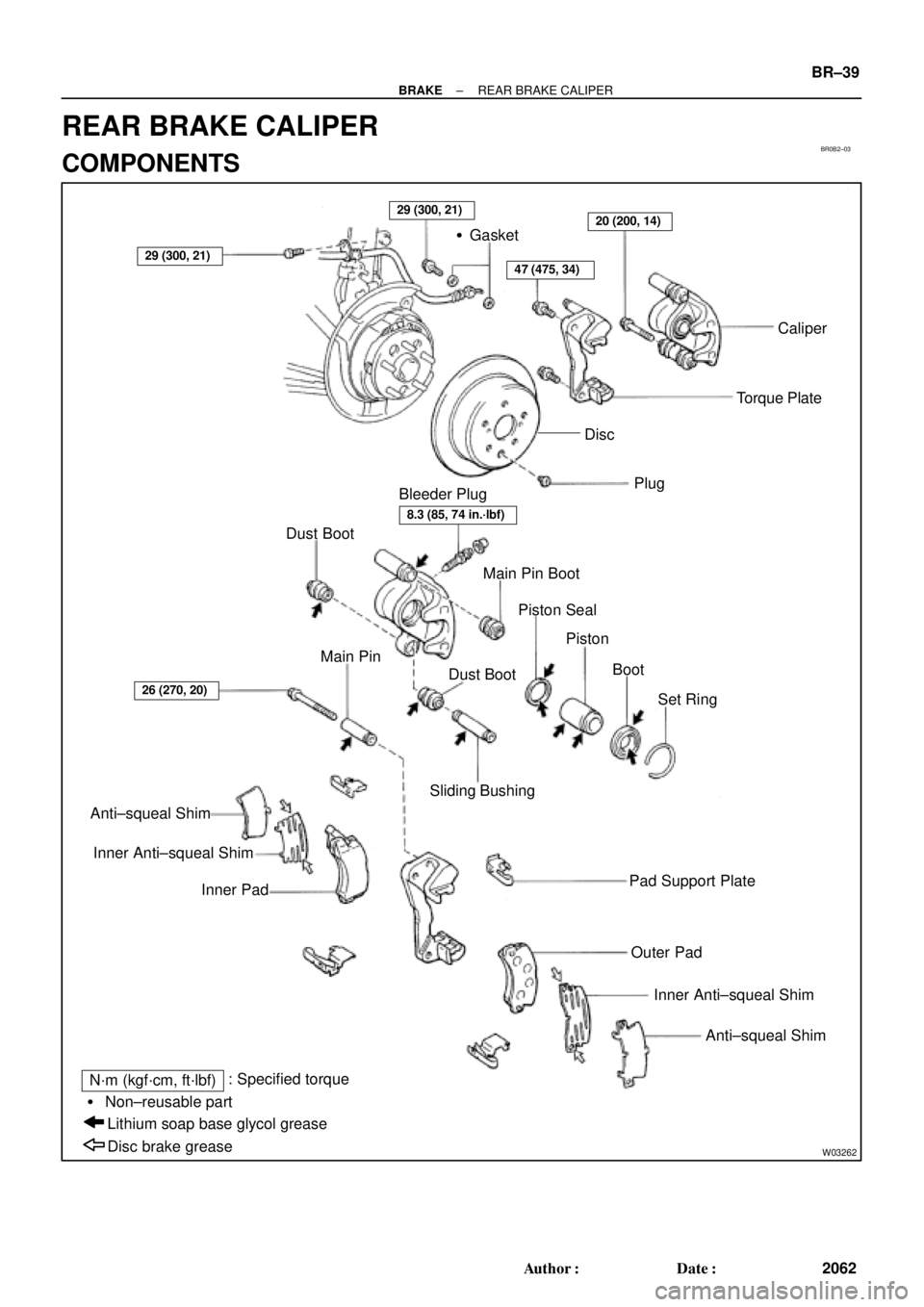

REAR BRAKE CALIPER
COMPONENTS

BR0B3±03
W03263
W03264
BR±40
± BRAKEREAR BRAKE CALIPER
2063 Author: Date:
REMOVAL
1. REMOVE REAR WHEEL
Torque: 103 N´m (1.050 kgf´cm, 76 ft´lbf)
2. DISCONNECT FLEXIBLE HOSE
(a) Remove the union bolt and 2 gaskets from the caliper,
then disconnect the flexible hose from the caliper.
Torque: 29 N´m (300 kgf´cm, 21 ft´lbf)
HINT:
At the time of installation, please refer to the following item.
Insert the flexible hose lock securely in the lock hole in the cali-
per.
(b) Use a container to catch the brake fluid as it drains out.
3. REMOVE CALIPER
(a) Remove the installation bolt.
Torque: 20 N´m (200 kgf´cm, 14 ft´lbf)
(b) Remove the caliper from the torque plate.
4. REMOVE 2 BRAKE PADS WITH 4 ANTI±SQUEAL
SHIMS
5. REMOVE 4 PAD SUPPORT PLATES
NOTICE:
At the time of installation, please refer to the following item.
There should be no oil or grease adhering to the friction
surfaces of the pads or disc.
6. REMOVE MAIN PIN
Loosen the main pin installation bolt and remove the main pin.
Torque: 26 N´m (270 kgf´cm, 20 ft´lbf)

BR0B4±02
R00520
± BRAKEREAR BRAKE CALIPER
BR±41
2064 Author: Date:
DISASSEMBLY
1. REMOVE SLIDING BUSHING
2. REMOVE 2 DUST BOOTS
3. REMOVE MAIN PIN BOOT
NOTICE:
Ensure that the boots are secured firmly to the bushing and
caliper grooves.
4. REMOVE CYLINDER BOOT SET RING AND BOOT
(See step 1 on page BR±27)
5. REMOVE PISTON (See step 2 on page BR±27)
6. REMOVE PISTON SEAL (See step 3 on page BR±27)

BR0B5±02
W03265
BR±42
± BRAKEREAR BRAKE CALIPER
2065 Author: Date:
INSPECTION
1. MEASURE PAD LINING THICKNESS
(See step 1 on page BR±28)
Standard thickness: 10.0 mm (0.394 in.)
Minimum thickness: 1.0 mm (0.039 in.)
2. MEASURE DISC THICKNESS
(See step 2 on page BR±28)
Standard thickness: 10.0 mm (0.394 in.)
Minimum thickness: 9.0 mm (0.354 in.)
3. MEASURE DISC RUNOUT
(See step 3 on page BR±28)
Maximum disc runout: 0.15 mm (0.0059 in.)
If the disc's runout is maximum value or greater, check the bear-
ing play in the axial direction and check the axle hub runout
(See page SA±52). If the bearing play and axle hub runout are
not abnormal, adjust the disc runout or grind it on a ºOn±Carº
brake lathe.
4. IF NECESSARY, ADJUST DISC RUNOUT
(a) Remove the 2 bolts and torque plate.
(b) Remove the hub nuts and the disc. Reinstall the disc in
the position turned 1/5 from its original position on the
hub. Install and torque the hub nuts.
Remeasure the disc runout. Make a note of the runout
and the disc's position on the hub.
Torque: 103 N´m (1,050 kgf´cm, 76 ft´lbf)
(c) Repeat (b) until the disc has been installed on the 3 re-
maining hub positions.
(d) If the minimum runout recorded in (b) and (c) is less than
0.15 mm (0.0059 in.), install the disc in that position.
(e) If the minimum runout recorded in (b) and (c) is greater
than 0.15 mm (0.0059 in.), replace the disc and repeat
step 3.
(f) Install the torque plate and torque the mounting bolts.
Torque: 47 N´m (475 kgf´cm, 34 ft´lbf)

BR0B6±01
± BRAKEREAR BRAKE CALIPER
BR±43
2066 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly (See page BR±41).
NOTICE:
Apply lithium soap base glycol grease to the parts indicated by the arrows (See page BR±24).

BR0B7±02
BR±44
± BRAKEREAR BRAKE CALIPER
2067 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BR±40).
HINT:

After installation, fill the brake reservoir with brake fluid and bleed the brake system
(See page BR±4).

Check for leaks.

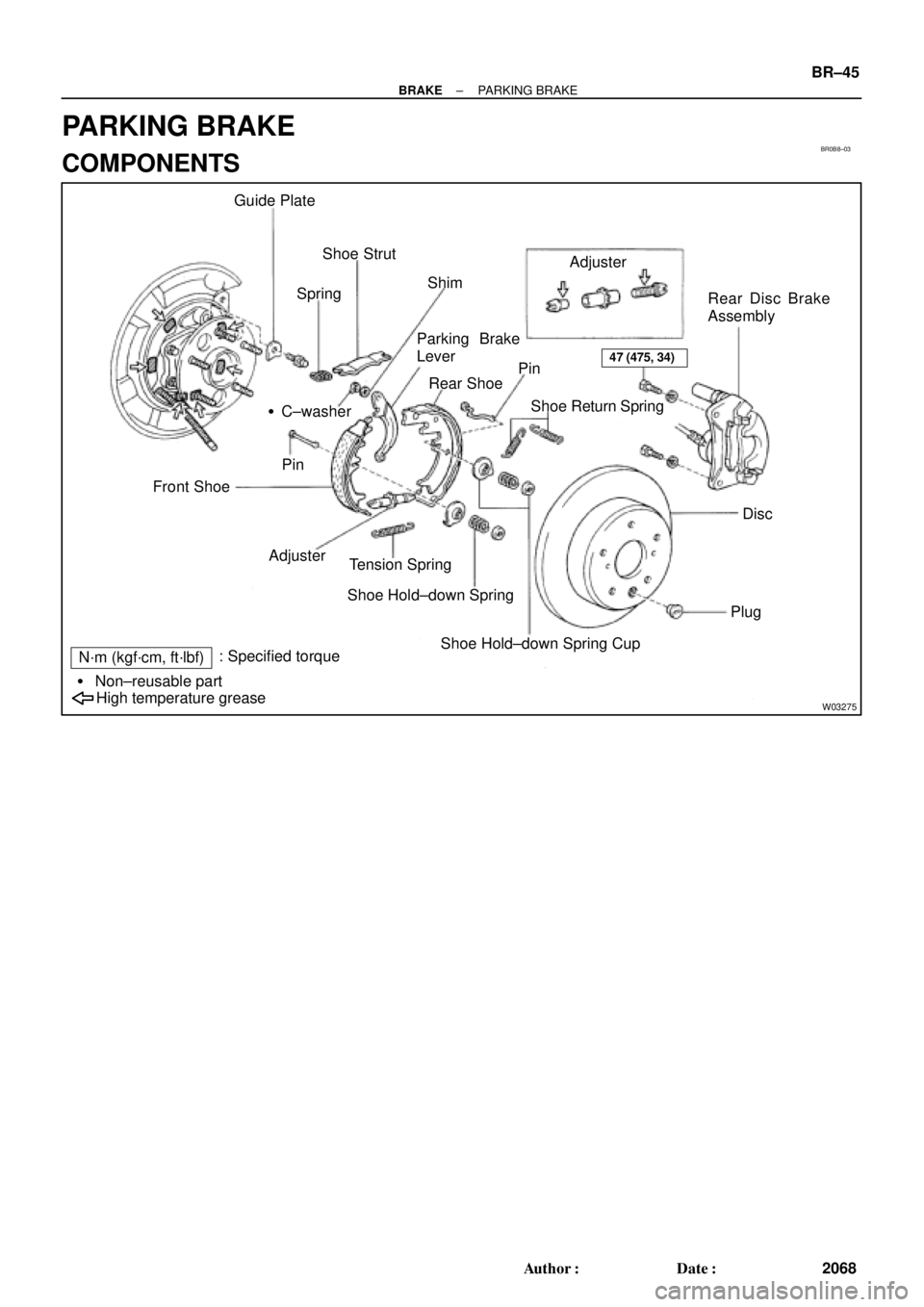

BR0B8±03
W03275
Guide Plate
SpringShoe Strut
ShimAdjuster
Rear Disc Brake
Assembly
Disc
Plug Pin
Shoe Return Spring Rear Shoe Parking Brake
Lever

C±washer
Pin
Front Shoe
Adjuster
Tension Spring
Shoe Hold±down Spring
Shoe Hold±down Spring Cup
High temperature grease
Non±reusable part
N´m (kgf´cm, ft´lbf): Specified torque
47 (475, 34)
± BRAKEPARKING BRAKE
BR±45
2068 Author: Date:
PARKING BRAKE
COMPONENTS

BR0B9±03
W03265
R00309
BR3948
R00310
BR±46
± BRAKEPARKING BRAKE
2069 Author: Date:
DISASSEMBLY
1. REMOVE REAR WHEEL
Torque: 103 N´m (1.050 kgf´cm, 76 ft´lbf)
2. REMOVE REAR DISC BRAKE ASSEMBLY
(a) Remove the 2 mounting bolts and remove the disc brake
assembly.
Torque: 47 N´m (475 kgf´cm, 34 ft´lbf)
(b) Suspend the disc brake securely. Ensure that the hose is
not stretched.
3. REMOVE DISC
Release the parking brake lever and remove the disc.
HINT:
If the disc cannot be removed easily, turn the shoe adjuster until
the wheel turns freely.
4. REMOVE SHOE RETURN SPRINGS
Using needle±nose pliers, remove the shoe return springs.
5. REMOVE FRONT SHOE ADJUSTER AND TENSION
SPRING
(a) Slide out the front shoe and remove the shoe adjuster.
(b) Remove the shoe strut with the spring.
(c) Remove the shoe hold±down spring cups, spring and pin.
(d) Disconnect the tension spring and remove the front shoe.
6. REMOVE REAR SHOE
(a) Slide out the rear shoe.
(b) Remove the tension spring from the rear shoe.
(c) Remove the shoe hold±down spring cups, spring and pin.
(d) Using needle±nose pliers, disconnect the parking brake
cable from the parking brake shoe lever.

BR0BA±02
R00343Clearance
Shim
R00312
R00313
± BRAKEPARKING BRAKE
BR±47
2070 Author: Date:
INSPECTION
1. INSPECT DISASSEMBLED PARTS
Inspect the disassembled parts for wear, rust or damage.
2. MEASURE BRAKE SHOE LINING THICKNESS
(See step 2 on page BR±34)
Standard thickness: 2.0 mm (0.079 in.)
Minimum thickness: 1.0 mm (0.039 in.)
3. MEASURE DISC INSIDE DIAMETER
(See step 3 on page BR±34)
Standard inside diameter: 170 mm (6.69 in.)
Maximum inside diameter: 171 mm (6.73 in.)
4. INSPECT PARKING BRAKE LINING AND DISC FOR
PROPER CONTACT (See step 4 on page BR±34)
5. MEASURE CLEARANCE BETWEEN PARKING
BRAKE SHOE AND LEVER
Using a feeler gauge, measure the clearance.
Standard clearance: Less than 0.35 mm (0.0138 in.)
If the clearance is not within the specification, replace the shim
with one of the correct size.
Shim ThicknessShim Thickness
0.3 mm (0.012 in.)0.9 mm (0.035 in.)
0.6 mm (0.024 in.)±
6. IF NECESSARY, REPLACE SHIM
(a) Using a screwdriver, remove the C±washer and shim.
(b) Install the correct size shim with a new C±washer.
(c) Remeasure the clearance.

BR0BB±02
BR0823
Contract
Expand BR±48
± BRAKEPARKING BRAKE
2071 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly
(See page BR±46).
NOTICE:
Apply high temperature grease to the parts indicated by the
arrows (See page BR±45).
1. ADJUST PARKING BRAKE SHOE CLEARANCE
(a) Temporarily install the hub nuts.
(b) Remove the hole plug.
(c) Turn the adjuster and expand the shoes until the disc
locks.
(d) Return the adjuster 8 notches.
(e) Install the hole plug.
2. SETTLING PARKING BRAKE SHOES AND DISC
(a) With the parking brake release button pushed in, pull the
lever with 98 N (10 kgf, 22 lbf) of force.
(b) Drive the vehicle at about 50 km/h (31 mph) on a safe, lev-
el and dry road for about 400 meters (0.25 mile) in this
condition.
(c) Repeat this procedure 2 or 3 times.
3. RECHECK AND ADJUST PARKING BRAKE LEVER
TRAVEL (See page BR±8)
