Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light∗1
or
or
Front passenger ’s seat belt reminder light∗
1
Low fuel level warning light∗1
Vehicle skid control system and traction control
system warning light∗1
Turn signal indicator lights
Headlight high beam indicator light
Indicator symbols on the instrument panel
Page 12 of 293
AP_Camry_U (L/O 0201)
82002 MY CAMRY_U (OM33567U)
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 99 in Section 1 −5.
∗
2: If this light flashes, see “Cruise control” on page 118 in Sec-
tion 1 −6.
Cruise control indicator light∗
2
Overdrive −off indicator light
Automatic transmission indicator lights
Traction control system off indicator light
Page 13 of 293
AP_Camry_U (L/O 0201)
92002 MY CAMRY_U (OM33567U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobiliser system 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 14 of 293
AP_Camry_U (L/O 0201)
102002 MY CAMRY_U (OM33567U)

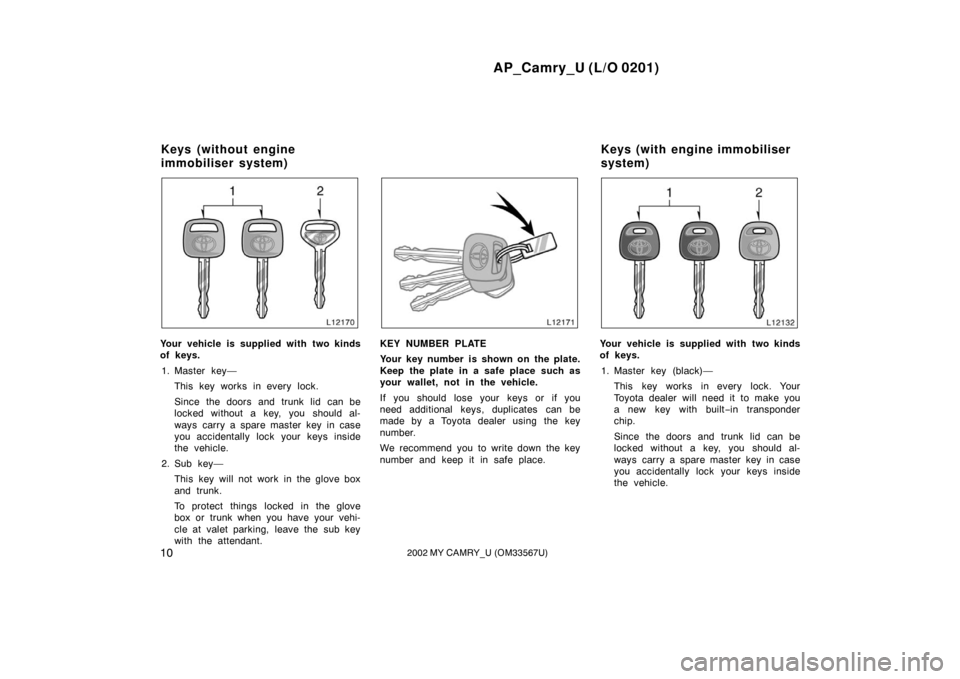

Your vehicle is supplied with two kinds
of keys.1. Master key— This key works in every lock.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
2. Sub key— This key will not work in the glove box
and trunk.
To protect things locked in the glove
box or trunk when you have your vehi-
cle at valet parking, leave the sub key
with the attendant.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with two kinds
of keys.
1. Master key (black)— This key works in every lock. Your
Toyota dealer will need it to make you
a new key with built −in transponder
chip.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
Keys (without engine
immobiliser system) Keys (with engine immobiliser
system)
Page 15 of 293
AP_Camry_U (L/O 0201)
112002 MY CAMRY_U (OM33567U)
2. Sub key (gray)—This key will not work in the glove box
and trunk.
To protect things locked in the glove
box or trunk when you have your vehi-
cle at valet parking, leave the sub key
with the attendant.
A transponder chip for engine immobiliser
system has been fitted in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transporter keys (including
keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
Page 16 of 293
AP_Camry_U (L/O 0201)
122002 MY CAMRY_U (OM33567U)

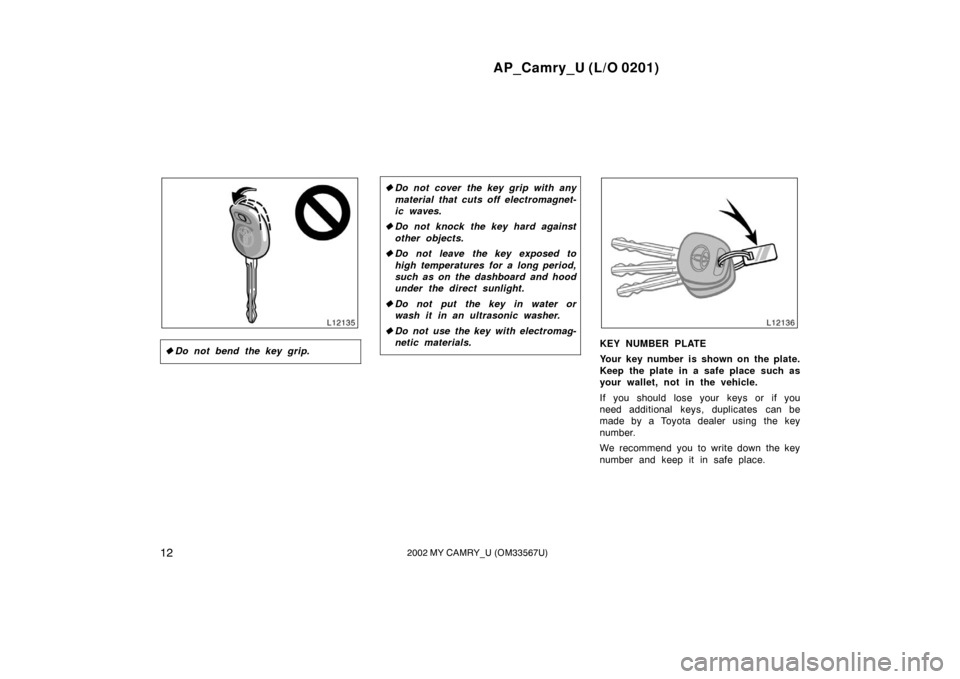

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Page 17 of 293
AP_Camry_U (L/O 0201)
132002 MY CAMRY_U (OM33567U)
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transporter chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.With manual air conditioning controls
With automatic air conditioning controls
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 28 in this section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built −in transporter chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
Engine immobiliser system
Page 18 of 293
AP_Camry_U (L/O 0201)
142002 MY CAMRY_U (OM33567U)
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
For vehicles sold in U.S.A.
FCC ID: MOZRI 19BTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
FCC ID: NT8 156072FIFXCVR
CANADA: 3043104233 5 2
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Page 19 of 293
AP_Camry_U (L/O 0201)
152002 MY CAMRY_U (OM33567U)

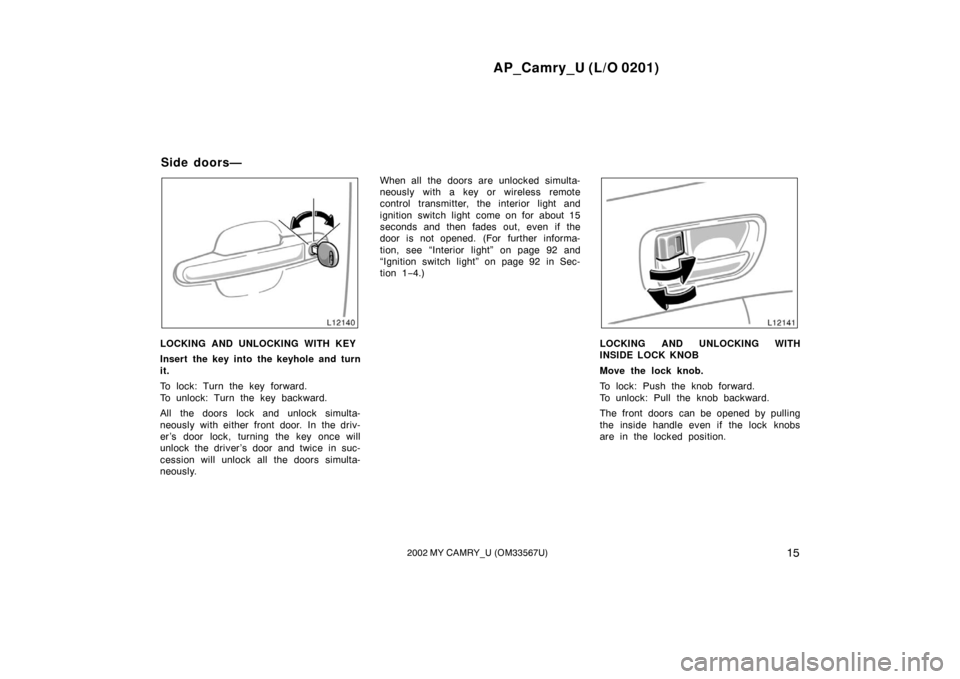

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.When all the doors are unlocked simulta-
neously with a key or wireless remote
control transmitter, the interior light and
ignition switch light come on for about 15
seconds and then fades out, even if the
door is not opened. (For further informa-
tion, see “Interior light” on page 92 and
“Ignition switch light” on page 92 in Sec-
tion 1
−4.)LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
Side doors—
Page 20 of 293
AP_Camry_U (L/O 0201)
162002 MY CAMRY_U (OM33567U)
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the the rear
seat of the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The door cannot be locked if you leave
the key in the ignition switch with the door
open.
If the vehicle is subjected to a severe
impact from the front or rear, or from
either side with the ignition switch at the
“ON” position, all the doors will unlock
automatically.
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH

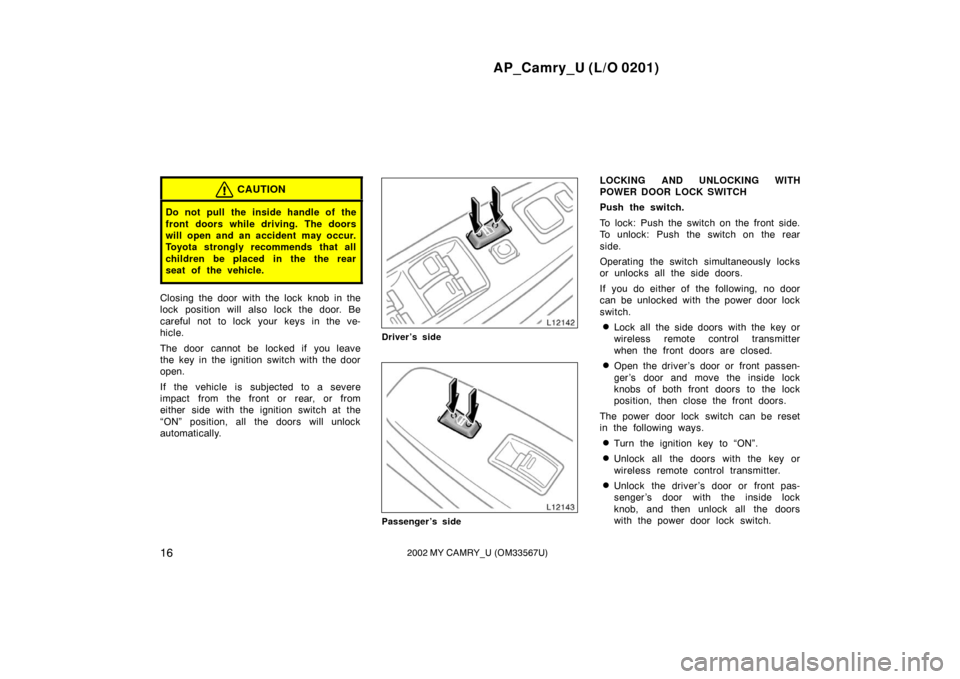

Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Operating the switch simultaneously locks
or unlocks all the side doors.
If you do either of the following, no door
can be unlocked with the power door lock
switch.
Lock all the side doors with the key or
wireless remote control transmitter
when the front doors are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the doors with the key or
wireless remote control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.
