The air conditioning filter is behind the
glove box.
The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily in
FRESH mode.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. (For scheduled maintenance informa-
tion, please refer to the “Scheduled Main-
tenance Guide” or “Owner ’s Manual

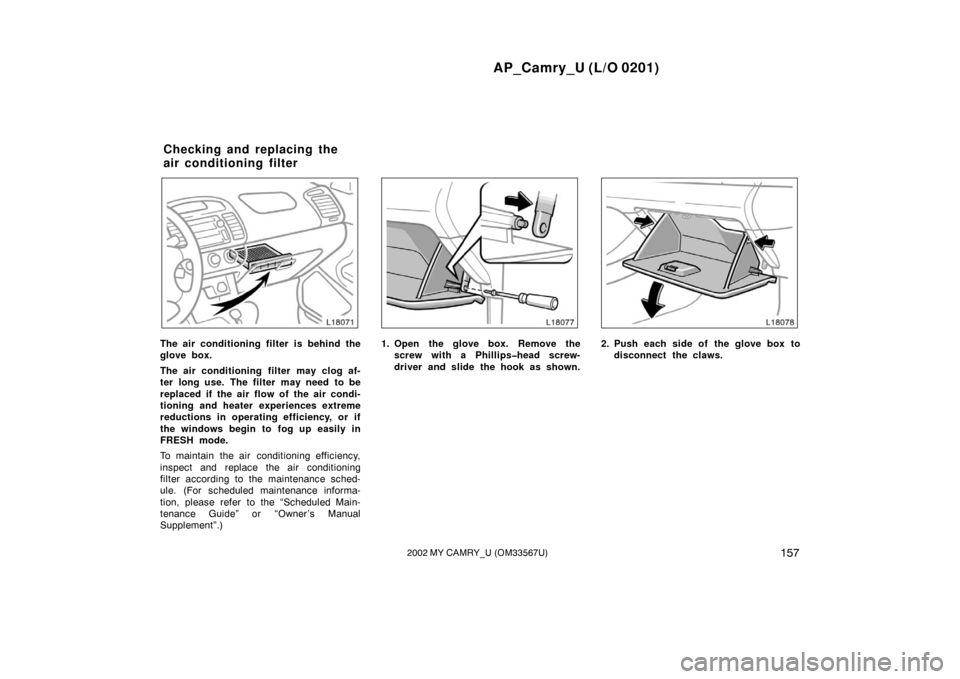

Supplement”.)1. Open the glove box. Remove thescrew with a Phillips head screw-
driver and slide the hook as shown.2. Push each side of the glove box todisconnect the claws.
Checking and replacing the
air conditioning filter
Page 162 of 293

AP_Camry_U (L/O 0201)
1582002 MY CAMRY_U (OM33567U)

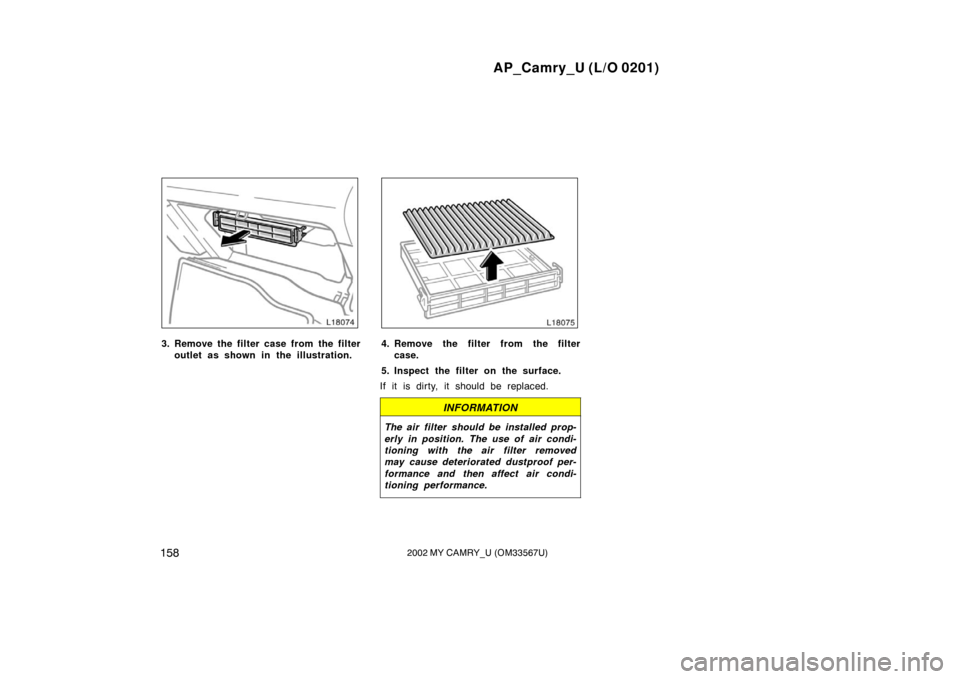

3. Remove the filter case from the filteroutlet as shown in the illustration.4. Remove the filter from the filtercase.
5. Inspect the filter on the surface.
If it is dirty, it should be replaced.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.
Page 163 of 293

AP_Camry_U (L/O 0201)
1592002 MY CAMRY_U (OM33567U)
Page 164 of 293

AP_Camry_U (L/O 0201)
1602002 MY CAMRY_U (OM33567U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Outside temperature gauge 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi −information display 162
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Compass 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power outlets 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Garage door opener 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Glove box 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Front cup holder 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Rear cup holder 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Storage box 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Grocery bag hooks 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage net 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Rear sunshade 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Floor mat 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9
Page 165 of 293

AP_Camry_U (L/O 0201)
1612002 MY CAMRY_U (OM33567U)
The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced.With multi information display
Without multi information display
The outside temperature gauge indi-
cates outside air temperatures when the
ignition switch is on.
Without multi−information display—To se-
lect “ C” or “ F”, push the “E/M” button.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F).
If there is some abnormality in the con-
nection of the outside air temperature
sensor, “ −−” will appear on the display. If
“ −−” appears on the display, contact your
Toyota dealer.
There may be a case that “−−” appears
momentarily when the ignition is quickly
turned to “ON”. It is normal if it goes out
soon.
Clock Outside temperature gauge
Page 166 of 293

AP_Camry_U (L/O 0201)
1622002 MY CAMRY_U (OM33567U)

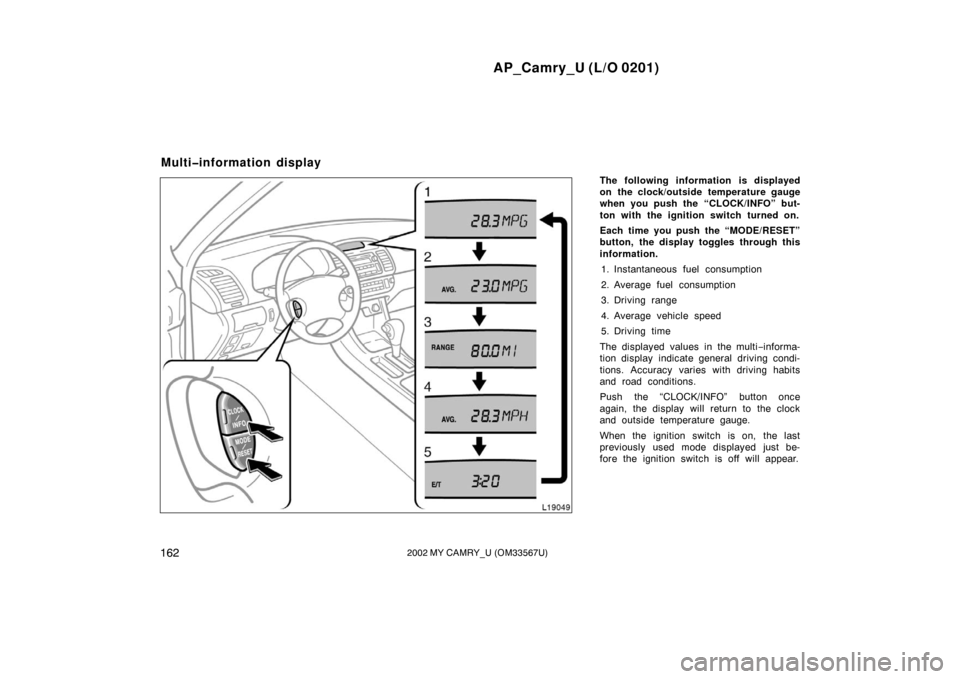

The following information is displayed
on the clock/outside temperature gauge
when you push the “CLOCK/INFO” but-
ton with the ignition switch turned on.
Each time you push the “MODE/RESET”
button, the display toggles through this
information.1. Instantaneous fuel consumption
2. Average fuel consumption
3. Driving range
4. Average vehicle speed
5. Driving time
The displayed values in the multi −informa-
tion display indicate general driving condi-
tions. Accuracy varies with driving habits
and road conditions.
Push the “CLOCK/INFO” button once
again, the display will return to the clock
and outside temperature gauge.
When the ignition switch is on, the last
previously used mode displayed just be-
fore the ignition switch is off will appear.
Multi information display
Page 167 of 293

AP_Camry_U (L/O 0201)
1632002 MY CAMRY_U (OM33567U)
If the electrical power source has been
disconnected from the multi−information
display, the display will automatically be
set to the initial mode.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
1. Instantaneous fuel consumption (“MPG” or “L/100 km”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption for 2 sec-
onds with the engine running.
The displayed value is updated every 2
seconds.
Note that an accurate figure may not be
shown in the following cases.
When the vehicle is stopped with the
engine running, the display will indicate
the extremely high fuel consumption.
When the vehicle is driving down a
long slope, applying the engine brake,
the display will indicate the extremely
low fuel consumption.
The calculation is reset when the ignition
switch is turned off. 2. Average fuel consumption
(“AVG. MPG” or “AVG. L/100 km”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
To reset the calculations, push and hold
the “MODE/RESET” button for more than
1 second.
3. Driving range (“RANGE MI” or “RANGE KM”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
The displayed value is updated every time
the fuel equivalent for 1 mile or 1 km is
consumed.
Every time you refuel the vehicle, the cal-
culation is reset.
Page 168 of 293

AP_Camry_U (L/O 0201)
1642002 MY CAMRY_U (OM33567U)
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer. If fuel consumption is poor, the
driving range will be shorter.
If the low fuel level warning light comes
on, refuel even if the display indicates
that the vehicle can be driven further.4. Average vehicle speed (“AVG. MPH” or “AVG. KM/h”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
To reset the calculations, push and hold
the “MODE/RESET” button for more than
1 second. 5. Driving time
(“E/T”)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 99:59 (99
hours, 59 minutes) can be displayed.
When the driving time exceeds 99:59, the
counter returns to 0:00.
To reset the calculations, push and hold
the “MODE/RESET” button for more than
1 second.

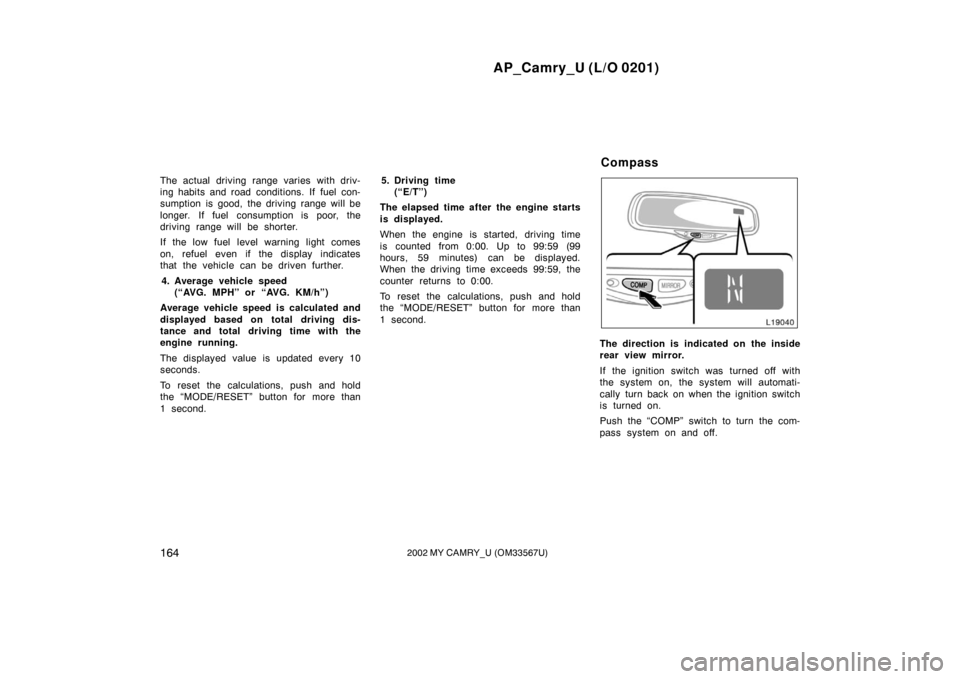

The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “COMP” switch to turn the com-
pass system on and off.
Compass
Page 169 of 293

AP_Camry_U (L/O 0201)
1652002 MY CAMRY_U (OM33567U)
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
Your vehicle is out of the set zone. Refer
to the “CALIBRATING THE COMPASS” be-
low to set the zone number.
The compass works to calibrate the direc-
tion automatically while the vehicle is in
motion, if deviation is small.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
Compass sensor
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
Page 170 of 293

AP_Camry_U (L/O 0201)
1662002 MY CAMRY_U (OM33567U)
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “COMP” switch
until the zone number appears on the dis-
play. Then push the “COMP” switch, refer-
ring to the following map to select the
number of the zone where the vehicle is.
