Page 71 of 293
AP_Camry_U (L/O 0201)
672002 MY CAMRY_U (OM33567U)

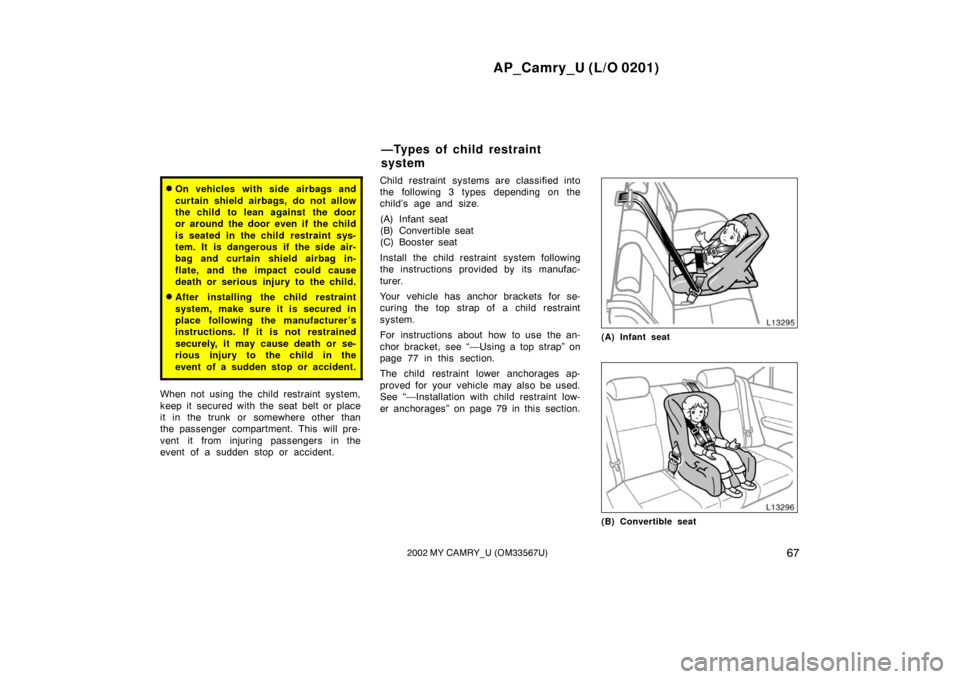

On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean against the door
or around the door even if the child
is seated in the child restraint sys-
tem. It is dangerous if the side air-
bag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
After installing the child restraint
system, make sure it is secured in
place following the manufacturer ’s
instructions. If it is not restrained
securely, it may cause death or se-
rious injury to the child in the
event of a sudden stop or accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it in the trunk or somewhere other than
the passenger compartment. This will pre-
vent it from injuring passengers in the
event of a sudden stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 77 in this section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” on page 79 in this section.
(A) Infant seat
(B) Convertible seat
—Types of child restraint
system
