’06Camry_U (L/O 0507)
3
2006 CAMRY from July ‘05 Prod. (OM33708U)

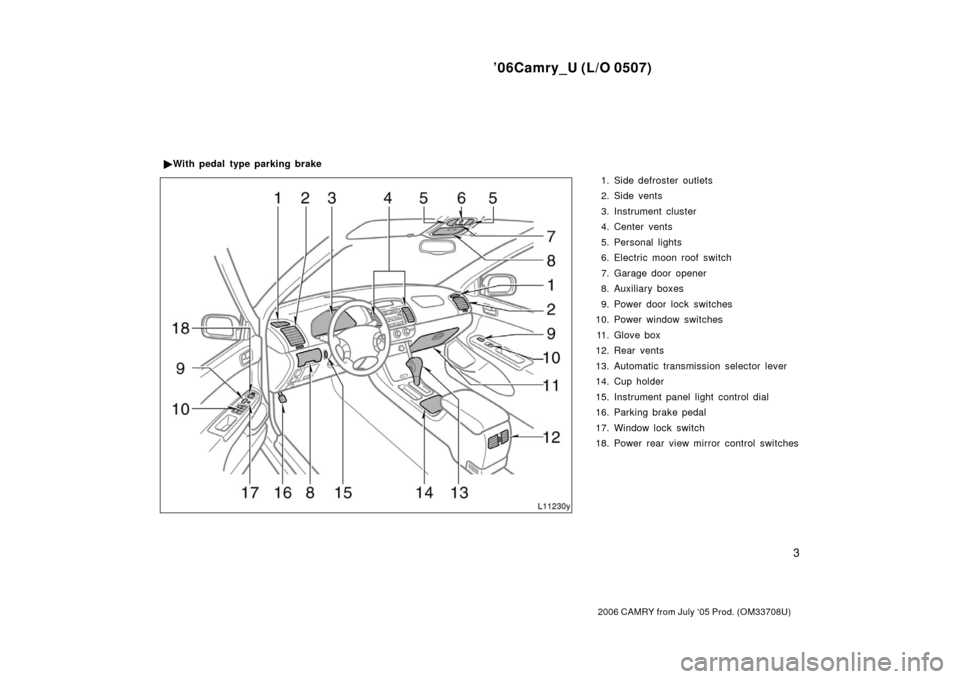

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11 . G l o v e b o x
12. Rear vents
13. Automatic transmission selector lever
14. Cup holder
15. Instrument panel light control dial
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches
With pedal type parking brake
Page 12 of 357
’06Camry_U (L/O 0507)
4
2006 CAMRY from July ‘05 Prod. (OM33708U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Ignition switch
10. Tilt steering lock release lever 11. Hood lock release lever
12. Traction control system off switch
13. Power adjustable pedals switch
With manual air conditioning controls
Page 13 of 357
’06Camry_U (L/O 0507)
5
2006 CAMRY from July ‘05 Prod. (OM33708U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Ignition switch
10. Tilt steering lock release lever 11. Hood lock release lever
12. Traction control system off switch
13. Power adjustable pedals switch
With automatic air conditioning controls
Page 14 of 357
’06Camry_U (L/O 0507)
6
2006 CAMRY from July ‘05 Prod. (OM33708U)
Ty p e A
Ty p e B
1. Audio remote control switches
2. Cruise control switch
3. Multi−information display control
switches
Ty p e A
Ty p e B
Steering switches Center console
Page 15 of 357
’06Camry_U (L/O 0507)
7
2006 CAMRY from July ‘05 Prod. (OM33708U)
1. Seat heater switches
2. Power outlet
3. Auxiliary box
4. Cigarette lighter and ashtray
Page 16 of 357
’06Camry_U (L/O 0507)
8
2006 CAMRY from July ‘05 Prod. (OM33708U)

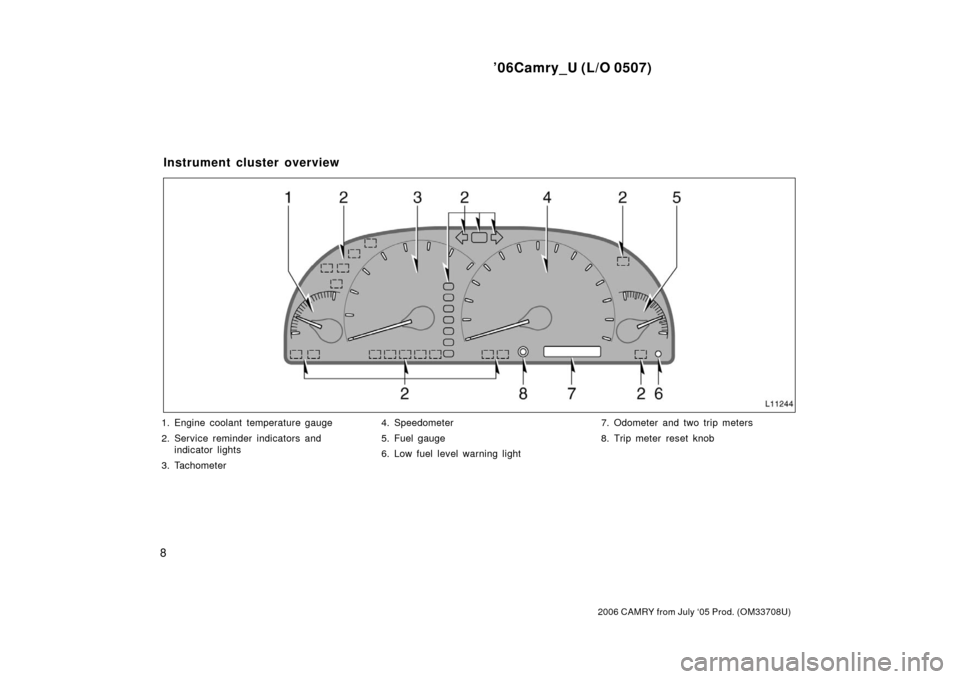

1. Engine coolant temperature gauge
2. Service reminder indicators andindicator lights
3. Tachometer 4. Speedometer
5. Fuel gauge
6. Low fuel level warning light
7. Odometer and two trip meters
8. Trip meter reset knob
Instrument cluster overview
Page 17 of 357
’06Camry_U (L/O 0507)
9
2006 CAMRY from July ‘05 Prod. (OM33708U)
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
or
Front passenger ’s seat belt reminder light∗1Vehicle stability control system and traction
control system warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
“AIRBAG ON” indicator light
or
“AIRBAG OFF” indicator light
Headlight low beam indicator light
Tail light indicator light
Indicator symbols on the instrument panel
Page 18 of 357
’06Camry_U (L/O 0507)
10
2006 CAMRY from July ‘05 Prod. (OM33708U)
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 119 in Section 1− 6.
∗
2: If this light flashes, see “Cruise control” on page 140 in Sec-
tion 1 −7.
Cruise control indicator light∗
2
Overdrive −off indicator light
Automatic transmission indicator lights
Traction control system off indicator light
Headlight high beam indicator light
Turn signal indicator lights
Page 19 of 357
’06Camry_U (L/O 0507)
11
2006 CAMRY from July ‘05 Prod. (OM33708U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 20 of 357
’06Camry_U (L/O 0507)
12
2006 CAMRY from July ‘05 Prod. (OM33708U)
Your vehicle is supplied with two kinds
of keys.1. Master keys— These keys work in every lock.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
2. Sub key— This key will not work in the glove box
and trunk.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)— These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built −in trans-
ponder chip.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)
