TOYOTA CAMRY 2006 XV40 / 8.G Owner's Guide

’06Camry_U (L/O 0507)
23
2006 CAMRY from July ‘05 Prod. (OM33708U)
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the side doors.
If you do either of the following, no door
can be unlocked with the power door lock
switch.
Lock all the doors with the key or wire-
less remote control transmitter when all
the doors are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the doors with the key or
wireless remote control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.

’06Camry_U (L/O 0507)
24
2006 CAMRY from July ‘05 Prod. (OM33708U)

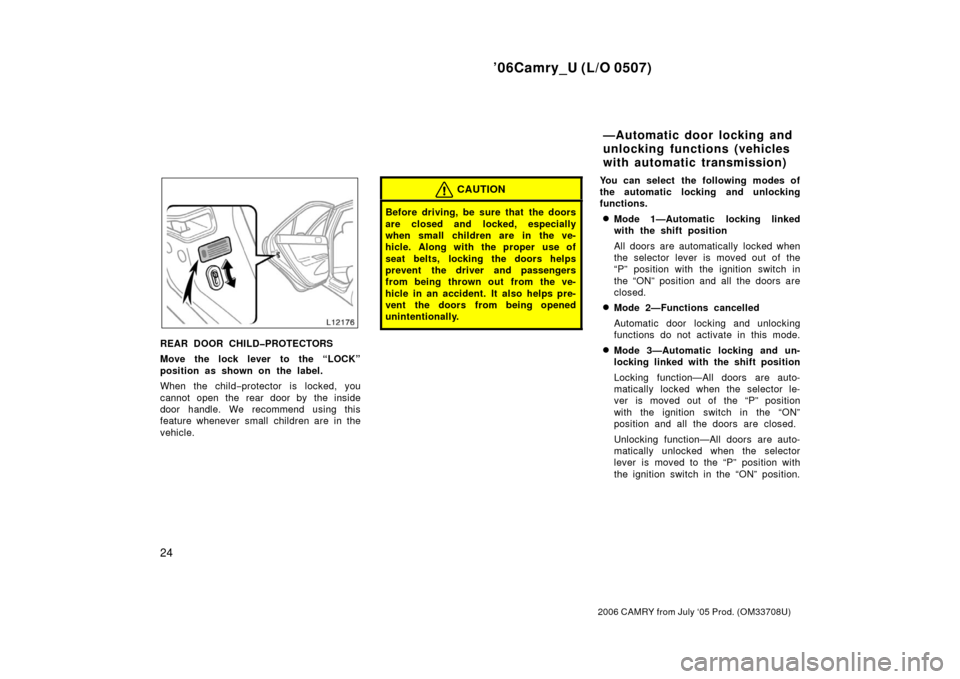

REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
You can select the following modes of
the automatic locking and unlocking
functions.
Mode 1—Automatic locking linked
with the shift position
All doors are automatically locked when
the selector lever is moved out of the
“P” position with the ignition switch in
the “ON” position and all the doors are
closed.
Mode 2—Functions cancelled
Automatic door locking and unlocking
functions do not activate in this mode.
Mode 3—Automatic locking and un-
locking linked with the shift position
Locking function—All doors are auto-
matically locked when the selector le-
ver is moved out of the “P” position
with the ignition switch in the “ON”
position and all the doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the selector
lever is moved to the “P” position with
the ignition switch in the “ON” position.
—Automatic door locking and
unlocking functions (vehicles
with automatic transmission)

’06Camry_U (L/O 0507)
25
2006 CAMRY from July ‘05 Prod. (OM33708U)
Mode 4—Automatic locking and un-
locking linked with the shift position
and ignition switch
Locking function—All doors are auto-
matically locked when the selector le-
ver is moved out of the “P” position
with the ignition switch in the “ON”
position and all the doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the ignition
switch is turned from the “ON” position
to the “ACC” or “LOCK” position.CHANGING THE MODE
The mode toggles through from mode
1 to mode 4. To change the mode, do
the following:
1. Shift the selector lever into the “P” position and close all doors.
2. Push the power door lock switch on the rear side to unlock the doors.
3. Turn the ignition switch to the “ON” position.
4. Within 5 seconds after the ignition switch is turned to the “ON” position,
push and hold the power door lock
switch on the front side for about 5
seconds.
5. Open door warning light will flash to indicate that the mode has been
changed. The flashing of the open door warning
light indicates the mode which has been
selected.
Flashing once, the function has
changed to mode 1.
Flashing twice, the function has
changed to mode 2.
Flashing three times, the function has
changed to mode 3.
Flashing four times, the function has
changed to mode 4.

’06Camry_U (L/O 0507)
26
2006 CAMRY from July ‘05 Prod. (OM33708U)
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: All windows work for
43 seconds even after the ignition switch
is turned off. They stop working when ei-
ther front door is opened.

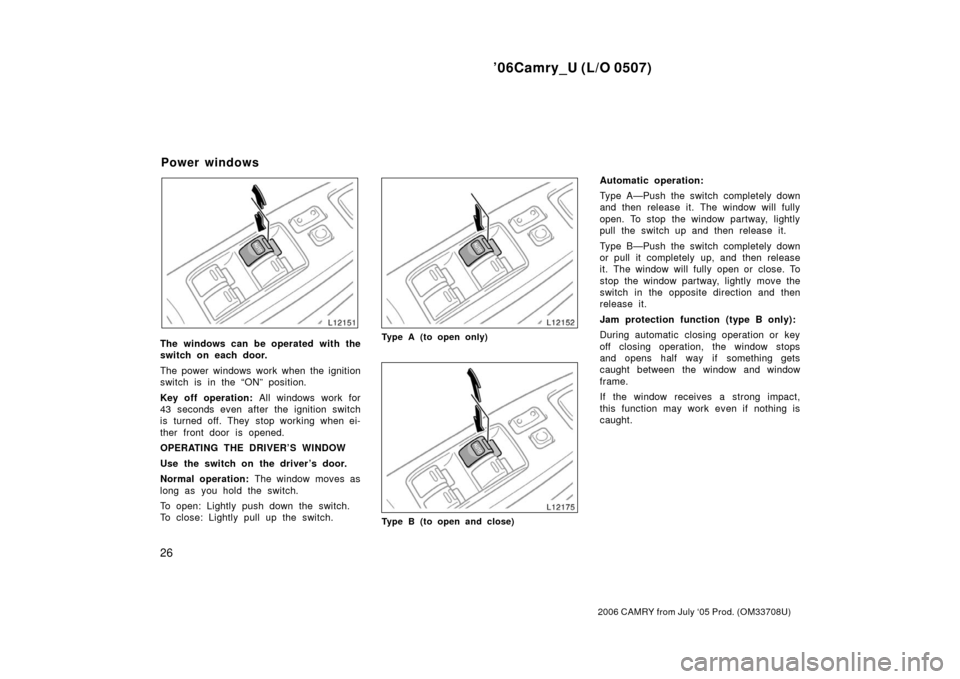

OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.Type A (to open only)
Type B (to open and close)
Automatic operation:
Type A—Push the switch completely down
and then release it. The window will fully
open. To stop the window partway, lightly
pull the switch up and then release it.
Type B—Push the switch completely down
or pull it completely up, and then release
it. The window will fully open or close. To
stop the window partway, lightly move the
switch in the opposite direction and then
release it.
Jam protection function (type B only):
During automatic closing operation or key
off closing operation, the window stops
and opens half way if something gets
caught between the window and window
frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
Power windows

’06Camry_U (L/O 0507)
27
2006 CAMRY from July ‘05 Prod. (OM33708U)
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a serious injury.
The jam protection function may
not work if something gets caught
just before the window fully closed.
Window
lock
switch

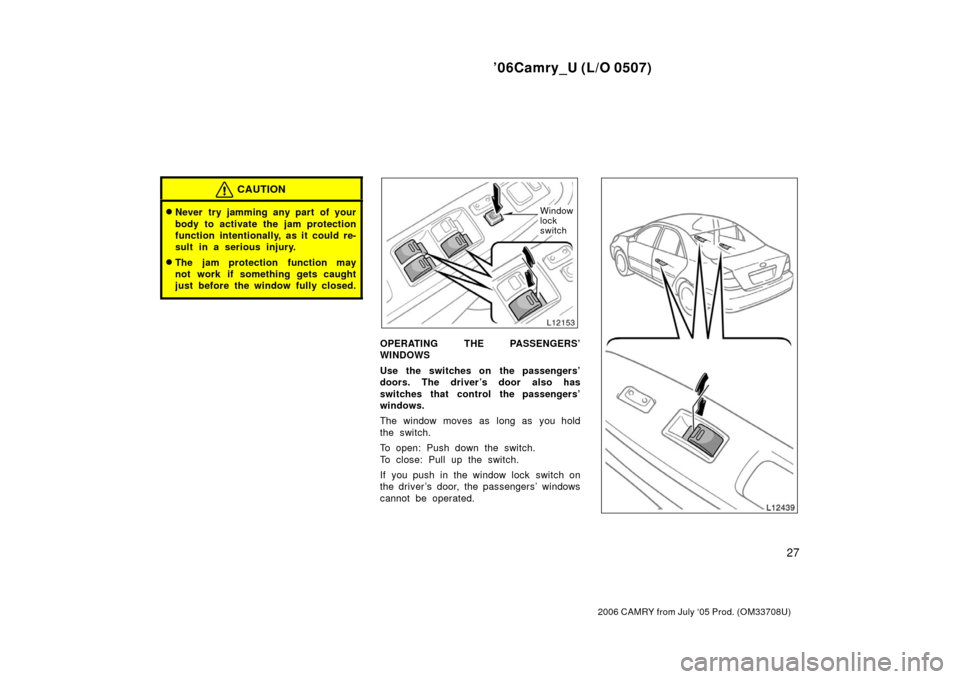

OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

’06Camry_U (L/O 0507)
28
2006 CAMRY from July ‘05 Prod. (OM33708U)
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

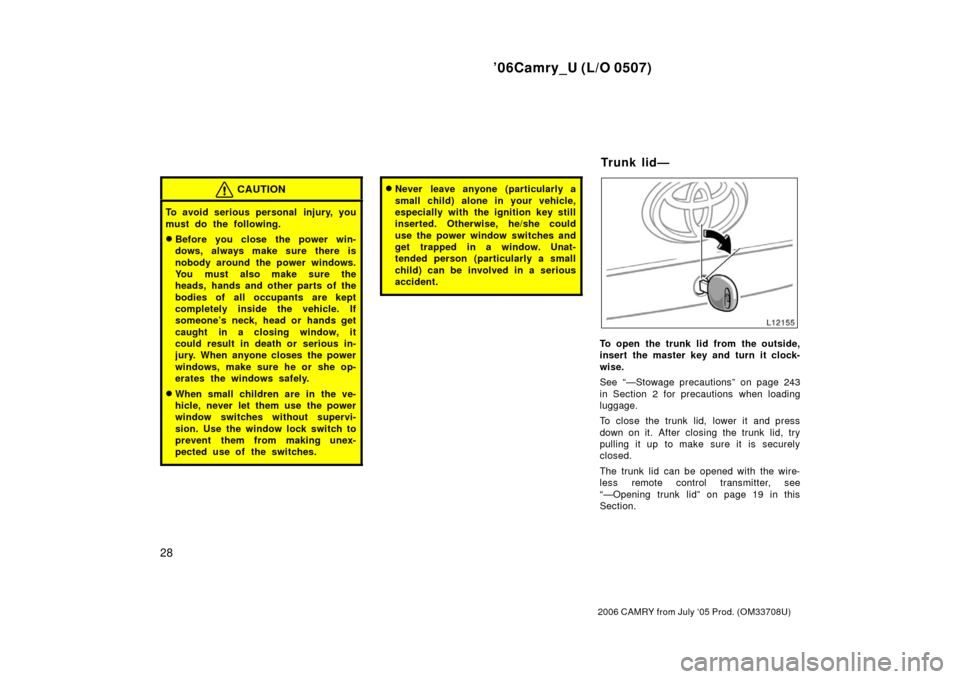

To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “—Stowage precautions” on page 243
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
The trunk lid can be opened with the wire-
less remote control transmitter, see
“—Opening trunk lid” on page 19 in this
Section.
Trunk lid—

’06Camry_U (L/O 0507)
29
2006 CAMRY from July ‘05 Prod. (OM33708U)
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.

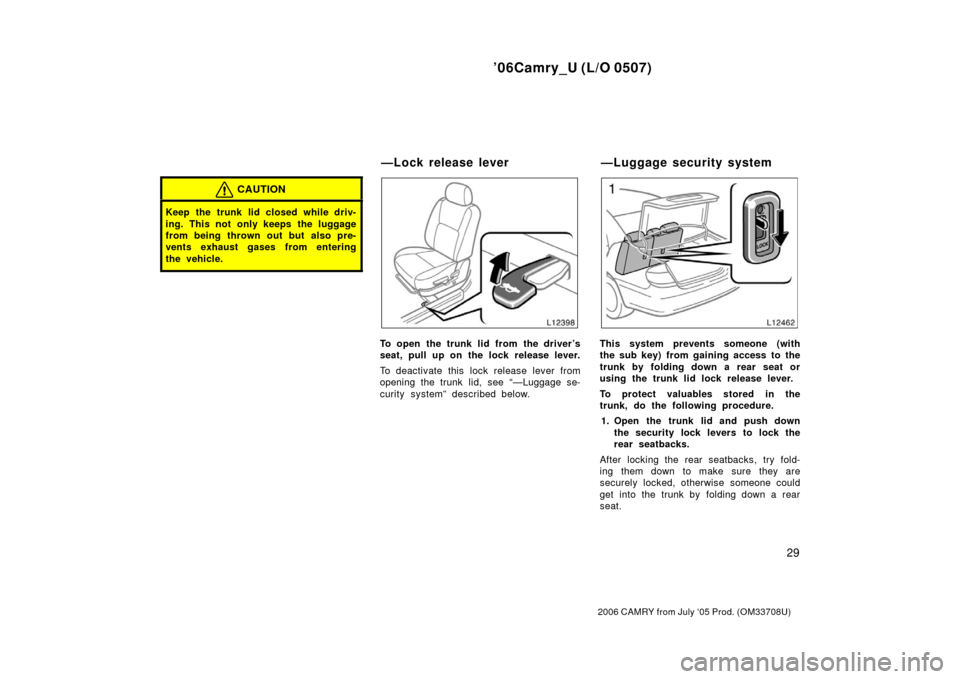

To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
To deactivate this lock release lever from
opening the trunk lid, see “—Luggage se-
curity system” described below.This system prevents someone (with
the sub key) from gaining access to the
trunk by folding down a rear seat or
using the trunk lid lock release lever.
To protect valuables stored in the
trunk, do the following procedure.1. Open the trunk lid and push down the security lock levers to lock the
rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.
—Lock release lever —Luggage security system

’06Camry_U (L/O 0507)
30
2006 CAMRY from July ‘05 Prod. (OM33708U)

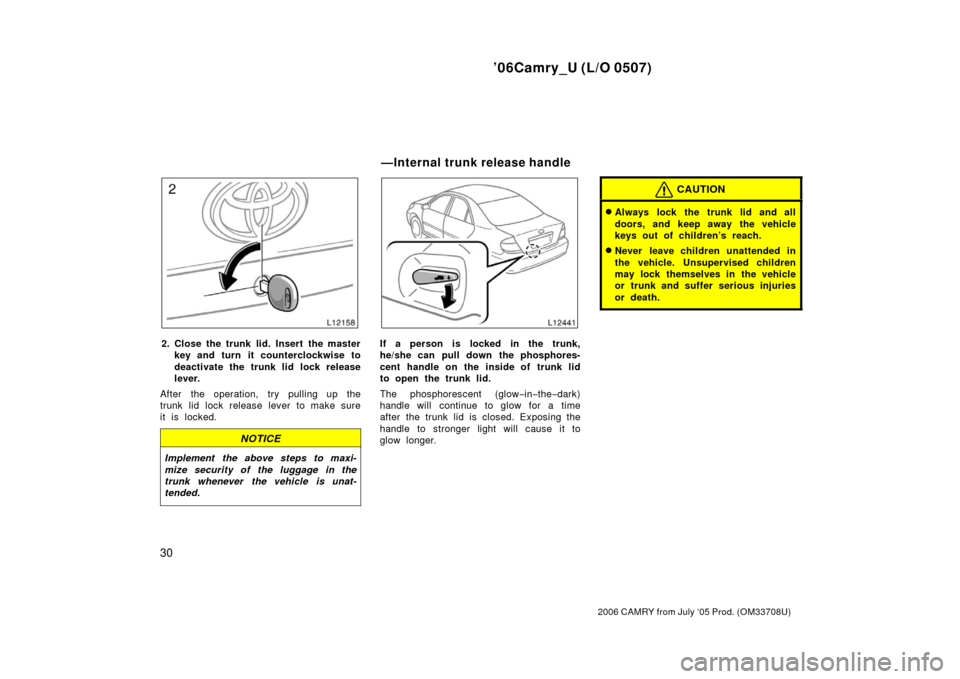

2. Close the trunk lid. Insert the masterkey and turn it counterclockwise to
deactivate the trunk lid lock release
lever.
After the operation, try pulling up the
trunk lid lock release lever to make sure
it is locked.
NOTICE
Implement the above steps to maxi-
mize security of the luggage in the
trunk whenever the vehicle is unat-
tended.
If a person is locked in the trunk,
he/she can pull down the phosphores-
cent handle on the inside of trunk lid
to open the trunk lid.
The phosphorescent (glow −in −the −dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
—Internal trunk release handle

’06Camry_U (L/O 0507)
31
2006 CAMRY from July ‘05 Prod. (OM33708U)
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.To deter vehicle theft, the system is
designed to sound an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights, turn
signal lights and interior light.
Hood Theft deterrent system

’06Camry_U (L/O 0507)
32
2006 CAMRY from July ‘05 Prod. (OM33708U)
With manual air conditioning controls
With automatic air conditioning controls
SETTING THE SYSTEM1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 15 for details.) 2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will remain on when all
the doors, trunk and hood are closed and
locked.
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors are unlocked or if
the trunk or hood is forcibly opened
without the key or wireless remote con-
trol transmitter
If the battery terminal is disconnected
and then reconnected
Hotwire the ignition.
The indicator light will come on when the
system is activated.
If any of the door is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
