TOYOTA CAMRY 2006 XV40 / 8.G Owner's Manual

’06Camry_U (L/O 0507)
13
2006 CAMRY from July ‘05 Prod. (OM33708U)
2. Sub key (gray)—This key will not work in the glove box
and trunk.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’06Camry_U (L/O 0507)
14
2006 CAMRY from July ‘05 Prod. (OM33708U)
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’06Camry_U (L/O 0507)
15
2006 CAMRY from July ‘05 Prod. (OM33708U)
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.With manual air conditioning controls
With automatic air conditioning controls
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 31 in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built −in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
Engine immobilizer system

’06Camry_U (L/O 0507)
16
2006 CAMRY from July ‘05 Prod. (OM33708U)
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.

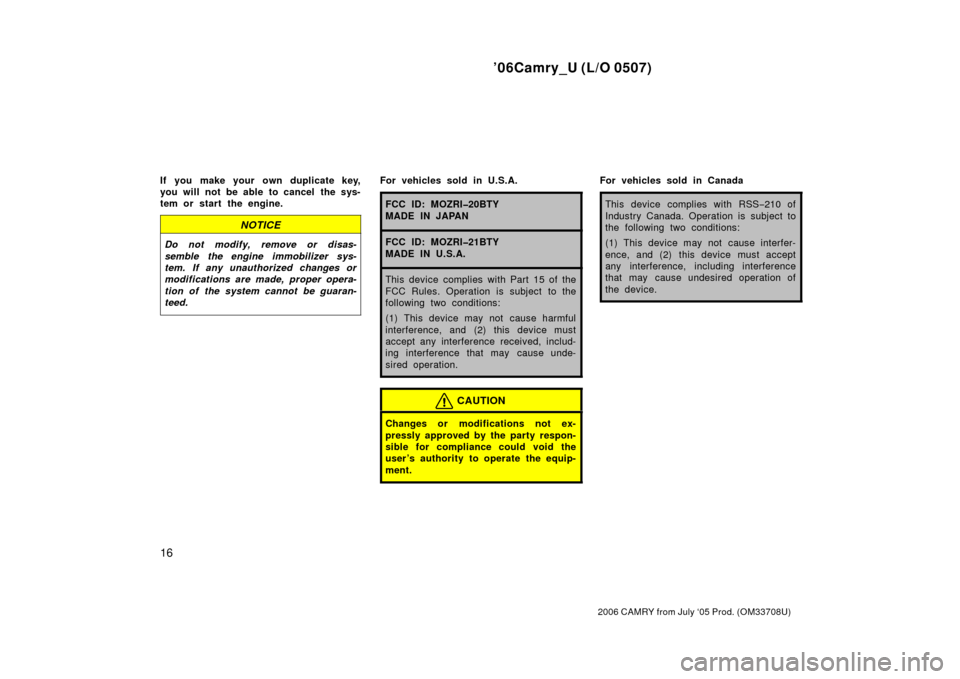

For vehicles sold in U.S.A.
FCC ID: MOZRI20BTY
MADE IN JAPAN
FCC ID: MOZRI21BTY
MADE IN U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

’06Camry_U (L/O 0507)
17
2006 CAMRY from July ‘05 Prod. (OM33708U)

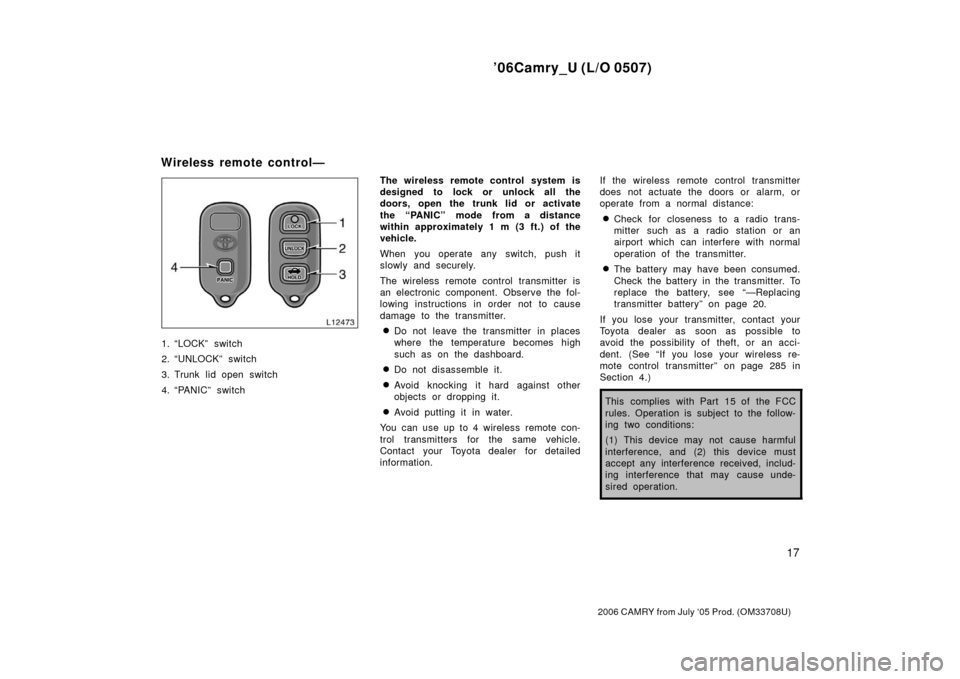

1. “LOCK” switch
2. “UNLOCK” switch
3. Trunk lid open switch
4. “PANIC” switchThe wireless remote control system is
designed to lock or unlock all the
doors, open the trunk lid or activate
the “PANIC” mode from a distance
within approximately 1 m (3 ft.) of the
vehicle.
When you operate any switch, push it
slowly and securely.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
transmitter battery” on page 20.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 285 in
Section 4.)
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
Wireless remote control—

’06Camry_U (L/O 0507)
18
2006 CAMRY from July ‘05 Prod. (OM33708U)

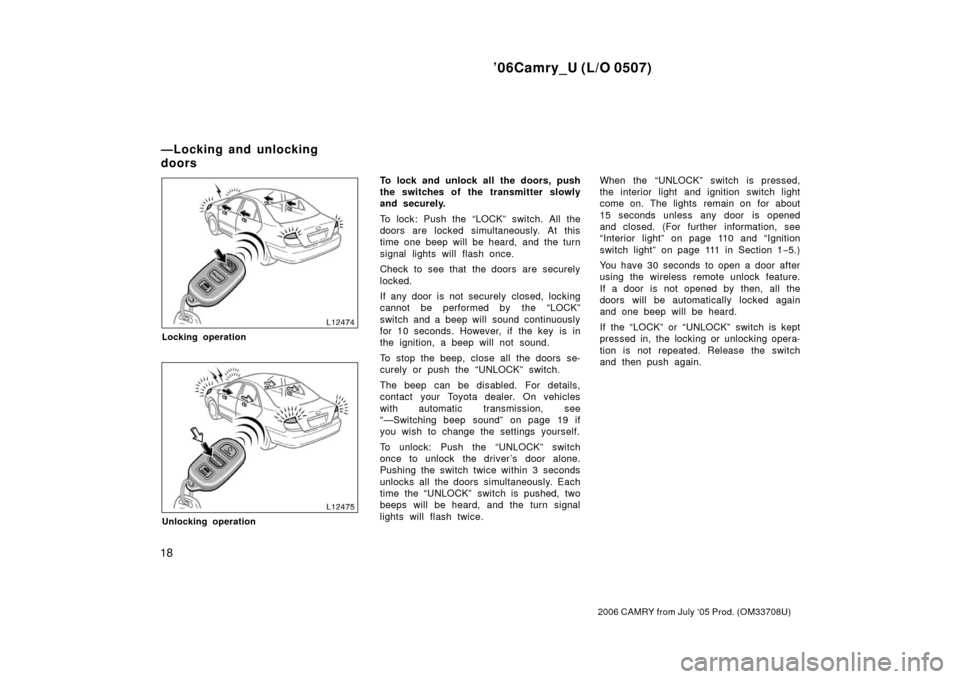

Locking operation
Unlocking operation
To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the “LOCK” switch. All the
doors are locked simultaneously. At this
time one beep will be heard, and the turn
signal lights will flash once.
Check to see that the doors are securely
locked.
If any door is not securely closed, locking
cannot be performed by the “LOCK”
switch and a beep will sound continuously
for 10 seconds. However, if the key is in
the ignition, a beep will not sound.
To stop the beep, close all the doors se-
curely or push the “UNLOCK” switch.
The beep can be disabled. For details,
contact your Toyota dealer. On vehicles
with automatic transmission, see
“—Switching beep sound” on page 19 if
you wish to change the settings yourself.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “UNLOCK” switch is pushed, two
beeps will be heard, and the turn signal
lights will flash twice.When the “UNLOCK” switch is pressed,
the interior light and ignition switch light
come on. The lights remain on for about
15 seconds unless any door is opened
and closed. (For further information, see
“Interior light” on page 110 and “Ignition
switch light” on page 111 in Section 1
−5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again
and one beep will be heard.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
—Locking and unlocking
doors

’06Camry_U (L/O 0507)
19
2006 CAMRY from July ‘05 Prod. (OM33708U)

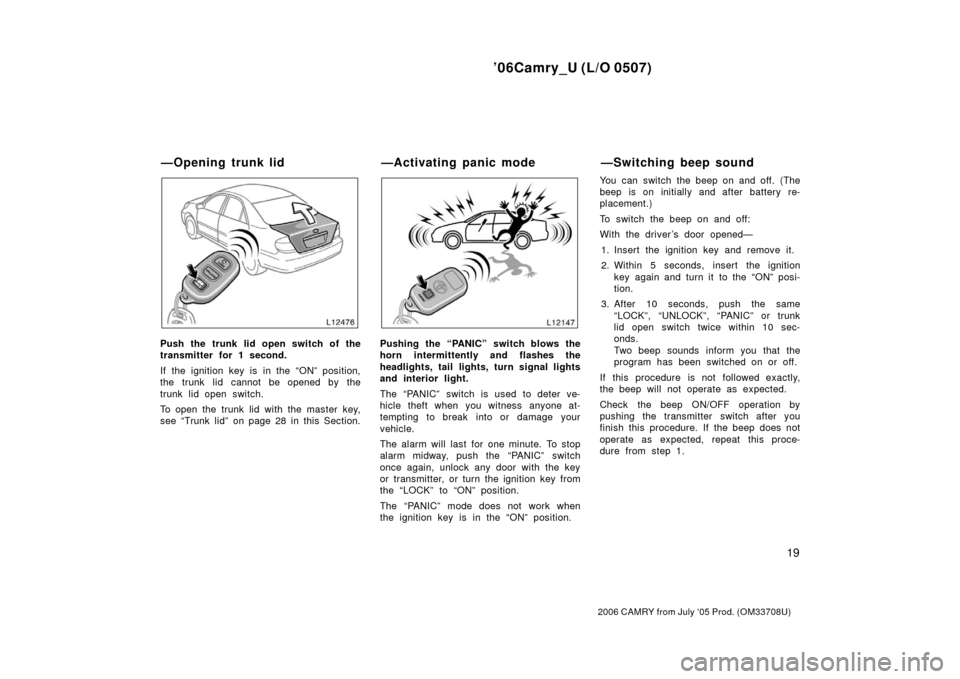

Push the trunk lid open switch of the
transmitter for 1 second.
If the ignition key is in the “ON” position,
the trunk lid cannot be opened by the
trunk lid open switch.
To open the trunk lid with the master key,
see “Trunk lid” on page 28 in this Section.Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights, tail lights, turn signal lights
and interior light.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “PANIC” switch
once again, unlock any door with the key
or transmitter, or turn the ignition key from
the “LOCK” to “ON” position.
The “PANIC” mode does not work when
the ignition key is in the “ON” position.You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver ’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition key again and turn it to the “ON” posi-
tion.
3. After 10 seconds, push the same “LOCK”, “UNLOCK”, “PANIC” or trunk
lid open switch twice within 10 sec-
onds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected.
Check the beep ON/OFF operation by
pushing the transmitter switch after you
finish this procedure. If the beep does not
operate as expected, repeat this proce-
dure from step 1.
—Opening trunk lid —Activating panic mode—Switching beep sound

’06Camry_U (L/O 0507)
20
2006 CAMRY from July ‘05 Prod. (OM33708U)

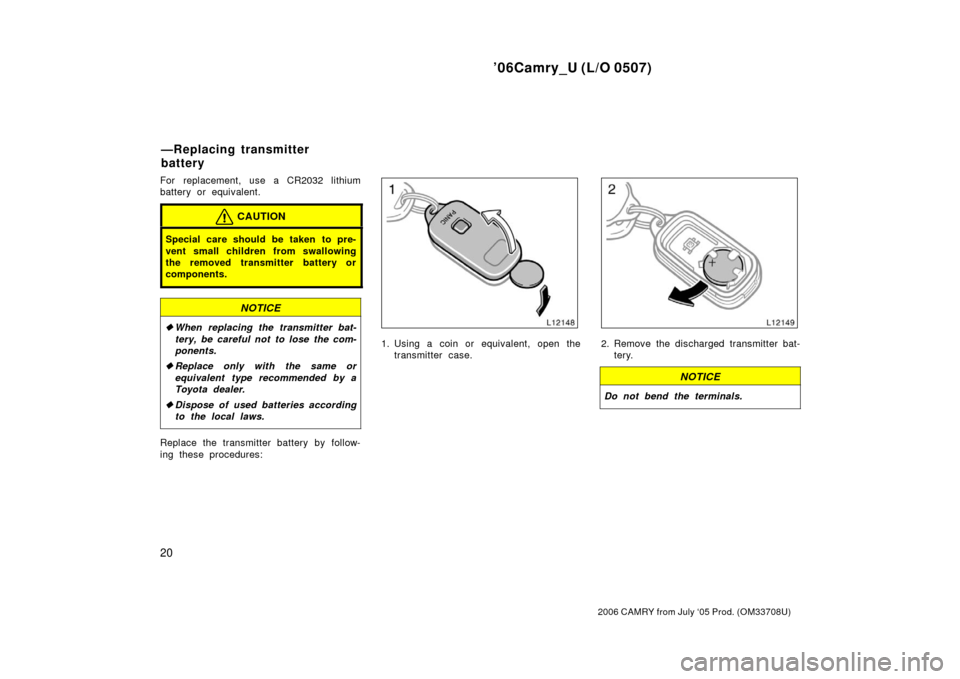

For replacement, use a CR2032 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE
When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
1. Using a coin or equivalent, open the
transmitter case.2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.
—Replacing transmitter
battery

’06Camry_U (L/O 0507)
21
2006 CAMRY from July ‘05 Prod. (OM33708U)

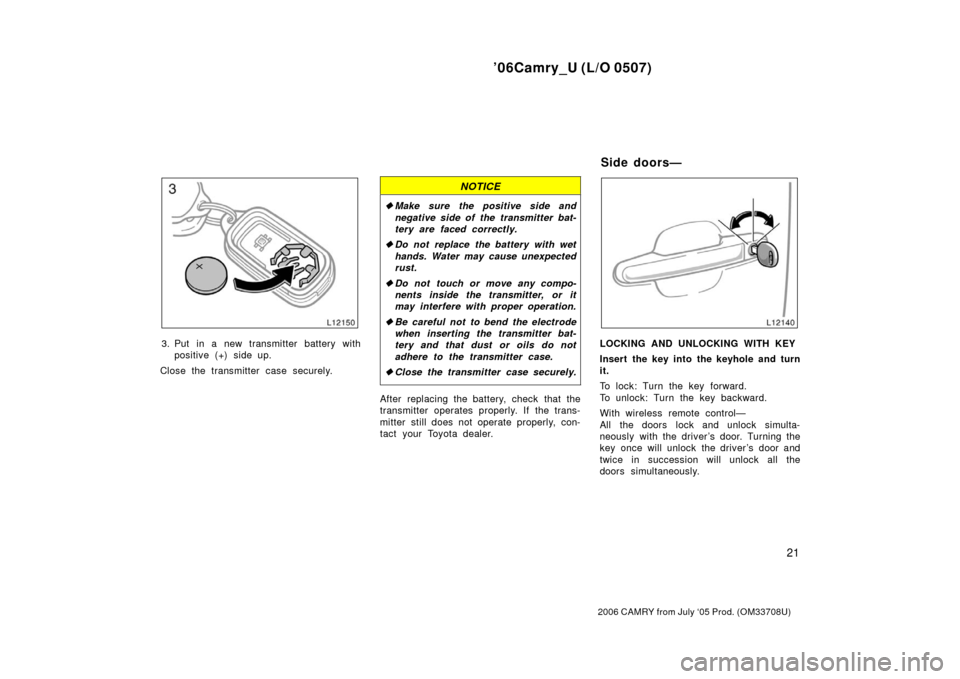

3. Put in a new transmitter battery withpositive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
 Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
With wireless remote control—
All the doors lock and unlock simulta-
neously with the driver ’s door. Turning the
key once will unlock the driver’s door and
twice in succession will unlock all the
doors simultaneously.
Side doors—

’06Camry_U (L/O 0507)
22
2006 CAMRY from July ‘05 Prod. (OM33708U)
Without wireless remote control—
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.
When all the doors are unlocked simulta-
neously using either the key or the wire-
less remote control transmitter, the interior
light and ignition switch light will come on
and remain on for about 15 seconds be-
fore fading out. (For further information,
see “Interior light” on page 110 and “Igni-
tion switch light” on page 111 in Section
1−5.)

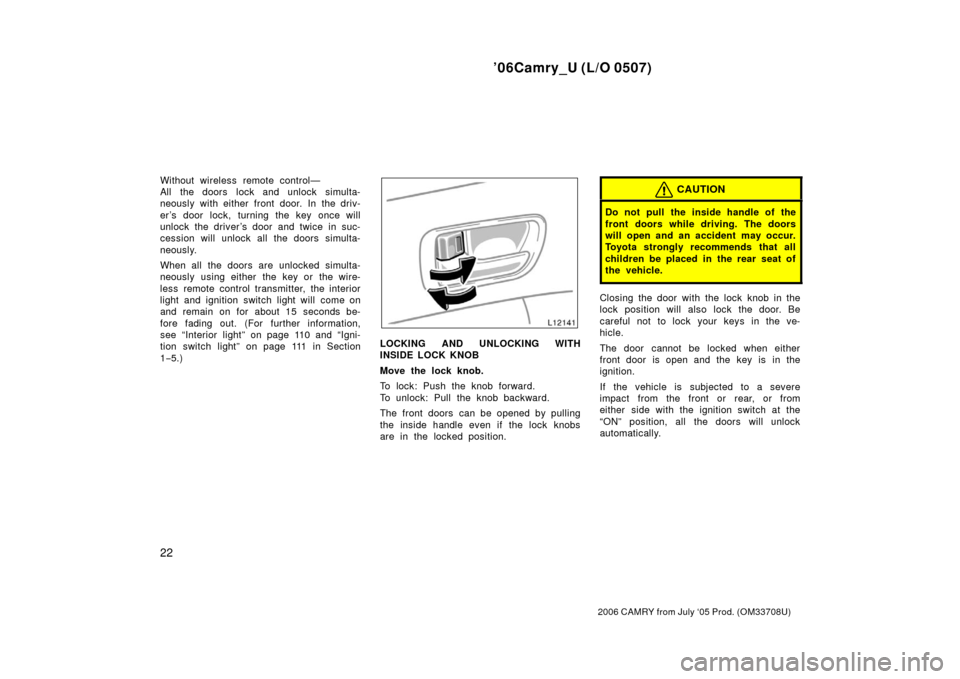

LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The door cannot be locked when either
front door is open and the key is in the
ignition.
If the vehicle is subjected to a severe
impact from the front or rear, or from
either side with the ignition switch at the
“ON” position, all the doors will unlock
automatically.
