Page 411 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 410
4-3. Do-it-yourself maintenance

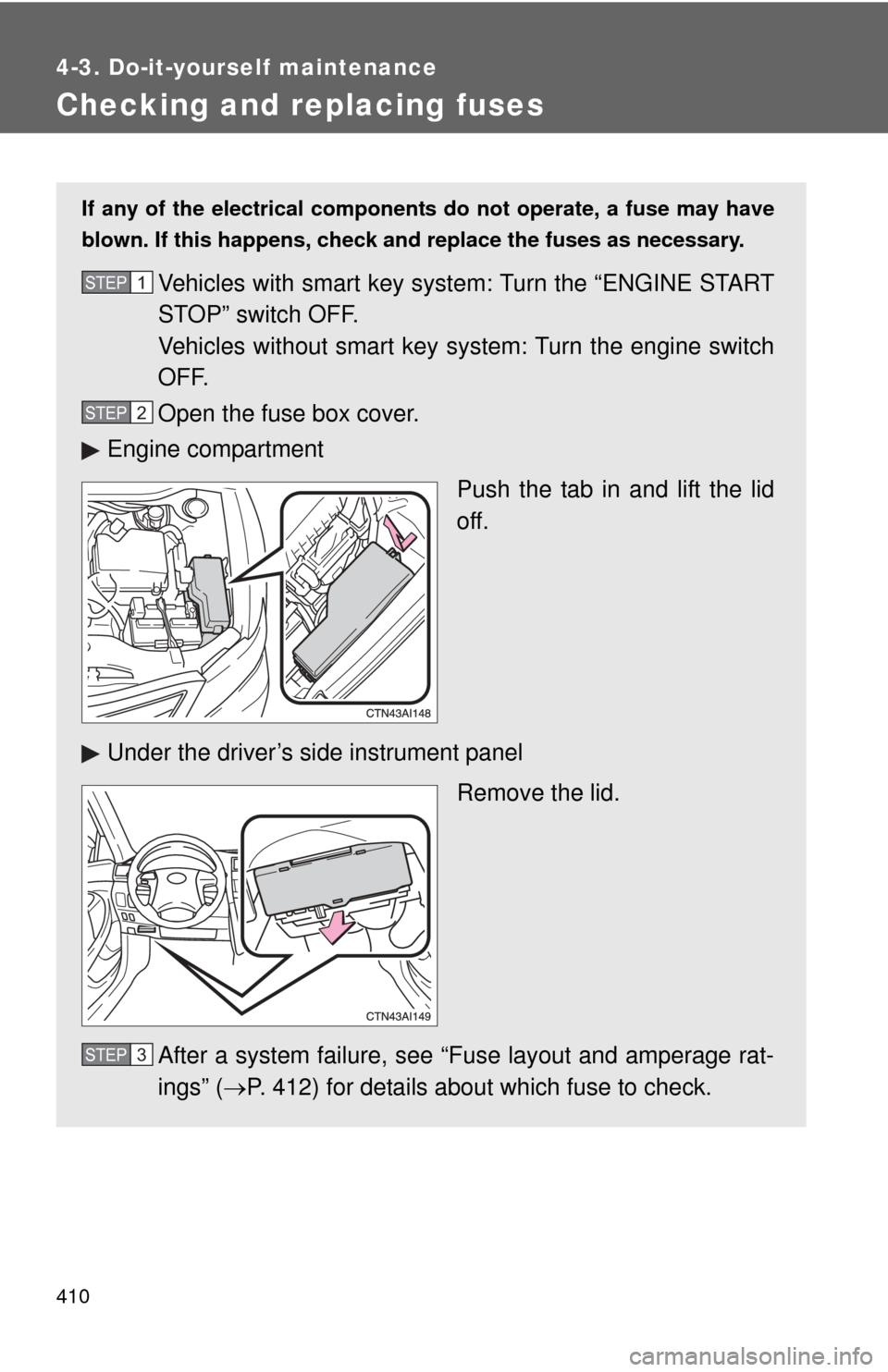

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
V

Page 412 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 411
4-3. Do-it-yourself maintenance
4
Maintenance and care
Take out the pullout tool.
Only type A fuse can be
removed using the pullout tool.
Check if the fuse has blown.
Ty p e  A
Normal fuse
Blown f

Page 413 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 412 4-3. Do-it-yourself maintenance

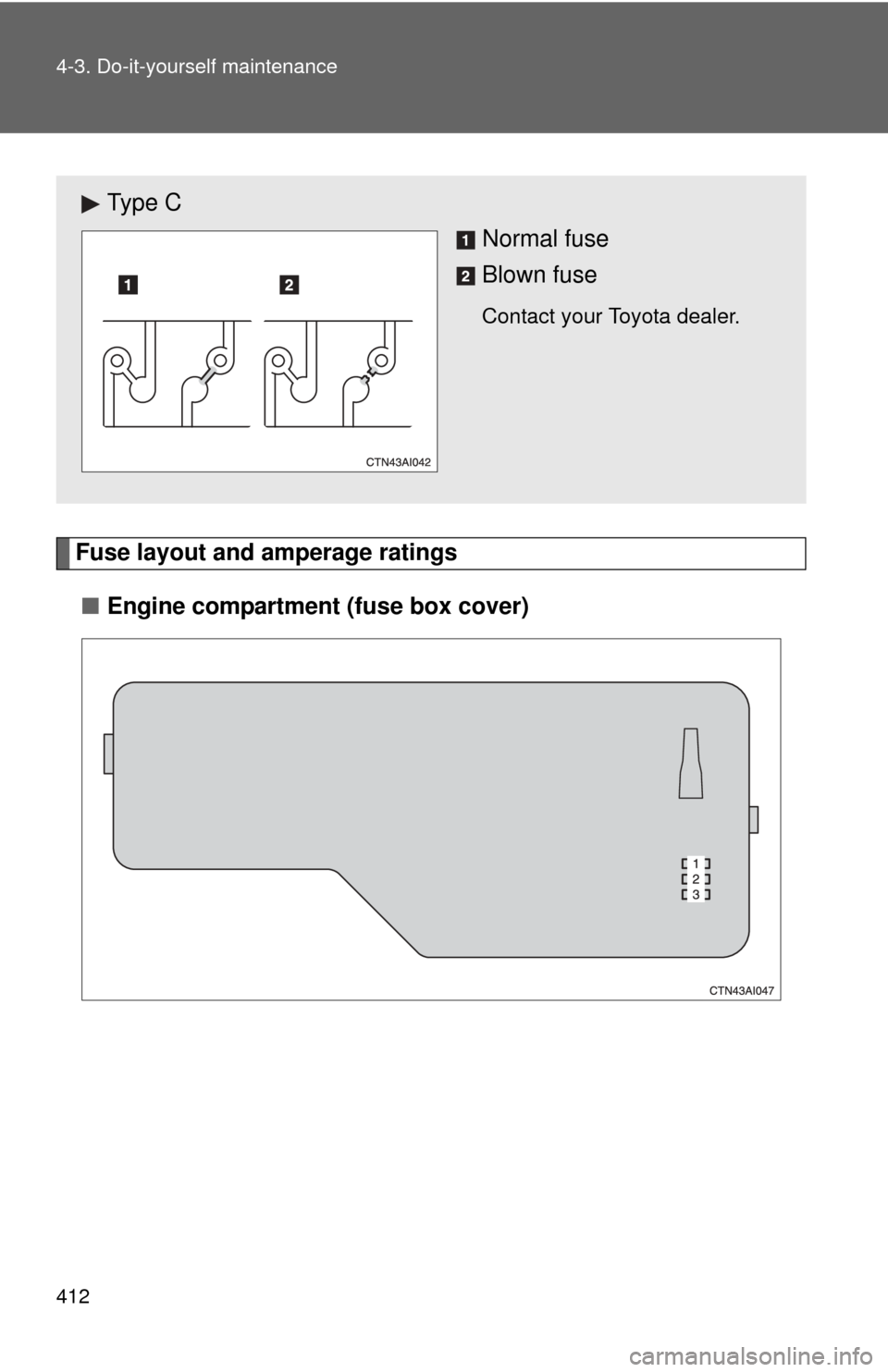

Fuse layout and amperage ratings■ Engine compartment (fuse box cover)
Ty p e  C
Normal fuse
Blown fuse
Contact your Toyota dealer.

Page 414 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 413
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Engine compartment (fuse block)
2.5 L 4-cylinder (2AR-FE) engine
FuseAmpereCircuit
1 SPARE 30 A Spare fuse
2 SPARE 15 A Spare fuse
3 SPAR

Page 415 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 414 4-3. Do-it-yourself maintenance
14 RR FOG10 A No circuit
15 ST/AM2 30 AStarting system, GAUGE NO.2,
IGN, INJ
16 ALT 120 ARR FOG, FR DEF, HTR, ABS
NO.1, ABS NO.2, RR DEF, RR
PWR SEAT, H-LP CLN,

Page 416 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 415
4-3. Do-it-yourself maintenance
4
Maintenance and care
25 EFI MAIN
30 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2, EFI NO.3, main
body ECU
26 AMP 25 A

Page 417 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 416 4-3. Do-it-yourself maintenance
3.5 L V6 (2GR-FE) engine
FuseAmpereCircuit
1 SPARE 30 A Spare fuse
2 SPARE 15 A Spare fuse
3 SPARE 10 A Spare fuse
4 MSB 30 A No circuit
5 H-LP CLN 30 A No circuit

Page 418 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 417
4-3. Do-it-yourself maintenance
4
Maintenance and care
14 ALT
120 ARR FOG, FR DEF, HTR, ABS
NO.1, FAN MAIN, ABS NO.2, RR
DEF, RR PWR SEAT, H- LP CLN,
CDS FAN, RDI FAN, MSB, TAIL,
PANEL, FR FOG

Page 419 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 418 4-3. Do-it-yourself maintenance
27 ECU-B NO.1 10 AWireless remote control system,
front passenger occupant classifi-
cation system, main body ECU
28 DOME 10 A Gauges and meters, vanity lights,
t

Page 420 of 554

TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual 419
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

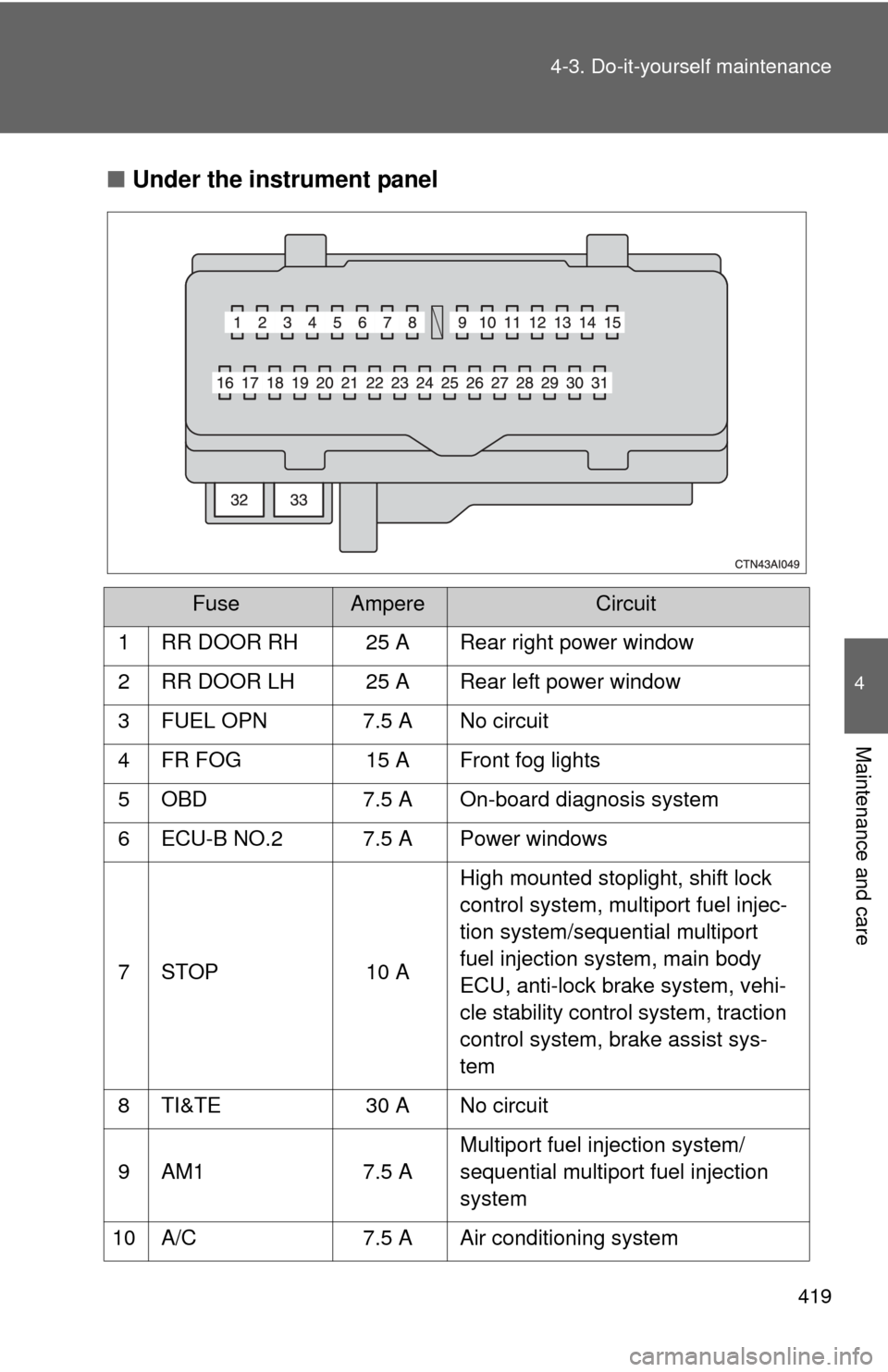

Under the instrument panel
FuseAmpereCircuit
1 RR DOOR RH 25 A Rear right power window
2 RR DOOR LH 25 A Rear left power window
3 FUEL OP
