TOYOTA CAMRY 2011 XV50 / 9.G Owners Manual

450 5-2. Steps to take in an emergency
Stop the vehicle immediately.● The following warning indicates the possibility of damage to the
vehicle that may lead to an acci dent. Immediately stop the vehicle
in a safe place and contact your Toyota dealer.
● The following warning indicates the possibility of damage to the
vehicle that may lead to an acci dent. Immediately stop the vehicle
in a safe place and allow the engine to cool.
Warning messageDetails
(U.S.A.)
(Canada) Indicates an abnormal engine oil pressure.
A buzzer also sounds.
The warning light may turn on if the engine oil
pressure is too low.
Warning messageDetails
Indicates that the engine coolant temperature is
too high.
A buzzer also sounds.

5
When trouble arises
451
5-2. Steps to take in an emergency
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning messageDetails

(vehicles with smart key system) Indicates a malfunction in the steering lock sys-
tem.
A buzzer also sounds.

452 5-2. Steps to take in an emergency
Follow the correction procedures.After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is
not fully closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of 3
mph [5 km/h]). Make sure that all of the
doors are closed.
Indicates that the
hood is not fully
closed.
A buzzer sounds to
indicate that hood is
not fully closed (with
the vehicle having
reached a speed of 3
mph [5 km/h]). Close the hood.

5
When trouble arises
453
5-2. Steps to take in an emergency

Indicates that the
trunk is not fully
closed.
A buzzer sounds to
indicate that the trunk
is not fully closed (with
the vehicle having
reached a speed of 3
mph [5 km/h]). Close the trunk.
Indicates that the
moon roof is not fully
closed (with the
“ENGINE START
STOP” switch OFF
[vehicles with smart
key system] or the
engine switch OFF
[vehicles without
smart key system],
and the driver's door
open).
A buzzer also sounds. Close the moon roof.
Indicates that the
parking brake is still
engaged with the
vehicle having
reached a speed of
more than 3 mph (5
km/h).
A buzzer also sounds. Release the parking
brake.
Indicates that the
washer fluid level is
low.
A buzzer also sounds. Add washer fluid.
Warning messageDetailsCorrection procedure

454 5-2. Steps to take in an emergency
(U.S.A. only)Indicates that all
maintenance accord-
ing to the driven dis-
tance on the
maintenance sched-
ule* should be per-
formed.
If necessary, perform
maintenance.
Comes on approxi-
mately 4500 miles
(7200 km) after the
maintenance data has
been reset.
(U.S.A. only) Indicates that all
maintenance is
required to corre-
spond to the driven
distance on the main-
tenance schedule*.
Perform the necessary
maintenance. Please
reset the maintenance
data after the mainte-
nance is performed.
See page “Reset the
maintenance data”
Comes on approxi-
mately 5000 miles
(8000 km) after the
maintenance data
has been reset.
(The indicator will
not work properly
unless the mainte-
nance data has been
reset.)
* Refer to the seperate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle.
Warning messageDetailsCorrection procedure

5
When trouble arises
455
5-2. Steps to take in an emergency
Follow the correction procedures (vehicles with smart key system).
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once (Comes on for 8 sec-
onds)
Indicates that
the electronic
key is not
present when
the “ENGINE
START STOP”
switch is
pressed.
Confirm the
location of the
electronic key.
Once3 times
Indicates that a
door other than
the driver’s door
has been
opened and
closed with the
“ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area.
Confirm the
location of the
electronic key.

456 5-2. Steps to take in an emergency
Once3 times
Indicates that
the driver’s door
has been
opened and
closed with the
shift lever in P,
the “ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area. Turn the
“ENGINE
START STOP”
switch OFF or
confirm the
location of the
electronic key.
Continuous
Continuous
(Displayed alternately)
Indicates that
the driver’s door
has been
opened and
closed (with the
shift lever not in
P, the “ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area).
• Shift the shift
lever to P.
• Confirm the location of the
electronic key.
Once
Indicates that
the key battery
is low.
Replace the
battery.
(
P. 406)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
When trouble arises
457
5-2. Steps to take in an emergency
Once
Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
turned twice to
ACCESSORY
mode from OFF.Press the
“ENGINE
START STOP”
switch while
depressing the
brake pedal.
Once
Indicates that
the electronic
key does not
operate prop-
erly.P. 475
Once
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

458
5-2. Steps to take in an emergency
Once Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch. Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
When trouble arises
459
5-2. Steps to take in an emergency

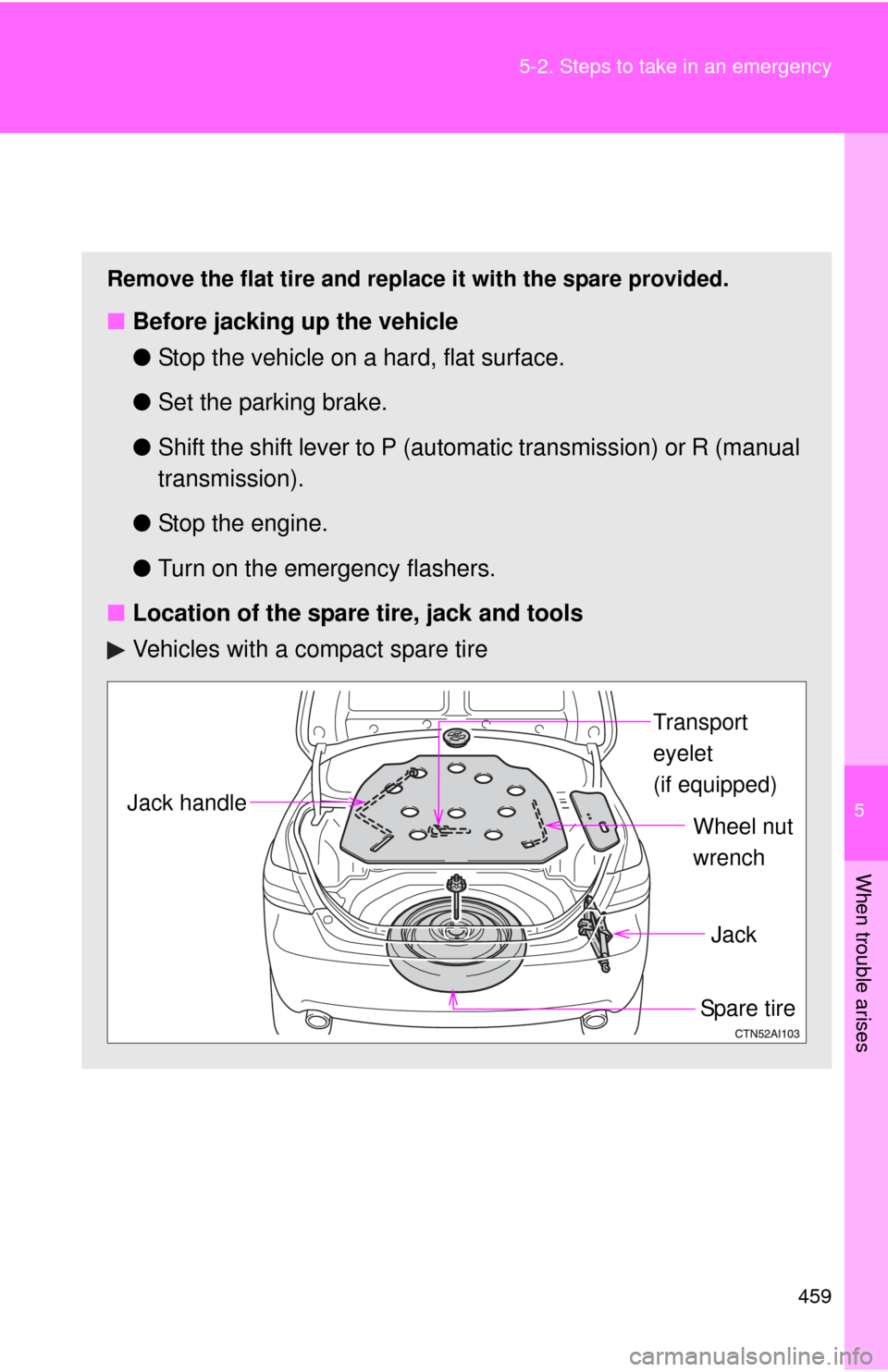

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■
Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Vehicles with a compact spare tire
Transport
eyelet
(if equipped)
Spare tireJack
Wheel nut
wrench
Jack handle
