4217-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)

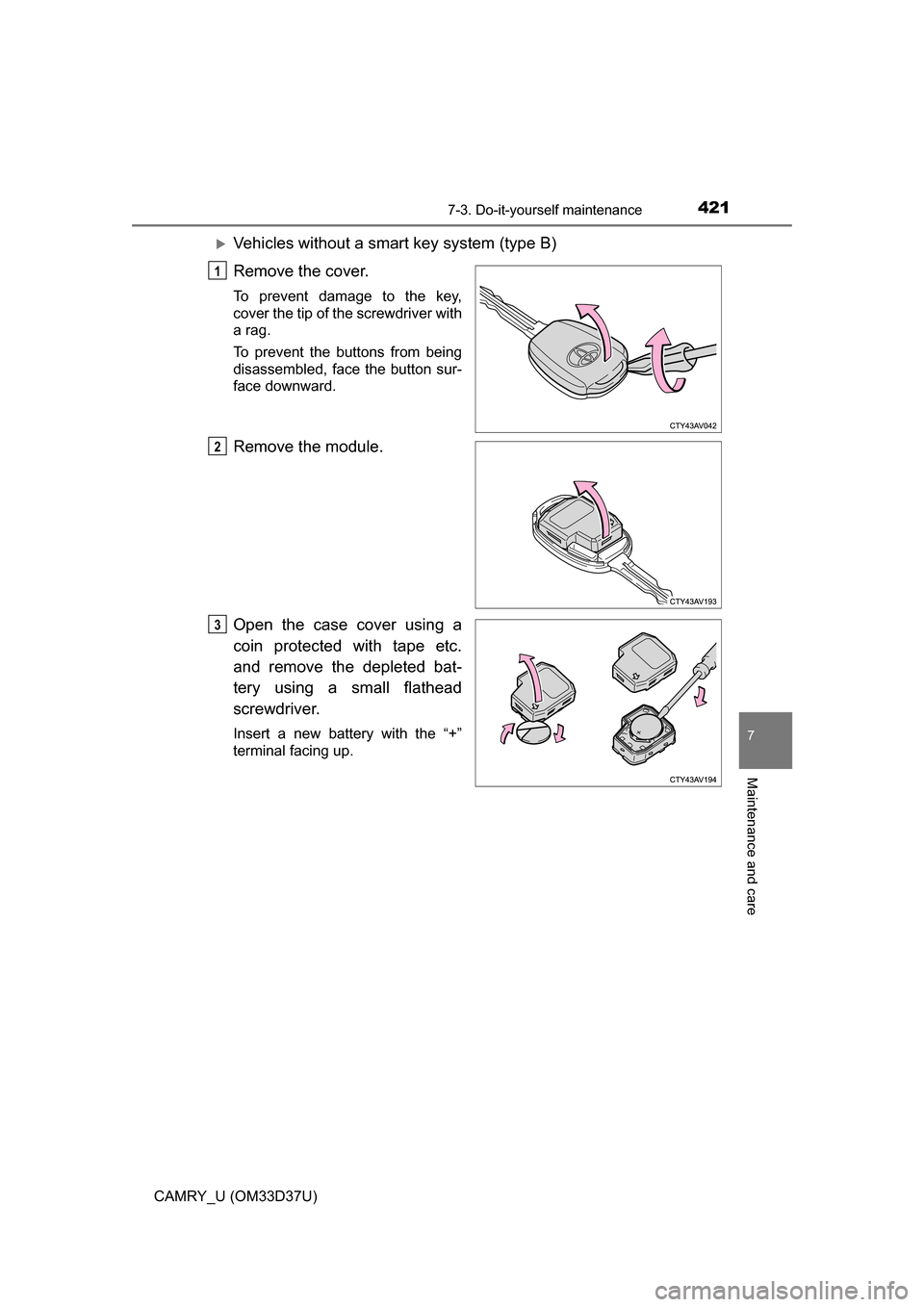

Vehicles without a smart key system (type B)
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
To prevent the buttons from being
disassembled, face the button sur-
face downward.
Remove the module.
Open the case cover using a
coin protected with tape etc.
and remove the depleted bat-
tery using a small flathead
screwdriver.
Insert a new battery with the “+”
terminal facing up.
1
2
3

4227-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)

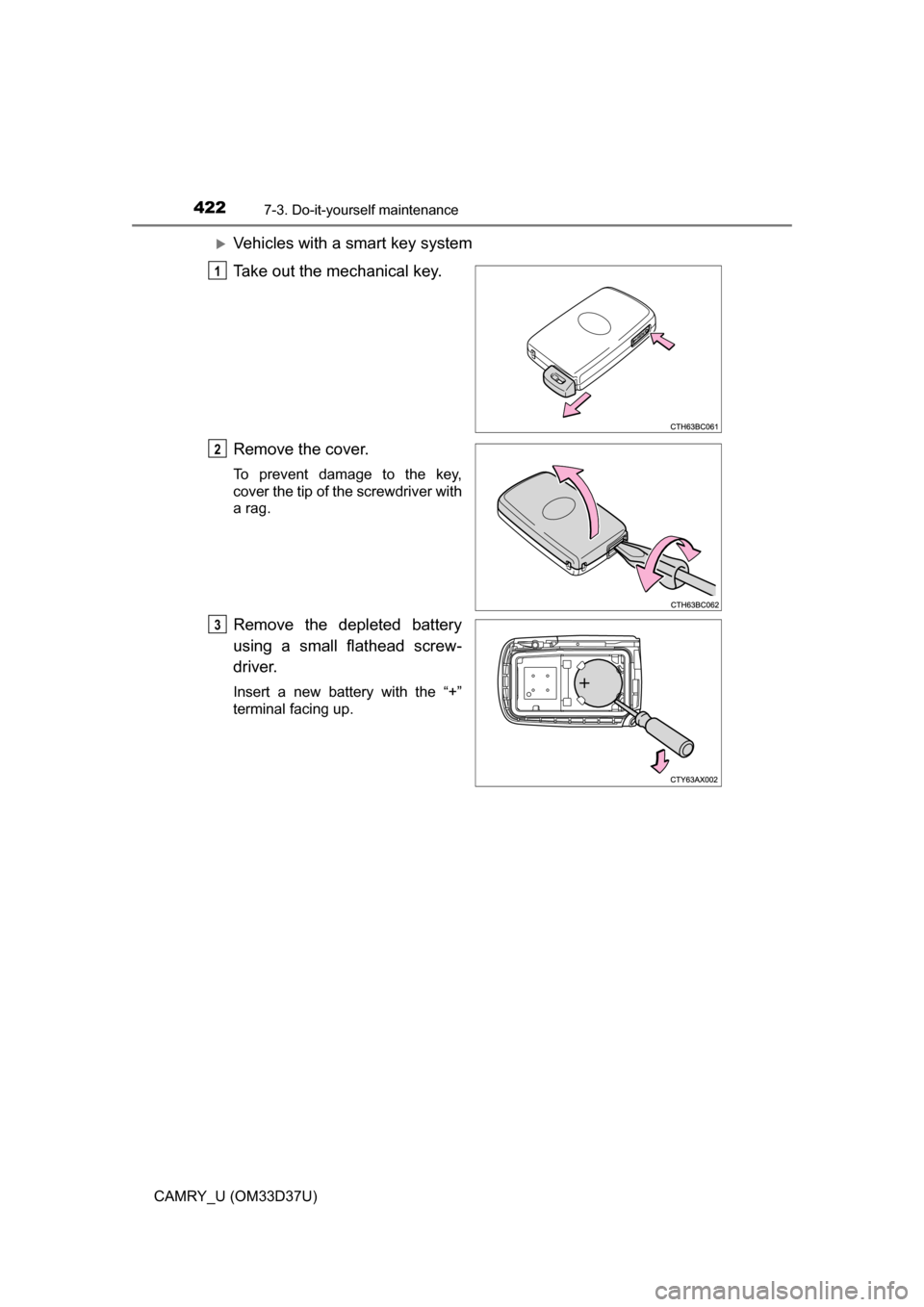

Vehicles with a smart key system
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery
using a small flathead screw-
driver.
Insert a new battery with the “+”
terminal facing up.
1
2
3

4237-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)

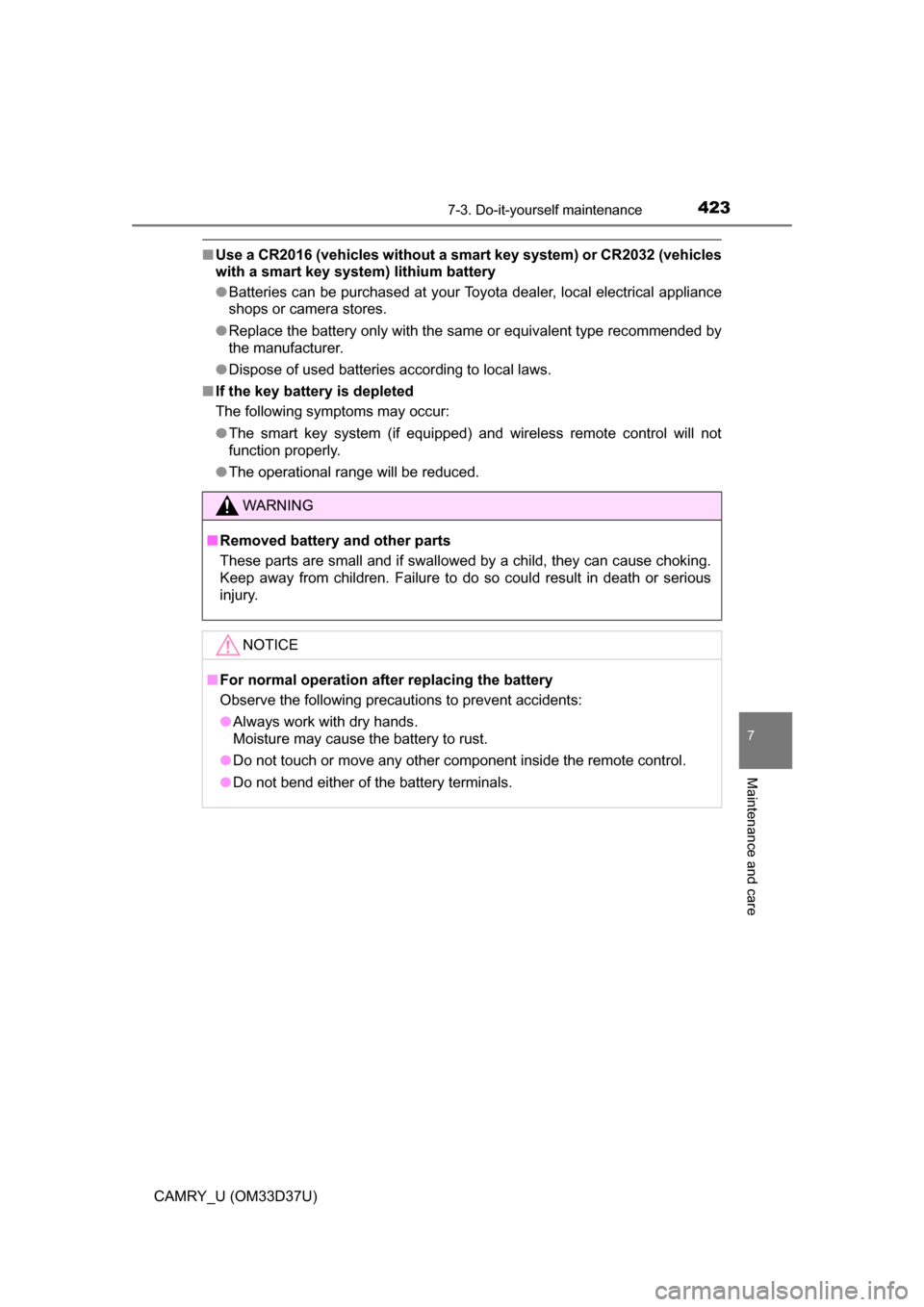

■Use a CR2016 (vehicles without a smart key system) or CR2032 (vehicles
with a smart key system) lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace the battery only with the same or equivalent type recommended by
the manufacturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
●The smart key system (if equipped) and wireless remote control will not
function properly.
● The operational range will be reduced.
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

4247-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)
Turn the engine switch off.
Open the fuse box cover.

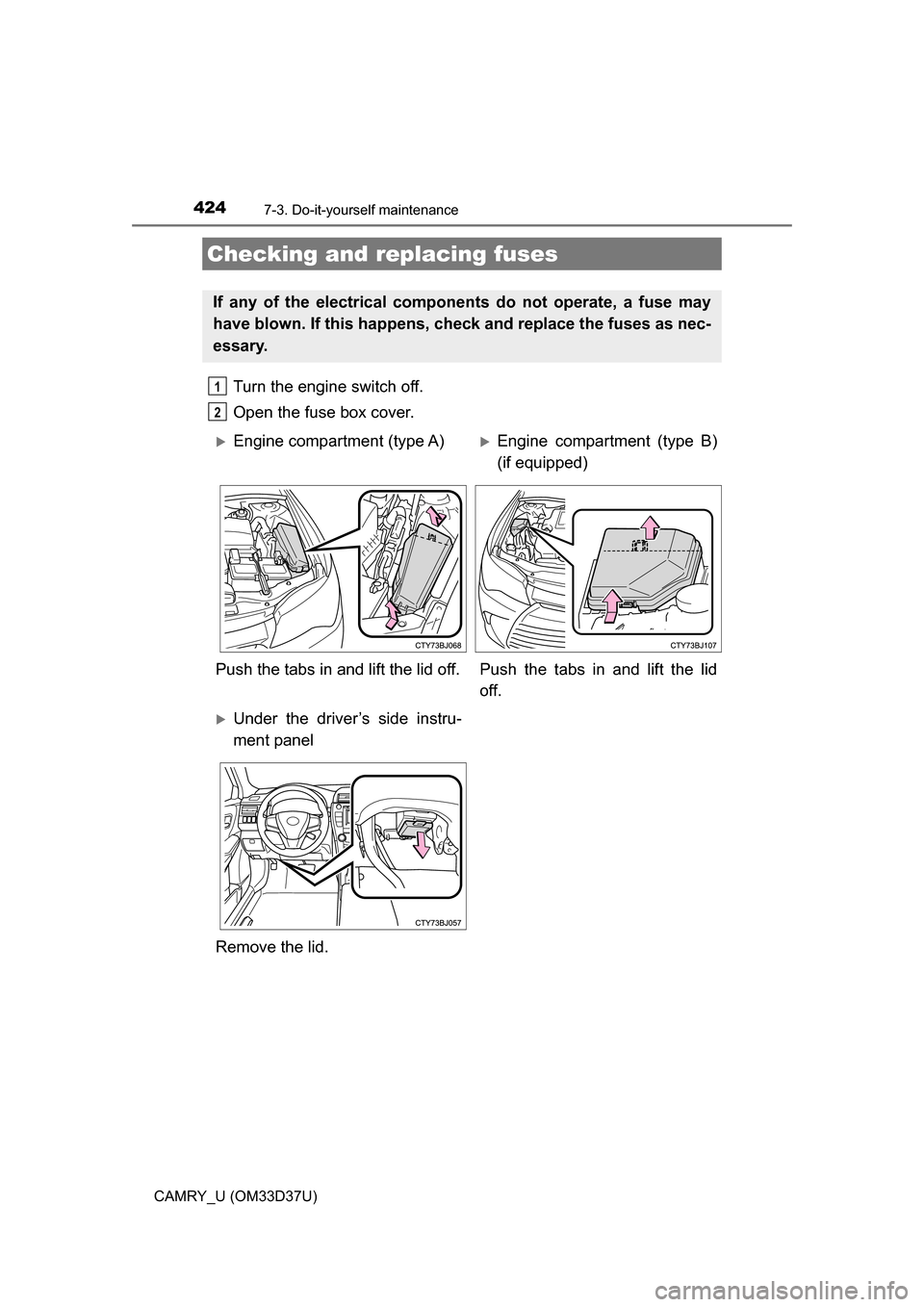

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartment (type A)Engine compartment (type B)
(if equipped)
Push the tabs in and lift the lid off. Push the tabs in and lift the lid off.
Under the driver’s side instru-
ment panel
Remove the lid.

4257-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type C:
Contact your Toyota dealer.
3
4
Ty p e AType B
Ty p e C
1
2

4267-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)

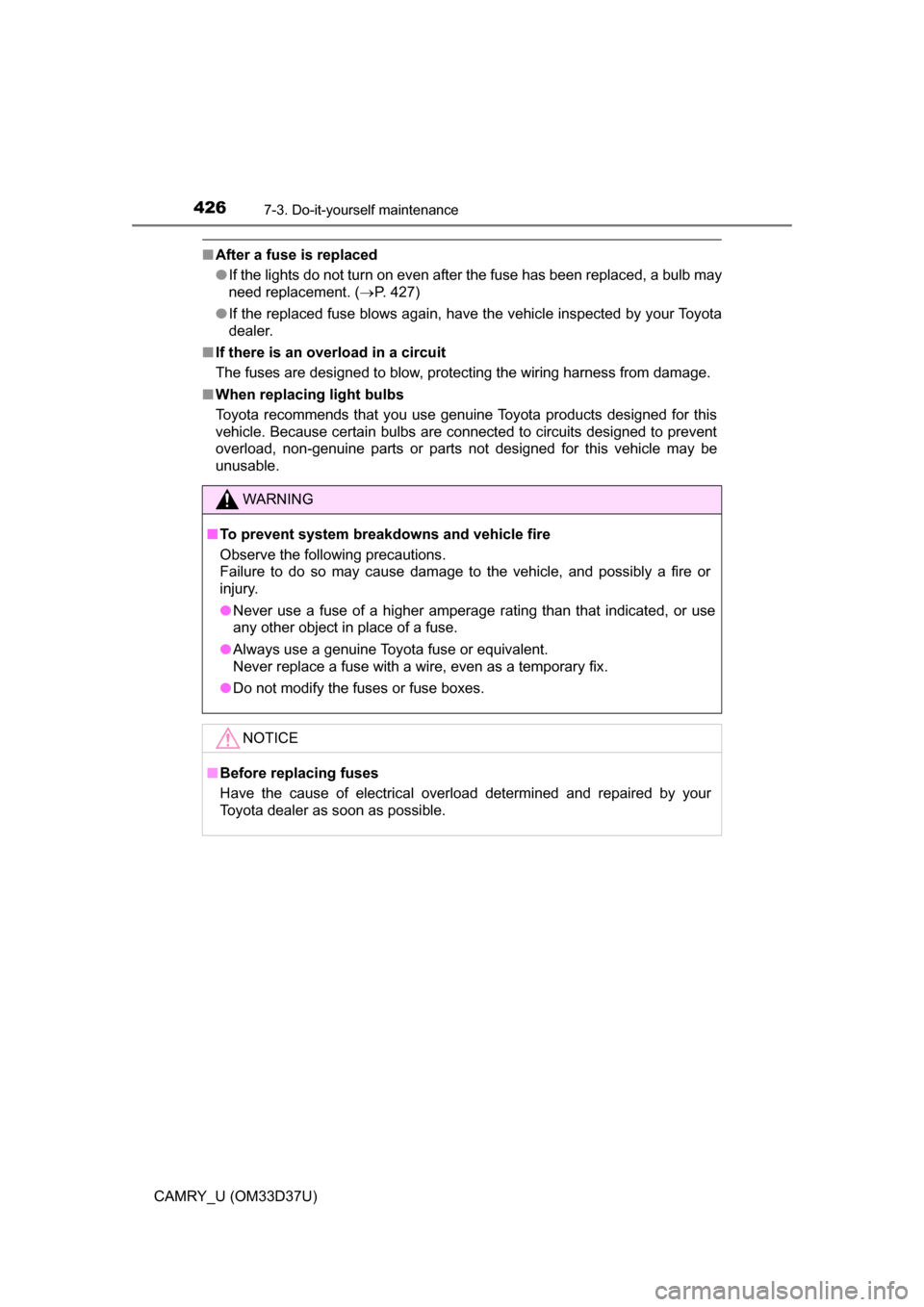

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 427)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

4277-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)
Check the wattage of the light bulb to be replaced. (P. 506)

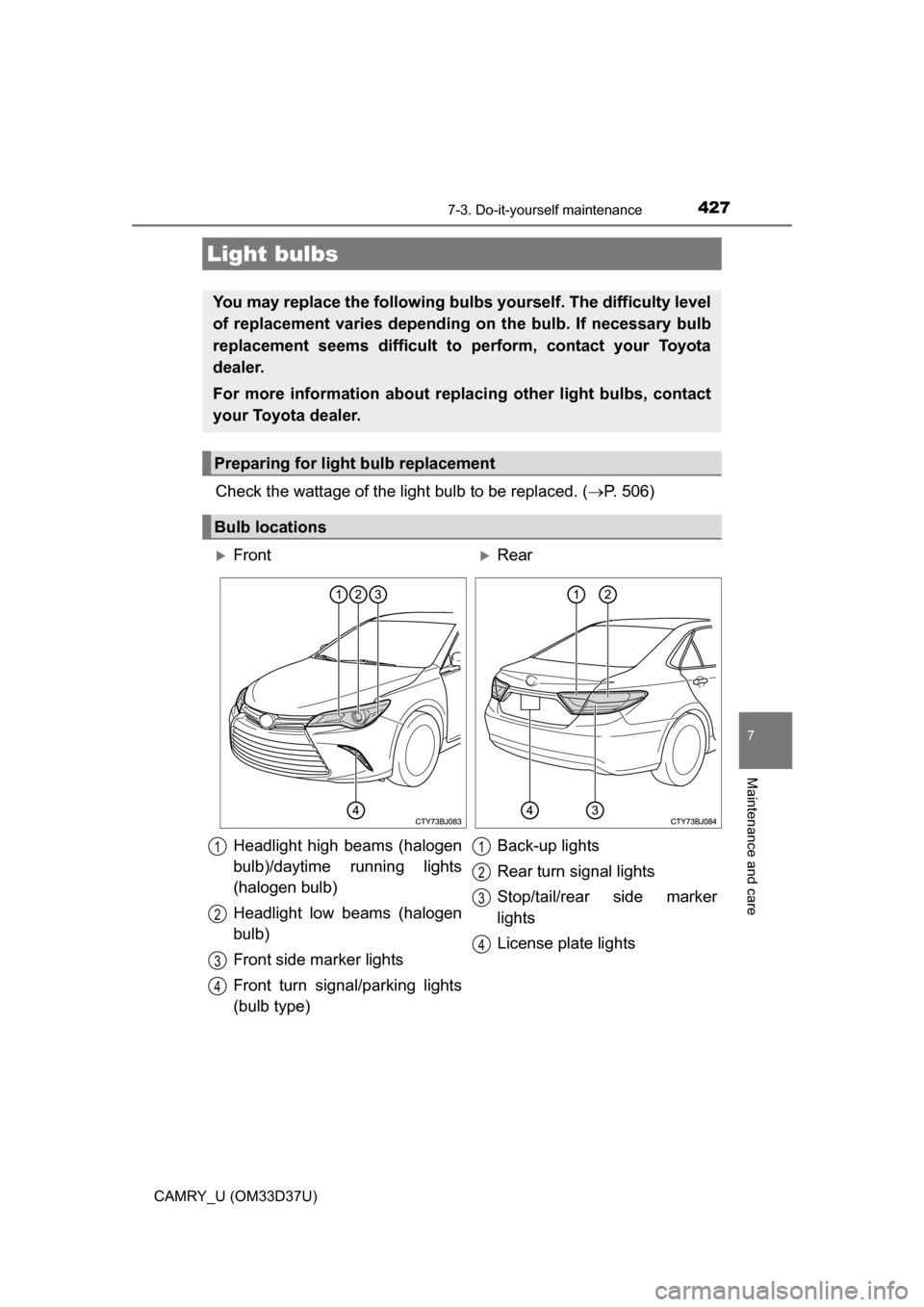

Light bulbs
You may replace the following bulb s yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
FrontRear
Headlight high beams (halogen
bulb)/daytime running lights
(halogen bulb)
Headlight low beams (halogen
bulb)
Front side marker lights
Front turn signal/parking lights
(bulb type) Back-up lights
Rear turn signal lights
Stop/tail/rear side marker
lights
License plate lights
1
2
3
4
1
2
3
4

4287-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)■

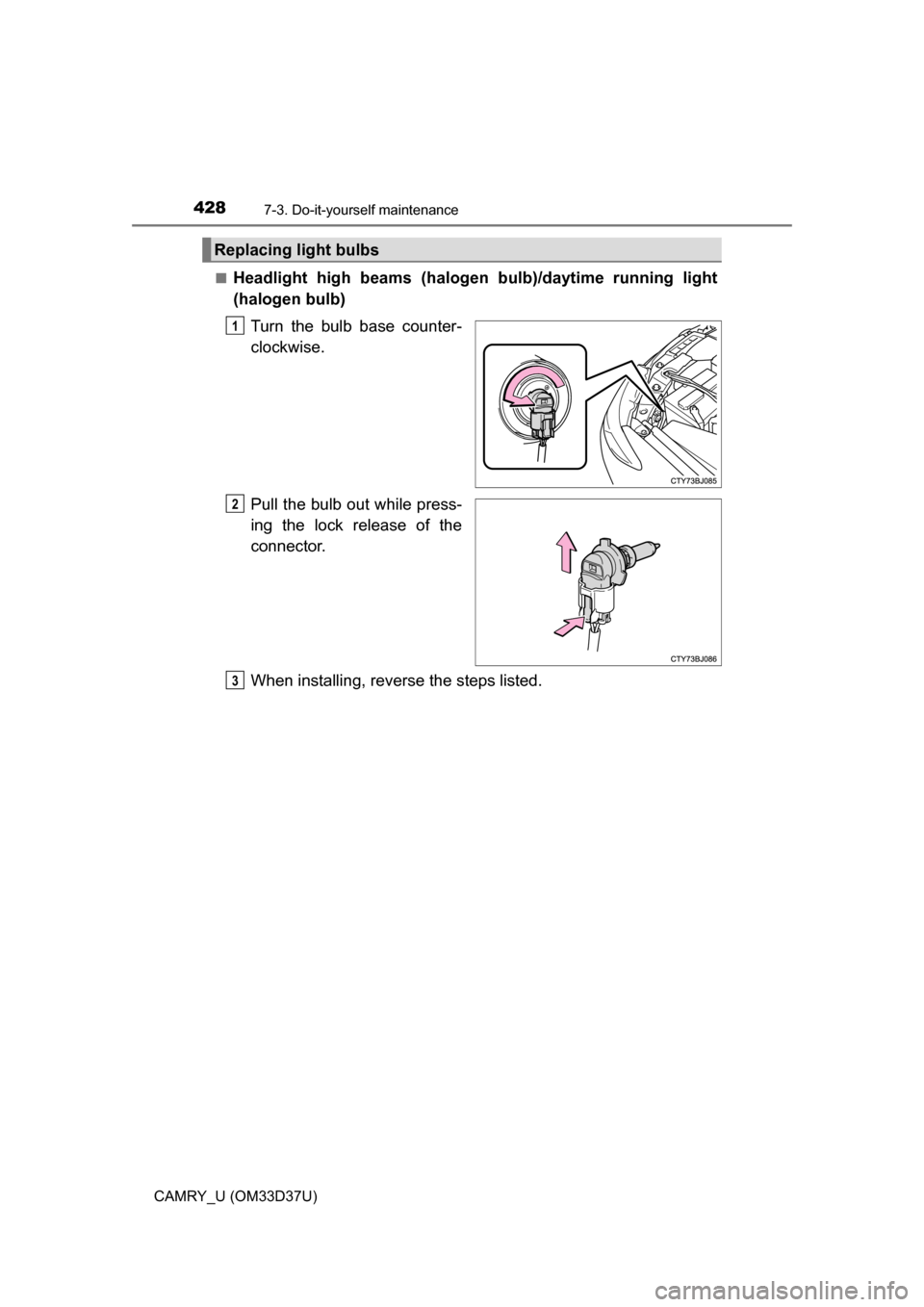

Headlight high beams (halogen
bulb)/daytime running light
(halogen bulb)
Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
When installing, reve rse the steps listed.
Replacing light bulbs
1
2
3

4297-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)■
Headlight low beams (halogen bulb)
Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
When installing, reve rse the steps listed.
■Front side marker lights
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
3
1
2
3

4307-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)■

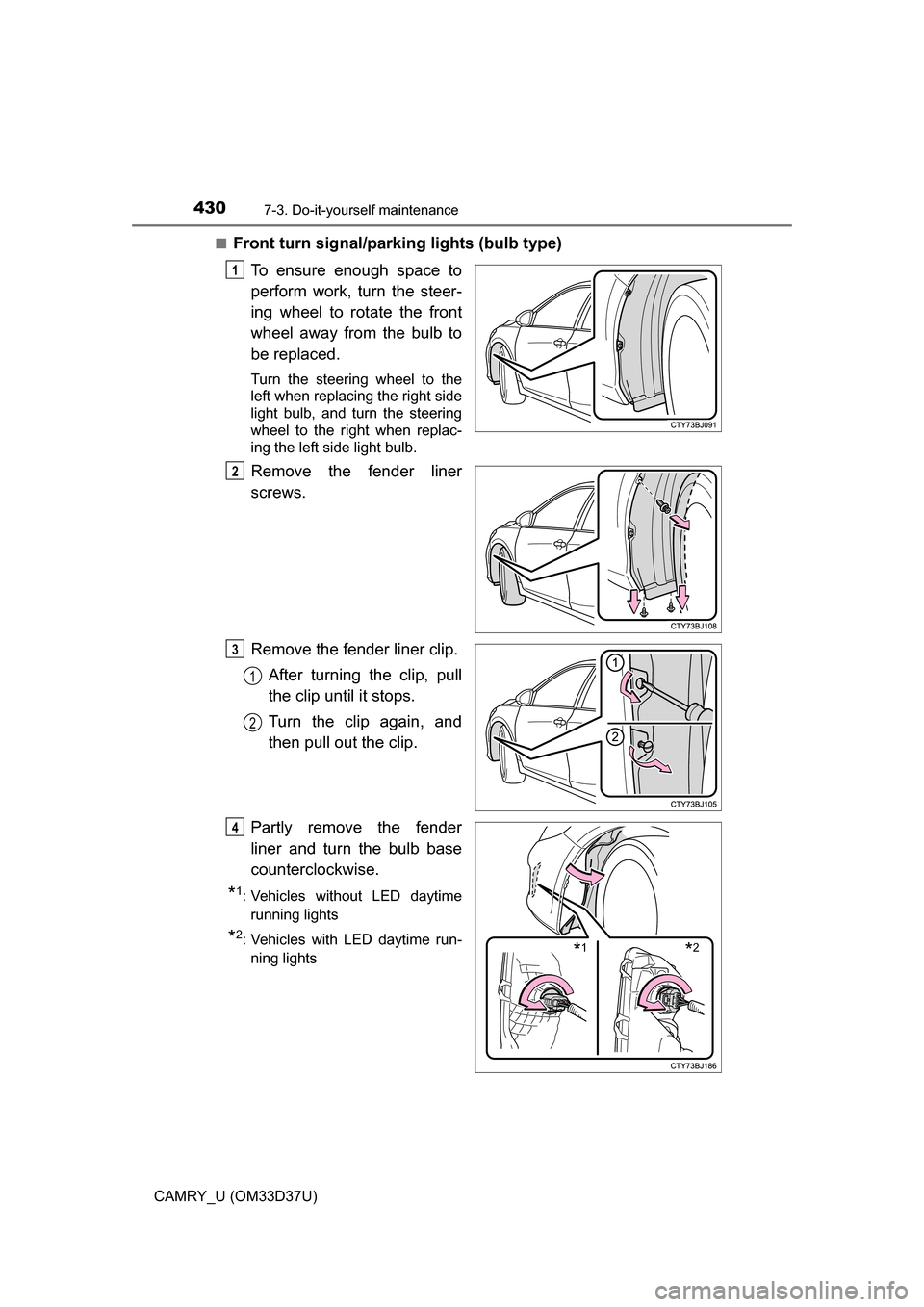

Front turn signal/parking lights (bulb type)
To ensure enough space to
perform work, turn the steer-
ing wheel to rotate the front
wheel away from the bulb to
be replaced.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Remove the fender liner
screws.
Remove the fender liner clip.After turning the clip, pull
the clip until it stops.
Turn the clip again, and
then pull out the clip.
Partly remove the fender
liner and turn the bulb base
counterclockwise.
*1: Vehicles without LED daytime running lights
*2: Vehicles with LED daytime run-ning lights
1
2
3
1
2
*1*2
4
