TOYOTA CAMRY 2016 XV50 / 9.G Owners Manual

4317-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)
Remove the light bulb.
When installing, reverse the steps listed.

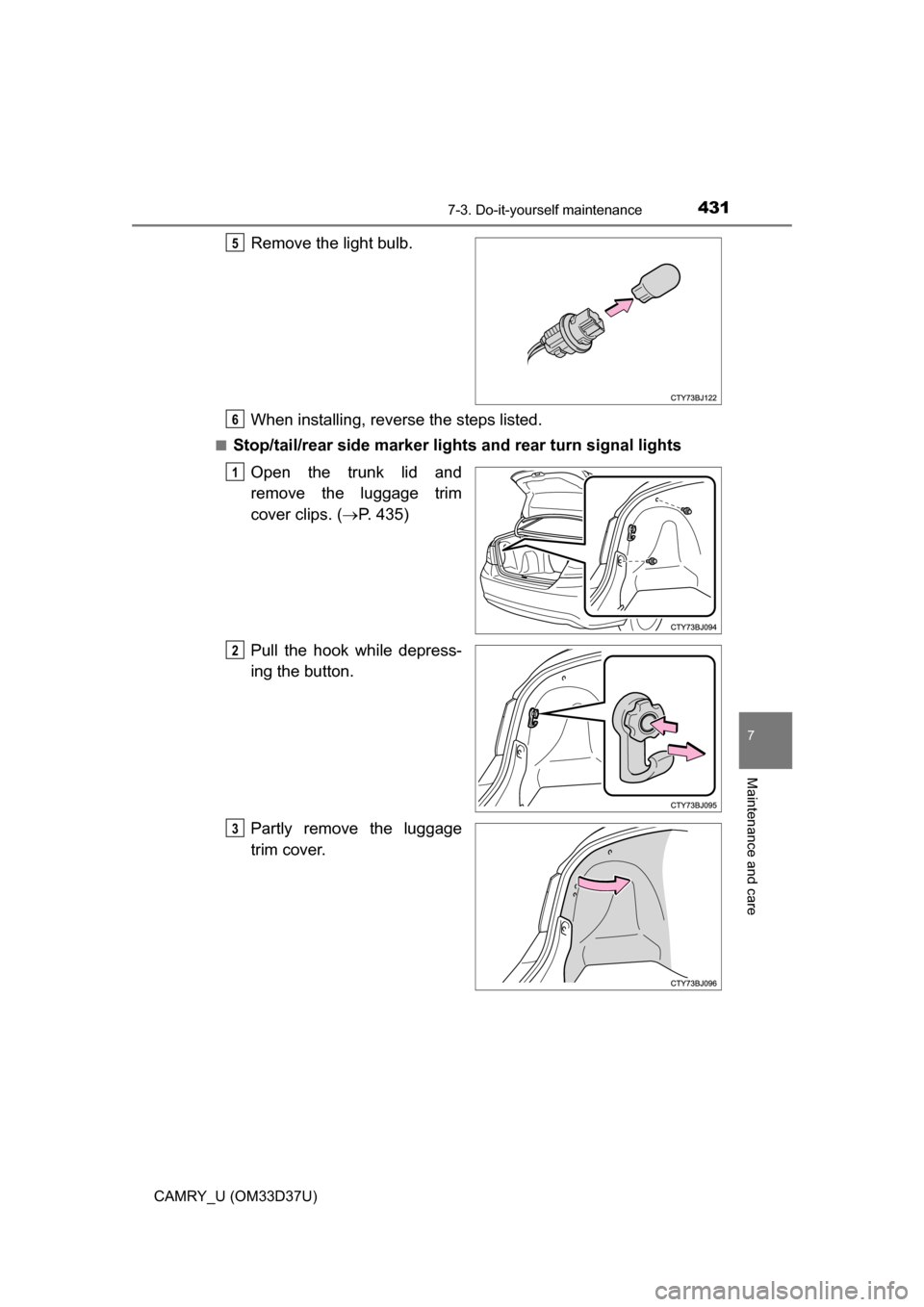

■Stop/tail/rear side marker lights and rear turn signal lights
Open the trunk lid and
remove the luggage trim
cover clips. ( P. 435)
Pull the hook while depress-
ing the button.
Partly remove the luggage
trim cover.
5
6
1
2
3

4327-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)

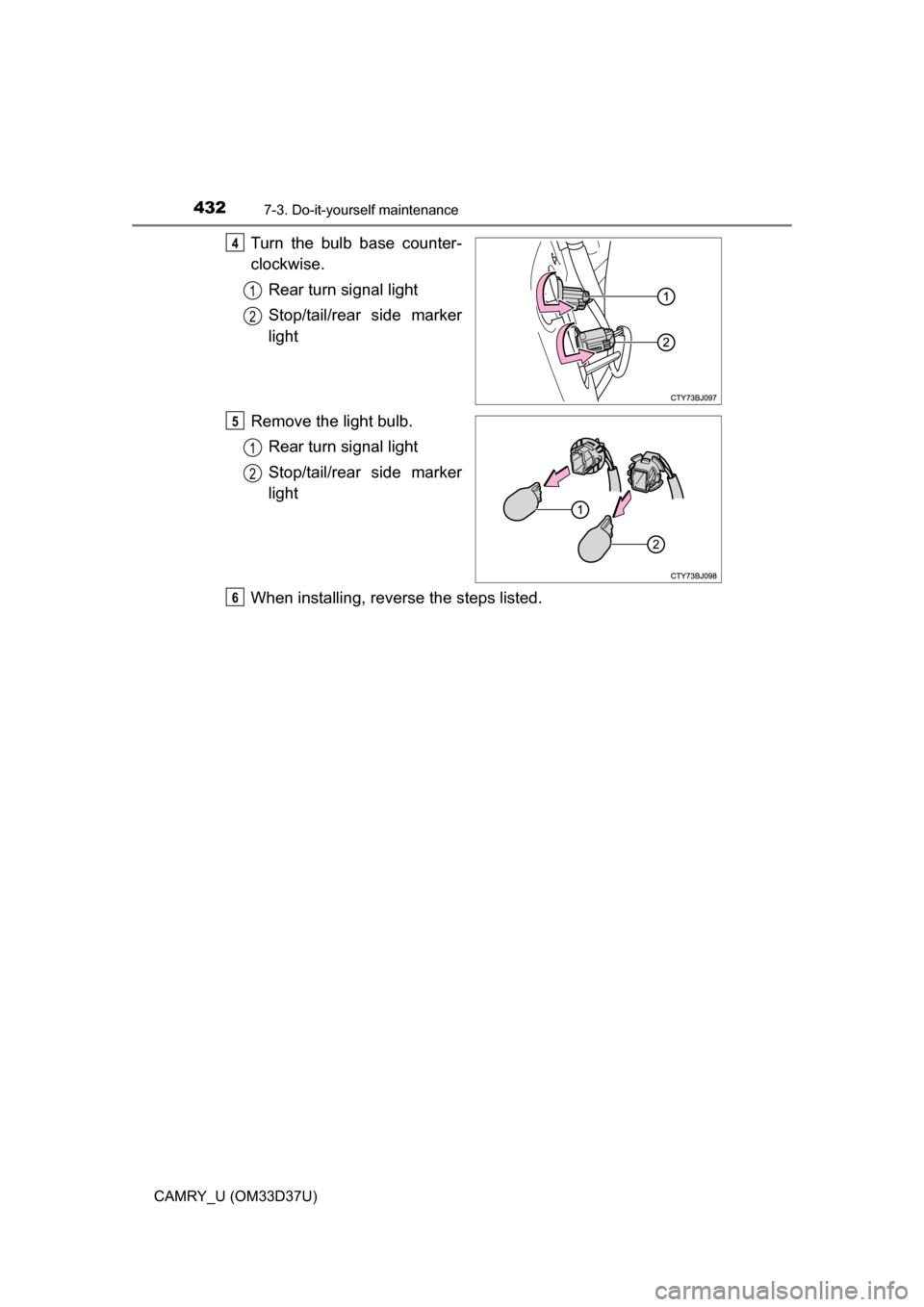

Turn the bulb base counter-
clockwise.Rear turn signal light
Stop/tail/rear side marker
light
Remove the light bulb. Rear turn signal light
Stop/tail/rear side marker
light
When installing, reve rse the steps listed.4
1
2
5
1
2
6

4337-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)■

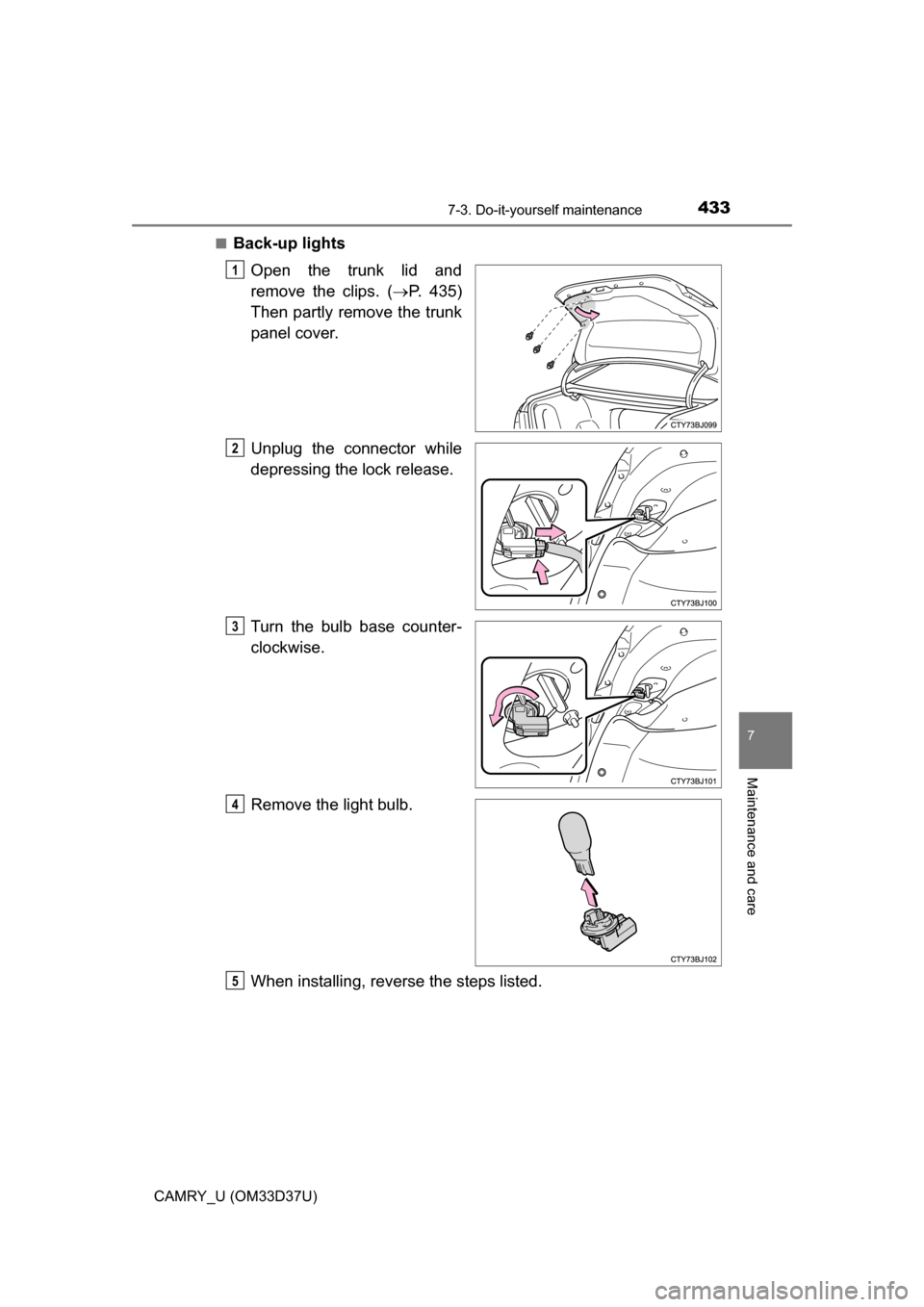

Back-up lights
Open the trunk lid and
remove the clips. ( P. 435)
Then partly remove the trunk
panel cover.
Unplug the connector while
depressing the lock release.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
3
4
5

4347-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)■

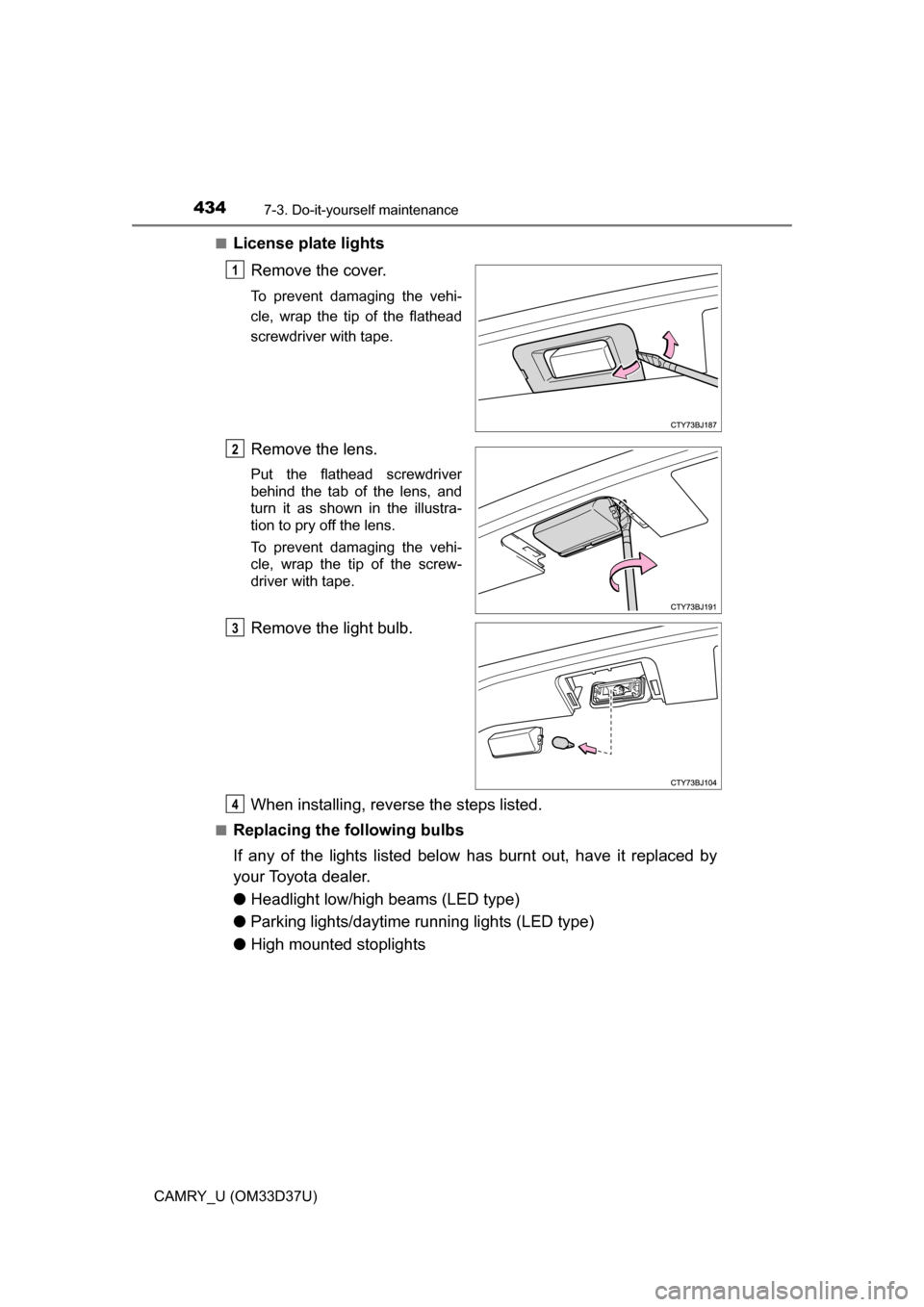

License plate lights
Remove the cover.
To prevent damaging the vehi-
cle, wrap the tip of the flathead
screwdriver with tape.
Remove the lens.
Put the flathead screwdriver
behind the tab of the lens, and
turn it as shown in the illustra-
tion to pry off the lens.
To prevent damaging the vehi-
cle, wrap the tip of the screw-
driver with tape.
Remove the light bulb.
When installing, reve rse the steps listed.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low/high beams (LED type)
● Parking lights/daytime running lights (LED type)
● High mounted stoplights
1
2
3
4

4357-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)

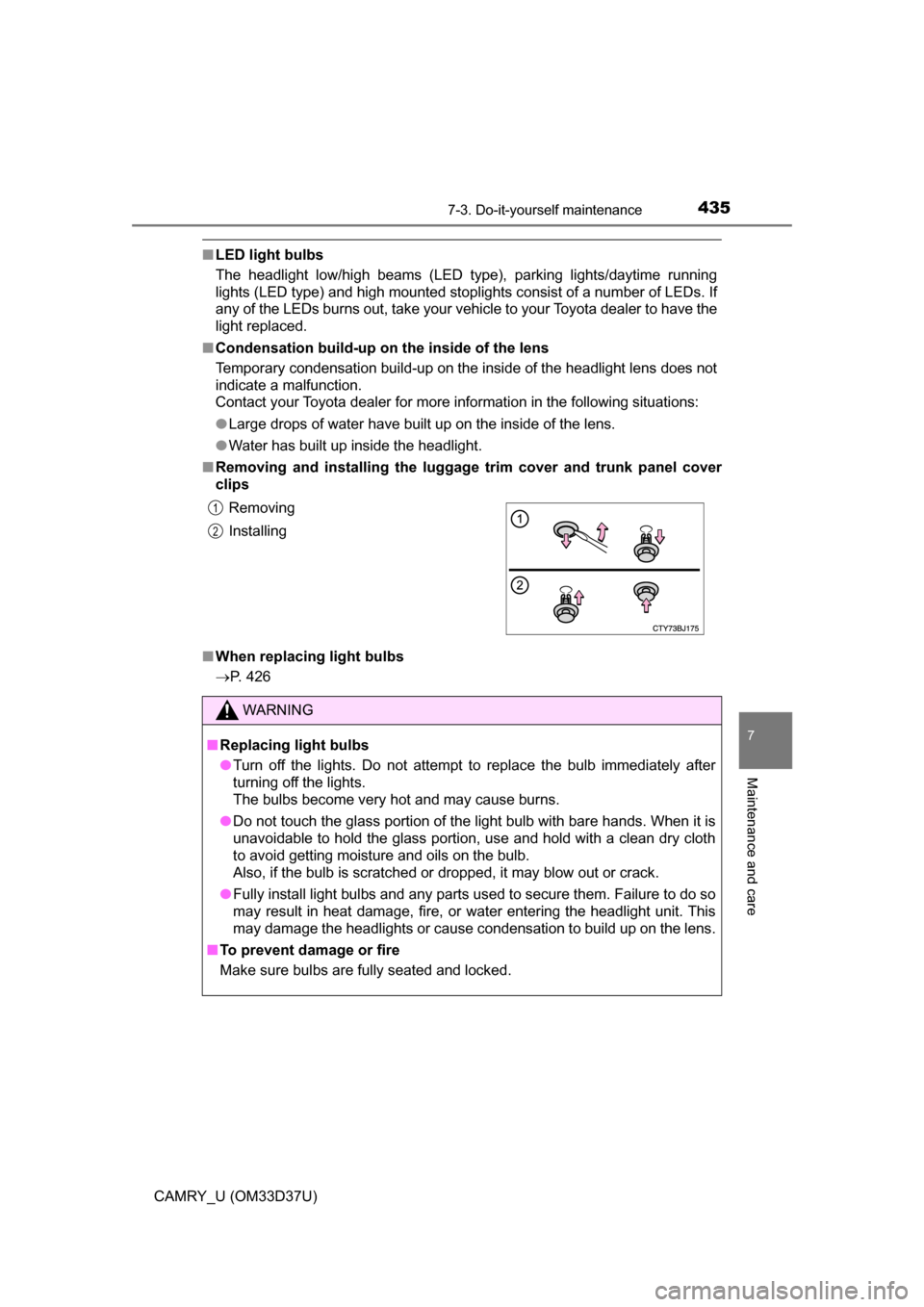

■LED light bulbs
The headlight low/high beams (LED ty pe), parking lights/daytime running
lights (LED type) and high mounted stoplights consist of a number of LEDs. If
any of the LEDs burns out, take your vehicle to your Toyota dealer to have the
light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ Removing and installing the luggag e trim cover and trunk panel cover
clips
■ When replacing light bulbs
P. 426Removing
Installing
WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
1
2

4367-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)

437
8When trouble arises
CAMRY_U (OM33D37U)8-1. Essential information
Emergency flashers .......... 438
If your vehicle has to be stopped in an
emergency ...................... 439
8-2. Steps to take in an emergency
If your vehicle needs to be towed .............................. 441
If you think something is wrong .............................. 444
Fuel pump shut off system ............................ 445
If a warning light turns on or a warning buzzer
sounds ............................ 446
If a warning message or indicator is displayed ...... 454
If you have a flat tire.......... 470
If the engine will not start ................................. 482
If the shift lever cannot be shifted from P............. 484
If the electronic key does not operate properly........ 485
If the vehicle battery is discharged ...................... 488
If your vehicle overheats ........................ 492
If the vehicle becomes stuck ............................... 495

438
CAMRY_U (OM33D37U)
8-1. Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.

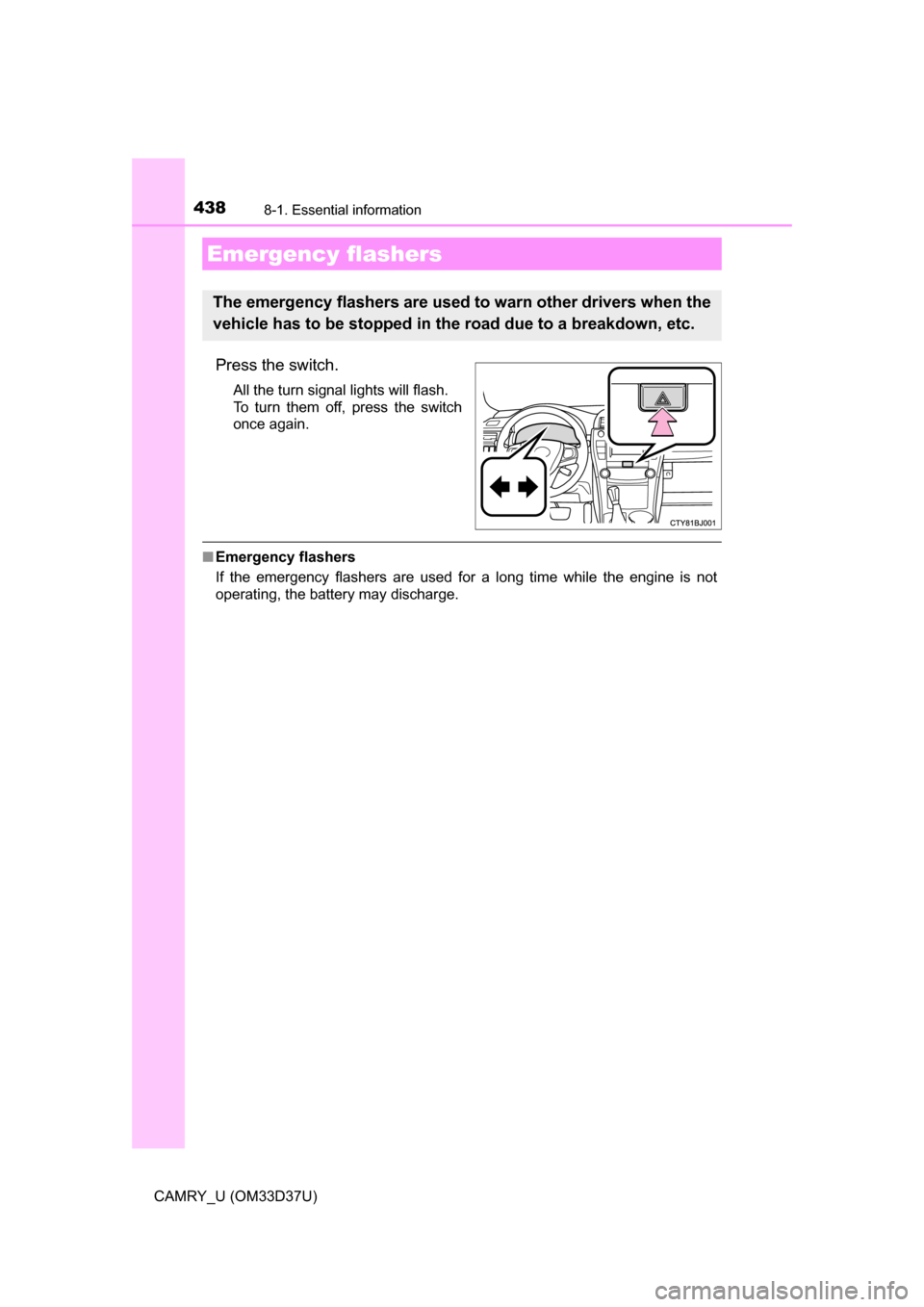

Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in th e road due to a breakdown, etc.

4398-1. Essential information
8
When trouble arises
CAMRY_U (OM33D37U)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to the
“ACC” position.
Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.

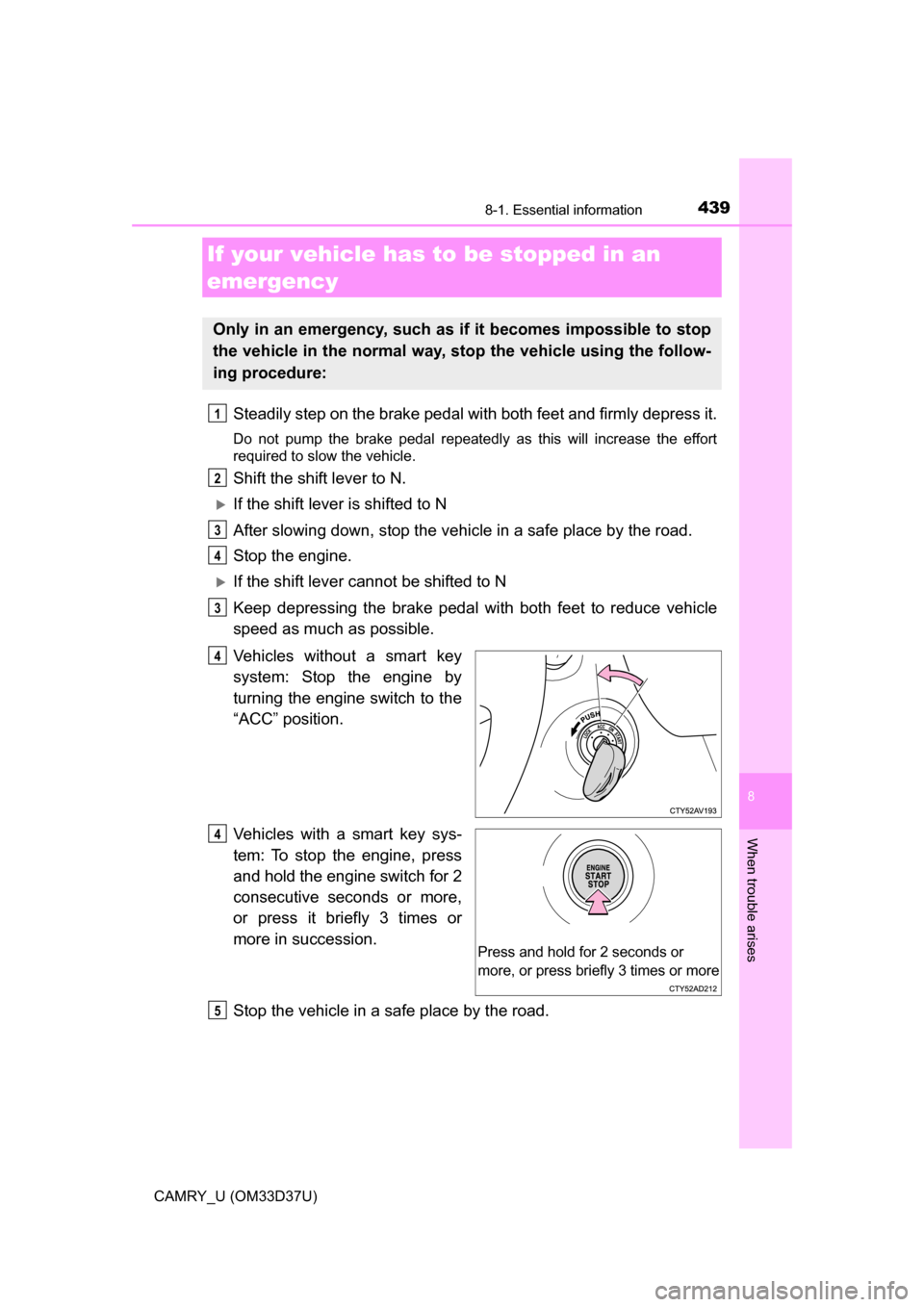

If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, st op the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
5

4408-1. Essential information
CAMRY_U (OM33D37U)

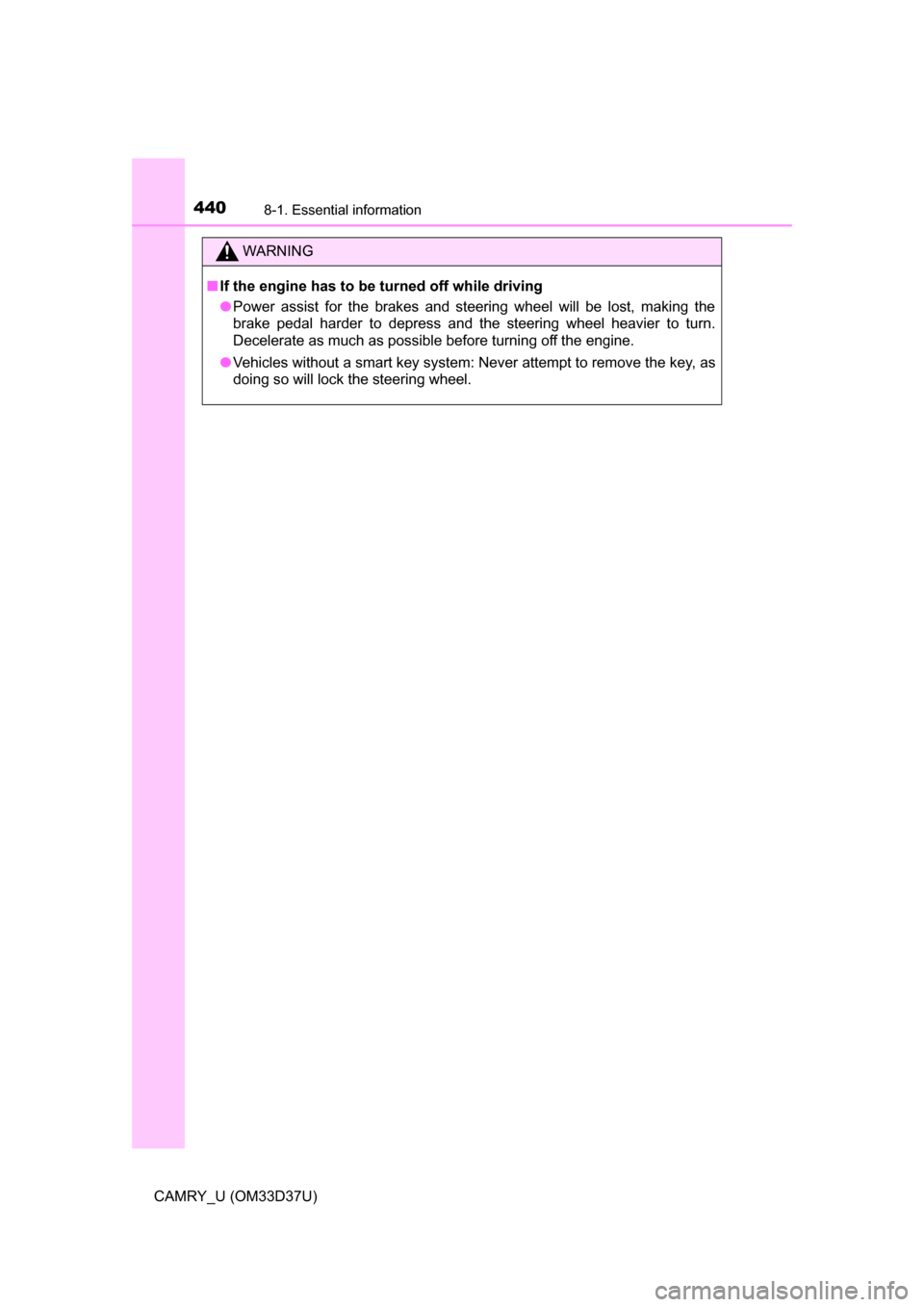

WARNING
■If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
