TOYOTA CAMRY 2016 XV50 / 9.G Owners Manual

4518-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33D37U)

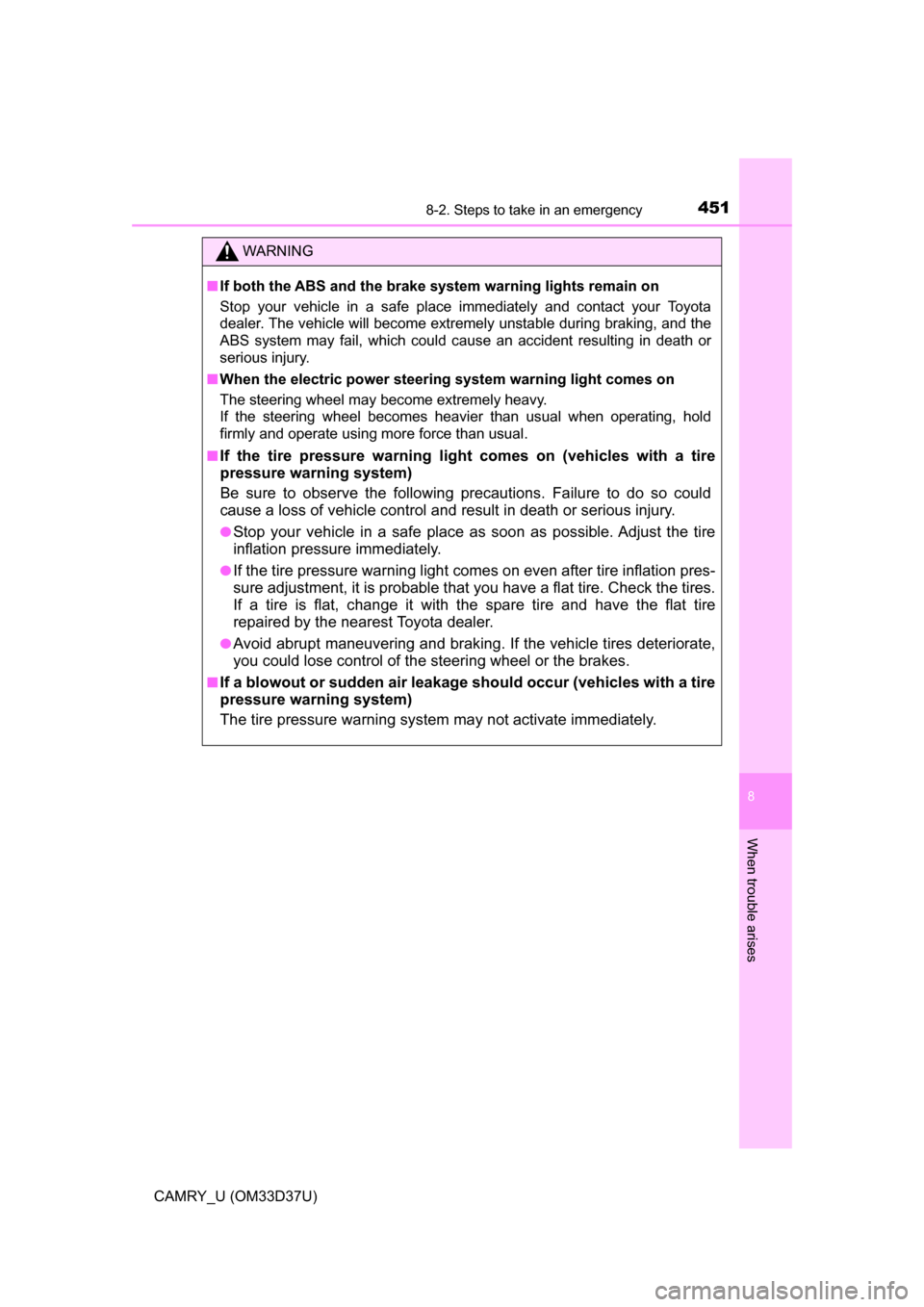

WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Toyota
dealer. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavie r than usual when operating, hold
firmly and operate using more force than usual.
■
If the tire pressure warning light comes on (vehicles with a tire
pressure warning system)
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light co mes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If a tire is flat, change it with the spare tire and have the flat tire
repaired by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.

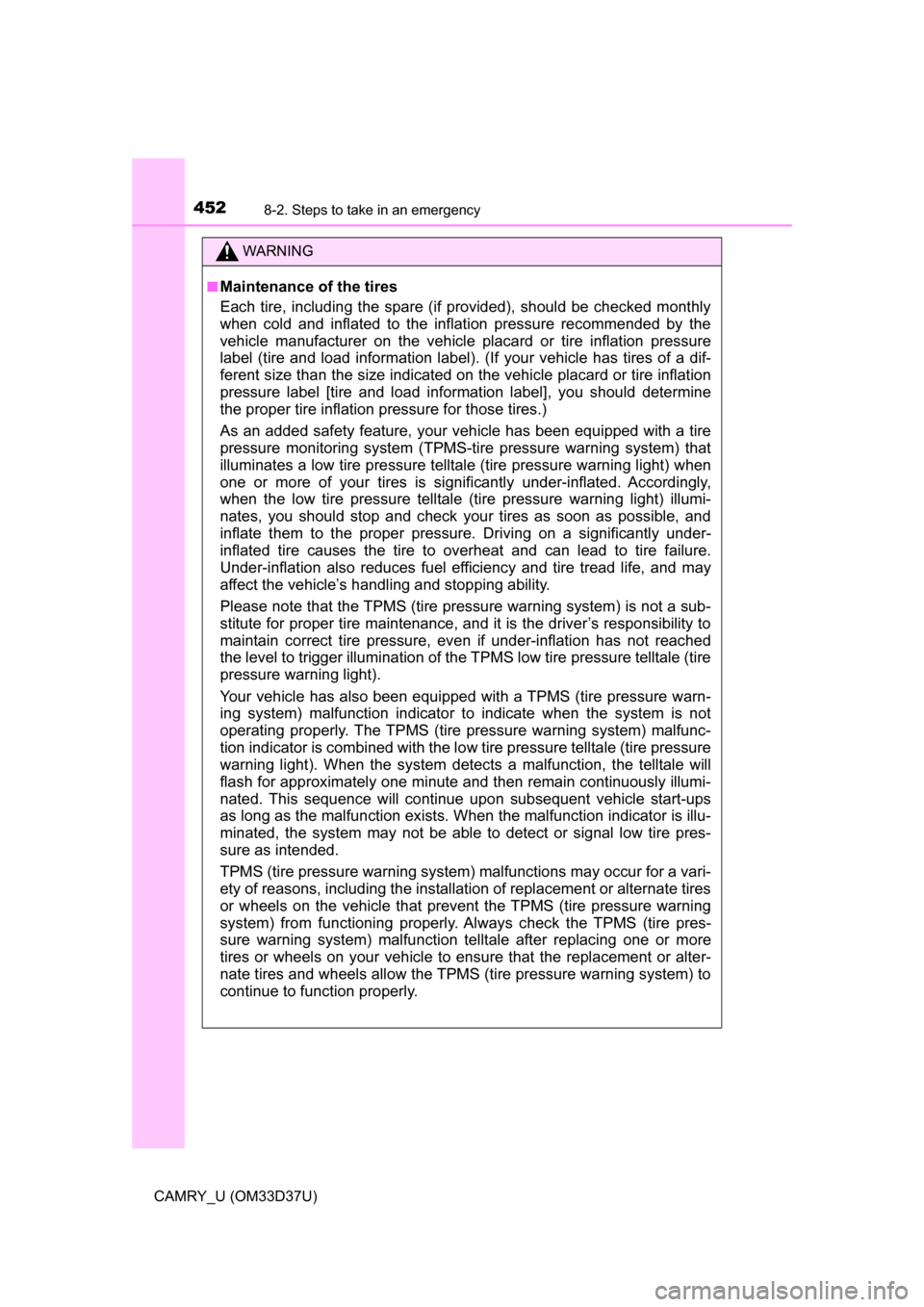

4528-2. Steps to take in an emergency
CAMRY_U (OM33D37U)
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a dif-
ferent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pre ssure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper ti re maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the lo w tire pressure telltale (tire pressure
warning light). When the system detects a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.

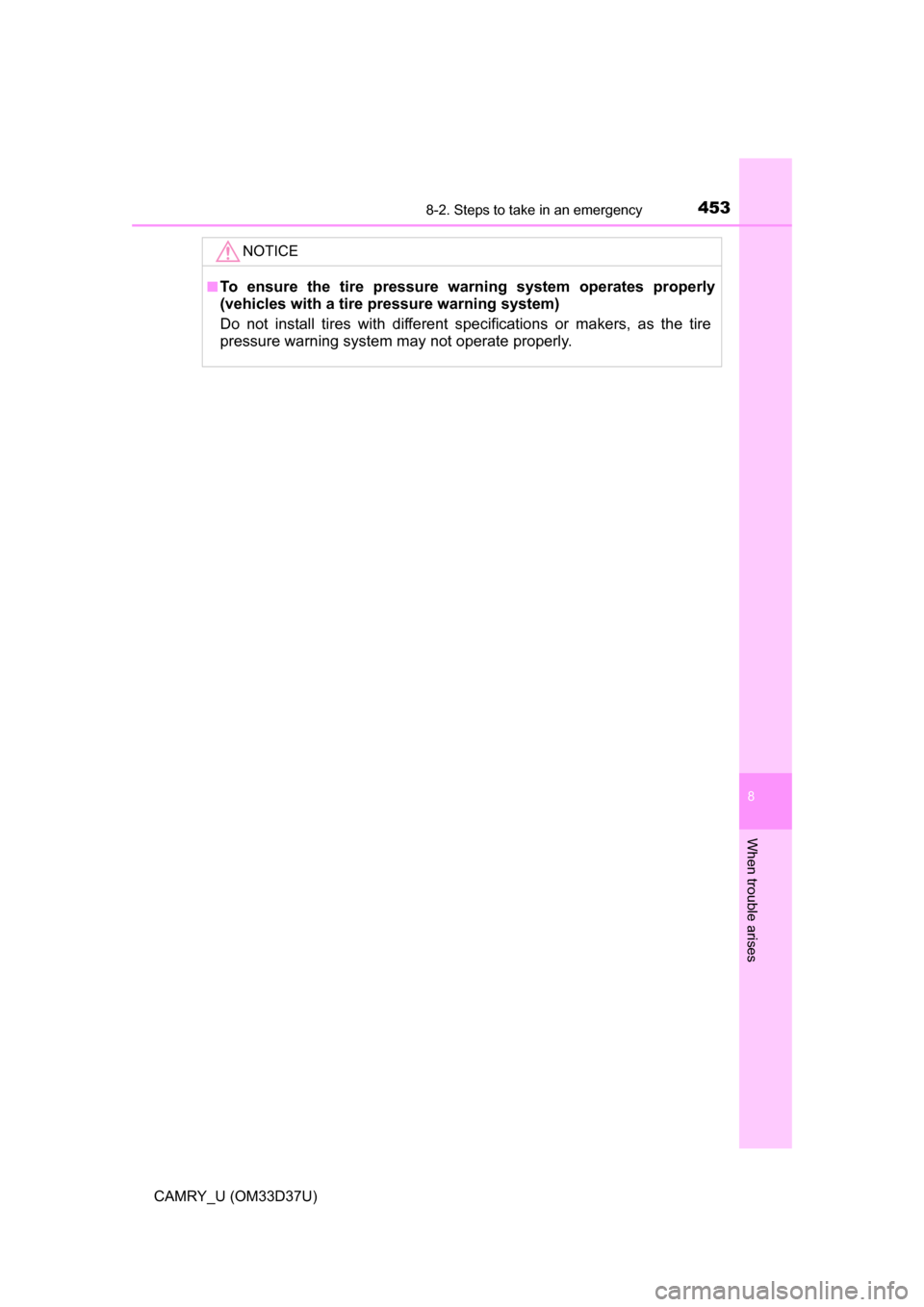

4538-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33D37U)
NOTICE
■To ensure the tire pressure warning system operates properly
(vehicles with a tire pressure warning system)
Do not install tires with different sp ecifications or makers, as the tire
pressure warning system may not operate properly.

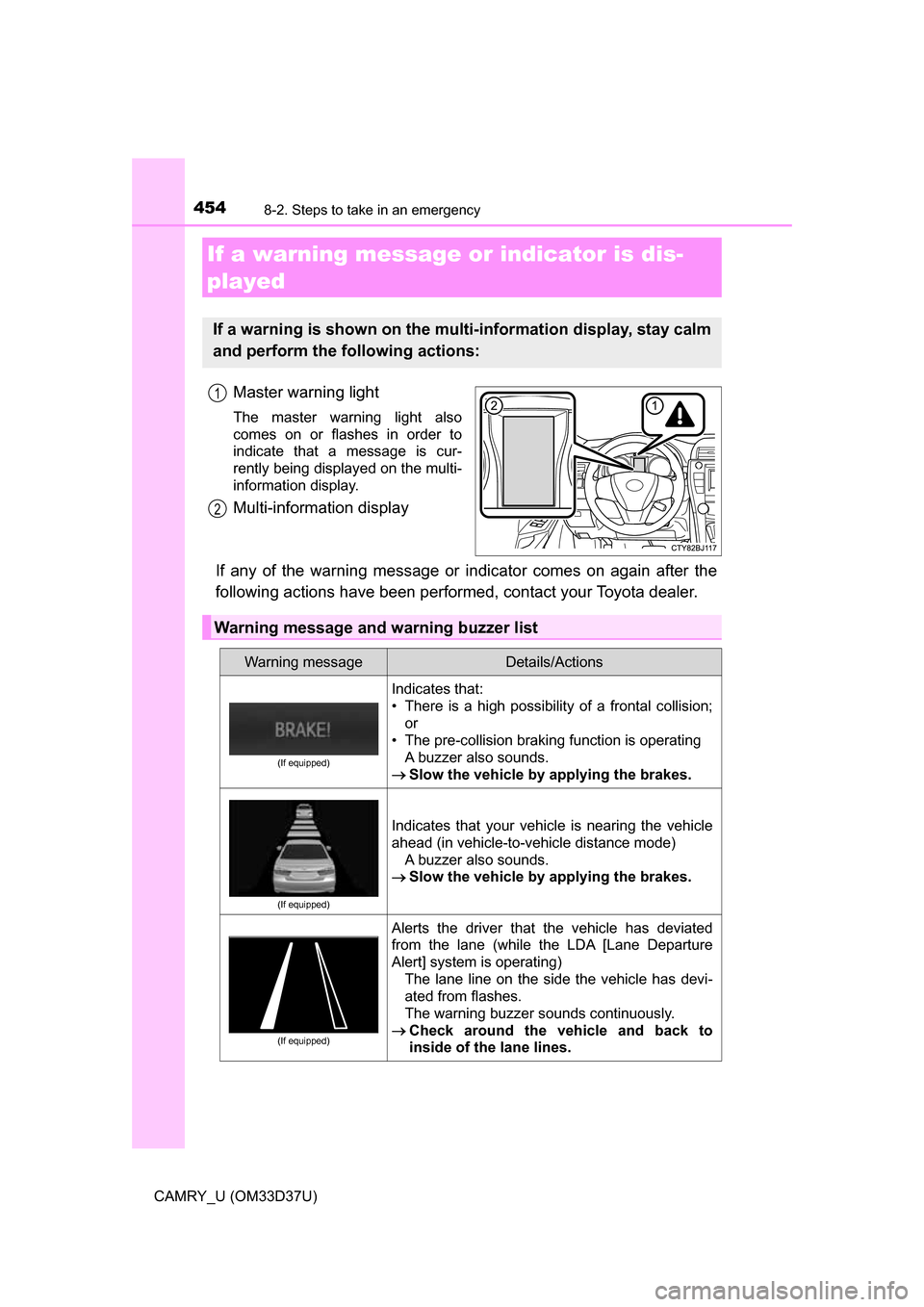

4548-2. Steps to take in an emergency
CAMRY_U (OM33D37U)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning message or indicator comes on again after the
following actions have been performed, contact your Toyota dealer.
If a warning message or indicator is dis-
played
If a warning is shown on the mult i-information display, stay calm
and perform the following actions:
1
2
Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision; or
• The pre-collision braking function is operating
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(If equipped)
Indicates that your vehicle is nearing the vehicle
ahead (in vehicle-to-vehicle distance mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(If equipped)
Alerts the driver that the vehicle has deviated
from the lane (while the LDA [Lane Departure
Alert] system is operating)
The lane line on the side the vehicle has devi-
ated from flashes.
The warning buzzer sounds continuously.
 Check around the vehicle and back to
inside of the lane lines.

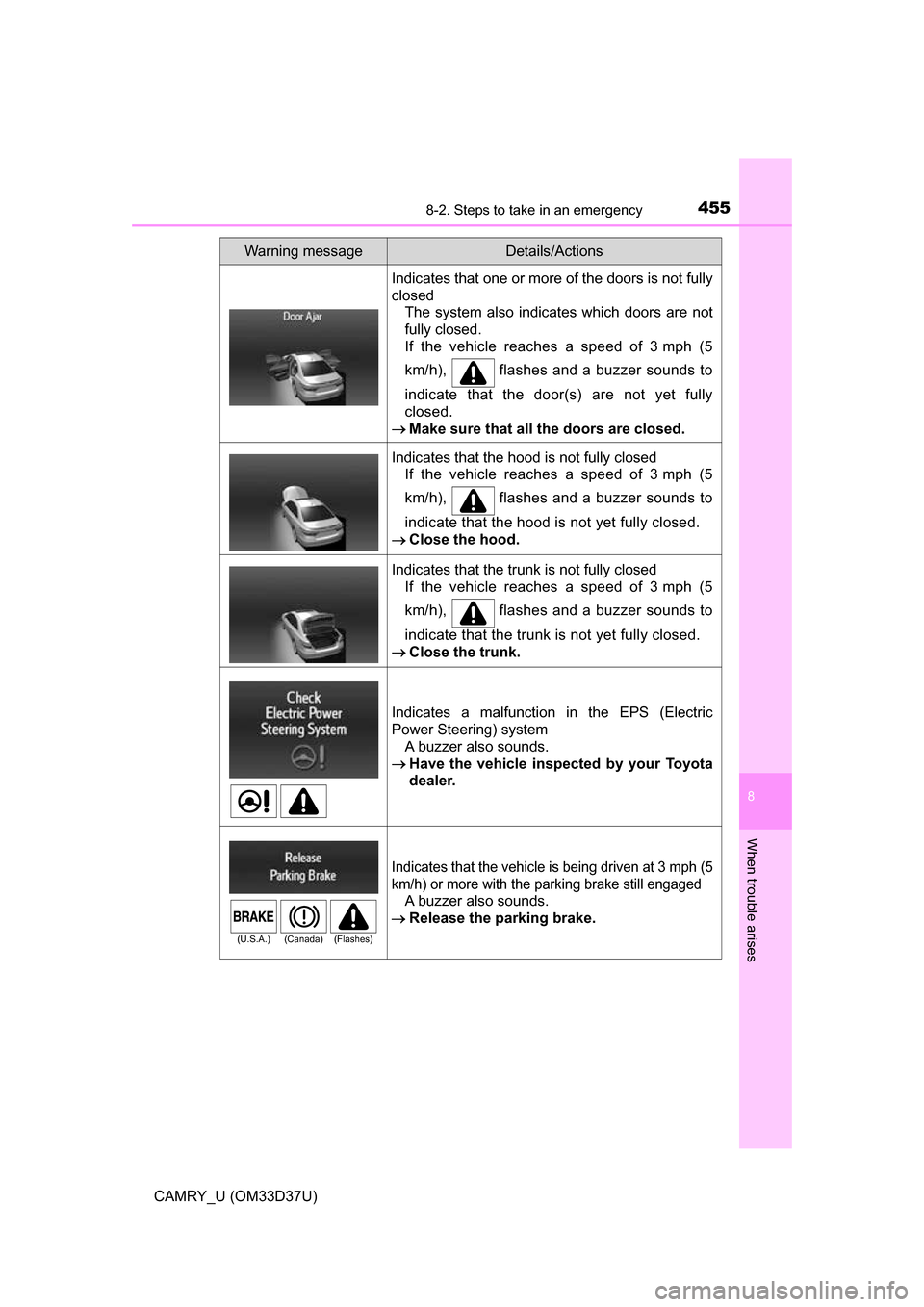

4558-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33D37U)
Indicates that one or more of the doors is not fully
closedThe system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph (5
km/h), flashes and a buzzer sounds to
indicate that the door(s) are not yet fully
closed.
 Make sure that all the doors are closed.
Indicates that the hood is not fully closed
If the vehicle reaches a speed of 3 mph (5
km/h), flashes and a buzzer sounds to
indicate that the hood is not yet fully closed.
 Close the hood.
Indicates that the trunk is not fully closed
If the vehicle reaches a speed of 3 mph (5
km/h), flashes and a buzzer sounds to
indicate that the trunk is not yet fully closed.
 Close the trunk.
Indicates a malfunction in the EPS (Electric
Power Steering) system
A buzzer also sounds.
 Have the vehicle inspect ed by your Toyota
dealer.
Indicates that the vehicle is being driven at 3 mph (5
km/h) or more with the parking brake still engaged
A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions
(U.S.A.) (Canada) (Flashes)

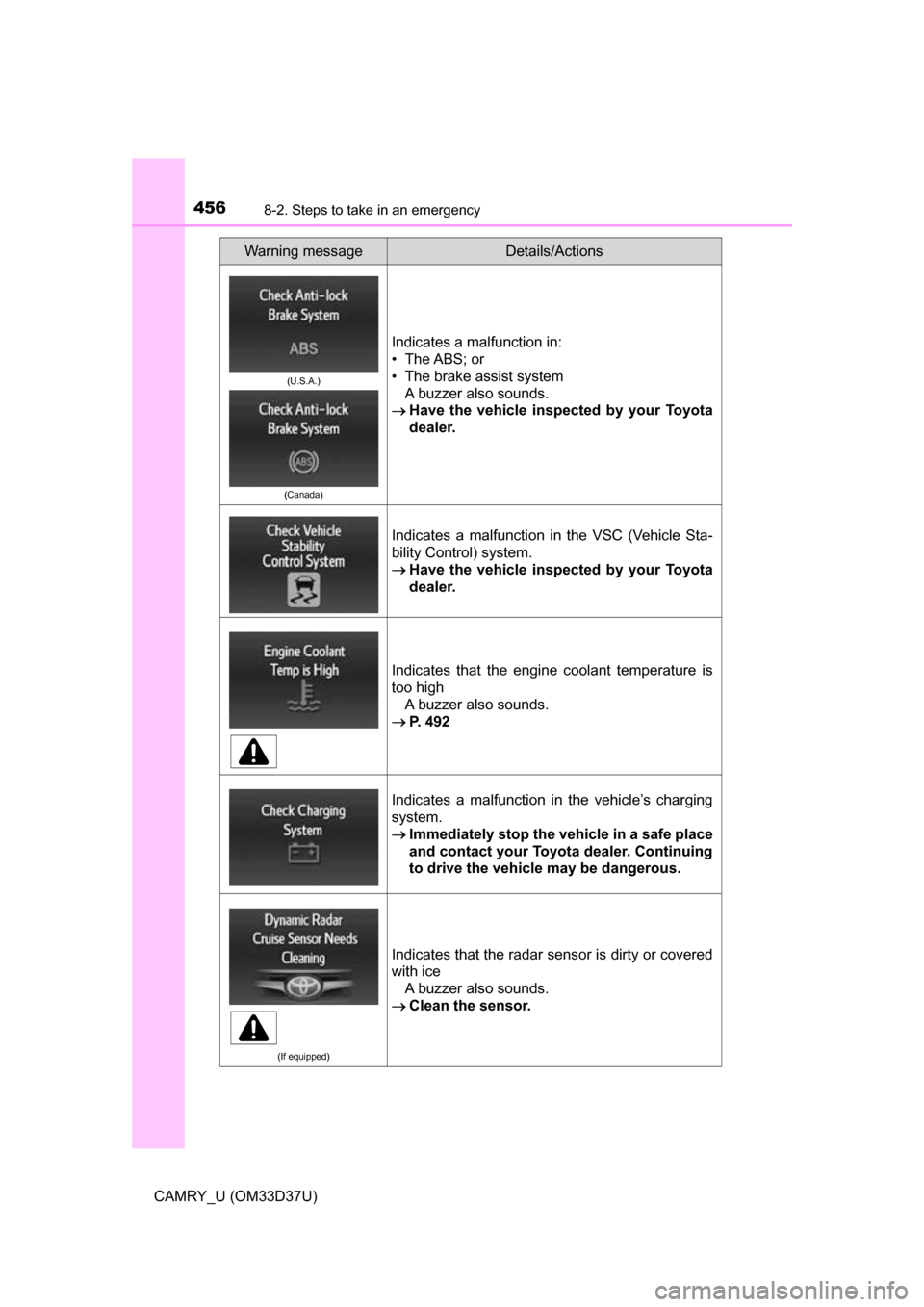

4568-2. Steps to take in an emergency
CAMRY_U (OM33D37U)
(U.S.A.)
(Canada)
Indicates a malfunction in:
• The ABS; or
• The brake assist system A buzzer also sounds.
 Have the vehicle inspect ed by your Toyota
dealer.
Indicates a malfunction in the VSC (Vehicle Sta-
bility Control) system.
 Have the vehicle inspect ed by your Toyota
dealer.
Indicates that the engine coolant temperature is
too high A buzzer also sounds.
 P. 492
Indicates a malfunction in the vehicle’s charging
system.
Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice A buzzer also sounds.
 Clean the sensor.
Warning messageDetails/Actions

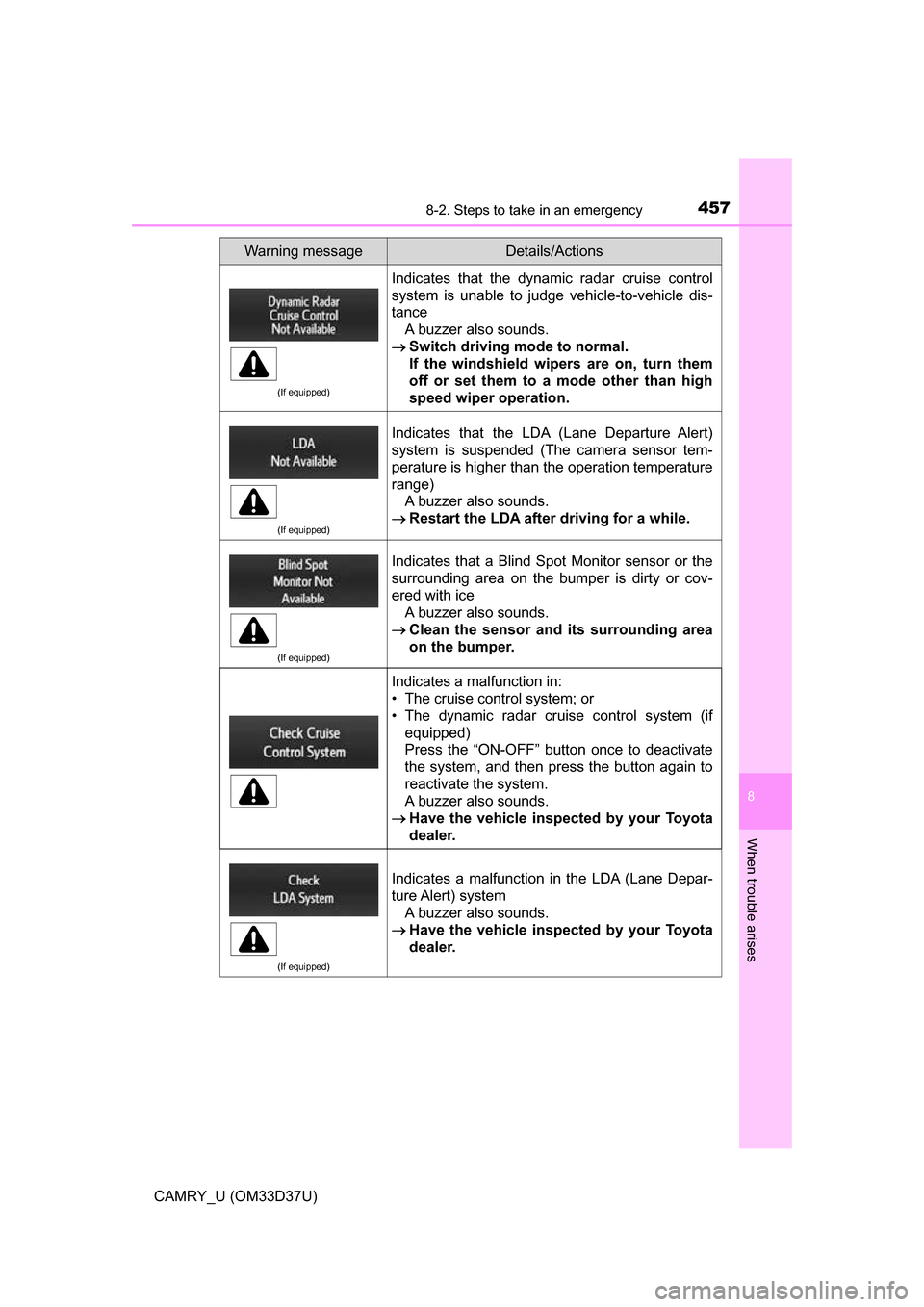

4578-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33D37U)
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tanceA buzzer also sounds.
 Switch driving mode to normal.
If the windshield wipers are on, turn them
off or set them to a mode other than high
speed wiper operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system is suspended (The camera sensor tem-
perature is higher than the operation temperature
range)
A buzzer also sounds.
 Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or cov-
ered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area
on the bumper.
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system (if equipped)
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
 Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Depar-
ture Alert) system A buzzer also sounds.
 Have the vehicle inspect ed by your Toyota
dealer.
Warning messageDetails/Actions

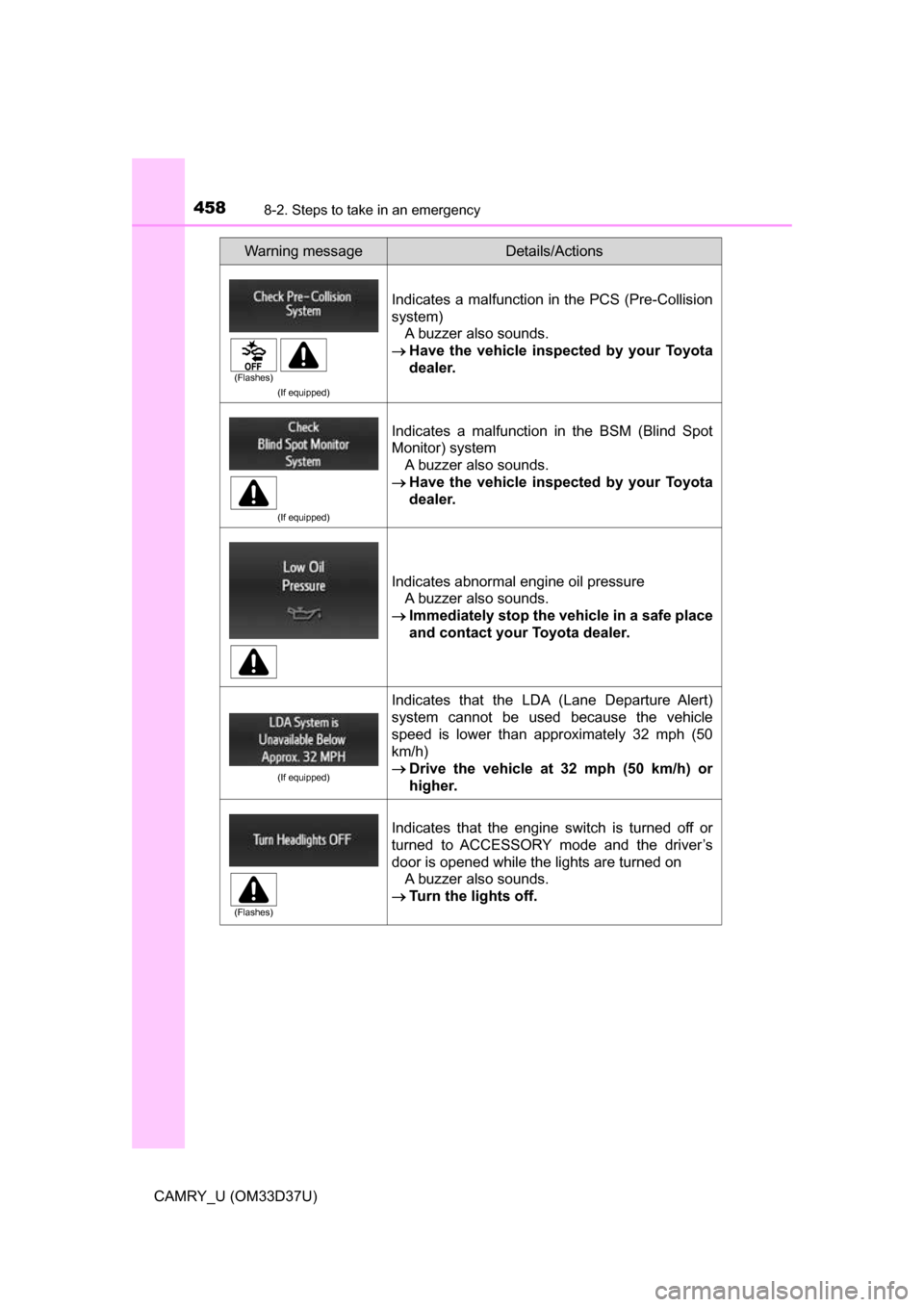

4588-2. Steps to take in an emergency
CAMRY_U (OM33D37U)
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision
system)A buzzer also sounds.
 Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot
Monitor) system A buzzer also sounds.
 Have the vehicle inspect ed by your Toyota
dealer.
Indicates abnormal engine oil pressure A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system cannot be used because the vehicle
speed is lower than approximately 32 mph (50
km/h)
 Drive the vehicle at 32 mph (50 km/h) or
higher.
Indicates that the engine switch is turned off or
turned to ACCESSORY mode and the driver’s
door is opened while the lights are turned on
A buzzer also sounds.
 Turn the lights off.
Warning messageDetails/Actions
(Flashes)
(Flashes)

4598-2. Steps to take in an emergency
8
When trouble arises
CAMRY_U (OM33D37U)

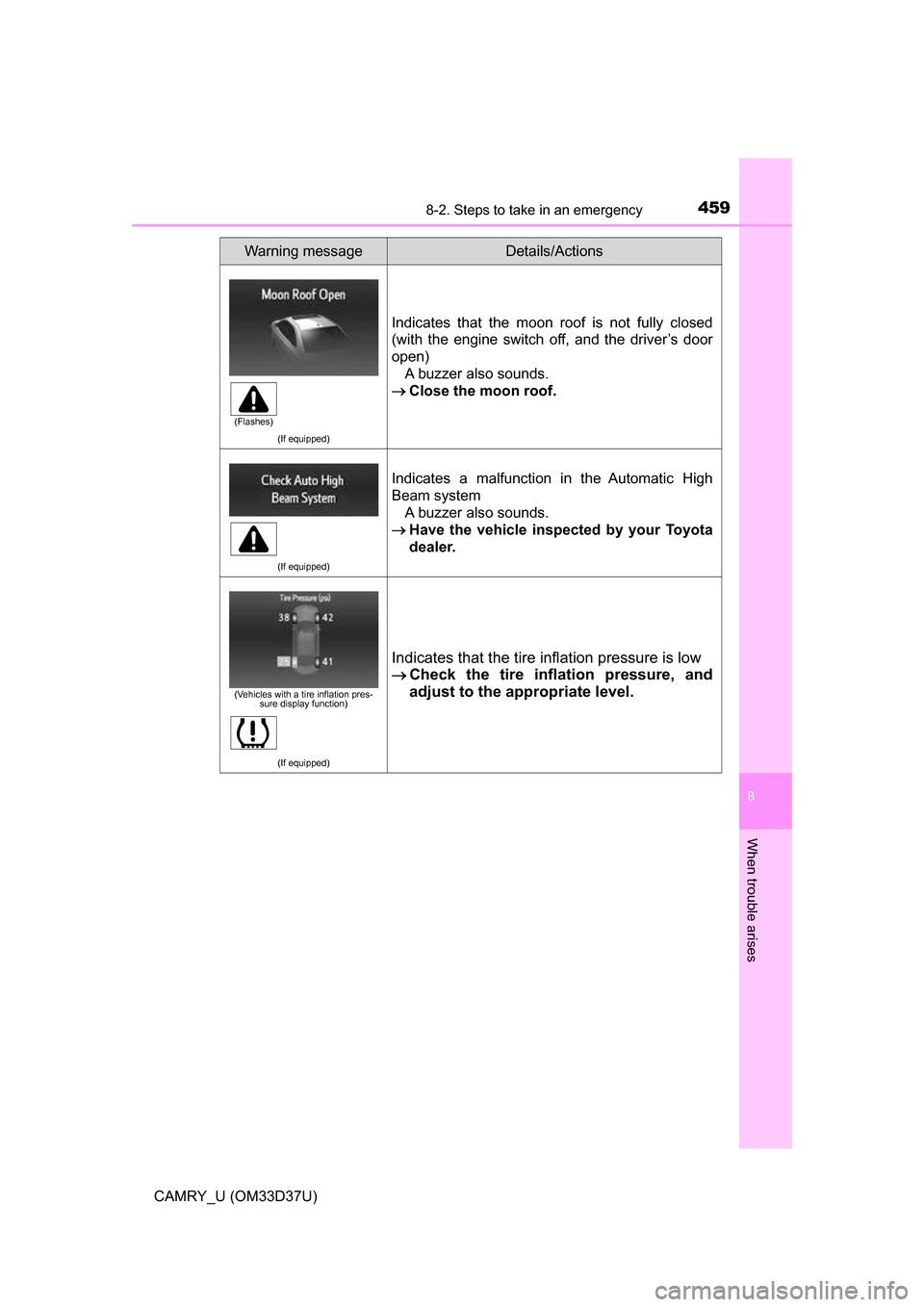

(If equipped)
Indicates that the moon roof is not fully closed
(with the engine switch off, and the driver’s door
open)A buzzer also sounds.
 Close the moon roof.
(If equipped)
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
 Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates that the tire inflation pressure is low
 Check the tire inflation pressure, and
adjust to the appropriate level.
Warning messageDetails/Actions
(Flashes)
(Vehicles with a tire inflation pres-
sure display function)

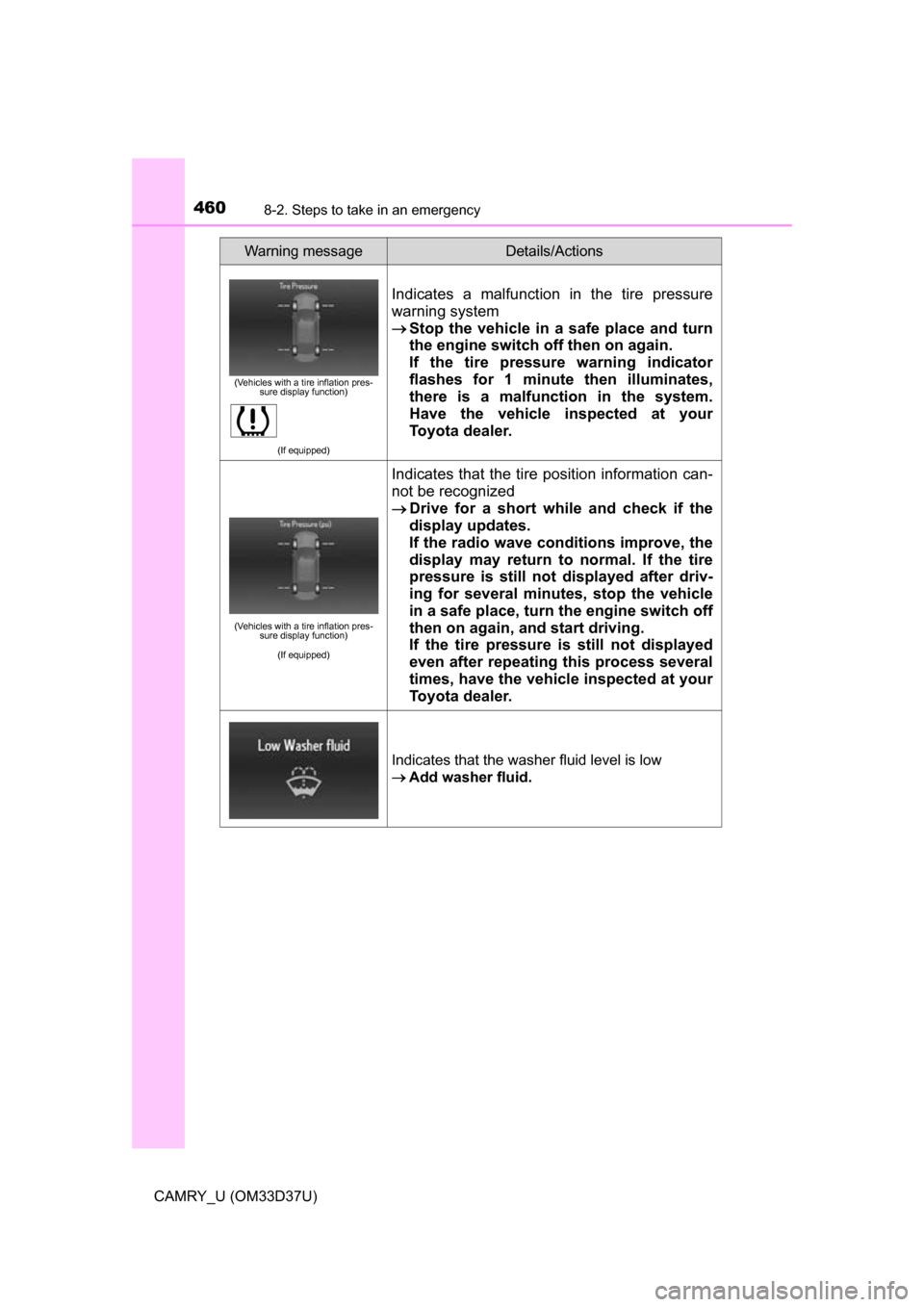

4608-2. Steps to take in an emergency
CAMRY_U (OM33D37U)
(If equipped)
Indicates a malfunction in the tire pressure
warning system
Stop the vehicle in a safe place and turn
the engine switch off then on again.
If the tire pressure warning indicator
flashes for 1 minute then illuminates,
there is a malfunction in the system.
Have the vehicle inspected at your
Toyota dealer.
(If equipped)
Indicates that the tire position information can-
not be recognized
 Drive for a short while and check if the
display updates.
If the radio wave conditions improve, the
display may return to normal. If the tire
pressure is still not displayed after driv-
ing for several minutes, stop the vehicle
in a safe place, turn the engine switch off
then on again, and start driving.
If the tire pressure is still not displayed
even after repeating this process several
times, have the vehicle inspected at your
Toyota dealer.
Indicates that the washer fluid level is low
 Add washer fluid.
Warning messageDetails/Actions
(Vehicles with a tire inflation pres-
sure display function)
(Vehicles with a tire inflation pres-sure display function)
