TOYOTA CAMRY 2020 Owners Manual (in English)

AWD
QUICK
REFERENCE
GUIDE2020

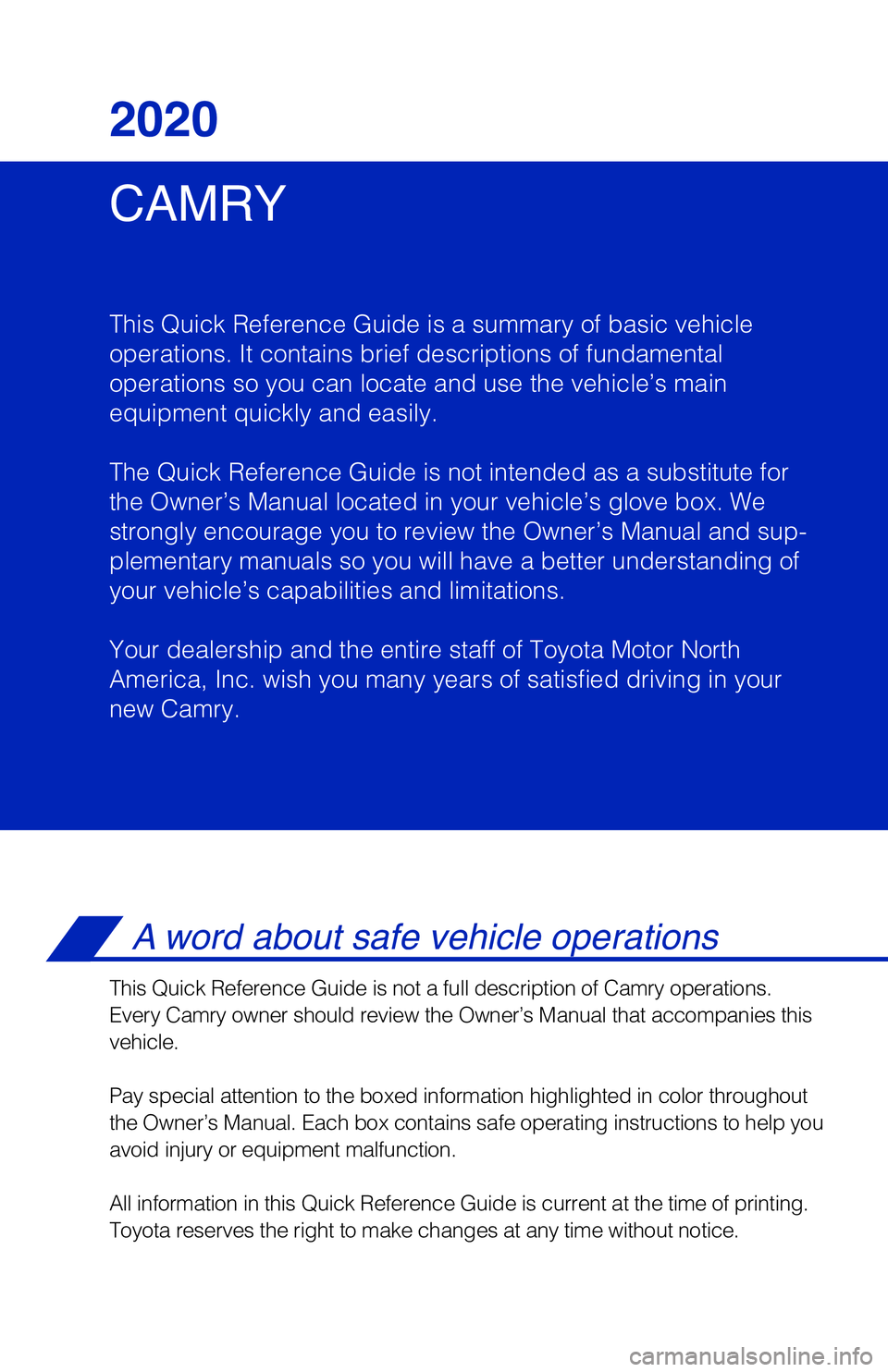

CAMRY 2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Camry.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Camry operations\�.
Every Camry owner should review the Owner’s Manual that accompanies t\�his
vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \�help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \�printing.
Toyota reserves the right to make changes at any time without notice.

FEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ P (TSS-P)

63474_MY20_Camry_Txt_R1.indd 163474_MY20_Camry_Txt_R1.indd 12/20/20 2:39 PM2/20/20 2:39 PM

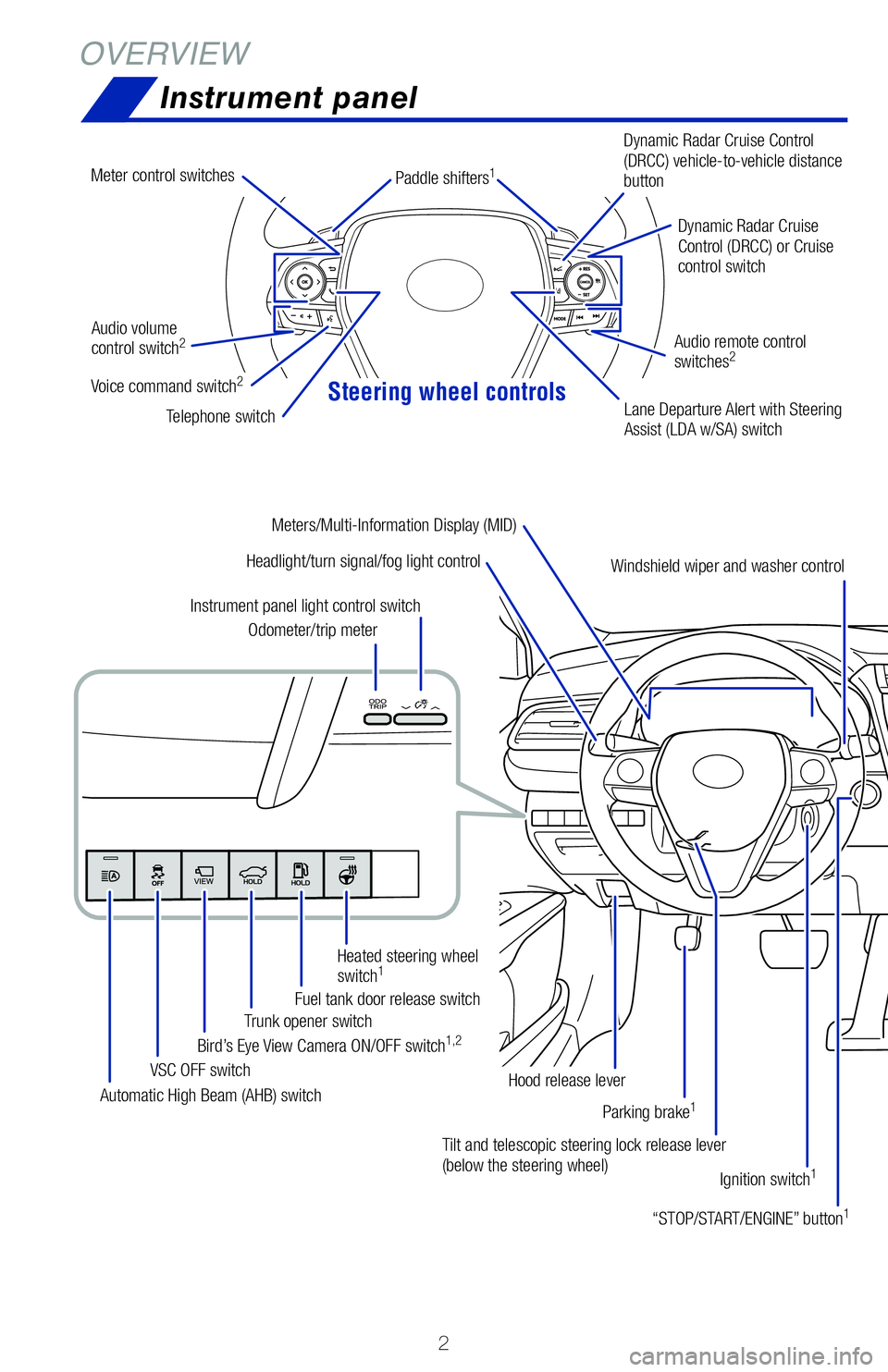

Steering wheel controls
2
OVERVIEWInstrument panel
Tilt and telescopic steering lock release lever
(below the steering wheel) Ignition switch
1
Headlight/turn signal/fog light control
Automatic High Beam (AHB) switch VSC OFF switch
Bird’s Eye View Camera ON/OFF switch
1,2Trunk opener switch
Fuel tank door release switchHeated steering wheel
switch
1
Odometer/trip meter
Instrument panel light control switch
“STOP/START/ENGINE” button
1
Hood release leverDynamic Radar Cruise
Control (DRCC) or Cruise
control switch
Dynamic Radar Cruise Control
(DRCC) vehicle-to-vehicle distance
button
Lane Departure Alert with Steering
Assist (LDA w/SA) switch
Audio volume
control switch
2
Telephone switch
Audio remote control
switches
2
Paddle shifters1
Windshield wiper and washer control
Meters/Multi-Information Display (MID)
Meter control switches
Voice command switch2
Parking brake1

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1

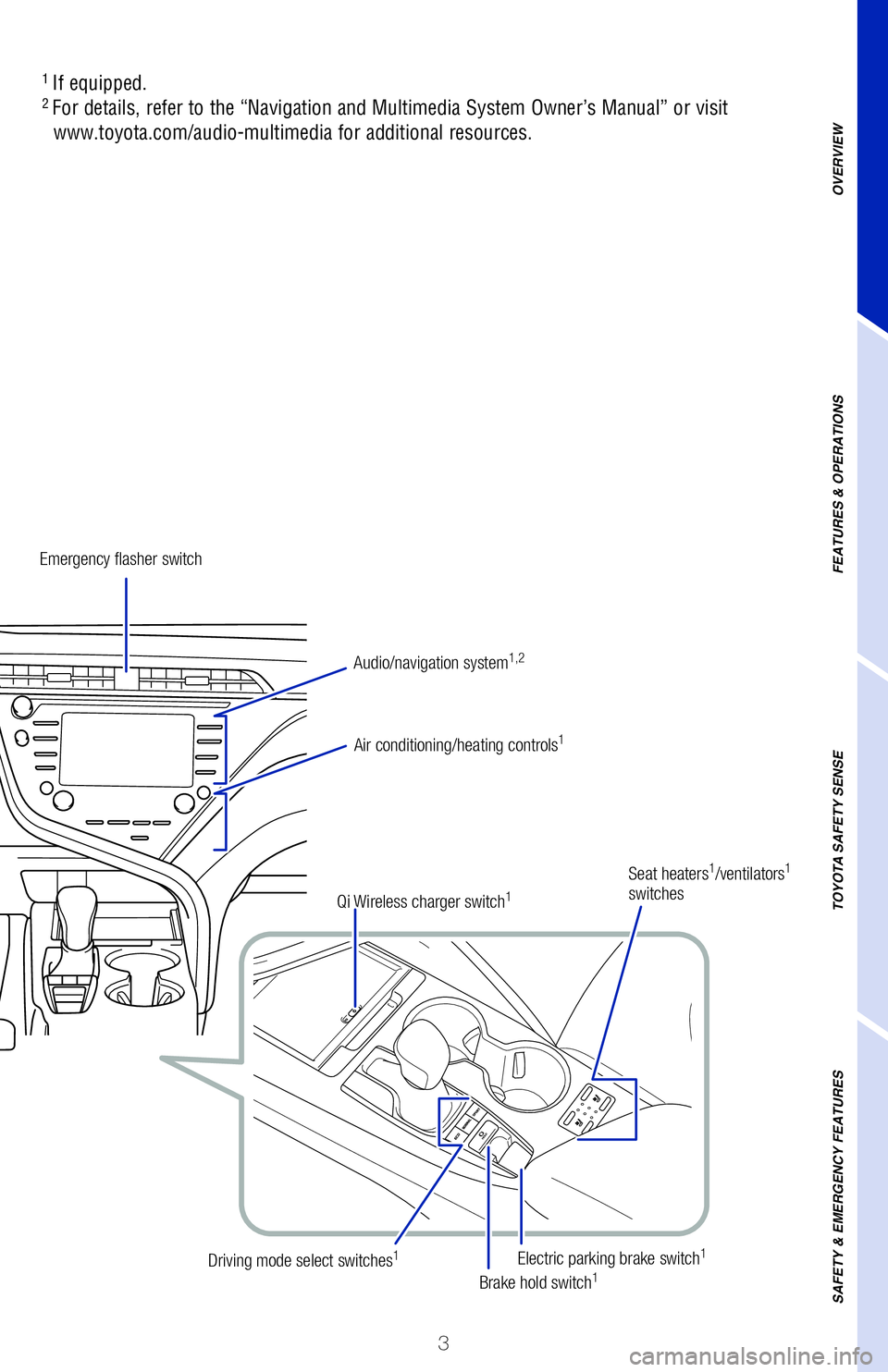

If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\�s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
Emergency flasher switch
Air conditioning/heating controls
1
Electric parking brake switch1
Brake hold switch1Driving mode select switches1
Seat heaters1/ventilators1
switches
Audio/navigation system
1,2
Qi Wireless charger switch1

4
For details, refer to “Indicators and warning lights,” Section 2, \�2020 Owner’s
Manual.
Airbag SRS warning1

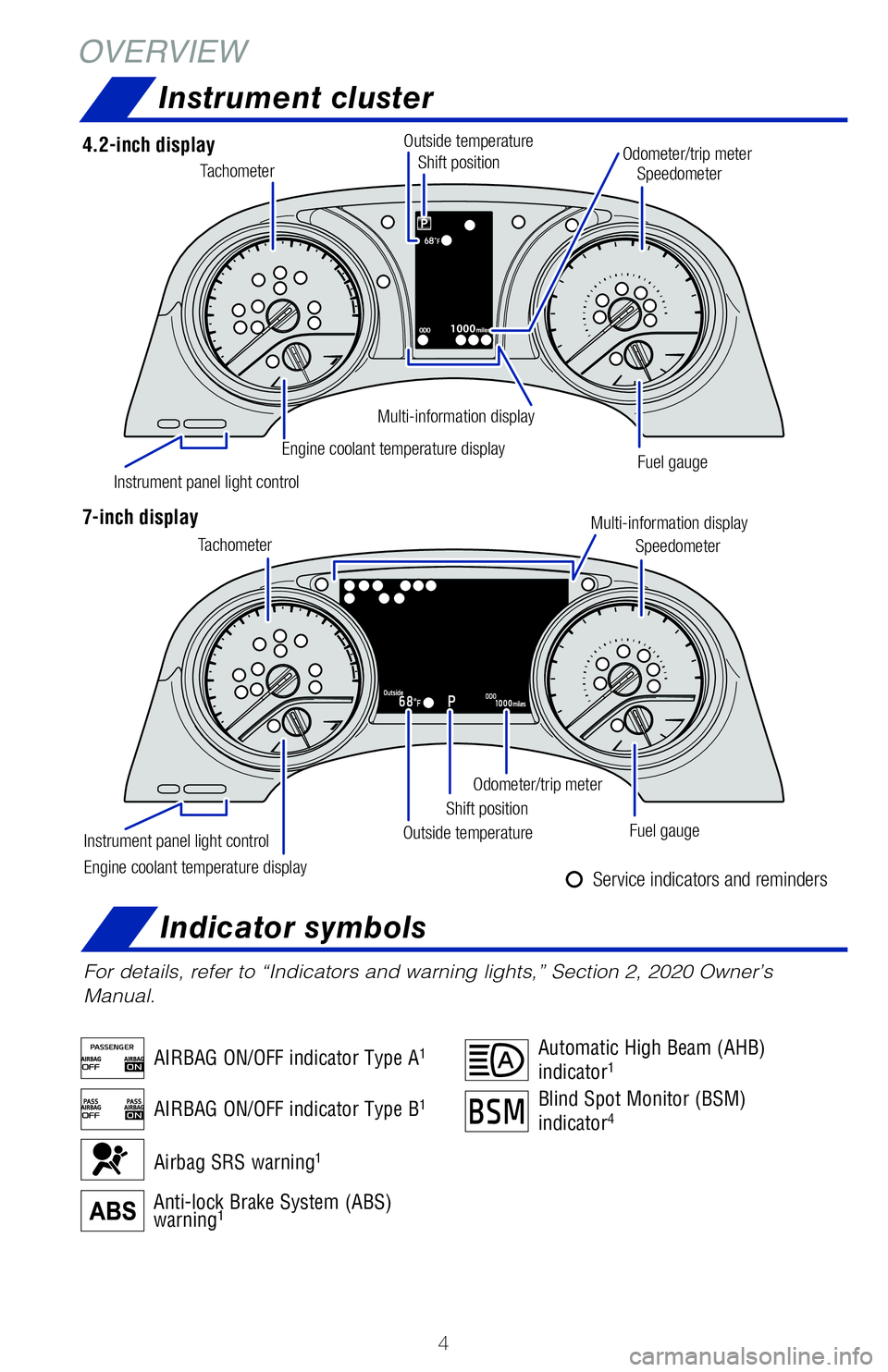

OVERVIEWInstrument cluster
Automatic High Beam (AHB)
indicator1
Blind Spot Monitor (BSM)
indicator4
Anti-lock Brake System (ABS)
warning1
AIRBAG ON/OFF indicator Type A1
AIRBAG ON/OFF indicator Type B1
Indicator symbols
TachometerTachometer
Outside temperature
Outside temperature Speedometer
Speedometer
Odometer/trip meter
Odometer/trip meter
Shift position
Shift position Fuel gauge
Fuel gauge
Multi-information display
Multi-information display
Engine coolant temperature display
Engine coolant temperature display Instrument panel light control
Instrument panel light control
Service indicators and reminders
4.2-inch display
7-inch display

5

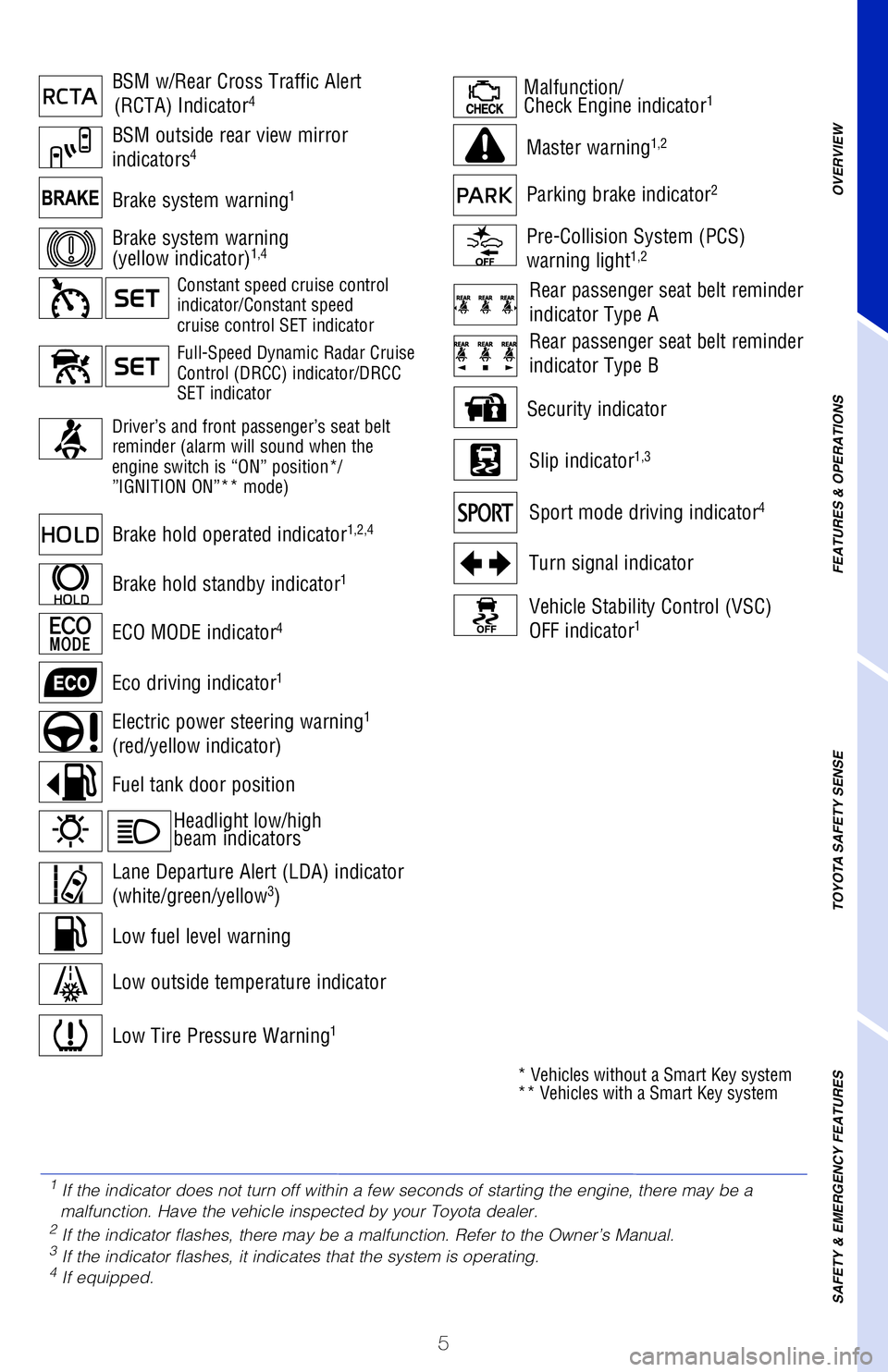

Full-Speed Dynamic Radar Cruise
Control (DRCC) indicator/DRCC
SET indicator
Brake system warning1
Malfunction/
Check Engine indicator1
Driver’s and front passenger’s seat belt
reminder (alarm will sound when the
engine switch is “ON” position*/
”IGNITION ON”** mode)
Low Tire Pressure Warning1
Low fuel level warning
Security indicator
Fuel tank door position Master warning
1,2
Headlight low/high
beam indicators
Turn signal indicator
Pre-Collision System (PCS)
warning light1,2
Slip indicator1,3
Vehicle Stability Control (VSC)
OFF indicator1
Eco driving indicator1
Parking brake indicator2
Rear passenger seat belt reminder
indicator Type A
Rear passenger seat belt reminder
indicator Type B
Brake hold operated indicator1,2,4
Brake hold standby indicator1
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator4
BSM outside rear view mirror
indicators4
Brake system warning
(yellow indicator)1,4
Lane Departure Alert (LDA) indicator
(white/green/yellow3)
Electric power steering warning1
(red/yellow indicator)
Sport mode driving indicator4
ECO MODE indicator4
Low outside temperature indicator
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
1 If the indicator does not turn off within a few seconds of starting the \�engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\�’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
* Vehicles without a Smart Key system
** Vehicles with a Smart Key system

6

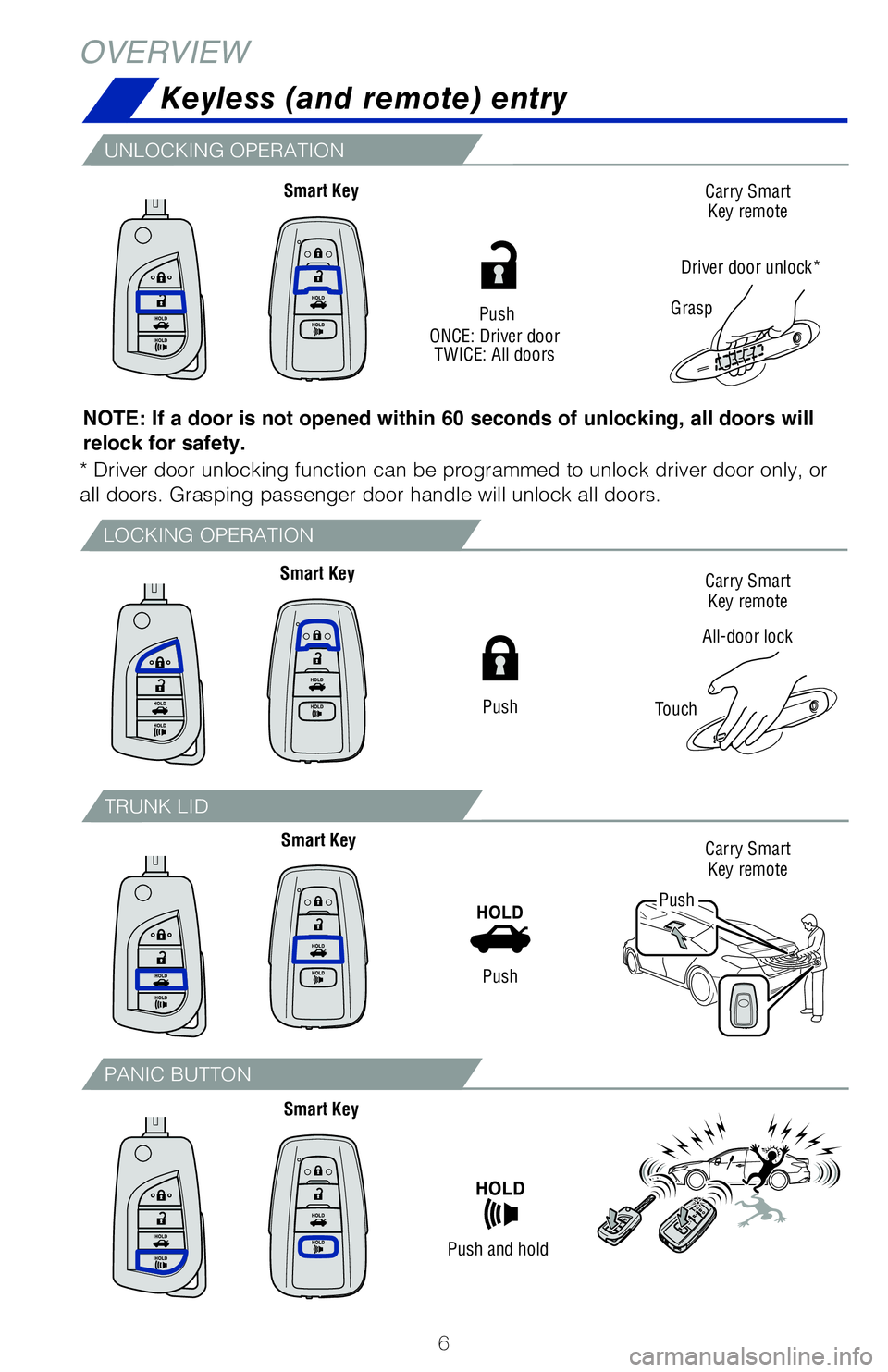

LOCKING OPERATION
UNLOCKING OPERATION
TRUNK LID
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
OVERVIEWKeyless (and remote) entry
All-door lock
Touch
Smart Key
Smart Key
Smart Key
Smart Key Carry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Driver door unlock*
Push
ONCE: Driver door TWICE: All doors
Push
Push
Push and hold
Push
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.

7

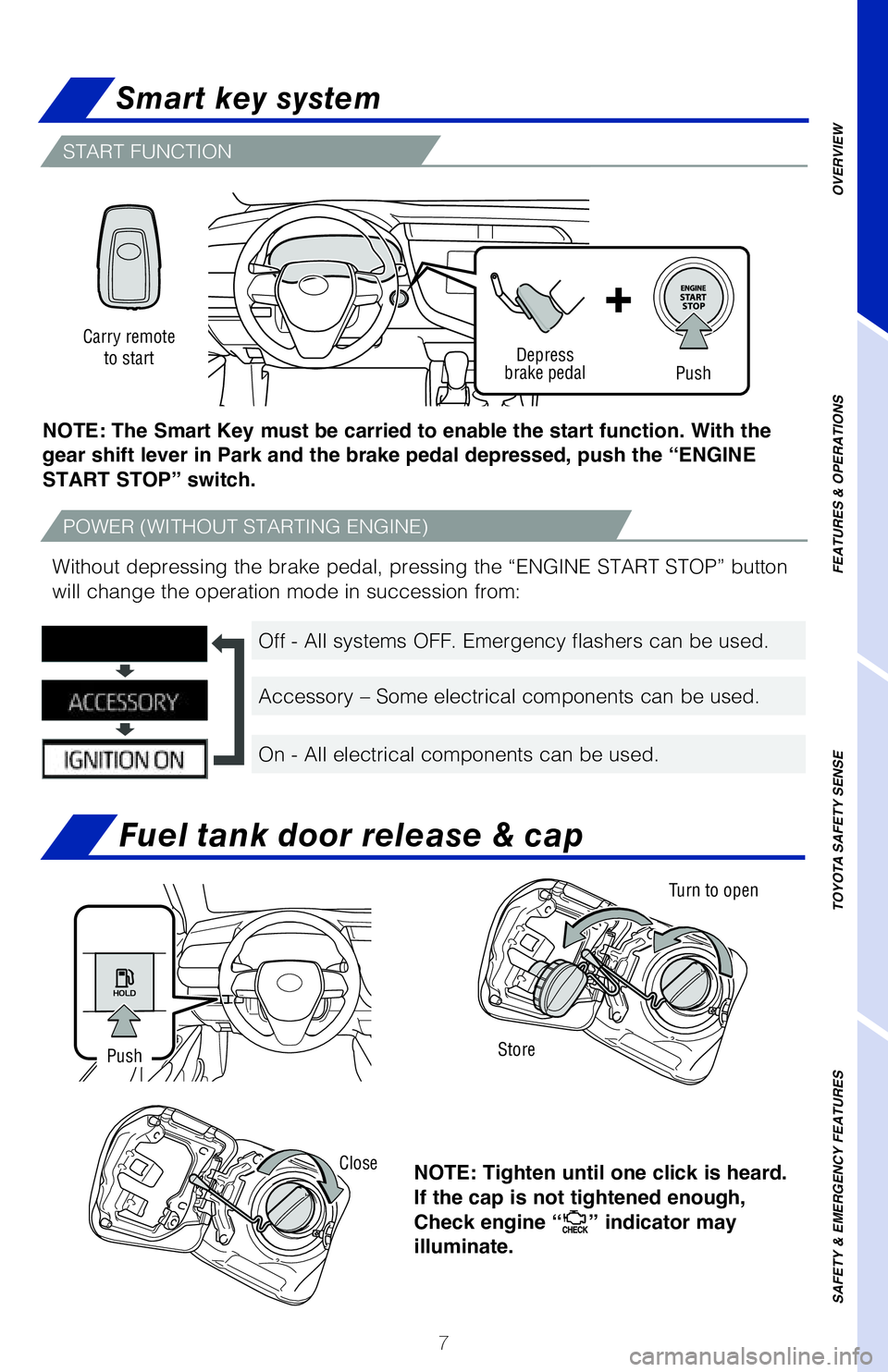

START FUNCTION
Fuel tank door release & cap
Smart key system
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check engine “
” indicator may
illuminate.
Turn to open
Store
Push
Close
Carry remote to startDepress
brake pedalPush
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the “ENGINE
START STOP” switch.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
POWER (WITHOUT STARTING ENGINE)
Without depressing the brake pedal, pressing the “ENGINE START STOP”\� button
will change the operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.

8

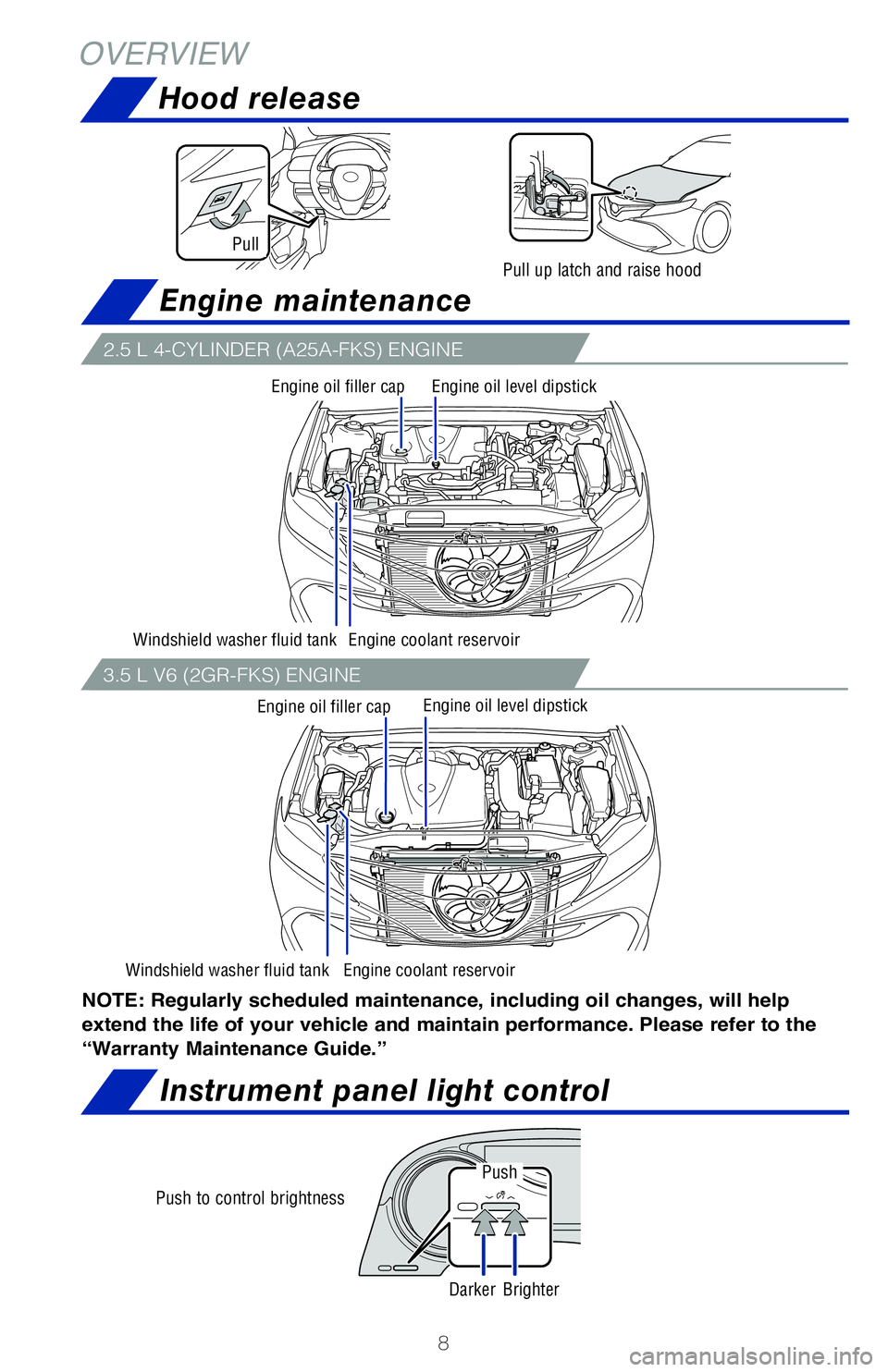

OVERVIEWHood release
Engine maintenance
Instrument panel light control
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
2.5 L 4-CYLINDER (A25A-FKS) ENGINE
3.5 L V6 (2GR-FKS) ENGINE
Push to control brightness
Push
DarkerBrighter
Windshield washer fluid tank
Windshield washer fluid tank Engine oil level dipstick
Engine oil level dipstick
Engine coolant reservoir
Engine coolant reservoir
Engine oil filler cap
Engine oil filler cap
Pull up latch and raise hood
Pull
