TOYOTA CAMRY 2020 (in English) Owner's Guide

29
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touch screen to access the general settings
screen.
3) Select “Clock.”
4) Then select desired items to be reset.

Refer to the “Navigation and Multimedia System Owner’s Manual” \�for more details.
1 Premium Audio only2 Audio Plus/Premium Audio only
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Garage door opener (HomeLink®*) (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\�.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manua\�l for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink ®
is a registered trademark of Gentex Corporation.
Buttons
Remote
HomeLink® indicator light
Garage door operation
indicators
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO1.
Select to set to automatic
GPS adjustment of clock.2
Select to set hour display
to 12 or 24 hour time.

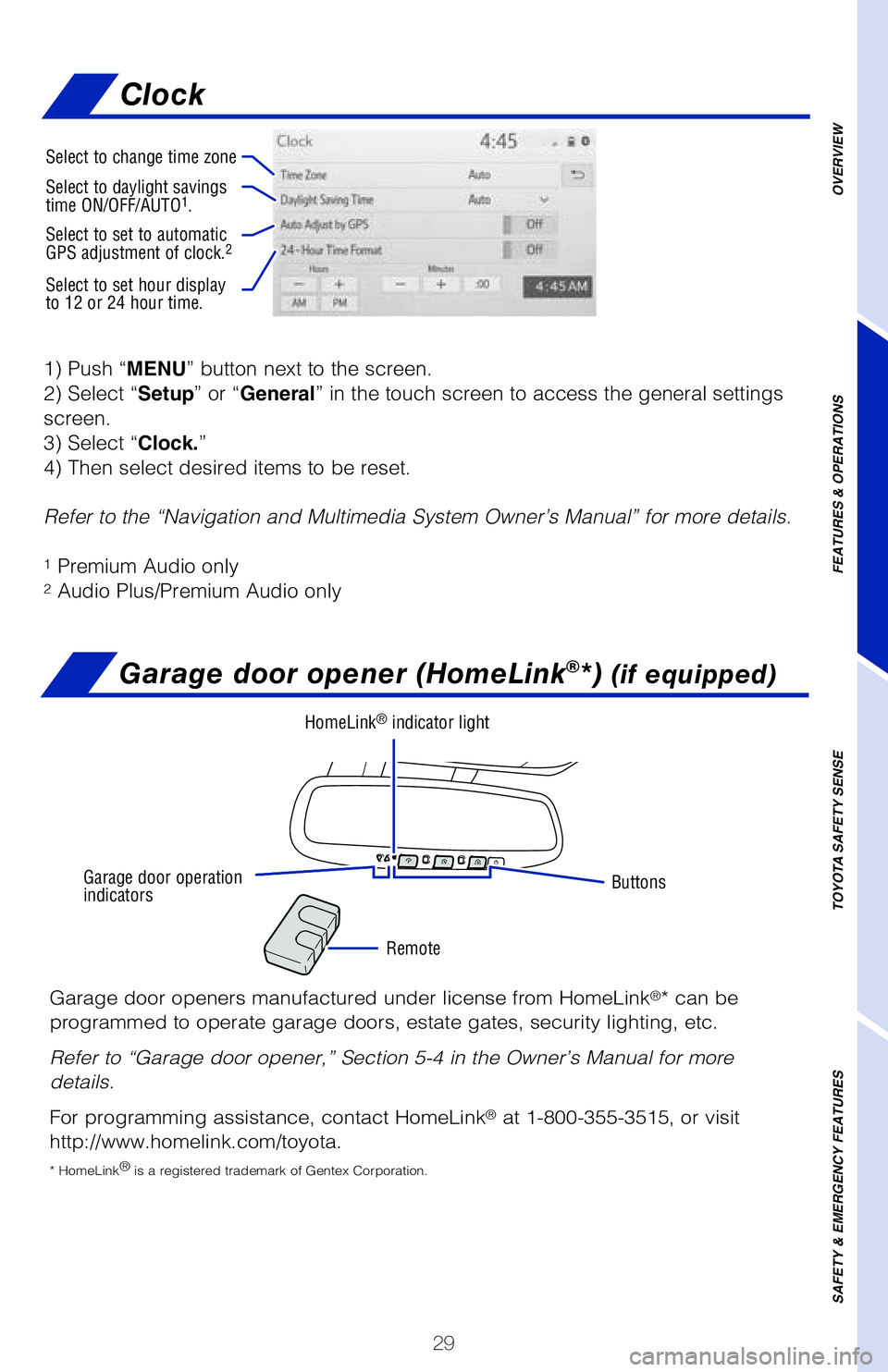

Clock

30

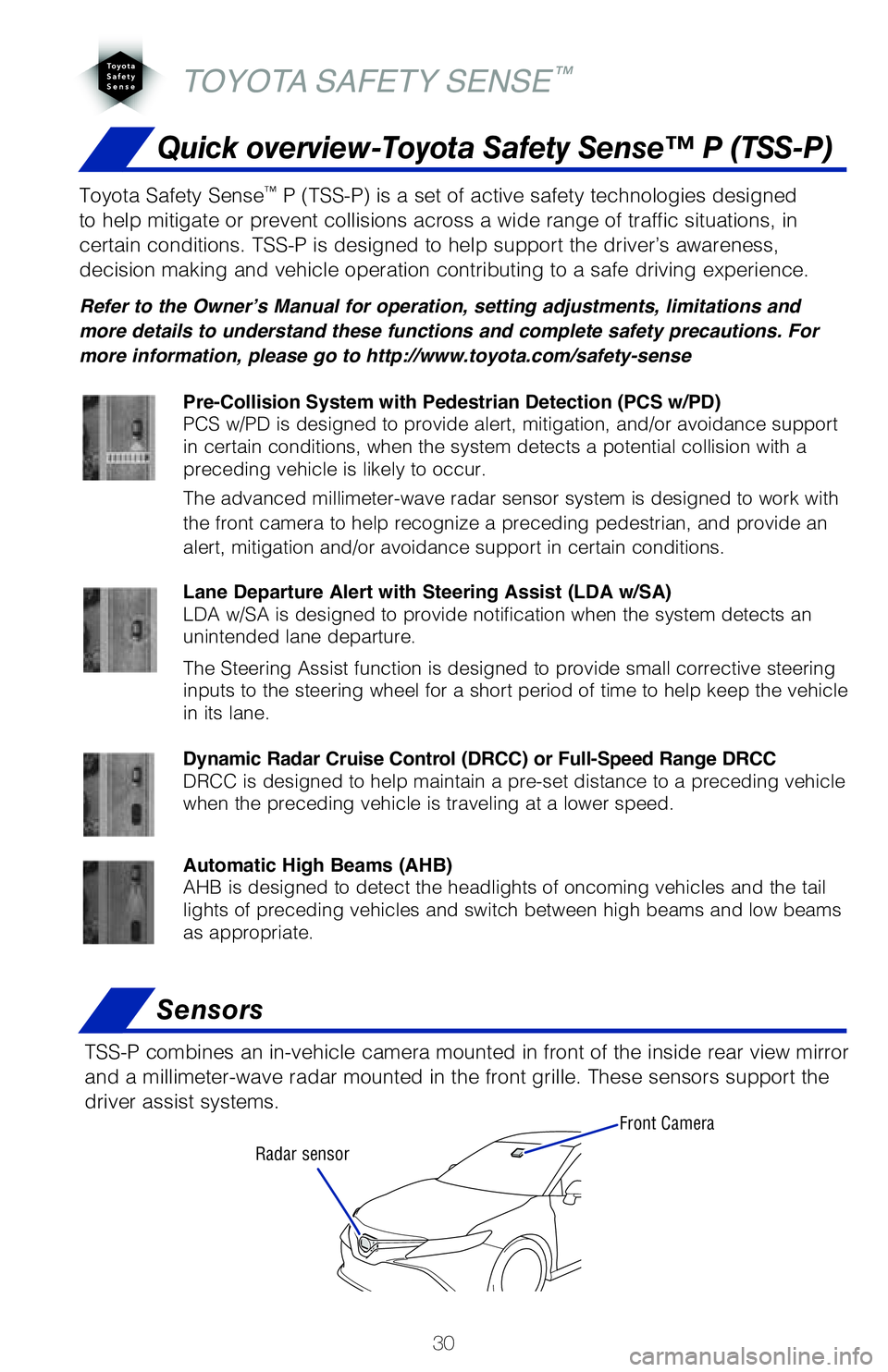

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear \�view mirror
and a millimeter-wave radar mounted in the front grille. These sensors s\�upport the
driver assist systems.
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\�tuations, in
certain conditions. TSS-P is designed to help support the driver’s aw\�areness,
decision making and vehicle operation contributing to a safe driving exp\�erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Lane Departure Alert with Steering Assist (LDA w/SA)
LDA w/SA is designed to provide notification when the system detects an \�
unintended lane departure.
The Steering Assist function is designed to provide small corrective ste\�ering
inputs to the steering wheel for a short period of time to help keep the\� vehicle
in its lane.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and the ta\�il
lights of preceding vehicles and switch between high beams and low beams\�
as appropriate. Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance supp\�ort
in certain conditions, when the system detects a potential collision wit\�h a
preceding vehicle is likely to occur.
The advanced millimeter-wave radar sensor system is designed to work wit\�h
the front camera to help recognize a preceding pedestrian, and provide a\�n
alert, mitigation and/or avoidance support in certain conditions.
Dynamic Radar Cruise Control (DRCC) or Full-Speed Range DRCC
DRCC is designed to help maintain a pre-set distance to a preceding vehi\�cle
when the preceding vehicle is traveling at a lower speed.
Front Camera
Radar sensor

31

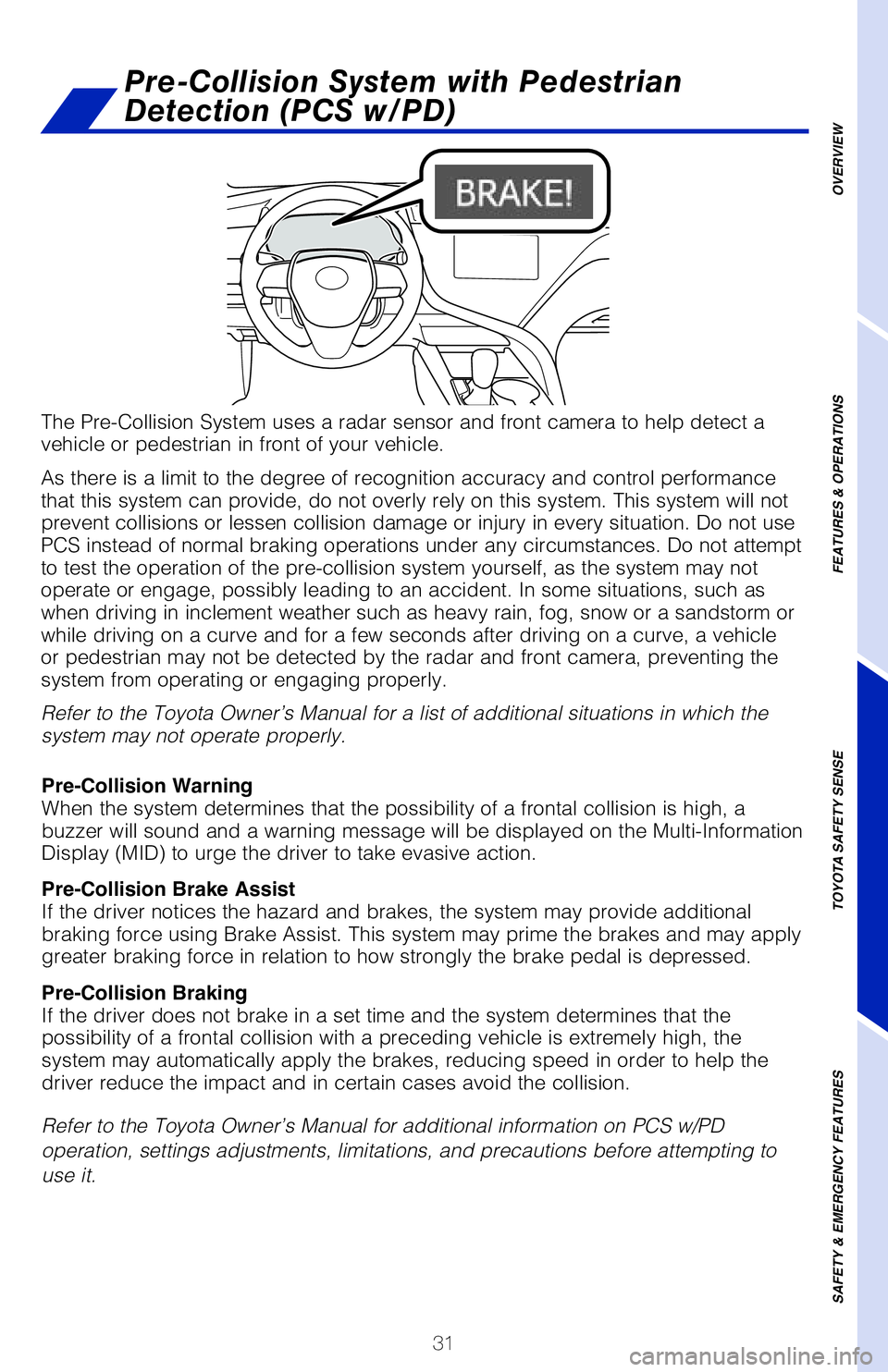

The Pre-Collision System uses a radar sensor and front camera to help de\�tect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\�rformance
that this system can provide, do not overly rely on this system. This sy\�stem will not
prevent collisions or lessen collision damage or injury in every situati\�on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\� attempt
to test the operation of the pre-collision system yourself, as the syste\�m may not
operate or engage, possibly leading to an accident. In some situations, \�such as
when driving in inclement weather such as heavy rain, fog, snow or a san\�dstorm or
while driving on a curve and for a few seconds after driving on a curve,\� a vehicle
or pedestrian may not be detected by the radar and front camera, prevent\�ing the
system from operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situation\�s in which the
system may not operate properly.Refer to the Toyota Owner’s Manual for additional information on PCS \�w/PD
operation, settings adjustments, limitations, and precautions before att\�empting to
use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\�s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\�nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\�tional
braking force using Brake Assist. This system may prime the brakes and m\�ay apply
greater braking force in relation to how strongly the brake pedal is dep\�ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\�t the
possibility of a frontal collision with a preceding vehicle is extremely\� high, the
system may automatically apply the brakes, reducing speed in order to he\�lp the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection (PCS w/PD)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

32
TOYOTA SAFETY SENSE™

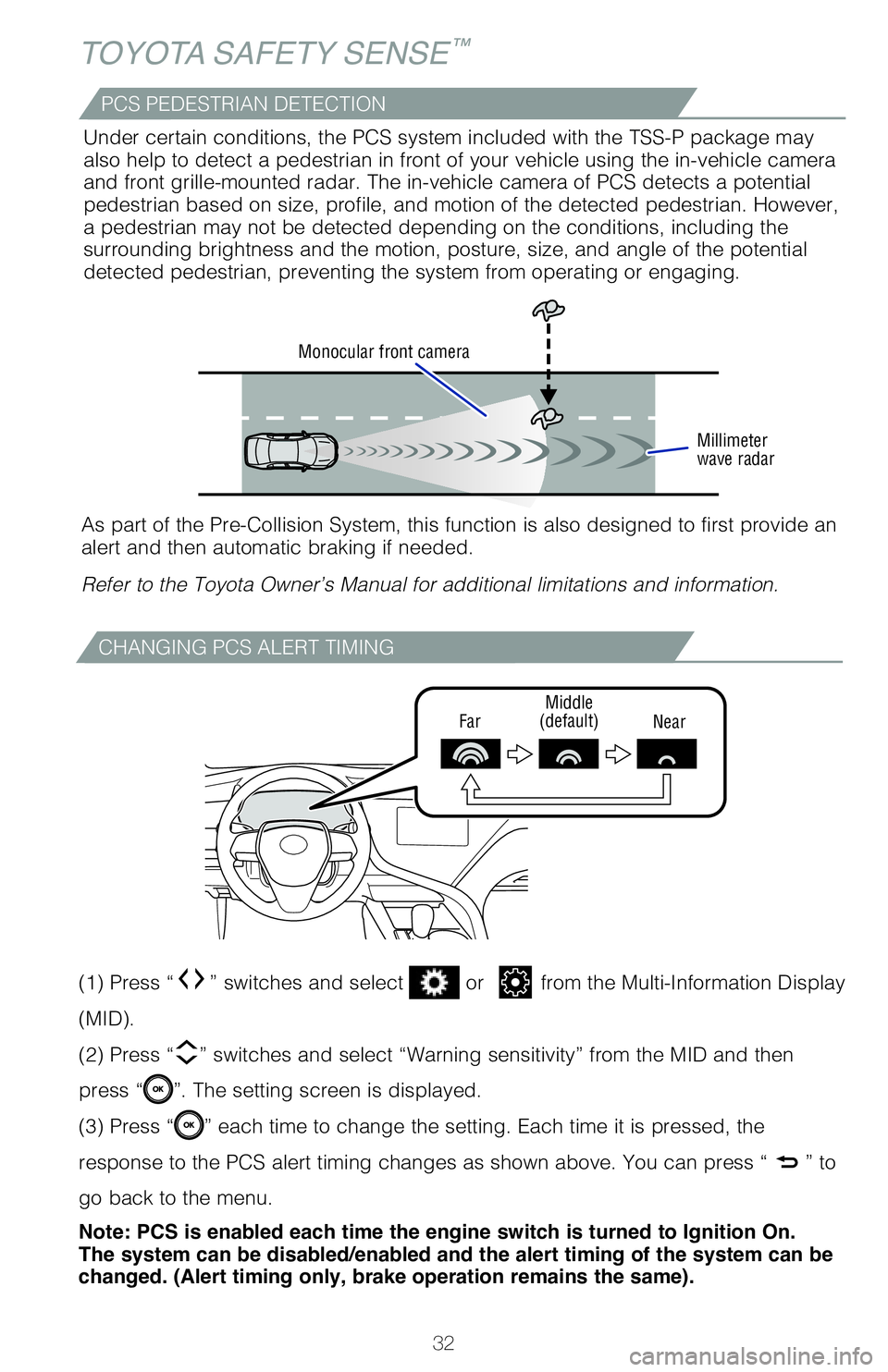

CHANGING PCS ALERT TIMING
FarMiddle
(default) Near
(1) Press “” switches and select or from the Multi-Information Display
(MID).
(2) Press “
” switches and select “Warning sensitivity” from the MID and th\�en
press “
”. The setting screen is displayed.
(3) Press “
” each time to change the setting. Each time it is pressed, the
response to the PCS alert timing changes as shown above. You can press “\�
” to
go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
Monocular front camera
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to f\�irst provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and inf\�ormation.Under certain conditions, the PCS system included with the TSS-P package\� may
also help to detect a pedestrian in front of your vehicle using the in-v\�ehicle camera
and front grille-mounted radar. The in-vehicle camera of PCS detects a p\�otential
pedestrian based on size, profile, and motion of the detected pedestrian\�. However,
a pedestrian may not be detected depending on the conditions, including \�the
surrounding brightness and the motion, posture, size, and angle of the p\�otential
detected pedestrian, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION

33

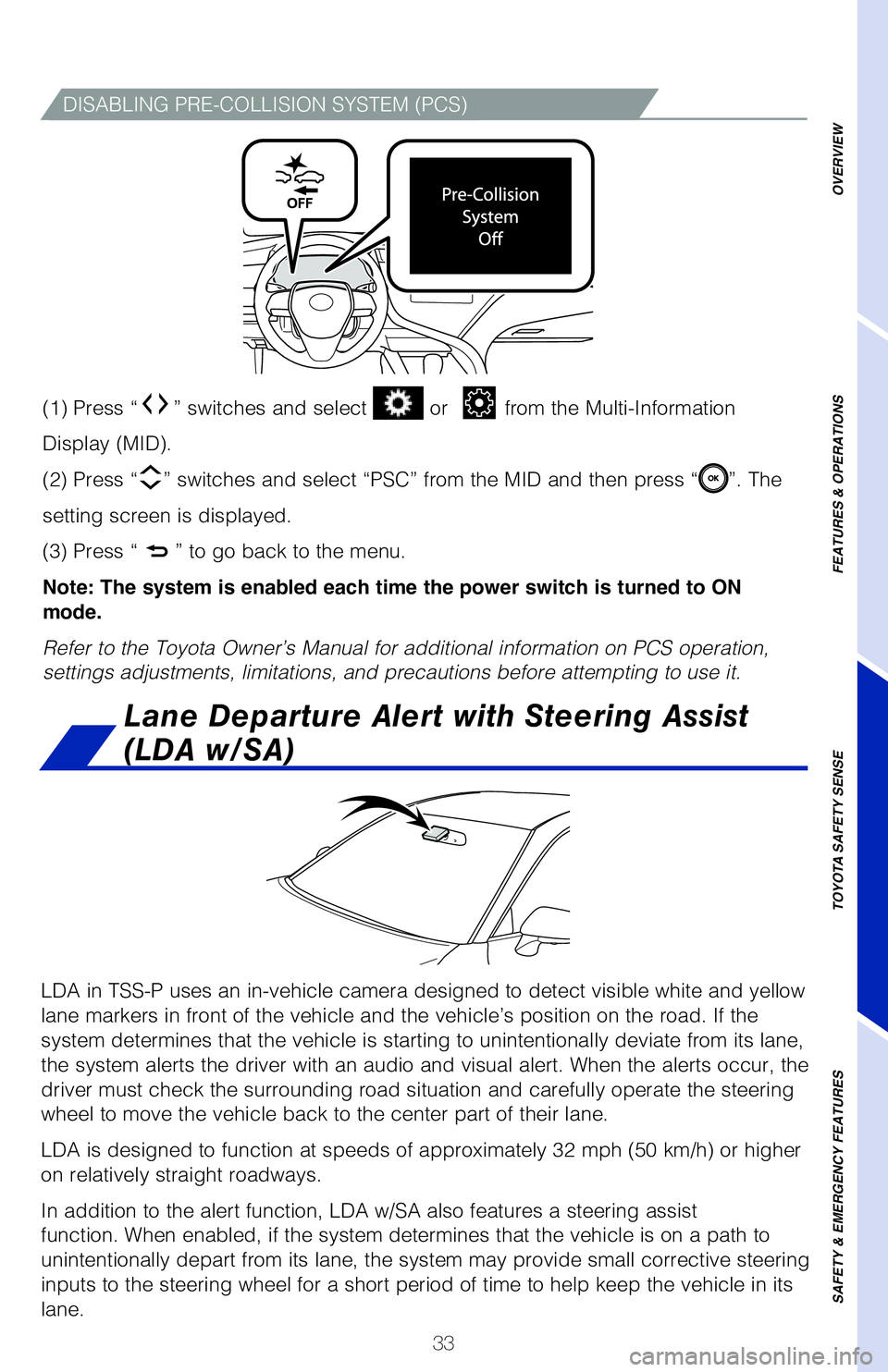

DISABLING PRE-COLLISION SYSTEM (PCS)
LDA in TSS-P uses an in-vehicle camera designed to detect visible white \�and yellow
lane markers in front of the vehicle and the vehicle’s position on th\�e road. If the
system determines that the vehicle is starting to unintentionally deviat\�e from its lane,
the system alerts the driver with an audio and visual alert. When the al\�erts occur, the
driver must check the surrounding road situation and carefully operate t\�he steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 mph (50 km/h) or higher
on relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering ass\�ist
function. When enabled, if the system determines that the vehicle is on \�a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the\� vehicle in its
lane.
Lane Departure Alert with Steering Assist
(LDA w/SA)
(1) Press “” switches and select or from the Multi-Information
Display (MID).
(2) Press “
” switches and select “PSC” from the MID and then press “”. The
setting screen is displayed.
(3) Press “
” to go back to the menu.
Note: The system is enabled each time the power switch is turned to ON
mode.
Refer to the Toyota Owner’s Manual for additional information on PCS \�operation,
settings adjustments, limitations, and precautions before attempting to \�use it.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

34
TOYOTA SAFETY SENSE™

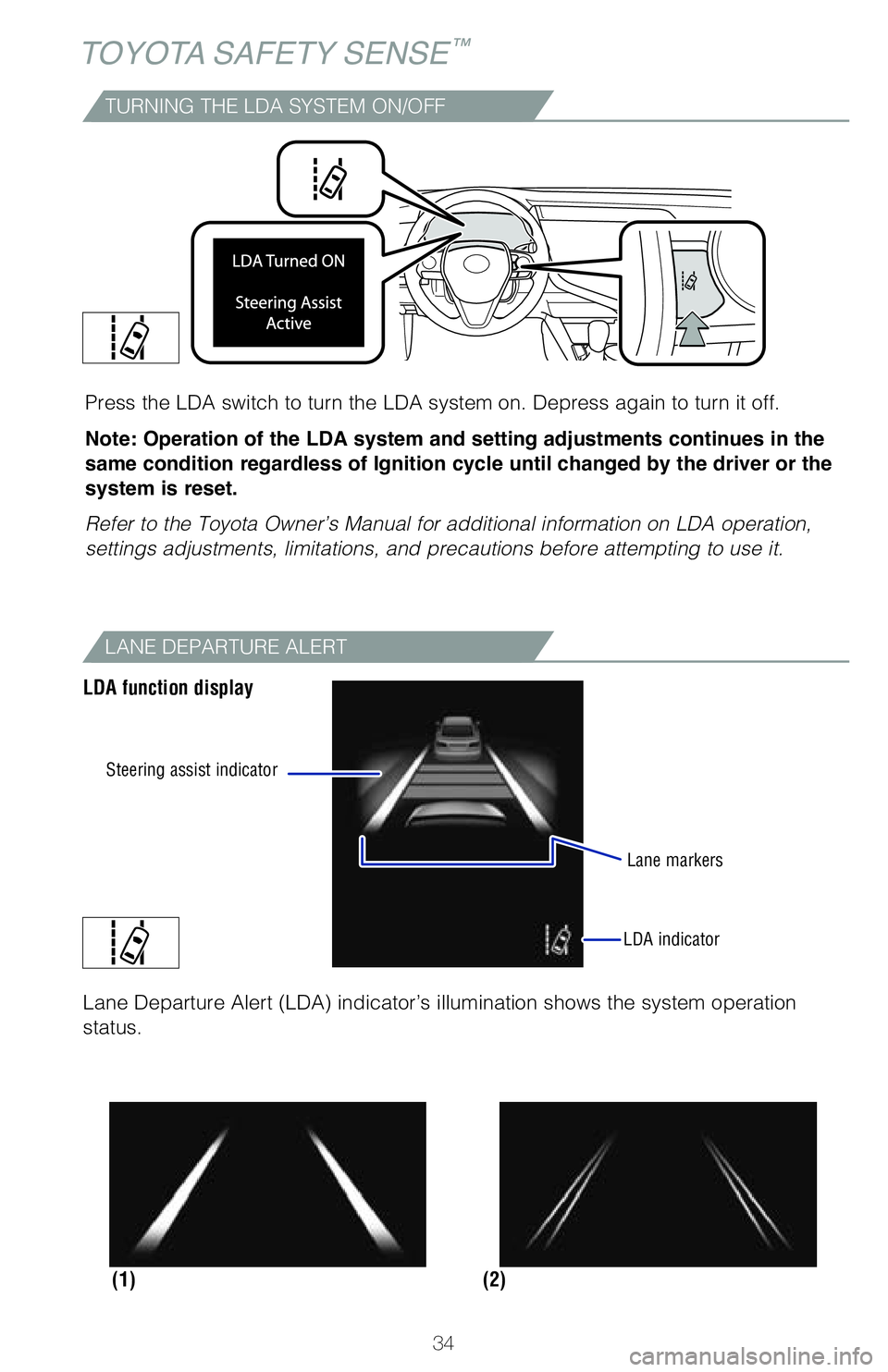

TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it\� off.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
Refer to the Toyota Owner’s Manual for additional information on LDA \�operation,
settings adjustments, limitations, and precautions before attempting to \�use it.
LANE DEPARTURE ALERT
LDA function display
Steering assist indicatorLDA indicatorLane markers
(2)
(1)
Lane Departure Alert (LDA) indicator’s illumination shows the system operation
status.

35

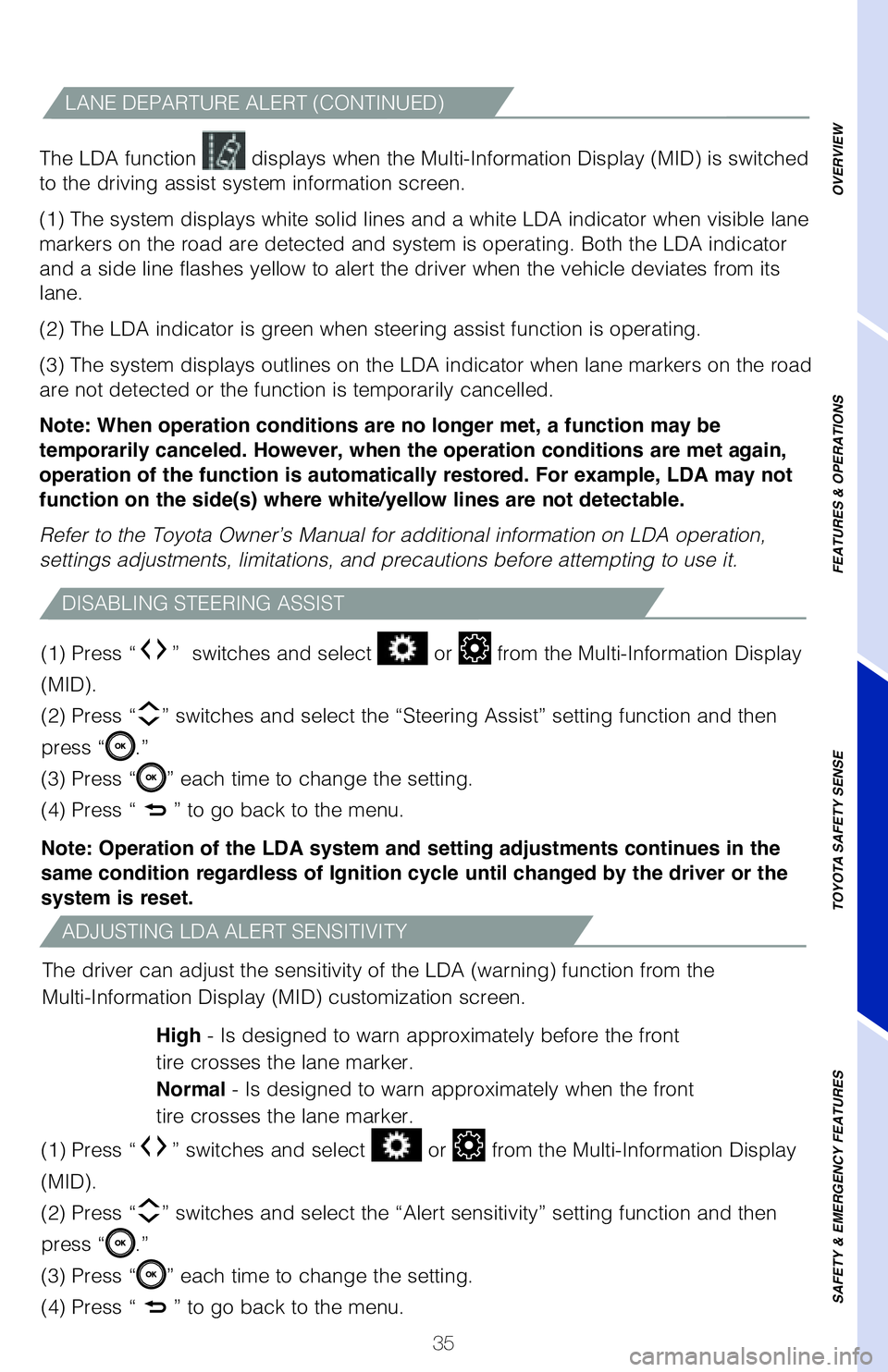

The LDA function
displays when the Multi-Information Display (MID) is switched
to the driving assist system information screen.
(1) The system displays white solid lines and a white LDA indicator when visible lane
markers on the road are detected and system is operating. Both the LDA i\�ndicator
and a side line flashes yellow to alert the driver when the vehicle devi\�ates from its
lane.
(2) The LDA indicator is green when steering assist function is operating.
(3) The system displays outlines on the LDA indicator when lane markers on the road
are not detected or the function is temporarily cancelled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.
Refer to the Toyota Owner’s Manual for additional information on LDA \�operation,
settings adjustments, limitations, and precautions before attempting to \�use it.
ADJUSTING LDA ALERT SENSITIVITY
DISABLING STEERING ASSIST
The driver can adjust the sensitivity of the LDA (warning) function from the
Multi-Information Display (MID) customization screen.
High - Is designed to warn approximately before the front
tire crosses the lane marker.
Normal - Is designed to warn approximately when the front
tire crosses the lane marker.
(1) Press “
” switches and select or from the Multi-Information Display
(MID).
(2) Press “
” switches and select the “Alert sensitivity” setting function \�and then
press “
.”
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
(1) Press “
” switches and select or from the Multi-Information Display
(MID).
(2) Press “
” switches and select the “Steering Assist” setting function an\�d then
press “
.”
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
LANE DEPARTURE ALERT (CONTINUED)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

36
TOYOTA SAFETY SENSE™

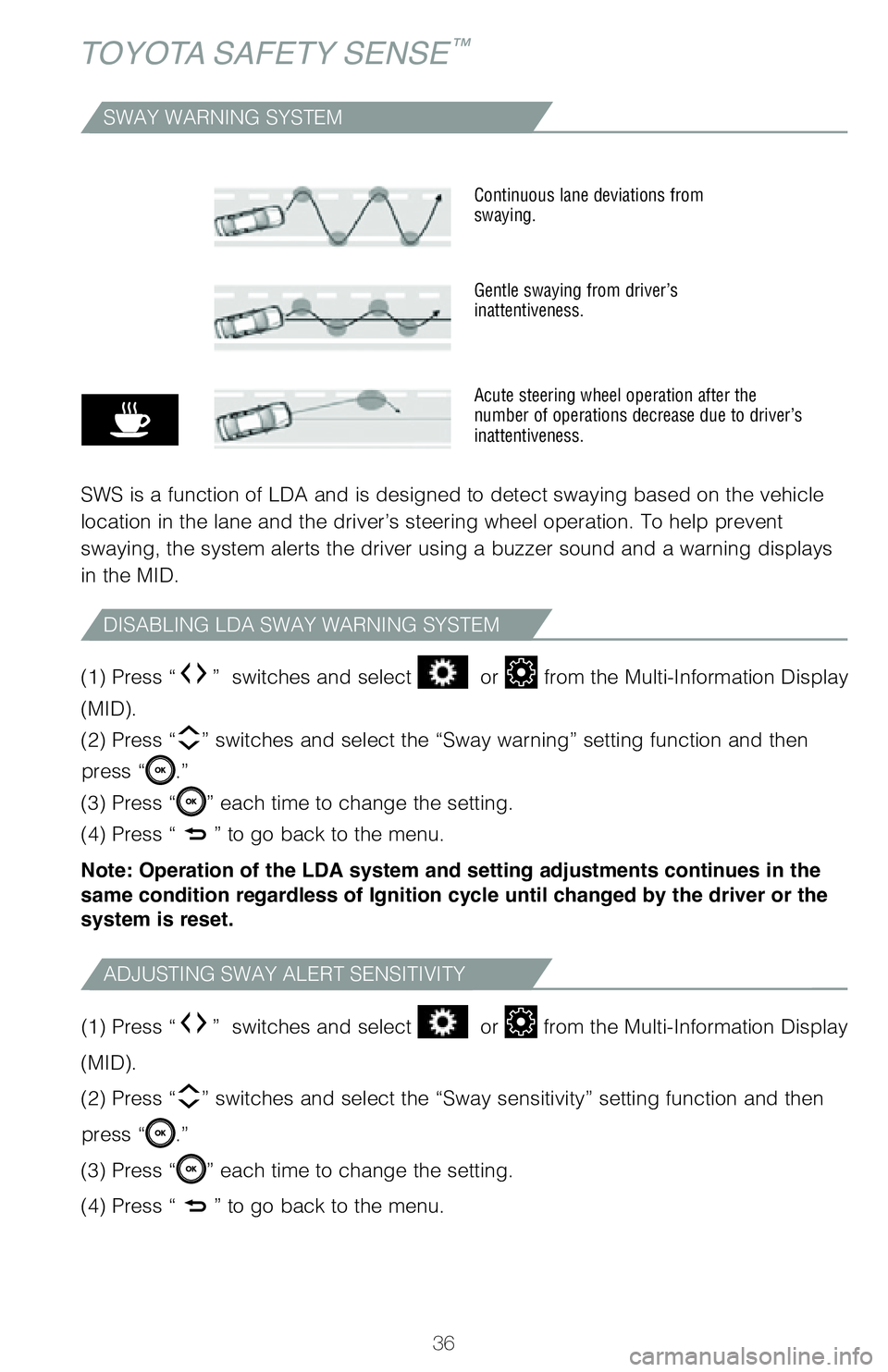

SWAY WARNING SYSTEM
SWS is a function of LDA and is designed to detect swaying based on the \�vehicle
location in the lane and the driver’s steering wheel operation. To he\�lp prevent
swaying, the system alerts the driver using a buzzer sound and a warning\� displays
in the MID.
Continuous lane deviations from
swaying.
Gentle swaying from driver’s
inattentiveness.
Acute steering wheel operation after the
number of operations decrease due to driver’s
inattentiveness.
(1) Press “” switches and select or from the Multi-Information Display
(MID).
(2) Press “
” switches and select the “Sway sensitivity” setting function a\�nd then
press “
.”
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
(1) Press “
” switches and select or from the Multi-Information Display
(MID).
(2) Press “
” switches and select the “Sway warning” setting function and t\�hen
press “
.”
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
ADJUSTING SWAY ALERT SENSITIVITY
DISABLING LDA SWAY WARNING SYSTEM

37

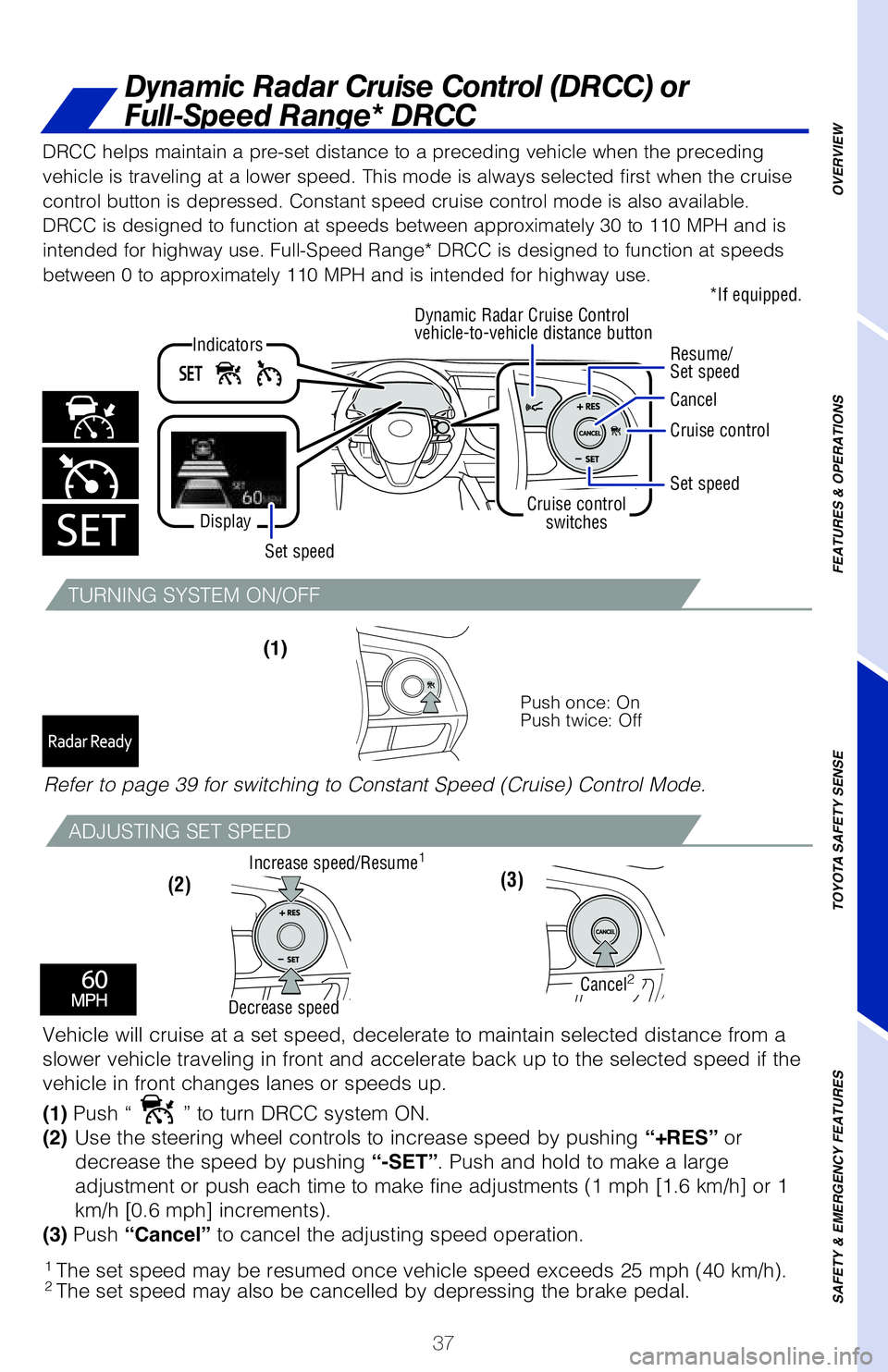

Dynamic Radar Cruise Control (DRCC) or
Full-Speed Range* DRCC
TURNING SYSTEM ON/OFF
ADJUSTING SET SPEED
Vehicle will cruise at a set speed, decelerate to maintain selected distance from a
slower vehicle traveling in front and accelerate back up to the selected speed if the
vehicle in front changes lanes or speeds up.
(1) Push “
” to turn DRCC system ON.
(2)
Use the steering wheel controls to increase speed by pushing “+RES” or
decrease the speed by pushing “-SET”. Push and hold to make a large
adjustment or push each time to make fine adjustments (1 mph [1.6 km/h] or 1
km/h [0.6 mph] increments).
(3) Push “Cancel” to cancel the adjusting speed operation. (1)
(2) (3)
DRCC helps maintain a pre-set distance to a preceding vehicle when the preceding
vehicle is traveling at a lower speed. This mode is always selected first when the cruise
control button is depressed. Constant speed cruise control mode is also available.
DRCC is designed to function at speeds between approximately 30 to 110 MPH and is
intended for highway use. Full-Speed Range* DRCC is designed to function at speeds
between 0 to approximately 110 MPH and is intended for highway use.
Resume/
Set speed
Cruise control
Set speed
*If equipped.
Cancel
Cruise control switches
Push once: On
Push twice: Off
Refer to page 39 for switching to Constant Speed (Cruise) Control Mode.
1 The set speed may be resumed once vehicle speed exceeds 25 mph (40 km/h).2 The set speed may also be cancelled by depressing the brake pedal.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Display
Set speed Dynamic Radar Cruise Control
vehicle-to-vehicle distance button
Indicators
Increase speed/Resume1
Cancel2
Decrease speed

38

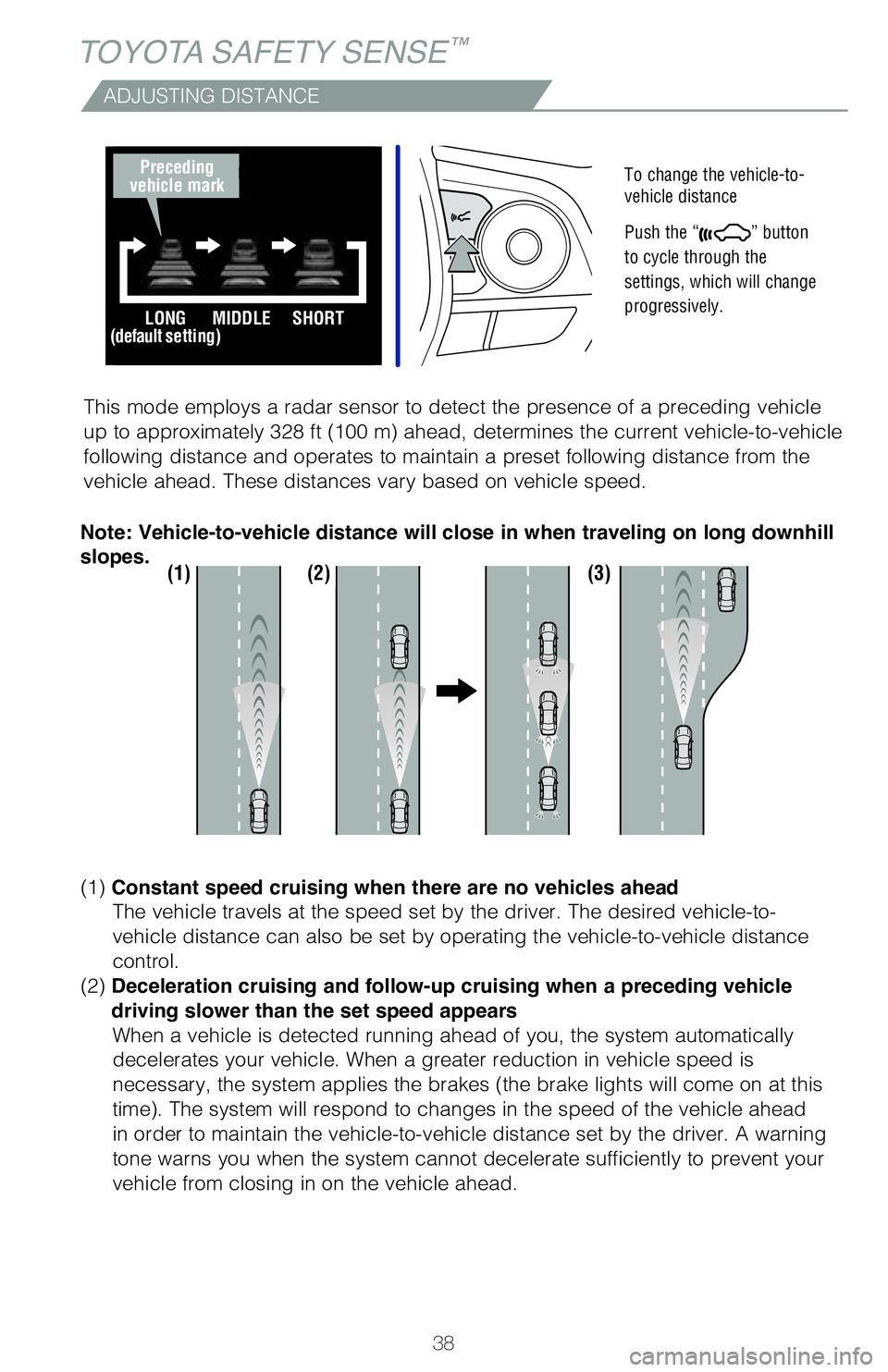

TOYOTA SAFETY SENSE™
ADJUSTING DISTANCE
To change the vehicle-to-
vehicle distance

Push the “
” button
to cycle through the
settings, which will change
progressively.
This mode employs a radar sensor to detect the presence of a preceding v\�ehicle
up to approximately 328 ft (100 m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a preset following distance \�from the
vehicle ahead. These distances vary based on vehicle speed.
(1) (2) (3)
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-\�to-

vehicle distance can also be set by operating the vehicle-to-vehicle dis\�tance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle

driving slower than the set speed appears
When a vehicle is detected running ahead of you, the system automaticall\�y
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the brake lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead
in order to maintain the vehicle-to-vehicle distance set by the driver. \�A warning
tone warns you when the system cannot decelerate sufficiently to prevent\� your
vehicle from closing in on the vehicle ahead.
Note: Vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
LONG
(default setting)MIDDLE SHORT
Preceding
vehicle mark
