TOYOTA CAMRY 2021 (in English) Owner's Manual

19
Seats - Head restraints
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
BOTTLE HOLDERS (DOOR MOUNTED)
CUP HOLDERS
Bottle holders/Cup holders
Front
FrontRear
Rear (if equipped)
Lock release button

20

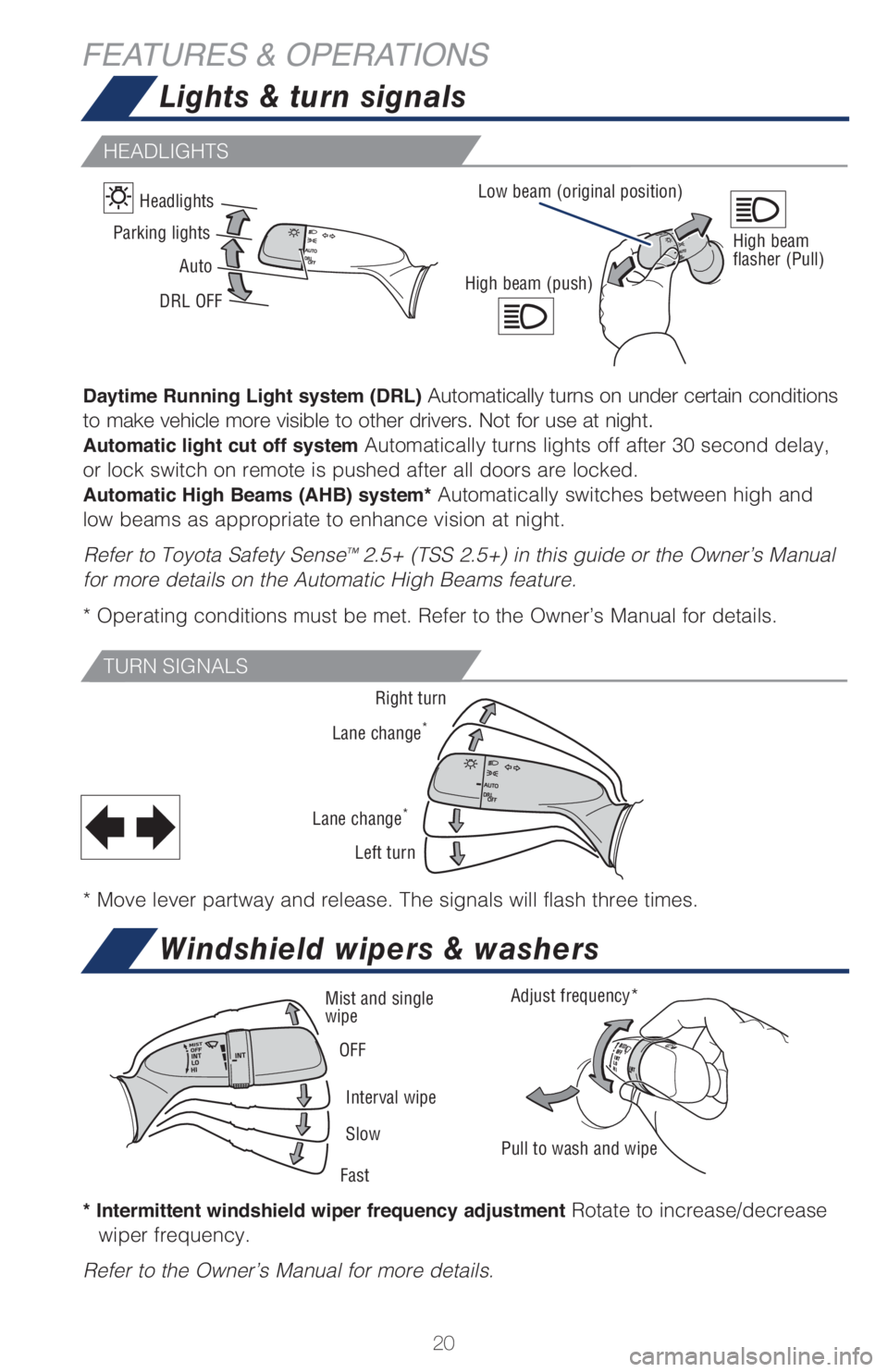

HEADLIGHTS
TURN SIGNALS
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease
wiper frequency.
Refer to the Owner’s Manual for more details.
Lights & turn signals
Windshield wipers & washers
FEATURES & OPERATIONS
Daytime Running Light system (DRL) Automatically turns on under certain conditions
to make vehicle more visible to other drivers. Not for use at night.
Automatic light cut off system Automatically turns lights off after 30 second delay,
or lock switch on remote is pushed after all doors are locked.
Automatic High Beams (AHB) system* Automatically switches between high and
low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense
™ 2.5+ (TSS 2.5+) in this guide or the Owner’s Manual
for more details on the Automatic High Beams feature.
* Operating conditions must be met. Refer to the Owner’s Manual for details.
* Move lever partway and release. The signals will flash three times.
Right turn
Lane change
*
Lane change*
Left turn
High beam (push)
Adjust frequency*
Pull to wash and wipe Mist and single
wipe
Interval wipe OFF
Slow
Fast
High beam
flasher (Pull)Parking lights
Auto Headlights
DRL OFFLow beam (original position)

21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURESLockUnlock

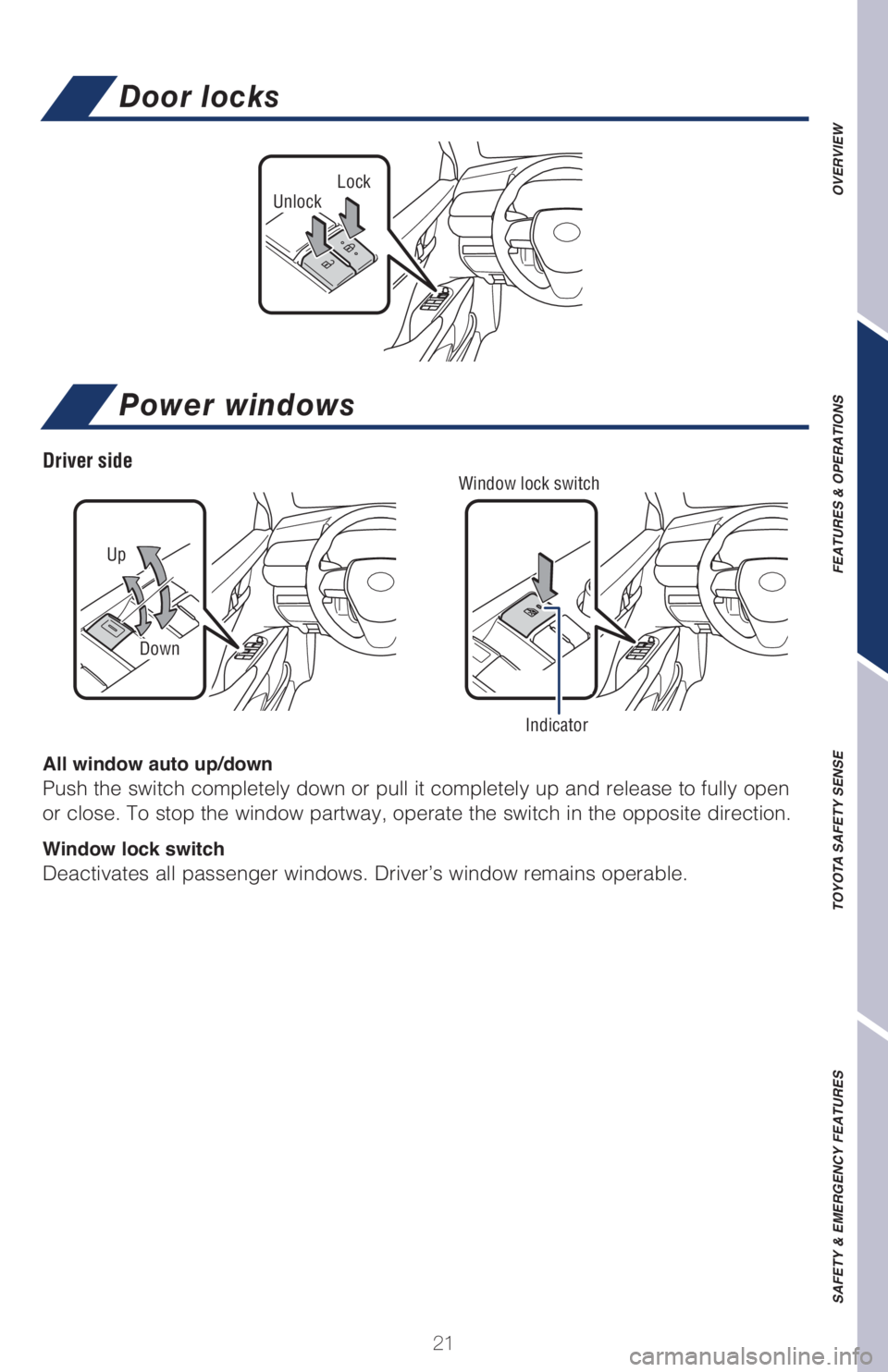

Door locks
All window auto up/down
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
Power windows
Up
Down
Window lock switch
Indicator
Driver side

22
FEATURES & OPERATIONS

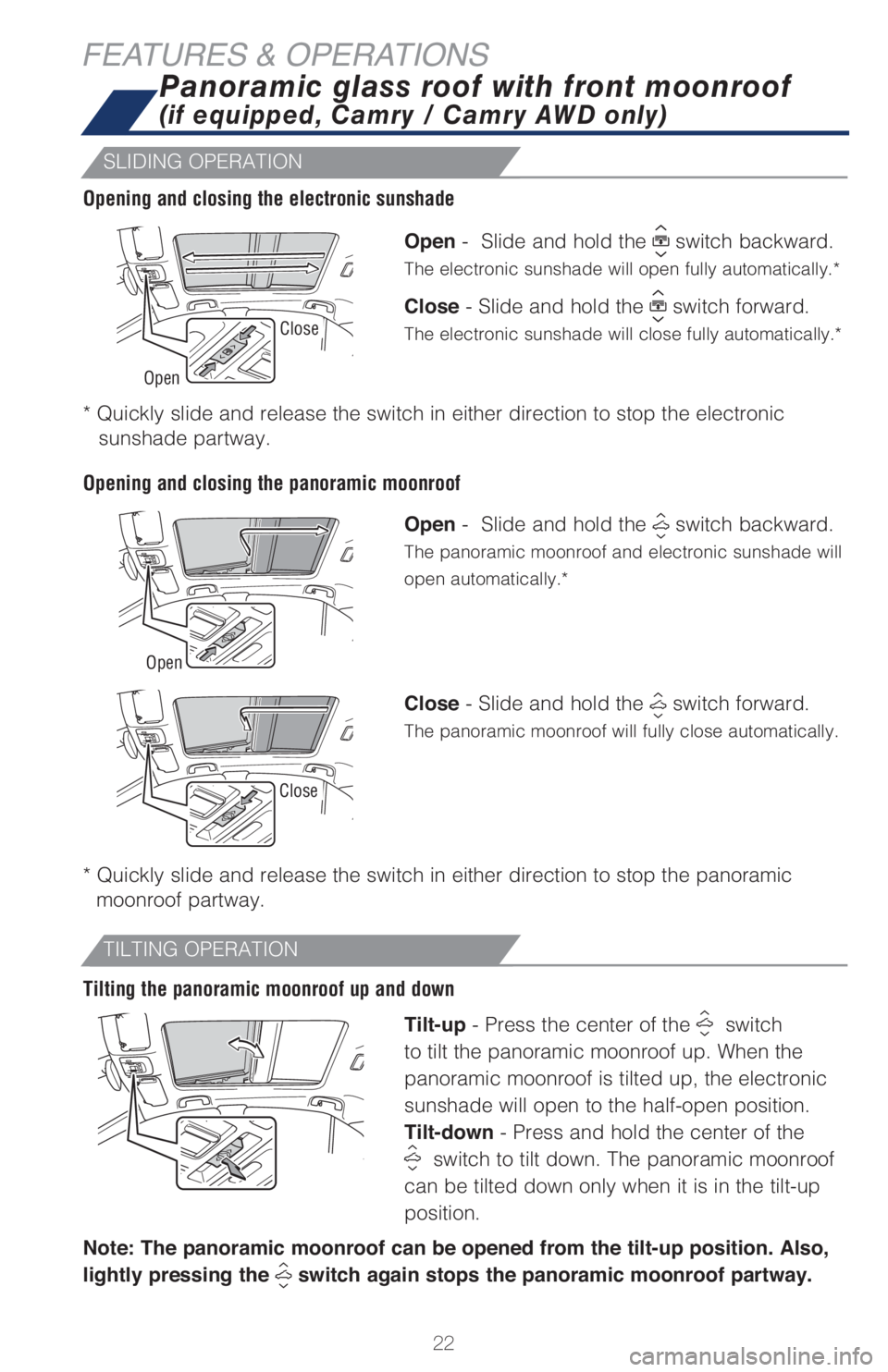

Panoramic glass roof with front moonroof
(if equipped, Camry / Camry AWD only)
SLIDING OPERATION
TILTING OPERATION
Open - Slide and hold the switch backward.
The electronic sunshade will open fully automatically.*
Close - Slide and hold the switch forward.
The electronic sunshade will close fully automatically.*
Open - Slide and hold the switch backward.
The panoramic moonroof and electronic sunshade will
open automatically.*
Close - Slide and hold the switch forward.
The panoramic moonroof will fully close automatically.
Tilt-up - Press the center of the switch
to tilt the panoramic moonroof up. When the
panoramic moonroof is tilted up, the electronic
sunshade will open to the half-open position.
Tilt-down - Press and hold the center of the
switch to tilt down. The panoramic moonroof
can be tilted down only when it is in the tilt-up
position.
Note: The panoramic moonroof can be opened from the tilt-up position. Also,
lightly pressing the
switch again stops the panoramic moonroof partway.
* Quickly slide and release the switch in either direction to stop the electronic
sunshade partway.
* Quickly slide and release the switch in either direction to stop the panoramic
moonroof partway. Opening and closing the electronic sunshade
Opening and closing the panoramic moonroof
Tilting the panoramic moonroof up and down
Open
Open
Close
Close

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

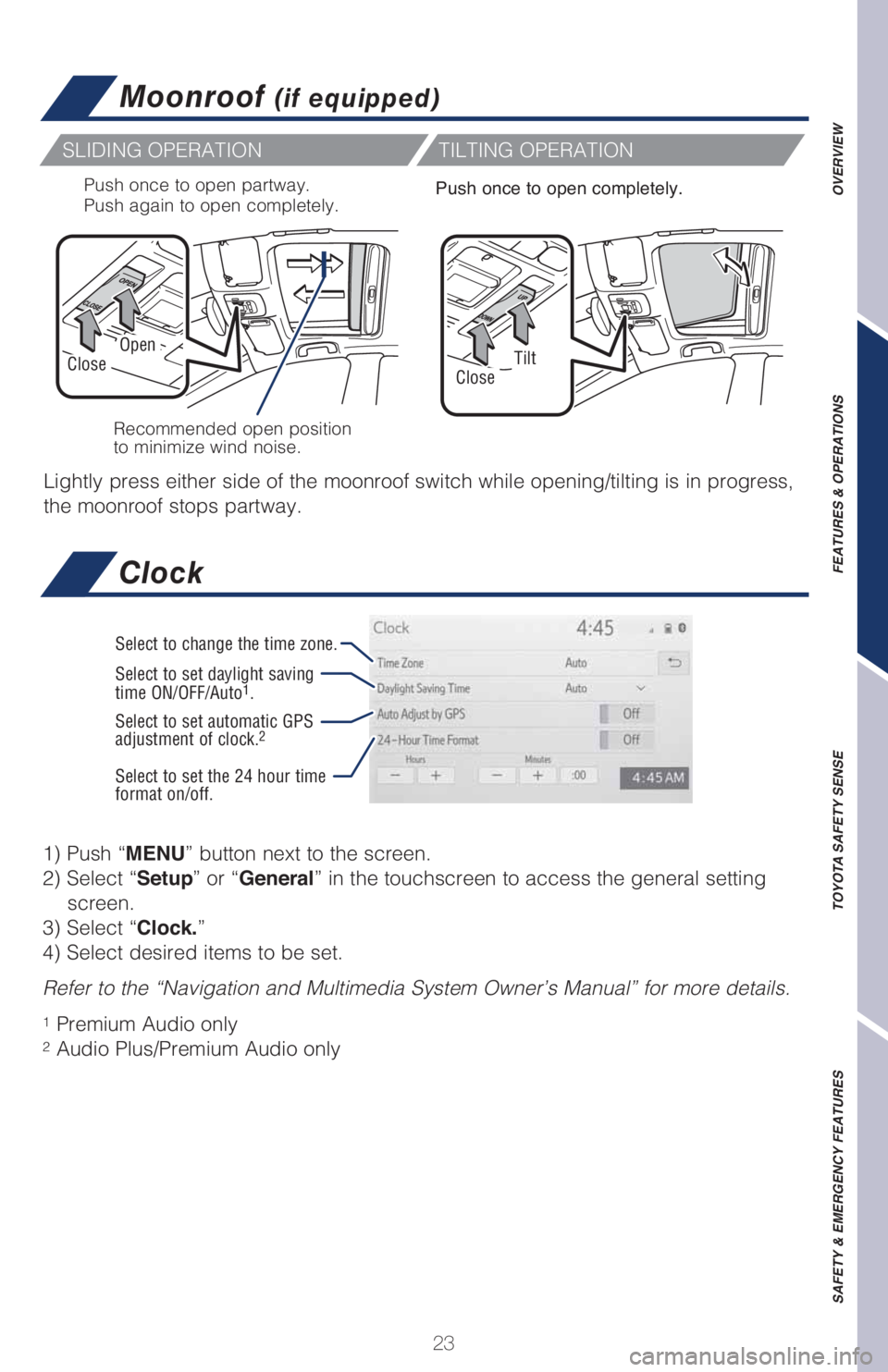

Moonroof (if equipped)
Recommended open position
to minimize wind noise. Push once to open partway.
Push again to open completely.
SLIDING OPERATION
TILTING OPERATION
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
Push once to open completely.
TiltClose
OpenClose
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touchscreen to access the general setting
screen.
3) Select “Clock.”
4) Select desired items to be set.

Refer to the “Navigation and Multimedia System Owner’s Manual” for more details.
1 Premium Audio only2 Audio Plus/Premium Audio only
Clock
Select to change the time zone.
Select to set daylight saving
time ON/OFF/Auto1.
Select to set automatic GPS
adjustment of clock.2
Select to set the 24 hour time
format on/off.

24
FEATURES & OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Always use safe driving practices and follow all traffic rules.

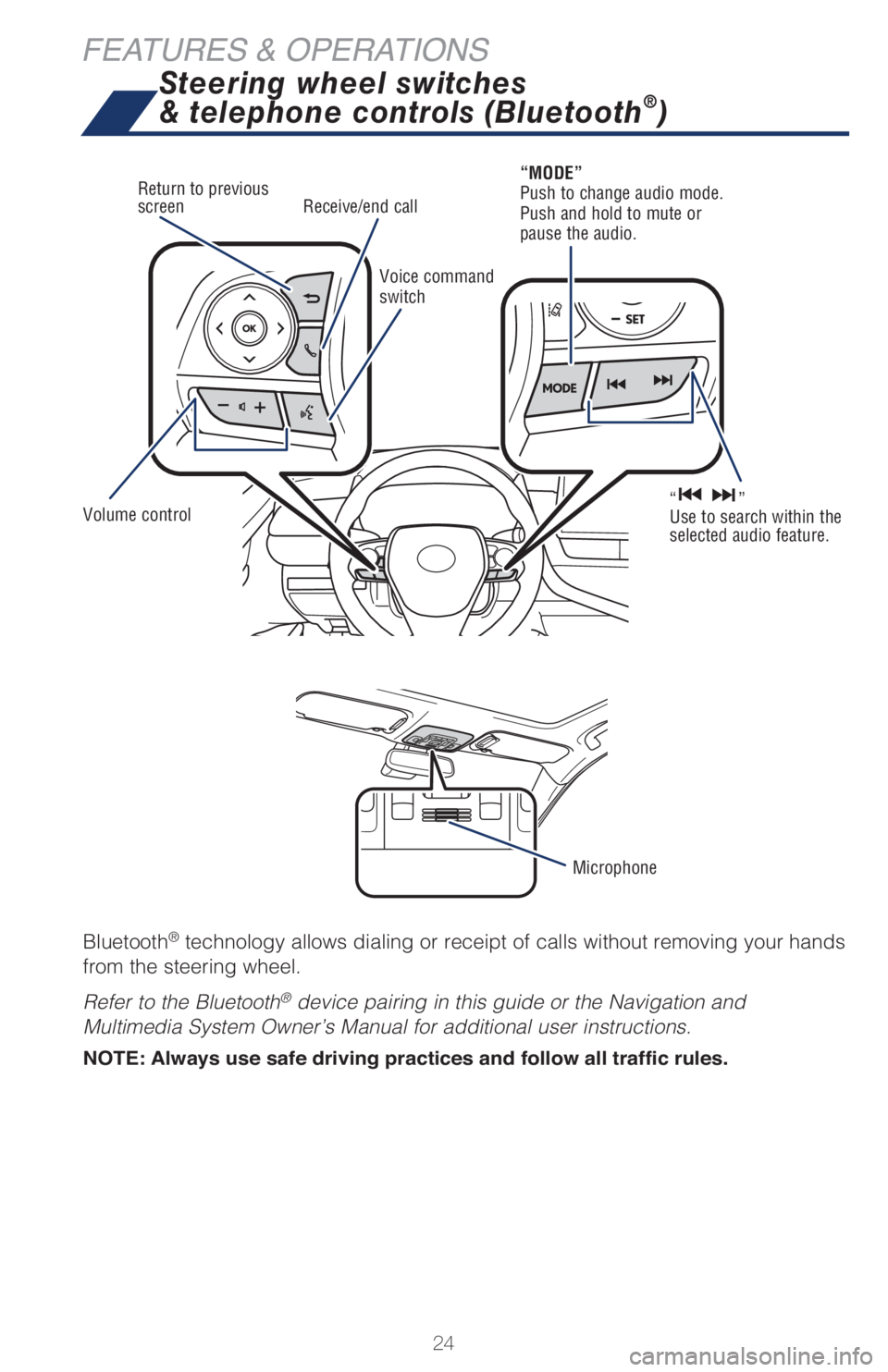

Steering wheel switches
& telephone controls (Bluetooth®)
Volume control
Microphone Voice command
switch Receive/end call
“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within the
selected audio feature.
Return to previous
screen

25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.

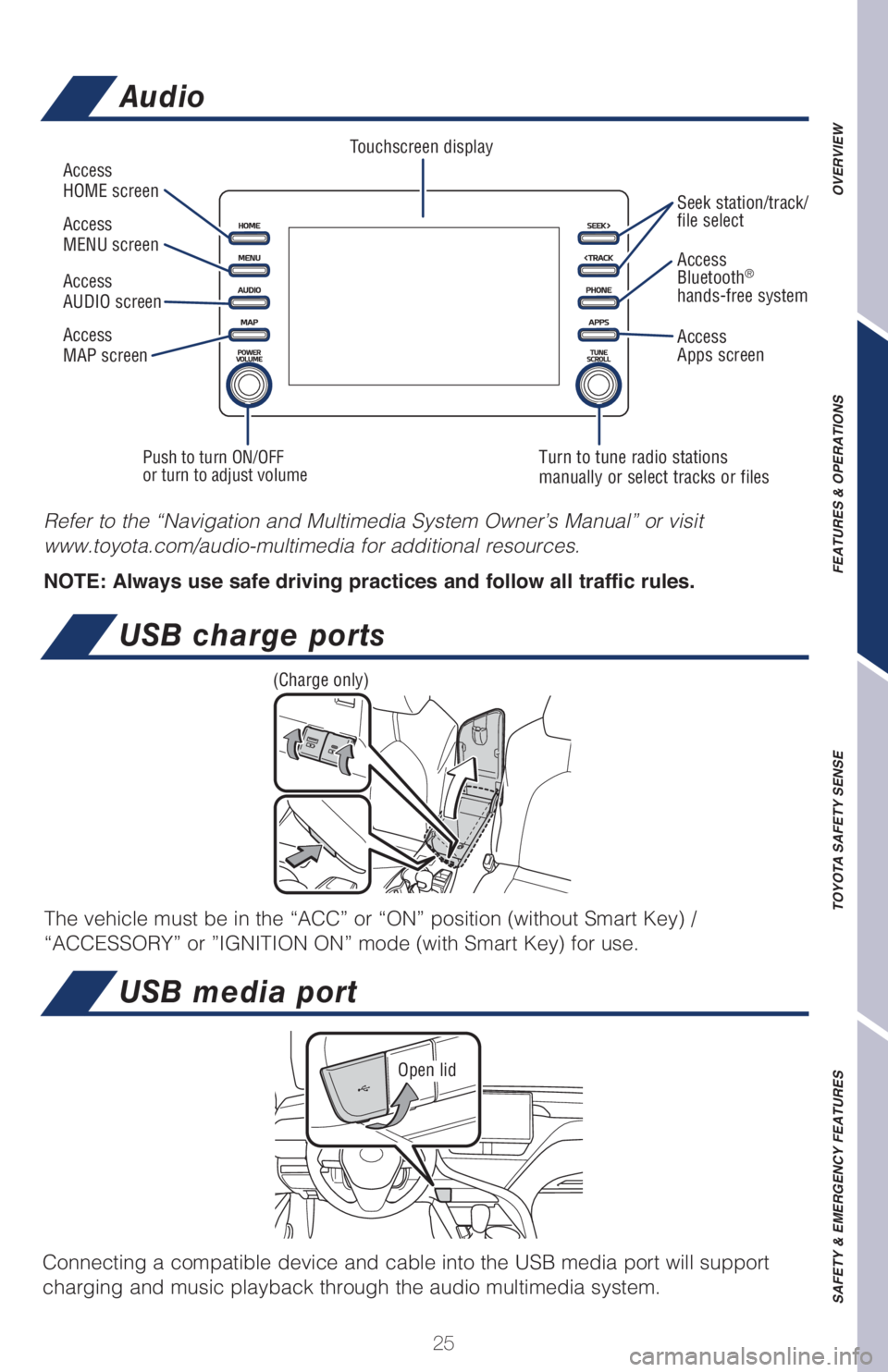

Touchscreen display
Turn to tune radio stations
manually or select tracks or files Access
MENU screen Access
HOME screen
Access
AUDIO screen
Access
MAP screenPush to turn ON/OFF
or turn to adjust volume
Access
Bluetooth®
hands-free system Seek station/track/
file select
Access
Apps screen
USB charge ports
The vehicle must be in the “ACC” or “ON” position (without Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use.
(Charge only)
USB media port
Open lid
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
Audio

26
FEATURES & OPERATIONS

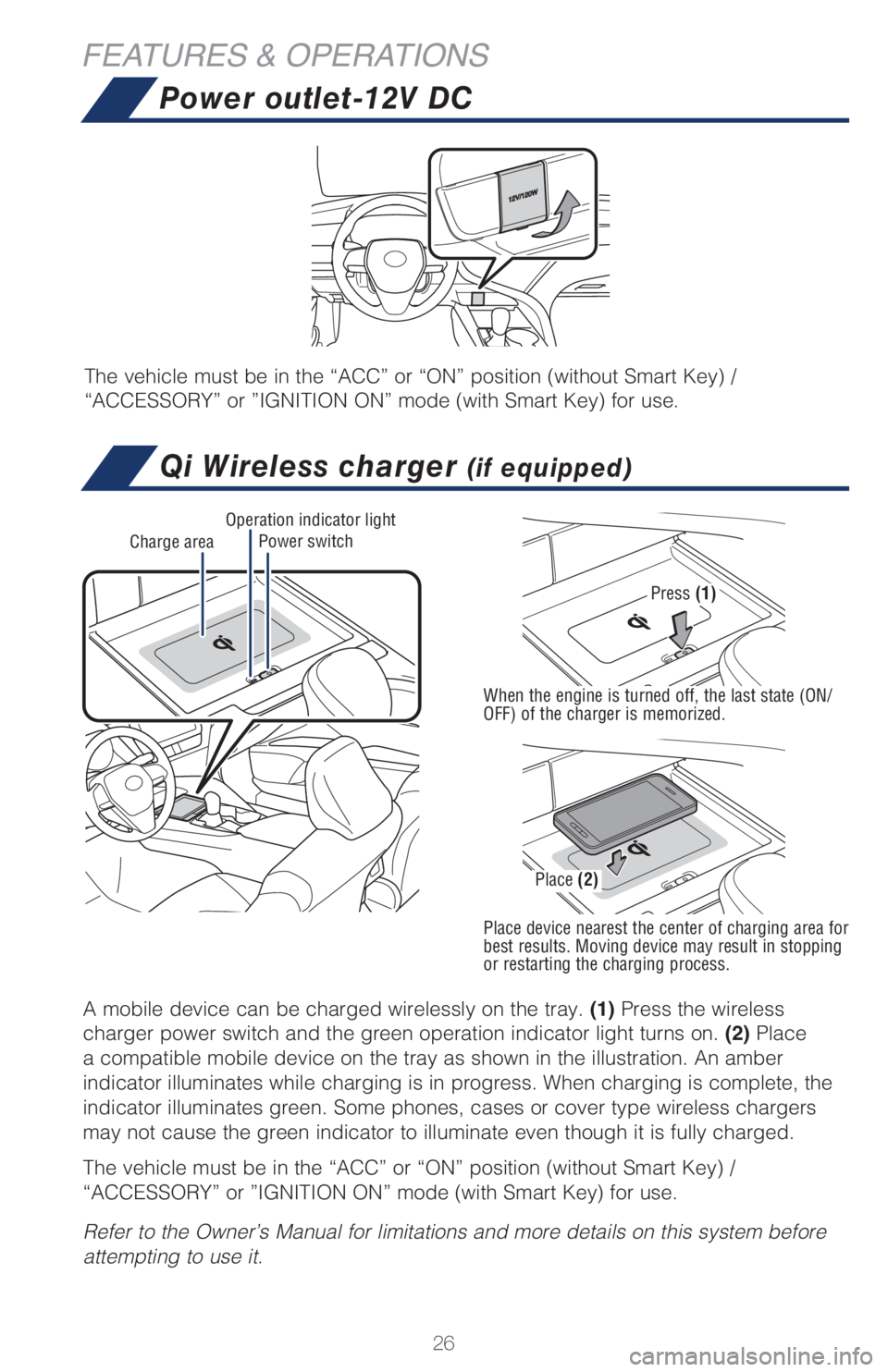

Power outlet-12V DC
The vehicle must be in the “ACC” or “ON” position (without Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use.
Power switchCharge areaOperation indicator light
Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An amber
indicator illuminates while charging is in progress. When charging is complete, the
indicator illuminates green. Some phones, cases or cover type wireless chargers
may not cause the green indicator to illuminate even though it is fully charged.
The vehicle must be in the “ACC” or “ON” position (without Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use.
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
Press (1)
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place (2)

27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

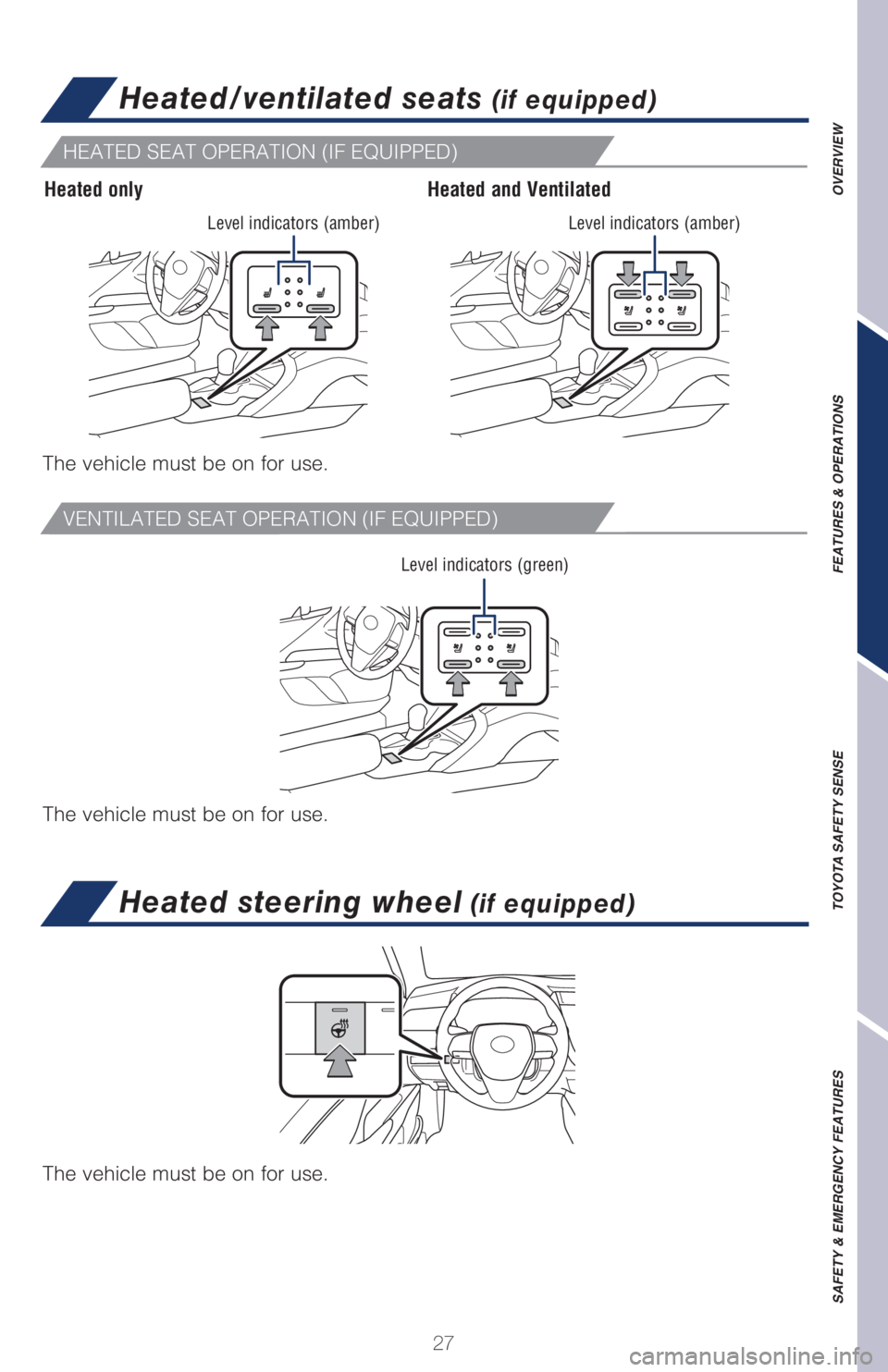

VENTILATED SEAT OPERATION (IF EQUIPPED)
HEATED SEAT OPERATION (IF EQUIPPED)
Heated onlyHeated and Ventilated
The vehicle must be on for use.
The vehicle must be on for use.
Heated/ventilated seats (if equipped)
Level indicators (amber) Level indicators (amber)
Level indicators (green)
The vehicle must be on for use.
Heated steering wheel (if equipped)

28
FEATURES & OPERATIONS

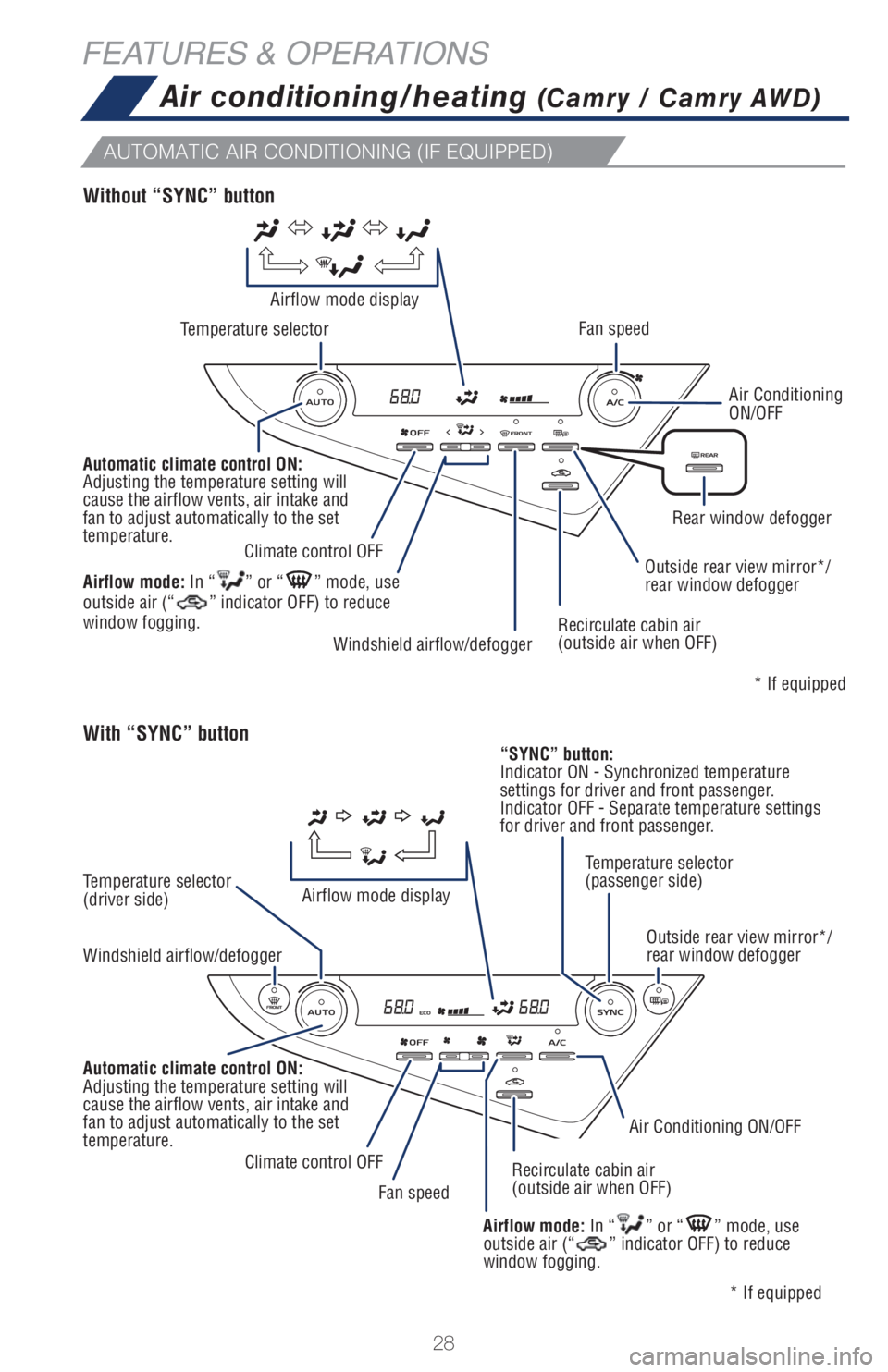

Air conditioning/heating (Camry / Camry AWD)
AUTOMATIC AIR CONDITIONING (IF EQUIPPED)
With “SYNC” button
Temperature selector
(driver side)Temperature selector
Automatic climate control ON:
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically to the set
temperature. Automatic climate control ON:
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically to the set
temperature.
“SYNC” button:
Indicator ON - Synchronized temperature
settings for driver and front passenger.
Indicator OFF - Separate temperature settings
for driver and front passenger.
Airflow mode display
Airflow mode display
Airflow mode: In “
” or “” mode, use
outside air (“” indicator OFF) to reduce
window fogging. Airflow mode: In “
” or “” mode, use
outside air (“” indicator OFF) to reduce
window fogging.
Temperature selector
(passenger side) Recirculate cabin air
(outside air when OFF)
Outside rear view mirror*/
rear window defogger
* If equipped
* If equipped
Rear window defogger
Outside rear view mirror*/
rear window defogger
Climate control OFF
Climate control OFF
Air Conditioning ON/OFF
Air Conditioning
ON/OFF
Fan speed
Fan speed
Windshield airflow/defoggerWindshield airflow/defogger
Recirculate cabin air
(outside air when OFF)
Without “SYNC” button
