TOYOTA CAMRY 2021 Owners Manual (in English)

5317-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
2WD models
AWD models
■ While towing
● When towing using cables or chains, avoid sudden starts, etc. w hich place
excessive stress on the towing eyelets, cables or chains. The t owing eye-
lets, cables or chains may become damaged, broken debris may hit peo-
ple, and cause serious damage.
● Vehicles without a smart key system: Do not turn the engine swi tch to the
“LOCK” position. There is a possibility that the steering wheel is locked
and cannot be operated.
● Vehicles with a smart key system: Do not turn the engine switch off. There
is a possibility that the steering wheel is locked and cannot b e operated
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged.
Be sure to transport the vehicle with all
four wheels raised off the ground. If the
vehicle is towed with the tires contacting
the ground, the drivetrain or related parts
may be damaged, the vehicle may fly off
the truck.

5327-2. Steps to take in an emergency
CAMRY_U
The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.
● The engine is running but t he vehicle does not move.
● The vehicle makes an abnormal sound.
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type
truck
● Vehicles without a smart key system: Do not tow the vehicle from the rear
when the engine switch is in the “LOCK” position or the key is removed.
The steering lock mechanism is not strong enough to hold the front wheels
straight.
● Vehicles with a smart key system: Do not tow the vehicle from the rear
when the engine switch is off. The steering lock mechanism is n ot strong
enough to hold the front wheels straight.
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or re a r.
■ To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
■ Recreational towing (behind motor home, etc.)
 P. 210
Situations when it is necessary to contact dealers before towing

5337-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
Towing with a wheel-lift type truck
From the front (2WD models)From the front (AWD models)
Release the parking brake.
Vehicles with electric parking
brake: Turn automatic mode off.
(  P. 227) Use a towing dolly under the rear
wheels.
From the rear
Use a towing dolly under the front
wheels.

5347-2. Steps to take in an emergency
CAMRY_U
NOTICE
■Towing with a sling-type truck
Do not tow with a sling-type truck to prevent body damage.
2WD models
AWD models

5357-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
When using a flat-bed truck to transport the vehicle, use tire strapping
belts. Refer to the owner's manual of the flat-bed truck for th e tire
strapping method.
Vehicles without a smart key system
In order to suppress vehicle movement during transportation, se t the
parking brake and turn the engine switch to the “LOCK” position .
Vehicles with a smart key system
In order to suppress vehicle movement during transportation, se t the
parking brake and turn the engine switch off.
A driver must be in the vehicle to steer and operate the brakes . The
vehicle's wheels, drive train, axles, steering and brakes must be in
good condition.
Using a flatbed truck
Emergency towing

5367-2. Steps to take in an emergency
CAMRY_U
●Fluid leaks un der the vehicle.
(Water dripping from the air conditioning a fter use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points high er
than normal
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
● Engine missing, stumb ling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one s ide when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touch es
the floor
If you think something is wrong
If you notice any of the followi ng symptoms, your vehicle proba -
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

5377-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart key system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart key system
Turn the engine switch off.
Restart the engine.
Fuel pump shut off system
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
■ Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

5387-2. Steps to take in an emergency
CAMRY_U

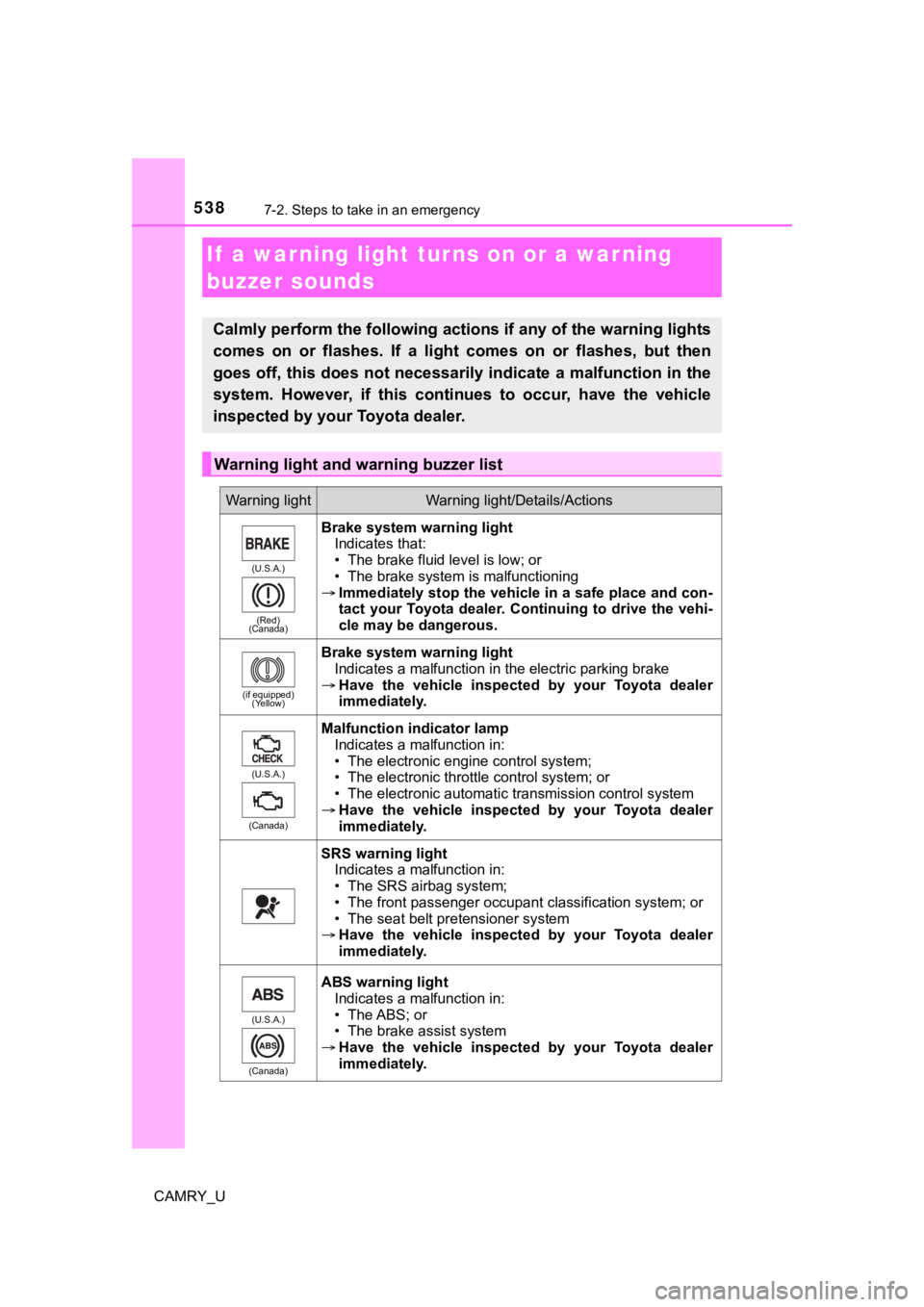

If a warning light turns on or a war ning
buzzer sounds
Calmly perform the following actions if any of the warning ligh ts
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.
Warning light and w arning buzzer list
Warning lightWarning light/Details/Actions
(U.S.A.)
(Red)
(Canada)
Brake system warning light
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.
(if equipped)
(Yellow)
Brake system warning light
Indicates a malfunction in the electric parking brake
 Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
 Have the vehicle inspected by your Toyota dealer
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
 Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system
 Have the vehicle inspected by your Toyota dealer
immediately.

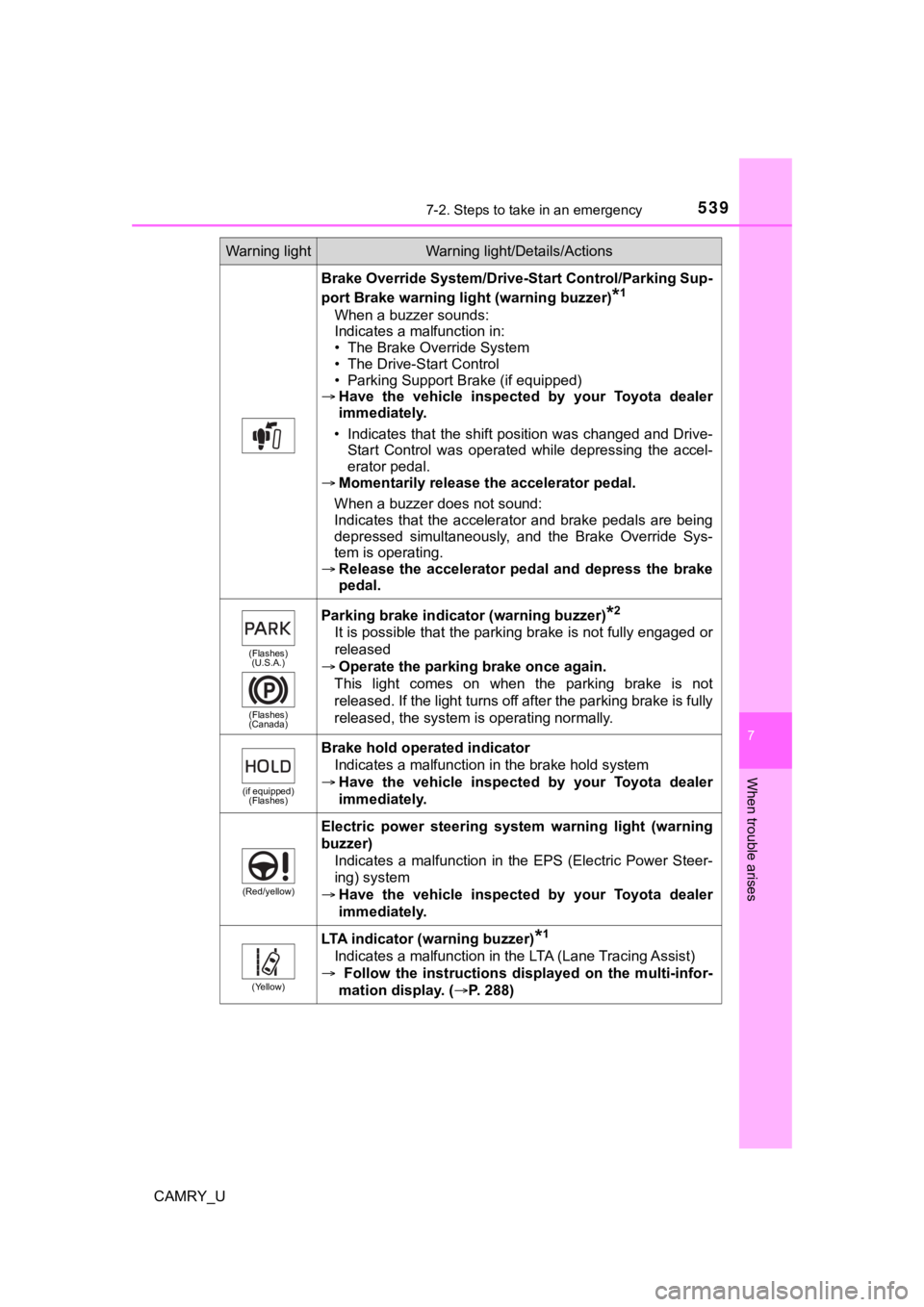

5397-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
Brake Override System/Drive-Start Control/Parking Sup-
port Brake warning light (warning buzzer)
*1
When a buzzer sounds:
Indicates a malfunction in:
• The Brake Override System
• The Drive-Start Control
• Parking Support Brake (if equipped)
 Have the vehicle inspected by your Toyota dealer
immediately.
• Indicates that the shift position was changed and Drive- Start Control was operated while depressing the accel-
erator pedal.
 Momentarily release the accelerator pedal.
When a buzzer does not sound:
Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override Sys-
tem is operating.
 Release the accelerator pedal and depress the brake
pedal.
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
Parking brake indicator (warning buzzer)*2
It is possible that the parking brake is not fully engaged or
released
 Operate the parking brake once again.
This light comes on when the parking brake is not
released. If the light turns off after the parking brake is ful ly
released, the system is operating normally.
(if equipped) (Flashes)
Brake hold operated indicator
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Toyota dealer
immediately.
(Red/yellow)
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by your Toyota dealer
immediately.
(Yellow)
LTA indicator (warning buzzer)*1
Indicates a malfunction in the LTA (Lane Tracing Assist)
 Follow the instructions displayed on the multi-infor-
mation display. (P. 288)
Warning lightWarning light/Details/Actions

5407-2. Steps to take in an emergency
CAMRY_U
(Flashes or
illuminates)

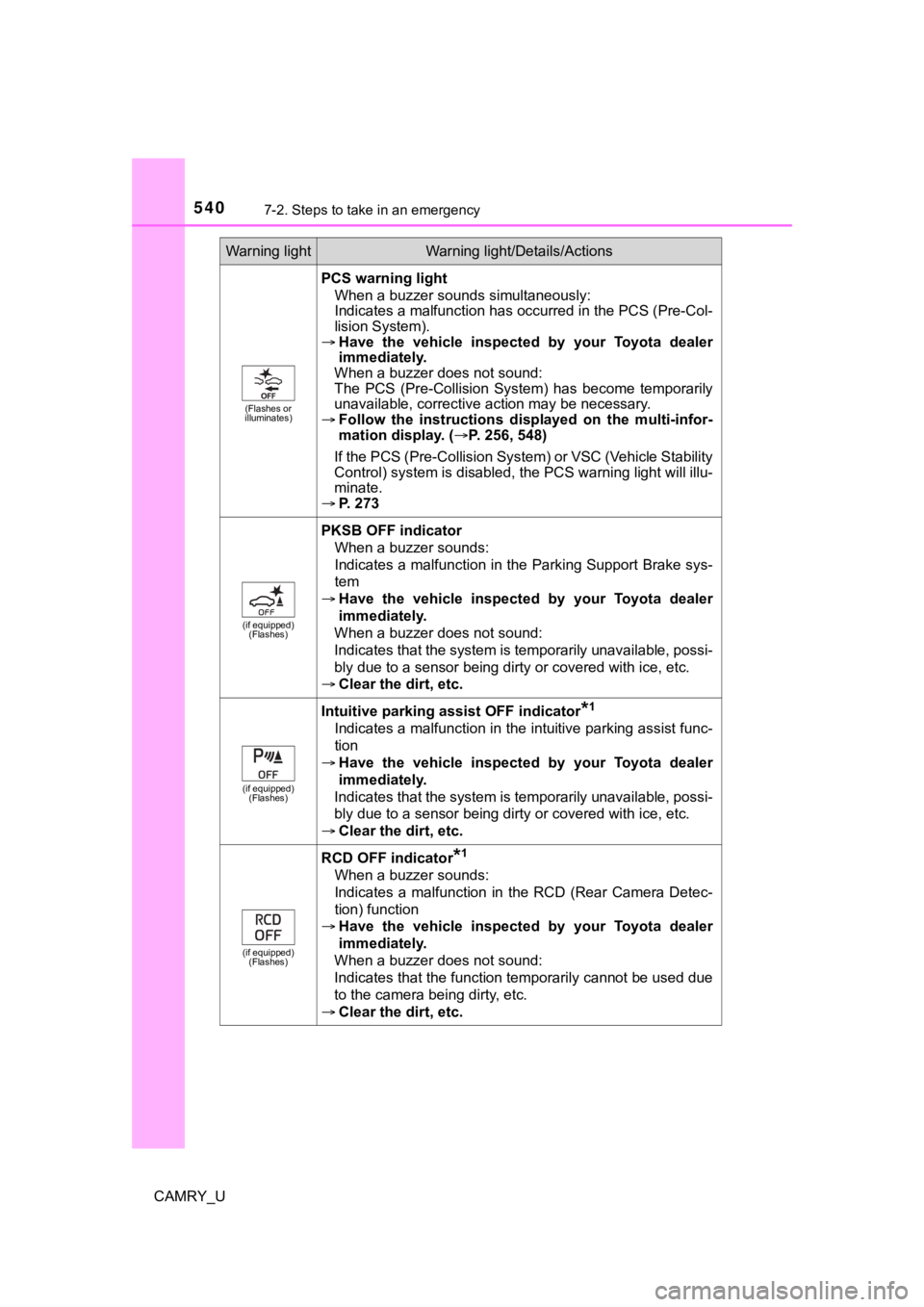

PCS warning light
When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS (Pre-Col-
lision System).
 Have the vehicle inspected by your Toyota dealer
immediately.
When a buzzer does not sound:
The PCS (Pre-Collision System) has become temporarily
unavailable, corrective action may be necessary.
 Follow the instructions dis played on the multi-infor-
mation display. (P. 256, 548)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
 P. 273
(if equipped)
(Flashes)
PKSB OFF indicator
When a buzzer sounds:
Indicates a malfunction in the Parking Support Brake sys-
tem
 Have the vehicle inspected by your Toyota dealer
immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.
 Clear the dirt, etc.
(if equipped)
(Flashes)
Intuitive parking assist OFF indicator*1
Indicates a malfunction in the intuitive parking assist func-
tion
 Have the vehicle inspected by your Toyota dealer
immediately.
Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.
 Clear the dirt, etc.
(if equipped)
(Flashes)
RCD OFF indicator*1
When a buzzer sounds:
Indicates a malfunction in the RCD (Rear Camera Detec-
tion) function
 Have the vehicle inspected by your Toyota dealer
immediately.
When a buzzer does not sound:
Indicates that the function temporarily cannot be used due
to the camera being dirty, etc.
 Clear the dirt, etc.
Warning lightWarning light/Details/Actions
