TOYOTA CAMRY 2021 Owners Manual (in English)

5517-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
■If “A New Key has been Registered Contact Your Dealer for Detai ls” is
displayed (if equipped)
This message will be displayed each time the driver’s door is opened when
the doors are unlocked from the outside for approximately one w eek after a
new electronic key has been registered.
If this message is displayed but you have not had a new electro nic key regis-
tered, ask your Toyota dealer to check if an unknown electronic key (other
than those in your possession) has been registered.
■ If “Headlight System Malfunction Visit Your Dealer” is displayed
The following systems may be malfunctioning. Have the vehicle inspected by
your Toyota dealer immediately.
● The LED headlight system
● AHB (Automatic High Beam)
■ If “Radar Cruise Control Unavailable See Owner's Manual” is sho wn
The dynamic radar cruise control with full-speed range or dynamic radar
cruise control system is suspended temporarily or until the problem shown in
the message is resolved. (causes and coping methods: P. 256)
■ If “Radar Cruise Control Unavailable” is shown
The dynamic radar cruise control with full-speed range or dynamic radar
cruise control system cannot be used temporarily. Use the syste m when it
becomes available again.
■ If a message that indicates the malfunction of front camera is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 256, 538)
● PCS (Pre-Collision System)
● LTA (Lane Tracing Assist)
● AHB (Automatic High Beam)
● RSA (Road Sign Assist) (if equipped)
● Dynamic radar cruise control with full-speed range (if equipped )
● Dynamic radar cruise control (if equipped)
■ If a message that indicates the m alfunction of radar sensor is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 256, 538)
● PCS (Pre-Collision System)
● LTA (Lane Tracing Assist)
● Dynamic radar cruise control with full-speed range (if equipped )
● Dynamic radar cruise control (if equipped)

5527-2. Steps to take in an emergency
CAMRY_U■
If “Maintenance Required Soon” is displayed (if equipped)
Indicates that all maintenance according to the driven distance on the mainte-
nance schedule
* should be performed soon.
Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance. Please reset the message aft er the main-
tenance is performed. ( P. 457)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle.
■ If “Maintenance Required Visit Your Dealer” is displayed (if eq uipped)
Indicates that all maintenance is required to correspond to the driven distance
on the maintenance schedule
*.
Comes on approximately 5000 miles (8000 km) after the message has been
reset.
(The indicator will not work properly unless the message has been reset.)
Perform the necessary maintenance. Please reset the message after the
maintenance is performed. ( P. 457)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle.
■ If “Engine Oil Level Low Add or Replace” is displayed
The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is
stopped on a slope. Move the vehicle to a level surface and che ck if the mes-
sage disappears.
■ Warning buzzer
P. 544
NOTICE
■If “High Power Consumption Power to Climate Temporarily Limited” is
frequently shown
There is a possible malfunction relating to the charging system or the bat-
tery may be deteriorating. Have the vehicle inspected by your Toyota dealer.

5537-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. ( P. 526)
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 4 8 2
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance wit h a flat tire can damage the tire and the
wheel beyond repair, which cou ld result in an accident.
Before jacking up the vehicle

5547-2. Steps to take in an emergency
CAMRY_U
2WD models
AWD models
Location of the spare tire, jack and tools
Luggage floor cover
Wheel nut wrench
JackSpare tire
Jack handle
Wheel lock key (if equipped)1
2
3
4
5
6

5557-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing t ires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properl y in its jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start the engine or drive the vehicle while the vehicle is sup-
ported by the jack.
●Do not raise the vehicle w hile someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before l owering.
NOTICE
■To prevent damage to the vehicle when using a jack
When jacking up the rear of the vehi-
cle, make sure not to position the jack
under the bracket shown in the illustra-
tion near the rear jack point, as the
vehicle body may be damaged.

5567-2. Steps to take in an emergency
CAMRY_U
When replacing tires on a vehicle with wheel lock nuts, use the follow-
ing procedures to remove and install the wheel lock nuts. The w heel
lock key is stored in the tray inside the luggage compartment. Always
return the wheel lock key to its original position after use, so that it
does not get lost. ( P. 554)
■Removal
For ease of removal, the wheel lock nut should always be the fi rst
one loosened.
Place the wheel lock key on top of the wheel lock nut, turning
until the wheel lock key and wheel lock nut patterns engage.
Place the wheel nut wrench on the wheel lock key, and while
applying pressure on the wheel lock key, loosen the wheel lock
nut.
■Installation
For ease of installation, the wheel lock nut should always be t he
last one tightened.
By hand, install a wheel lock nut on each wheel.
Place the wheel lock key on top of the wheel lock nut, turning
until the wheel lock key and wheel lock nut patterns engage.
Place the wheel nut wrench on the wheel lock key, and while
applying pressure on the wheel lock key, tighten the wheel lock
nut to the recommended torque.
Wheel lock nut (if equipped)
NOTICE
■ When using a wheel lock key
Do not use an impact wrench. Using an impact wrench may cause p erma-
nent damage to wheel lock nut and wheel lock key. If in doubt a bout wheel
lock application, contact your Toyota dealer.
1
2
1
2
3

5577-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
Lift up the hook of the luggage
floor cover on the trunk floor.
Secure the luggage floor cover
using the hook provided.
Remove the jack.
Taking out the jack
1
2
3
2WD modelsAWD models

5587-2. Steps to take in an emergency
CAMRY_U
Lift up the hook of the luggage
floor cover on the trunk floor.
Secure the luggage floor cover
using the hook provided.
Remove the tool tray.
Taking out the spare tire
1
2
3
2WD modelsAWD models

5597-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
Loosen the center fastener that
secures the spare tire.
When taking out or stowing the
spare tire, make sure to firmly
hold opposite end of the tire.
4
WARNING
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare
tire and the body of the vehicle.

5607-2. Steps to take in an emergency
CAMRY_U

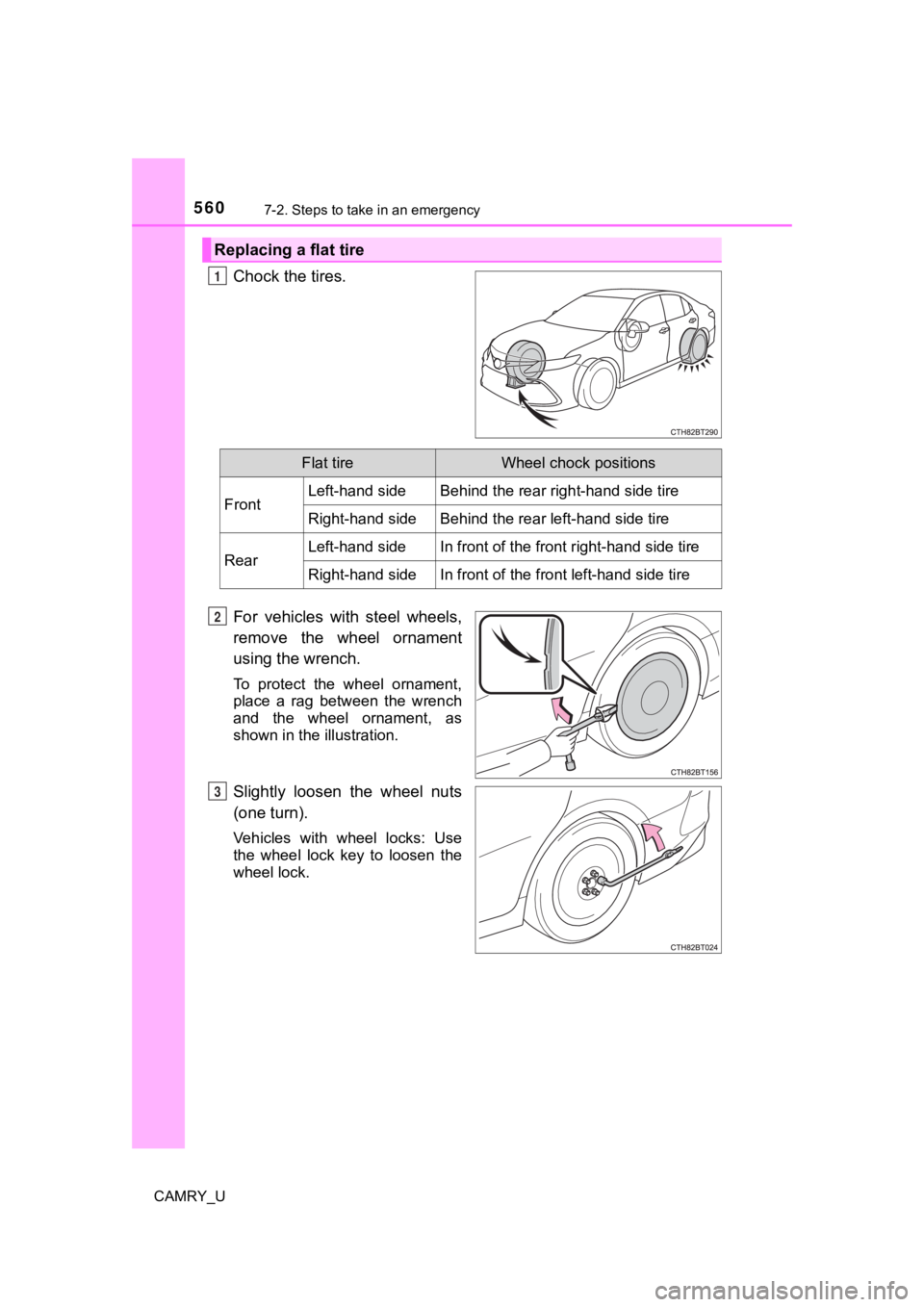

Chock the tires.
For vehicles with steel wheels,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
Slightly loosen the wheel nuts
(one turn).
Vehicles with wheel locks: Use
the wheel lock key to loosen the
wheel lock.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3
