warning TOYOTA CAMRY 2023 Owner's Guide

621-2. Child safety
CAMRY_U
WARNING
■When using a child restraint system
● When a booster seat is installed, always ensure that the should er belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.

681-2. Child safety
CAMRY_U
WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play with the seat belt. If the seat b elt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be
used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a booster seat is installed, always ensure that the should er belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt ef fectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it does not, or if it interferes with the child restraint, move to a different
position. Failure to do so may result in death or serious injur y.
■ When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This c ould cause
injury or discomfort to the child. ( P. 32)
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.

711-2. Child safety
1
For safety and security
CAMRY_U
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 68)
■When installing in the rear center seat
There are no LATCH anchors behind the rear center seat. How-
ever, the inboard LATCH anchors of the outboard seats, which ar e
16.1 in. (410 mm) apart, can be used if the child restraint sys tem
manufacturer’s instructions permit use of those anchors with th e
anchor spacing stated.
Child restraint systems with rig id lower attachments cannot be
installed in the center seat. This type of child restraint syst em can
only be installed in the outboard seat.
■ Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.
WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● Never attach two child restraint system attachments to the same anchor. In
a collision, one anchor may not be strong enough to hold two ch ild
restraint system attachments and may break.
If the LATCH anchors are already in use, use the seat belt to install a child
restraint system in the center seat.
● When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt ef fectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it does not, or if it interferes with the child restraint, move to a different
position. Failure to do so may result in death or serious injur y.
● If the seat is adjusted, reconfirm the security of the child re straint system.
5

741-2. Child safety
CAMRY_U
WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Firmly attach the top tether strap and make sure that the belt is not twisted.
● Do not attach the top tether strap to anything other than the anchor
bracket.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● When installing the child restraint system with the head restra int being
raised, after the head restraint has been raised and then the anchor
bracket has been fixed, do not lower the head restraint.
NOTICE
■ Anchor brackets (for top tether strap)
When not in use, make certain to close the lid. If it remains open, the lid
may be damaged.

87
Instrument cluster2
CAMRY_U2. Instrument cluster
Warning lights and indicators .......................... 88
Gauges and meters ............ 94
Multi-information display (4.2-inch display) .............. 98
Multi-information display (7-inch display) ............... 111
Head-up display ................ 128
Fuel consumption information ...................... 134

88
CAMRY_U
2. Instrument cluster
4.2-inch display
7-inch display
The units used on the meters and some indicators may differ depending on
the target region.

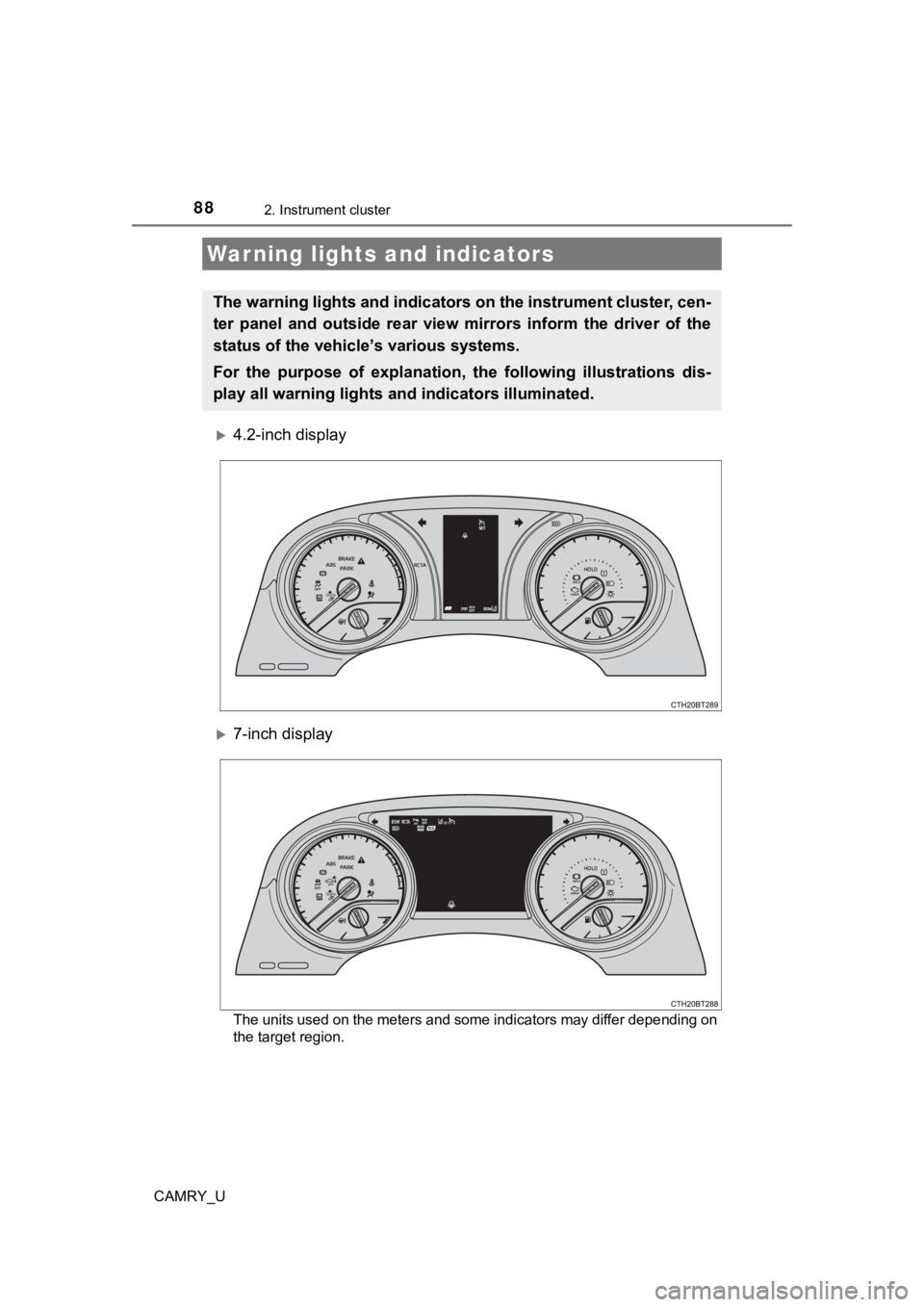

Warning lights and indicators
The warning lights and indicators on the instrument cluster, ce n-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, t he following illustrations dis-
play all warning lights a nd indicators illuminated.

892. Instrument cluster
2
Instrument cluster
CAMRY_U
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 528)*2Inappropriate pedal
operation warning light
(P. 529)
*1
(Canada)
(Red)
Brake system warning
light ( P. 528)
(U.S.A.)
Parking brake indicator
(P. 529)
*1
(If equipped)
(Yellow)
Brake system warning
light ( P. 528)
(Canada)
Parking brake indicator
(P. 529)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 529)*1, 3
(If equipped)
Brake hold operated
indicator ( P. 529)
*1
(Canada)
Malfunction indicator
lamp ( P. 529)*1
(Red/yellow)
Electric power steering
system warning light
(P. 530)
*1SRS warning light
(P. 529)
(Yellow)
LTA indicator ( P. 530)
*1
(U.S.A.)
ABS warning light
(P. 529)
*1
(Flashes or
illuminates)
PCS warning light
( P. 530)
*1
(Canada)
ABS warning light
(P. 529)*1, 3
(If equipped)
PKSB OFF indicator
(P. 530)

902. Instrument cluster
CAMRY_U
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display with a message.
*3: This light flashes to indicate a malfunction.
*4: This light illuminates on the center panel.
(If equipped)
Intuitive parking assist
OFF indicator (P. 530)Driver’s and front
passenger’s seat belt
reminder light (P. 531)
(If equipped)
RCD OFF indicator
(P. 531)*4Rear passengers’ seat
belt reminder lights
(P. 531)
*1
Slip indicator ( P. 531)*1Master warning light
(P. 532)
Low fuel level warning
light ( P. 531)*1Tire pressure warning
light (P. 532)

912. Instrument cluster
2
Instrument cluster
CAMRY_U
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 223)*1
(If equipped)
Brake hold standby
indicator ( P. 229)
(U.S.A.)
Headlight indicator
(P. 231) Cruise control indicator
(
P. 290, 306)
(Canada)
Tail light indicator
(P. 231) Dynamic radar cruise
control indicator
(
P. 290, 306)
Headlight high beam
indicator ( P. 232) Cruise control “SET”
indicator
(
P. 290, 306)
*1Automatic High Beam
indicator ( P. 236)*1, 3PCS warning light
(P. 254)
*1, 2
Eco driving indicator
(P. 109, 126)*1, 3
(If equipped)
PKSB OFF indicator
(P. 361)
(U.S.A.)
Parking brake indicator
(P. 224, 225)
(White)
LTA indicator ( P. 279)
(Canada)
Parking brake indicator
(P. 224, 225)
(Green)
LTA indicator
(P. 255, 279)
*1
(If equipped)
Brake hold operated
indicator ( P. 229)*4
(Yellow)
LTA indicator ( P. 279)

932. Instrument cluster
2
Instrument cluster
CAMRY_U
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehi cles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.
*2: This light does not turn on when the system is disabled.
*3: This light turns on when the system is off.
*4: This light flashes to indicate that the system is operating.
*5: These indicators will illuminate in the following situations to indicate that the system initial check is being performed:
• When the BSM function or RCTA function is enabled and the engi ne
switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
• When the engine switch is in the “ON” position (vehicles witho ut a smart
key system) or IGNITION ON mode (vehicles with a smart key syst em)
and the BSM function is enabled.
• When the engine switch is in the “ON” position (vehicles witho ut a smart
key system) or IGNITION ON mode (vehicles with a smart key syst em)
and the RCTA function is enabled. (At this time, a buzzer will also
sound.)
The indicators will turn off after a few seconds. If the indica tors do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion is enabled, the system may be malfunctioning. Have the vehicle
inspected by your Toyota dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8: When the outside temperature is approximately 37°F (3°C) or lo wer, this
indicator will flash for approximately 10 seconds, then stay on .
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.
