battery capacity TOYOTA CAMRY 2023 Owners Manual

5657-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
■When recharging or replacing the battery (vehicles with a smart key sys-
tem)
● In some cases, it may not be possible to unlock the doors using the smart
key system when the battery is discharged. Use the wireless rem ote control
or the mechanical key to lock or unlock the doors.
● The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
● The engine switch mode is memorized by the vehicle. When the ba ttery is
reconnected, the system will return to the mode it was in befor e the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
■ When replacing the battery
●Use a battery that conforms to European regulations.
● Use a battery with the same case size, equivalent or greater 20 hour rate
capacity (20HR), and equivalent or greater performance rating ( CCA) as the
battery which is being replaced.
The case size, 20 hour rate capacity (20HR) and performance rat ing
(CCA) are specified on the label attached to the battery.
• If the sizes differ, the battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period w here the vehi-
cle is not used is a short time, the battery may discharge and the engine
may not be able to start.
● For details, consult your Toyota dealer.
Case size20 hour rate
capacity (20HR)Performance rating (CCA)
Type ALN260Ah563A
Type BLN370Ah603A

5818-1. Specifications
8
Vehicle specifications
CAMRY_U
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Toyota dealer.
Electrical system
Battery
Specific voltage reading at
68 F (20 C):12.3 V or higher
If the voltage is lower than the standard
value, charge the battery.
(When checking the voltage, after turning
the engine switch off, wait for 30 seconds
with the high beam headlights illuminated,
then turn the high beam headlights off and
check the voltage.)
Charging rates5 A max.
Automatic transaxle
Fluid capacity*
2.5 L 4-cylinder ( A25A-FKS) engine
7.7 qt. (7.3 L, 6.4 Imp. qt.)
3.5 L V6 (2GR-FKS) engine
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than the above type may cause abnormal
noise or vibration, or damage the transmission of your vehicle.

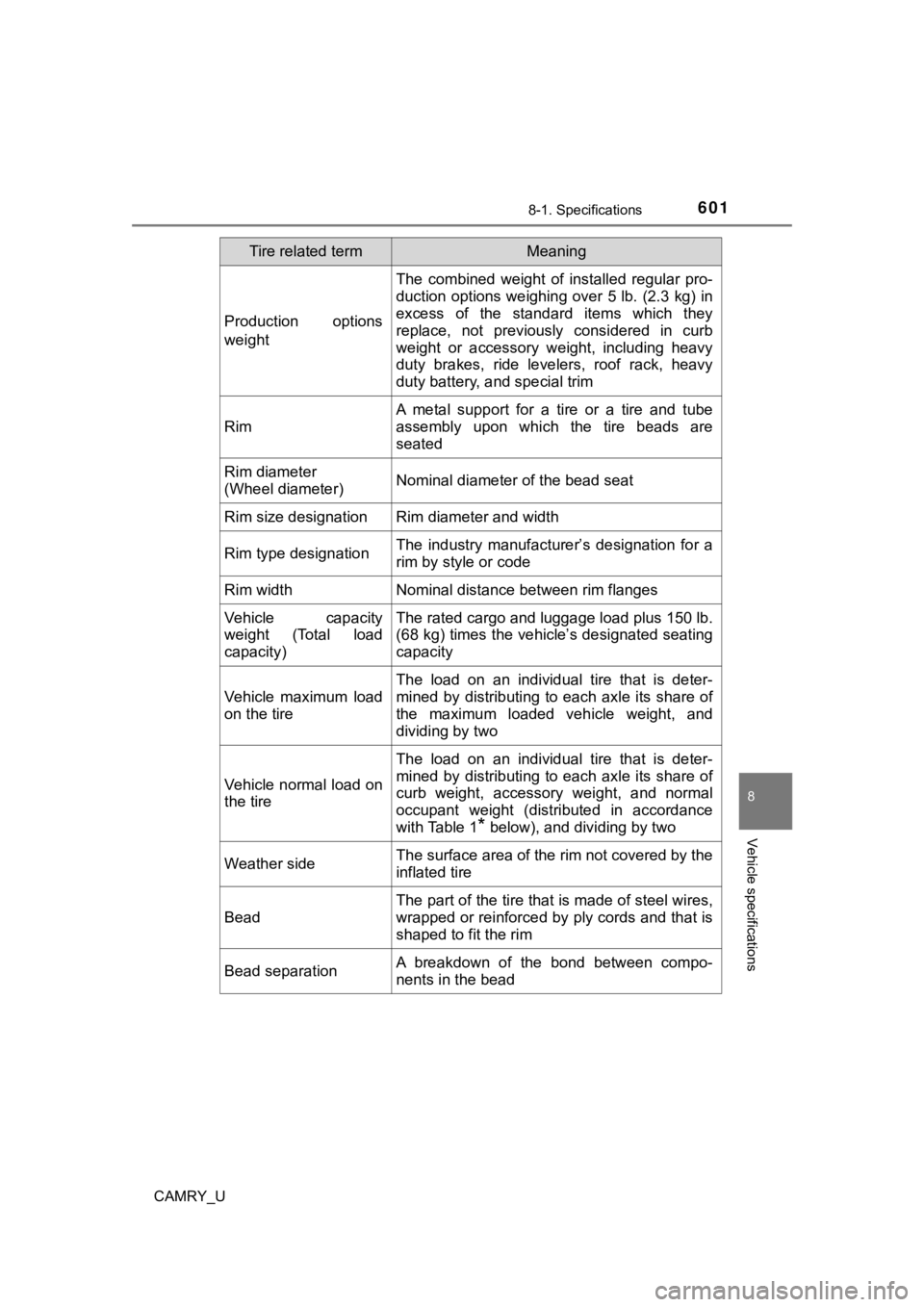

6018-1. Specifications
8
Vehicle specifications
CAMRY_U
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a
rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)The rated cargo and l uggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1
* below), and dividing by two
Weather sideThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separationA breakdown of the bond between compo-
nents in the bead
Tire related termMeaning

636Alphabetical index
CAMRY_U
CareExterior ................................. 440
Interior................................... 444
Seat belts .............................. 445
Wheels and wheel
ornaments .......................... 441
Cargo capacity ......................... 206
CD player
*
Chains....................................... 378
Child-protectors....................... 152
Child restraint system ............... 56 Booster seats installation ........ 66
Convertible seats installation ............................ 64
Front passenger occupant classification syst em............. 49
Infant seats definition .............. 63
Infant seats installation ........... 58
Installing CRS with LATCH anchors ............ 69
Installing CRS with seat belts....................... 63
Installing CRS
with top tether strap .............. 72
LATCH anchors ...................... 69 Child safety ................................ 55
Airbag precautions.................. 39
Battery precautions....... 470, 566
Child restraint system ............. 56
How your child should wear
the seat belt.......................... 32
Installing child restraints ......... 56
Moon roof precautions .......... 186
Panoramic moon roof precautions......................... 190
Power window lock switch .... 179
Power window precautions ... 182
Rear door child-protectors .... 152
Removed electronic key
battery precautions............. 497
Seat belt extender precautions........................... 35
Seat belt precautions .............. 34
Seat heater precautions ....... 402
Trunk precautions ................. 159
Cleaning ........................... 440, 444 Exterior ................................. 440
Interior .................................. 444
Seat belts.............................. 445
Wheels and wheel ornaments .......................... 441
C

638Alphabetical index
CAMRY_U
Dynamic radar cruise control with full-speed range ............ 290
Dynamic Torque Control AWD system .......................... 323
Eco drive mode ........................ 375
Eco Driving Indicator ...... 109, 126
Eco-friendly driving information ............................ 115
EDR (Event data recorder) ........ 11
Electric Power Steering
(EPS)....................................... 323 Warning light ......................... 530
Electronic key .......................... 140 Battery-saving function ......... 163
If the electronic key does not operate properly ................. 559
Replacing the battery ............ 494
Emergency flashers ................ 516
Emergency, in case of
If a warning buzzer sounds ................................ 528
If a warning light turns on...... 528
If a warning message is displayed ............................ 538
If the battery is discharged.... 562
If the electronic key does not
operate properly ................. 559
If the engine will not start ...... 557
If the vehicle is submerged
or water on the road is
rising ................................... 519
If you have a flat tire ............. 543
If you lose your keys ............. 144
If you think something is wrong.................................. 526
If your vehicle becomes stuck ................................... 570 If your vehicle has to be
stopped in an emergency ... 517
If your vehicle needs to be towed.................................. 520
If your vehicle overheats....... 567
Engine ACCESSORY mode ............. 213
Compartment ........................ 460
Engine switch ............... 209, 211
Hood ..................................... 457
How to start the engine ........................ 209, 211
Identification number ............ 577
If your vehicle has to be stopped in an
emergency ......................... 517
Ignition switch
(engine switch) ........... 209, 211
Overheating .......................... 567
Engine coolant
Capacity................................ 580
Checking............................... 466
Preparing and checking before winter ...................... 377
Engine coolant temperature gauge ....................................... 94
Engine immobilizer system ...... 80
Engine oil
Capacity................................ 578
Checking............................... 462
Preparing and checking before winter ...................... 377
Engine switch .................. 209, 211
Enhanced VSC ......................... 322
EPS (Electric Power Steering) ..... 323
Warning light......................... 530
Event data recorder (EDR)........ 11
E

641Alphabetical index
CAMRY_U
JackPositioning the jack ............... 459
Vehicle-equipped jack........... 544
Jack handle .............................. 544
Jam protection function Moon roof.............................. 184
Panoramic moon roof ........... 188
Power window....................... 180
Keyless entry Smart key system ......... 147, 156
Wireless remote control......................... 148, 157
Keys .......................................... 140 Battery-saving function ......... 163
Electronic key ....................... 140
Engine switch................ 209, 211
If the electronic key does not operate properly ........... 559
If you lose your keys ............. 144
Key number plate.................. 140
Keyless entry ........................ 141
Mechanical key ..................... 142
Replacing the battery ............ 494
Warning buzzer..................... 162
Wireless remote control ........ 141
Knee airbags .............................. 36 Lane Tracing Assist (LTA) ...... 270
Language (multi-
information display)...... 107, 124
LATCH anchors ......................... 69
Lever Auxiliary catch lever.............. 457
Hood lock release lever ........ 457
Internal trunk release lever ... 158
Shift lever.............................. 217
Tilt and telescopic steering lock release lever ............... 173
Turn signal lever ................... 223
Wiper lever ........................... 240
License plate lights
Light switch ........................... 231
Replacing light bulbs ............ 512
Light bulbs
Replacing.............................. 502
Wattage ................................ 589
Lights
Automatic High Beam ........... 236
Headlight switch ................... 231
Illuminated entry system ....... 408
Interior lights ......................... 406
Interior lights list.................... 405
Personal lights ...................... 407
Replacing light bulbs ............ 502
Trunk light ............................. 158
Turn signal lever ................... 223
Vanity lights .......................... 416
Wattage ................................ 589
Load capacity .......................... 206
Lock steering column ............. 210
LTA (Lane Tracing Assist) ...... 270
J
K
L
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

644Alphabetical index
CAMRY_U
Radar cruise control (dynamic radar cruise control) ............. 306
Radar cruise control (dynamic radar cruise
control with full-speed
range) ..................................... 290
Radiator .................................... 467
Radio
*
RCTA (Rear Cross Traffic Alert) ..... 345 RCTA Function ..................... 347
Rear Camera Detection Function ................................. 354
Rear Cross Traffic Alert .......... 345
RCTA Function ..................... 347
Rear interior light..................... 406 Wattage ................................ 589
Rear passengers’ seat belt reminder light ........................ 531
Rear personal lights ................ 407
Rear seat
Folding down ........................ 169
Rear side marker lights
Light switch ........................... 231
Replacing light bulbs..... 509, 512
Wattage ................................ 589 Rear turn signal lights
Replacing light bulbs .... 509, 512
Turn signal lever ................... 223
Wattage ................................ 589
Rear view mirror
Inside rear view mirror .......... 175
Outside rear view mirrors ..... 177
Rear view monitor system
*
Rear window
defogger................. 383, 389, 397
Refueling .................................. 244
Capacity................................ 577
Fuel types ............................. 577
Opening the fuel tank cap..... 246
When the fuel filler door cannot be opened .............. 247
Replacing
Electronic key battery ........... 494
Fuses .................................... 499
Light bulbs ............................ 502
Tires...................................... 543
Wireless remote control battery ................................ 494
Reporting safety defects for U.S. owners...................... 616
Resetting the message indicating maintenance
is required.............................. 448
Road Sign Assist ..................... 285
RSA (Road Sign Assist) .......... 285
R

649Alphabetical index
CAMRY_U
Warning lights............................ 89ABS....................................... 529
Brake hold operated
indicator .............................. 529
Brake system ....... ................. 528
Electric power steering ......... 530
Intuitive parking assist OFF indicator .............................. 336
LTA (Lane Tracing Assist) indicator .............................. 530
Low fuel level ........................ 531
Malfunction indicator lamp .... 529
Master warning light.............. 532
Parking brake indicator ......... 529
PCS warning light ................. 530
PKSB OFF indicator ............. 530
RCD OFF indicator ............... 354
Seat belt reminder light ......... 531
Slip indicator ......................... 531
SRS ...................................... 529
Tire pressure......................... 532
Warning messages .................. 538
Washer...................................... 240 Checking ............................... 472
Preparing and checking before winter....................... 377
Switch ................................... 240 Washing and waxing ............... 440
Weight ...................................... 574
Cargo capacity...................... 206
Load limits ............................ 206
Vehicle capacity weight ........ 574
Wheels ...................................... 490 Replacing.............................. 490
Size....................................... 584
Window glasses ...................... 179
Window lock switch ................ 179
Windows................................... 179 Power windows..................... 179
Rear window defogger ............. 383, 389, 397
Washer ................................. 240
Windshield wipers ................... 240
Winter driving tips ................... 377
Wireless charger ..................... 420
Wireless remote control ......... 141 Battery-Saving Function ....... 163
Locking/Unlocking ........ 148, 157
Panic mode........................... 143
Replacing the battery............ 494
WMA disc
*
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
