TOYOTA CAMRY HYBRID 2007 XV40 / 8.G Owner's Guide

’07Camry hybrid_U (L/O 0610)
19
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 150 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 176 in Sec-
tion 1 −7. Cruise control indicator light
∗
2
Turn signal indicator lights
“AIRBAG OFF” indicator light
Headlight indicator light
Tail light indicator light
Headlight high beam indicator light
“AIRBAG ON” indicator light
Driving ready light
Master warning light∗1
Low tire pressure warning light∗1

’07Camry hybrid_U (L/O 0610)
20
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

’07Camry hybrid_U (L/O 0610)
21
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Smart key system 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Side doors 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’07Camry hybrid_U (L/O 0610)
22
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The key consists of an electronic key
and a mechanical key. The mechanical
key is for emergency use. If the elec-
tronic key does not operate, you can
open the driver ’s door using the me-
chanical key.1. Electronic keys—These keys can lock or unlock all the doors and can open
the trunk by using the wireless remote
control function or entry function of the
smart key system.
2. Mechanical keys—These keys can lock or unlock the driver’s door and the
glove box. Spare keys should not be left in the
cabin. In the event that a spare key is
left in the cabin, the smart key system
will remain actuated even after the
doors have been locked. Under these
circumstances, the trunk can be opened
even after the driver has exited and
locked the vehicle, increasing the dan-
ger of theft. (Refer to “—Opening trunk
lid with smart key system” on page 47
in this Section.)
To protect items locked in the trunk or the
glove box when using valet parking, leave
the electronic key with the attendant. Keep
the mechanical key with you. For details
about locking the trunk opener switch, see
“—Luggage security system” on page 49
in this Section.
A transponder chip for engine immobilizer
system has been placed in the electronic
keys. These chips are needed to enable
the system to function correctly, so be
careful not to lose these keys.
CAUTION
People with implanted pacemakers
or cardiac defibrillators s
hould
maintain a reasonable distance be-
tween themselves and the smart
key system antennas, because the
radio waves may affect the opera-
tion of such devices. For the anten-
na locations see “ANTENNA LOCA-
TION” on page 34 in this Section.
Users of any electrical medical de-
vice other than implanted pacemak-
ers and implanted cardiac defibrilla-
tors should consult the manufactur-
er of the device for information
about its operation under the influ-
ence of radio waves. Radio waves
could have unexpected effects on
the operation of such medical de-
vices.
If necessary, the entry function can
be disabled. See “DISABLING THE
SMART KEY SYSTEM” on page 38
in this Section.
Keys

’07Camry hybrid_U (L/O 0610)
23
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE
When using a electronic key contain-
ing a transponder chip, observe the
following precautions:
Do not affix any material that cuts
off electromagnetic waves (such as
a metal seal) on the electronic key.
 Do not knock the electronic key
hard against other objects.
 Do not leave the electronic key ex-
posed to high temperatures for a
long period, such as on the dash-
board or hood under direct sun-
light.
 Do not put the electronic key in
water or wash it in an ultrasonic
washer.
 Do not keep the electronic key to-
gether with the products emitting
electromagnetic waves such as a
cellular phone.
USING A MECHANICAL KEY
When you use the mechanical key, push
the release button and take out the me-
chanical key as shown. Be sure to put the
mechanical key back when not in use.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’07Camry hybrid_U (L/O 0610)
24
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The engine immobilizer system is a
theft prevention system. The transpond-
er chip in the key transmits an elec-
tronic code to the vehicle. The hybrid
system will start only when the elec-
tronic code in the chip corresponds to
the registered ID code for the vehicle.
The engine immobilizer system is automat-
ically set when the “POWER” switch is
turned off.
The indicator light will start flashing to
show that the system is set.
If any of the following indicator conditions
occur, contact your Toyota dealer.
The indicator light remains on.
The indicator light does not start flash-
ing when the “POWER” switch is
turned off.
The indicator light flashes inconsistent-
ly.The engine immobilizer system is automat-
ically canceled when you enter the vehicle
carrying an electronic key and press the
“POWER” switch.
Even if the key battery is discharged, the
hybrid system can be turned on. See
“Smart key system” on page 32 in this
Section.
When the system is canceled, the indica-
tor light will go off.
For your Toyota dealer to make you a
new key with built
−in transponder chip,
your dealer will need your key number
and electronic key. However, there is a
limit to the number of additional keys your
Toyota dealer can make for you.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
Engine immobilizer system

’07Camry hybrid_U (L/O 0610)
25
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

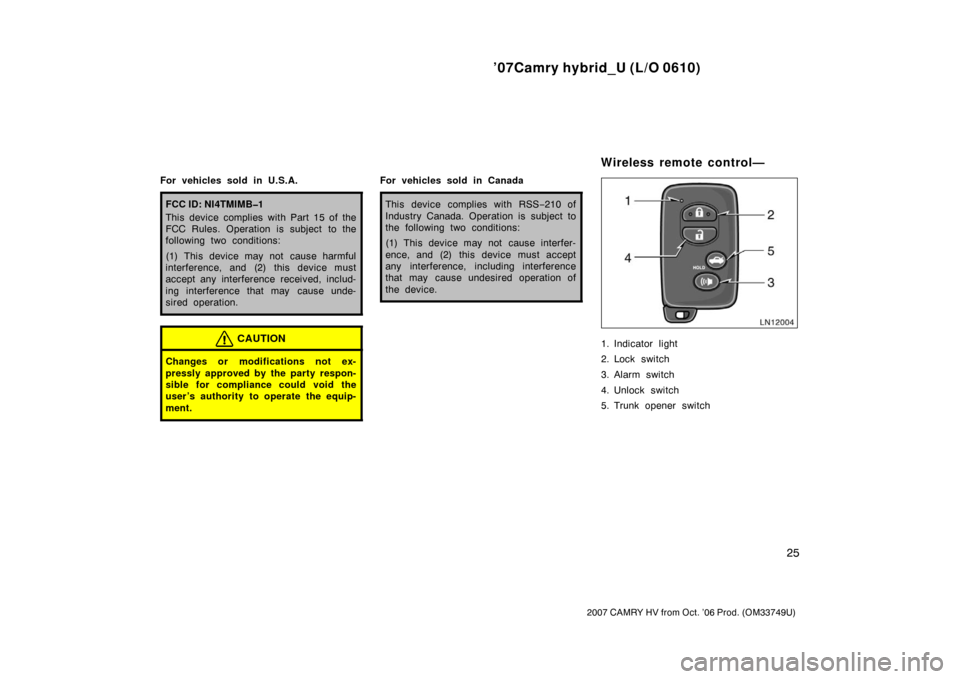

For vehicles sold in U.S.A.
FCC ID: NI4TMIMB1
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
1. Indicator light
2. Lock switch
3. Alarm switch
4. Unlock switch
5. Trunk opener switch
Wireless remote control—

’07Camry hybrid_U (L/O 0610)
26
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The wireless remote control function is
designed to lock or unlock all the
doors, open the trunk lid, or activate
the alarm from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
When the switch is operated, the indicator
light flashes once. If not, the battery may
be discharged. Replace the battery at the
earliest opportunity.
Observe the following precautions to pre-
vent damage the key.
Do not leave the electronic key in
places where the temperature becomes
high such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.If the wireless remote control function
does not actuate the doors, or does not
operate from a normal distance, or if the
indicator on the key is dimmed or does
not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 30 in this Section.
If you lose your key, contact your Toyota
dealer as soon as possible to avoid the
possibility of theft, or an accident. (See “If
you lose your keys” on page 330 in Sec-
tion 4.)
It is possible to disable the wireless re-
mote control system. For details, contact
your Toyota dealer. For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.

’07Camry hybrid_U (L/O 0610)
27
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

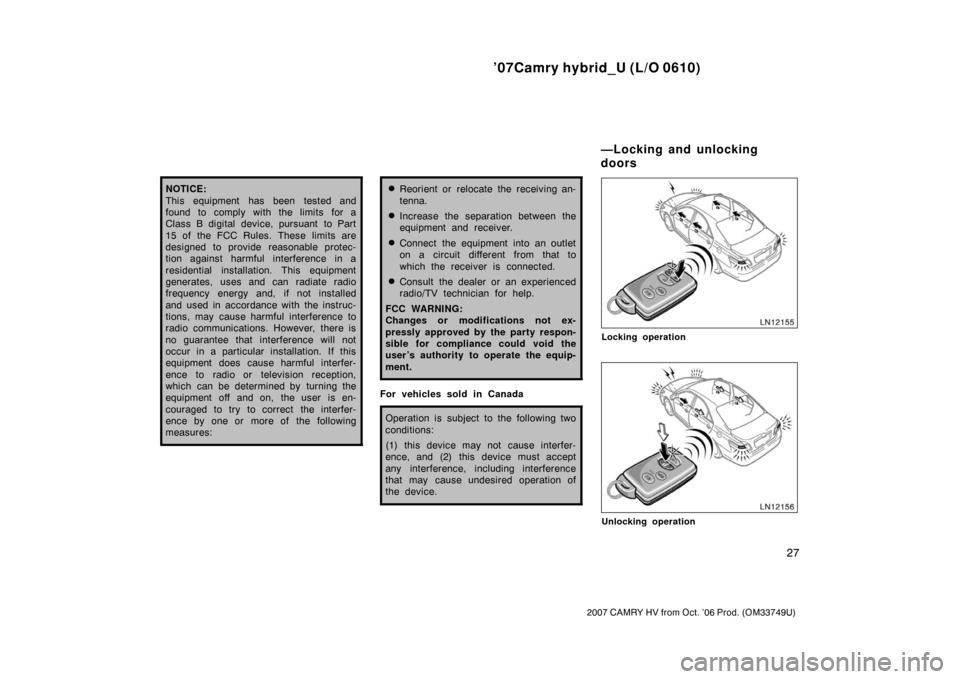

NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Locking operation
Unlocking operation
—Locking and unlocking
doors

’07Camry hybrid_U (L/O 0610)
28
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To lock or unlock all the doors, push
the switches slowly and securely.
To lock: Push the lock switch. All the
doors are locked simultaneously. At this
time one beep will sound and turn signal
lights flash once.
Check to see that the doors are securely
locked.
If any of the doors is not securely closed,
or if the key is left in the vehicle, locking
cannot be performed by the lock switch
and a beep will sound continuously for 10
seconds.
To stop the beep, take out the key from
the vehicle or push the unlock switch.
The answerback function (the turn signal
flash and the beep) can be disabled. For
details, contact your Toyota dealer.
To unlock: Push the unlock switch once to
unlock the driver ’s door alone. Pushing
the switch twice within 3 seconds unlocks
all the doors simultaneously. Each time
the unlock switch is pushed, two beeps
will sound and turn signal lights flash
twice.
This double switch operation to unlock all
doors can be changed to a single switch
operation. For details, contact your Toyota
dealer.If the “POWER” switch is set at ACC or
ON, the vehicle cannot be unlocked via
the unlock switch.
You have 60 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the wireless remote control is used to
lock the doors near the window or door
handle, there is a possibility that the door
may not unlocked by entry function of
smart key system. Under these circum-
stances, use the wireless remote control
function to unlock the doors.
The automatic locking time can also be
set to 30 seconds. For details, contact
your Toyota dealer.
If the lock or unlock switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
When you unlock doors using the wireless
remote control, the illuminated entry func-
tion will be activated. (For further informa-
tion, see “Illuminated entry system” on
page 127 in Section 1
−5.)
To open the trunk lid, push the trunk
opener switch of the electronic key for
1 second. A long beep will sound.
If the “POWER” switch is set at ACC or
ON, the trunk lid cannot be opened by the
trunk opener switch.
—Opening trunk lid
