TOYOTA CAMRY HYBRID 2007 XV40 / 8.G Service Manual
Manufacturer: TOYOTA, Model Year: 2007, Model line: CAMRY HYBRID, Model: TOYOTA CAMRY HYBRID 2007 XV40 / 8.GPages: 405, PDF Size: 6.75 MB
Page 41 of 405
’07Camry hybrid_U (L/O 0610)
29
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Opening of the trunk lid with the wireless
remote control can be changed as follows.
Contact your Toyota dealer for details.
Trunk lid opens by pushing the trunk
opener switch twice in succession.
Trunk lid opens by pushing the trunk
opener switch once regardless of how
long the switch is being pressed.
Opening of the trunk lid with the wire-
less remote control function is dis-
abled.
Pushing the switch blows the horn in-
termittently and flashes the exterior
lights and interior light.
When pushing the switch, the indicator
light flashes.
The alarm switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The alarm will last for one minute. To stop
the alarm midway, push the switch once
again, unlock a door with the wireless
remote control function, or set the
“POWER” switch at ON.If the “POWER” switch is set at ACC or
ON, the alarm does not work.
This alarm function can be disabled. For
details, contact your Toyota dealer.
—Activating alarm
Page 42 of 405
’07Camry hybrid_U (L/O 0610)
30
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The electronic key can easily be damaged
when replacing the battery. We recom-
mend having the battery replaced by your
Toyota dealer. If you have to do it your-
self, use a CR1632 lithium battery or
equivalent and a flathead screwdriver.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE
Be careful not to touch the circuit,
as this may generate static electric-
ity that can damage the key.
When replacing the battery, be care-
ful not to lose the components.
Replace only with the same or
equivalent type recommended by a
Toyota dealer.
Dispose of used batteries according
to the local laws.
Replace the battery by following these
procedures:
1. Push the release button and take out
the mechanical key.2. Using a flathead screwdriver or equiva-lent, open the key case.
—Replacing battery
Page 43 of 405
’07Camry hybrid_U (L/O 0610)
31
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

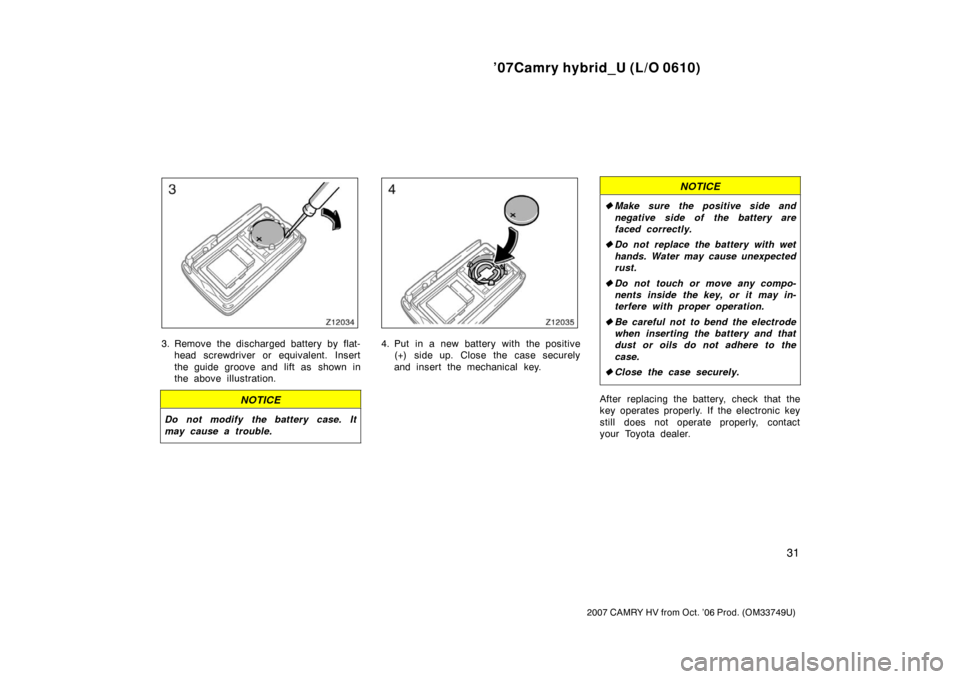

3. Remove the discharged battery by flat-head screwdriver or equivalent. Insert
the guide groove and lift as shown in
the above illustration.
NOTICE
Do not modify the battery case. It
may cause a trouble.
4. Put in a new battery with the positive(+) side up. Close the case securely
and insert the mechanical key.
NOTICE
Make sure the positive side and
negative side of the battery are
faced correctly.
Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any compo-
nents inside the key, or it may in-
terfere with proper operation.
Be careful not to bend the electrode
when inserting the battery and that
dust or oils do not adhere to the
case.
Close the case securely.
After replacing the battery, check that the
key operates properly. If the electronic key
still does not operate properly, contact
your Toyota dealer.
Page 44 of 405
’07Camry hybrid_U (L/O 0610)
32
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The smart key system consists mainly
of the following functions.
Engine immobilizer function (For de-
tails, see “Engine immobilizer system”
on page 24 in this Section.)
Wireless remote control function (For
details, see “Wireless remote control”
on page 25 in this Section.)
Push button start function (For details,
see “How to start the hybrid system”
on page 301 in Section 3.)
Entry function and start function (See
“ENTRY FUNCTION AND START
FUNCTION” described below.)
Steering lock function (See “STEERING
LOCK FUNCTION” described below.)

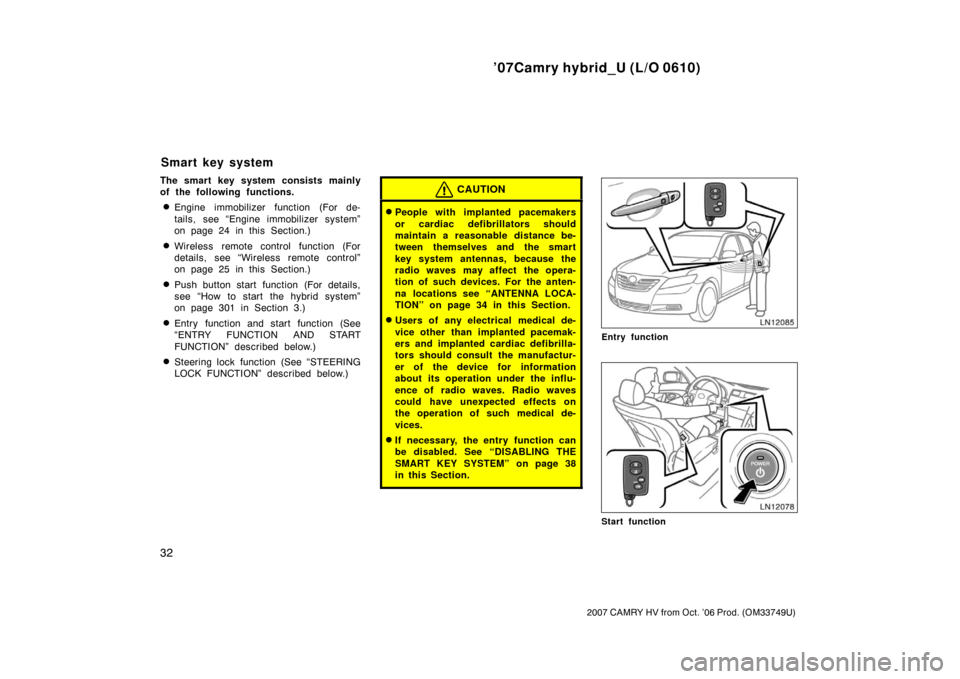

CAUTION
People with implanted pacemakers
or cardiac defibrillators should
maintain a reasonable distance be-
tween themselves and the smart
key system antennas, because the
radio waves may affect the opera-
tion of such devices. For the anten-
na locations see “ANTENNA LOCA-
TION” on page 34 in this Section.
Users of any electrical medical de-
vice other than implanted pacemak-
ers and implanted cardiac defibrilla-
tors should consult the manufactur-
er of the device for information
about its operation under the influ-
ence of radio waves. Radio waves
could have unexpected effects on
the operation of such medical de-
vices.
If necessary, the entry function can
be disabled. See “DISABLING THE
SMART KEY SYSTEM” on page 38
in this Section.
Entry function
Start function
Smart key system
Page 45 of 405
’07Camry hybrid_U (L/O 0610)
33
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
ENTRY FUNCTION AND START
FUNCTION
Simply by carrying the key, you can
lock and unlock the doors and start the
hybrid system.
Entry function—You can lock and unlock
the doors and open the trunk without in-
serting the key in the keyholes. For fur-
ther information, see “Side doors” on page
38 and “Trunk lid” on page 47 in this
Section.
Start function— You can shift the power
supply mode and start the hybrid system
when the electronic key is in the vehicle.
For further information, see “‘POWER’
switch” on page 160 in Section 1 −7 and
“How to start the hybrid system” on page
301 in Section 3.
If the smart key system does not oper-
ate properly because of a system mal-
function, consult your Toyota dealer.
Make sure to bring all of the keys. They
may be necessary to repair the system. STEERING LOCK FUNCTION
When the driver ’s door is opened after
turning off the hybrid system, the steering
wheel will lock.
The steering lock is automatically un-
locked when the “POWER” switch is
pressed. If the indicator light on the
“POWER” switch flashes green, this indi-
cates that the steering wheel remains
locked. If the amber indicator light flashes,
this indicates that the steering lock is mal-
functioning. For details, see “How to start
the hybrid system” on page 301 in Section
3.
Page 46 of 405
’07Camry hybrid_U (L/O 0610)
34
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

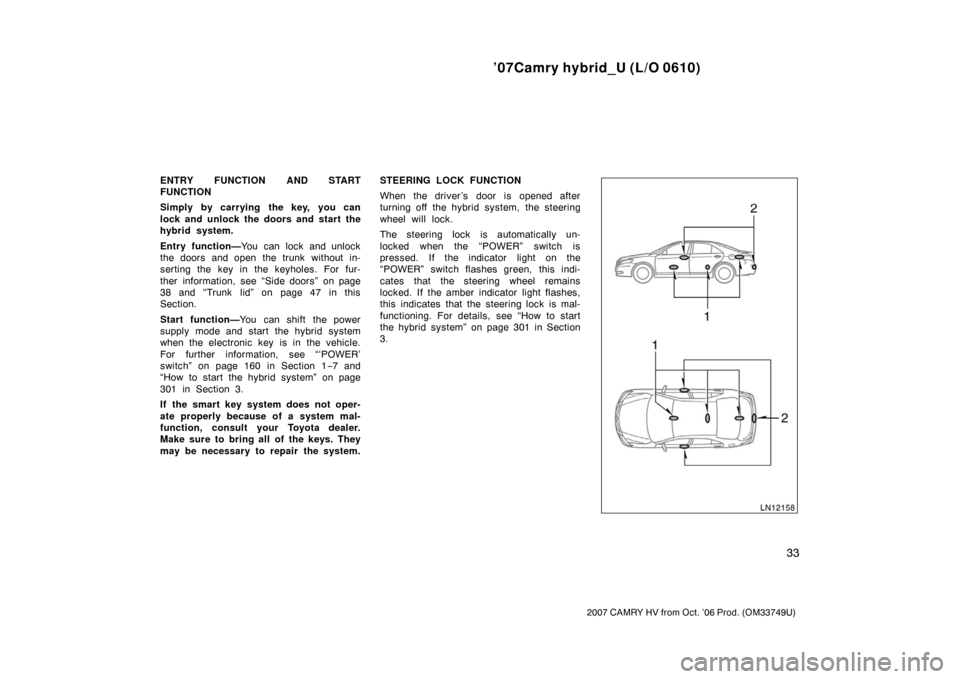

ANTENNA LOCATION1. Antenna inside cabin and trunk
2. Antenna outside cabin and trunk
ACTUATION AREA
The entry function and start function
are available to use when a registered
key is in the actuation area.
1. Entry function actuation area— About
1 m (3 ft.) from each outside front
door handle and the trunk opener
switch
Only the door handle of the actuation
area that the key holder is in can be
operated.
If the key is close to the door handle,
windows or the center of the rear
bumper, on the ground or above the
roof, the entry function may not be
activated. 2. Start function actuation area—
Inside
of the cabin
The start function may not be acti-
vated, if the key is in the auxiliary box
of the driver ’s side instrument panel
and glove box, on the instrument pan-
el, on the package tray, on the floor,
etc.
In the following cases, the smart key
system may not operate properly.
When facilities issuing strong electro-
magnetic waves such as TV towers,
electric power stations, broad casting
stations are nearby.
In places where automated payment fa-
cilities are installed (such as gas sta-
tions).
When you are carrying a electronic key
together with a mobile communications
system such as a two −way radio or
cellular phone.
When the electronic key is in contact
with or covered by a metallic object.
When another person is operating a
wireless remote control function on
another vehicle near your vehicle.
When the battery is discharged. To re-
place the battery, see “—Replacing bat-
tery” on page 30 in this Section.
Page 47 of 405
’07Camry hybrid_U (L/O 0610)
35
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
When the electronic key is near a
high−voltage or noise −emitting device.
When you are carrying an electronic
key together with a key for another
smart key system equipped vehicle or
another instrument emitting radio
waves.
Depending on the position of the key
or vehicle body shape, the key may
not work well even within the actuation
area.
When the key surface is covered by a
sticker, etc. that may cut off electro-
magnetic wave.
Even if the smart key system does not
operate properly, you can still enter and
start the hybrid system. For further infor-
mation, see “Side doors” on page 38 and
“Trunk lid” on page 47 in this Section, and
see “How to start the hybrid system” on
page 301 in Section 3.
STARTING THE HYBRID SYSTEM WHEN
THE ELECTRONIC KEY BATTERY IS
DISCHARGED
If the key indicator does not flash and
the hybrid system cannot be started by
using the start function, the battery
may be discharged. Replace the key
battery as soon as possible. (See
“—Replacing battery” on page 30 in
this Section.)
However the hybrid system can be turned
on in the following procedures.

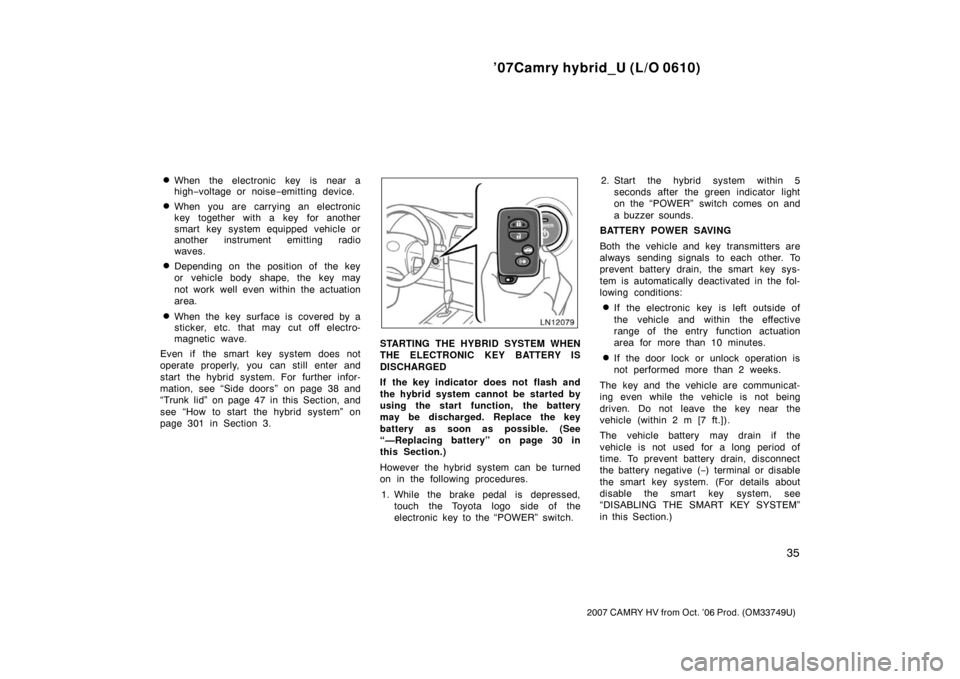

1. While the brake pedal is depressed, touch the Toyota logo side of the
electronic key to the “POWER” switch. 2. Start the hybrid system within 5
seconds after the green indicator light
on the “POWER” switch comes on and
a buzzer sounds.
BATTERY POWER SAVING
Both the vehicle and key transmitters are
always sending signals to each other. To
prevent battery drain, the smart key sys-
tem is automatically deactivated in the fol-
lowing conditions:
If the electronic key is left outside of
the vehicle and within the effective
range of the entry function actuation
area for more than 10 minutes.
If the door lock or unlock operation is
not performed more than 2 weeks.
The key and the vehicle are communicat-
ing even while the vehicle is not being
driven. Do not leave the key near the
vehicle (within 2 m [7 ft.]).
The vehicle battery may drain if the
vehicle is not used for a long period of
time. To prevent battery drain, disconnect
the battery negative ( −) terminal or disable
the smart key system. (For details about
disable the smart key system, see
“DISABLING THE SMART KEY SYSTEM”
in this Section.)
Page 48 of 405
’07Camry hybrid_U (L/O 0610)
36
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To reactivate the smart key system, per-
form any of the following:
(a) Press the lock button on the front out-side door handle or trunk open button
while carrying the electronic key.
(b) Perform a wireless remote control op- eration.
(c) Insert and turn the mechanical key in the keyhole of the driver’s door. If the electronic key receives strong elec-
tromagnetic waves over a period of time,
the battery can be drastically run down.
You should always keep the following
electrical appliances at least 1 m (3 ft.)
away from the electronic key.
TV
Personal computer
Cellular phone or cordless phone re-
charger unit
Electric light stand

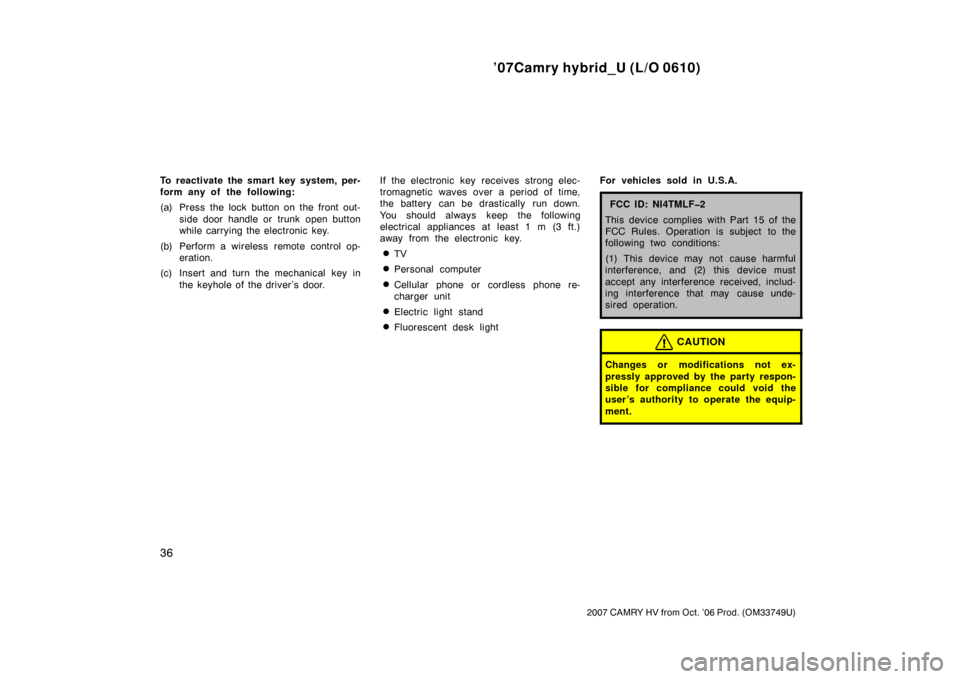

Fluorescent desk light For vehicles sold in U.S.A.
FCC ID: NI4TMLF 2
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
Page 49 of 405
’07Camry hybrid_U (L/O 0610)
37
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Page 50 of 405
’07Camry hybrid_U (L/O 0610)
38
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
DISABLING THE SMART KEY SYSTEM
The following functions can be disabled:
A function that allows you to lock/un-
lock the doors and open the trunk by
simply carrying a key
A function that causes the vehicle to
beep if keys are forgotten inside the
vehicle or trunk and a door is closed
A function that recalls the position of
the driver ’s seat and side rear view
mirror
A function that shifts the power supply
mode and starts the hybrid system
when the electronic key is in the ve-
hicle.
Warning lights and buzzers
For details, contact your Toyota dealer.
If the smart key system does not oper-
ate properly because of a system mal-
function, consult your Toyota dealer.
Make sure to bring all of the keys. They
may be necessary to repair the system. When you carry the registered key with
smart key system into the actuation area,
you can lock and unlock the side doors
without using the key. For further informa-
tion of actuation area, see “Smart key
system” on page 32 in this Section.
Locking operation
Push the lock button on the front out-
side door handle slowly and firmly. All
the doors lock simultaneously. At this
time one beep will be heard and turn
signal lights flash once.
For three seconds after the doors have
been locked, the doors cannot be un-
locked via the smart key system. This
feature allows the operator to confirm that
the doors are locked.
In the following cases, the doors cannot
be locked by pushing the lock button and
a beep will sound as an indicator.
Side doors—
—Locking and unlocking with
smart key system
