When any of the doors are not secure-
ly closed. A beep will sound continu-
ously for 10 seconds.
When the lock button is pressed while
opening or closing the door. A beep
will sound continuously for 10 seconds.
When the hybrid system is not turned
off. A beep will sound continuously for
2 seconds.
When the key is left in the vehicle. A
beep will sound continuously for 2 sec-
onds.
When attempting to lock the doors with
the key near a window or a door han-
dle. A beep will sound continuously for
2 seconds.
The beep may not sound if the key is on
the instrument panel, on the package tray,
in the glove box or on the floor, etc.
The answerback function (the turn signal
flash and the beep) can be disabled. For
details, contact your Toyota dealer.Unlocking operation
Grasp the front outside door handle
(sensors are located on the underside
of the door handles). Only the driver’s
door unlocks when the driver ’s door
handle is grasped. All the doors unlock
when the front passenger ’s door handle
is grasped. At this time two beeps will
be heard and the turn signal lights
flash twice.
The doors may not unlock if the handle
is grasped too quickly. Be sure to confirm
that the doors are unlocked before pulling
the door handle. If the doors do not open
when the handle is pulled, return the han-
dle to its original position. Wearing gloves may slow response time.
For three seconds after the doors have
been locked, the doors cannot be re
−un-
locked via the smart key system.
The answerback function (the turn signal
flash and the beep) can be disabled. For
details, contact your Toyota dealer.
When you enter the entry function actua-
tion area, the interior and exterior lights
come on for about 15 seconds. After the
light comes on, all the side doors can be
unlocked by grasping the outside door
handle.
You have 60 seconds to open a door after
using the unlocking function. If a door is
not opened by then, all the doors will be
automatically locked again.
The automatic locking time can also be
set to 30 seconds. For details, contact
your Toyota dealer.
The doors may unlock if the key is within
the entry function actuation area and a
large amount of water splashes on the
door handle (for example, in the rain or
in a car wash).
When you enter the entry function actua-
tion area, the illuminated entry system will
be activated. (For further information, see
“Illuminated entry system” on page 127 in
Section 1 −5.)

’07Camry hybrid_U (L/O 0610)
40
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
SELECTING DOORS TO BE UNLOCKED
WITH ENTRY FUNCTION
The unlocking operation has 2 modes.
To change the mode, within 1 m (3 ft.)
of the vehicle press the lock switch and
the alarm, trunk opener or unlock
switch simultaneously for five seconds.
The “POWER” switch must be turned off.
When the mode is changed, the buzzer
will sound and an indicator is displayed on
the multi−information display as follows: Mode
Door to be
unlocked
Wirelessremotecontrol
buzzerIndicator
and meter buzzer
1All doors2 beeps
1 beep
2
Driver ’s
door only
(from
driver ’s
door
switch)
All doors
(from front
passenger ’
s door
switches)
3 beeps
1 beep
Repeating the above process allows you
to toggle between 1 and 2.
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
—Locking and unlocking with
inside lock knob

’07Camry hybrid_U (L/O 0610)
41
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Doors cannot be locked when either front
door is open and the key is left in the
vehicle.
Driver’s side
Passenger’s side
Push the switch.
To lock: Push the switch down on the
right side.
To unlock: Push the switch down on the
left side.
All the doors lock or unlock simultaneous-
ly.
When the front doors are locked from the
outside or locked with the wireless remote
control function, the power door lock
switch will not work until either front door
is unlocked with the key, lock knob, or
wireless remote control function.
—Locking and unlocking with
power door lock switch

’07Camry hybrid_U (L/O 0610)
42
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Insert the mechanical key into the key-
hole and turn it.
To lock: Turn the key forward.
All the doors lock simultaneously with the
driver ’s door.
For three seconds after the doors have
been locked, the doors cannot be un-
locked via the smart key system. This
feature allows the operator to confirm that
the doors are locked.
To unlock: Turn the key backward.
Turning the key once will unlock the driv-
er’s door and twice in succession will un-
lock all the doors simultaneously.This double key turning operation to un-
lock all the doors can be changed to a
single key turning operation. For details,
contact your Toyota dealer.
When you unlock the doors, the illumi-
nated entry system will be activated. (For
further information, see “Illuminated entry
system” on page 127 in Section 1
−5.) AUTOMATIC DOOR LOCKING
You can select the following functions:
Locking linked with the shift position
All doors are automatically locked when
the selector lever is moved out of “P”
position.
Locking linked with vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
You can set or cancel the automatic
door locking functions:
Be sure to apply the parking brake when
performing the following operations.
—Locking and unlocking door
with mechanical key —Automatic door locking and
unlocking functions

’07Camry hybrid_U (L/O 0610)
43
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To select the locking linked with the
shift position:1. Close all doors and set the “POWER” switch at ON.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the “POWER” switch on, press and hold
the driver’s side power door lock
switch in the lock position for 5 sec-
onds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. To select the locking linked with the
vehicle speed:
1. Close all doors and set the “POWER” switch at ON.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the “POWER” switch on, press and hold
the driver’s side power door lock
switch in the lock position for 5 sec-
onds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. AUTOMATIC DOOR UNLOCKING
You can select the following functions:
Unlocking linked with the shift posi-
tion
All doors are automatically unlocked
when the selector lever is moved to
“P” position.
Unlocking linked with the “POWER”
switch
All doors are automatically unlocked
when the driver ’s door is opened within
10 seconds after the “POWER” switch
is set from ON to ACC or OFF.
You can set or cancel the automatic
door unlocking functions:
Be sure to apply the parking brake when
performing the following operations.

’07Camry hybrid_U (L/O 0610)
44
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To select the unlocking linked with the
shift position:1. Close all doors and set the “POWER” switch at ON.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the “POWER” switch on, press and hold
the driver’s side power door lock
switch in the unlock position for 5 sec-
onds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. To select the unlocking linked with the
“POWER” switch:
1. Close all doors and turn the “POWER” switch at ON.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the “POWER” switch on, press and hold
the driver’s side power door lock
switch in the unlock position for 5 sec-
onds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
Move the lock lever to the “LOCK”
position as shown on the label.
When the child −protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
—Rear door childprotectors

’07Camry hybrid_U (L/O 0610)
45
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

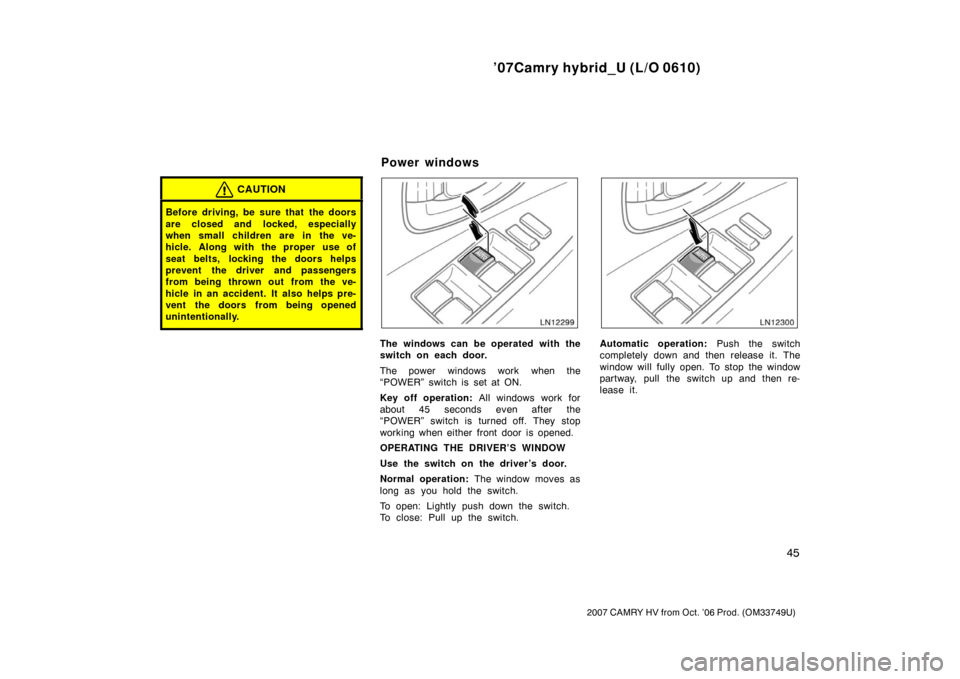

CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
The windows can be operated with the
switch on each door.
The power windows work when the
“POWER” switch is set at ON.
Key off operation: All windows work for
about 45 seconds even after the
“POWER” switch is turned off. They stop
working when either front door is opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation: Push the switch
completely down and then release it. The
window will fully open. To stop the window
partway, pull the switch up and then re-
lease it.
Power windows

’07Camry hybrid_U (L/O 0610)
46
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Window
lock
switchOPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-

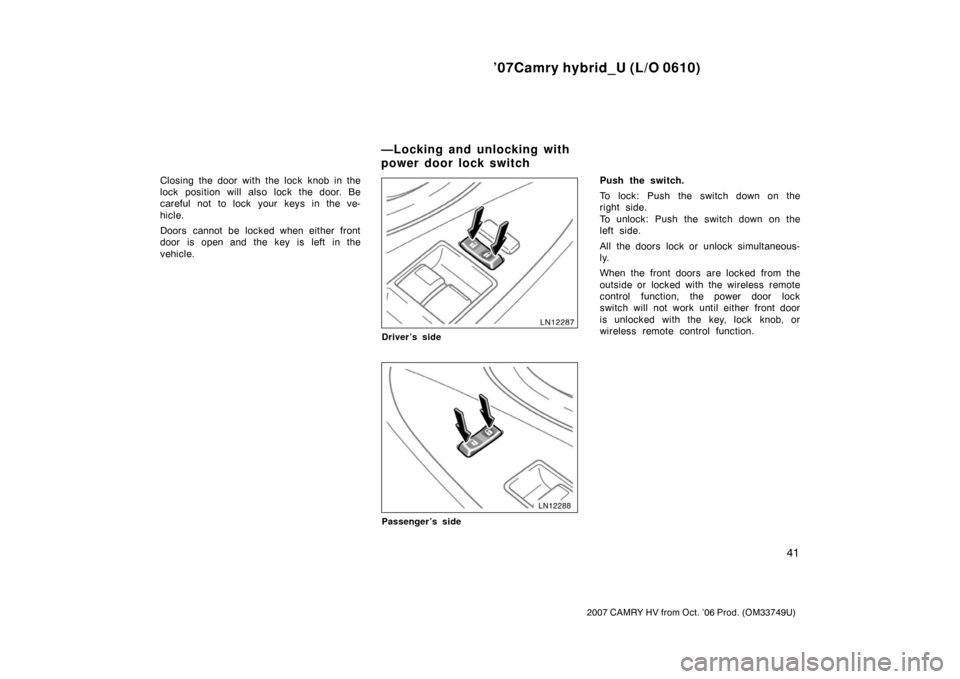

sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.

’07Camry hybrid_U (L/O 0610)
47
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the “POWER” switch
set at ON. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

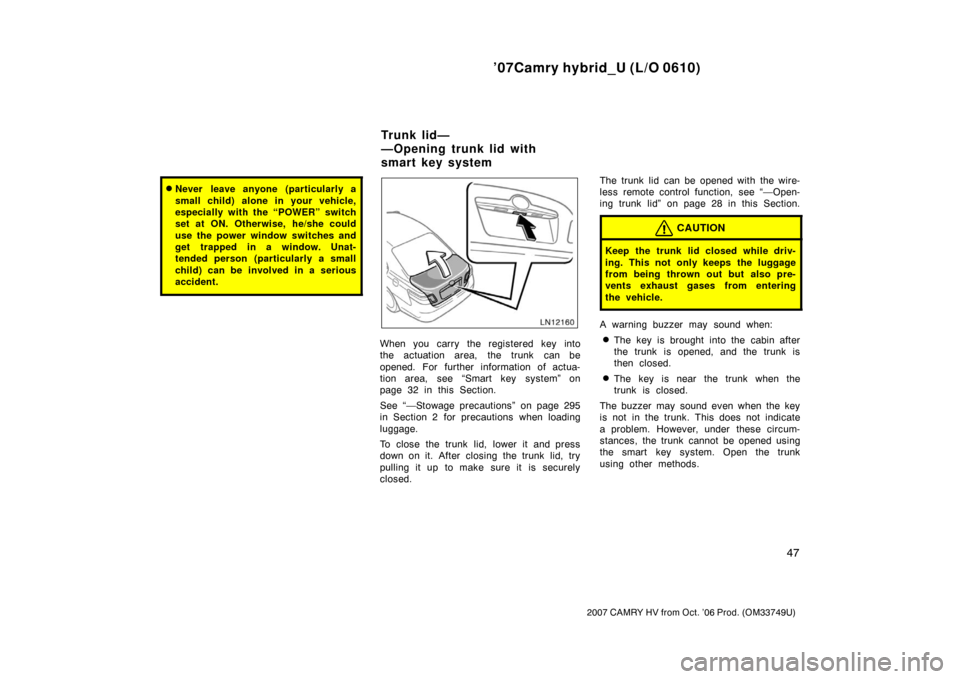

When you carry the registered key into
the actuation area, the trunk can be
opened. For further information of actua-
tion area, see “Smart key system” on
page 32 in this Section.
See “—Stowage precautions” on page 295
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.The trunk lid can be opened with the wire-
less remote control function, see “—Open-
ing trunk lid” on page 28 in this Section.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
A warning buzzer may sound when:
The key is brought into the cabin after
the trunk is opened, and the trunk is
then closed.
The key is near the trunk when the
trunk is closed.
The buzzer may sound even when the key
is not in the trunk. This does not indicate
a problem. However, under these circum-
stances, the trunk cannot be opened using
the smart key system. Open the trunk
using other methods.
Trunk lid—
—Opening trunk lid with
smart key system

’07Camry hybrid_U (L/O 0610)
48
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
If the trunk is closed with the key left in
the trunk when all side doors are locked,
a beep will sound continuously for 2 sec-
onds. You can open the trunk pushing the
trunk opener switch without carrying
another key. However, in some instances,
the beep may not sound when the trunk
is closed depending on the location of the
key in the trunk. In addition, when the
doors are open or unlocked, the beep may
not sound when the trunk is closed. When
closing the trunk, make sure that the key
is not left in it.

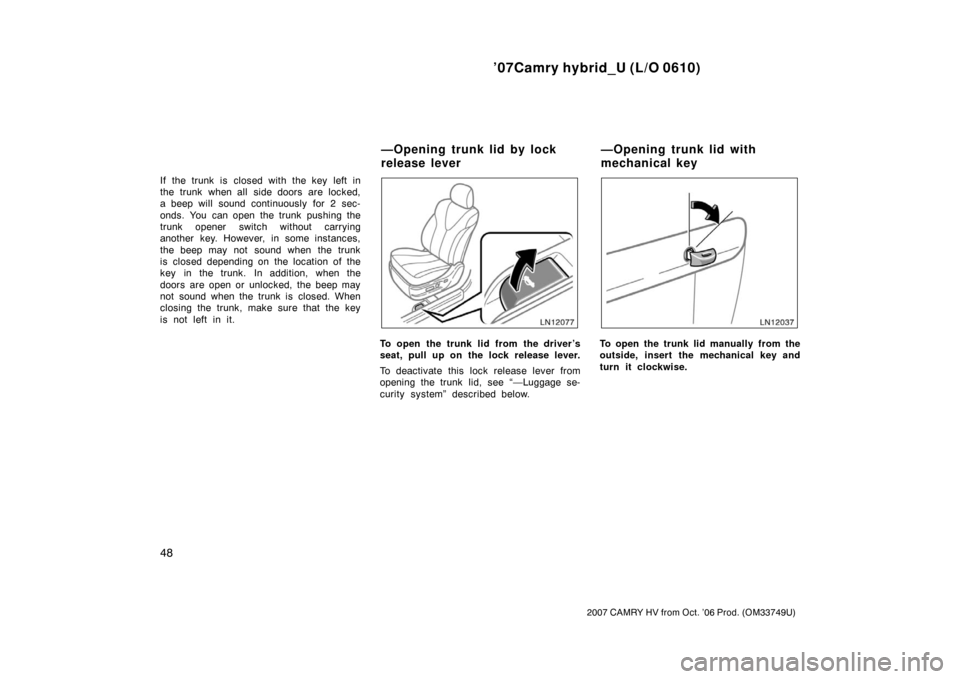

To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
To deactivate this lock release lever from
opening the trunk lid, see “—Luggage se-
curity system” described below.To open the trunk lid manually from the
outside, insert the mechanical key and
turn it clockwise.
—Opening trunk lid by lock
release lever—Opening trunk lid with
mechanical key
