TOYOTA CAMRY HYBRID 2007 XV40 / 8.G Repair Manual

’07Camry hybrid_U (L/O 0610)
49
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

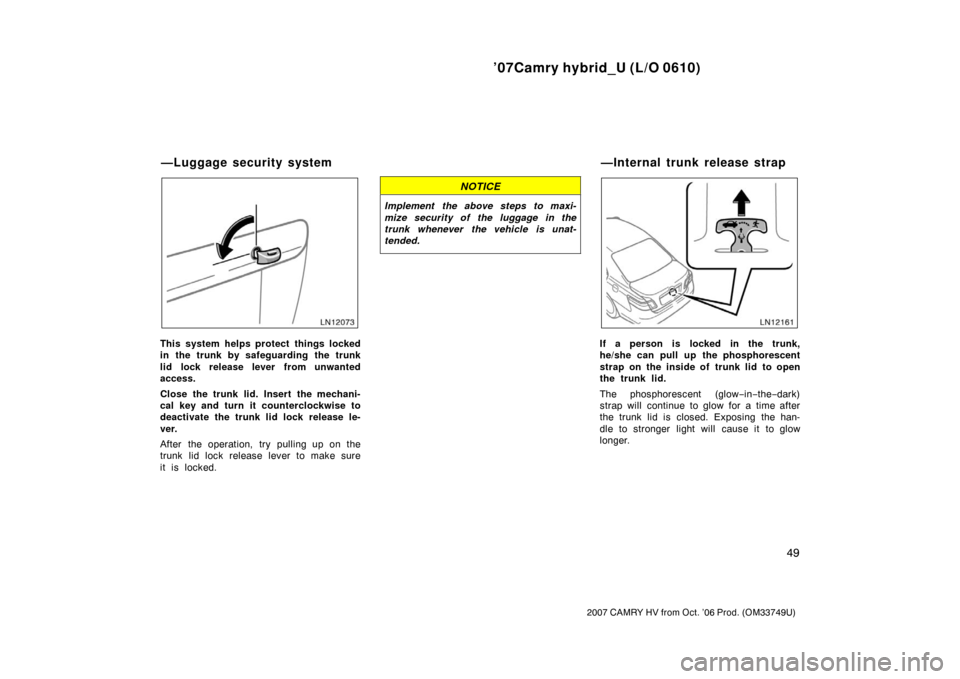

This system helps protect things locked
in the trunk by safeguarding the trunk
lid lock release lever from unwanted
access.
Close the trunk lid. Insert the mechani-
cal key and turn it counterclockwise to
deactivate the trunk lid lock release le-
ver.
After the operation, try pulling up on the
trunk lid lock release lever to make sure
it is locked.
NOTICE
Implement the above steps to maxi-
mize security of the luggage in the
trunk whenever the vehicle is unat-
tended.
If a person is locked in the trunk,
he/she can pull up the phosphorescent
strap on the inside of trunk lid to open
the trunk lid.
The phosphorescent (glow−in −the −dark)
strap will continue to glow for a time after
the trunk lid is closed. Exposing the han-
dle to stronger light will cause it to glow
longer.
—Luggage security system —Internal trunk release strap

’07Camry hybrid_U (L/O 0610)
50
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.

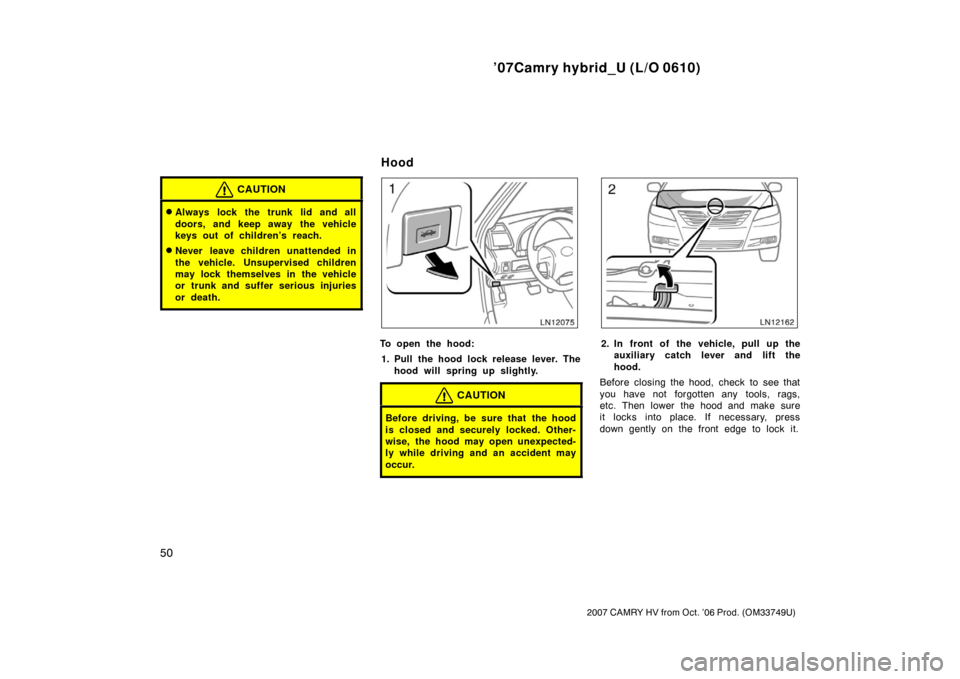

To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Hood

’07Camry hybrid_U (L/O 0610)
51
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

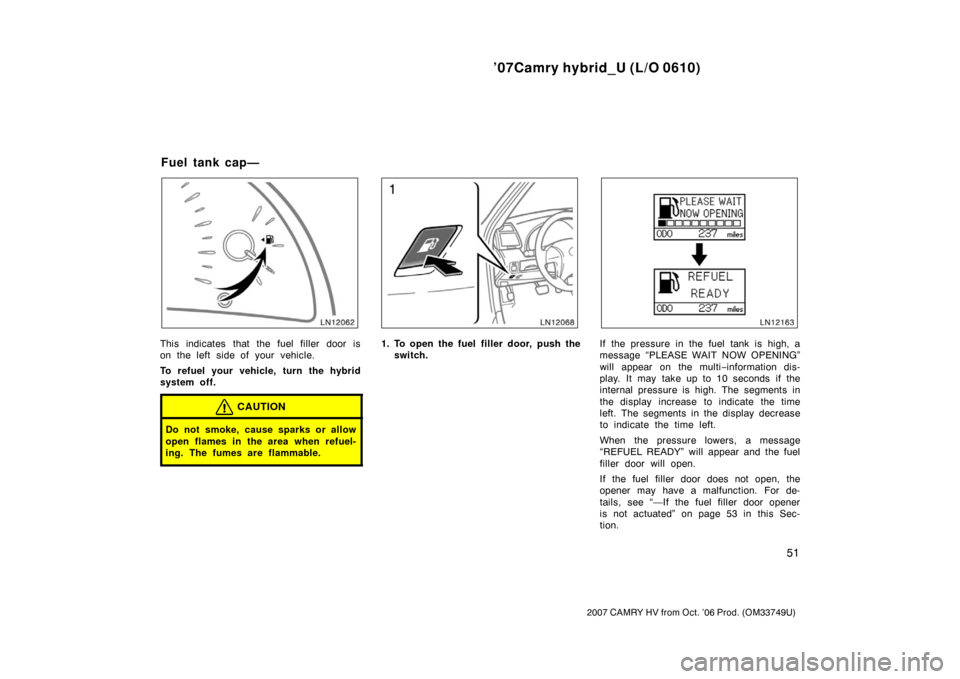

This indicates that the fuel filler door is
on the left side of your vehicle.
To refuel your vehicle, turn the hybrid
system off.
CAUTION
Do not smoke, cause sparks or allow
open flames in the area when refuel-
ing. The fumes are flammable.
1. To open the fuel filler door, push theswitch.If the pressure in the fuel tank is high, a
message “PLEASE WAIT NOW OPENING”
will appear on the multi −information dis-
play. It may take up to 10 seconds if the
internal pressure is high. The segments in
the display increase to indicate the time
left. The segments in the display decrease
to indicate the time left.
When the pressure lowers, a message
“REFUEL READY” will appear and the fuel
filler door will open.
If the fuel filler door does not open, the
opener may have a malfunction. For de-
tails, see “—If the fuel filler door opener
is not actuated” on page 53 in this Sec-
tion.
Fuel tank cap—

’07Camry hybrid_U (L/O 0610)
52
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
When opening the cap, do not remove
the cap quickly. In hot weather, fuel
under pressure could cause injury by
spraying out of the filler neck if the
cap is suddenly removed.

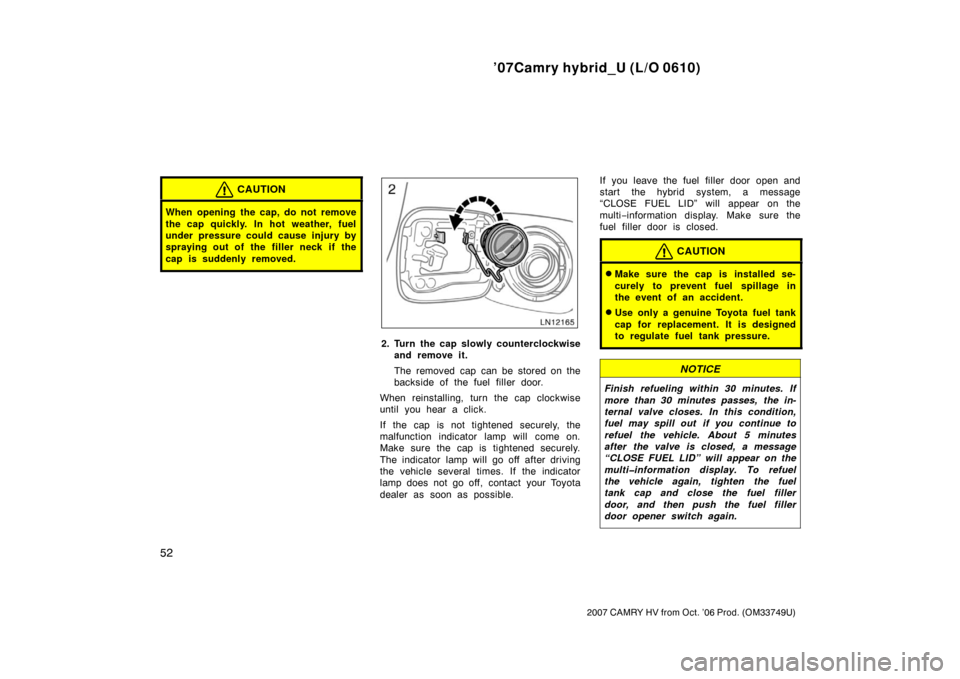

2. Turn the cap slowly counterclockwiseand remove it.
The removed cap can be stored on the
backside of the fuel filler door.
When reinstalling, turn the cap clockwise
until you hear a click.
If the cap is not tightened securely, the
malfunction indicator lamp will come on.
Make sure the cap is tightened securely.
The indicator lamp will go off after driving
the vehicle several times. If the indicator
lamp does not go off, contact your Toyota
dealer as soon as possible. If you leave the fuel filler door open and
start the hybrid system, a message
“CLOSE FUEL LID” will appear on the
multi
−information display. Make sure the
fuel filler door is closed.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
Finish refueling within 30 minutes. If
more than 30 minutes passes, the in-
ternal valve closes. In this condition,
fuel may spill out if you continue to
refuel the vehicle. About 5 minutes
after the valve is closed, a message
“CLOSE FUEL LID” will appear on the
multiinformation display. To refuel
the vehicle again, tighten the fuel
tank cap and close the fuel filler
door, and then push the fuel f iller
door opener switch again.

’07Camry hybrid_U (L/O 0610)
53
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
If the opener is not actuated, contact
your Toyota dealer to service the ve-
hicle. If you must refuel your vehicle,
you can open the fuel filler door manu-
ally as instructed below.
The system to lower internal pressure
in the fuel tank may not be functioning
so you must turn the cap slowly with
releasing the pressure. In addition, fuel
may spill out during refueling. Fill the

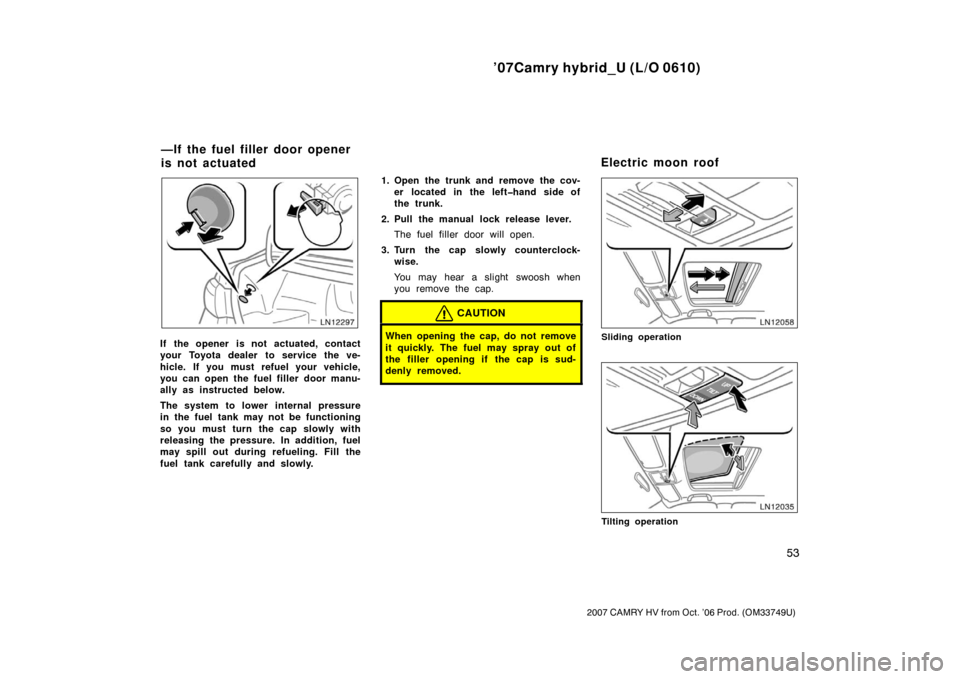

fuel tank carefully and slowly.1. Open the trunk and remove the cov-
er located in the lefthand side of
the trunk.
2. Pull the manual lock release lever. The fuel filler door will open.
3. Turn the cap slowly counterclock- wise.
You may hear a slight swoosh when
you remove the cap.
CAUTION
When opening the cap, do not remove
it quickly. The fuel may spray out of
the filler opening if the cap is sud-
denly removed.Sliding operation
Tilting operation
—If the fuel filler door opener
is not actuated Electric moon roof

’07Camry hybrid_U (L/O 0610)
54
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To operate the moon roof, use the
switches on the overhead console.
The moon roof works when the “POWER”
switch is set at ON.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push and hold the switch for 1
second toward the vehicle’s rear.
The roof will open and stop partway 90
mm (3.6 in.) from the fully opened posi-
tion. When you push the switch again, the
moon roof will open fully. To stop the roof
partway, push one of the moon roof
switches briefly.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
90 mm (3.6 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.
To close: Push and hold the switch for 1
second toward the vehicle’s front.
The roof will fully close automatically. To
stop the roof partway, push one of the
moon roof switches briefly.Tilting operation—
To tilt up: Push and hold the “TILT” switch
for 1 second on the “UP” side.
The roof will fully tilt up automatically. To
stop the roof partway, push one of the
moon roof switches briefly.
To tilt down: Push and hold the “TILT”
switch for 1 second on the “DOWN” side.
The roof will fully tilt down automatically.
To stop the roof partway, push one of the
moon roof switches briefly.
Open moon roof reminder:
If the moon
roof is left open when you set the
“POWER” switch at ACC or off and open
the driver ’s door, a message
“MOONROOF OPEN” appears on the
multi −information display and a warning
tone sounds.
Key off operation: If both front doors are
closed, the moon roof works for about 45
seconds even after the “POWER” switch
is turned off. It stops working when either
door is opened. Jam protection function:
If something
gets caught between the moon roof and
frame during closing operation, the moon
roof stops and opens.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.

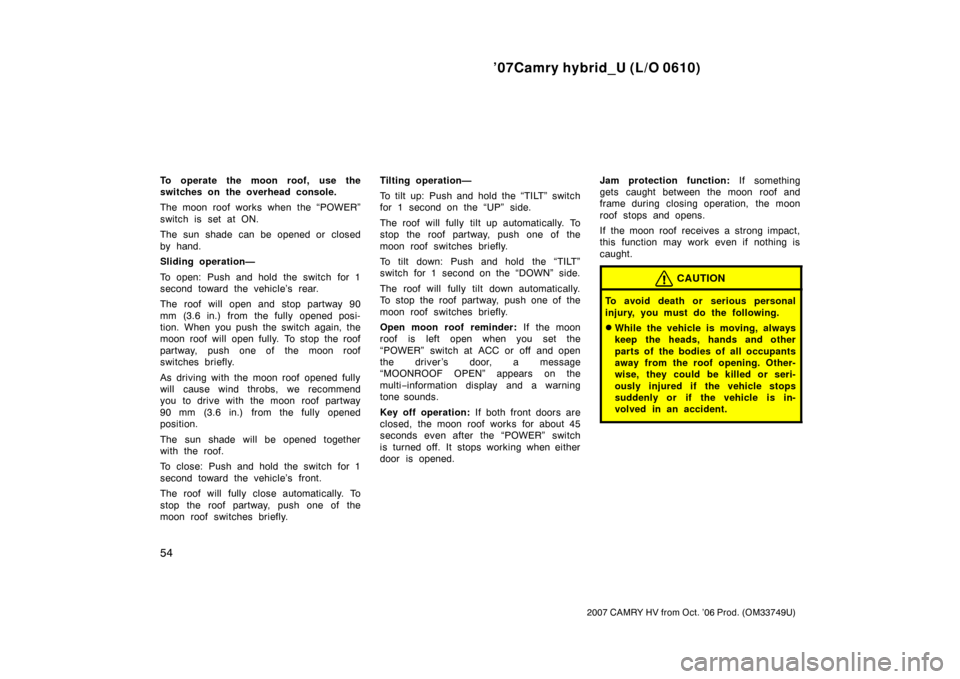

CAUTION
To avoid death or serious personal
injury, you must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be killed or seri-
ously injured if the vehicle stops
suddenly or if the vehicle is in-
volved in an accident.

’07Camry hybrid_U (L/O 0610)
55
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

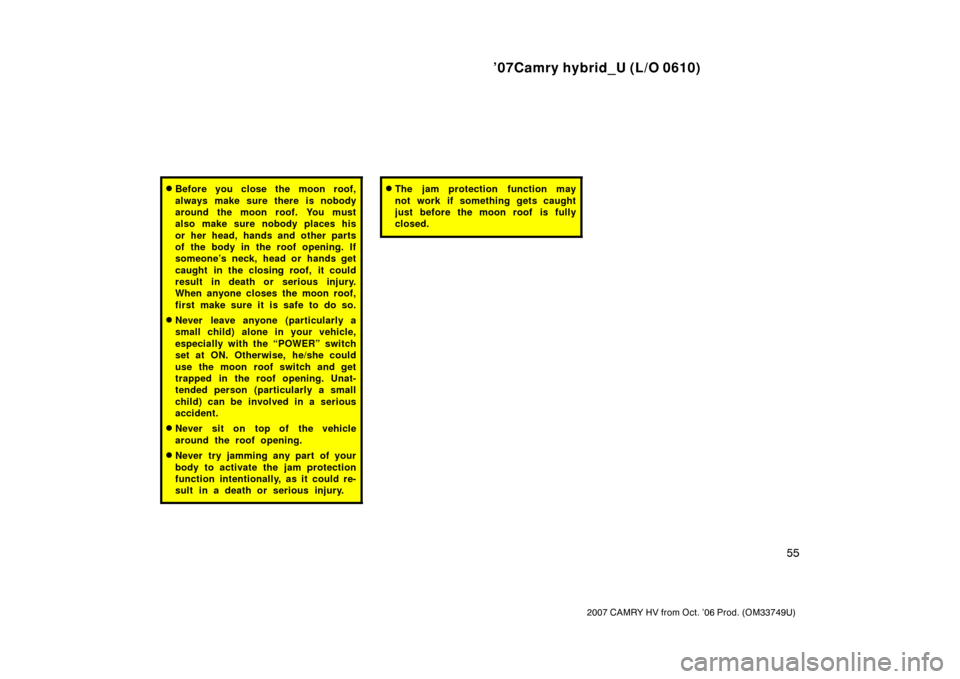

Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moon roof,
first make sure it is safe to do so.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the “POWER” switch
set at ON. Otherwise, he/she could
use the moon roof switch and get
trapped in the roof opening. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a death or serious injury.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.

’07Camry hybrid_U (L/O 0610)
56
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

’07Camry hybrid_U (L/O 0610)
57
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear seats 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Seat heaters 64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Head restraints 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Armrest 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Seat belts 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS airbags 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Child restraint 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 3

’07Camry hybrid_U (L/O 0610)
58
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

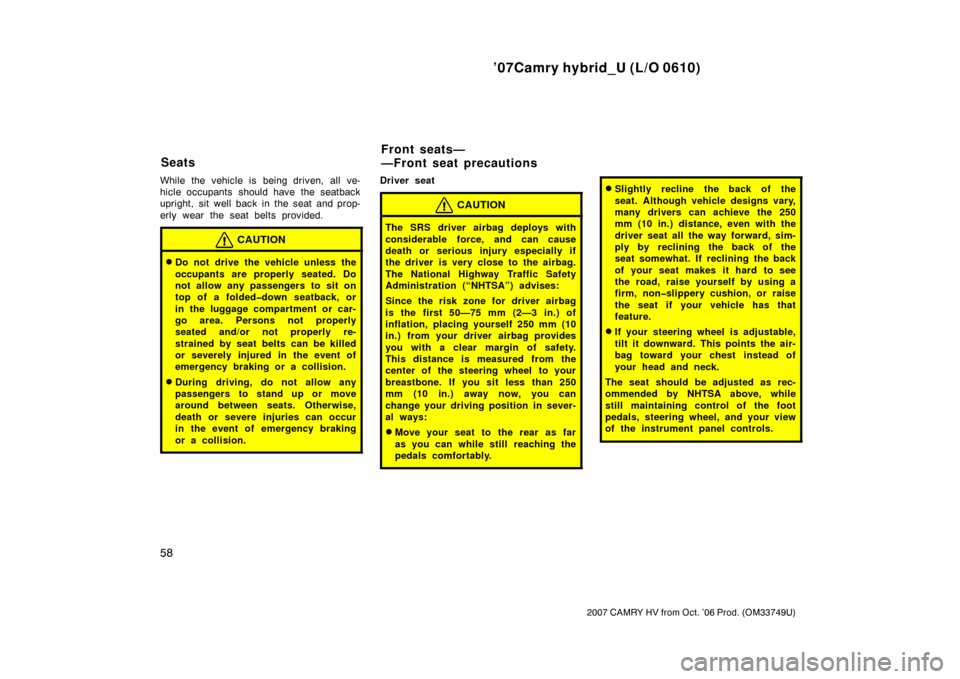

CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be killed
or severely injured in the event of
emergency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
death or severe injuries can occur
in the event of emergency braking
or a collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions
