display TOYOTA CAMRY HYBRID 2020 Accessories, Audio & Navigation (in English)

53
2. CONNECTIVITY SETTINGS
BASIC FUNCTION
2
1Display the Bluetooth® settings
screen. ( P.49)
2Select “Registered Device” .
3Select the desired device to be edited.
4Select “Device Info” .
5Confirm and change the Bluetooth®
device information.EDITING THE Bluetooth®
DEVICE INFORMATION
The Bluetooth® device’s information
can be displayed on the screen. The
displayed information can be edited.
No.Information
The name of the Bluetooth® device.
Can be changed to a desired name.
(  P.54)
Select to set the Bluetooth® audio
player connection method. ( P.54)
Device address is unique to the de-
vice and cannot be changed.
Phone number of the Bluetooth®
phone.
Compatibility profile of the
Bluetooth® device.
Select to reset all setup items.
INFORMATION
● If 2 Bluetooth® devices have been regis-
tered with the same device name, the
devices can be distinguished by refer-
ring to the device addresses.
● Depending on the type of phone, some
information may not be displayed.

54
2. CONNECTIVITY SETTINGS
1Select “Device Name” .
2Enter the name and select “OK”.
1Select “Connect Audio Player
From” .
2Select the desired connection method.
“Vehicle” : Select to connect the audio
player from the vehicle’s audio/visual sys-
tem.
“Device” : Select to connect the vehicle’s
audio/visual system from the audio player.
 Depending on the audio player, the “Vehi-
cle” or “Device” connection method may
be best. As such, refer to the manual that
comes with the audio player.
1Display the Bluetooth® settings
screen. ( P.49)
2Select “Detailed Settings” .
3Select the desired item to be set.
CHANGING A DEVICE NAME
INFORMATION
●Even if the device name is changed, the
name registered in your Bluetooth®
device does not change.
SETTING AUDIO PLAYER
CONNECTION METHOD
SETTING Bluetooth® SYSTEM
The Bluetooth® settings can be con-
firmed and changed.
No.InformationPage
Select to set Bluetooth®
connection on/off.55
Select to change the auto-
matic connection priority of
the registered Bluetooth
®
devices.
55
Select to edit the system in-
formation.56
Select to reset all setup
items.

57
2. CONNECTIVITY SETTINGS
BASIC FUNCTION
2
■EDITING THE SYSTEM NAME
1Select “System Name” .
2Enter a name and select “OK”.
■EDITING THE PIN CODE
1Select “System PIN Code” .
2Enter a PIN code and select “OK”.
No.Function
Displays system name. Can be
changed to a desired name. ( P.57)
PIN code used when the Bluetooth®
device was registered. Can be
changed to a desired code. ( P.57)
Device address is unique to the de-
vice and cannot be changed.
Select to set the connection status
display of the phone on/off.
Select to set the connection status
display of the audio player on/off.
Compatibility profile of the system
Select to reset all setup items.

58
2. CONNECTIVITY SETTINGS
3. Wi-Fi® Hotspot*1
1Enable the Wi-Fi® hotspot function.
(P.58)
2Disable the “Hide Access Point” func-
tion. ( P.58)
3Search for the vehicle access point us-
ing the device you wish to connect.
 For details about operating the device,
refer to the documentation which came
with it.
4Operate the device to connect it to the
vehicle access point.
To check the vehicle access point pass-
word, check “Password”. ( P.58)
1Enable the Wi-Fi® hotspot function.
( P.58)
2Enable the “Hide Access Point” func-
tion. ( P.58)
3Enter the access point name (SSID)
into the device you wish to connect and
connect it.
To check the vehicle access point pass-
word, check “Password”. ( P. 5 8 )
 The security settings on the device must
be the same as that displayed for “Secu-
rity”. ( P. 5 8 )
 For details about operating the device,
refer to the documentation which came
with it.
1Press the “MENU” button.
2Select “Setup”.
3Select “Wi-Fi*2”.
By connecting a device to the vehicle
via Wi-Fi
®, it can access the internet
through the DCM (Data Communica-
tion Module).
• To use this function, a Wi-Fi® hotspot
service subscription from AT&T is
required. Connect your device to the
in-vehicle access point (see instruc-
tions below), or contact your Toyota
dealer for details.
• This function is not made available in some countries or areas.
CONNECTING A DEVICE TO
THE IN-VEHICLE ACCESS
POINT
SEARCHING FOR AND
CONNECTING A DEVICE TO
THE VEHICLE ACCESS POINT
INFORMATION
● Hints for connecting to the vehicle via
Wi-Fi® can be displayed. ( P.58)
*1: Vehicles with DCM
*2: Wi-Fi® is a registered tradem ark of Wi-Fi Alliance®.
CONNECTING A DEVICE TO
THE IN-VEHICLE ACCESS
POINT USING THE ACCESS
POINT NAME (SSID)
CHANGING THE Wi-Fi®
SETTINGS

59
2. CONNECTIVITY SETTINGS
BASIC FUNCTION
2
4Select the desired setting to change.
No.FunctionPage
Select to enable/disable
the Wi-Fi® hotspot func-
tion.59
Select to check/change the
access point password.60
Select to display hints for
connecting to the vehicle
via Wi-Fi
®.

Select to make the access
point searchable/un-
searchable.

Select to check/change the
security protocol of the ac-
cess point (for authentica-
tion and encryption).
60
Select to change the ac-
cess point name (SSID).60
Select to change the Wi-Fi®
connection channel (within
the 2.4GHz frequency
band).60
INFORMATION
● If any settings have been changed, it will
be necessary to reset the Wi-Fi® system
to complete the changes. To reset the
Wi-Fi
® system, select “Yes” on the pop-
up displayed after changing the settings.
ENABLING/DISABLING THE
Wi-Fi® Hotspot FUNCTION
When the Wi-Fi
® hotspot function is
enabled, the system checks for a valid
hotspot service subscription.
If a hotspot service subscription has
not been started, connect your device
to the in-vehicle access point to start
your subscription. A trial subscription
may be available.

60
2. CONNECTIVITY SETTINGS
1Select “Password” .
2Check that the following screen is dis-
played.
■CHANGING THE PASSWORD
1Select “Change Password” .
2Enter the desired password and select
“OK”.
When setting/changing a password,
observe the following guidelines to help
prevent the password from being cracked
by a third party:
• Use an 8-character or longer password
consisting of letters and numbers.
(Non-ASCII characters will not be recog-
nized by the system.)
• Change the password regularly.
• If you write the password down, do not
leave it somewhere where it would be
visible.
• Do not use the same or a similar pass-
word to that for other accounts.
• Avoid using easy to identify words, such
as your vehicle’s model name or license
plate number, simple dictionary words,
or words with simple obfuscation, such
as c@t (for cat), as your password.
1Select “Security” .
2Select the desired security protocol.
1Select “Access Point Name” .
2Enter the desired access point name
(SSID) and select “OK”.
1Select “Channel” .
2Check that the following screen is dis-
played.
■CHANGING THE CHANNEL
1Set “Select Channel” to “Manual”.
2Select “Channel Number”.
3Enter the desired channel number and
select “OK”.
Channels 1 through 11 can be selected.
CHECKING/CHANGING THE
PASSWORD
No.Function/information
Displays the password
Select to display/hide the entered
password.
Select to change the password.
CHANGING THE SECURITY
PROTOCOL
CHANGING THE ACCESS
POINT NAME (SSID)
SELECTING A Wi-Fi®
CONNECTION CHANNEL
No.Function
Select to change the channel selec-
tion to automatic/manual.
When “Manual” is sel ected, select to
change the channel.

61
2. CONNECTIVITY SETTINGS
BASIC FUNCTION
2
Communication standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (2.4GHz)
 Security
WPA
WPA2 
•WPA  and WPA2  are trademarks of
Wi-Fi Alliance
®.
Wi-Fi® FUNCTION
OPERATING HINTS
WA R N I N G
● Use Wi-Fi® devices only when safe and
legal to do so.
● Your audio unit is fitted with Wi-Fi
®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroni-
zation therapy-pacemakers or
implantable cardioverter defibrillators
should maintain a reasonable distance
between themselves and the Wi-Fi
®
antennas.
The radio waves may affect the opera-
tion of such devices.
● Before using Wi-Fi
® devices, users of
any electrical medical device other than
implantable cardiac pacemakers, car-
diac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manu-
facturer of the device for information
about its operation under the influence
of radio waves.
Radio waves could have unexpected
effects on the operation of such medical
devices.
INFORMATION
● If a connected device is taken out of the
Wi-Fi® connection area, the connection
will be severed.
● If the vehicle is driven out of the cellular
communication coverage area, connect-
ing to the internet via the Wi-Fi
® hotspot
will not be possible.
● If a Bluetooth
® device is used while a
device is connected using the Wi-Fi®
hotspot function, the communication
speed may decrease.
● If the vehicle is near a radio antenna,
radio station or other source of strong
radio waves and electrical noise, com-
munication may be slow or impossible.
CONDITIONS DISPLAYED
WITH Wi-Fi® ICON
The condition of Wi-Fi
® connection ap-
pears on the right upper side of the
screen. ( P.20)
SPECIFICATIONS

62
2. CONNECTIVITY SETTINGS
4. Apple CarPlay/Android Auto*1
1Enable Siri on the device to be con-
nected.
2Connect the device to the USB port.
(P.86)
3Select “Always Enable” or “Enable
Once” .
If “Do Not Enable” is selected, an Apple
CarPlay connection will not be estab-
lished. In this case, the device can be
operated as a normal Apple device, such
as an iPod.
Apple CarPlay will remain off until “Apple
CarPlay” of “Projection Settings” on the
general settings screen is turned on.
(  P.68) 
Depending on the device connected, it
may take approximately 3 to 6 seconds
before the system ret urns to previous
screen.
 The screen may change to “STEP 6”
depending on the system.
4Press the “MENU” button.
5Select “Apple CarPlay” .
6Check that home screen of Apple Car-
Play is displayed.
Apple CarPlay/Android Auto allows
some applications, such as Map,
Phone, and Music, to be used on the
system.
When an Apple CarPlay/Android Auto
connection is established, Apple Car-
Play/Android Auto compatible applica-
tions will be displayed on the system
display.
Compatible devices
Apple iPhone (iOS Ver. 9.3 or later)
that supports Apple CarPlay.
For details, refer to
https://www.apple.com/ios/carplay/
.*2
Android  devices with Android OS ver
5.0 or higher which support Android
Auto and have the Android Auto appli-
cation installed.
For details, refer to
https://www.android.com/auto/
.*2
ESTABLISHING AN Apple
CarPlay CONNECTION
*1: This function is not made available in some countries or area s.
*2: Some devices may not operate with this system.
No.Function
Select to display the home screen of
Apple CarPlay.
Select and hold to activate Siri.
Select to start the application.
User can use any iPhone application
supported by Apple CarPlay.
Select to display the system screen.

66
2. CONNECTIVITY SETTINGS
TROUBLESHOOTING
If you are experiencing difficulties with Apple CarPlay/Android Auto, check the fol-
lowing table.
SymptomSolution
An Apple CarPlay/Android Auto
connection cannot be estab-
lished.
Check if the device supports Apple CarPlay/Android Auto.
Check if Apple CarPlay/Android Auto is enabled on the con-
nected device.
Check if that the Android Auto application is installed to the
device to be connected.
For details, refer to
Apple CarPlay: https://www.apple.com/ios/carplay/
.
Android Auto: https://www.android.com/auto/.
For available countries or areas for Apple CarPlay, refer to
https://www.apple.com/ios/featureavailability/
#apple-carplay.
Check if “Apple CarPlay” /“Android Auto” of “Projection
Settings” on the general settings screen is set to on.
(  P.68)
Check if the USB cable being used is securely connected to
the device and USB port.
Check that the device is connected directly to the USB port
of the system and not connected to a USB hub.
For Apple CarPlay: Check if the Lightning cable being used
is certified by Apple. Check if Siri is enabled.
After checking all of the above, t ry to establish an Apple Car-
Play/Android Auto connection. ( P.62, 63)
When an Apple CarPlay/Android
Auto connection is established
and a video is being played, the
video is not displayed, but audio
is output through the system.
As the system is not designed to play video through Apple
CarPlay/Android Auto, this is not a malfunction.
Although an Apple CarPlay/An-
droid Auto connection is estab-
lished, audio is not output
through the system.
The system may be muted or the volume may be low. In-
crease the system volume.
The Apple CarPlay/Android Auto
screen has artifacts and/or audio
from Apple CarPlay/Android
Auto has noise.
Check if the USB cable being used to connect the device to
the system is damaged.
To check if the USB cable is damaged internally, connect
the device to another system, such as a PC, and check if the
device is recognized by the connected system. (The device
should begin charging when connected.)
After checking all of the above, t ry to establish an Apple Car-
Play/Android Auto connection. ( P.62, 63)

67
2. CONNECTIVITY SETTINGS
BASIC FUNCTION
2

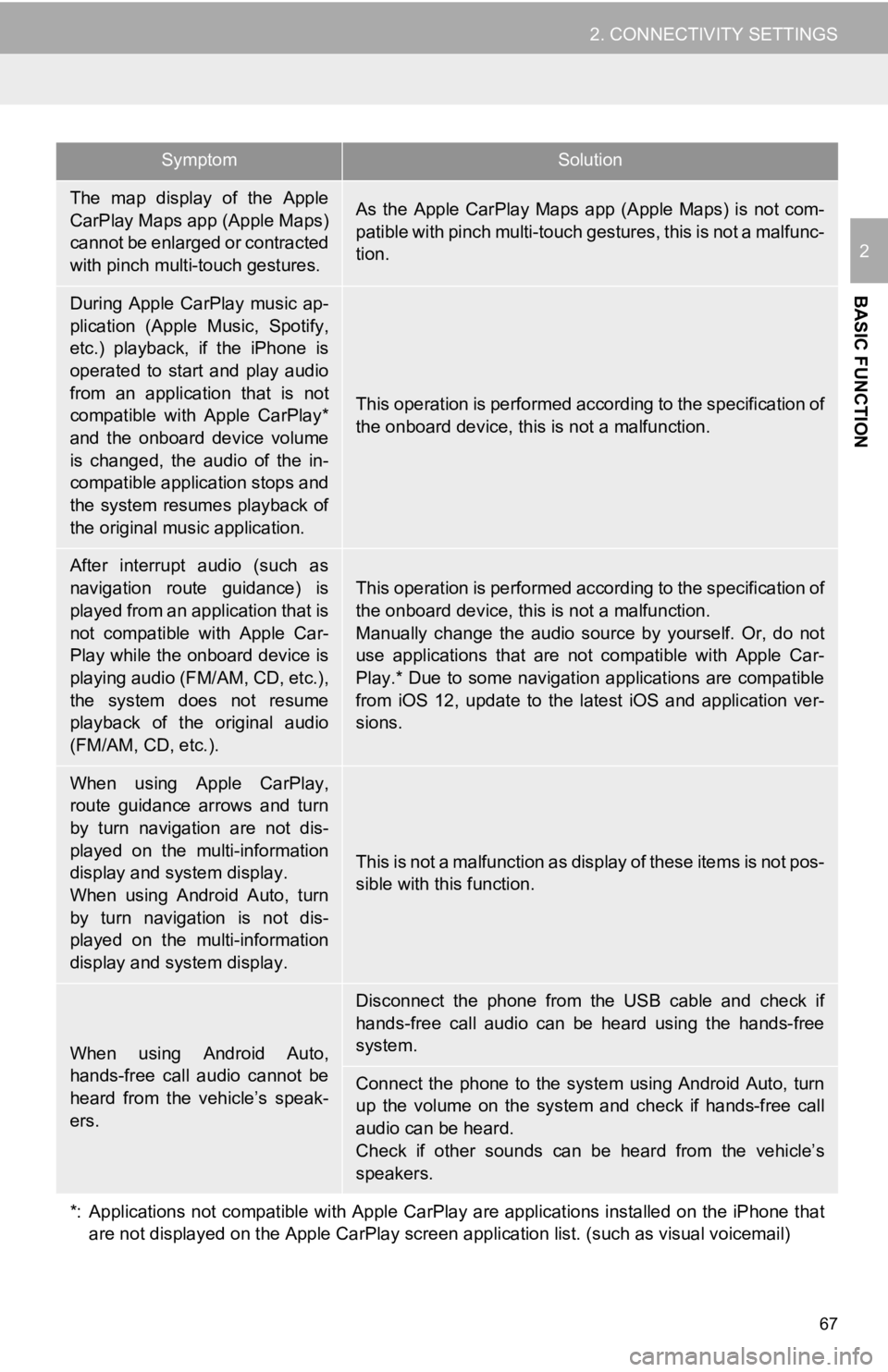

The map display of the Apple
CarPlay Maps app (Apple Maps)
cannot be enlarged or contracted
with pinch multi-touch gestures.As the Apple CarPlay Maps app (Apple Maps) is not com-
patible with pinch multi-touch gestures, this is not a malfunc-
tion.
During Apple CarPlay music ap-
plication (Apple Music, Spotify,
etc.) playback, if the iPhone is
operated to start and play audio
from an application that is not
compatible with Apple CarPlay*
and the onboard device volume
is changed, the audio of the in-
compatible application stops and
the system resumes playback of
the original mus ic application.
This operation is performed according to the specification of
the onboard device, this is not a malfunction.
After interrupt audio (such as
navigation route guidance) is
played from an application that is
not compatible with Apple Car-
Play while the onboard device is
playing audio (FM/AM, CD, etc.),
the system does not resume
playback of the original audio
(FM/AM, CD, etc.).
This operation is performed according to the specification of
the onboard device, this is not a malfunction.
Manually change the audio source by yourself. Or, do not
use applications that are not compatible with Apple Car-
Play.* Due to some navigati on applications are compatible
from iOS 12, update to the latest iOS and application ver-
sions.
When using Apple CarPlay,
route guidance arrows and turn
by turn navigation are not dis-
played on the multi-information
display and system display.
When using Android Auto, turn
by turn navigation is not dis-
played on the multi-information
display and system display.
This is not a malfunction as display of these items is not pos-
sible with this function.
When using Android Auto,
hands-free call audio cannot be
heard from the vehicle’s speak-
ers.
Disconnect the phone from the USB cable and check if
hands-free call audio can be heard using the hands-free
system.
Connect the phone to the system using Android Auto, turn
up the volume on the system and check if hands-free call
audio can be heard.
Check if other sounds can be heard from the vehicle’s
speakers.
*: Applications not compatible with Apple CarPlay are applications installed on the iPhone that are not displayed on the Apple CarPlay screen application list. (such as visual voicemail)
SymptomSolution
