engine TOYOTA CAMRY V20 1986 Service Information

1. RUN± ENGINE AT IDLE SPEED WITH AIR
CONDITIONING ON FOR 10 MINUTES
2. STOP ENGINE
3. DISCONNECT NEGATIVE CABLE FROM BATTERY
4. REMOVE BATTERY
5. (2VZ±FE ENGINE)
REMOVE IGNITOR BRACKET, RADIATOR FAN AND
CONDENSER FAN
6. DISCONNECT CONNECTOR FOR MAGNETIC
CLUTCH, TEMPERATURE SWITCH AND REVOLU-
TION DETECTING SENSOR
7. DISCHARGE REFRIGERANT FROM REFRIGERATION
SYSTEM
8. DISCONNECT TWO HOSES FROM COMPRESSOR
SERVICE VALVES
Cap the open fitting immediately to keep moisture out of
the system.
9. REMOVE COMPRESSOR
(a) Loosen the drive belt.
(b) Remove the compressor mounting bolts and the
compressor.
± AIR CONDITIONING SYSTEMCompressorAC±26

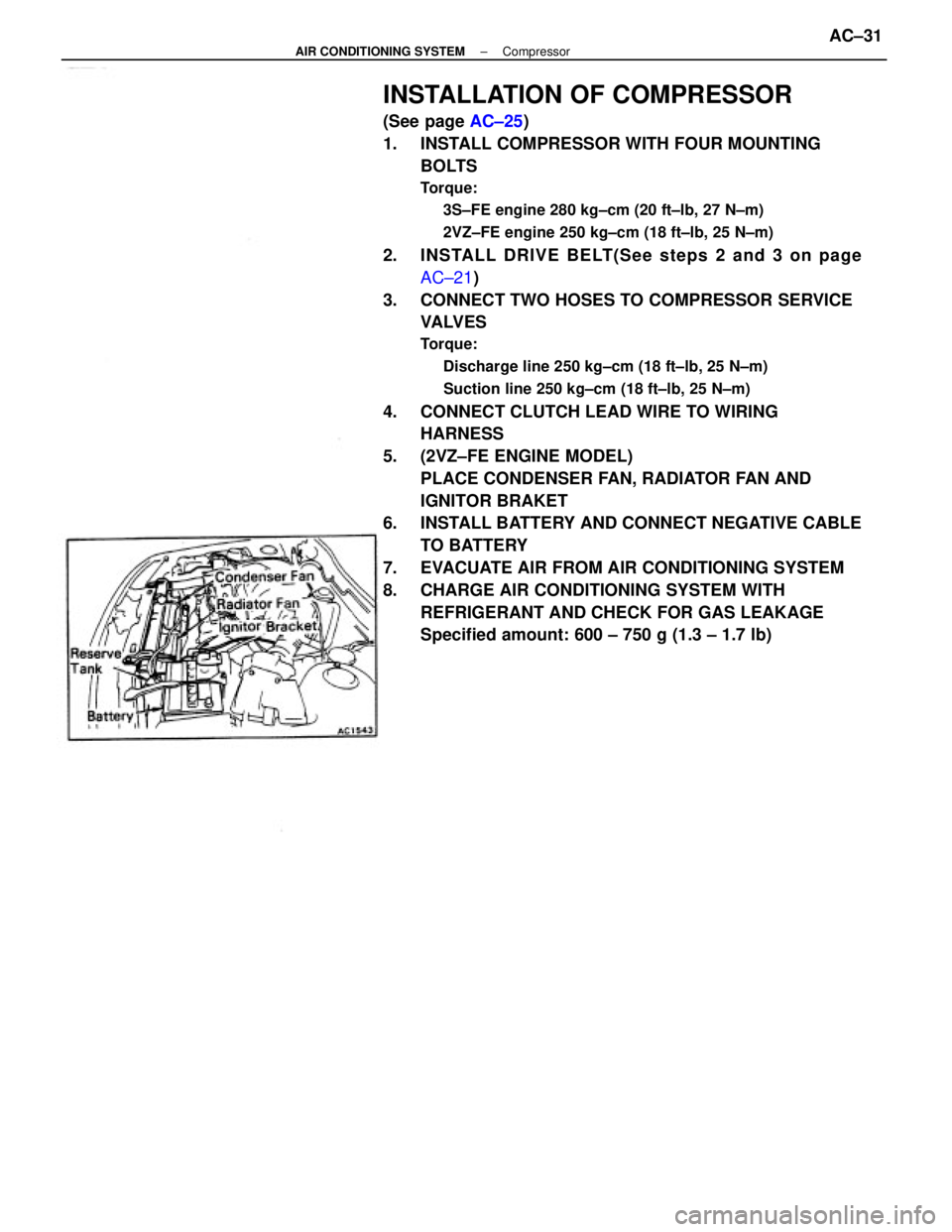

INSTALLATION OF COMPRESSOR
(See page AC±25)
1. INSTALL COMPRESSOR WITH FOUR MOUNTING
BOLTS
Torque:
3S±FE engine 280 kg±cm (20 ft±lb, 27 N±m)
2VZ±FE engine 250 kg±cm (18 ft±lb, 25 N±m)
2. INS TALL DRIV E BE LT(S e e ste ps 2 and 3 on pa ge
AC±21)
3. CONNECT TWO HOSES TO COMPRESSOR SERVICE
VALVES
Torque:
Discharge line 250 kg±cm (18 ft±lb, 25 N±m)
Suction line 250 kg±cm (18 ft±lb, 25 N±m)
4. CONNECT CLUTCH LEAD WIRE TO WIRING
HARNESS
5. (2VZ±FE ENGINE MODEL)
PLACE CONDENSER FAN, RADIATOR FAN AND
IGNITOR BRAKET
6. INSTALL BATTERY AND CONNECT NEGATIVE CABLE
TO BATTERY
7. EVACUATE AIR FROM AIR CONDITIONING SYSTEM
8. CHARGE AIR CONDITIONING SYSTEM WITH
REFRIGERANT AND CHECK FOR GAS LEAKAGE
Specified amount: 600 ± 750 g (1.3 ± 1.7 lb)
± AIR CONDITIONING SYSTEMCompressorAC±31

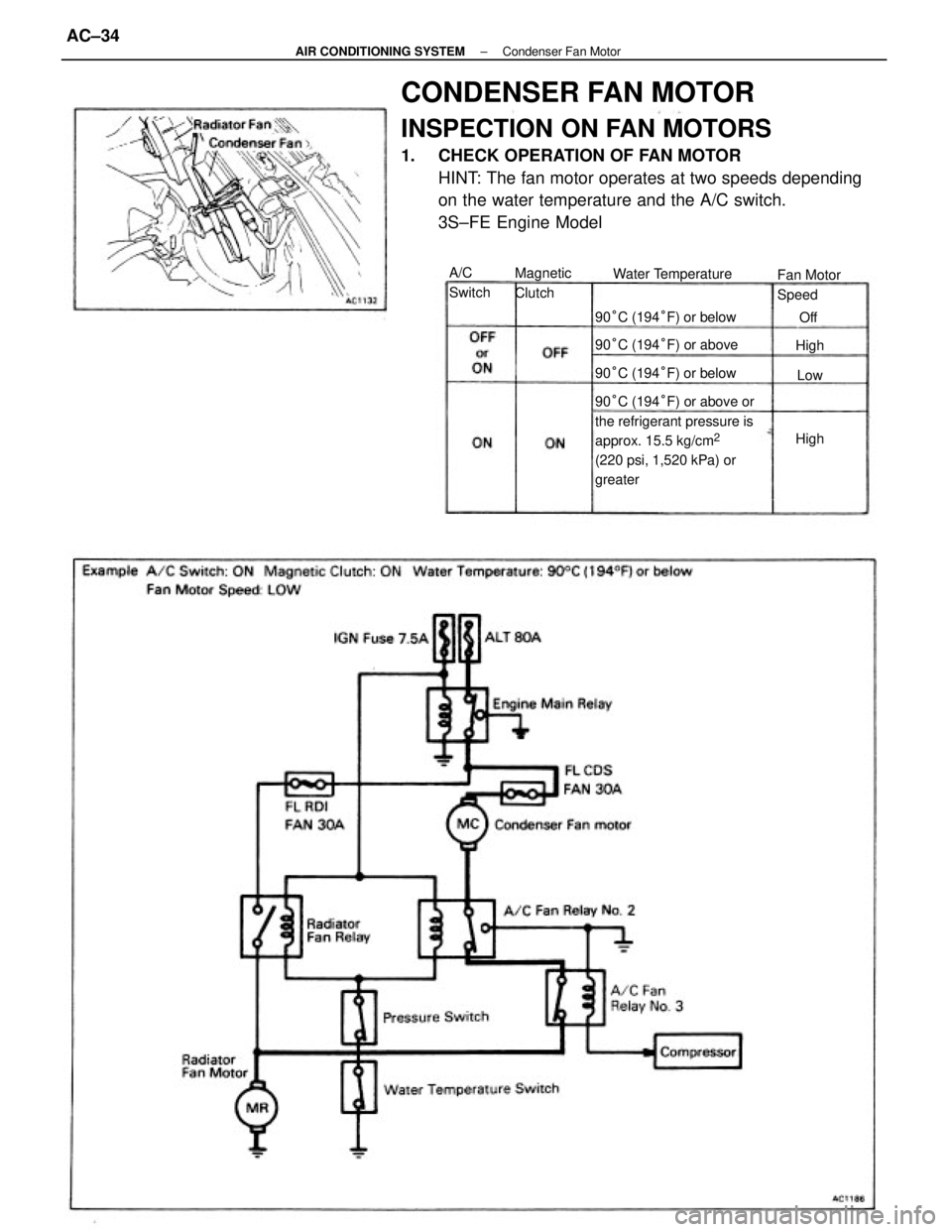

CONDENSER FAN MOTOR
INSPECTION ON FAN MOTORS
1. CHECK OPERATION OF FAN MOTOR
HINT: The fan motor operates at two speeds depending
on the water temperature and the A/C switch.
3S±FE Engine Model
90°C (194°F) or above or
the refrigerant pressure is
approx. 15.5 kg/cm
2
(220 psi, 1,520 kPa) or
greater 90°C (194°F) or below
90°C (194°F) or above
90°C (194°F) or below Water Temperature
Fan Motor
Speed Magnetic
Clutch A/C
Switch
High
HighLowOff
± AIR CONDITIONING SYSTEMCondenser Fan MotorAC±34

96°C (205°F) or above or the
refrigerant pressure is approx.
15.5 kg/cm2 (220psi, 1,520 kPa)
or greater91 °C (196°F)
± 96°C (205°F)

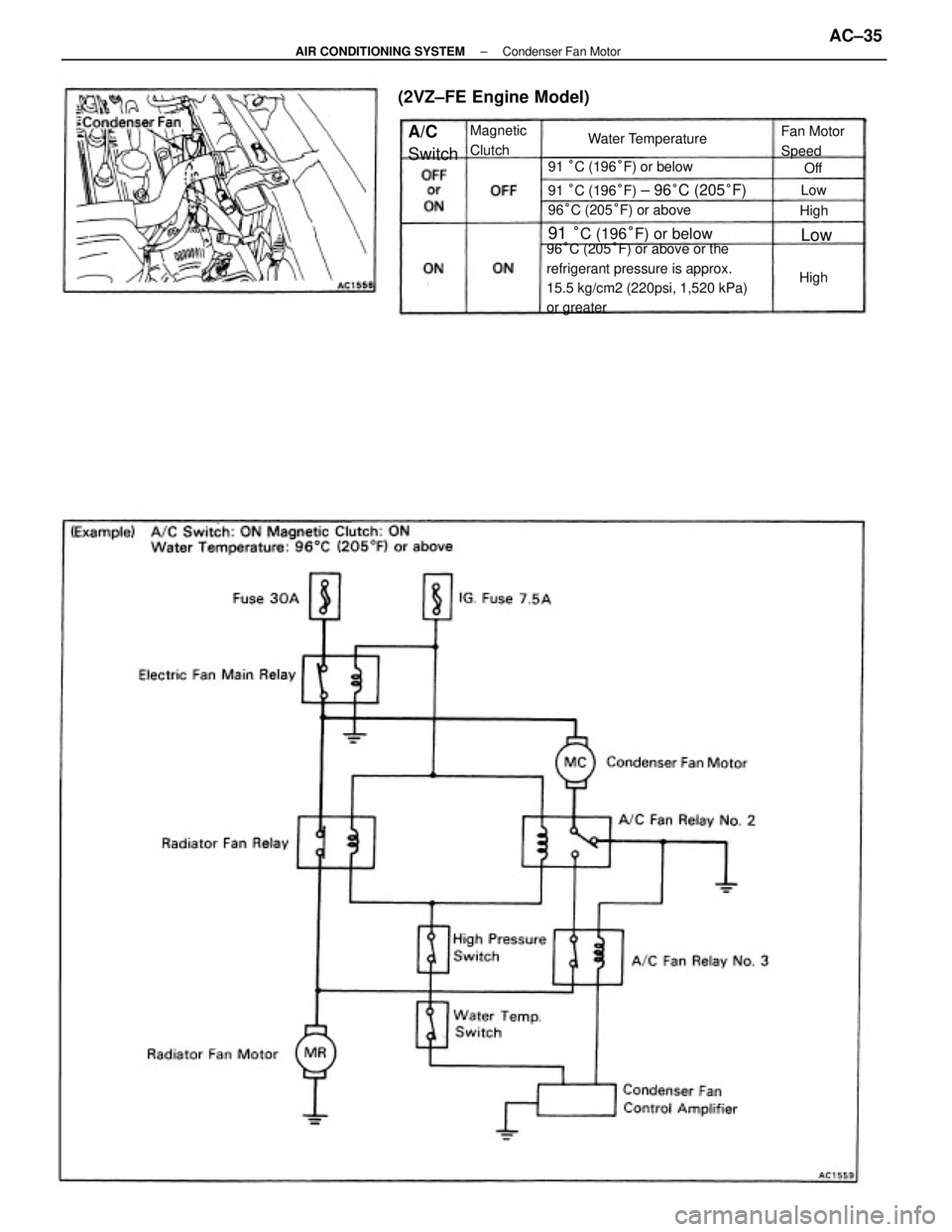

(2VZ±FE Engine Model)
91 °C (196°F) or below
96°C (205°F) or above
91 °C (196°F) or below
Water TemperatureFan Motor
Speed Magnetic
ClutchA/C
Switch
High
HighLow
Low
Off
± AIR CONDITIONING SYSTEMCondenser Fan MotorAC±35

REMOVAL OF COOLING UNIT
1. DISCONNECT NEGATIVE CABLE FROM BATTERY
2. DISCHARGE REFRIGERATION SYSTEM
3. DISCONNECT SUCTION TUBE FROM COOLING UNIT
OUTLET FITTING
4. DISCONNECT LIQUID TUBE FROM COOLING UNIT
INLET FITTING
HINT: Cap the open fittings immediately to keep moisture
out of the system.
5. REMOVE GROMMETS FROM INLET AND OUTLET
FITTINGS
6. REMOVE GLOVE BOX
7. DISCONNECT CONNECTORS
8. REMOVE COOLING UNIT
Remove three nuts and four bolts.
COOLING UNIT
(See page AC±12)

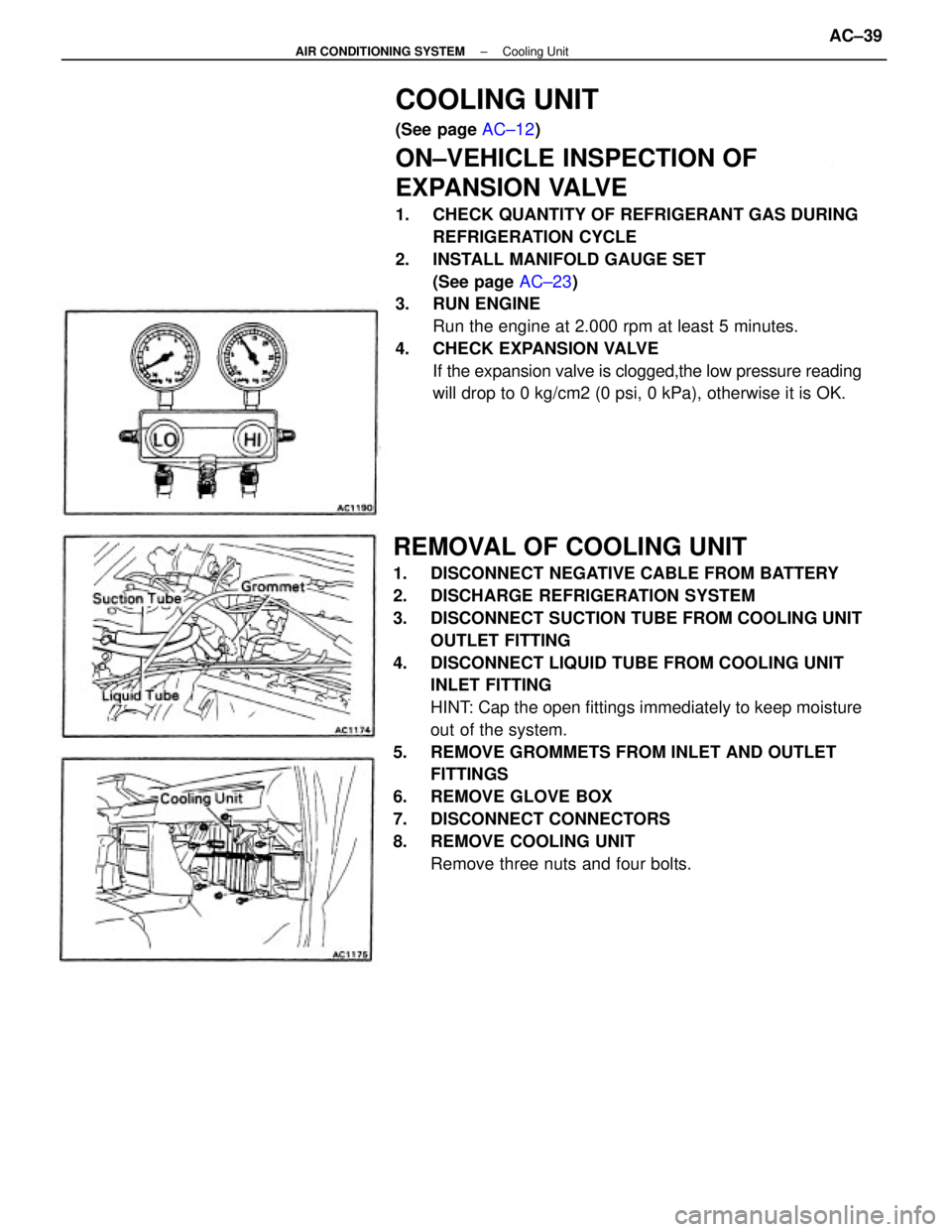

ON±VEHICLE INSPECTION OF
EXPANSION VALVE
1. CHECK QUANTITY OF REFRIGERANT GAS DURING
REFRIGERATION CYCLE
2. INSTALL MANIFOLD GAUGE SET
(See page AC±23)
3. RUN ENGINE
Run the engine at 2.000 rpm at least 5 minutes.
4. CHECK EXPANSION VALVE
If the expansion valve is clogged,the low pressure reading
will drop to 0 kg/cm2 (0 psi, 0 kPa), otherwise it is OK.
± AIR CONDITIONING SYSTEMCooling UnitAC±39

AMPLIFIERS
Inspection of Amplifier
(See page AC±12)
Air Conditioner Amplifier
INSPECT AMPLIFIER CIRCUIT
Disconnect the amplifier and inspect the connector on the
wire harness side as shown in the chart below.
Test conditions:
(1) Ignition: ON
(2) Temperature control lever: MAX. COOL
(3) Blower switch: Hl
If circuit is as specified, replace the amplifier.
ApProx. 1.7 k
at 25°C (77°F)
3S±FE Engine Model
Turn ignition switch off.Turn ignition switch on.
Turn ignition switch off.Turn ignition switch on.
Turn ignition switch off.
Turn ignition switch on.Turn A/C switch off.
Turn A/C switch on.
Turn A/C switch off.Turn A/C switch on.
4pprox. 10 to 14 V
Tester
connectionSpecified value
Battery voltage
Battery voltageBattery voltageBattery voltage
Battery voltage
ApproX. 250 W Start engine.
Stop engine.No voltageNo voltage
No voltage
No voitage
No voltageNo voltage ContinuityContinuity
Resistance
Condition
Check for
Constant
ConstantConstant
Voltage
Voltage
± AIR CONDITIONING SYSTEMAmplifiersAC±45

Condenser Fan Control Amplifier
INSPECT AMPLIFIER CIRCUIT
Disconnect the amplifier and inspect the connector on the
wire harness side as shown in the chart below. If the circuit is as specified, replace the amplifier.
If circuit is as specified, replace the amplifier. 2VZ±FE Engine Model
Approx. 1.5 k
at 27°C (77°F)
Turn ignition switch off.
Turn ignition switch off. Turn ignition switch on±. Turn ignition switch on. Turn ignition switch off.Turn ignition switch on. Turn ignition switch off. Turn ignition switch on.
Turn A/C switch on.
Turn A/C switch on.
Turn A/C switch off. Turn A/C switch off.
Tester
connection
Approx. 10 to 14 V Tester
connection
Specified valueSpecified value
Battery voltageBattery voltageBattery voltage Battery voltage
Battery voltage
Approx. 250
Battery voltage
Start engine.
Stop engine.
No voltageNo voltage
No voltage
No voltage
No voltage ContinuityNo voltageNo voltage
ContinuityContinuity
Continuity Continuity
Continuity
Condition
Continuity ResistanceCondition
Check forCheck for
Constant Constant Constant
Constant Constant
Constant Constant
VoltageVoltage
± AIR CONDITIONING SYSTEMAmplifiersAC±46

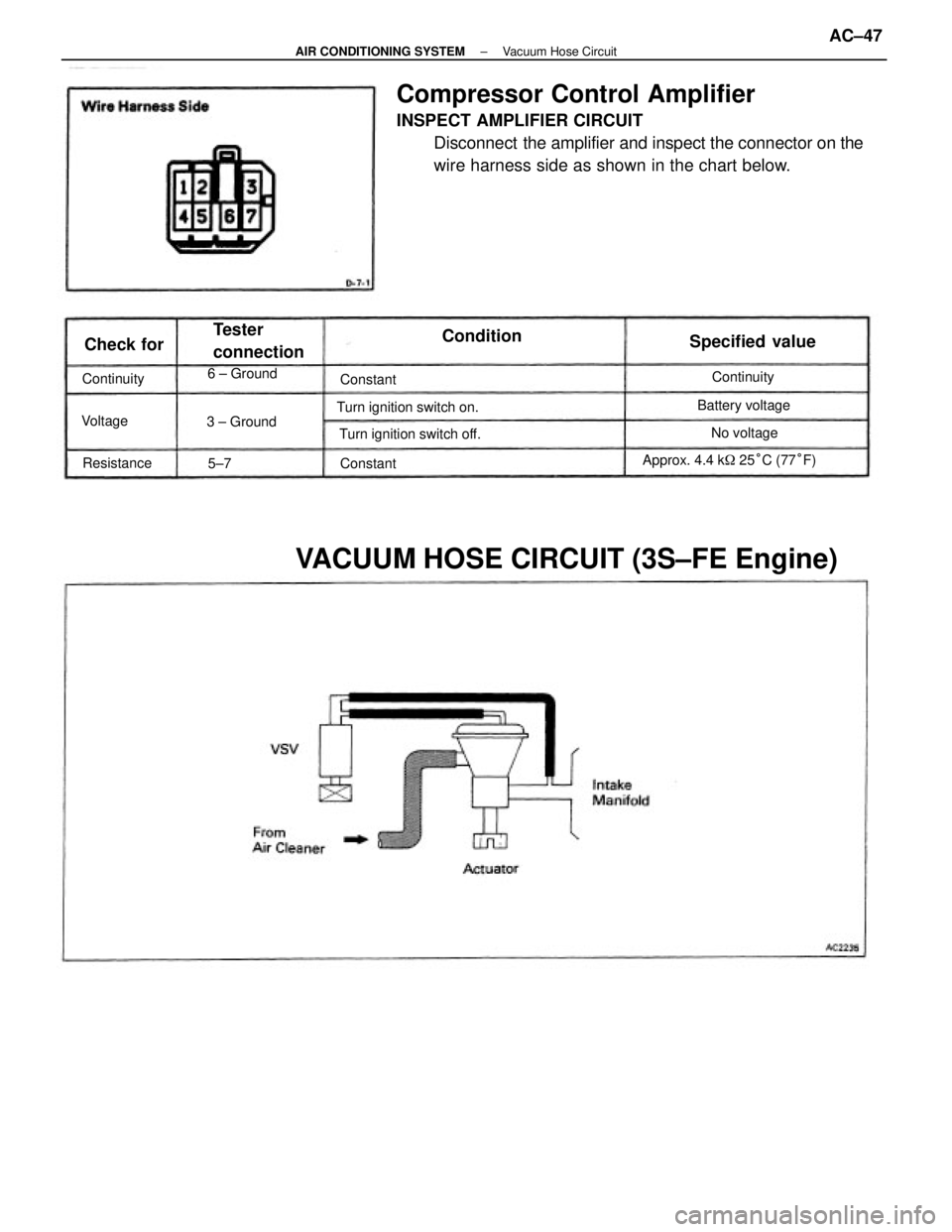

Compressor Control Amplifier
INSPECT AMPLIFIER CIRCUIT
Disconnect the amplifier and inspect the connector on the
wire harness side as shown in the chart below.
VACUUM HOSE CIRCUIT (3S±FE Engine)
Approx. 4.4 k
25°C(77°F) Turn ignition switch on.
Turn ignition switch off.
Tester
connectionSpecified value
3 ± GroundBattery voltage 6 ± Ground
No voltage ContinuityContinuity
Resistance
Condition
Check for
Constant Constant
Voltage
5±7
± AIR CONDITIONING SYSTEMAmplifiersAC±47

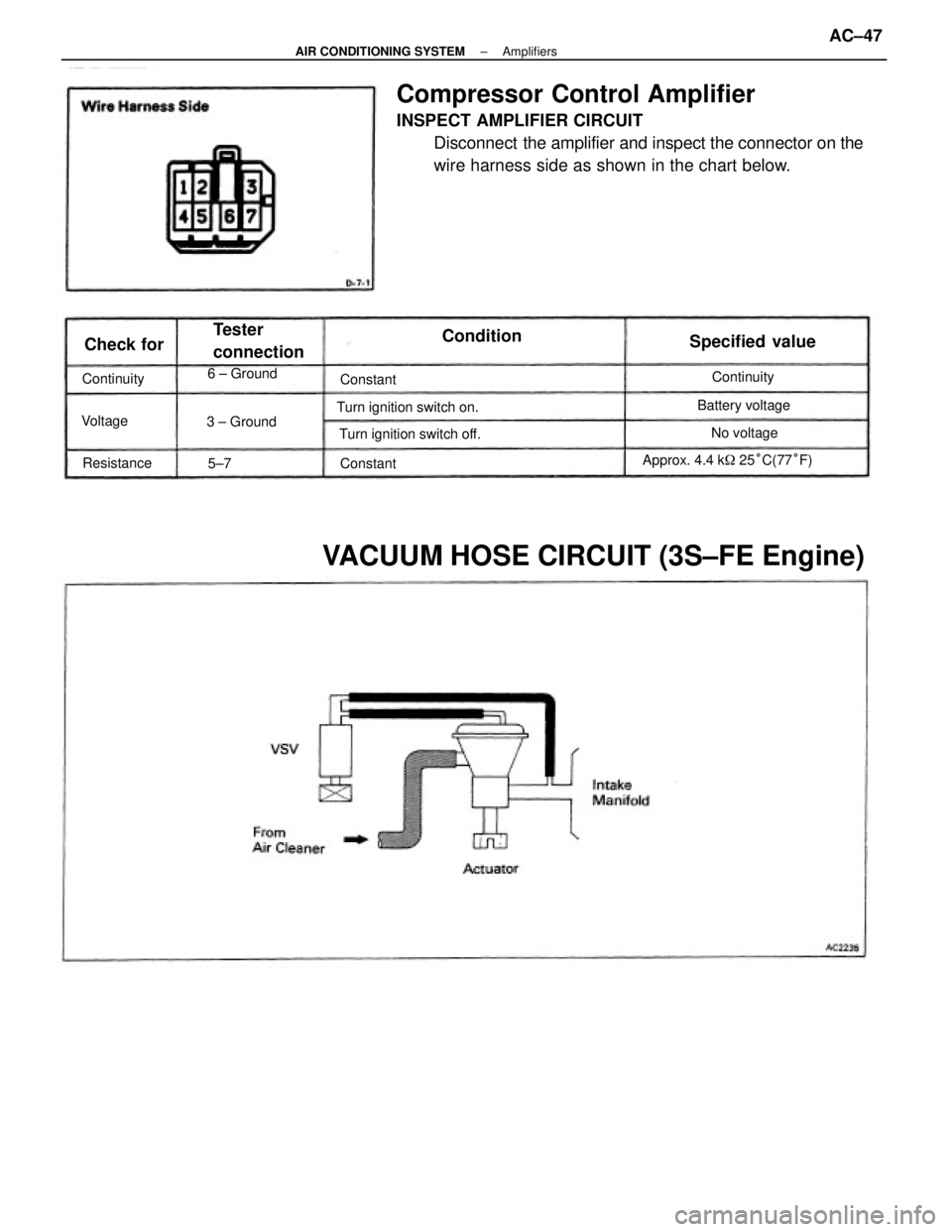

Compressor Control Amplifier
INSPECT AMPLIFIER CIRCUIT
Disconnect the amplifier and inspect the connector on the
wire harness side as shown in the chart below.
VACUUM HOSE CIRCUIT (3S±FE Engine)
Approx. 4.4 k
25°C (77°F) Turn ignition switch on.
Turn ignition switch off.
Tester
connectionSpecified value
3 ± GroundBattery voltage 6 ± Ground
No voltage ContinuityContinuity
Resistance
Condition
Check for
Constant Constant
Voltage
5±7
± AIR CONDITIONING SYSTEMVacuum Hose CircuitAC±47

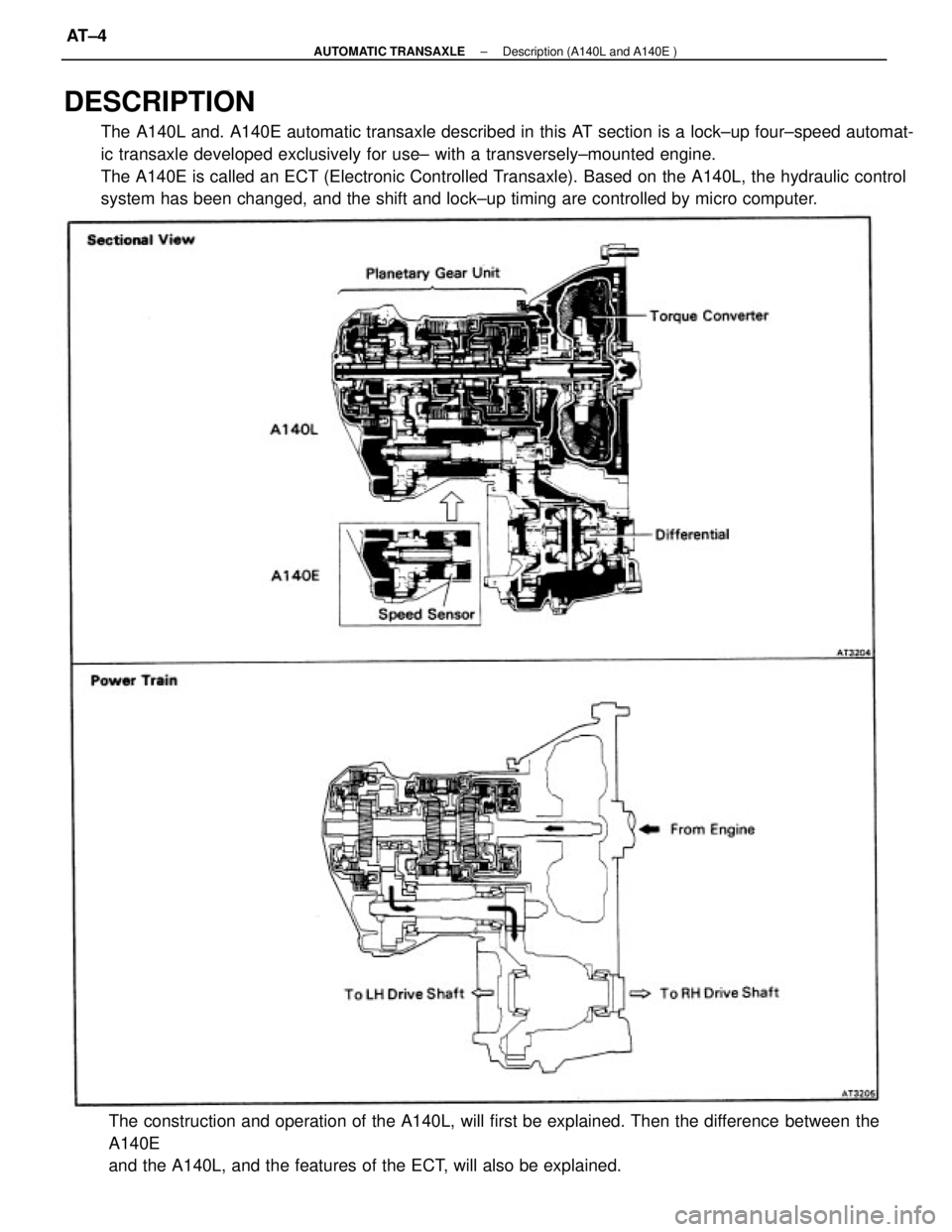

DESCRIPTION
The A140L and. A140E automatic transaxle described in this AT section is a lock±up four±speed automat-
ic transaxle developed exclusively for use± with a transversely±mounted engine.
The A140E is called an ECT (Electronic Controlled Transaxle). Based on the A140L, the hydraulic control
system has been changed, and the shift and lock±up timing are controlled by micro computer.
The construction and operation of the A140L, will first be explained. Then the difference between the
A140E
and the A140L, and the features of the ECT, will also be explained.
± AUTOMATIC TRANSAXLEDescription (A140L and A140E )AT±4
