TOYOTA COROLLA 2000 Owners Manual

2000 Corolla(U)
57

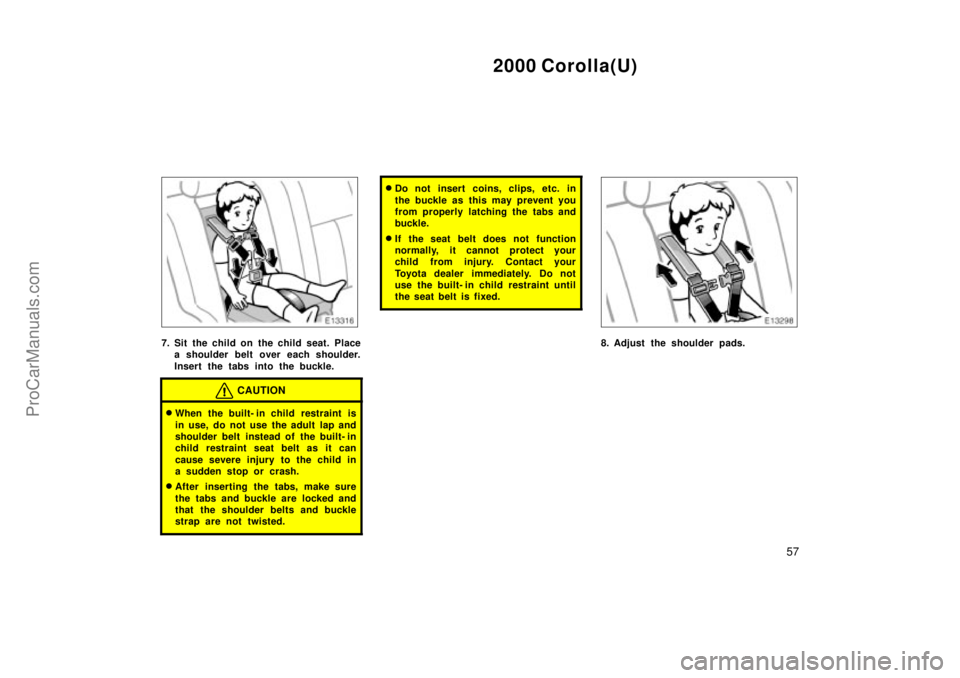

7. Sit the child on the child seat. Place
a shoulder belt over each shoulder.
Insert the tabs into the buckle.
CAUTION

When the built- in child restraint is
in use, do not use the adult lap and
shoulder belt instead of the built- in
child restraint seat belt as it can
cause severe injury to the child in
a sudden stop or crash.

After inserting the tabs, make sure
the tabs and buckle are locked and
that the shoulder belts and buckle
strap are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tabs and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the built- in child restraint until
the seat belt is fixed.
8. Adjust the shoulder pads.
ProCarManuals.com

2000 Corolla(U)
58

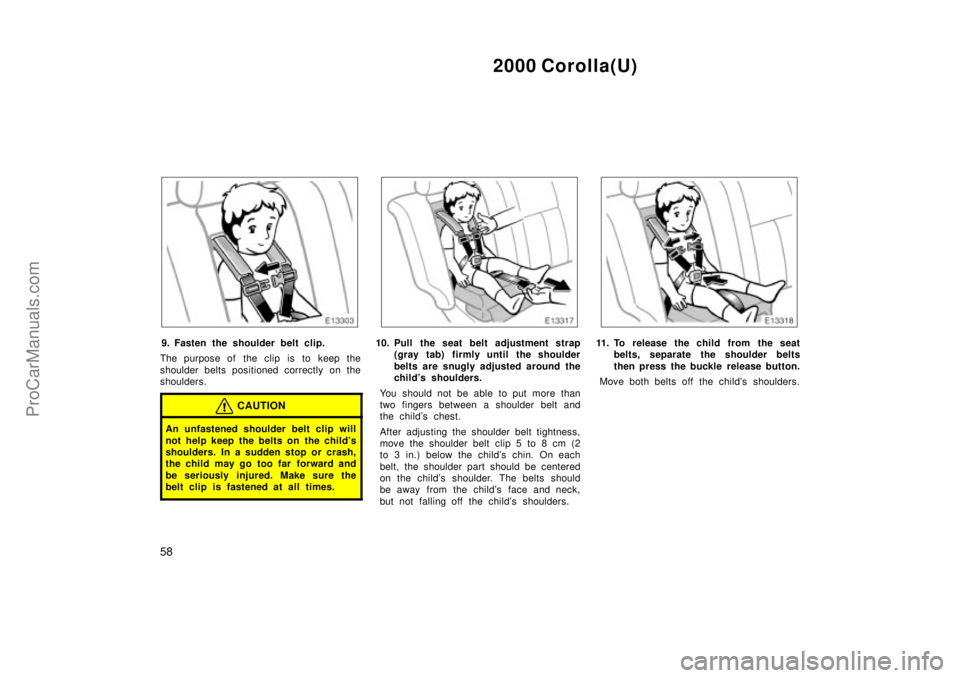

9. Fasten the shoulder belt clip.
The purpose of the clip is to keep the
shoulder belts positioned correctly on the
shoulders.
CAUTION
An unfastened shoulder belt clip will
not help keep the belts on the child's
shoulders. In a sudden stop or crash,
the child may go too far forward and
be seriously injured. Make sure the
belt clip is fastened at all times.
10. Pull the seat belt adjustment strap
(gray tab) firmly until the shoulder
belts are snugly adjusted around the
child's shoulders.
You should not be able to put more than
two fingers between a shoulder belt and
the child's chest.
After adjusting the shoulder belt tightness,
move the shoulder belt clip 5 to 8 cm (2
to 3 in.) below the child's chin. On each
belt, the shoulder part should be centered
on the child's shoulder. The belts should
be away from the child's face and neck,
but not falling off the child's shoulders.11. To release the child from the seat
belts, separate the shoulder belts
then press the buckle release button.
Move both belts off the child's shoulders.
ProCarManuals.com

2000 Corolla(U)
59

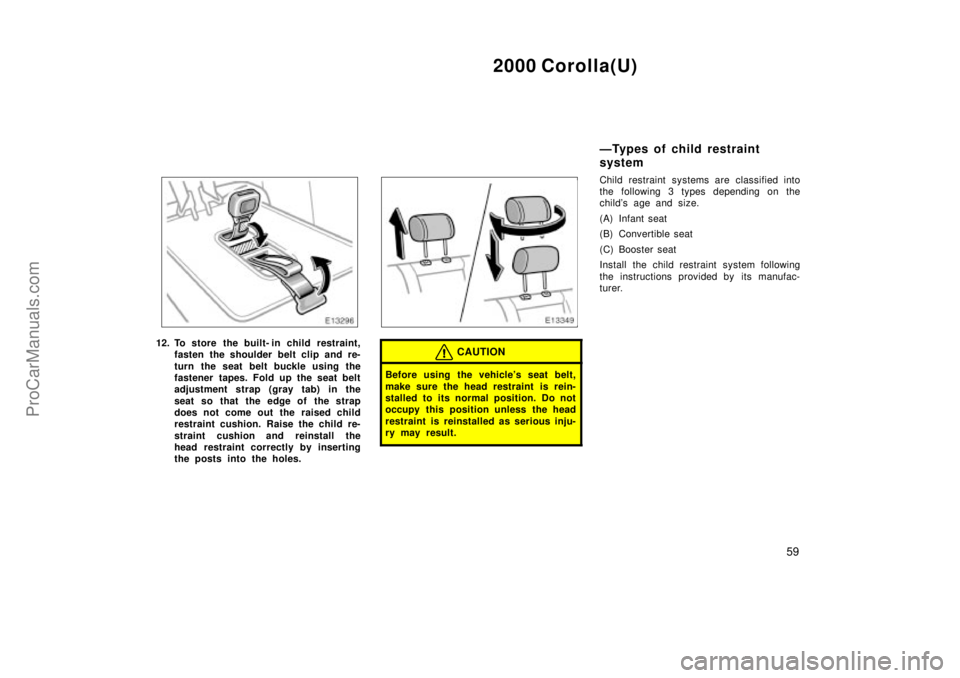

12. To store the built- in child restraint,
fasten the shoulder belt clip and re-
turn the seat belt buckle using the
fastener tapes. Fold up the seat belt
adjustment strap (gray tab) in the
seat so that the edge of the strap
does not come out the raised child
restraint cushion. Raise the child re-
straint cushion and reinstall the
head restraint correctly by inserting
the posts into the holes.CAUTION
Before using the vehicle's seat belt,
make sure the head restraint is rein-
stalled to its normal position. Do not
occupy this position unless the head
restraint is reinstalled as serious inju-
ry may result.

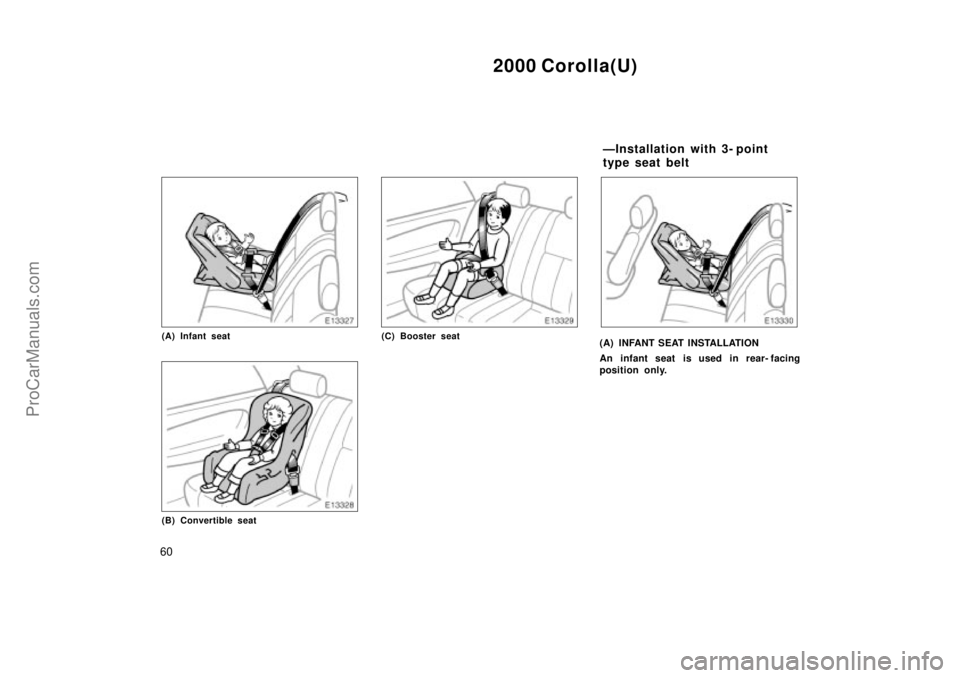

Child restraint systems are classified into
the following 3 types depending on the
child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
ÐTypes of child restraint
system
ProCarManuals.com

2000 Corolla(U)
60
(A) Infant seat
(B) Convertible seat
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat is used in rear- facing
position only.
ÐInstallation with 3- point
type seat belt
ProCarManuals.com

2000 Corolla(U)
61

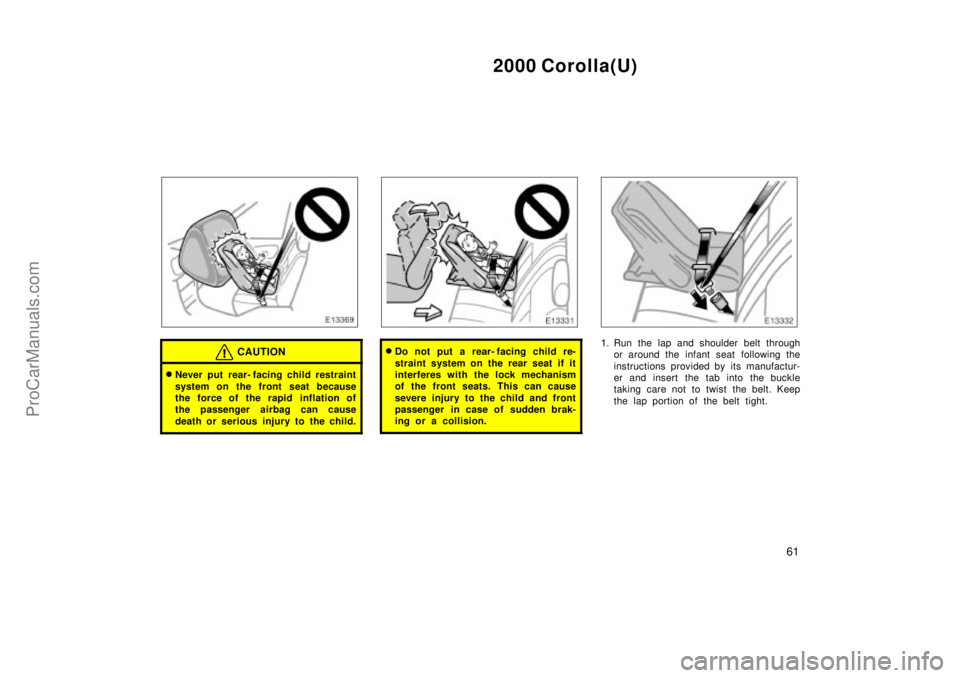

CAUTION

Never put rear- facing child restraint
system on the front seat because
the force of the rapid inflation of
the passenger airbag can cause
death or serious injury to the child.

Do not put a rear- facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
ProCarManuals.com

2000 Corolla(U)
62

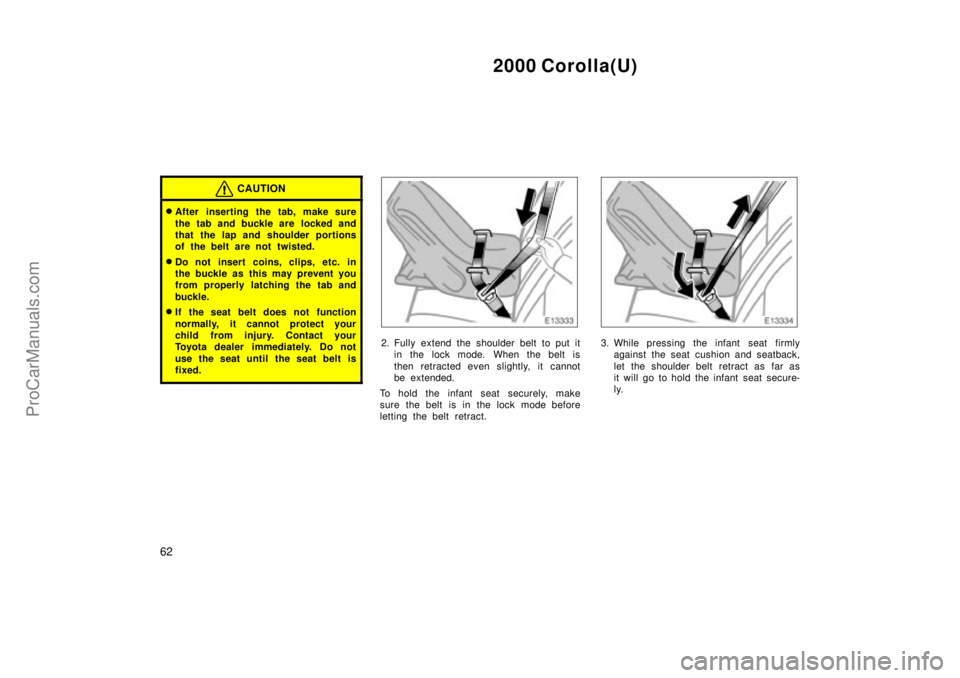

CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.
ProCarManuals.com

2000 Corolla(U)
63
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press the
buckle- release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward-
facing and rear- facing position depend-
ing on the child's age and size. When
installing, follow the manufacturer's in-
structions about the applicable child's
age and size as well as directions for
installing a child restraint system.
ProCarManuals.com

2000 Corolla(U)
64

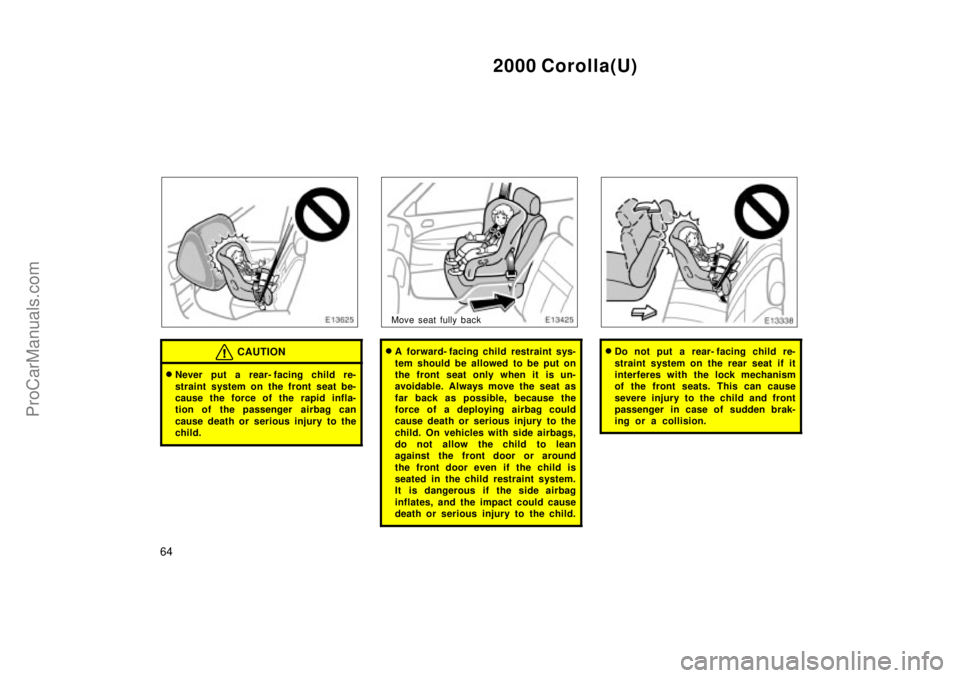

CAUTION

Never put a rear- facing child re-
straint system on the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag can
cause death or serious injury to the
child.
Move seat fully back

A forward- facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child. On vehicles with side airbags,
do not allow the child to lean
against the front door or around
the front door even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
inflates, and the impact could cause
death or serious injury to the child.
Do not put a rear- facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.
ProCarManuals.com

2000 Corolla(U)
65
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
ProCarManuals.com

2000 Corolla(U)
66

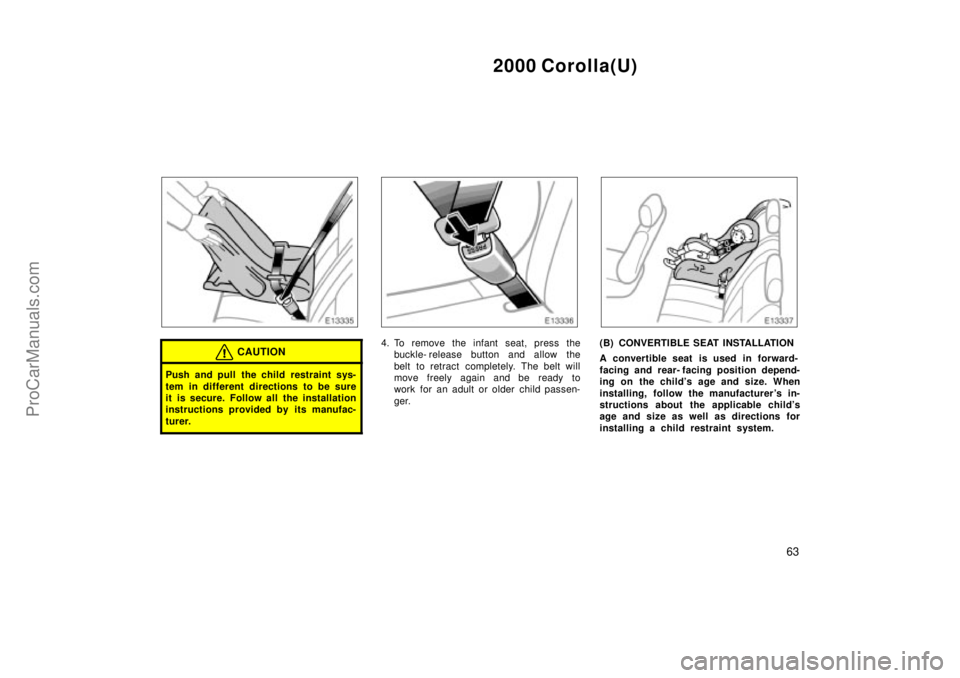

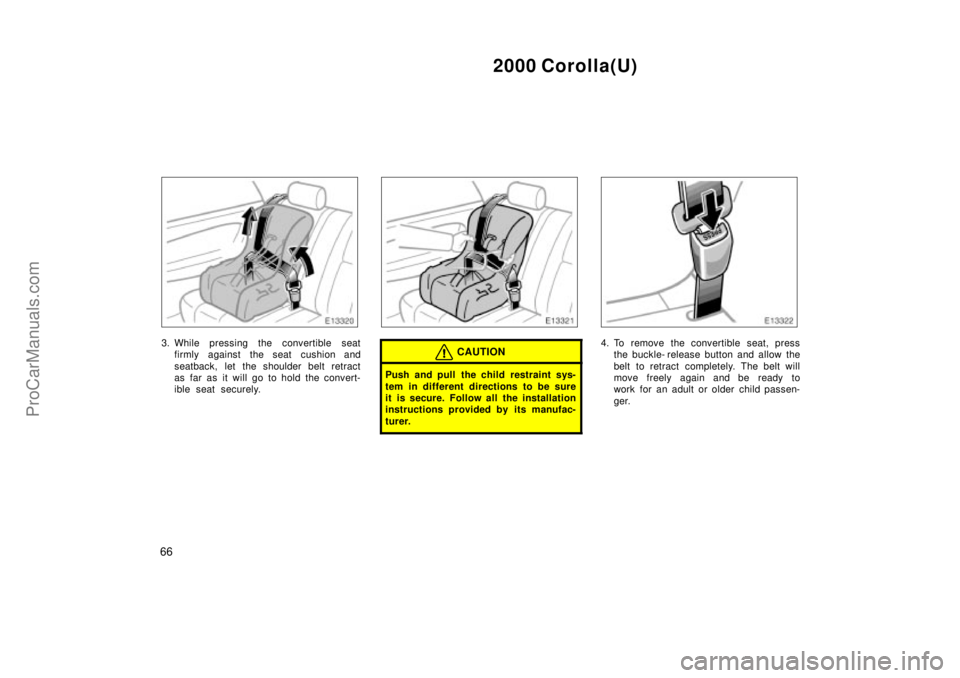

3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the buckle- release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
