TOYOTA COROLLA 2000 Owners Manual

2000 Corolla(U)
77
High- Low beamsÐFor high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to OFFº.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the ONº position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Emergency flashers
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
ProCarManuals.com

2000 Corolla(U)
78
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Instrument panel light control
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Interior light
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
ONºÐKeeps the light on all the time.
OFFºÐTurns the light off.
DOORºÐTurns the light on when any of
the door is opened. The light remains on
for a certain time after all the doors are
closed. When all the doors are locked or
the ignition switch is turned to ACCº or
ONº after all the doors are closed, the
light fades out.
ProCarManuals.com

2000 Corolla(U)
79

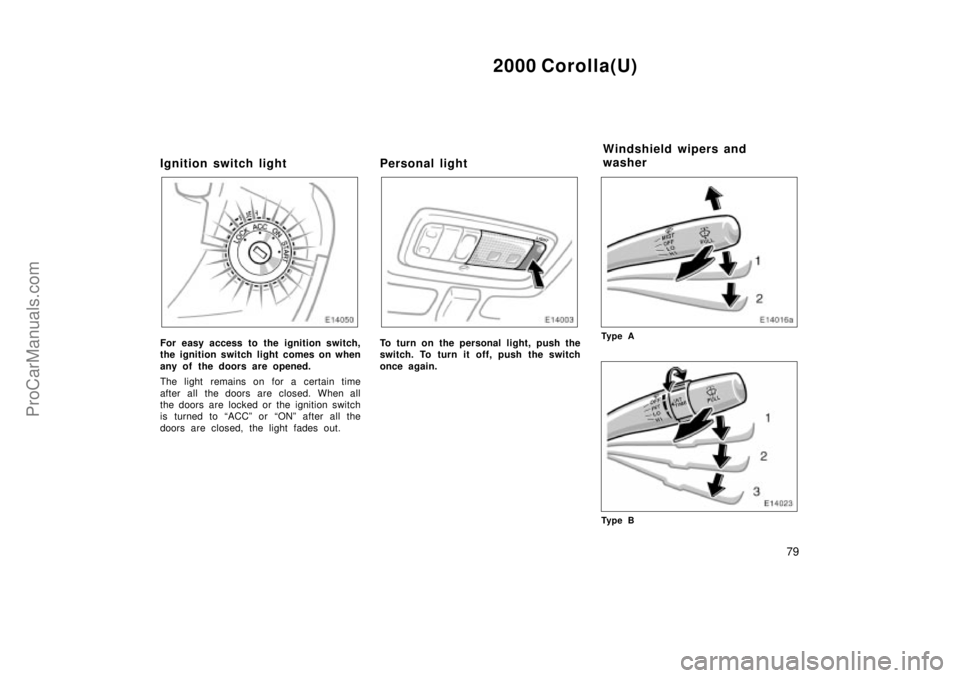

Ignition switch light
For easy access to the ignition switch,
the ignition switch light comes on when
any of the doors are opened.
The light remains on for a certain time
after all the doors are closed. When all
the doors are locked or the ignition switch
is turned to ACCº or ONº after all the
doors are closed, the light fades out.
Personal light
To turn on the personal light, push the
switch. To turn it off, push the switch
once again.Ty p e A
Ty p e B
Windshield wipers and
washer
ProCarManuals.com

2000 Corolla(U)
80
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ONº position.
Ty p e A Ð
Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
Ty p e B Ð
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
With interval adjuster: The INT TIMEº
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.To squirt washer fluid, pull the lever
toward you.
With interval adjuster: If the windshield
wipers are off, they will operate a couple
of times after the washer squirts.
For instructions on adding washer fluid,
see Adding washer fluidº in Section 7- 3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Rear window defogger
To defog or defrost the rear window,
push the switch.
The key must be in the ONº position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
On some models, the system will automat-
ically shut off after the defogger has oper-
ated about 15 minutes.
ProCarManuals.com

2000 Corolla(U)
81
Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop- and-
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE

Without timer: To prevent the bat-
tery from being discharged, turn the
switch on when the engine is run-
ning.

When cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires.
ProCarManuals.com

2000 Corolla(U)
82
ProCarManuals.com

2000 Corolla(U)
83
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gaug84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermometer86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzer87 . . . . . . . . . . . . . . . .
SECTION 1- 5
ProCarManuals.com

2000 Corolla(U)
84

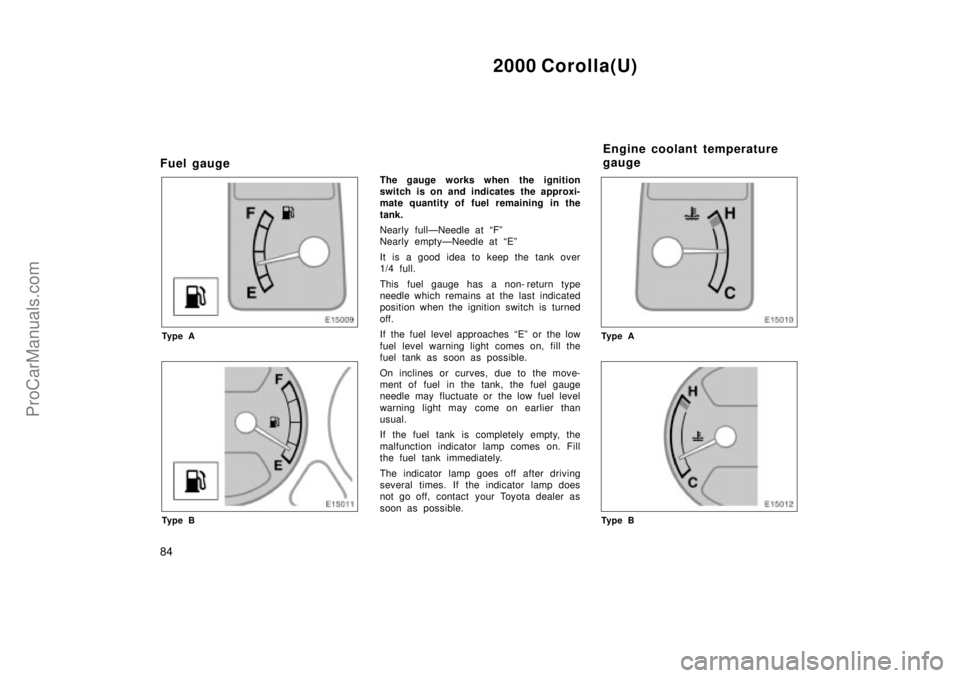

Fuel gauge
Ty p e A
Ty p e B
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly fullÐNeedle at Fº
Nearly emptyÐNeedle at Eº
It is a good idea to keep the tank over
1/4 full.
This fuel gauge has a non- return type
needle which remains at the last indicated
position when the ignition switch is turned
off.
If the fuel level approaches Eº or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
Ty p e A
Ty p e B
Engine coolant temperature
gauge
ProCarManuals.com

2000 Corolla(U)
85
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:

Driving up a long hill on a hot day.

Reducing speed or stopping after high
speed driving.

Idling for a long period with the air
conditioning on in stop- and- go traffic.

Towing a trailer.
NOTICE

Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.

Do not continue driving with an
overheated engine. See If your ve-
hicle overheatsº in Section 4.
Tachometer
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
ProCarManuals.com

2000 Corolla(U)
86

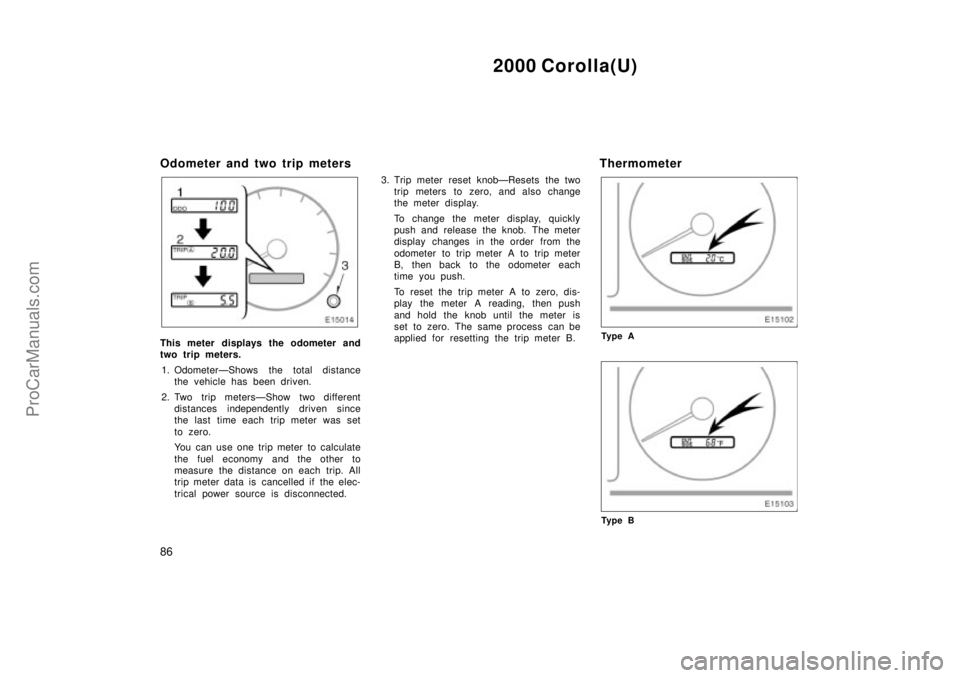

Odometer and two trip meters
This meter displays the odometer and
two trip meters.
1. OdometerÐShows the total distance
the vehicle has been driven.
2. Two trip metersÐShow two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.3. Trip meter reset knobÐResets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
Thermometer
Ty p e A
Ty p e B
