TOYOTA COROLLA 2016 11.G Owners Manual

4116-4. Other interior features
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.
n The power outlet can be used when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
Power outlet
NOTICE
l To avoid damaging the power outlet, close the power outlet lid when the
power outlet is not in use. Foreign objects or liquids that enter the power
outlet may cause a short circuit.
l To prevent battery discharge, do not use the power outlet longer than nec-
essary when the engine is off.

4126-4. Other interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
CAUTION
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist
grip.

4136-4. Other interior features
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
To turn the compass on or off,
press and hold “AUTO” for 3 sec-
onds.

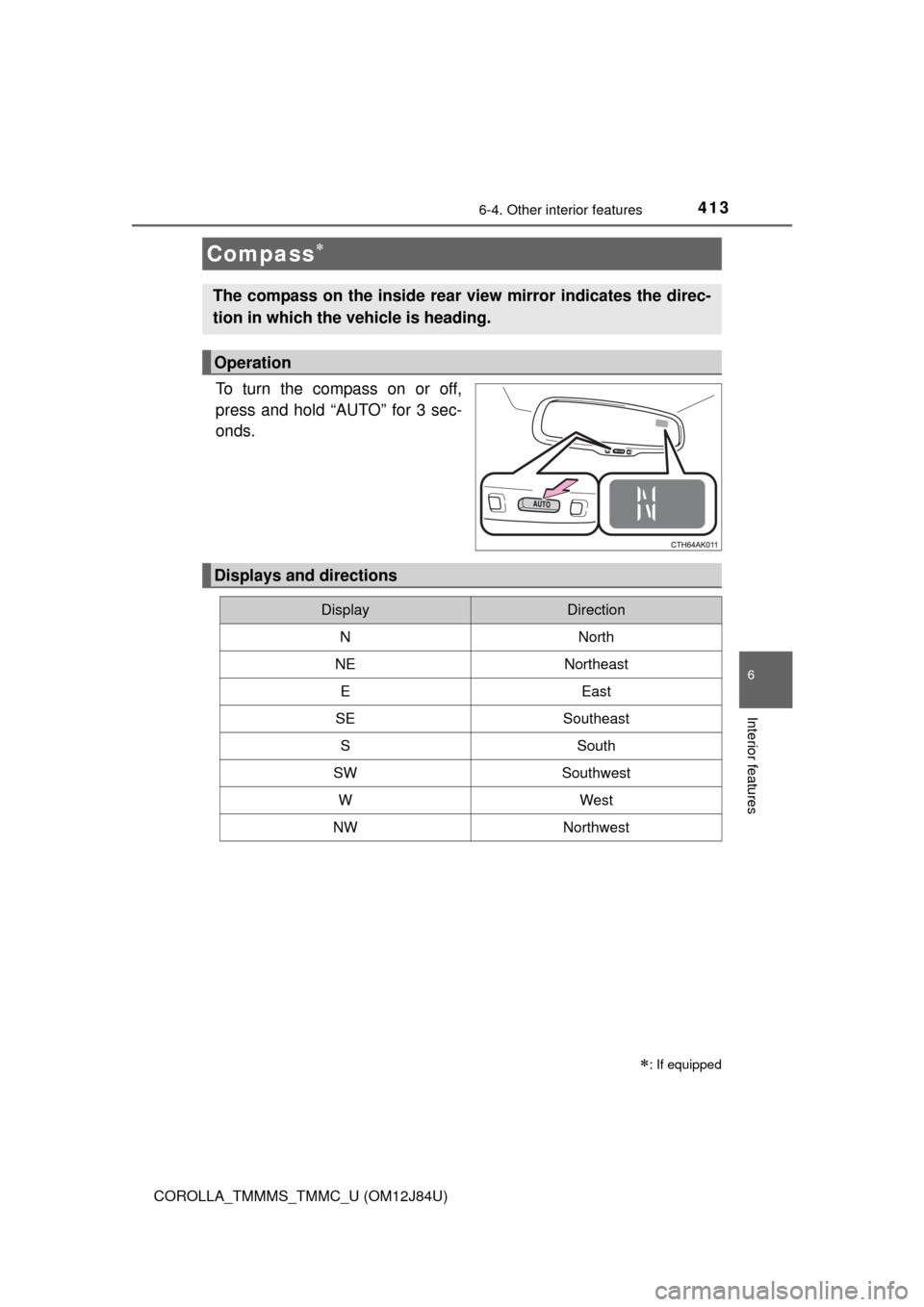

Compass
: If equipped
The compass on the inside rear view mirror indicates the direc-
tion in which the vehicle is heading.
Operation
Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWest
NWNorthwest

4146-4. Other interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
The direction display deviates from the true direction determined by
the earth’s magnetic field. The amoun t of deviation varies according to
the geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.
n
Deviation calibration
Stop the vehicle.
Press and hold “AUTO” for 6
seconds.
A number (1 to 15) appears on
the compass display.
Press the switch and referring to the map above, select the num-
ber of the zone where you are.
If the direction is displayed several seconds after adjustment, the cali-
bration is complete.
Calibrating the compass
1
2
3

4156-4. Other interior features
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Circling calibration
Stop the vehicle in a place where it is safe to drive in a circle.
Press and hold “AUTO” for 9
seconds.
C appears on the compass dis-
play.
Drive the vehicle at 5 mph
(8 km/h) or less in a circle
until a direction is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
1
2
3

4166-4. Other interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
nConditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
lThe vehicle is stopped immediately after turning.
l The vehicle is on an inclined surface.
l The vehicle is in a place where the earth's magnetic field is subject to inter-
ference by artificial magnetic fiel ds (underground car park/parking lot, under
a steel tower, between buildings, roof car park/parking lot, near an intersec-
tion, near a large vehicle, etc.).
l The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
l The battery has been disconnected.
l A door is open.
CAUTION
n While driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is
stopped.
n When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling cali-
bration.
NOTICE
nTo avoid compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause the compass sensor to malfunction.
n To ensure normal operation of the compass
lDo not perform circling calibration of the compass in a place where the
earth's magnetic field is subject to inte rference by artificial magnetic fields.
l During calibration, do not operate electric systems (moon roof, power win-
dows, etc.) as they may interfere with the calibration.

4176-4. Other interior features
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
Press the switch.High temperature
Low temperature
The indicator light comes on when
the switch is on.
n The seat heaters can be used when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
n When not in use
Put the switch in the neutral position. The indicator will turn off.
Seat heaters
: If equipped
1
2

4186-4. Other interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
CAUTION
nBurns
lUse caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
l Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
l Do not use seat heater more than necessary. Doing so may cause minor
burns or overheating.
NOTICE
nTo prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
n To prevent battery discharge
Turn the seat heaters off when the engine is not running.

419
7Maintenance and care
COROLLA_TMMMS_TMMC_U (OM12J84U)7-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 420
Cleaning and protecting the vehicle interior ........... 423
7-2. Maintenance Maintenance requirements ................... 426
General maintenance........ 429
Emission inspection and maintenance (I/M)
programs ......................... 433
7-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 434
Hood ................................. 437
Positioning a floor jack ...... 439
Engine compartment ......... 441
Tires .................................. 454
Tire inflation pressure ....... 462
Wheels .............................. 465
Air conditioning filter.......... 467
Wireless remote control/ electronic key battery ...... 469
Checking and replacing fuses ............................... 472
Light bulbs......................... 475

420
COROLLA_TMMMS_TMMC_U (OM12J84U)
7-1. Maintenance and care
lWorking from top to bottom, liber ally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
l Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
l For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
l Wipe away any water.
l Wax the vehicle when the wate rproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
nAutomatic car washes
lFold the mirrors before washing the vehi cle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.
l Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle's paint.
l Vehicles with rear spoiler: In certain automatic car washes, the rear spoiler
may interfere with machine operation. This may prevent the vehicle from
being cleaned properly or result in damage to the rear spoiler.
n High pressure car washes
lDo not allow the nozzles of the car wash to come within close proximity of
the windows.
l Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
Cleaning and prot ecting the vehicle
exterior
Perform the following to protect the vehicle and maintain it in
prime condition:
