3916-1. Using the air conditioning system and defogger
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)

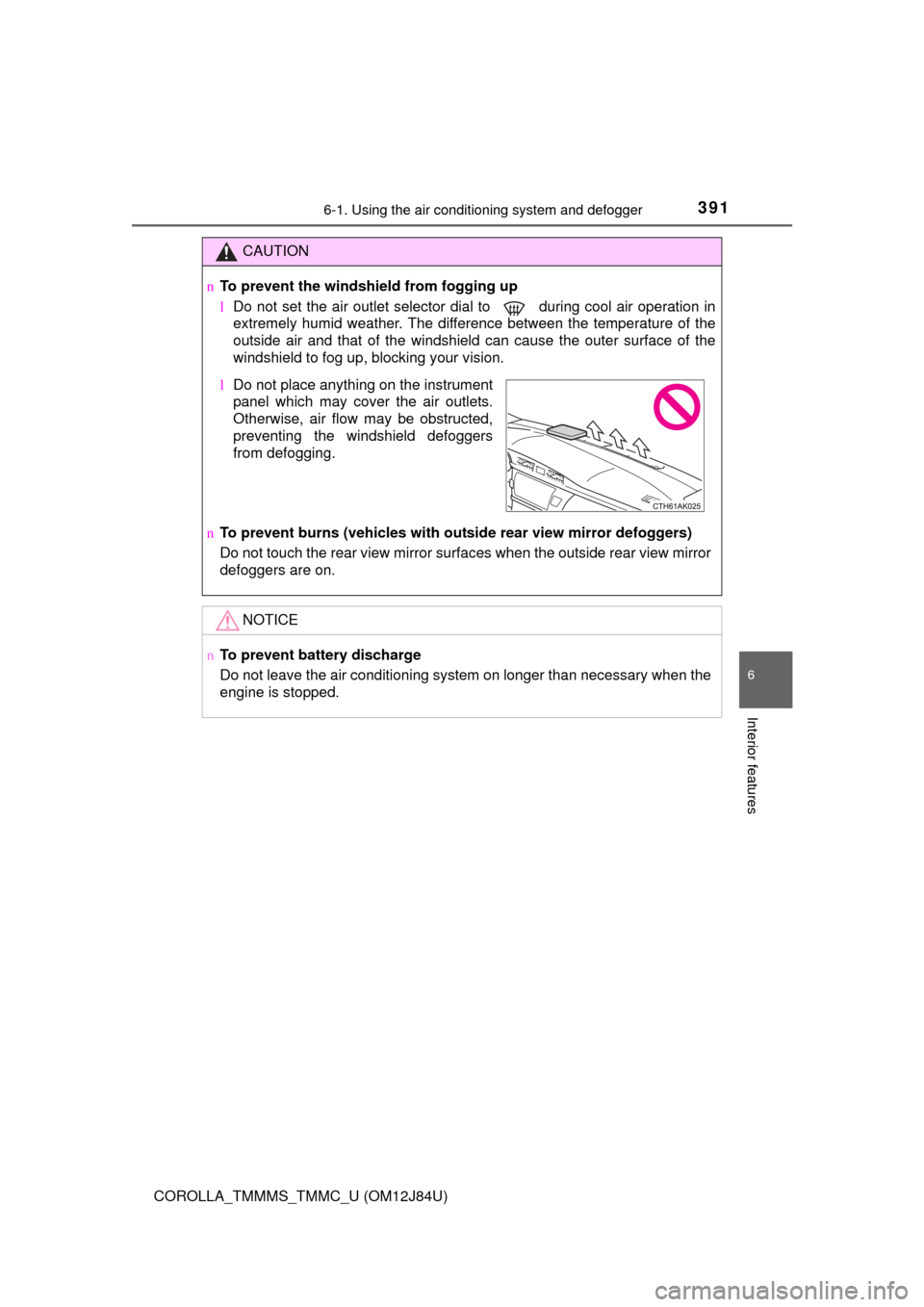

CAUTION
nTo prevent the windshield from fogging up
lDo not set the air outlet selector dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
n To prevent burns (vehicles with outs ide rear view mirror defoggers)
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
n To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
lDo not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
Page 392 of 620

3926-1. Using the air conditioning system and defogger
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Adjusting the temperature setting
To adjust the temperature setting,
turn clockwise to increase
the temperature and turn count erclockwise to decrease the
temperature.

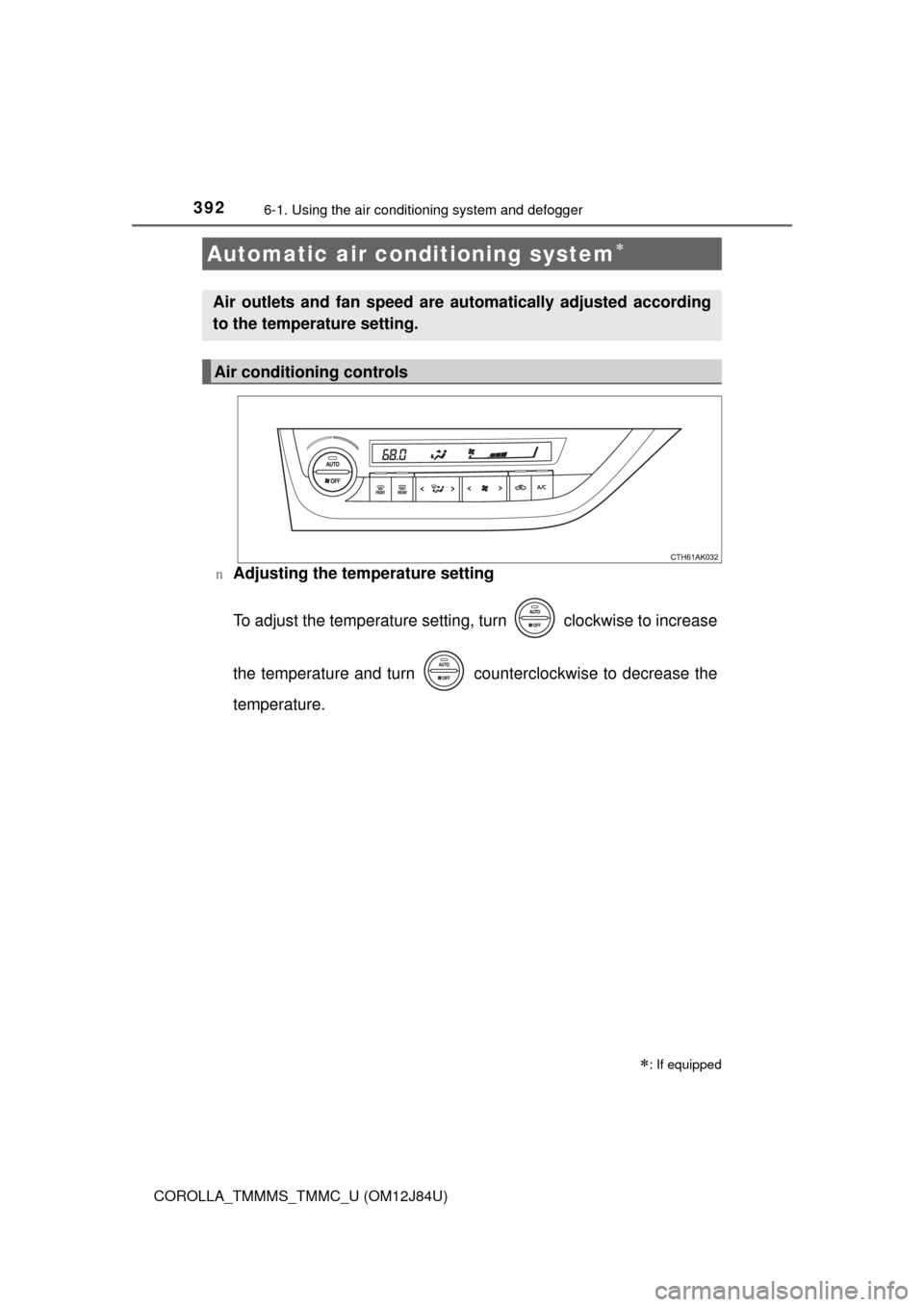

Automatic air conditioning system
: If equipped
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls
Page 393 of 620

3936-1. Using the air conditioning system and defogger
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Fan speed setting
Press “
” on to increase the fan speed.
Press “ ” on to decrease the fan speed.
nChange the airflow mode
To change the airflow, press “ ” or “” on .
The air outlets used are switched each time either side of the button is
pressed.
n
Other functions
l Switching between outside air and recirculated air modes
( P. 387)
l Defogging the windshield ( P. 387)
l Defogging the rear window and outside rear view mirrors
( P. 387)
Page 394 of 620

3946-1. Using the air conditioning system and defogger
COROLLA_TMMMS_TMMC_U (OM12J84U)
Press .
The dehumidification function begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Adjust the temperature setting.
nAutomatic mode indicator
If the fan speed setting or air fl ow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
nSwitching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time is pressed.
n
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if the
recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield is
defogged.
Using automatic mode
Other functions
1
2
Page 395 of 620

3956-1. Using the air conditioning system and defogger
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
Page 396 of 620

3966-1. Using the air conditioning system and defogger
COROLLA_TMMMS_TMMC_U (OM12J84U)n

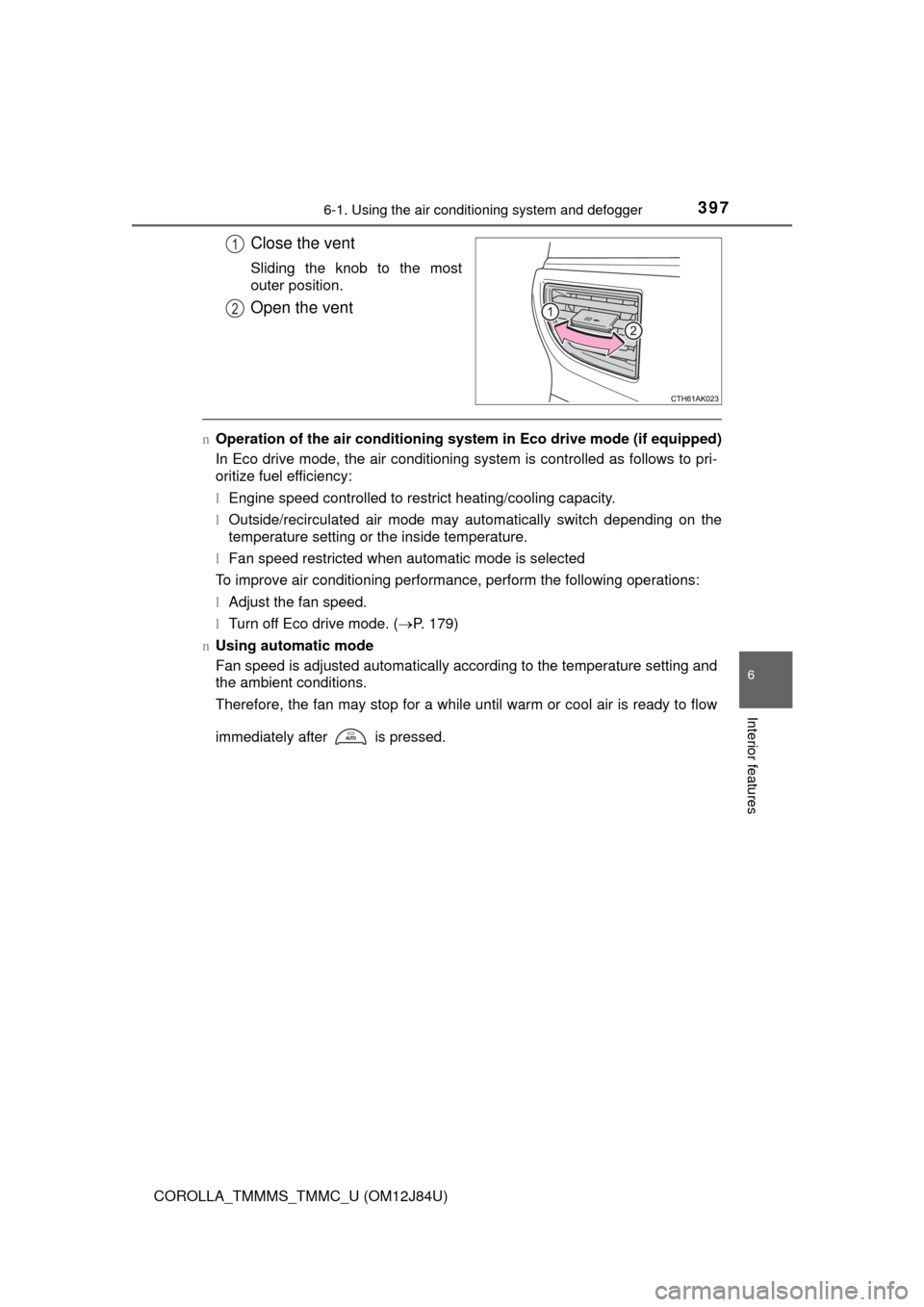

Location of air outlets
The air outlets and air volume
changes according to the
selected airflow mode.
: Some models
nAdjusting the position of and opening and closing the air out-
lets
Front center outlets
Direct air flow to the left or right,
up or down.
Front side outlets
Direct air flow to the left or right,
up or down.
Air outlets
Page 397 of 620

3976-1. Using the air conditioning system and defogger
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
Close the vent
Sliding the knob to the most
outer position.
Open the vent
nOperation of the air conditioning system in Eco drive mode (if equipped)
In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
l Engine speed controlled to restrict heating/cooling capacity.
l Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
l Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
l Adjust the fan speed.
l Turn off Eco drive mode. ( P. 179)
n Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
1
2
Page 398 of 620

3986-1. Using the air conditioning system and defogger
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Fogging up of the windows
lThe windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
l If you turn off, the windows may fog up more easily.
l The windows may fog up if the recirculated air mode is used.
n Outside/recirculated air mode
lWhen driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to recirculated air mode. This is effective in
preventing outside air from entering the vehicle interior. During cooling oper-
ation, setting the recirculated air mode will also cool the vehicle interior
effectively.
l Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
Page 399 of 620

3996-1. Using the air conditioning system and defogger
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)n
When the outside temperature exceeds 75°F (24°C) and the air condition-
ing system is on
lIn order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.
Vehicles without a smart key system
l Recirculated air mode is selected as a default mode when the engine switch
is turned to the “ON” position.
Vehicles with a smart key system
l Recirculated air mode is selected as a default mode when the engine switch
is turned to IGNITION ON mode.
l It is possible to switch to outside air mode at any time by pressing .
n When the outside temperature is low
The dehumidification function may not operate even when is pressed.
n Ventilation and air conditioning odors
lTo let fresh air in, set the air conditioning system to the outside air mode.
l During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
l To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately after the air conditioning system is started in automatic
mode.
n Air conditioning filter
P. 467
n Customization that can be co nfigured at Toyota dealer
Settings (e.g. air conditioning setting) can be changed.
(Customizable features P. 576)
Page 400 of 620

4006-1. Using the air conditioning system and defogger
COROLLA_TMMMS_TMMC_U (OM12J84U)
CAUTION
nTo prevent the windshield from fogging up
lDo not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
n To prevent burns
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
nTo prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
lDo not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
