nStarting the engine when the battery is discharged
The engine cannot be started by push-starting.
n To prevent battery discharge
lTurn off the headlights and the audio system while the engine is off.
l Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
n Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
n When recharging or replacing the battery
lVehicles with a smart key system: In some cases, it may not be possible to
unlock the doors using the smart key system when the battery is dis-
charged. Use the wireless remote control or the mechanical key to lock or
unlock the doors.
l The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
l Vehicles with a smart key system: The engine switch mode is memorized by
the vehicle. When the battery is reconnected, the system will return to the
mode it was in before the battery was discharged. Before disconnecting the
battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
l Make sure that the key is not inside the vehicle when recharging or replac-
ing the battery. The key may be locked in the vehicle if the alarm is acti-
vated. ( P. 69)

5428-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)
CAUTION
nAvoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
lMake sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
l Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
l Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
l Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
n Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
lWhen working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
l Do not lean over the battery.
l In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
l Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
l Do not allow children near the battery.
NOTICE
nWhen handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan or engine drive belt.

5438-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
lVehicles with a drive monitor disp lay: The high engine coolant tem-
perature warning light ( P. 498) comes on or a loss of power is
experienced.
Vehicles with a multi-information display: The engine coolant tem-
perature gauge ( P. 82) enters the red zone or a loss of power is
experienced.
l Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled
down sufficient ly, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact your
Toyota dealer.
If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

5448-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)
The coolant level is satisfactory
if it is between the “F” and “L”
lines on the reservoir.Reservoir
“F” line
“L” line
Radiator cap
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is unavail-
able.
Start the engine to check that the radiator cooling fan operate and
to check for coolant leaks fr om the radiator or hoses.
4
1
2
3
4
5
6

5458-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
If the fan is not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Toyota dealer.
CAUTION
nWhen inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
lIf steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
l Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts.
7
lDo not loosen the radiator cap and the
coolant reservoir cap while the engine
and radiator are hot.
High temperature steam or coolant
could spray out.

5468-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)
NOTICE
nWhen adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
n To prevent damage to the cooling system
Observe the following precautions:
lAvoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
l Do not use any coolant additives.

5478-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
Stop the engine. Set the parking brake and shift the shift lever to P
(automatic transmission or continuously variable transmission) or N
(manual transmission).
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some othe r material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (automatic transmission or continu-
ously variable transmission) or 1 or R (manual transmission) and
release the parking brake. Then, while exercising caution, depress
the accelerator pedal.
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
1
2
3
4
5

5488-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)
nWhen it is difficult to free the veh icle (vehicles with a TRAC system)
Press to turn off TRAC.
CAUTION
n When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
n When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
nTo avoid damaging the transm ission and other components
l Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
l If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

549
9Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)9-1. Specifications
Maintenance data (fuel, oil level, etc.) .......... 550
Fuel information ................ 560
Tire information ................. 563
9-2. Customization Customizable features ...... 576
9-3. Items to initialize Items to initialize ............... 583

550
COROLLA_TMMMS_TMMC_U (OM12J84U)
9-1.Specifications
*1: Unladen vehicles
*2: 195/65R15 tires
*3: P205/55R16 and P215/45R17 tires
n
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.

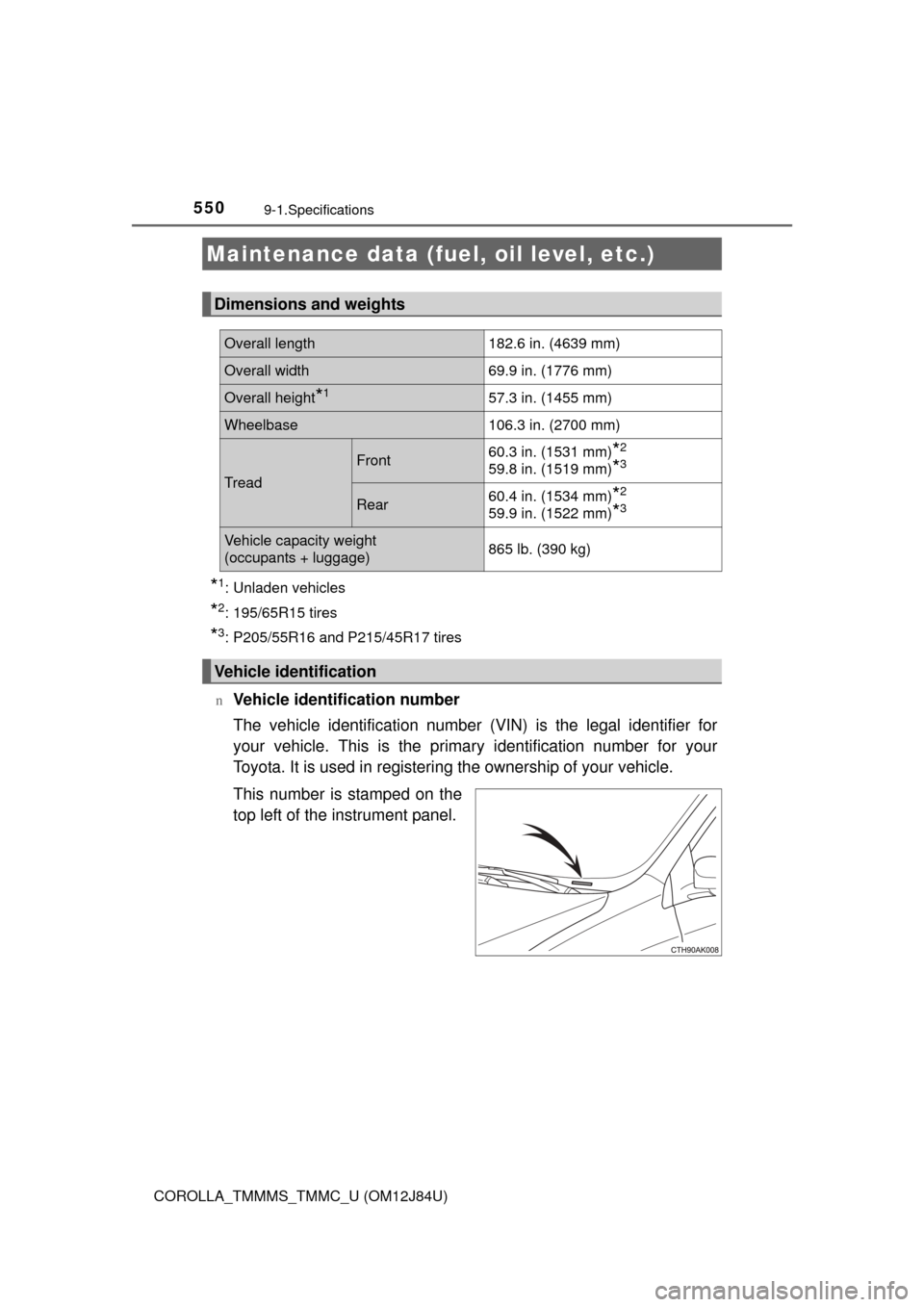

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 182.6 in. (4639 mm)
Overall width 69.9 in. (1776 mm)
Overall height*157.3 in. (1455 mm)
Wheelbase106.3 in. (2700 mm)
Tread
Front60.3 in. (1531 mm)*2
59.8 in. (1519 mm)*3
Rear60.4 in. (1534 mm)*2
59.9 in. (1522 mm)*3
Vehicle capacity weight
(occupants + luggage) 865 lb. (390 kg)
Vehicle identification
