TOYOTA COROLLA 2016 11.G Owners Manual

5819-2. Customization
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Lights (
ï‚®P. 188)
*: U.S.A. only
n
Automatic air conditioning system* ( ï‚® P. 392)
*: If equipped
n
Illumination ( ï‚®P. 401)
*: Vehicles with a smart key system
FunctionDefault settingCustomized set-
ting
Daytime running light sys-
tem
*OnOffOO
12
FunctionDefault settingCustomized set-ting
Air conditioning auto
switch operationOnOffOO
12
FunctionDefault settingCustomized set-
ting
Time elapsed before the
interior lights turn off15 seconds7.5 secondsOO30 seconds
Operation after the engine
switch is turned offOnOff—O
Operation when the doors
are unlockedOnOff—O
Operation when you
approach the vehicle with
the electronic key on your
person
*
OnOff—O
12

5829-2. Customization
COROLLA_TMMMS_TMMC_U (OM12J84U)
nVehicle customization
When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated \
in
accordance with the operational signal (Emergency flashers) function set-
tings.
n When customizing usi ng the navigation system
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P (automatic transmission or c ontinuously variable transmission) or N
(manual transmission). Also, to prevent battery discharge, leave the engine
running while customizing the features.
CAUTION
n During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
nDuring customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

583
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)
9-3. Items to initialize
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as maintenance being performed on the
vehicle:
ItemWhen to initializeReference
Maintenance required
reminder light (vehicles with
a drive monitor display) or
message indicating mainte-
nance is required (vehicles
with a multi-information dis-
play)
(U.S.A. only)
• After the maintenance is per- formedP. 427
Tire pressure warning sys-
tem (if equipped)
• When rotating the tires
• When changing the tireinflation pressure by
changing traveling speed
or load weight, etc.
P. 4 5 6

5849-3. Items to initialize
COROLLA_TMMMS_TMMC_U (OM12J84U)

10
585
For owners
COROLLA_TMMMS_TMMC_U (OM12J84U)Reporting safety defects
for U.S. owners ........................ 586
Seat belt instructions for Canadian owners
(in French) ............................... 587
SRS airbag instructions for Canadian owners
(in French) ............................... 589

586
COROLLA_TMMMS_TMMC_U (OM12J84U)

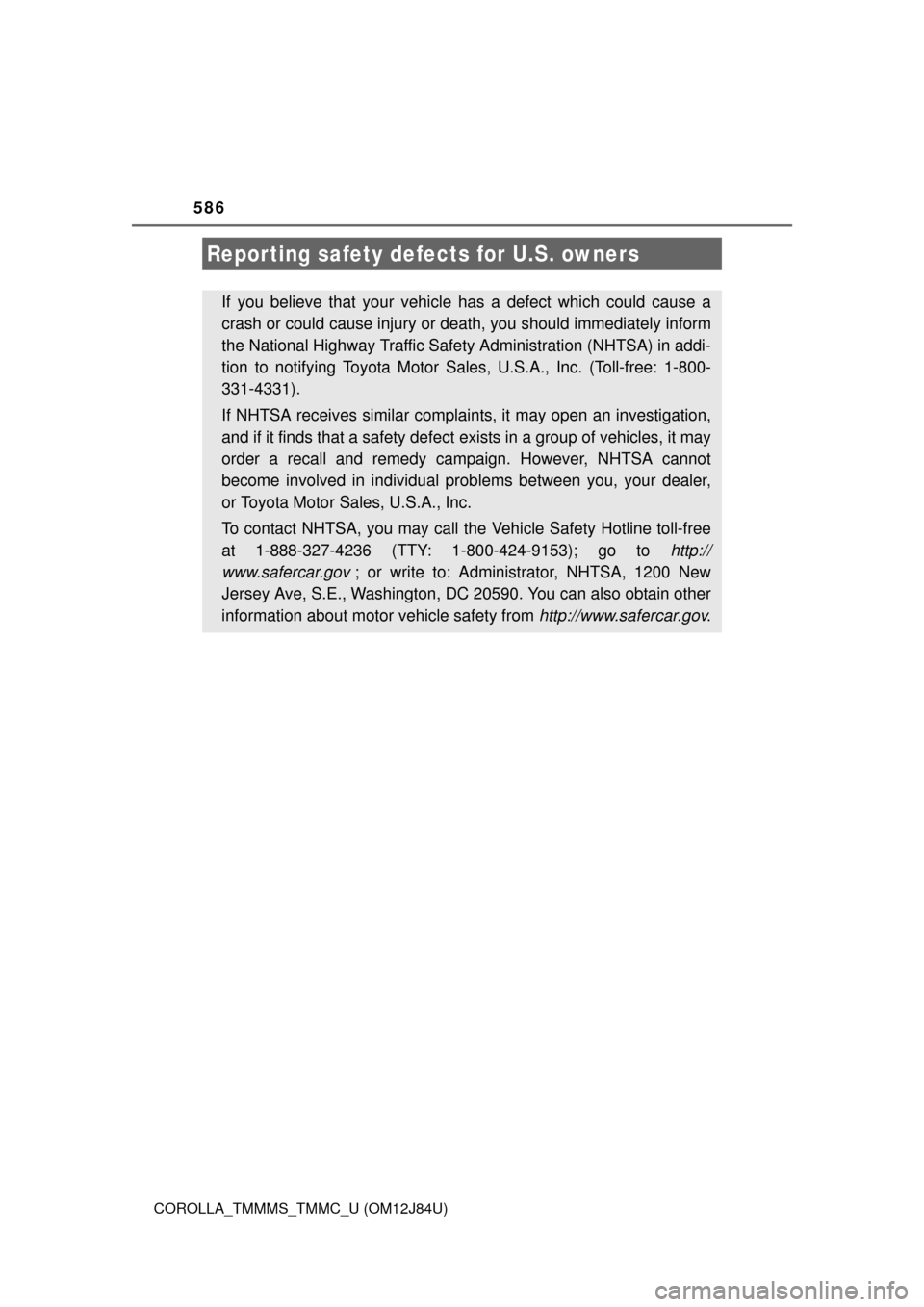

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sale s, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives simila r complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.

587
10
For owners
COROLLA_TMMMS_TMMC_U (OM12J84U)
lDéroulez la sangle diagonale
de telle sorte qu’elle passe
entièrement sur l’épaule, sans
pour autant être en contact
avec le cou ou glisser de
l’épaule.
l Placez la sangle abdominale
aussi bas que possible sur les
hanches.
l Réglez la position du dossier de siège. Asseyez-vous le dos le plus
droit possible et calez-vous bien dans le siège.
l Ne vrillez pas la ceinture de sécurité.
nCeintures de sécurité
Nettoyez avec un chiffon ou une éponge humectée d’eau savon-
neuse tiède. Vérifiez régulièrem ent que les ceintures ne sont pas
effilochées, entaillées ou exagérément usées.
Seat belt instructions for Canadian owners
(in French)
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
Entretien et soin

588
COROLLA_TMMMS_TMMC_U (OM12J84U)
AT T E N T I O N
nDommage et usure de la ceinture de sécurité
Inspectez la ceinture de sécurité périodiquement. Vérifiez si elles ne sont
pas entaillées, effilochées et que leurs ancrages ne sont pas desserrés.
N’utilisez pas une ceinture de sécurité défectueuse avant qu’elle ne soit
remplacée. Une ceinture de sécurité défectueuse n’apporte aucune garan-
tie de protection de l’occupant en cas de blessures graves, voire mortelles.

589
10
For owners
COROLLA_TMMMS_TMMC_U (OM12J84U)
uCoussins gonflables avant SRS
Coussin gonflable conducteur SRS/coussin gonflable passager
avant
Participent à la protection de la tête et du thorax du conducteur et
du passager avant contre les chocs avec les éléments intérieurs
Coussin gonflable de genoux du conducteur SRS
Participe à la protection du conducteur
Coussin gonflable d’assise SRS
Contribue à retenir le passager avant
SRS airbag instructions for Canadian
owners (in French)
The following is a French explan ation of SRS airbag instructions
extracted from the SRS airbag section in this manual.
See the SRS airbag section for more detailed SRS airbag instruc-
tions in English.
1
2
3

590
COROLLA_TMMMS_TMMC_U (OM12J84U)
uCoussins gonflables latéraux et rideaux SRS
Coussins gonflables latéraux avant SRS
Participent à la protection du thorax des occupants du siège avant
Coussins gonflables rideaux SRS
Participent principalement à la protection de la tête des occupants
assis aux places extérieures
Compositions du système de coussin gonflable SRS
4
5
