TOYOTA COROLLA 2019 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2019, Model line: COROLLA, Model: TOYOTA COROLLA 2019Pages: 608, PDF Size: 10.15 MB

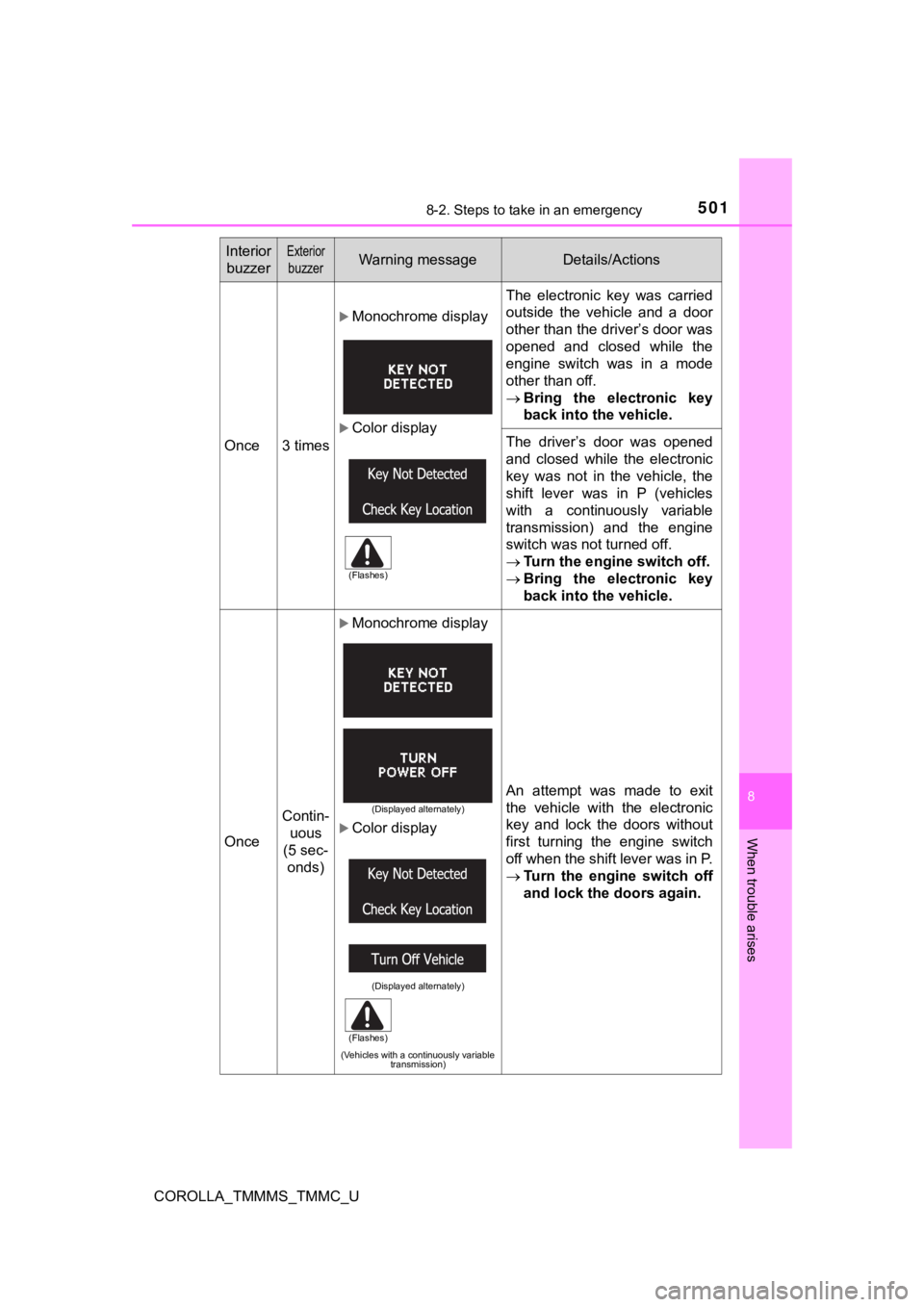

Page 501 of 608

5018-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U
Once3 times
Monochrome display
Color display
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
engine switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was in P (vehicles
with a continuously variable
transmission) and the engine
switch was not turned off.
Turn the engine switch off.
Bring the electronic key
back into the vehicle.
Once
Contin-
uous
(5 sec- onds)
Monochrome display
Color display
(Vehicles with a continuously variable transmission)
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off when the shift lever was in P.
Turn the engine switch off
and lock the doors again.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Displayed alternately)
(Displayed alternately)
(Flashes)
Page 502 of 608

5028-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_UOnce
Monochrome display
Color display The electronic key is not
detected when an attempt is
made to start the engine.
Start the engine with the
electronic key present.
9
times
Monochrome display
Color display
An attempt was made to drive
when the regular key was not
inside the vehicle.
Confirm that the elec-
tronic key is inside the
vehicle.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

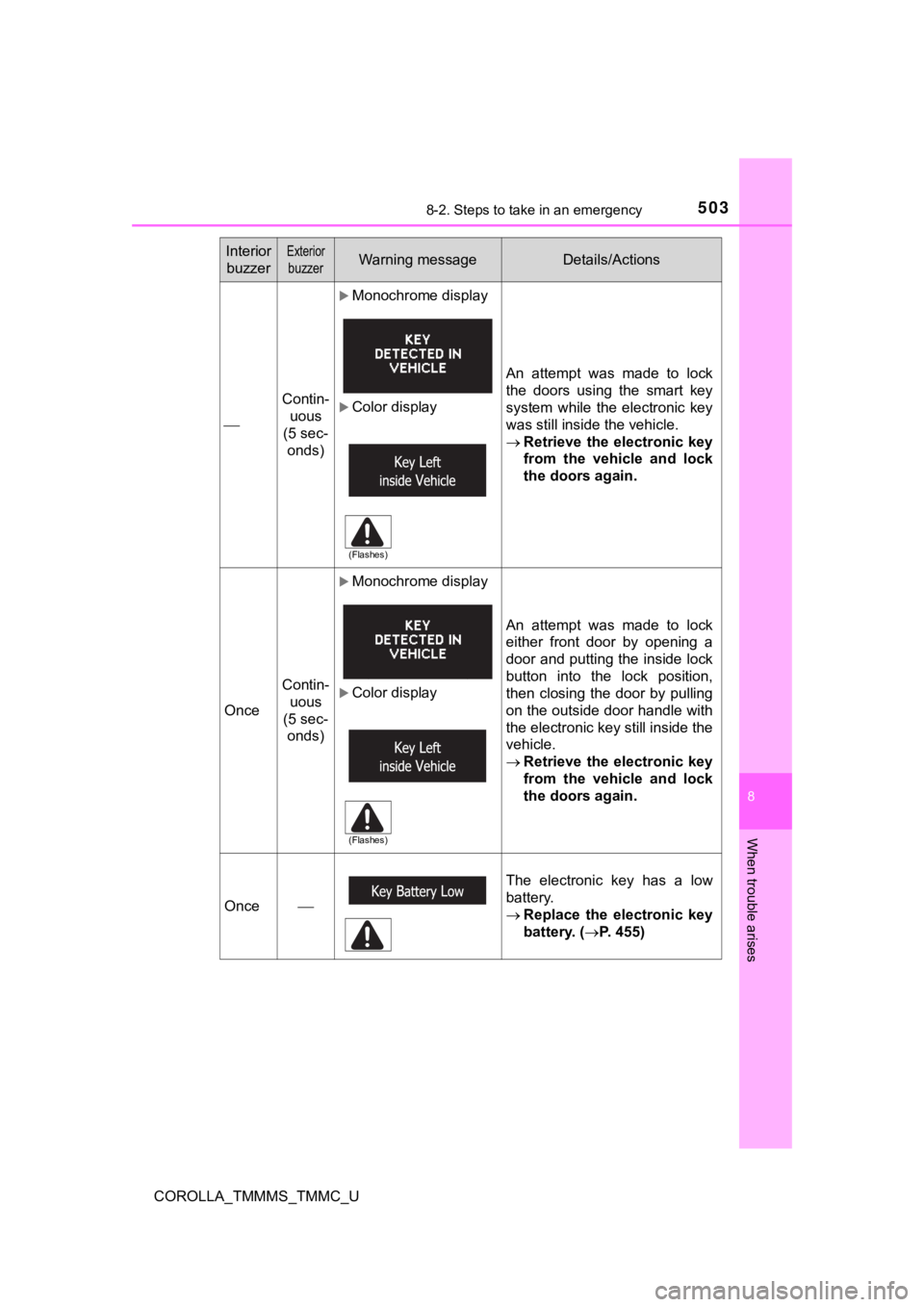

Page 503 of 608

5038-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U
Contin-uous
(5 sec-
onds)
Monochrome display
Color display
An attempt was made to lock
the doors using the smart key
system while the electronic key
was still inside the vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
Contin-
uous
(5 sec- onds)
Monochrome display
Color display
An attempt was made to lock
either front door by opening a
door and putting the inside lock
button into the lock position,
then closing the door by pulling
on the outside door handle with
the electronic key still inside the
vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
The electronic key has a low
battery.
Replace the electronic key
battery. ( P. 455)
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

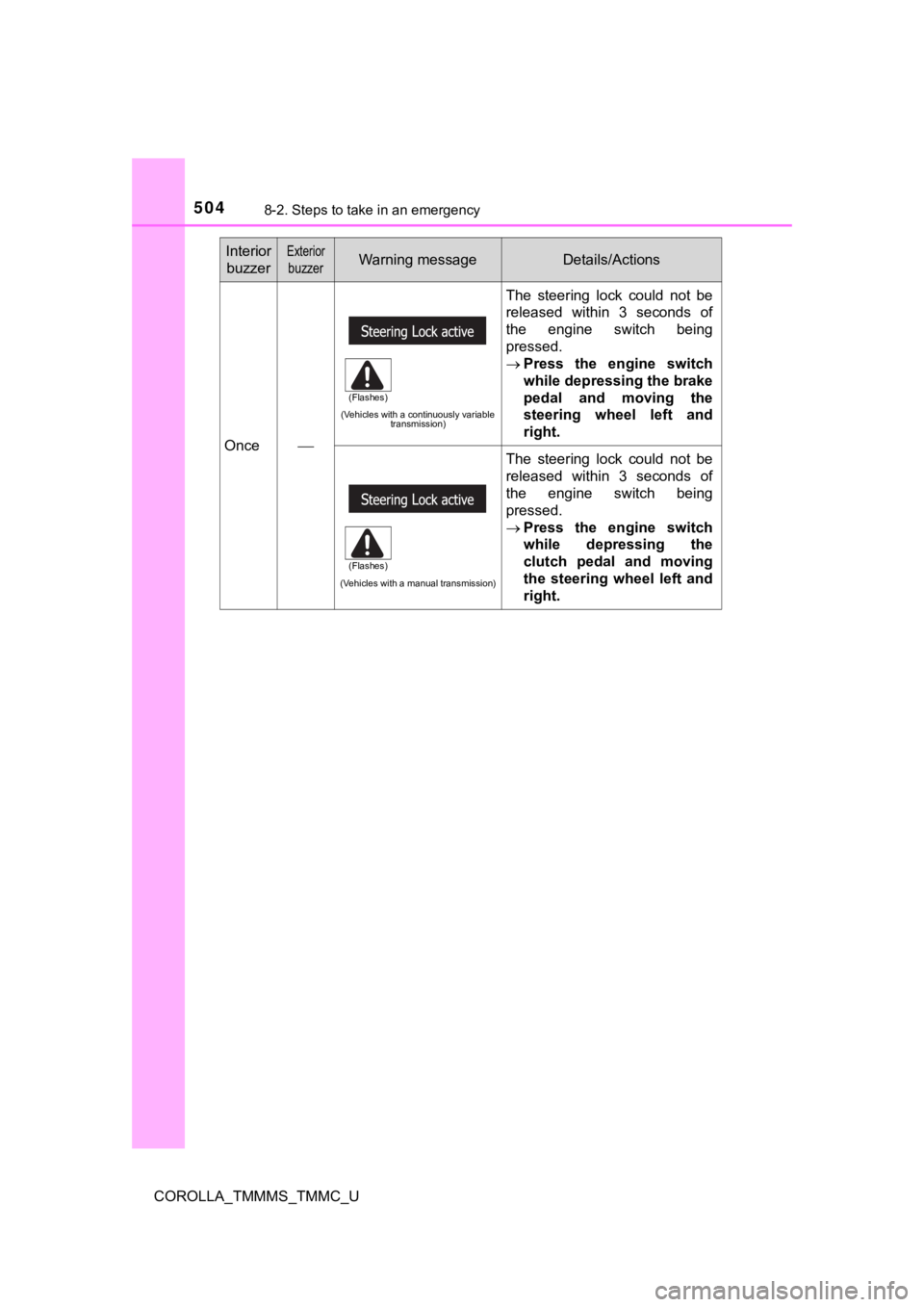

Page 504 of 608

5048-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U
Once
(Vehicles with a continuously variable transmission)
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
Press the engine switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
(Vehicles with a manual transmission)
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
Press the engine switch
while depressing the
clutch pedal and moving
the steering wheel left and
right.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

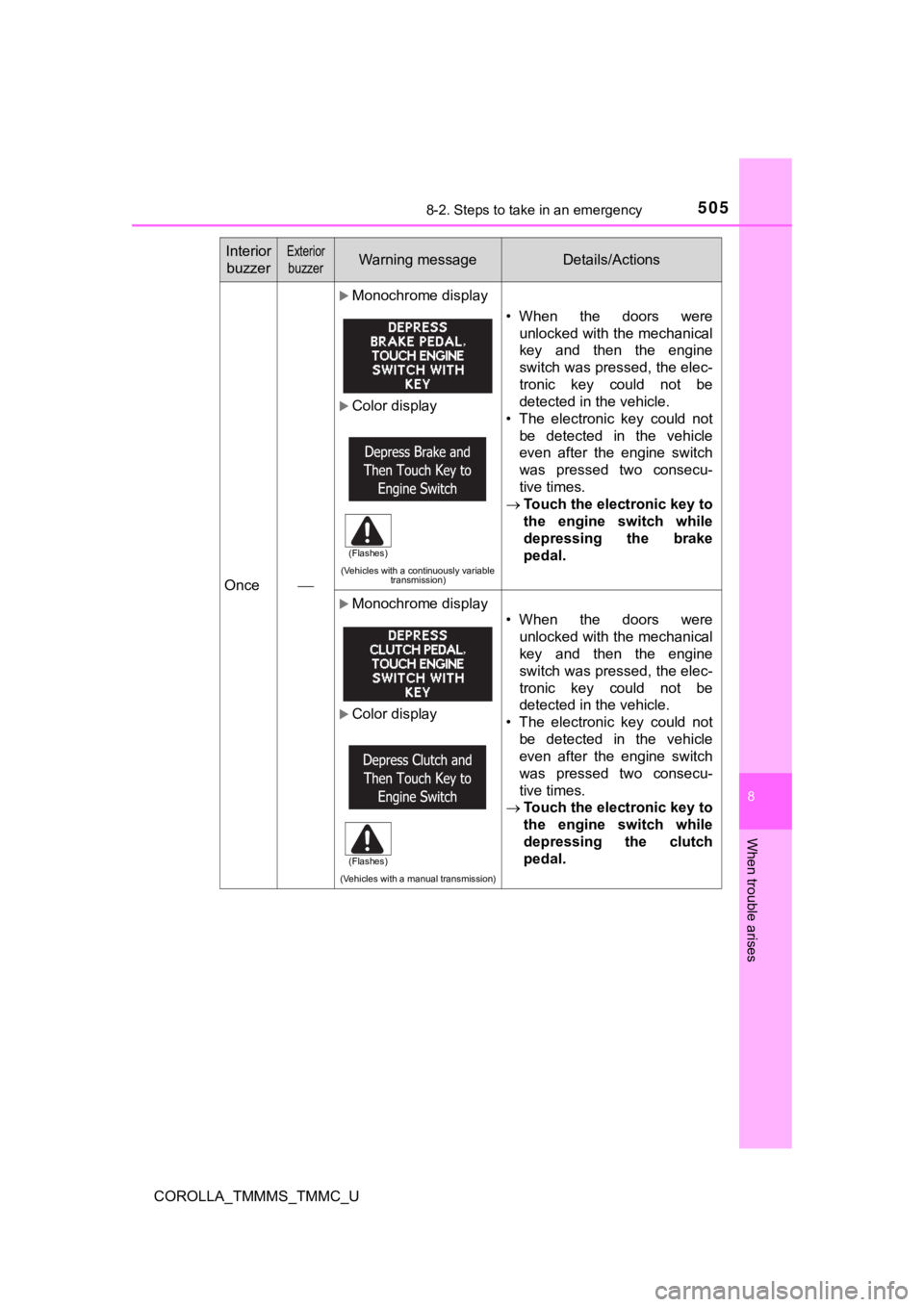

Page 505 of 608

5058-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U
Once
Monochrome display
Color display
(Vehicles with a continuously variable transmission)
• When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
Touch the electronic key to
the engine switch while
depressing the brake
pedal.
Monochrome display
Color display
(Vehicles with a manual transmission)
• When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
Touch the electronic key to
the engine switch while
depressing the clutch
pedal.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

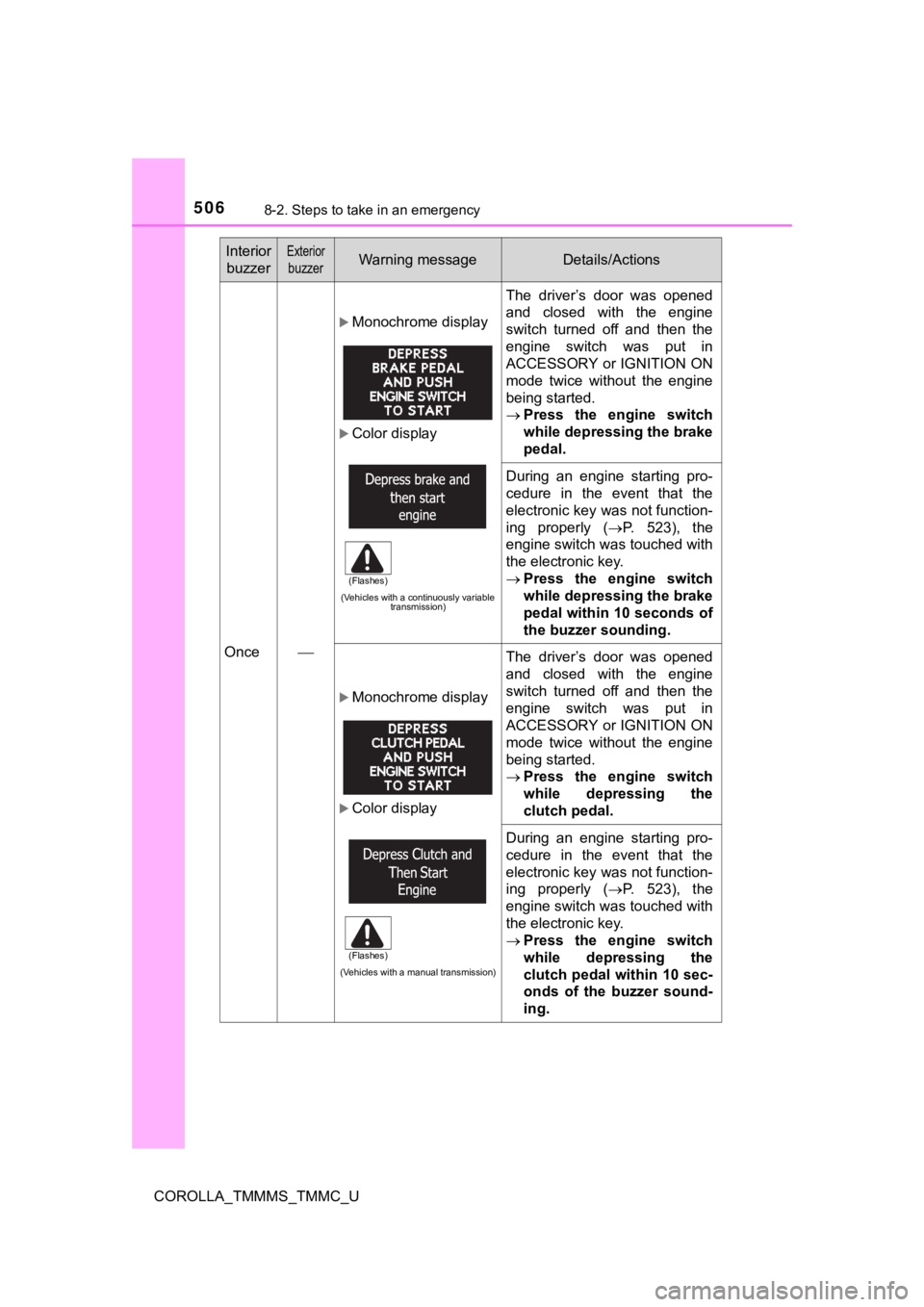

Page 506 of 608

5068-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U
Once
Monochrome display
Color display
(Vehicles with a continuously variable transmission)
The driver’s door was opened
and closed with the engine
switch turned off and then the
engine switch was put in
ACCESSORY or IGNITION ON
mode twice without the engine
being started.
Press the engine switch
while depressing the brake
pedal.
During an engine starting pro-
cedure in the event that the
electronic key was not function-
ing properly ( P. 523), the
engine switch was touched with
the electronic key.
Press the engine switch
while depressing the brake
pedal within 10 seconds of
the buzzer sounding.
Monochrome display
Color display
(Vehicles with a manual transmission)
The driver’s door was opened
and closed with the engine
switch turned off and then the
engine switch was put in
ACCESSORY or IGNITION ON
mode twice without the engine
being started.
Press the engine switch
while depressing the
clutch pedal.
During an engine starting pro-
cedure in the event that the
electronic key was not function-
ing properly ( P. 523), the
engine switch was touched with
the electronic key.
Press the engine switch
while depressing the
clutch pedal within 10 sec-
onds of the buzzer sound-
ing.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

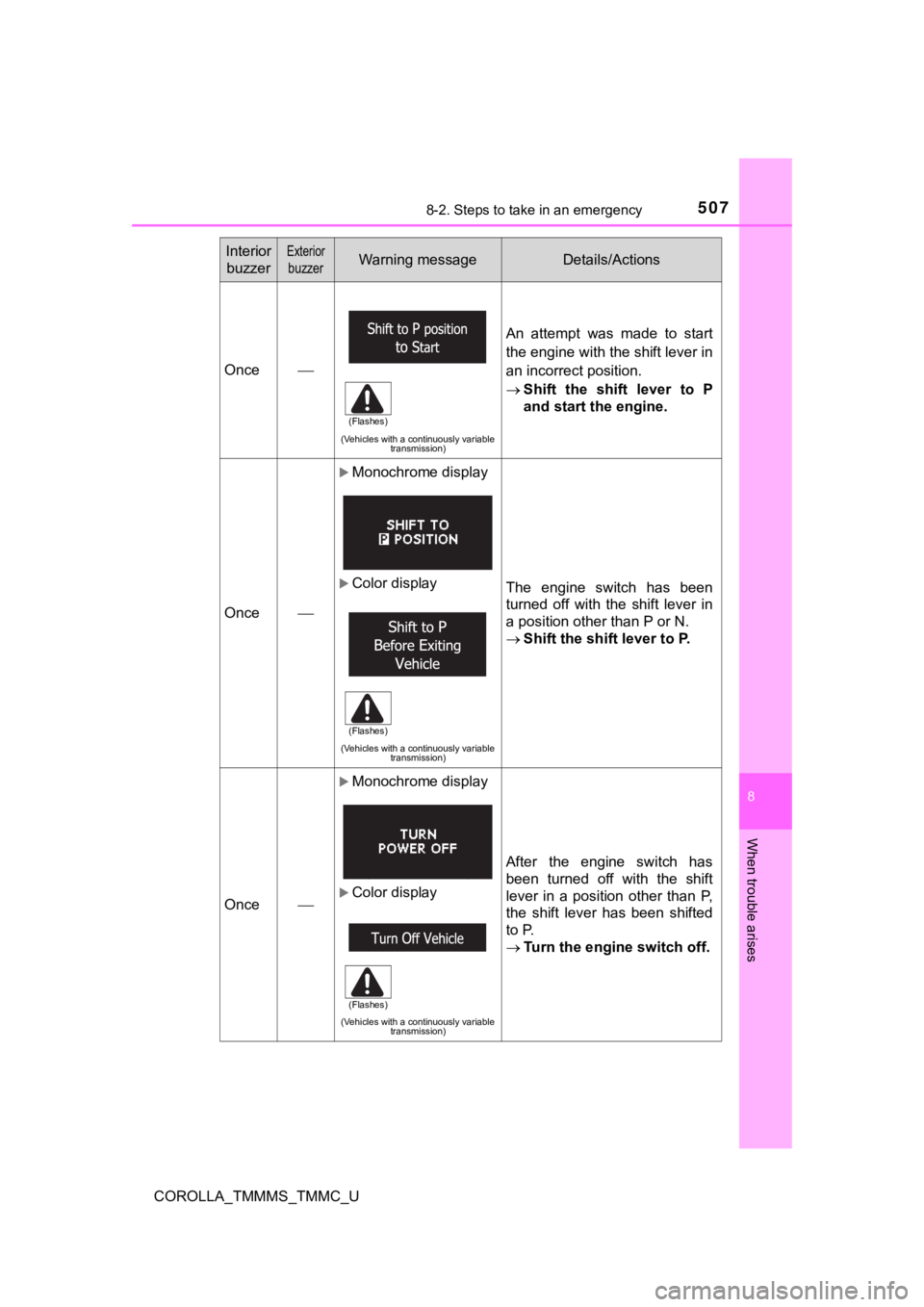

Page 507 of 608

5078-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U
Once
(Vehicles with a continuously variable transmission)
An attempt was made to start
the engine with the shift lever in
an incorrect position.
Shift the shift lever to P
and start the engine.
Once
Monochrome display
Color display
(Vehicles with a continuously variable
transmission)
The engine switch has been
turned off with the shift lever in
a position other than P or N.
Shift the shift lever to P.
Once
Monochrome display
Color display
(Vehicles with a continuously variable
transmission)
After the engine switch has
been turned off with the shift
lever in a position other than P,
the shift lever has been shifted
to P.
Turn the engine switch off.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
Page 508 of 608

5088-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U
■Message displays
Message displays used in this section are intended as examples, and may
differ from the image that is actually displayed on the multi-information dis-
play.
■ Warning buzzer
P. 485
Monochrome display
Color display
(Vehicles with a continuously variable
transmission)
Power was turned off due to the
automatic power off function.
Next time when starting
the engine, increase the
engine speed slightly and
maintain that level for
approximately 5 minutes
to recharge the battery.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
Page 509 of 608

5098-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (cont inuously variable transmission) or R
(manual transmission).
● Stop the engine.
● Turn on the emergency flashers. ( P. 470)
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can b e
replaced with the spare tire.
For details about tires: P. 4 4 0
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance wit h a flat tire can damage the tire and the
wheel beyond repair, which cou ld result in an accident.
Before jacking up the vehicle
Page 510 of 608

5108-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U
*: The jack attachment is used when raising your vehicle with a floor jack.
( P. 4 2 7 )
Location of the spare tire, jack and tools
Luggage floor cover
Wheel nut wrench
Jack handle
Jack attachment
*
Jack
Spare tire
To o l t r a y1
2
3
4
5
6
7
