Instrument cluster2
COROLLA_TMMMS_TMMC_U2. Instrument cluster
Warning lights and indicators .......................... 72
Gauges and meters (vehicles with a
monochrome display) ....... 77
Gauges and meters (vehicles with a
color display)..................... 86
Fuel consumption information ........................ 96
Eco Driving Indicator ........... 99

72
COROLLA_TMMMS_TMMC_U
2. Instrument cluster
Vehicles with a monochrome display
Vehicles with a color display
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

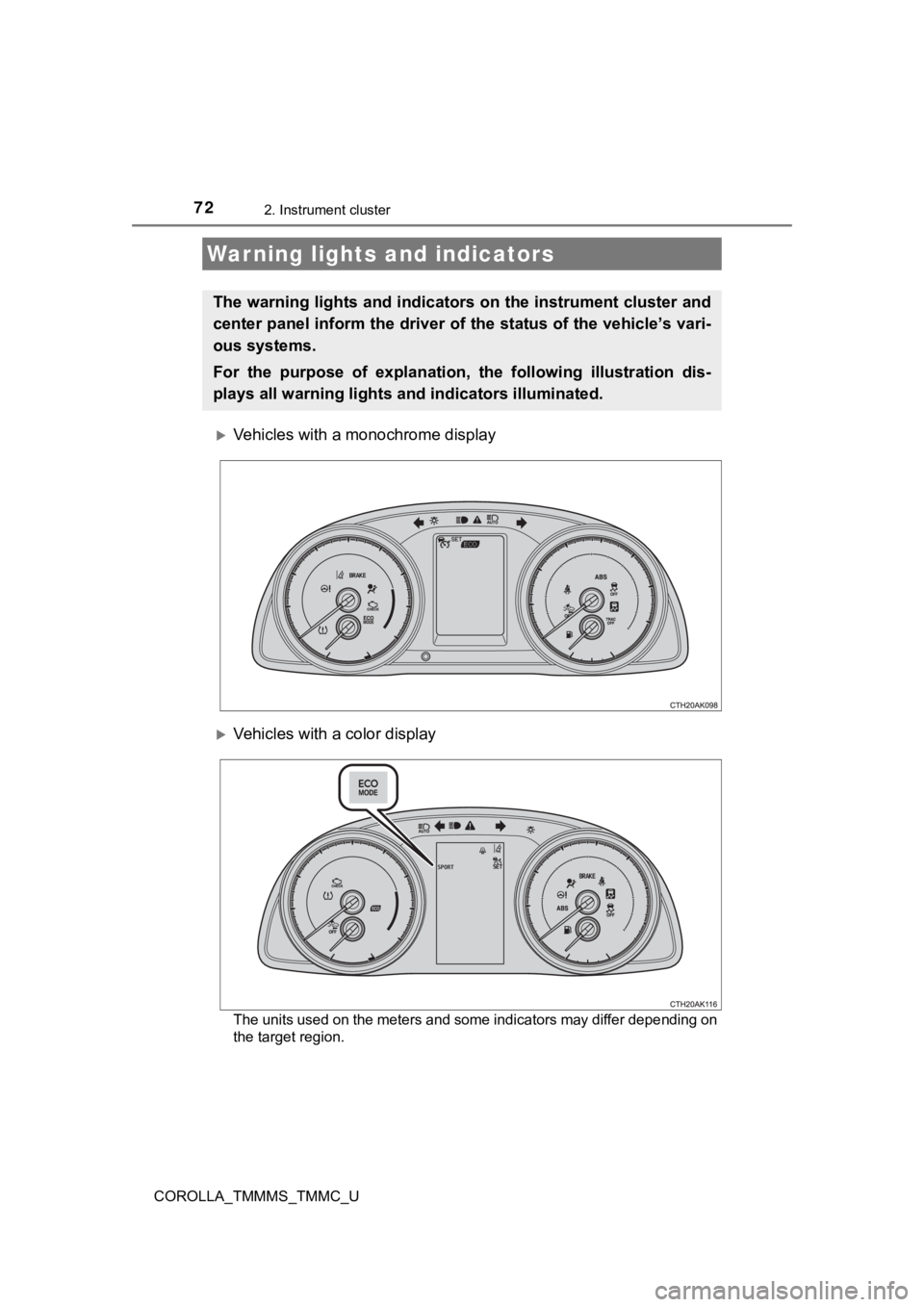

For the purpose of explanation, t he following illustration dis-
plays all warning lights a nd indicators illuminated.

732. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U

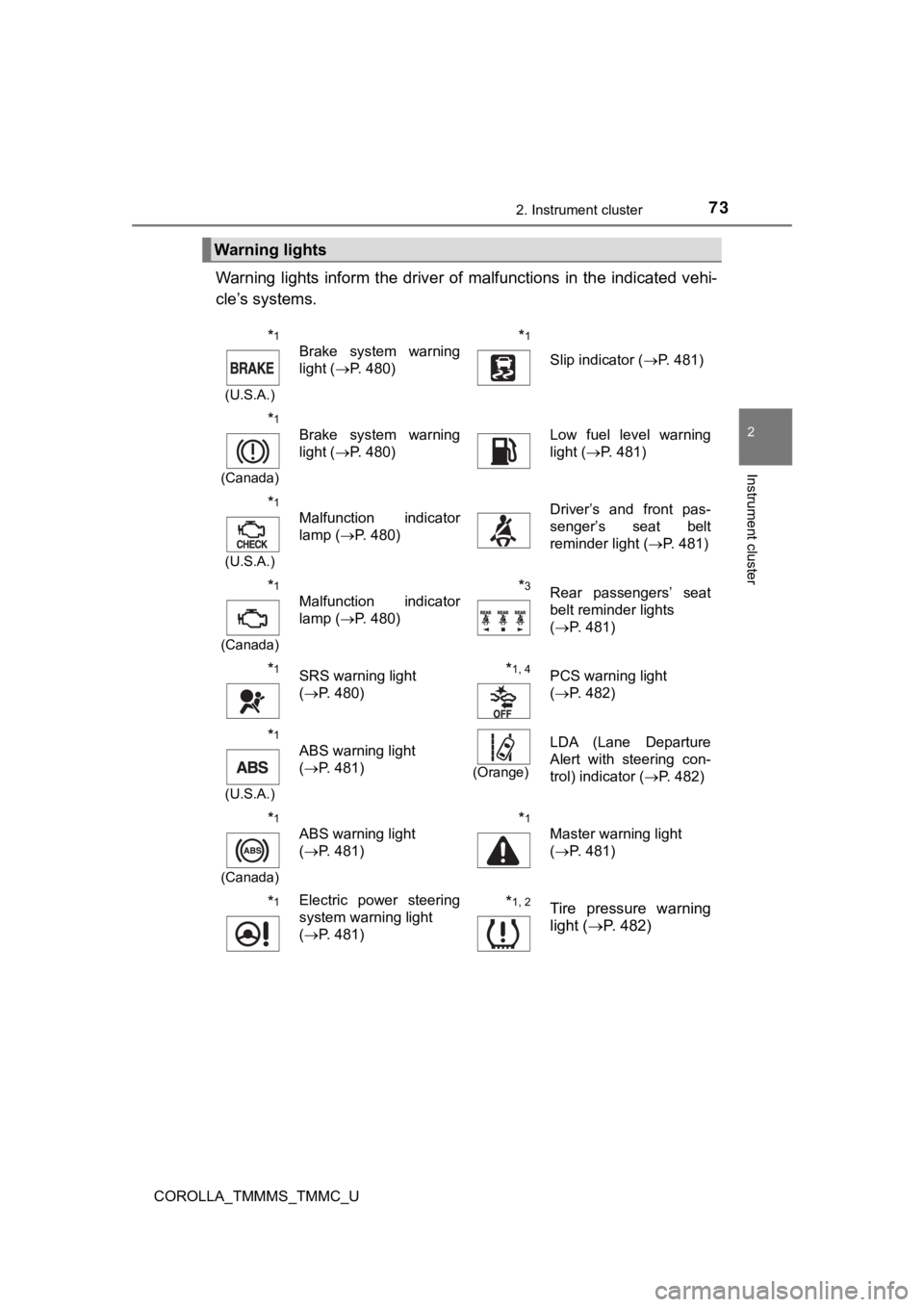

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 480)*1
Slip indicator ( P. 481)
*1
(Canada)
Brake system warning
light (P. 480)Low fuel level warning
light (P. 481)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 480)Driver’s and front pas-
senger’s seat belt
reminder light ( P. 481)
*1
(Canada)
Malfunction indicator
lamp (P. 480)*3Rear passengers’ seat
belt reminder lights
(P. 481)
*1SRS warning light
(P. 480)*1, 4PCS warning light
(P. 482)
*1
(U.S.A.)
ABS warning light
(P. 481)
(Orange)
LDA (Lane Departure
Alert with steering con-
trol) indicator ( P. 482)
*1
(Canada)
ABS warning light
(P. 481)*1
Master warning light
(P. 481)
*1Electric power steering
system warning light
(P. 481)*1, 2Tire pressure warning
light ( P. 482)

742. Instrument cluster
COROLLA_TMMMS_TMMC_U
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or the engine switch is turned to
IGNITION ON mode (vehicles with a smart key system), to indicat e that a
system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
a light does not come on, or turn off. Have the vehicle inspect ed by your
Toyota dealer.
*2: If equipped
*3: This light illuminates on the center panel.
*4: The light flashes to indicate a malfunction.

752. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U

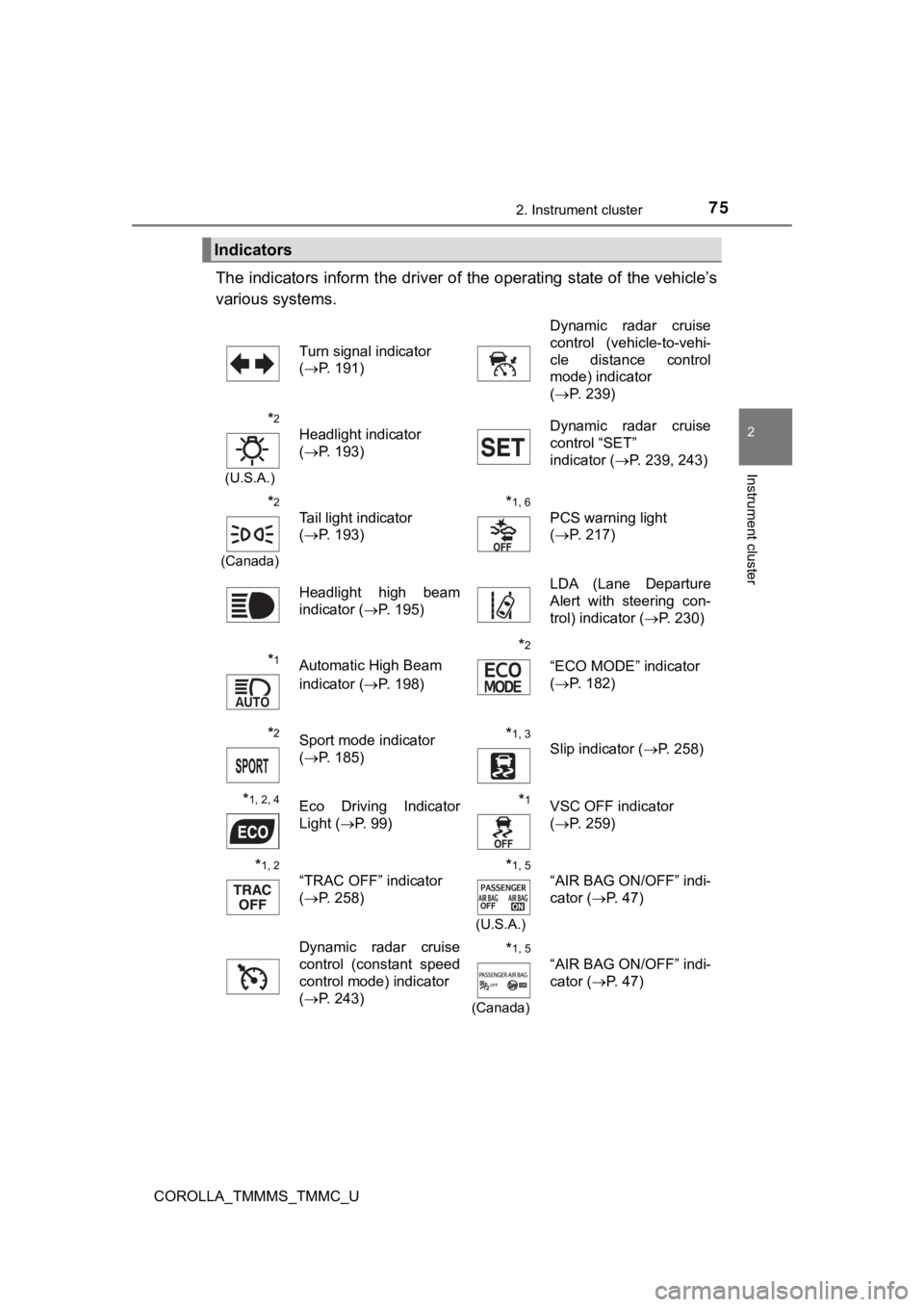

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 191) Dynamic radar cruise
control (vehicle-to-vehi-
cle distance control
mode) indicator
(
P. 239)
*2
(U.S.A.)
Headlight indicator
(P. 193) Dynamic radar cruise
control “SET”
indicator (
P. 239, 243)
*2
(Canada)
Tail light indicator
(P. 193) *1, 6
PCS warning light
(P. 217)
Headlight high beam
indicator ( P. 195) LDA (Lane Departure
Alert with steering con-
trol) indicator (
P. 230)
*1Automatic High Beam
indicator (P. 198)
*2
“ECO MODE” indicator
(P. 182)
*2Sport mode indicator
(P. 185)*1, 3 Slip indicator ( P. 258)
*1, 2, 4Eco Driving Indicator
Light (P. 99)*1VSC OFF indicator
(P. 259)
*1, 2
“TRAC OFF” indicator
(P. 258)*1, 5
(U.S.A.)
“AIR BAG ON/OFF” indi-
cator ( P. 47)
Dynamic radar cruise
control (constant speed
control mode) indicator
( P. 243)
*1, 5
(Canada)
“AIR BAG ON/OFF” indi-
cator ( P. 47)

762. Instrument cluster
COROLLA_TMMMS_TMMC_U
*1: These lights, except those shown on the multi-information display, turn on
when the engine switch is turned to the “ON” position (vehicles without a
smart key system) or the engine switch is turned to IGNITION ON mode
(vehicles with a smart key system) to indicate that a system ch eck is being
performed. They will turn off after the engine is started, or a fter a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or turn off. Have the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: The light flashes to indicate that the system is operating.
*4: The light does not turn on when the system is disabled.
*5: This light illuminates on the center panel.
*6: The light turns on when the system is off.
*7: When the outside temperature is approximately 37°F (3°C) or lo wer, the
indicator will flash 10 times, then stay on.
*5
Security indicator
( P. 67, 69)*2, 7
Low outside tempera-
ture indicator ( P. 86)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could r esult in death
or serious injury. Have the vehicle inspected by your Toyota de aler immedi-
ately if this occurs.

772. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U

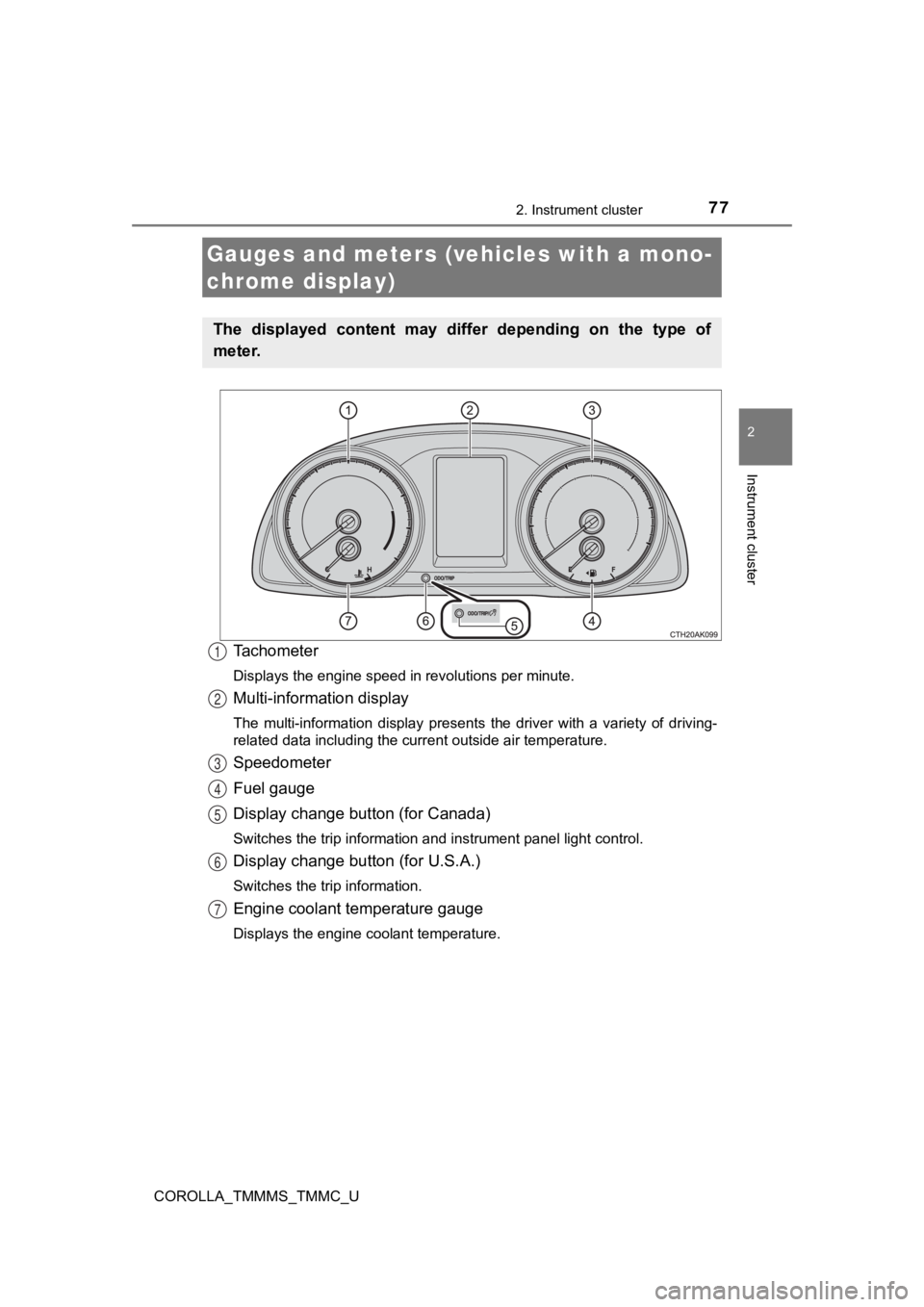

Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
Speedometer
Fuel gauge
Display change button (for Canada)
Switches the trip information and instrument panel light contro l.
Display change button (for U.S.A.)
Switches the trip information.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Gauges and meters (vehicles with a mono-
chrome display)
The displayed content may differ depending on the type of
meter.
1
2
3
4
5
6
7

782. Instrument cluster
COROLLA_TMMMS_TMMC_U

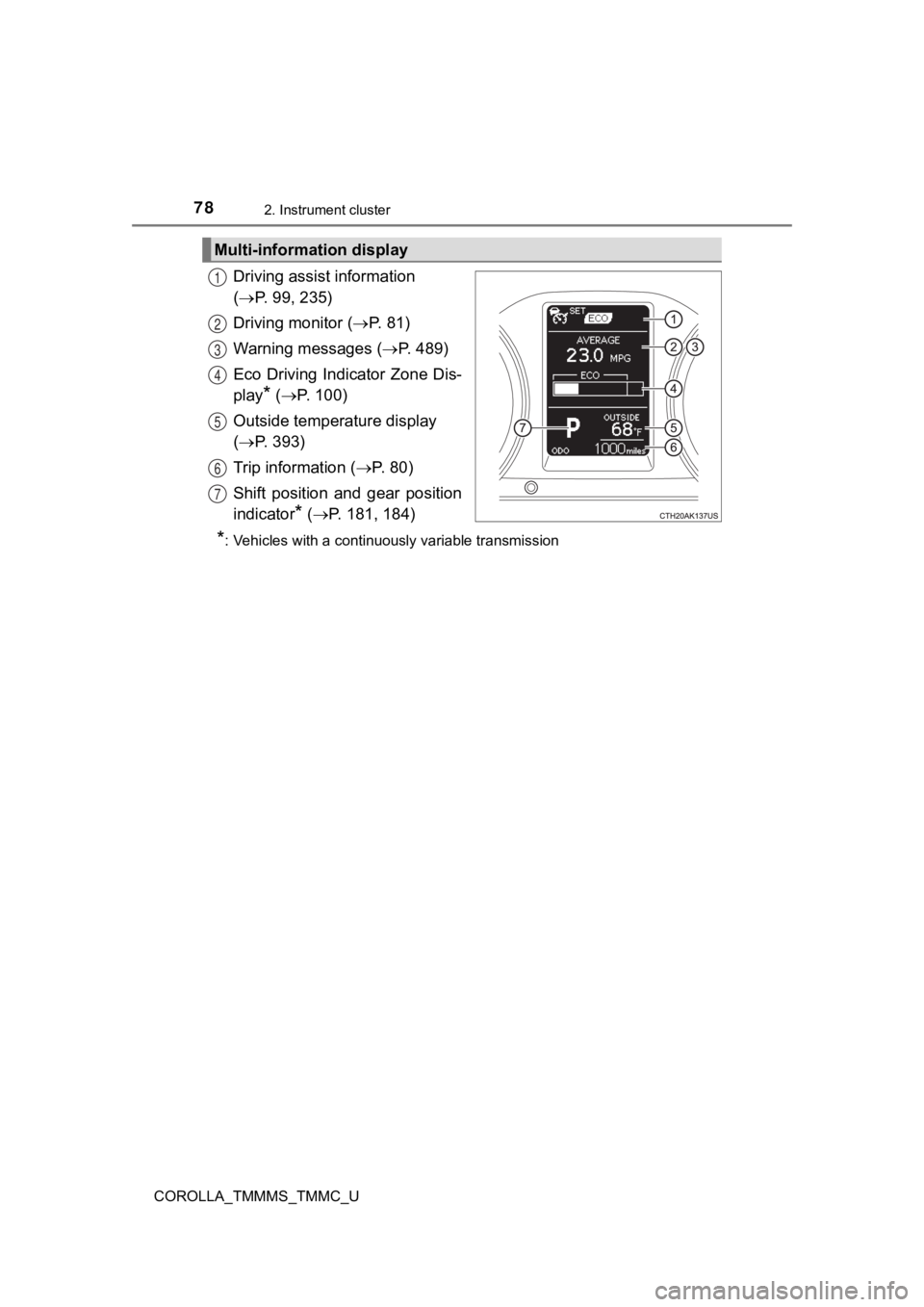

Driving assist information
( P. 99, 235)
Driving monitor ( P. 81)
Warning messages ( P. 4 8 9 )
Eco Driving Indicator Zone Dis-
play
* (  P. 100)
Outside temperature display
(  P. 393)
Trip information ( P. 8 0 )
Shift position and gear position
indicator
* (  P. 181, 184)
*: Vehicles with a continuously variable transmission
Multi-information display
1
2
3
4
5
6
7

792. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U

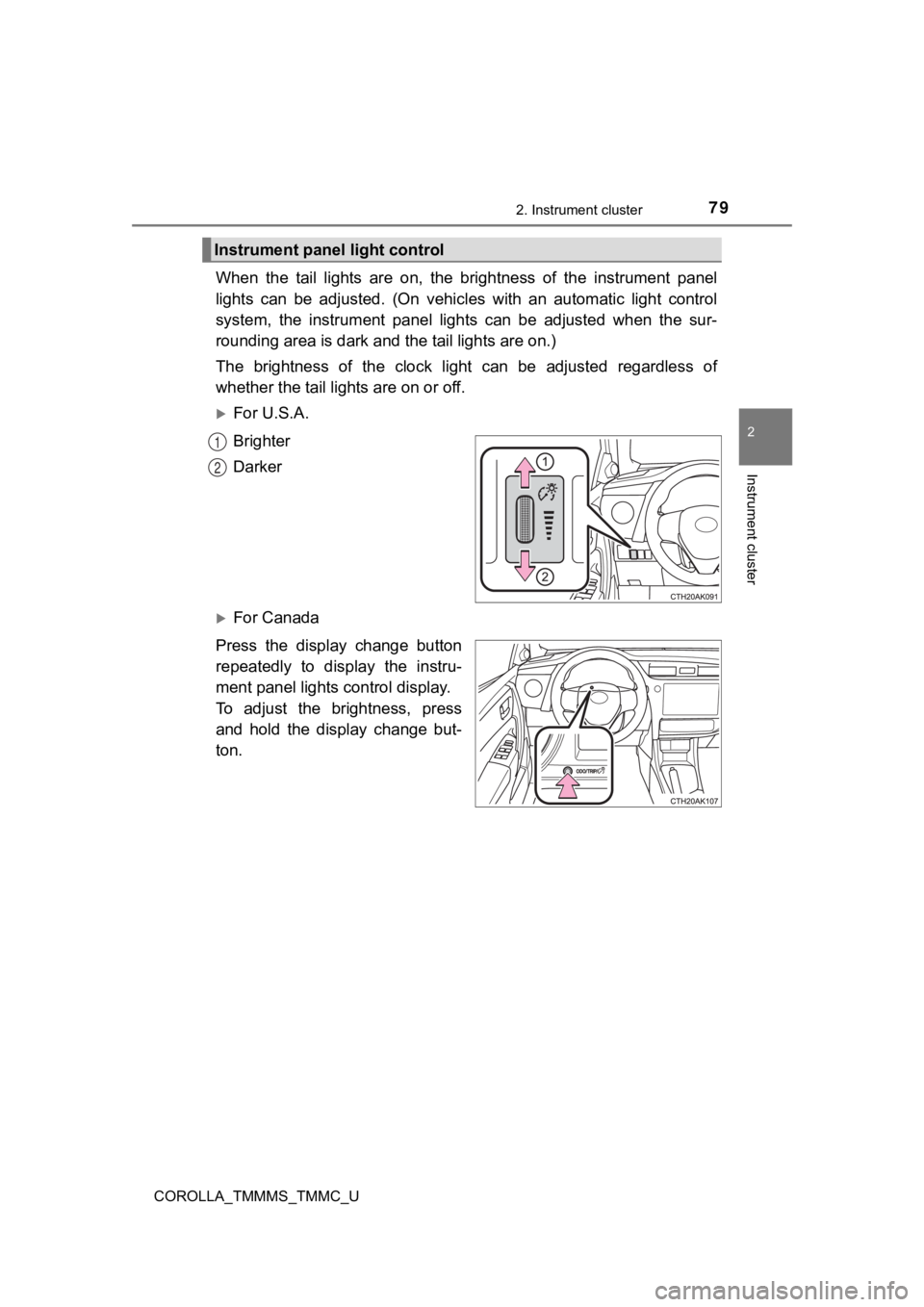

When the tail lights are on, the brightness of the instrument panel
lights can be adjusted. (On vehicles with an automatic light co ntrol
system, the instrument panel lights can be adjusted when the su r-
rounding area is dark and the tail lights are on.)
The brightness of the clock ligh t can be adjusted regardless of
whether the tail lights are on or off.
For U.S.A.
Brighter
Darker
For Canada
Press the display change button
repeatedly to display the instru-
ment panel lights control display.
To adjust the brightness, press
and hold the display change but-
ton.
Instrument panel light control
1
2

802. Instrument cluster
COROLLA_TMMMS_TMMC_U■
Switching the display

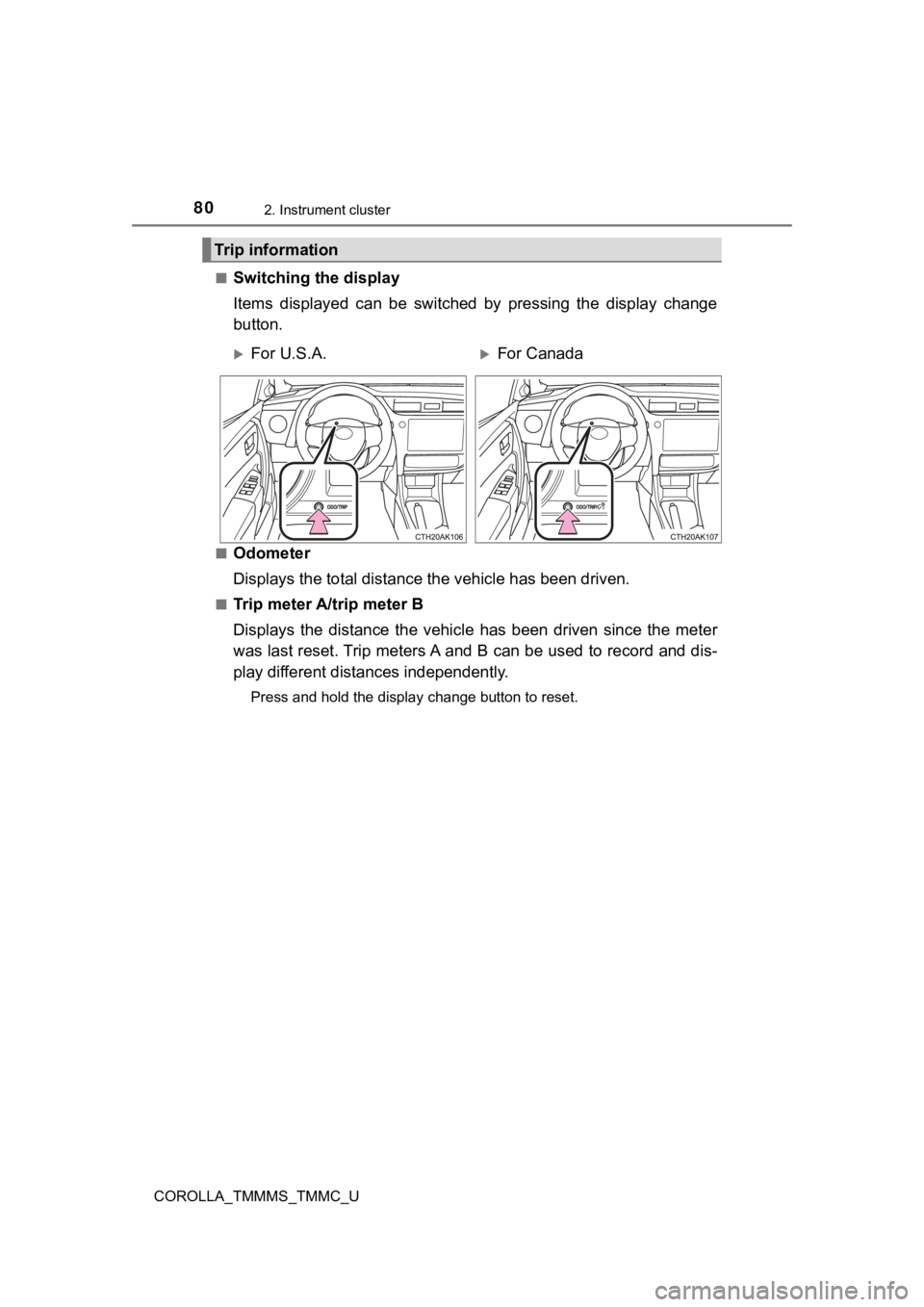

Items displayed can be switched by pressing the display change
button.
■Odometer
Displays the total distance
the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicl e has been driven since the met er
was last reset. Trip meters A and B can be used to record and d is-
play different distances independently.
Press and hold the display change button to reset.
Trip information
For U.S.A.For Canada
